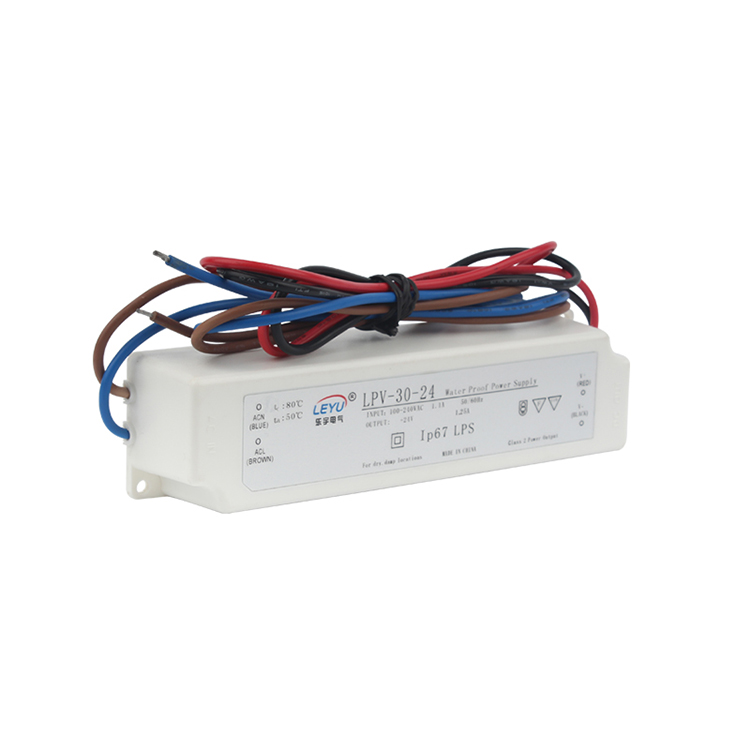

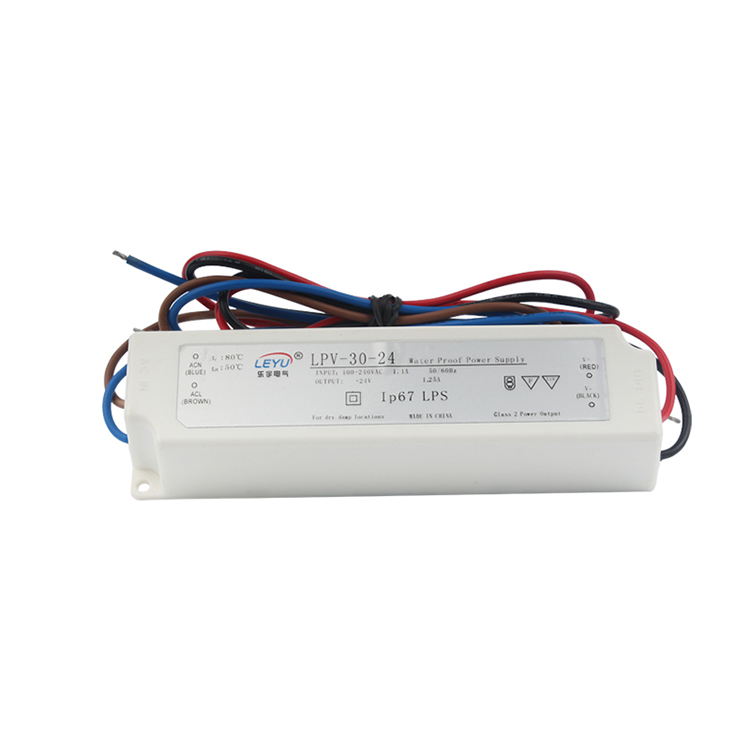

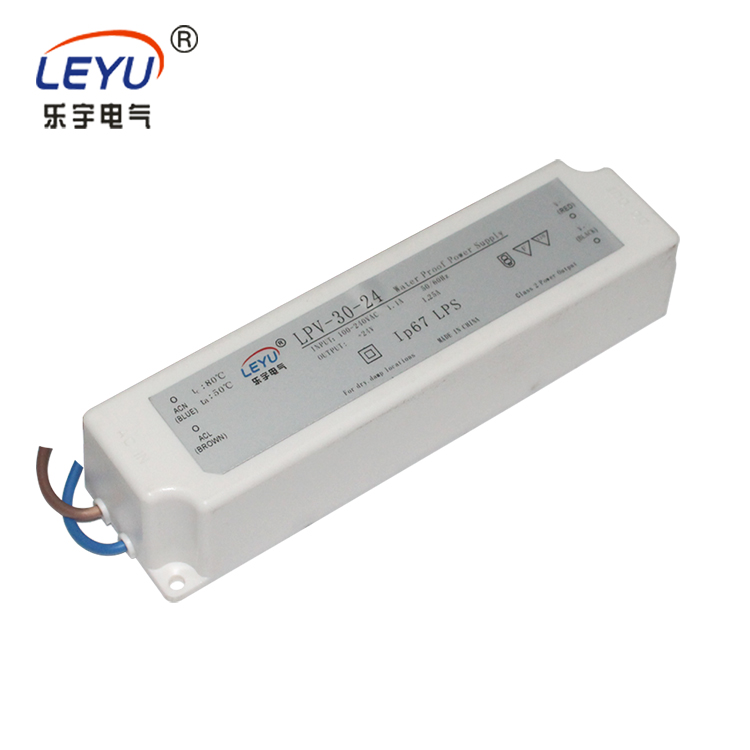

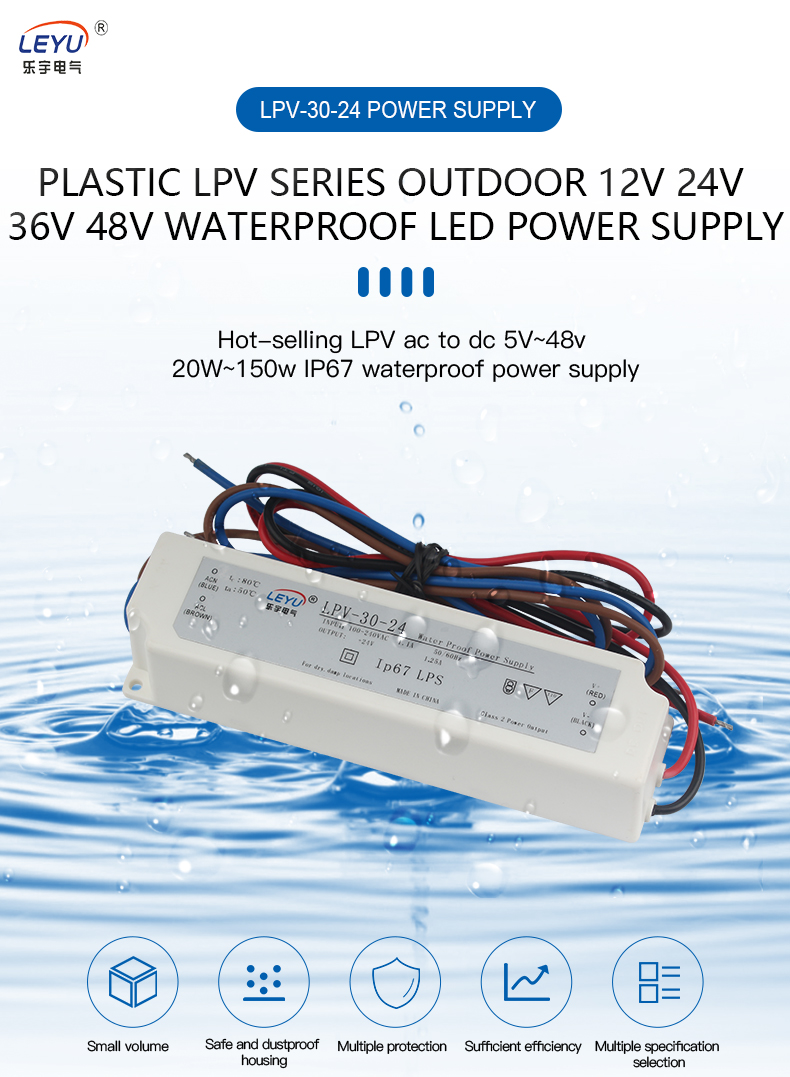

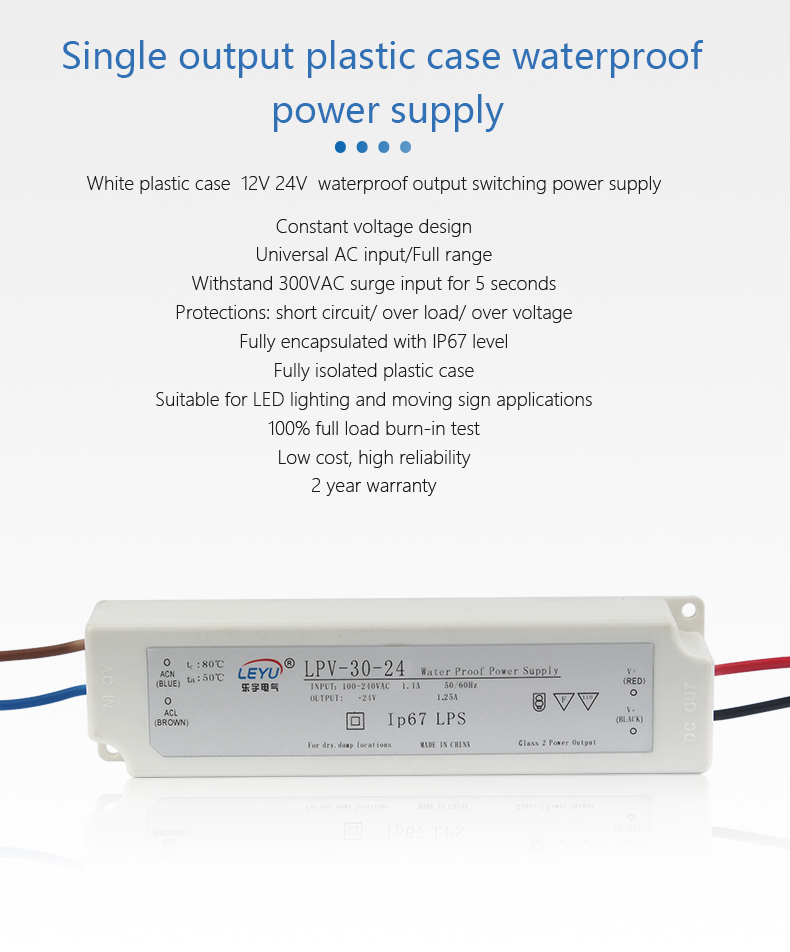

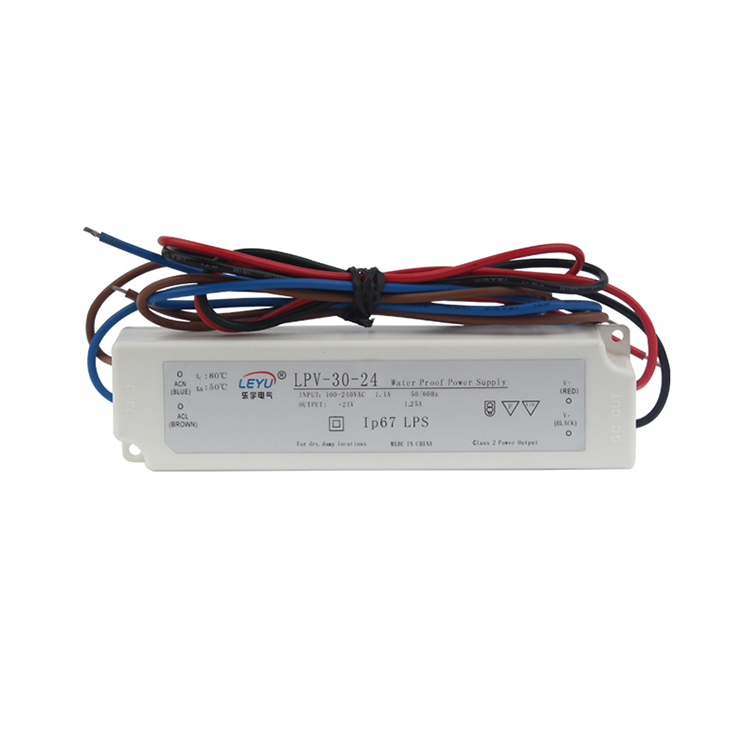

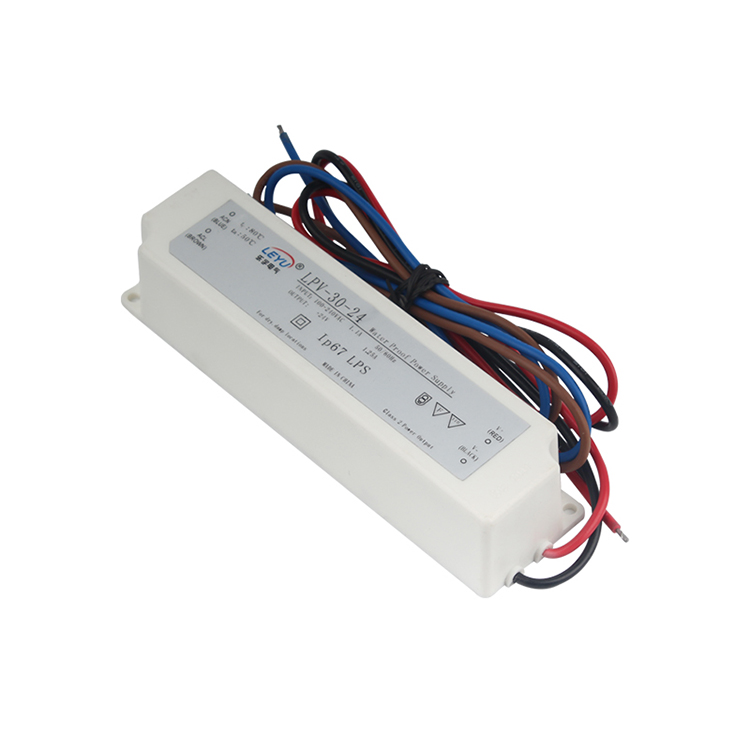

30W Waterproof Single Output Switching Power Supply LPV-30 series

Features:

Constant voltage design

Universal AC input/Full range

Withstand 300VAC surge input for 5 seconds

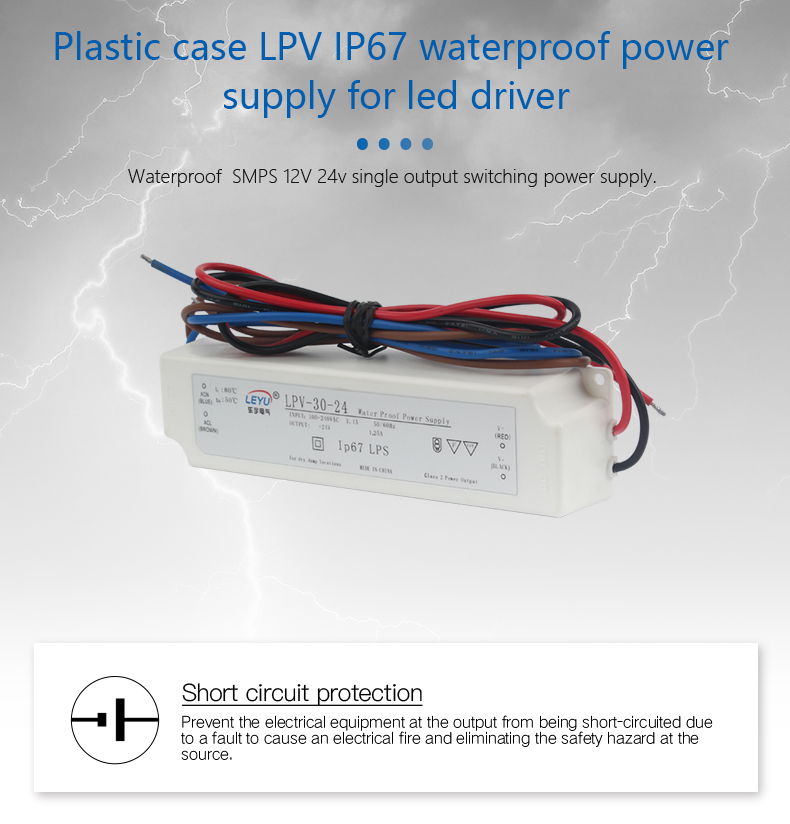

Protections: short circuit/ over load/ over voltage

Cooling by free air convection

Small and compact size

Fully encapsulated with IP67 level

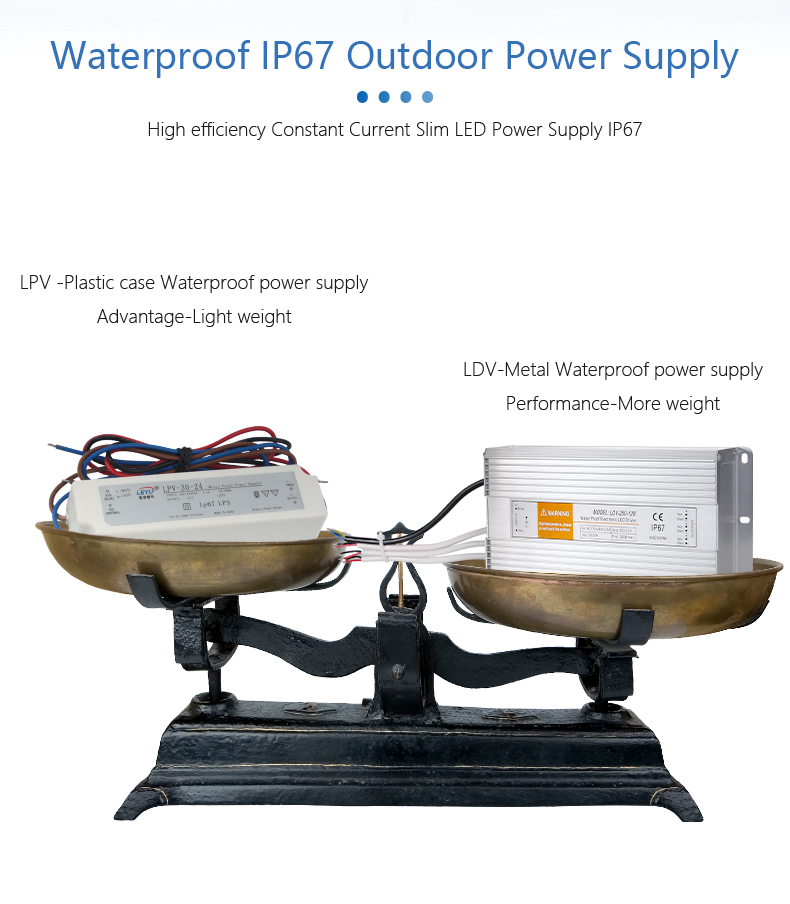

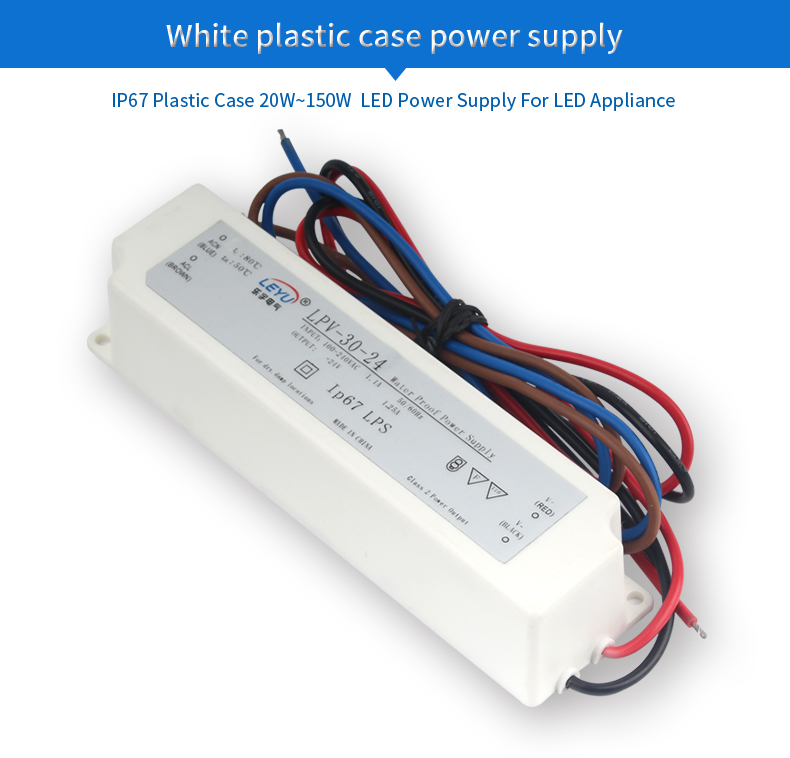

Fully isolated plastic case

Class II power unit, no FG

Class 2 power unit

Pass LPS

Suitable for LED lighting and moving sign applications

100% full load burn-in test

Low cost, high reliability

2 year warranty

SPECIFICATION
Model		LPV-30-12	LPV-30-24
Output	DC voltage	12V	24V
	Current range	0~2.5A	0~1.25A
	Ripple&noise	100mvp-p	100mvp-p
	Voltage range	85-264VAC 120-370VDC，47-63Hz
	Efficiency	78%	80%
	Inrush current	Cold start current 30A/230VAC
	Over load	105%~150% cut off the output,automatic recovery
	Over voltage	121%-142% shut down O/P voltage, re-power on to recover
Environment	Working temperature	-10℃~+50℃
Safety	Withstand voltage	l/P-O/P:1.5KVAC VP-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	Lsolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Other	Dimension	1503930mm(LWH)
	Weigth/packing	0.25kg/80pcs/20kg/472418.5cm
Note	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation.
