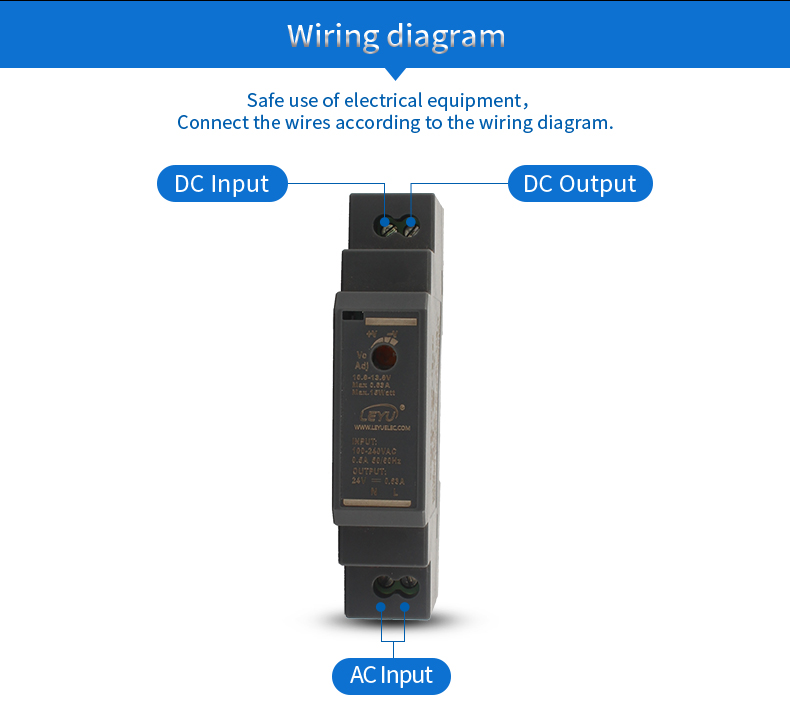

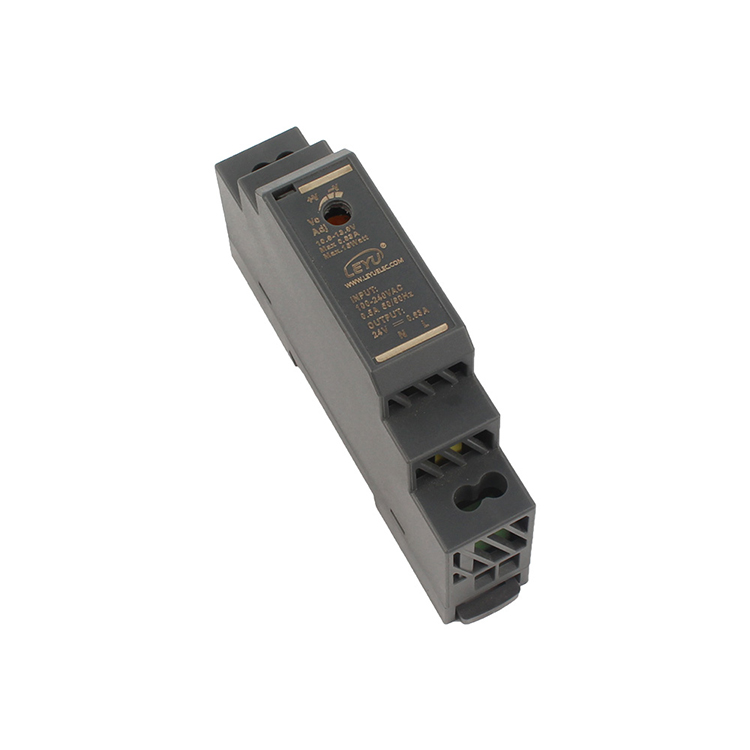

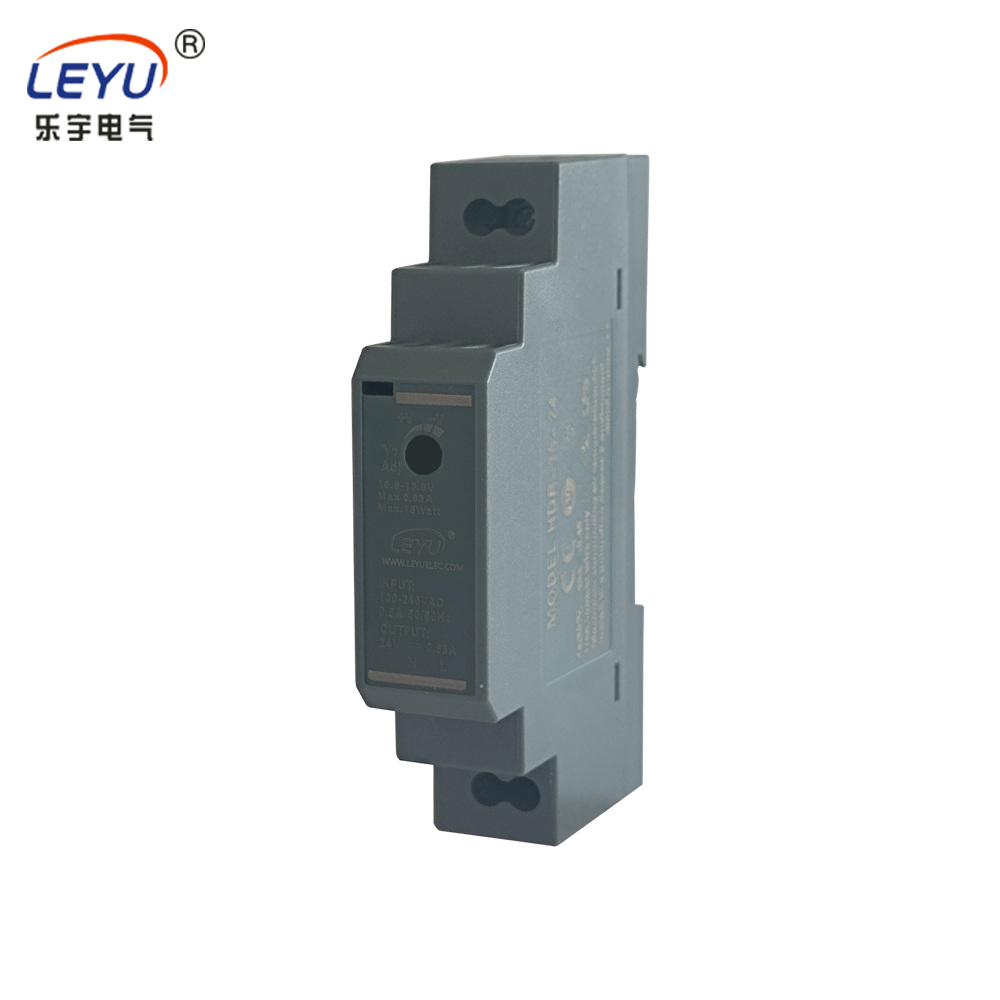

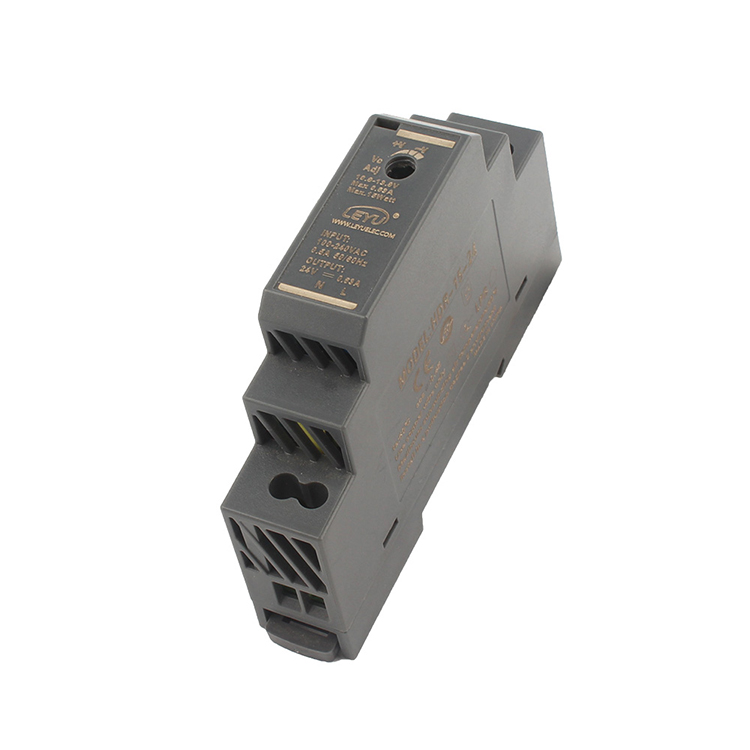

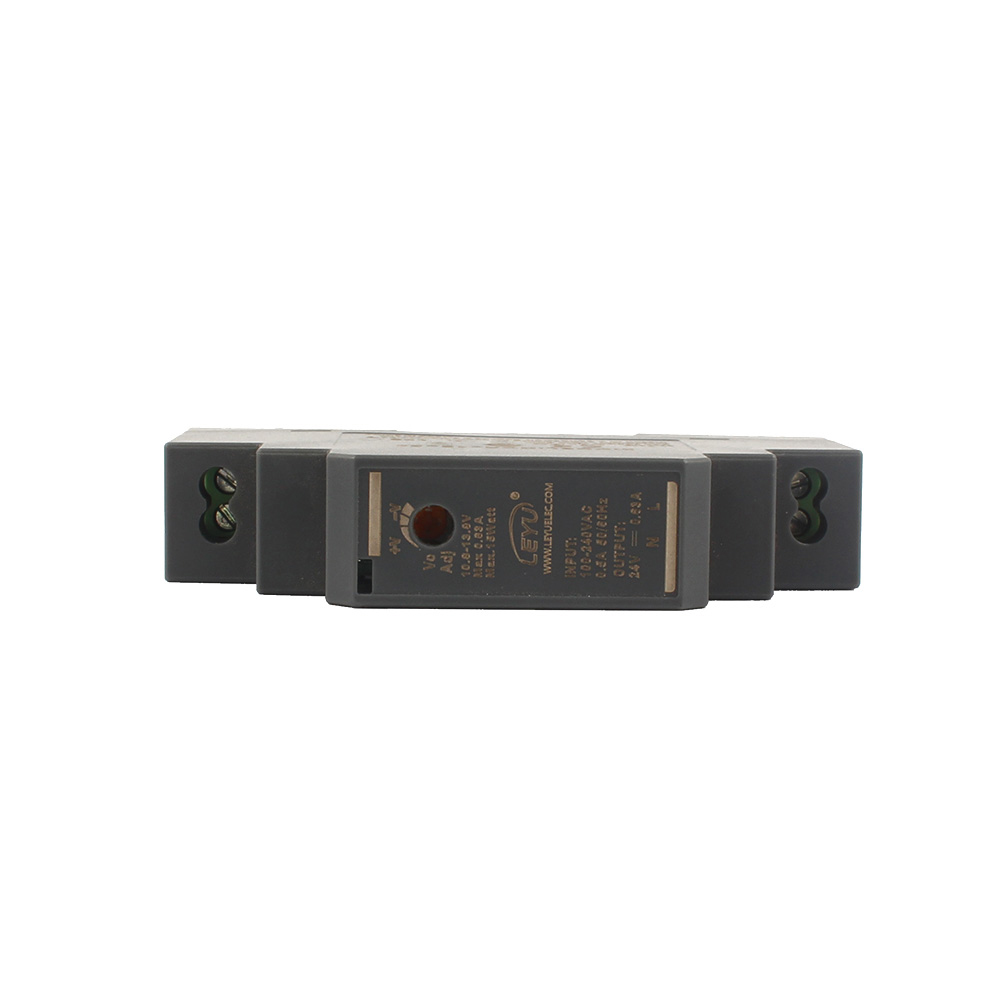

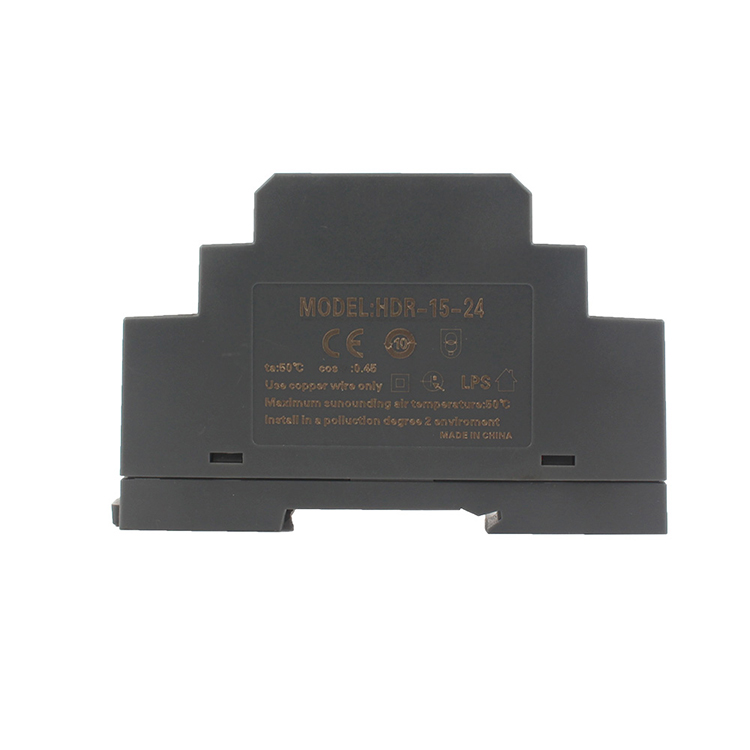

SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
Model |
HDR-15-5 |
HDR15-12 |
HDR-15-15 |
HDR-15-24 |
|
DC Voltage |
5V |
12V |
15V |
24V |
|
Rated Current |
2.4A |
1.25A |
1A |
0.63A |
|
Current Range |
0-2.4A |
0-1.25A |
0-1A |
0-0.63A |
|
Rated Power |
12W |
15W |
15W |
15.2W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
Voltage Adj. Range |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
|
Line regulation |
±1% |
±1% |
±1% |
±1% |
|
Load regulation |
±1% |
±1% |
±1% |
±1% |
|
Setup, Rise, Hold Up Time |
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
85 ~ 264VAC 120 ~ 370VDC |
|||
|
AC Current |
0.88A/115VAC 0.48A/230VAC |
|||
|

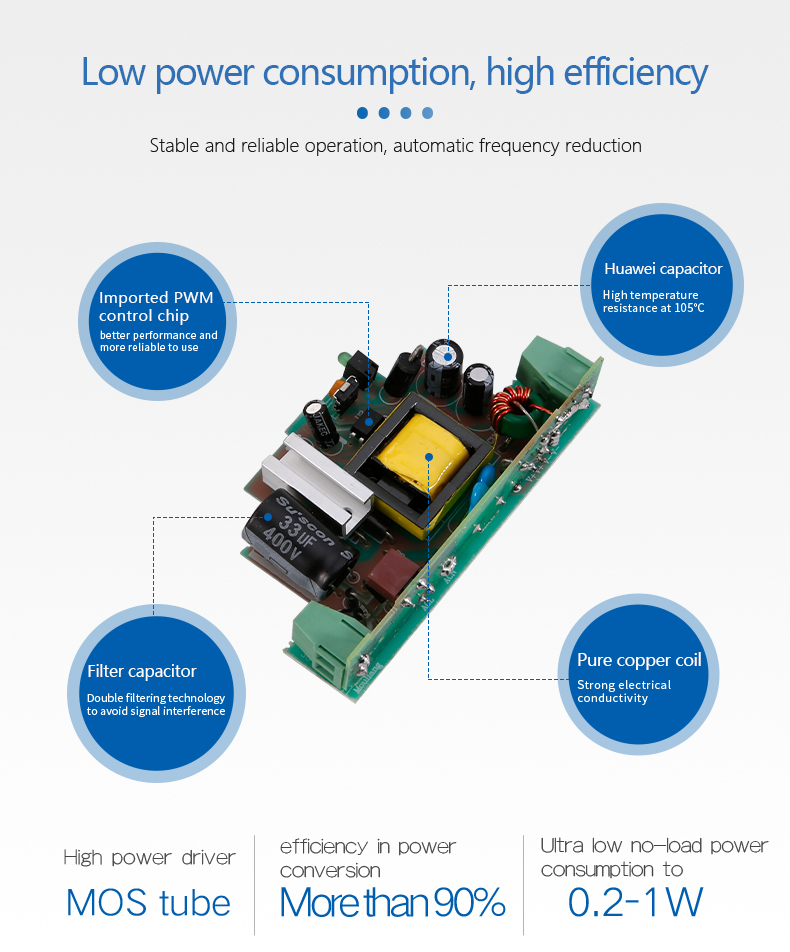

Efficiency |
77% |
84% |
83.5% |
85% |
|
Inrush Current |
COLD START 35A/115VAC 65A/230VAC |
|||
|
|
|
|||
|

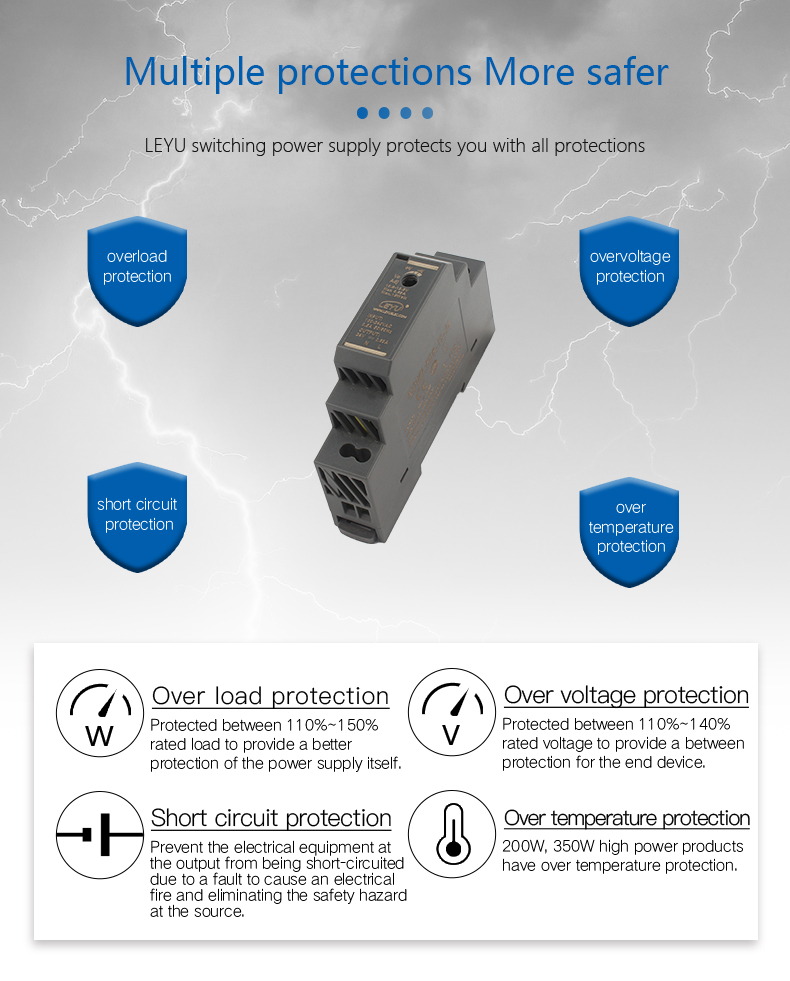

PROTECTION |
|
|||
|
Over Load |
105%~160% rated output power |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||||
|
Over Voltage |
5.75-6.75V |
13.8-16.2V |
17.25-20.25V |
27.6-32.4V |
|
Protection type: Shut off o/p voltage, clamping by zener diode |
||||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-20℃~+60℃; 20%~90% RH non-condensing |
|||
|
Storage Temp., Humidity |
-40℃~+85℃; 10%~95%RH |
|||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6 |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P: 3KVAC |
|||
|
Isolation Resistance |
I/P-O/P: 100M Ohms / 500VDC/ 25℃/ 70%RH |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A |
|||
|
|
|
|||
|
OTHERS |
|
|||
|

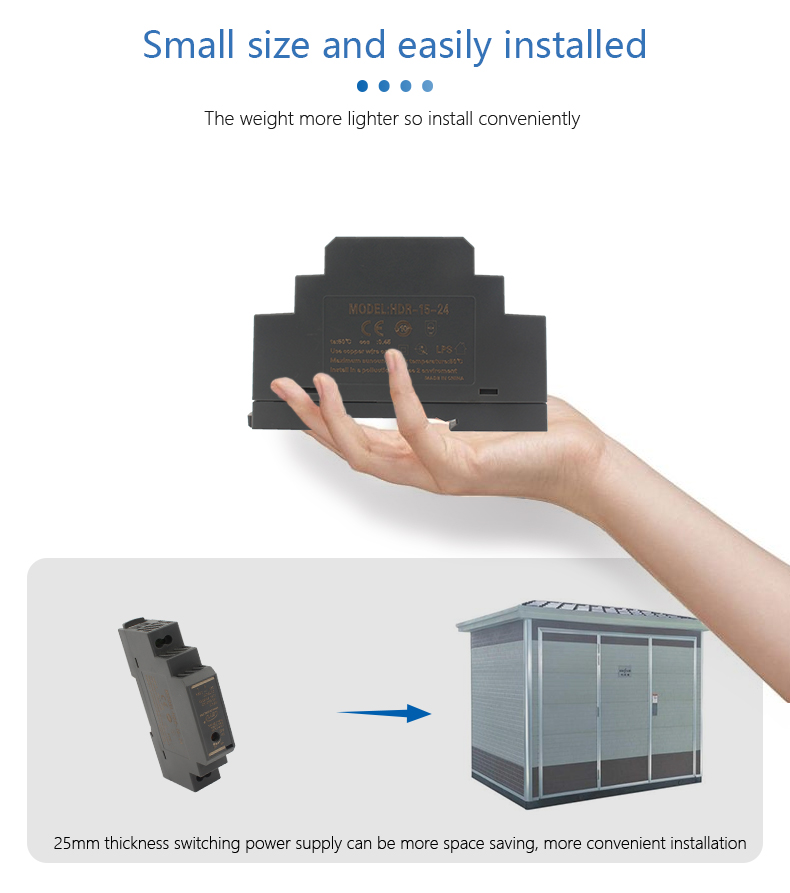

Dimension |
93*18*56mm |
|||
|
Weight |
0.1Kg |
|||
|
Packing |
140pcs/15KG/0.92CUFT |
|||
