LRS-150

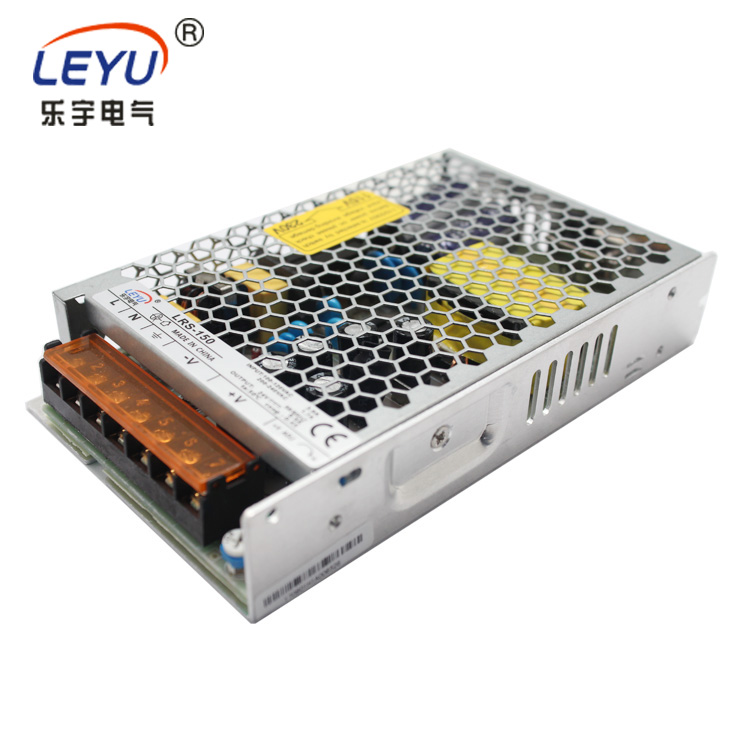

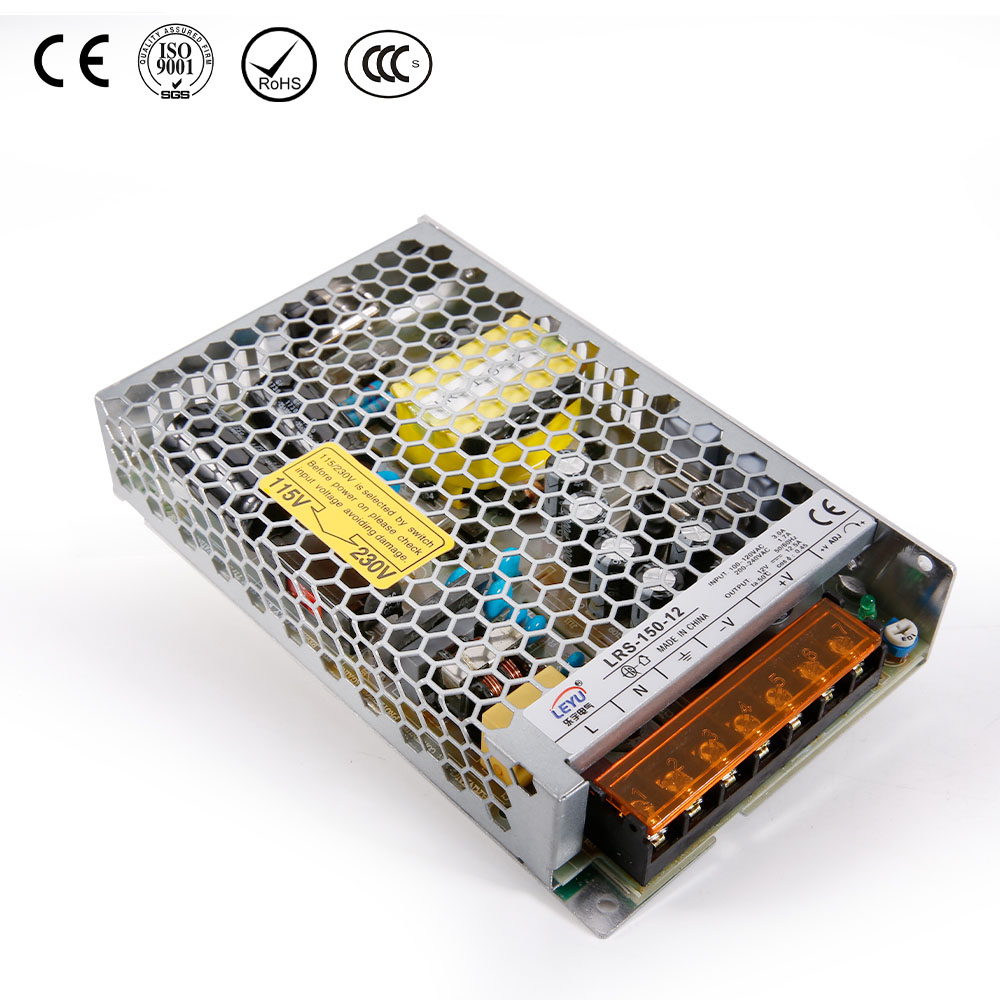

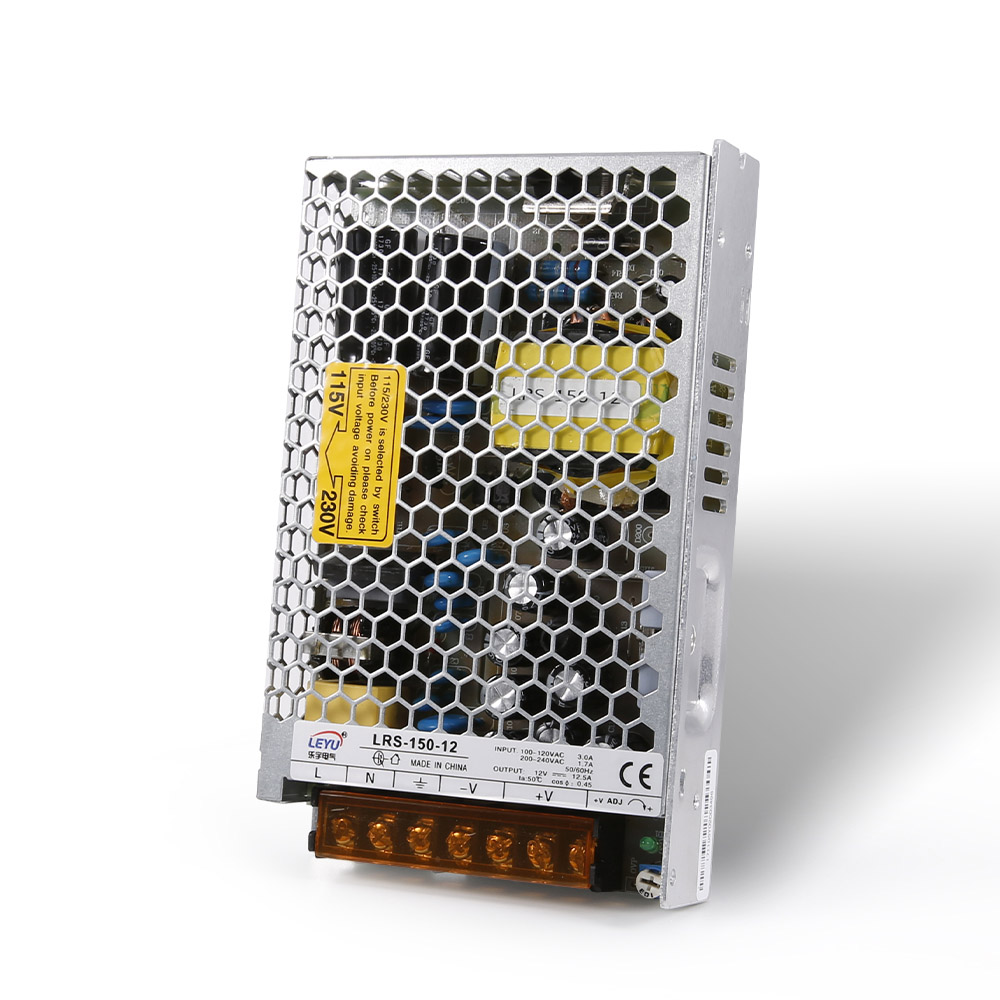

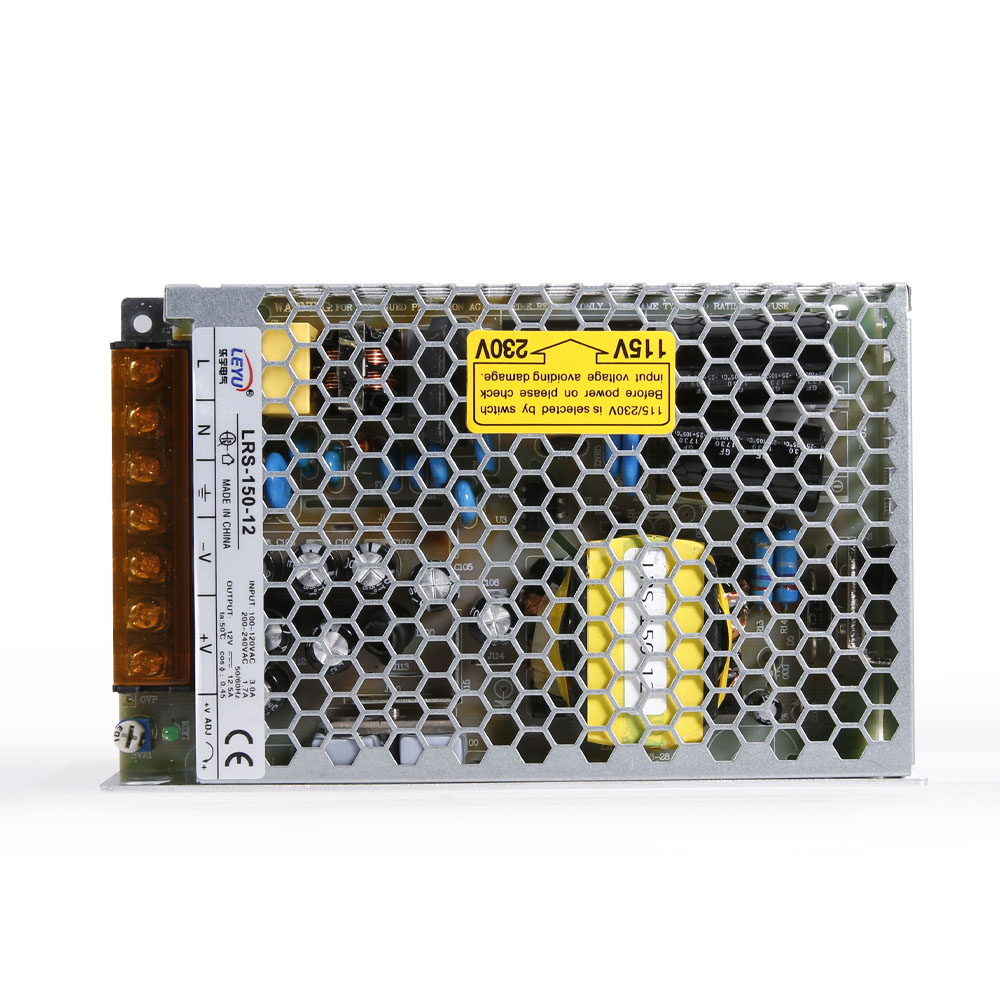

150W Single Output Switching Power Supply LRS-150 series
Online Service
Product Detail

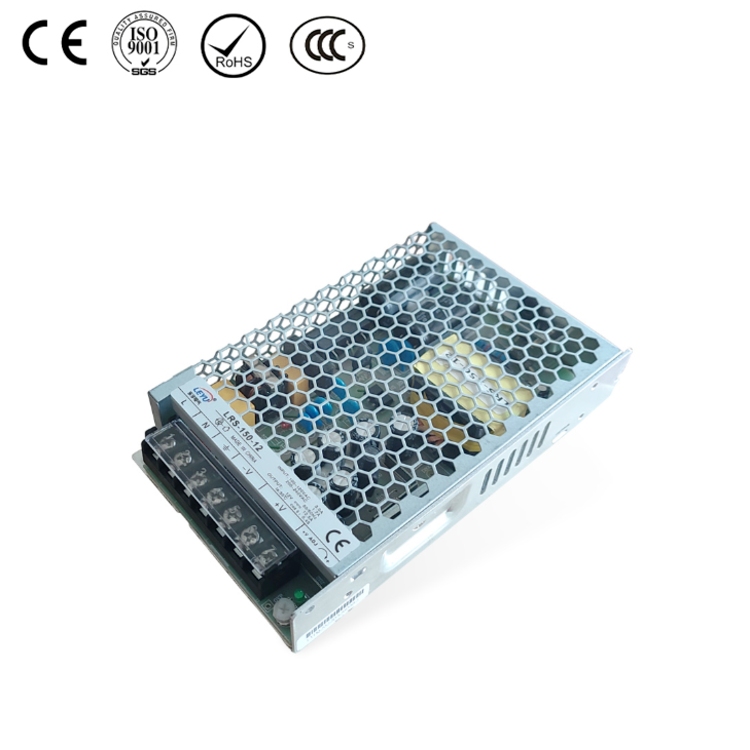

150W Single Output Switching Power Supply LRS-150 series

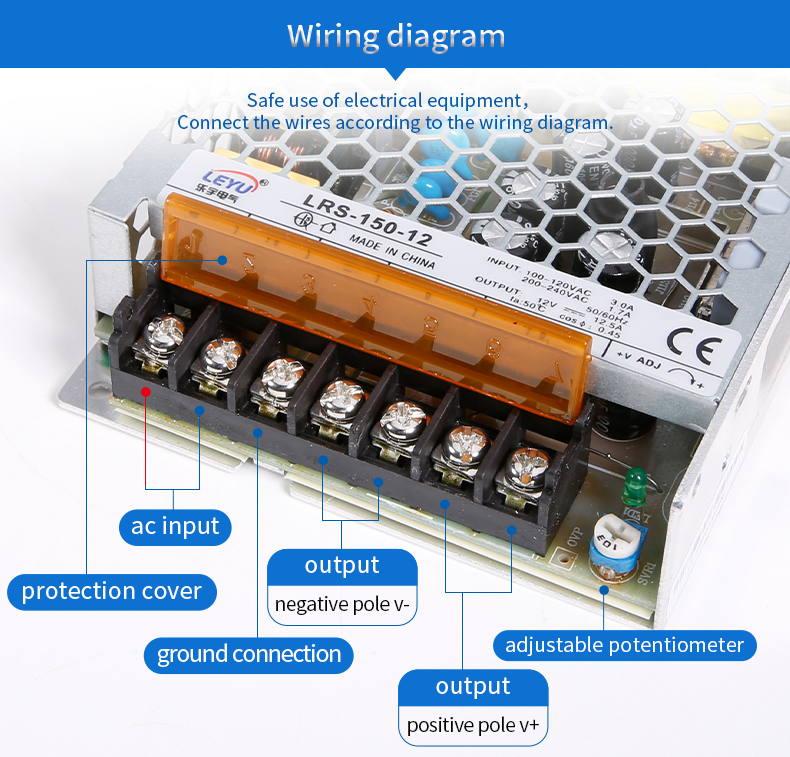

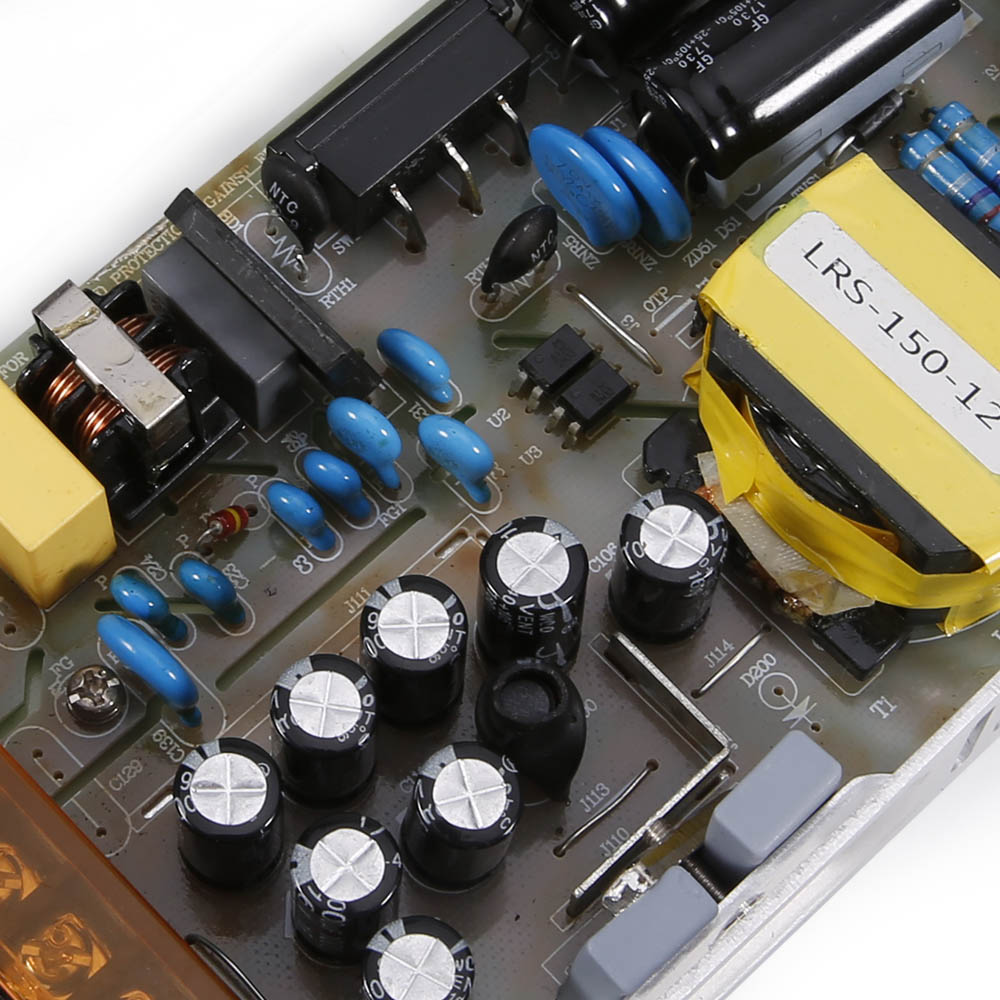

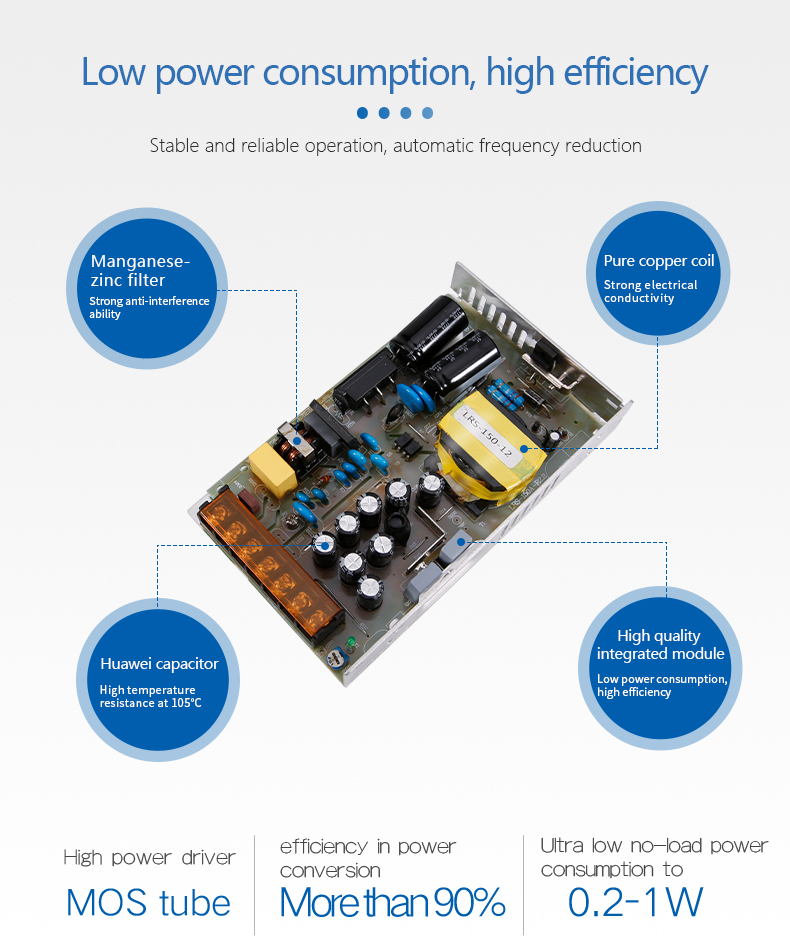

Features:
AC input range selectabl by switch
Withstand 300VAC surge input for 5 seconds

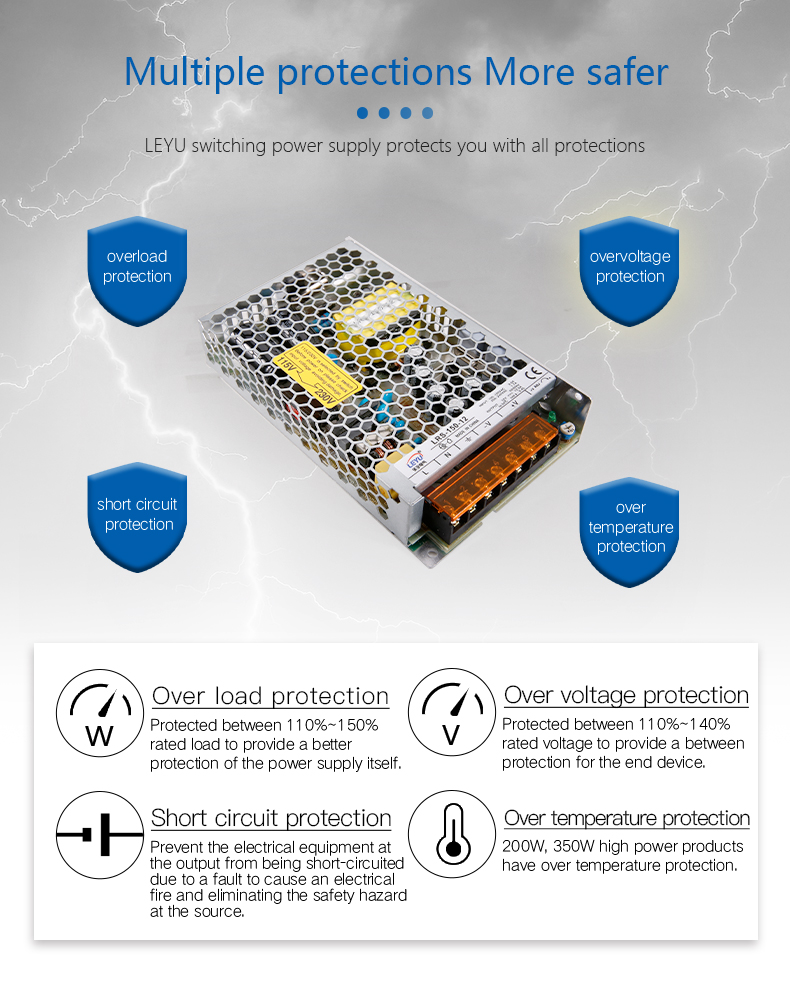

Protections: Short circuit / Overload / Over voltage/ Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability
2 years warranty
|
SPECIFICATION |
|
||||
|
OUTPUT |
|
||||
|
Model |
LRS-150-12 |
LRS-150-15 |
LRS-150-24 |
LRS-150-36 |
LRS-150-48 |
|
DC Voltage |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
12.5A |
10A |
6.5A |
4.3A |
3.3A |
|
Current Range |
0~12.5A |
0~10A |
0~6.5A |
0~4.3A |
0~3.3A |
|
Rated Power |
150W |
150W |
156W |
154.8W |
158.4W |
|
Ripple&Noise |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
|
VoltageAdj. Range |
10.2~ 13.8V |
13.5~18V |
21.6~28.8V |
32.4~39.6V |
43.2~52.8V |
|
Voltage Tolerance |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup,Rise Time |
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
||||
|
Hold Up Time |
40ms/230VAC 35ms/115VAC at full load |
||||
|
|
|
||||
|
INPUT |
|
||||
|
Voltage Range |
85 ~ 132VAC / 170 ~264VAC 240 ~ 370VDC(switch on 230VAC) |
||||
|
Frequency Range |
47 ~ 63Hz |
||||
|
Efficiency |
87.5% |
88.5% |
89% |
89% |
90% |
|
AC Current |
2.8A/115VAC 1.6A/230VAC |
||||
|
Inrush Current |
Cold start 60A/230VAC |
||||
|
Leakage Current |
<0.75mA / 240VAC |
||||
|
|
|
||||
|
PROTECTION |
|
||||
|
Over Load |
110 ~ 140% rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
Over Voltage |
13.8~16.2V |
18.75~21.75V |
28.8~33.6V |
41.4~48.6V |
55.2~64.8V |
|
Protection type: shut down o/p voltage, re-power on to recover |
|||||
|
|
|
||||
|
ENVIRONMENT |
|
||||
|
Working Temp. |
-30 ~ +70℃ (Refer to “derating curve”) |
||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||
|
StorageTemp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
||||
|
Vibration |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
||||
|
|
|
||||
|
SAFETY &EMC |
|
||||
|
Safety Standards |
UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved |
||||
|
Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
||||
|
EMC Emission |
Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN61000-3-2,-3 class A, EN61000-3-3 |
||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A |
||||
|
|
|
||||
|
OTHERS |
|
||||
|

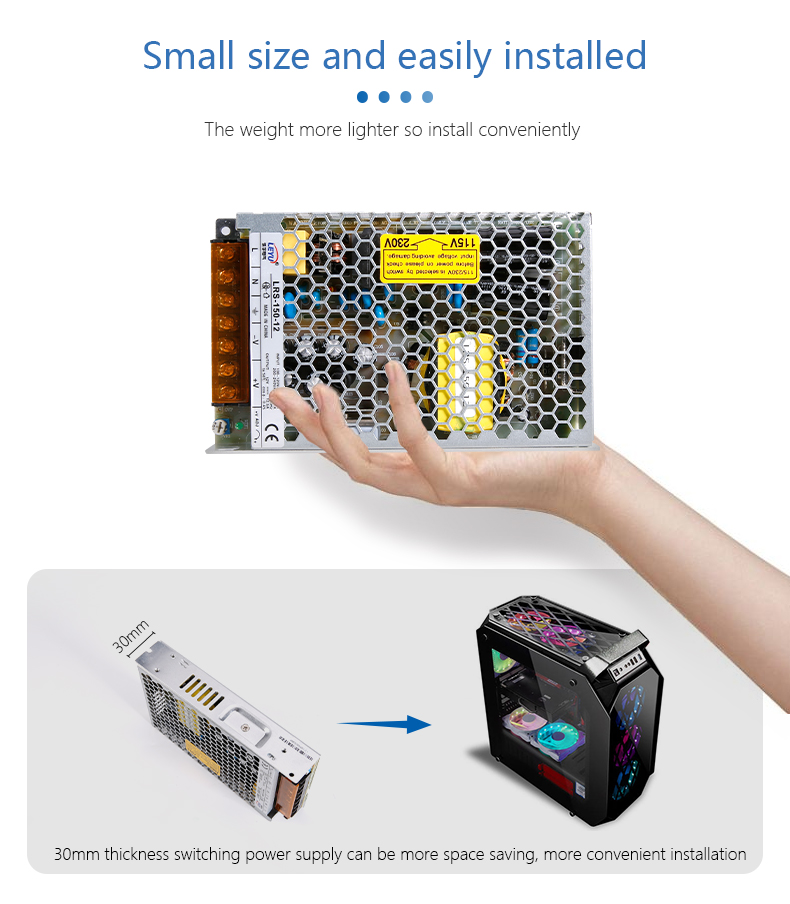

Dimension |
159*97*30mm (L*W*H) |
||||
|
Weight |
0.48Kg |
||||
|
Packing |
30pcs/carton/15.4kg/0.75CUFT |
||||
|
|
|
||||
|
NOTE |
|
||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. |
|||||
