Product Detail

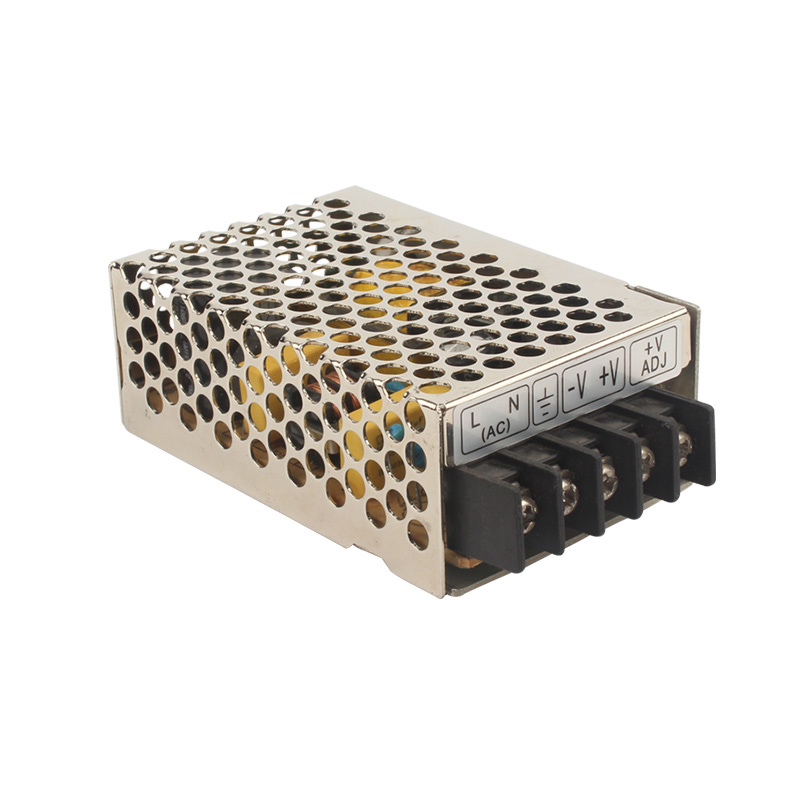

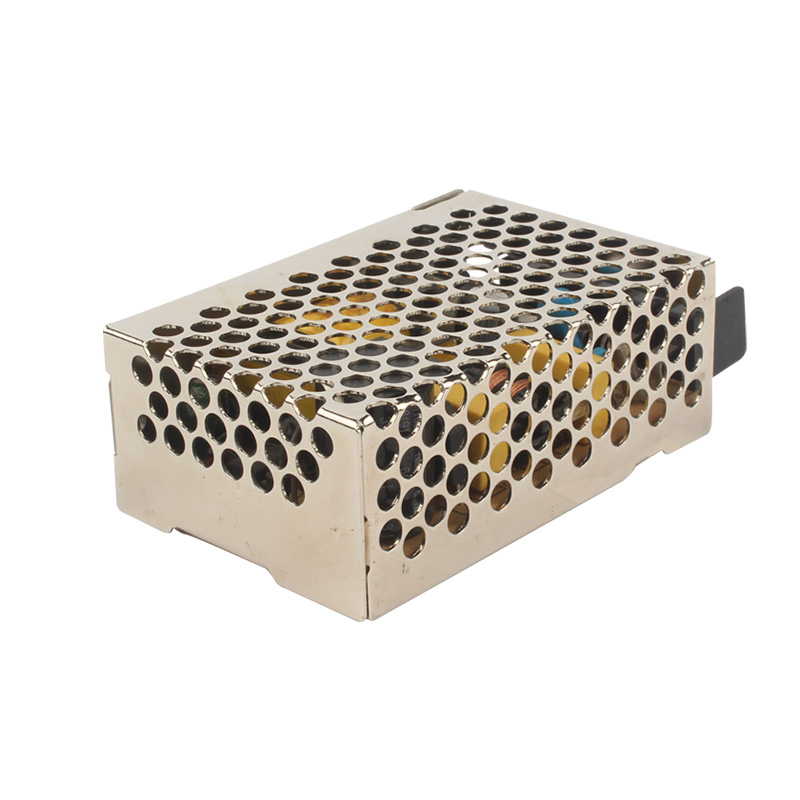

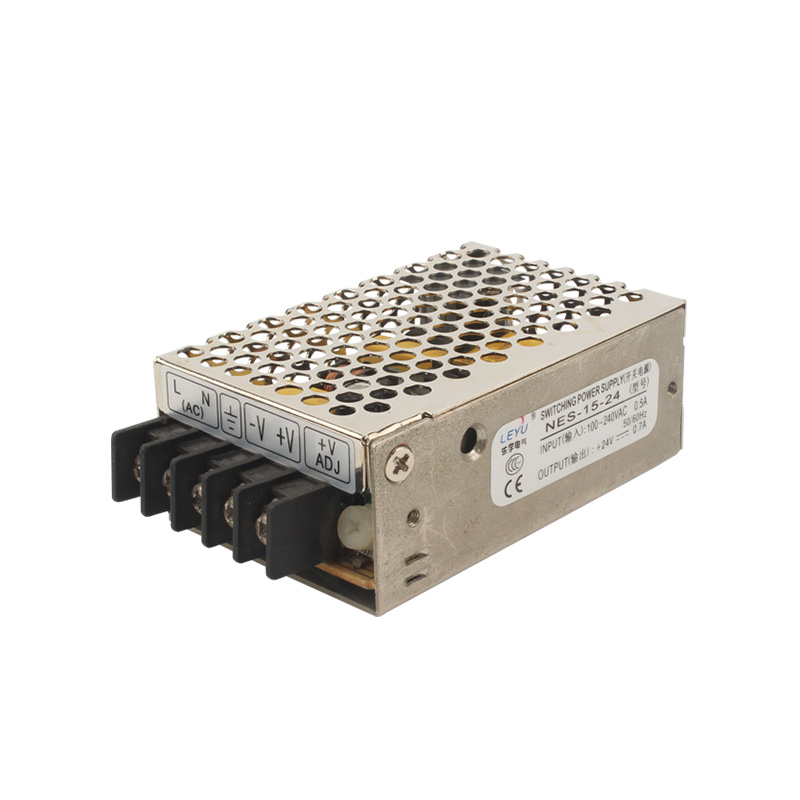

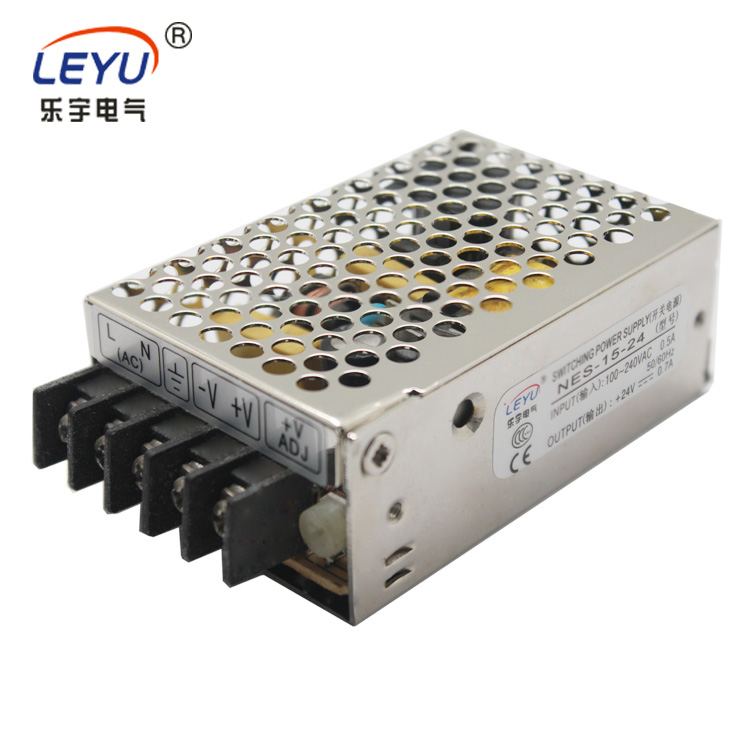

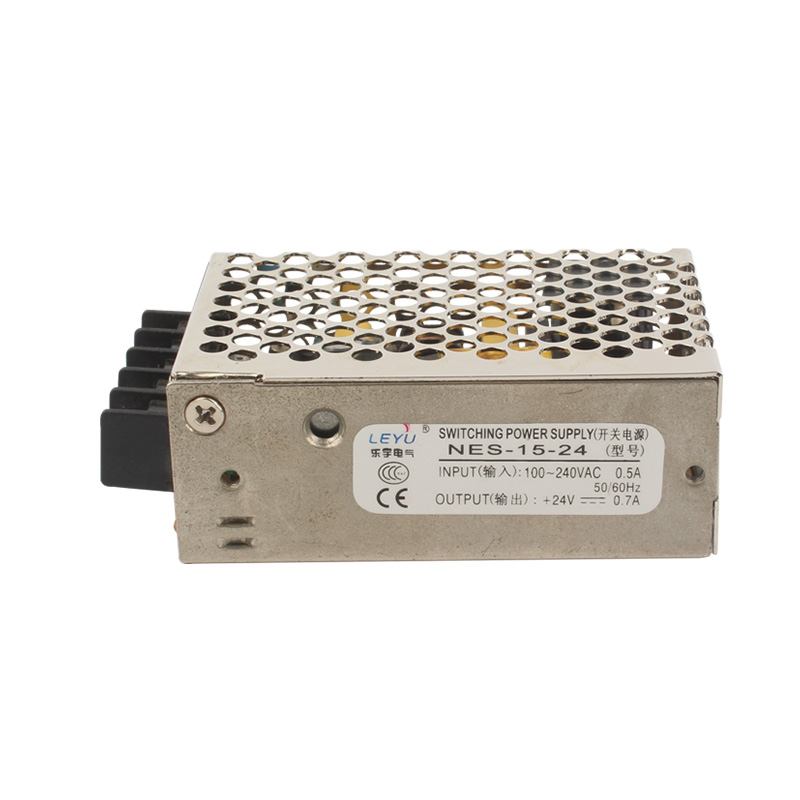

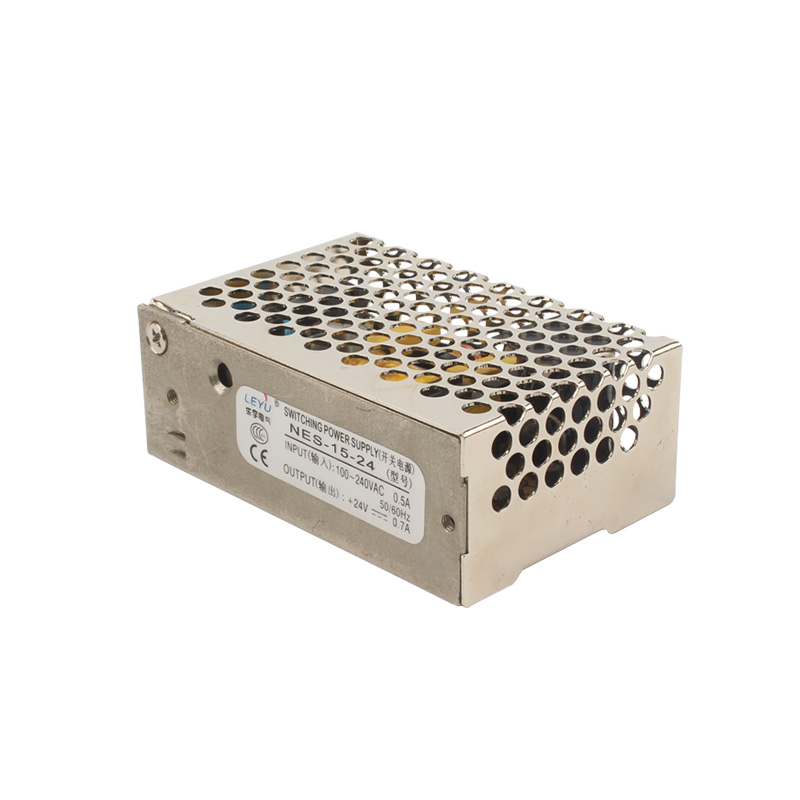

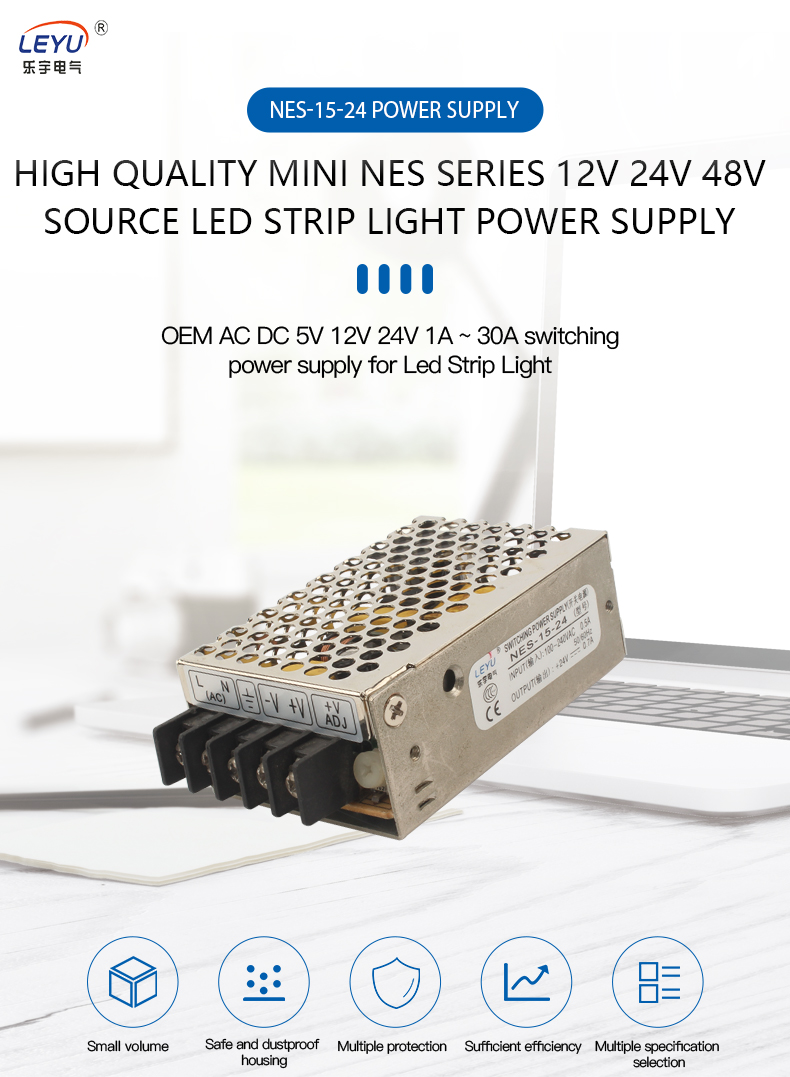

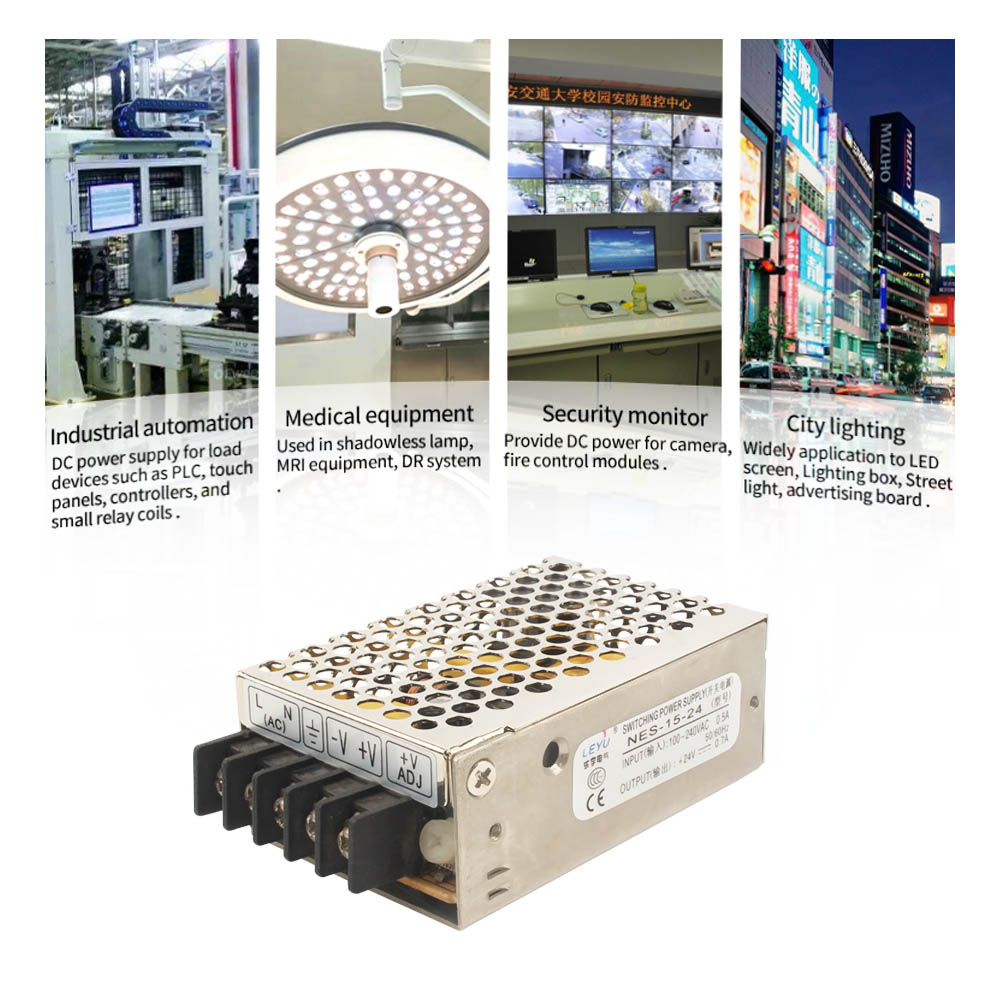

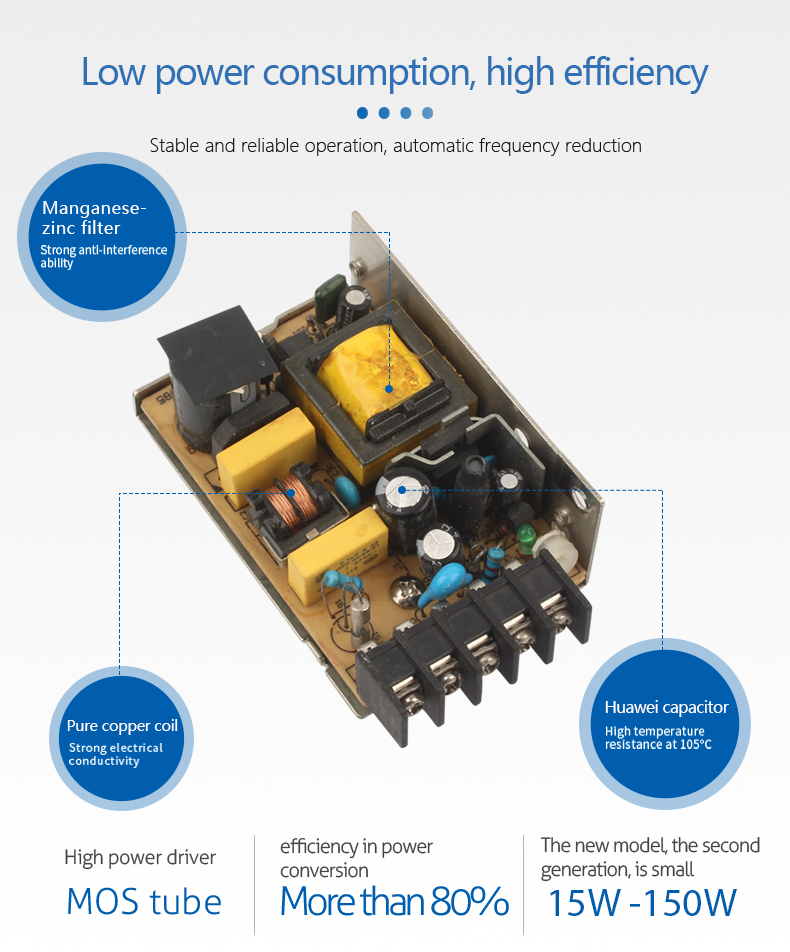

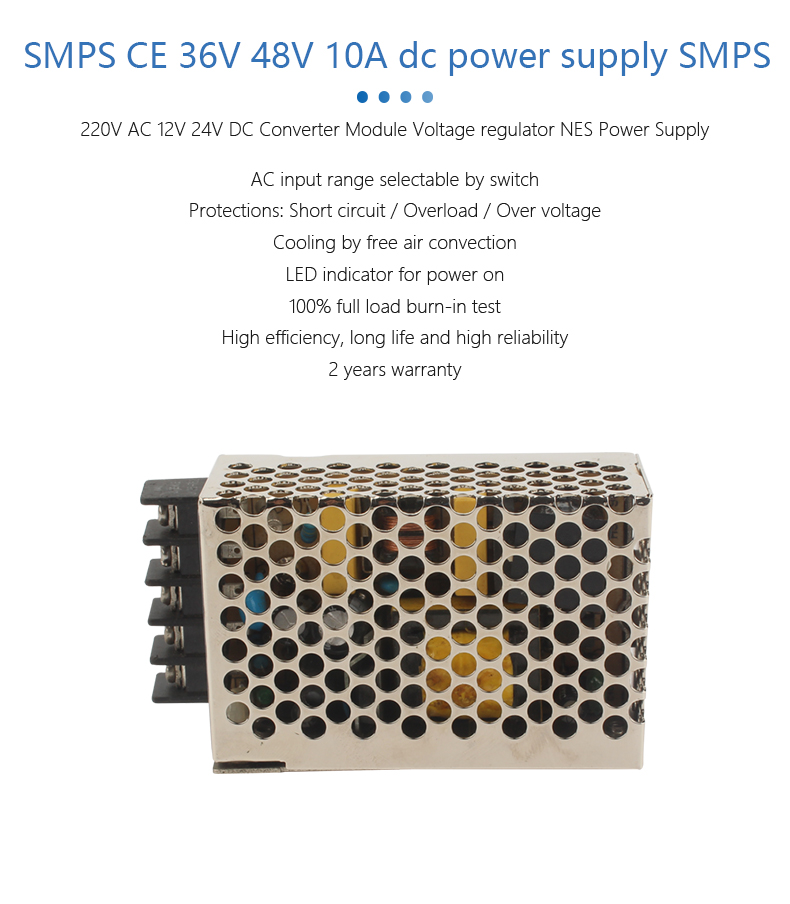

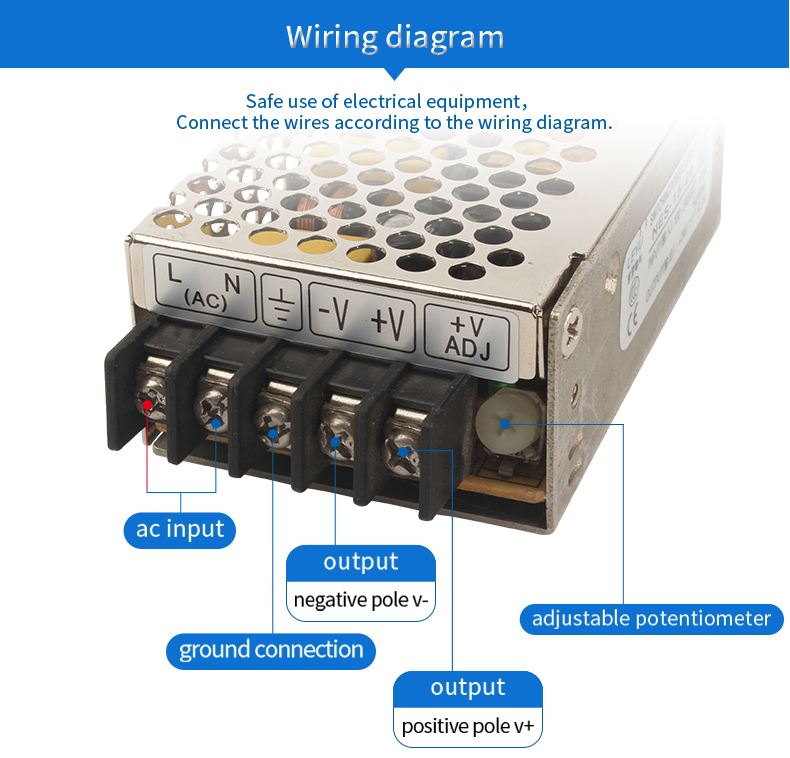

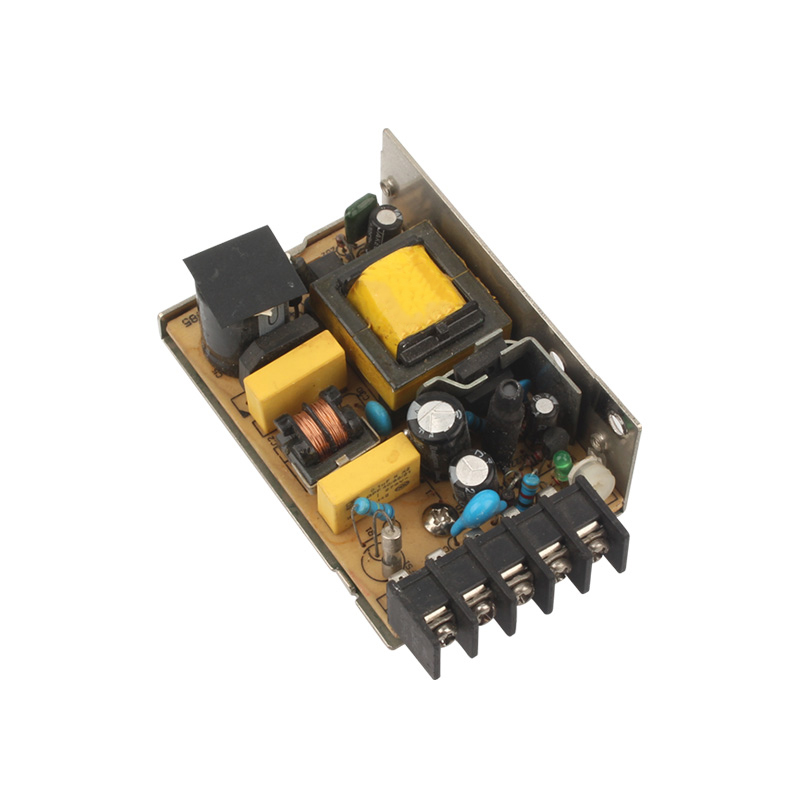

15W Single Output Switching Power Supply NES-15 series
Features:
Universal AC input/Full range

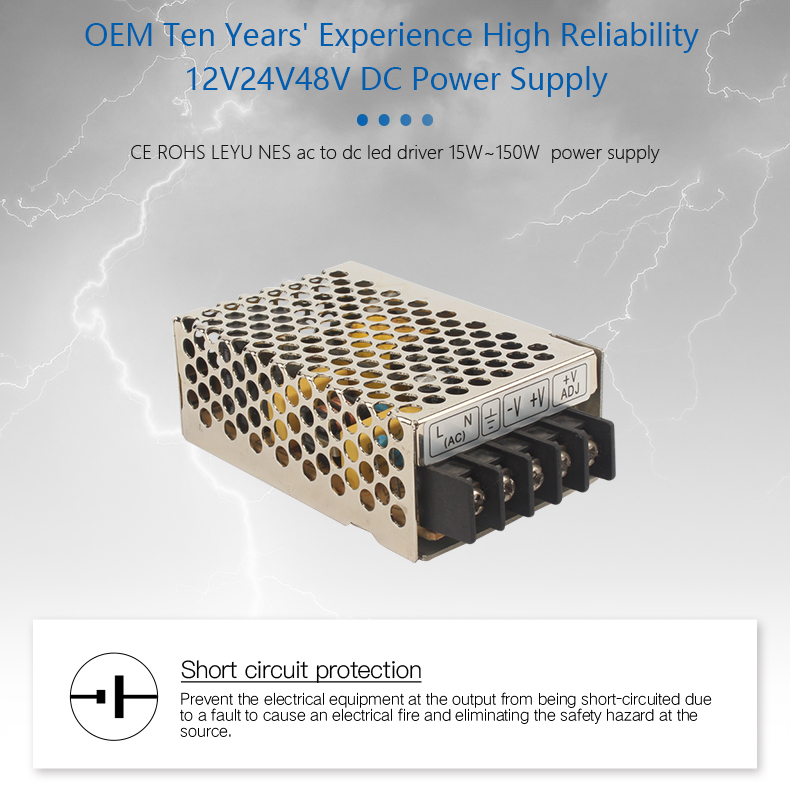

Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
100% full load burn-in test
2 years warranty
|
SPECIFICATION |
|
||||
|
OUTPUT |
|
||||
|
Model |
NES-15-5 |
NES-15-12 |
NES-15-15 |
NES-15-24 |
NES-15-48 |
|
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Rated Current |
3A |
1.3A |
1A |
0.63A |
0.35A |
|
Current Range |
0 ~ 3A |
0 ~ 1.3A |
0 ~ 1A |
0 ~ 0.63A |
0 ~ 0.35A |
|
Rated Power |
15W |
15.6W |
15W |
15.2W |
16.8W |
|
Ripple&Noise |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
|
Voltage Adj. Range |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
43.2 ~ 52.8V |
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Line Regulation |
±1.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±1.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup,Rise Time |
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
||||
|
Hold Up Time |
100ms/230VAC 20ms/115VAC at full load |
||||
|
|
|
||||
|
INPUT |
|
||||
|
Voltage Range |
85 ~ 264VAC 120 ~ 370VDC |
||||
|
Frequency Range |
47 ~ 63Hz |
||||
|
Efficiency |
79% |
81% |
81% |
85% |
82% |
|
AC Current |
0.35A/115VAC 0.25A/230VAC |
||||
|
Inrush Current |
Cold Start 45A |
||||
|
Leakage Current |
<2mA / 240VAC |
||||
|
|
|
||||
|
PROTECTION |
|
||||
|
Over Load |
Above 105% rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
Over Voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
55.2~64.8V |
|
Protection type: Shut off |
|||||
|
Over Temperature |
U1 Tm 140℃ typically (U1) detect on main control IC |
||||
|
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
|||||
|
|
|
||||
|
ENVIRONMENT |
|
||||
|
Working Temp. |
-20 ~ +60℃ (Refer to “Derating Curve”) |
||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||
|
StorageTemp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 45℃) |
||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||
|
|
|
||||
|
SAFETY &EMC |
|
||||
|
Safety Standards |
Design refer to UL60950-1, CB(IEC60950-1),CCC GB4943 |
||||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A |
||||
|
|
|
||||
|
OTHERS |
|
||||
|
Dimension |
78*51*28mm(L*W*H) |
||||
|
Weight |
0.18Kg |
||||
|
Packing |
40pcs/carton |
||||
