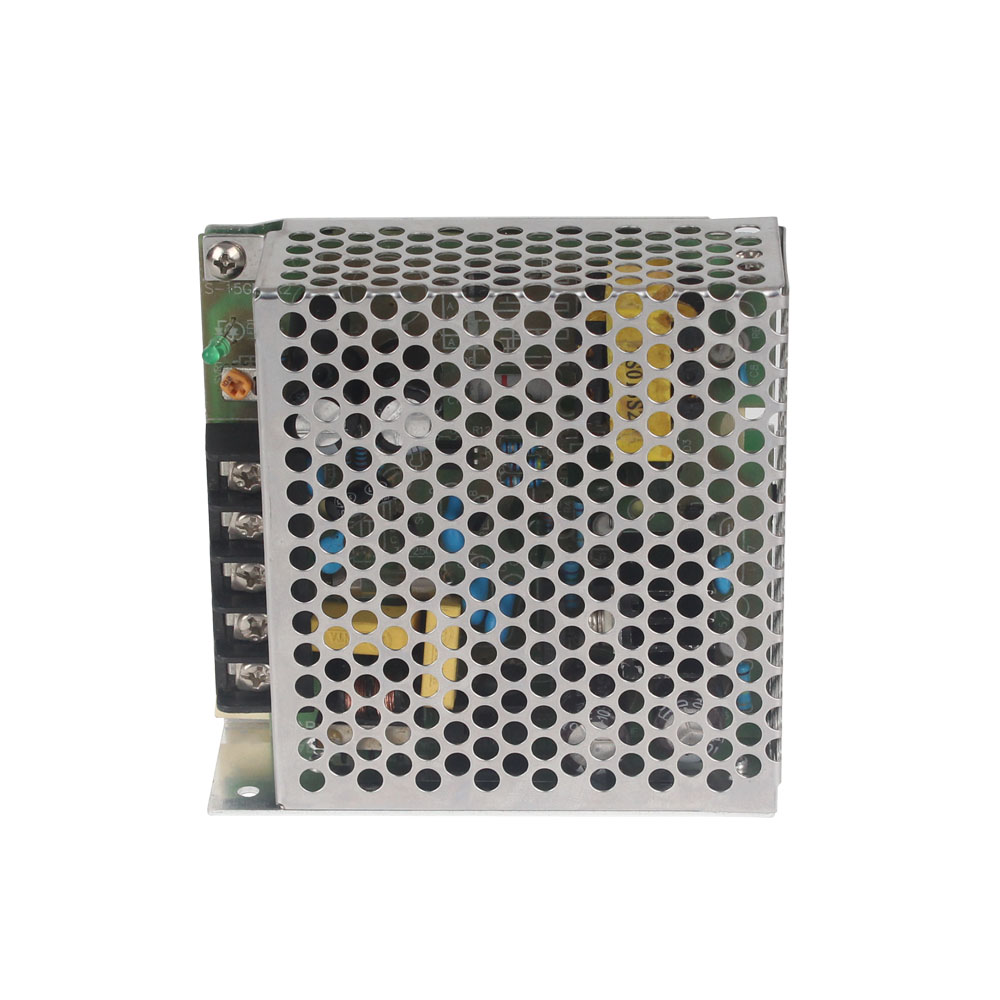

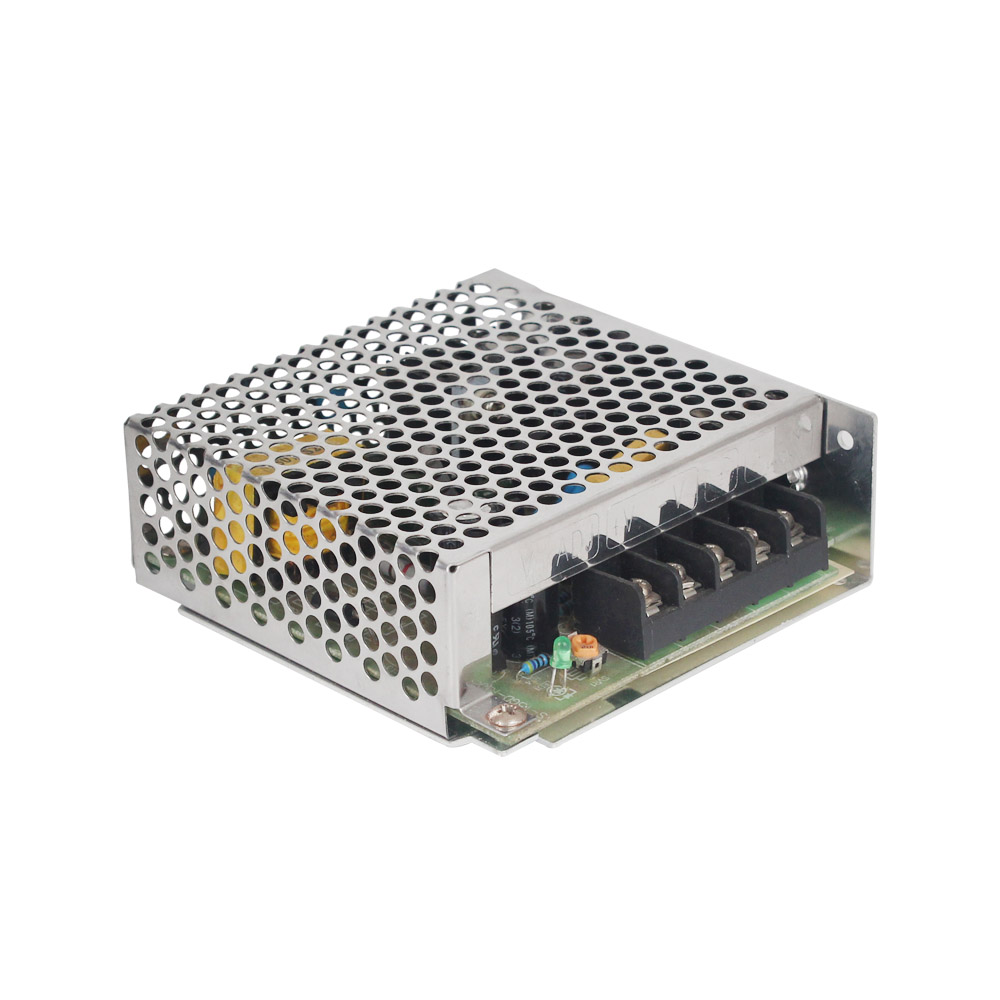

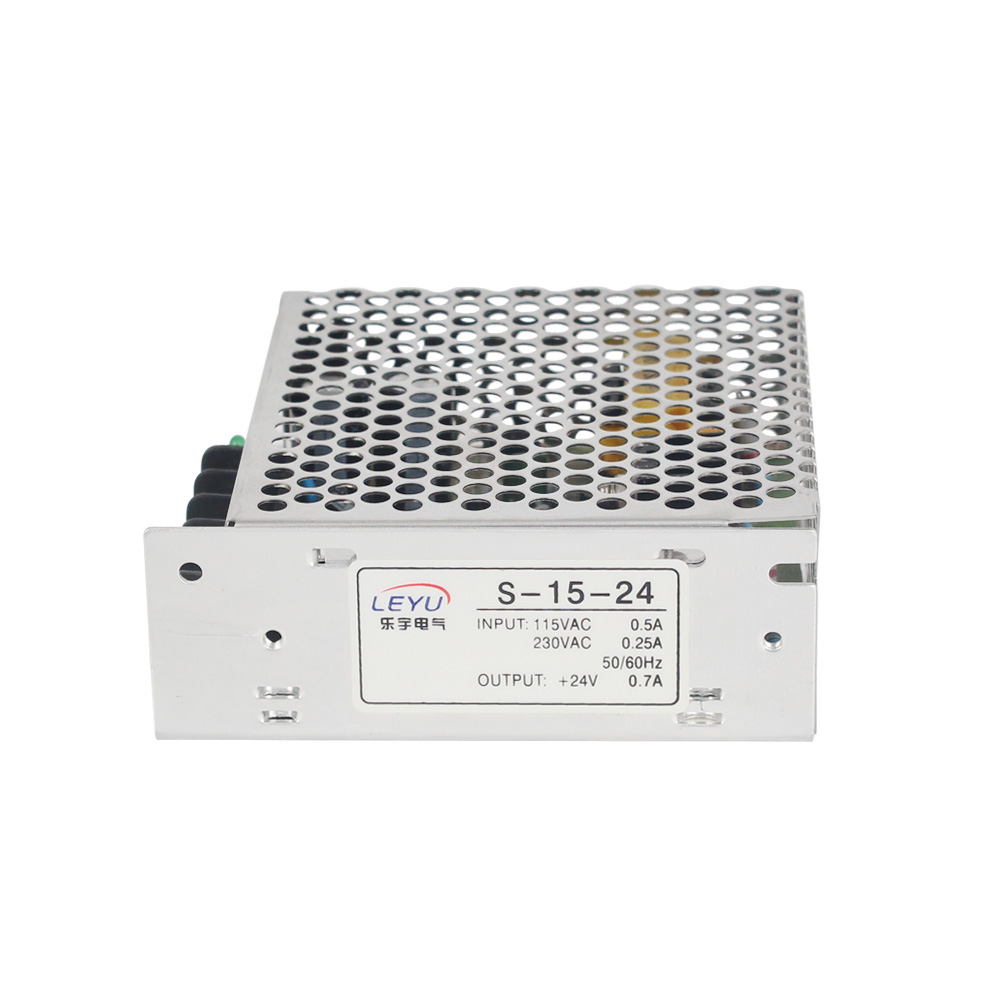

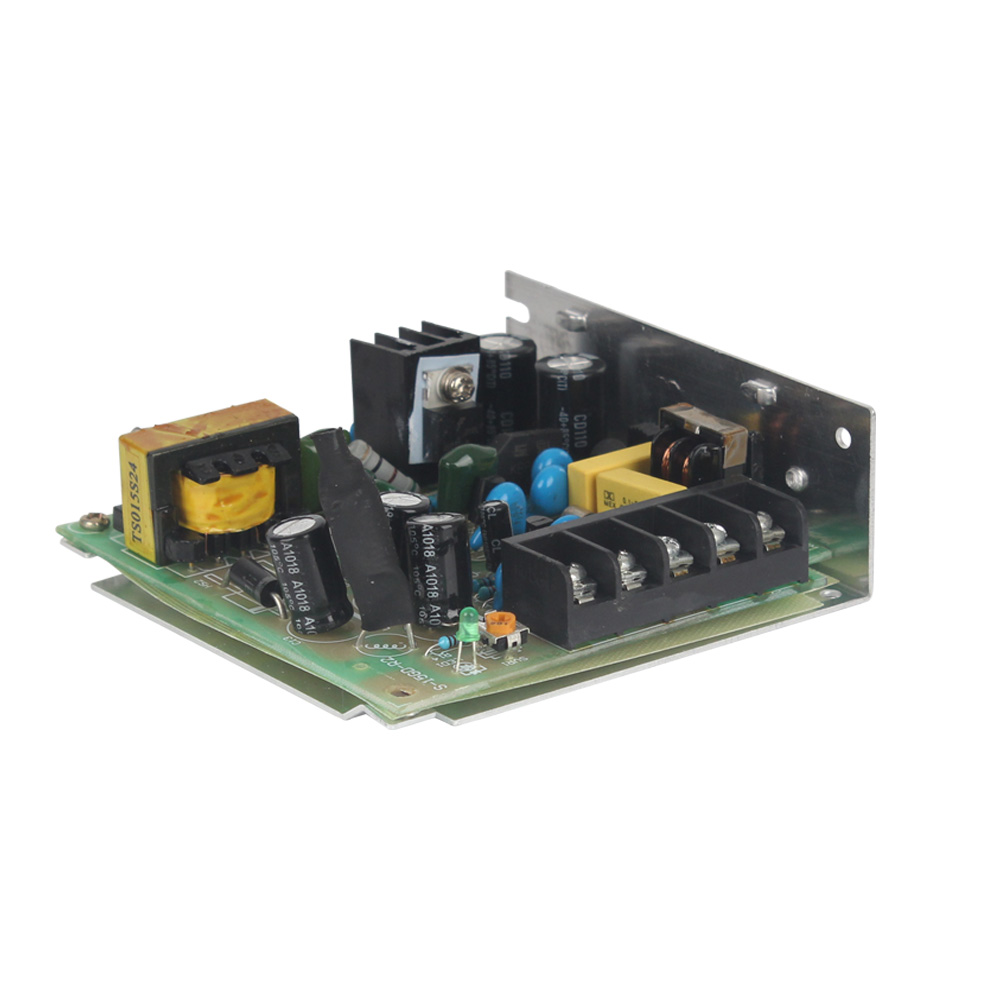

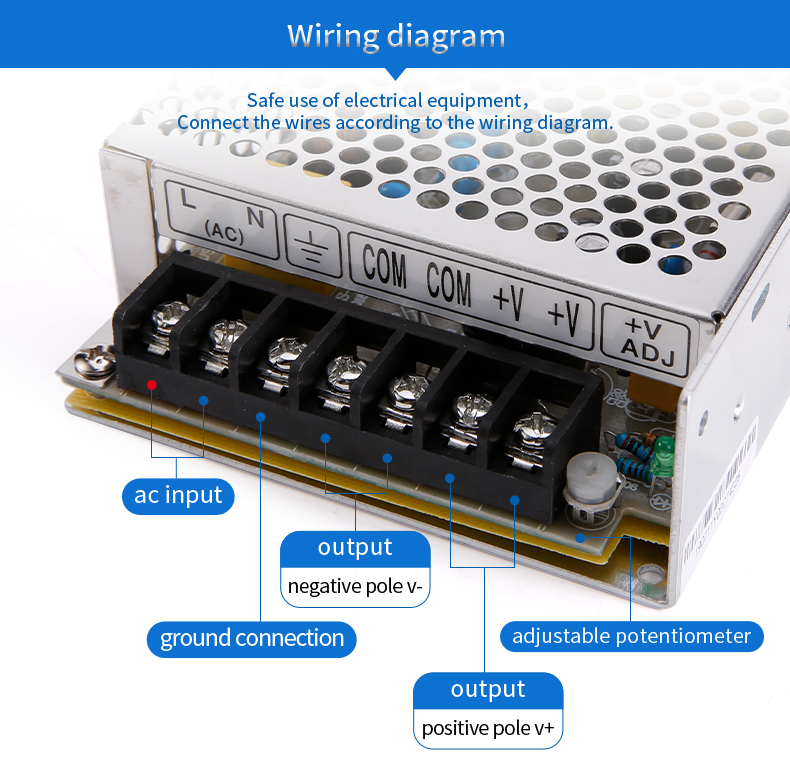

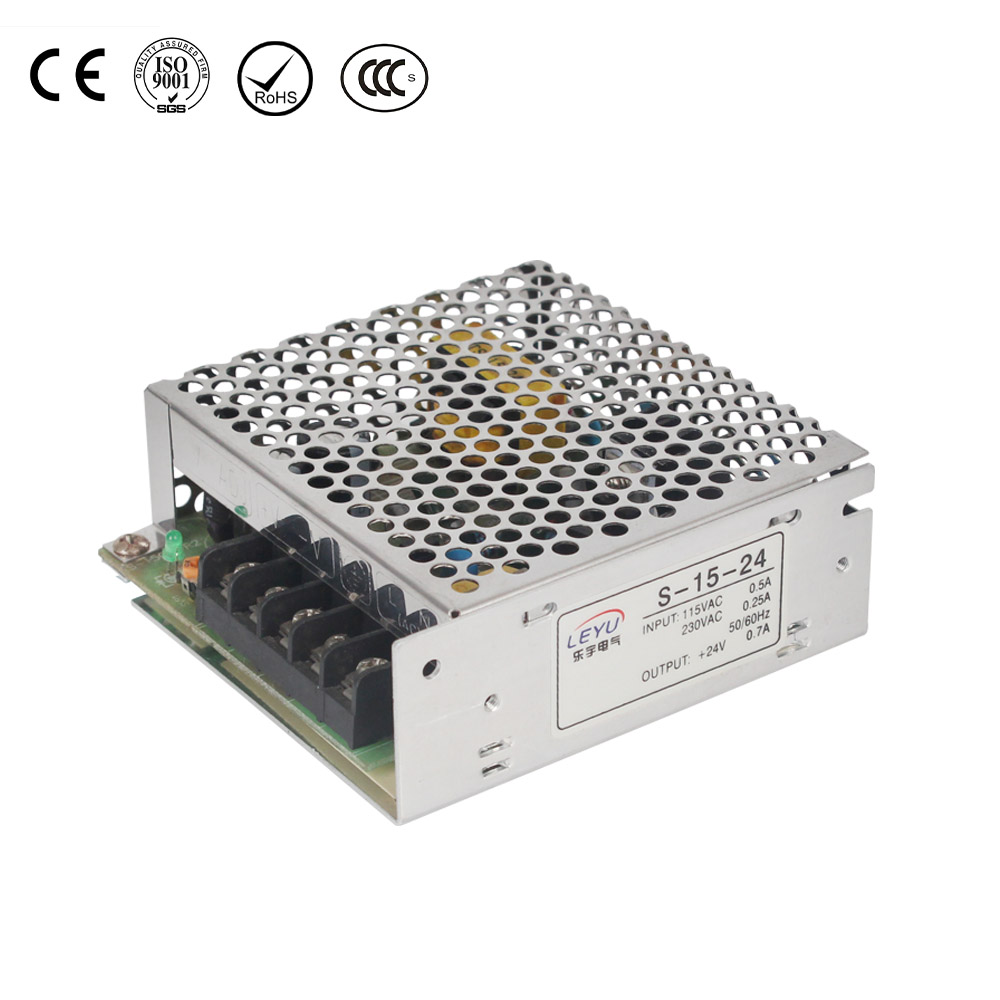

15W Single Output Switching Power Supply S-15 series
Features:
High efficiency, high reliability, lost cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Cooling by free air convection
Fixed switching frequency at 37KHz
2 years warranty
|
SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
S-15-5 |
S-15-12 |
S-15-24 |
|
DC Voltage |
5V |
12V |
24V |
|
Rated Current |
3A |
1.3A |
0.7A |
|
Current Range |
0-3A |
0-1.3A |
0-0.7A |
|
Rated Power |
15W |
15.6W |
16.8W |
|
Ripple & Noise |
50mVp-p |
50mVp-p |
100mVp-p |
|
Voltage Adj. Range |
-5%,+10% |
±10% |
±10% |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
|
Setup, Rise, Hold Up Time |
200ms,100ms,30ms at full load |
||
|
Voltage Range |
85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
||
|
AC Current |
0.5A/115V 0.25A/230V |
||
|

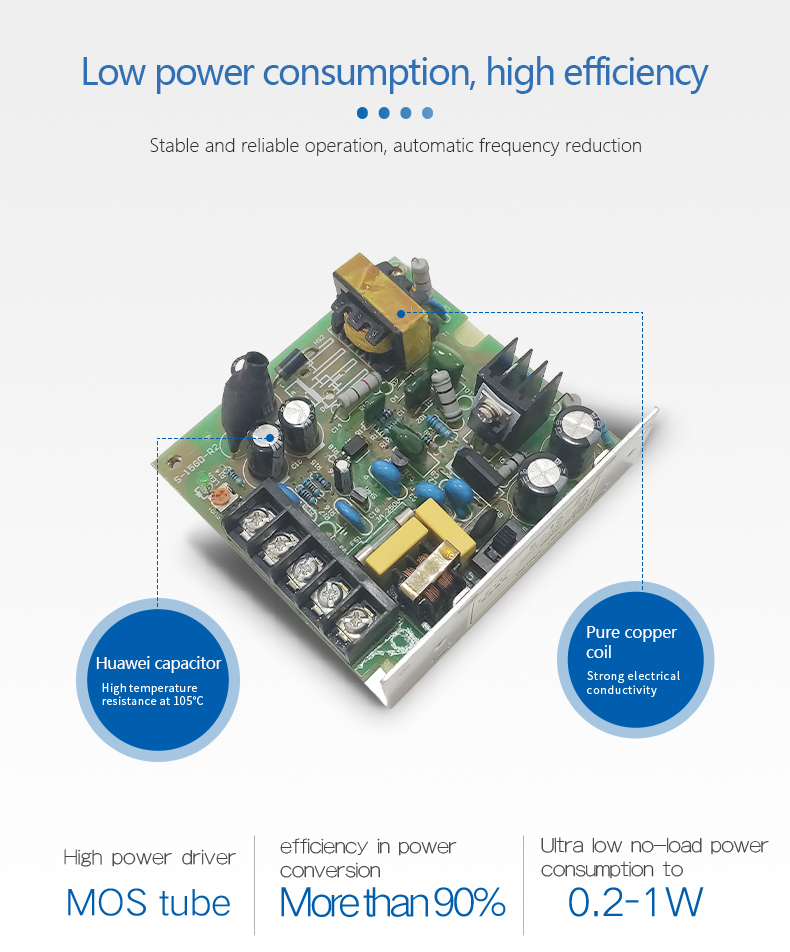

Efficiency |
65% |
68% |
72% |
|
Inrush Current |
Cold start 15A/115VAC 30A/230VAC |
||
|
Leakage Current |
<0.5mA/240VAC |
||
|

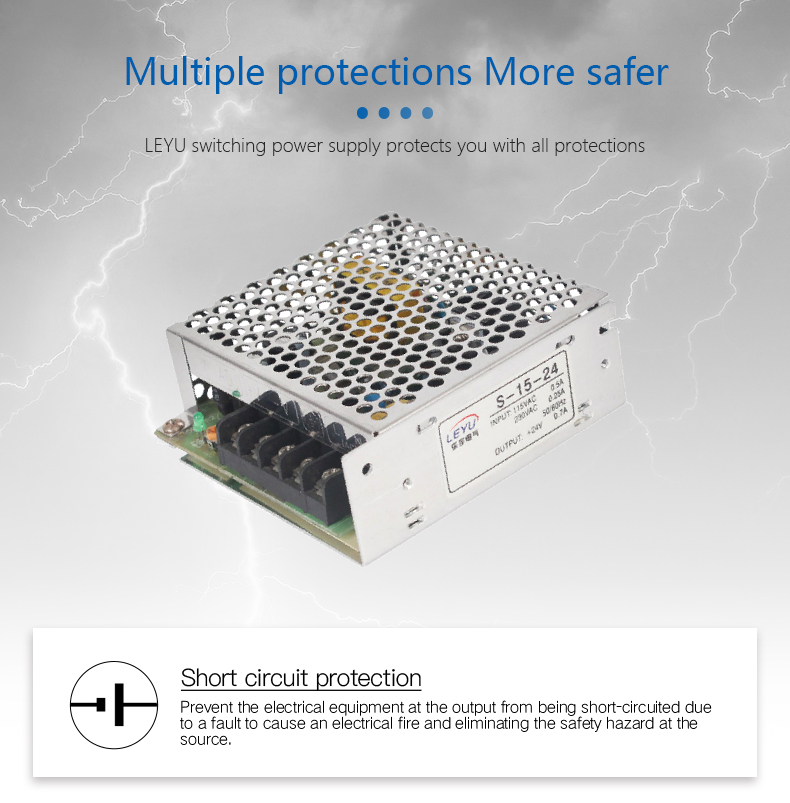

PROTECTION |
|
||
|
Over Load |
110%~160% |
||
|
Protection type: Fold back current limiting, recovers automatically after fault condition is removed |
|||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90 %RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95 %RH |
||
|
Vibration |
10~500Hz, 2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes |
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||
|
STANDARD |
|
||
|
Safety Standard |
Design refer to UL1012 |
||
|
EMC Standard |
Design refer to FCC Part15 J Conduction Class B |
||
|
OTHERS |
|
||
|

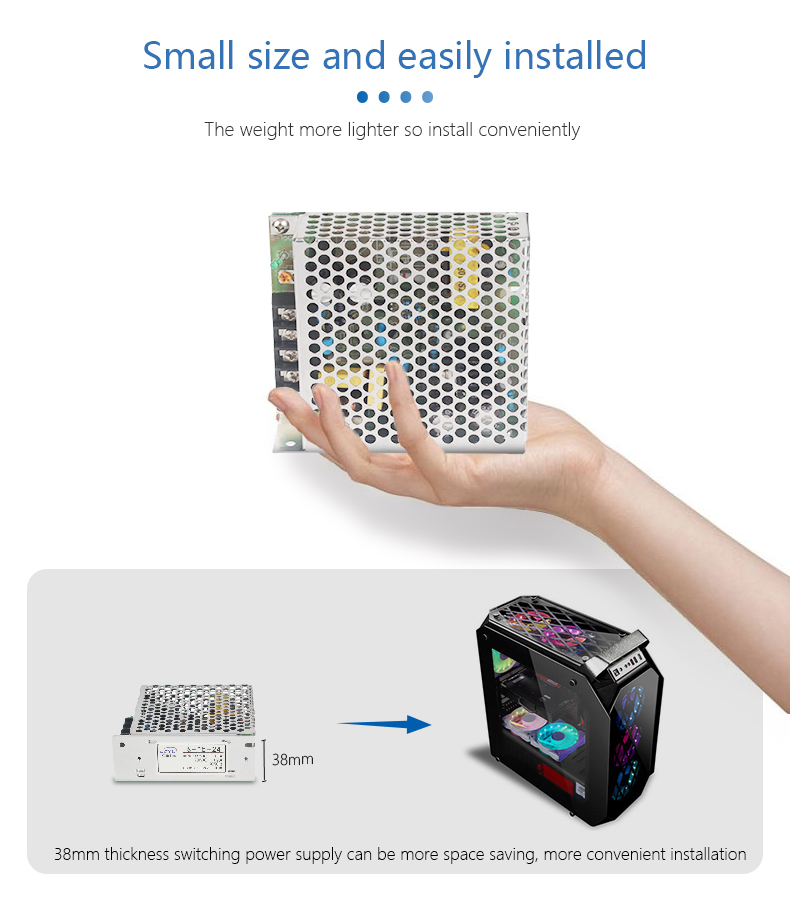

Dimension |
99*97*36mm(L*W*H) |
||
|
Weight |
0.31Kg |
||
|
Packing |
45pcs/15Kg/0.9CUFT |
||
|
NOTE |
|
||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation |
|||
