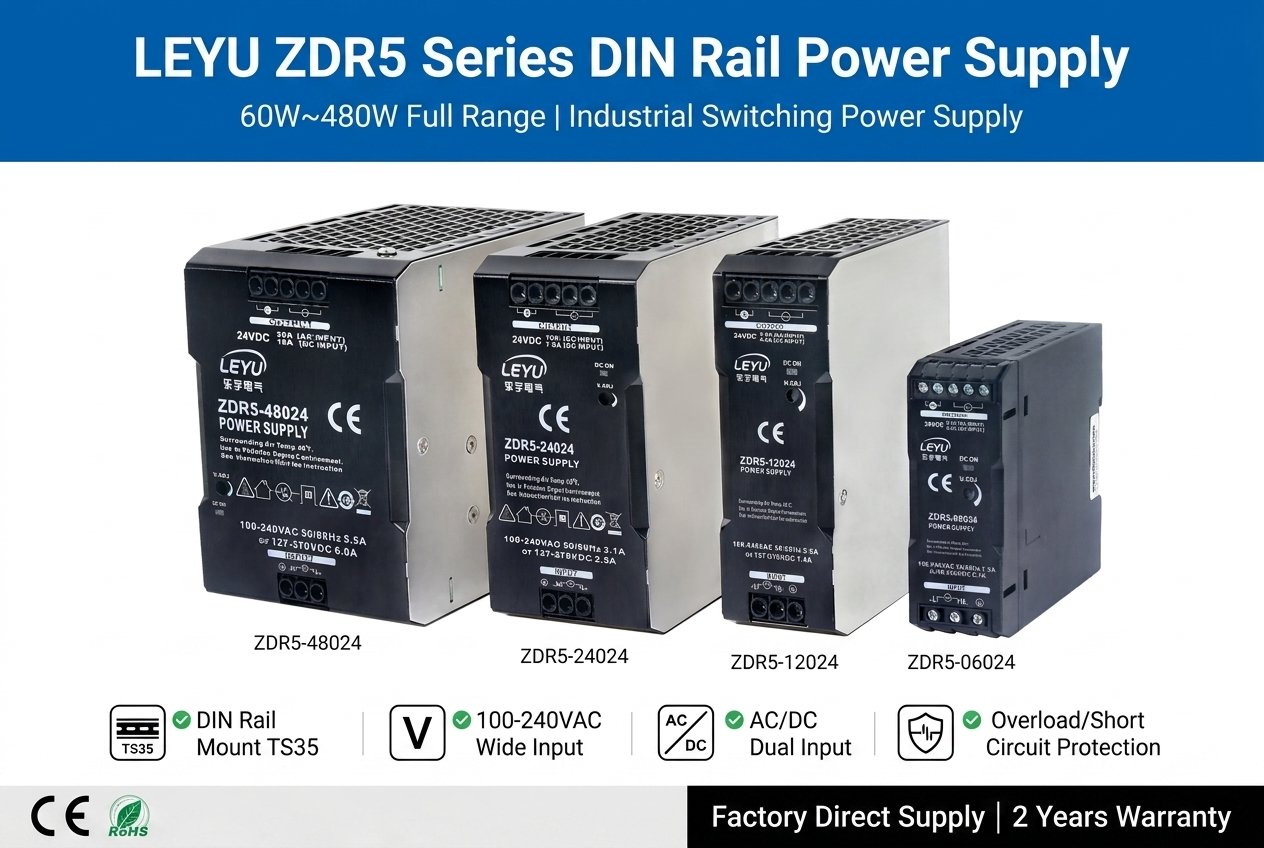

The Ultimate 480W DIN Rail Power Supply Selection Guide – Why LEYU Delivers the Industrial Sweet Spot

Introduction: The 480W Sweet Spot in Industrial Power

In control cabinets worldwide, the 480W power level has become a decisive reference point. At 24V, it delivers a solid 20A—enough to feed a dense I/O rack, a cluster of sensors, pilot devices, and a mid-sized PLC with room to spare. Because it sits right between smaller auxiliary supplies and high-power three-phase units, the 480W DIN rail power supply often becomes the backbone of a machine’s DC bus. Choosing the wrong unit leads to nuisance tripping, thermal stress, or costly panel redesigns. This guide examines the engineering factors that separate a generic box from a truly robust 480W supply, and explains how LEYU’s design philosophy addresses them without padding the spec sheet.

1.Wide-Range Input and Real-World PFC

A global machine builder cannot guess whether the panel lands in a 100V Japanese facility or a 277V North American lighting panel. A true 85–264VAC wide-range input is non-negotiable. However, simply accepting the voltage is not enough. Active power factor correction (PFC) is mandatory at this power level to meet EN 61000-3-2 and keep upstream breakers from tripping on harmonic currents.
What LEYU does differently: The 480W series integrates an active PFC stage that maintains a power factor above 0.95 from 50% load onwards. More importantly, its inrush current limiter is engineered for repeatability—not just a cold-start NTC that softens under rapid cycling. When multiple LEYU 480W units share an AC feeder, switch-on synchronization remains predictable

2.Output Voltage Flexibility and Dynamic Response

Most applications call for 24VDC, but 48VDC is gaining traction in PoE injectors and higher-efficiency motion buses. A single sourcing platform that offers both voltages shortens approval cycles. The trimmer range should extend wide enough—typically 24–28V for the 24V model—to compensate for voltage drops across long DC cables. Beyond the static setting, load-step response matters in machines where actuators cycle abruptly. A 30% load step should recover within 1 ms without deviating outside the control loop’s linear range.LEYU’s 480W lineup includes 24V (LDR-480-24) and 48V (LDR-480-48) variants, both with a generous ±10% output adjustment. The control loop uses a type-III compensation network tuned to keep undershoot below 150 mV during a 10–90% load transient, preserving the logic voltage margin.

3. Efficiency, Thermal Design, and the Shrinking Panel

An efficiency gain of even 1.5 percentage points cuts internal heat dissipation by more than 8 W at full load—an amount that directly eases cooling demands inside a sealed IP65 enclosure. The industry is pushing slim widths: a 480W supply that occupies 48–55 mm on the DIN rail frees up room for I/O terminals, relays, or an additional power supply in redundant configurations.
The LEYU 480W series achieves up to 95% efficiency through a resonant LLC topology on the isolated stage, combined with synchronous rectification. Heat-generating magnetics and MOSFETs are thermally coupled to the aluminum housing via gap-filler pads rather than relying on single-point contact. This enables full-power operation at 55°C ambient without derating. The housing width is a compact 50 mm, which preserves precious rail space while maintaining safe creepage distances.

4. Protection Mechanisms That Prevent Downtime

Basic hiccup-mode short-circuit protection is standard, but thoughtful implementation distinguishes a field-reliable unit:

Overload behavior: Constant-current limiting with a defined timeout before latch-off avoids restart cycles in capacitive loads.

DC OK signaling: A dedicated transistor or relay output must be referenced to the DC output, not just a floating optocoupler that ignores remote sense faults.

Over-temperature protection: Should detect the internal hotspot, not just the ambient board temperature, and recover automatically without requiring a manual power cycle.

LEYU equips each 480W model with a DC OK relay contact and a front-panel LED that doubles as a simple diagnostics tool. Overload handling follows a 3-stage profile: 110% constant current for 5 seconds, 150% peak power for 2 seconds (to start motors or charge bulk capacitors), then electronic shutdown. This profile is particularly useful in packaging and material-handling machines.

Why LEYU’s 480W Series Fits the Modern Panel

Instead of treating the 480W segment as a checklist commodity, LEYU addressed the subtle design margins that prevent field failures—transient recovery, inrush consistency, conformal coating integrity, and parallel current-sharing. The result is a platform that meets the global compliance matrix without guesswork. Whether you are upgrading a wastewater treatment SCADA cabinet, building a tire-curing press, or standardizing on a single power supply family for export machinery, the LEYU 480W DIN rail power supply shrinks risk while keeping the panel footprint lean.
