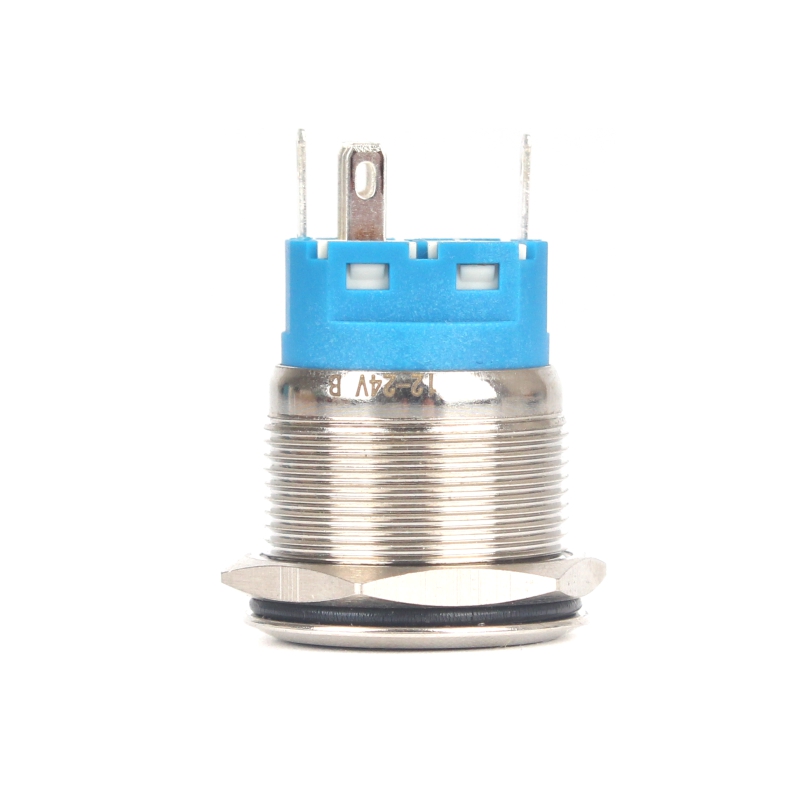

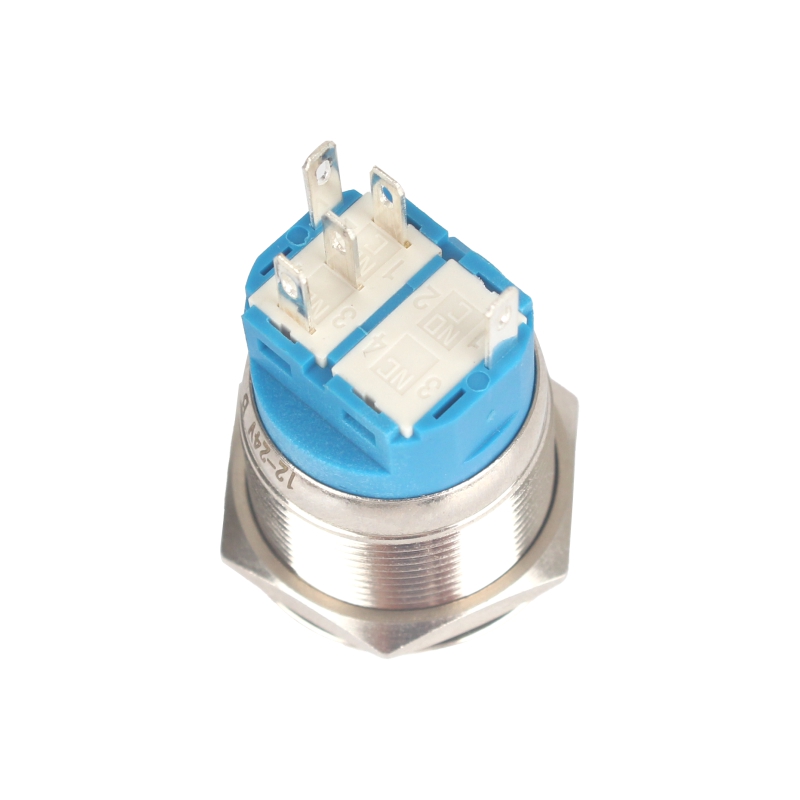

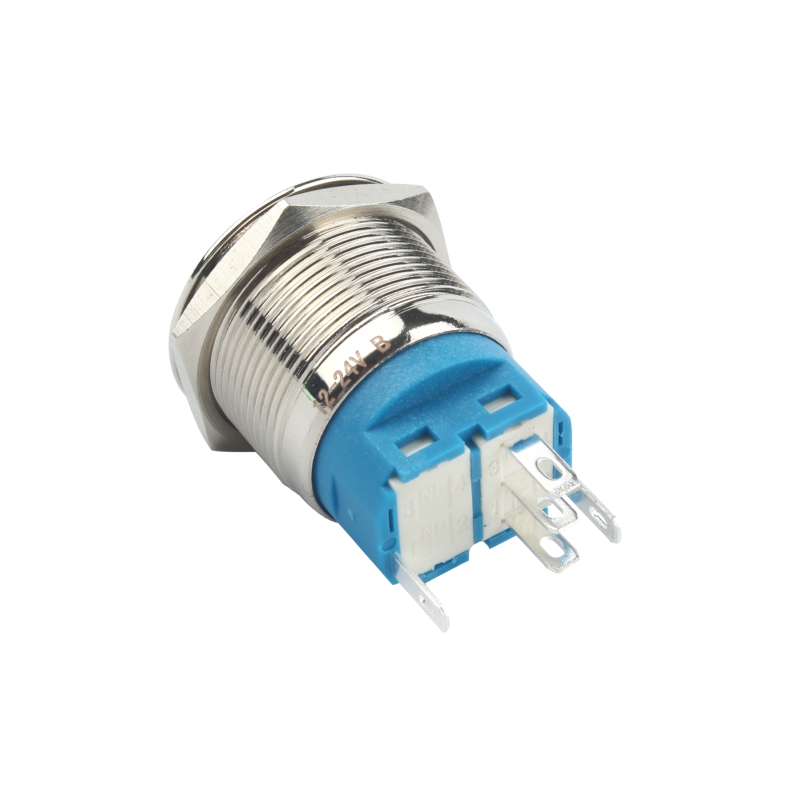

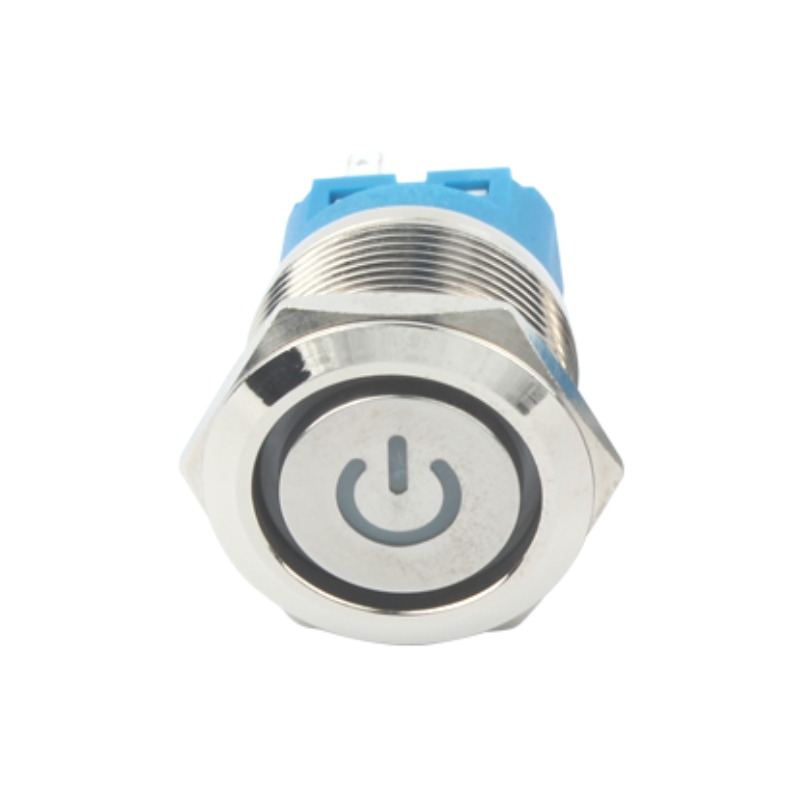

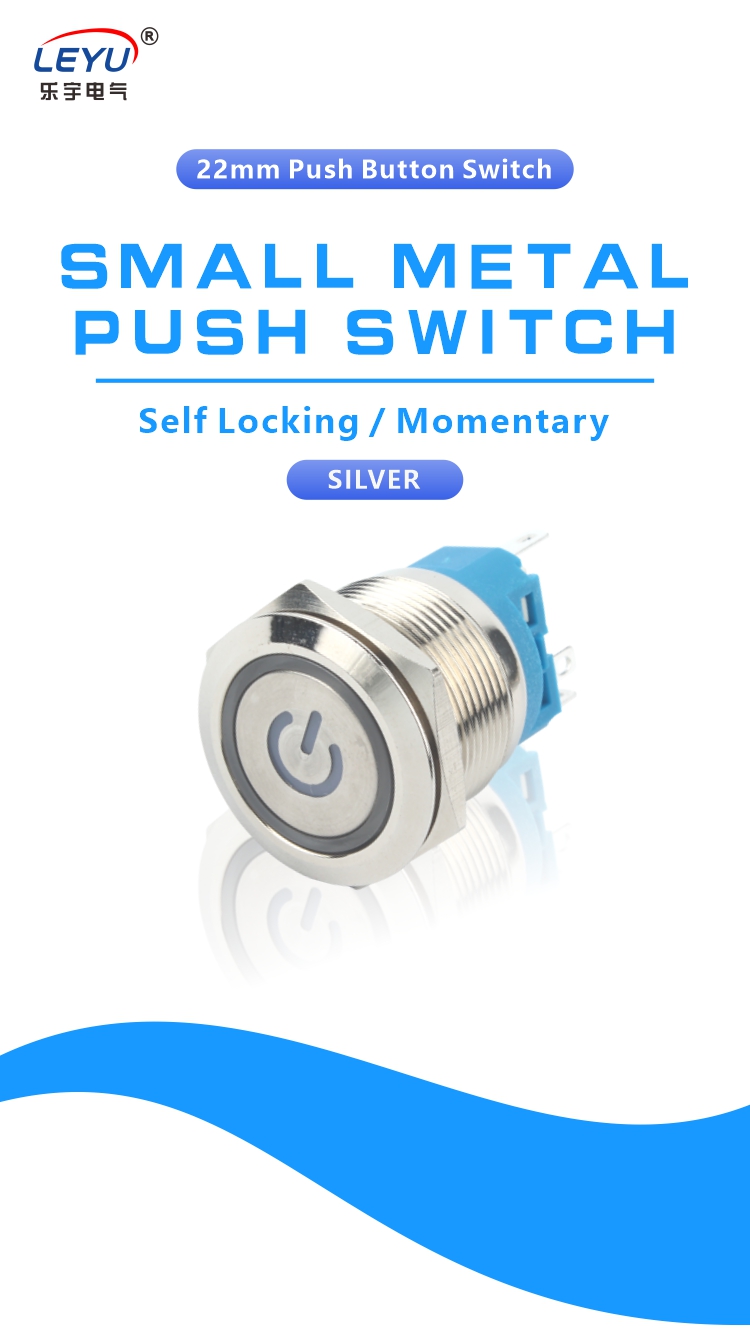

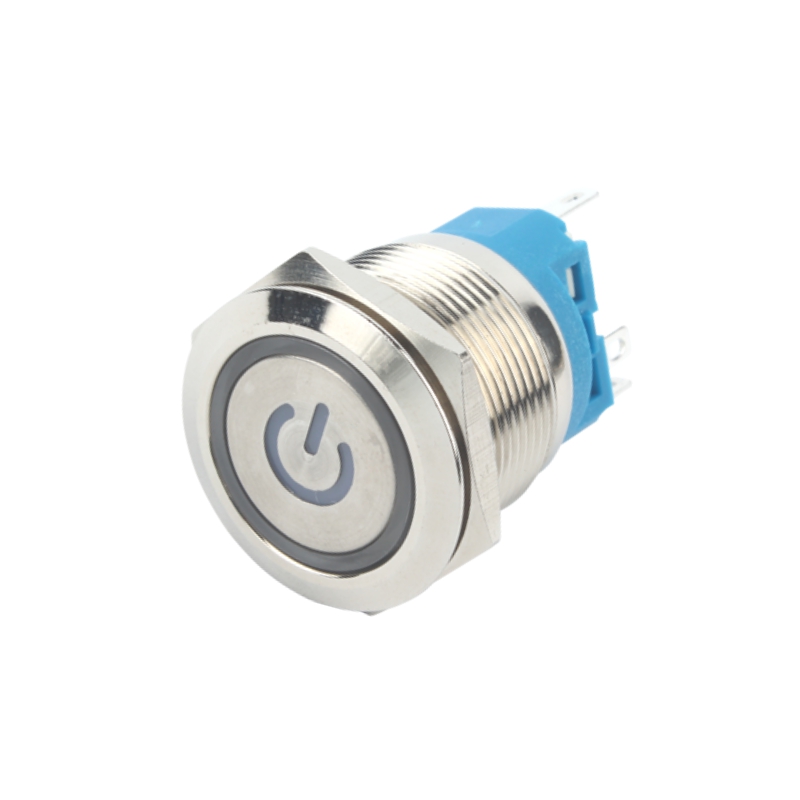

22mm Silver  button switch with light

1.Ultra short length , only 33.4mm.

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With both flat and spherical design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP65;

6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;

7.It has applied of many patents ,RoHS,CE approve


Product Name

Push Button Switch

Model

B

Mounting Hole

22 mm

Operation Type

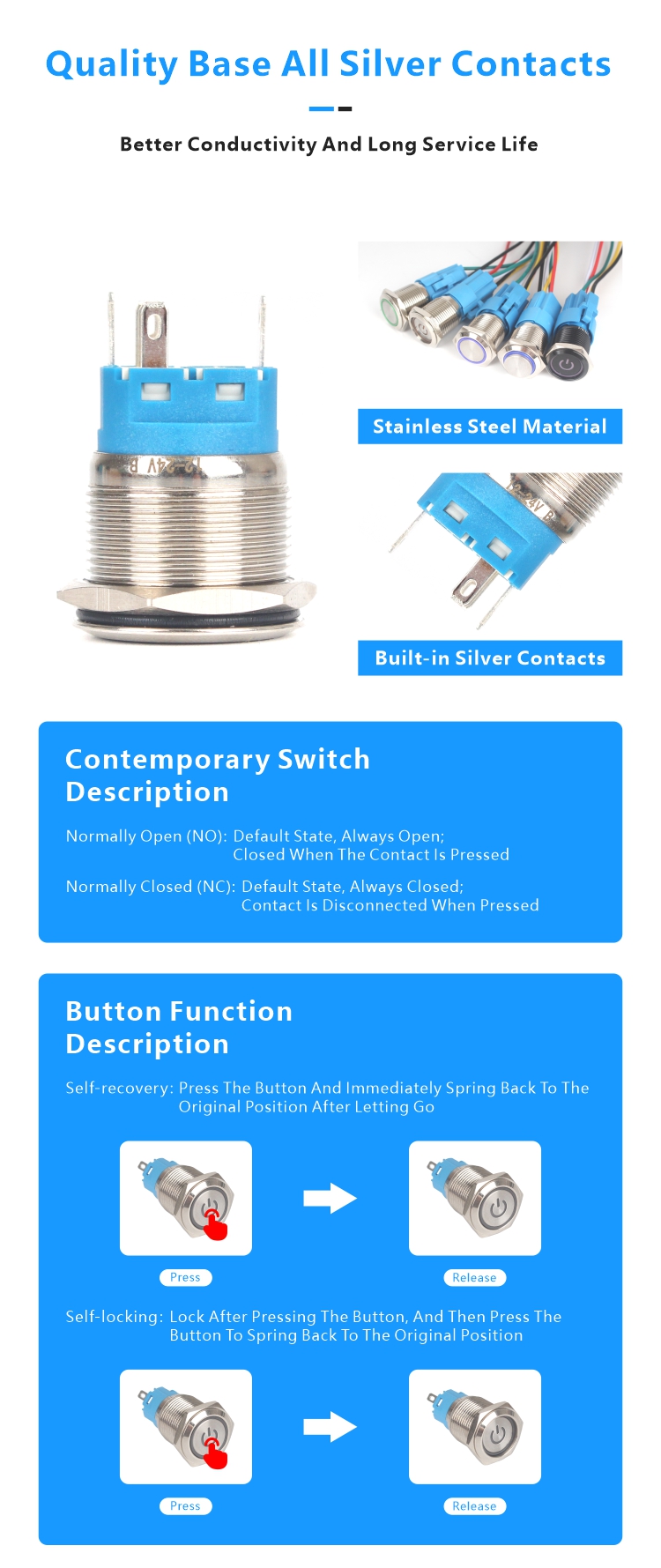

Self-locking & reset

Input voltage range

(3-6V) 12V 24V

Switch Combination

1NO 1NC

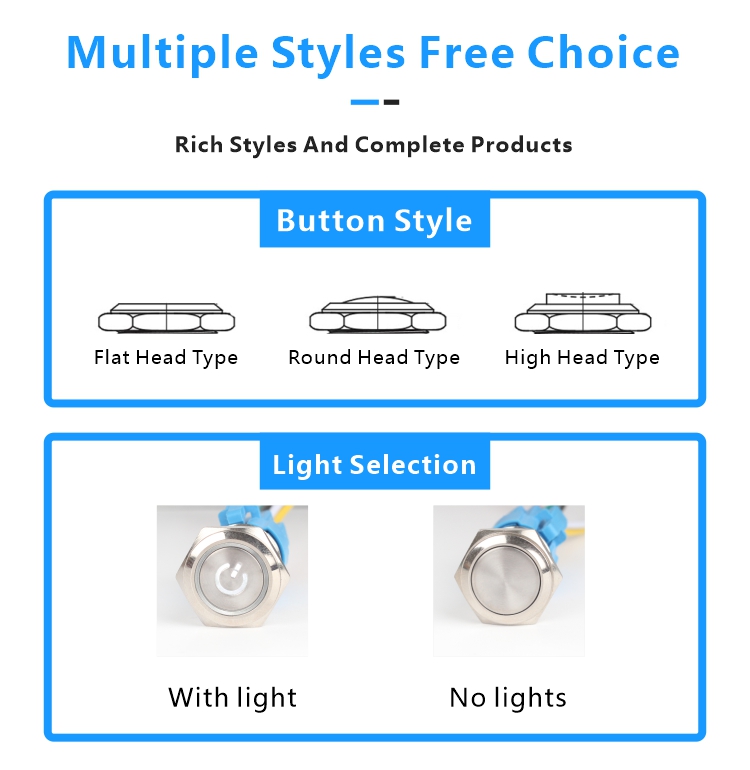

Head Type

Flat round head

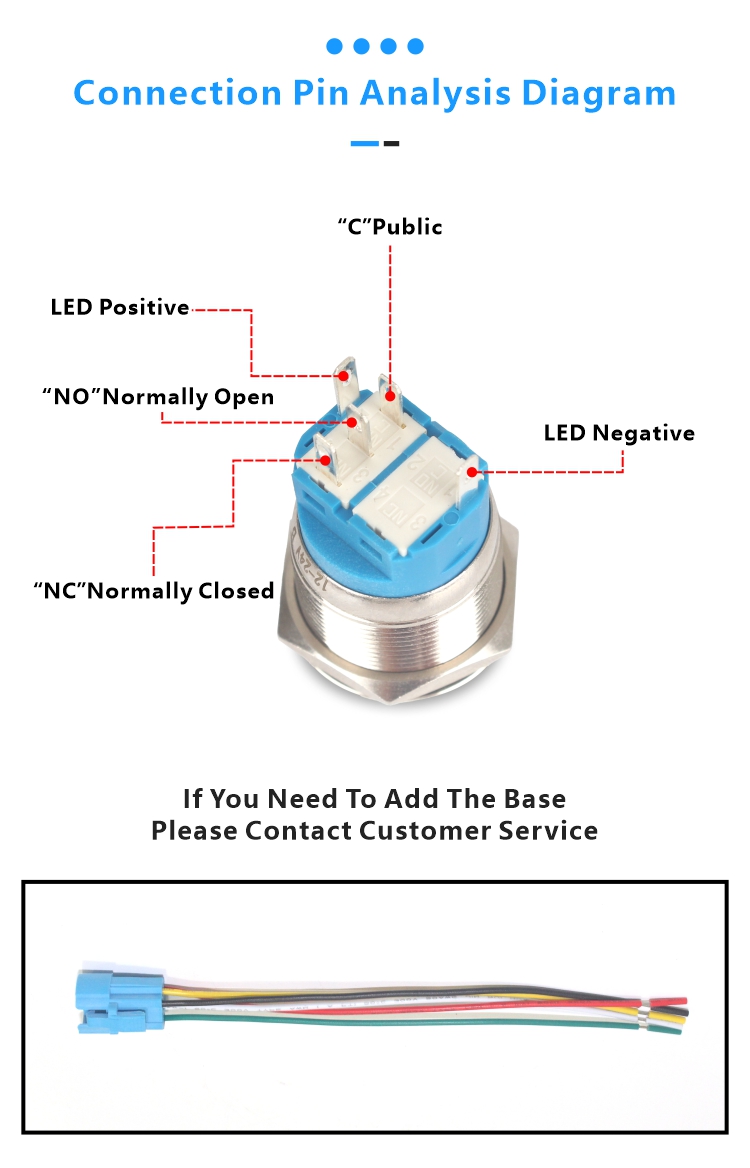

Terminal type

4 5 6 Pin Terminals

Illuminated or not

NO

Housing Color

Silver

Material

Alloy\ Nickel plated brass\stainless steel

Delivery Days

1-7 days

Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Operating Temperature

-20°C ~+55°C

Wire Soldering

Acceptable and with fast shipping

Accessories

Nut, Rubber Gasket

More size

7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM

The number of life

Over 50000 times

Single gross weight:

0.022 kg
