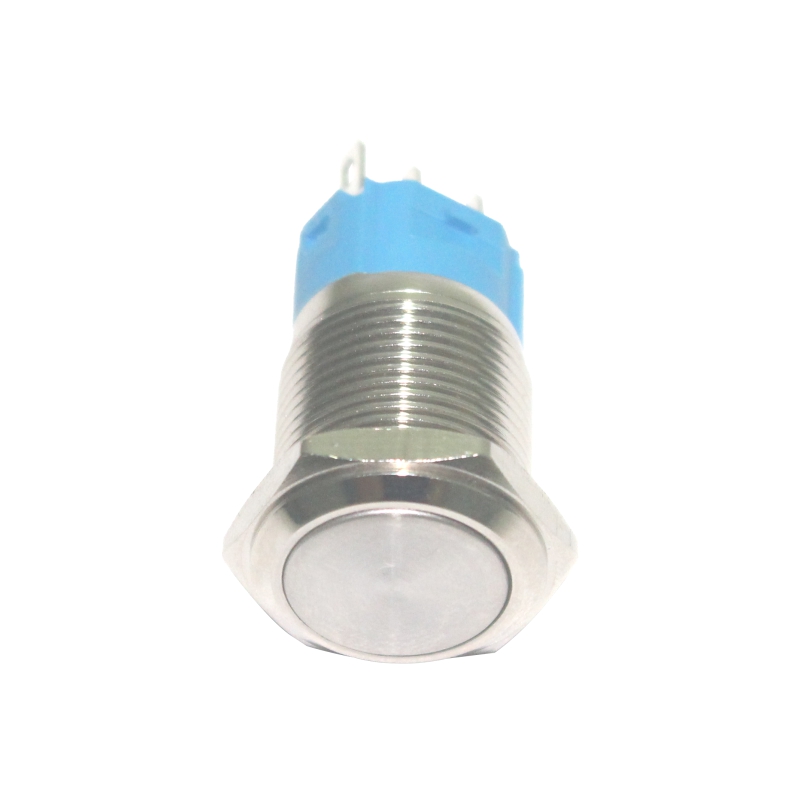

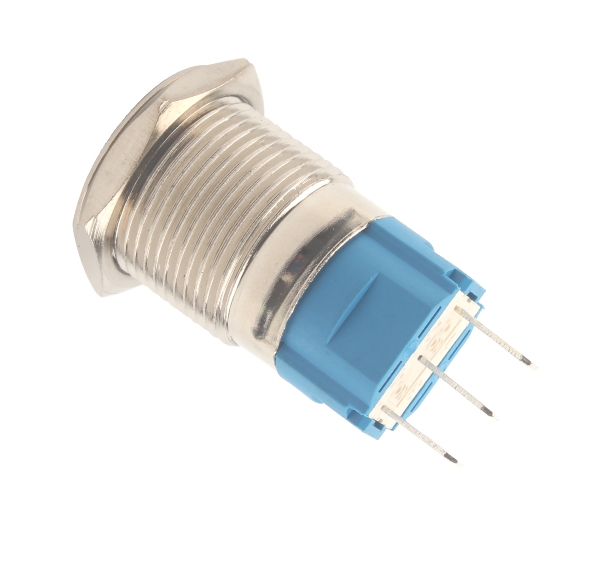

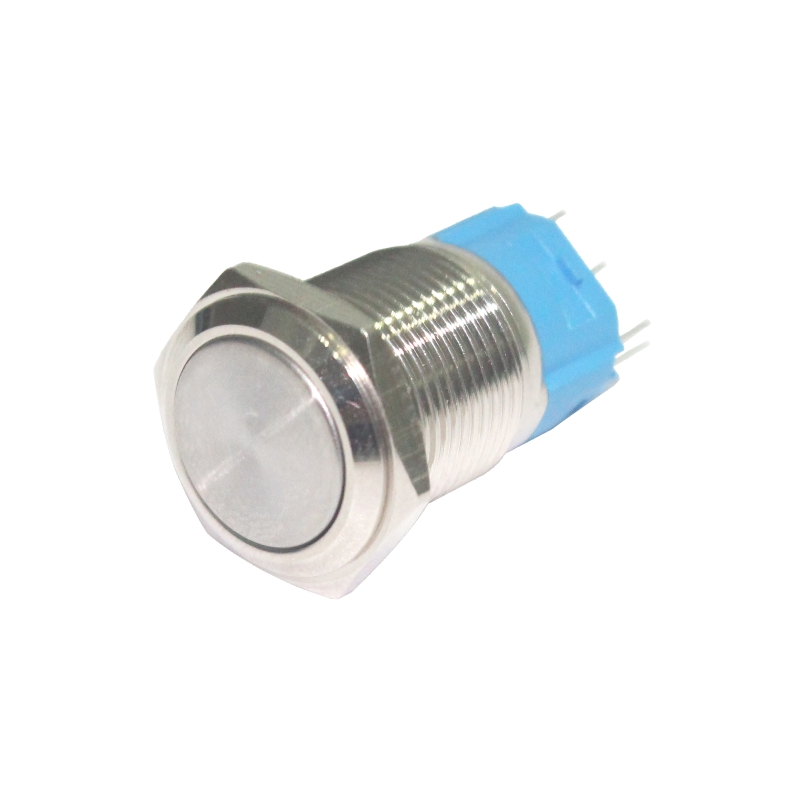

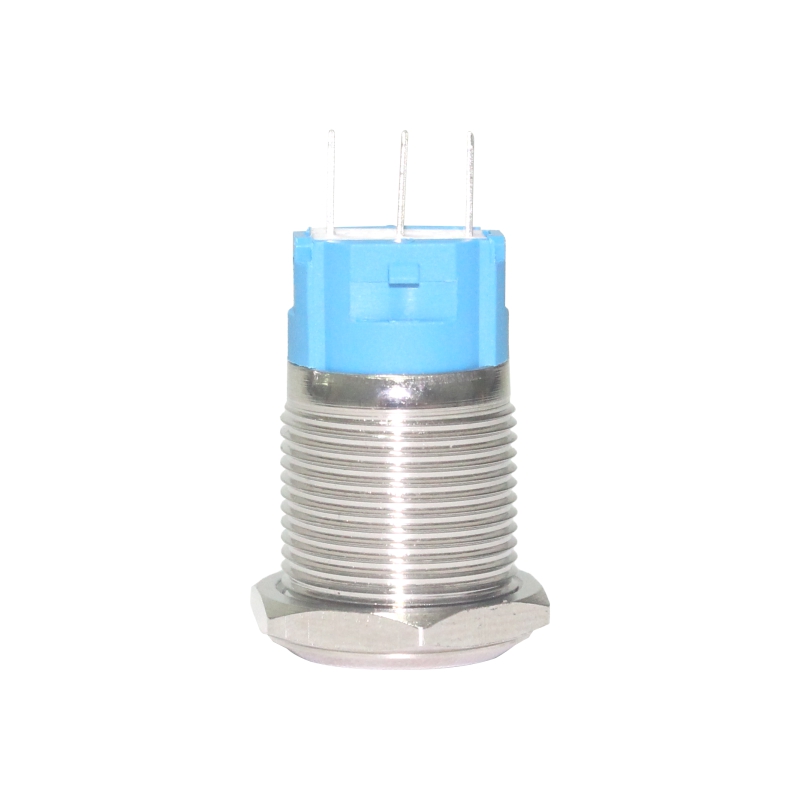

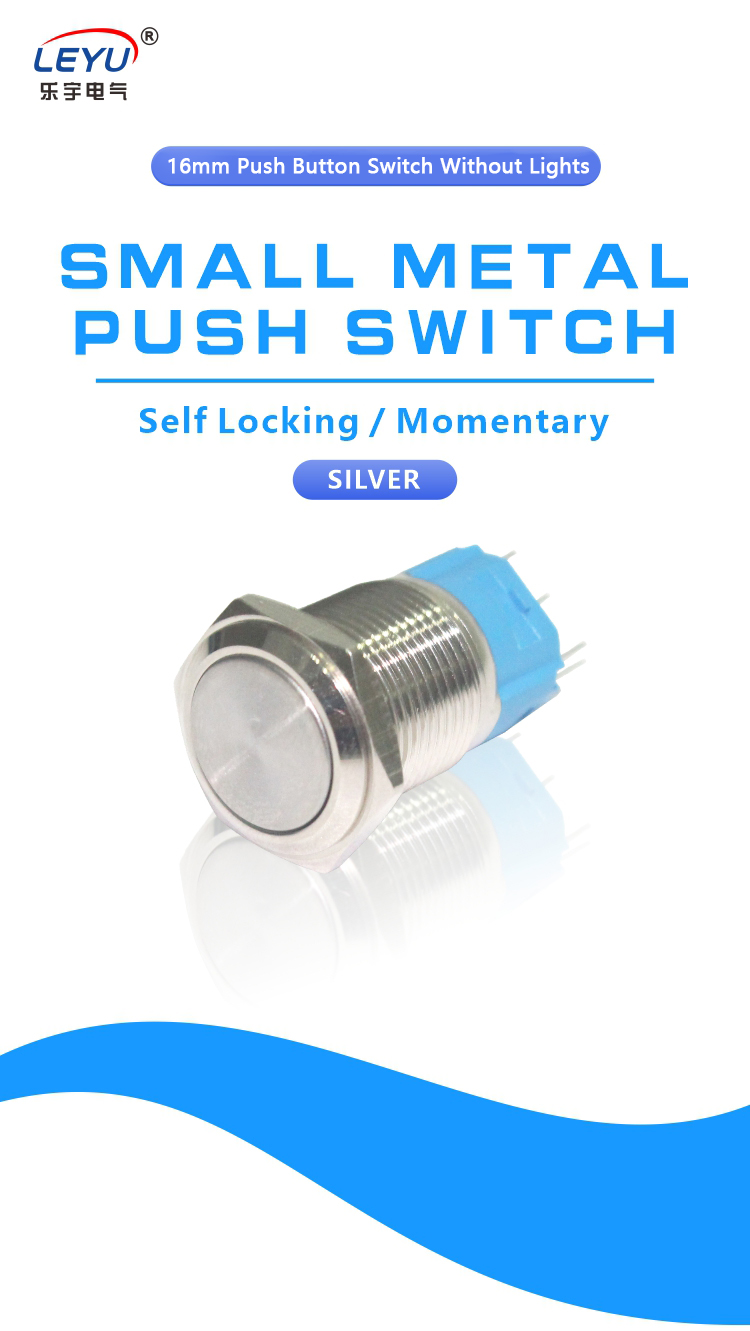

16mm Silver Button Switch

1.Ultra short length , only 33.4mm.

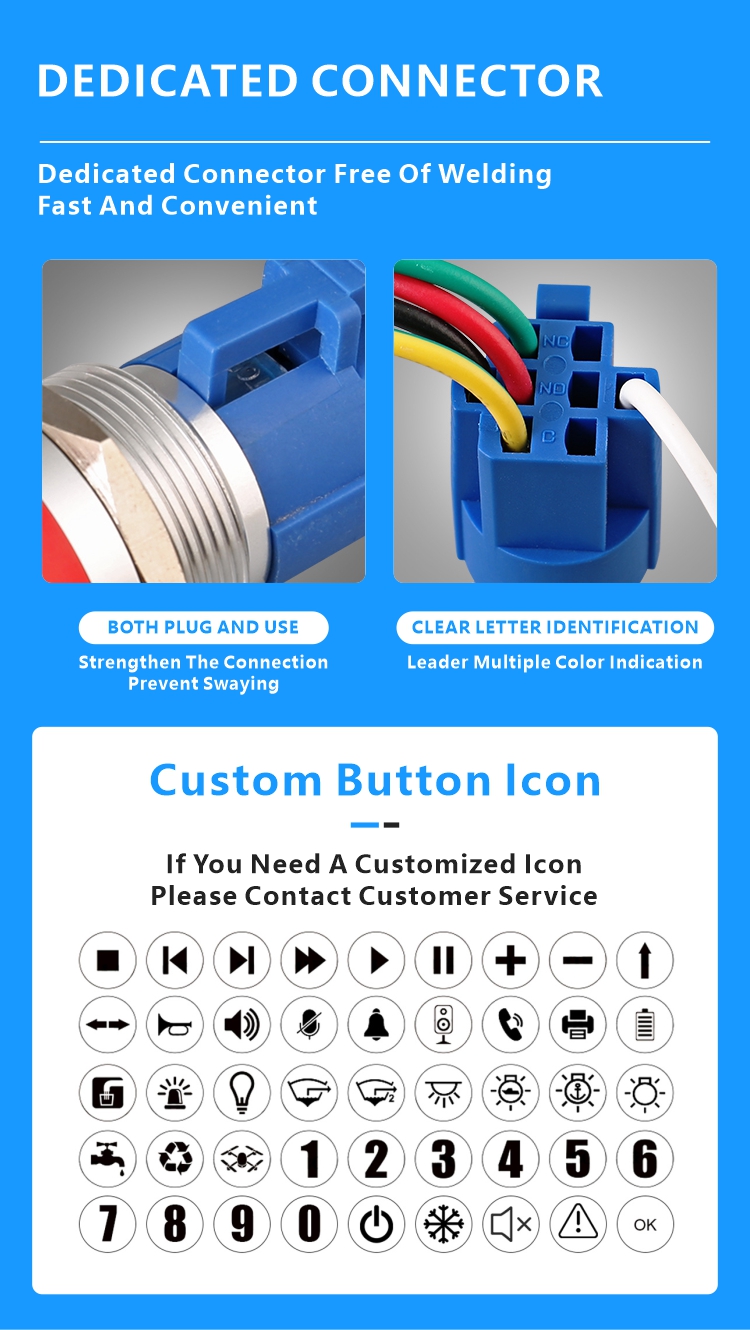

2.Optional connector,To ensure contact performance,reduce waste of labor;

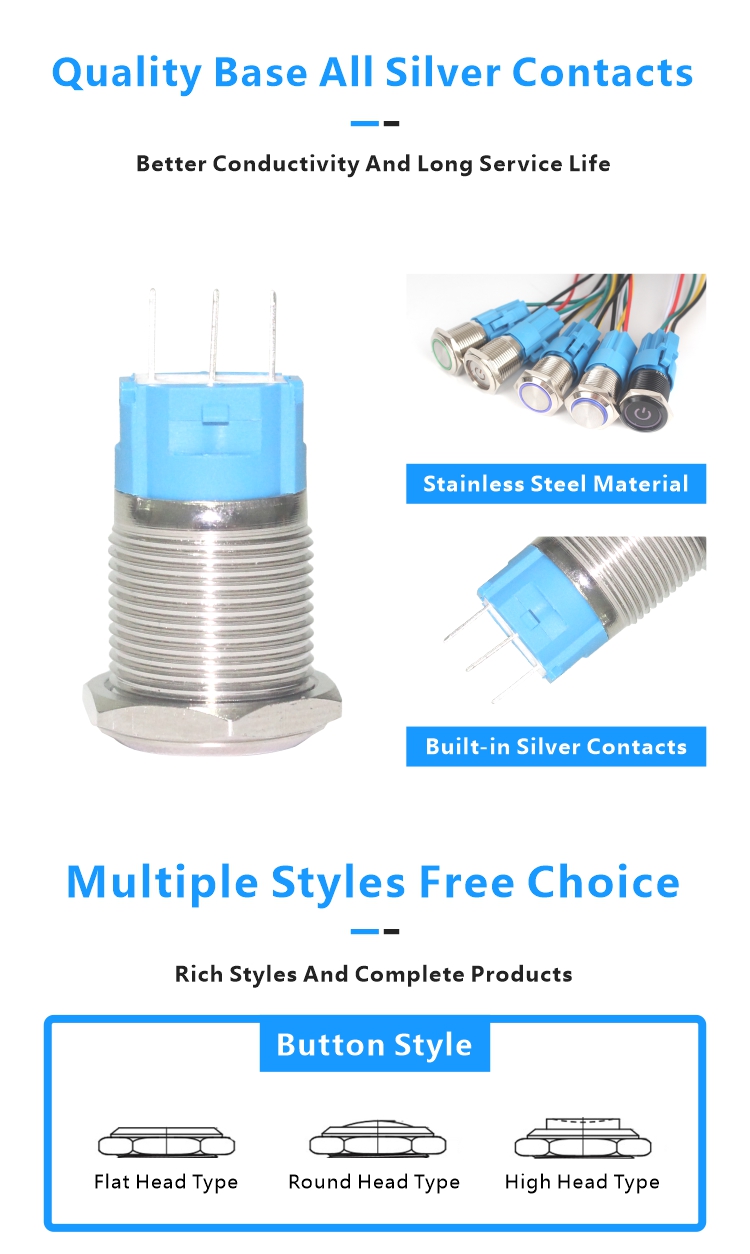

3.With both flat and spherical design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP65;

6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;

7.It has applied of many patents ,RoHS,CE approve


Product Name

Push Button Switch

Origin

Zhejiang China

Model

B-16K

Mounting Hole

16 mm

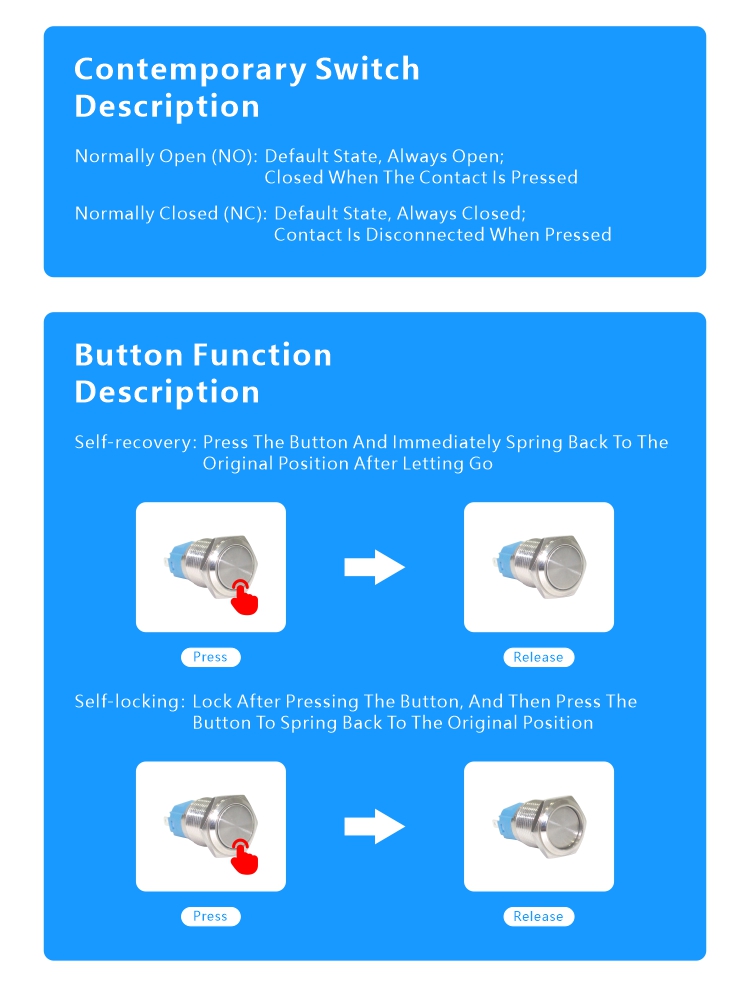

Operation Type

Self-locking & reset

Light Type

With Light & Without Light

Housing Color

Silver

Input voltage range

(3V ~ 6V) \ 12V ~ 24V

Current range

3A 5A 10A

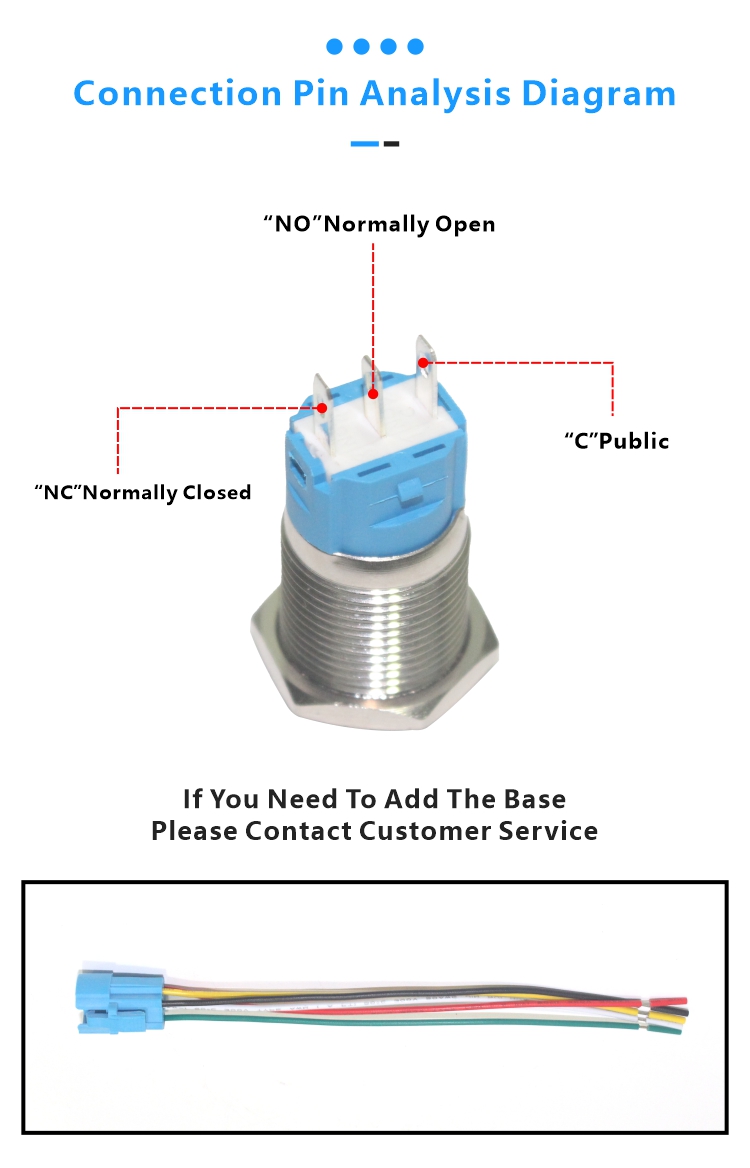

Switch Combination

1NO 1NC

Head Type

Flat

Protection Level

IP65\IP67

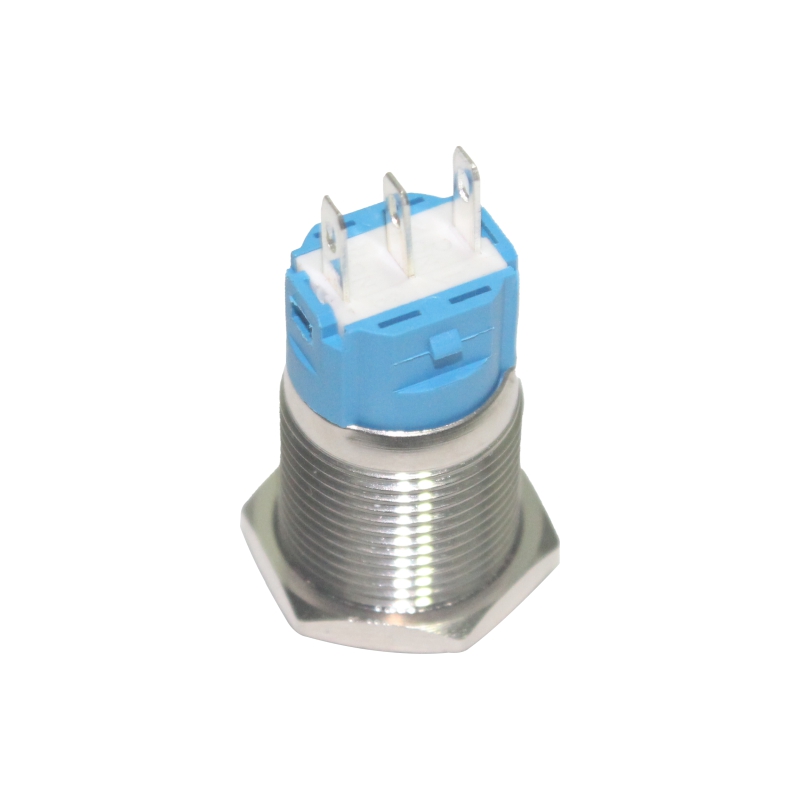

Terminal type

4~5 Pin Terminals

Illuminated or not

NO

Material

Nickel plated brass\stainless steel

Delivery Days

1-7 days

Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Operating Temperature

-20°C ~+55°C

Wire Soldering

Acceptable and with fast shipping

Accessories

Nut, Rubber Gasket

Certification

CE

More size

7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM

The number of life

Over 50000 times

The box size

20.5cm*14cm *7cm

Large box size

22cm *28.5cm *30.5cm

Single  weight:

0.025 kg
