12mm Black Button Switch With Light
Online Service
Product Detail

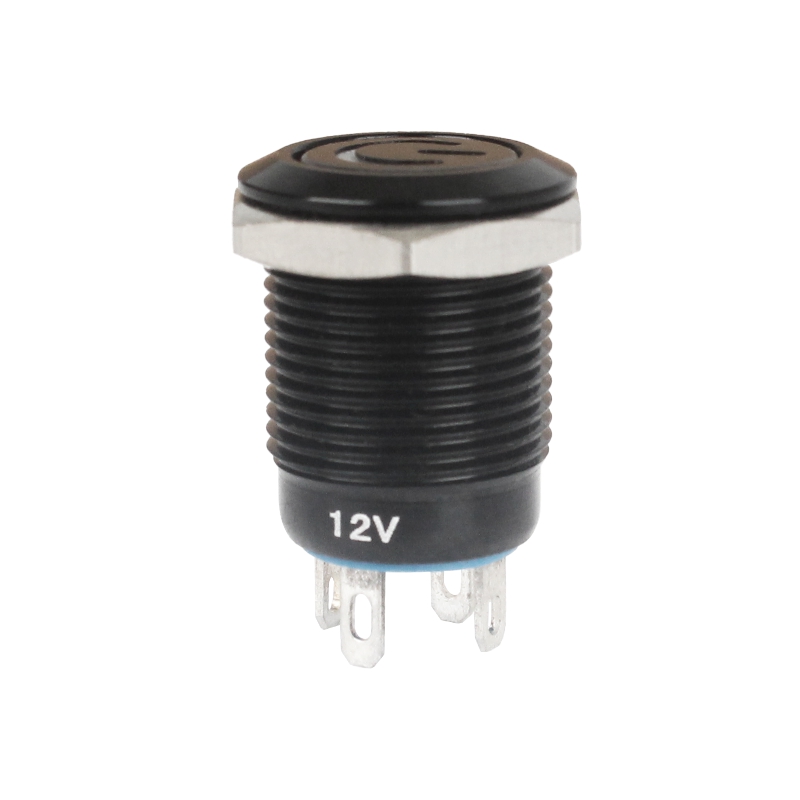

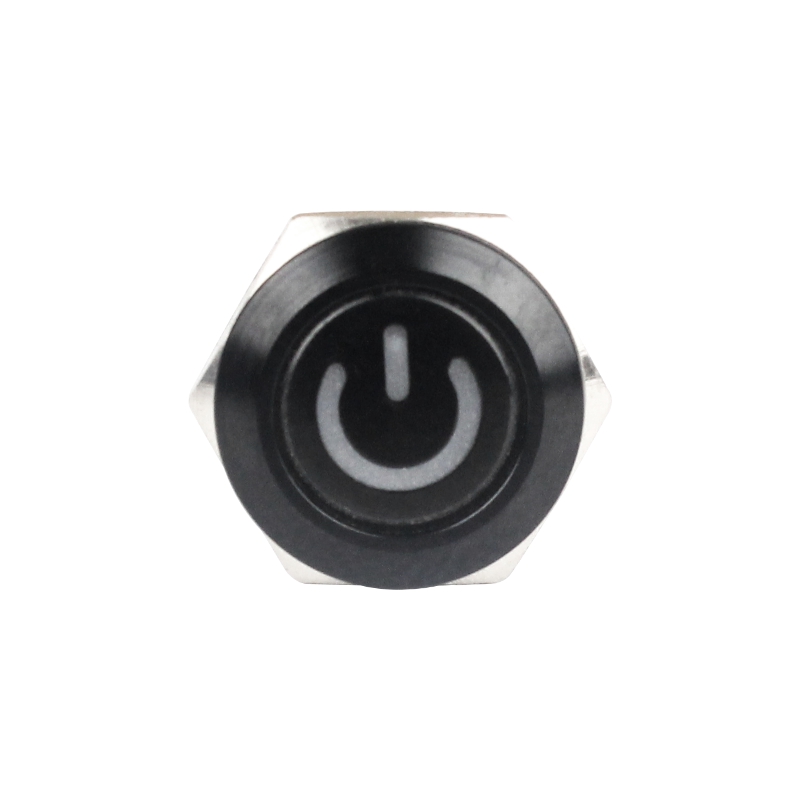

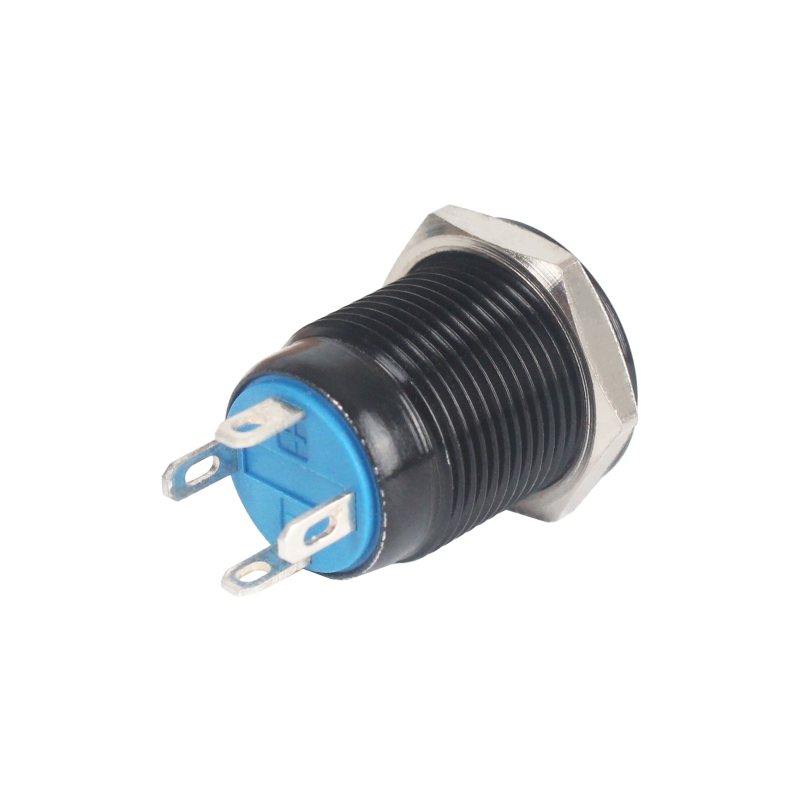

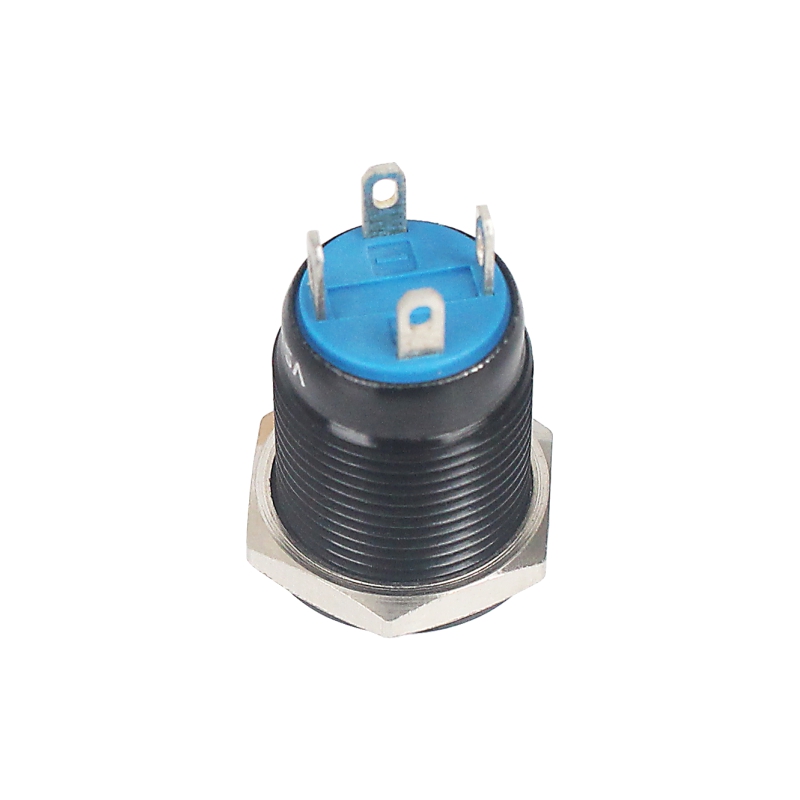

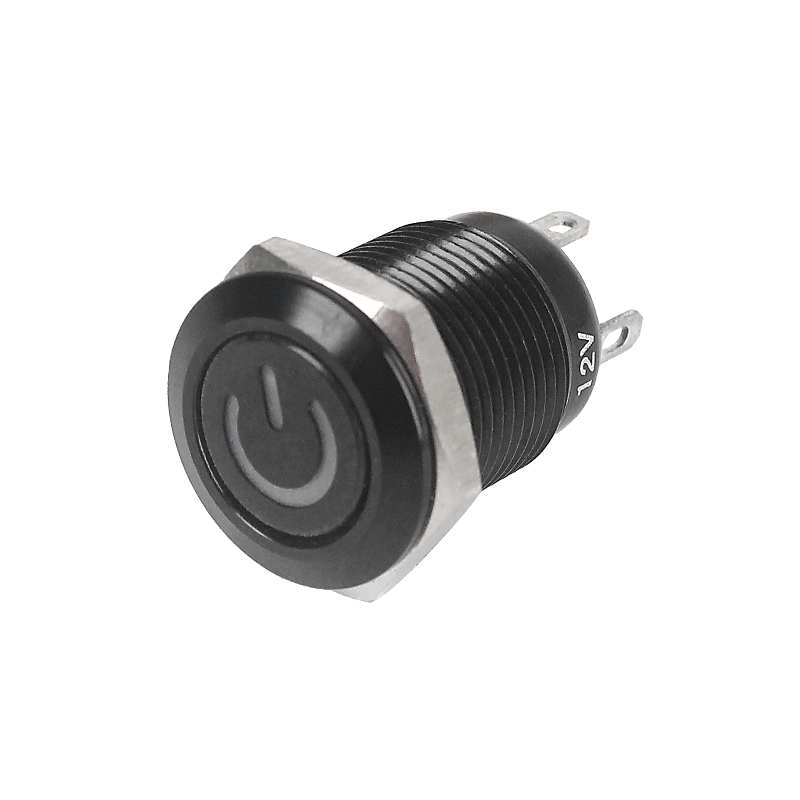

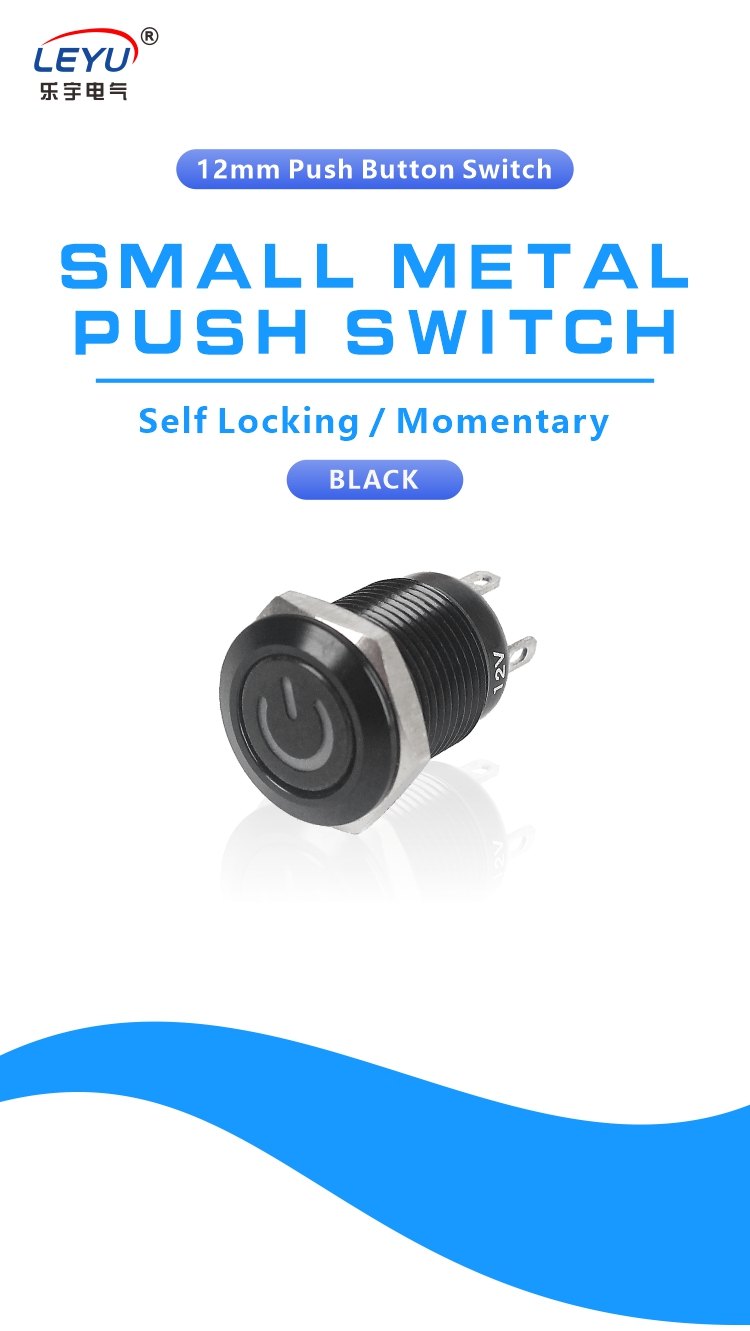

12mm Black Button Switch With Light
1.Ultra short length , only30.3mm.

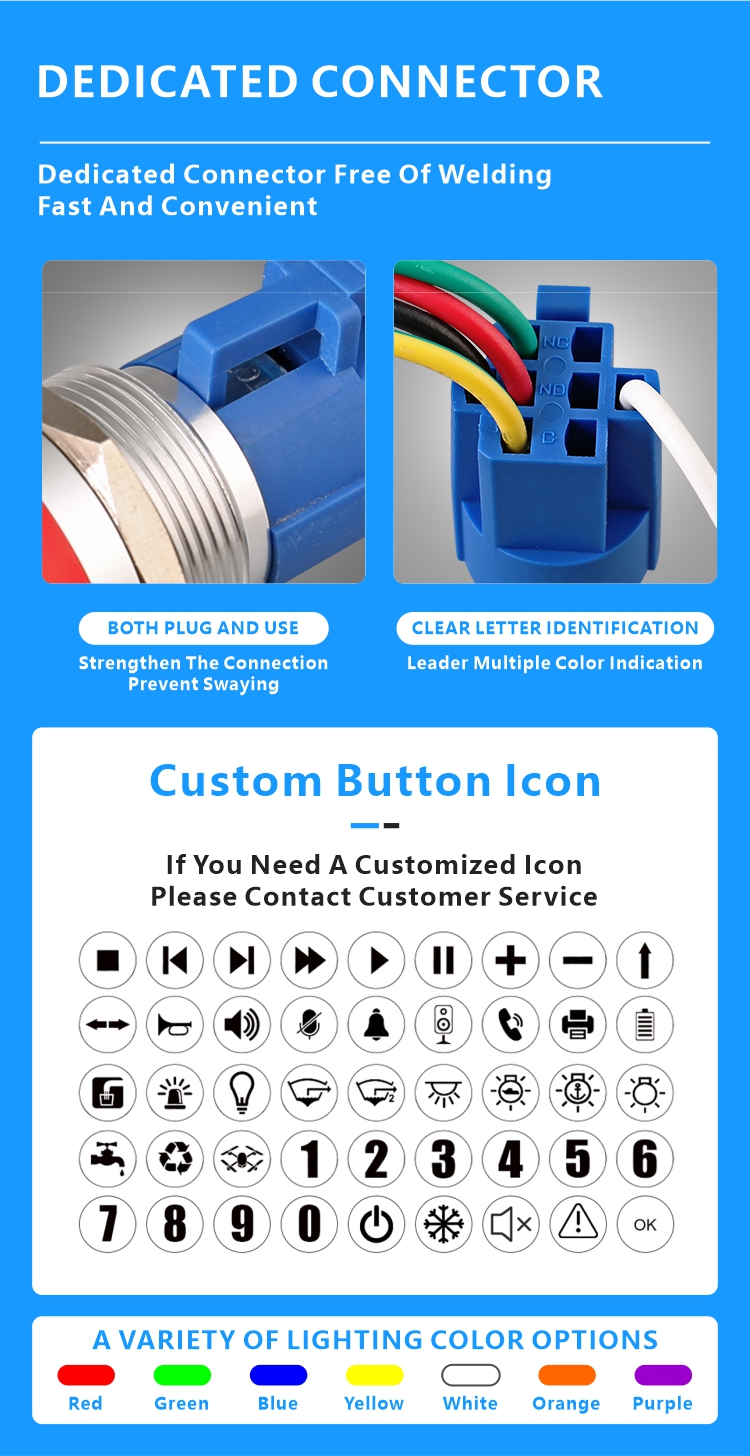

2.Optional connector,To ensure contact performance,reduce waste of labor;

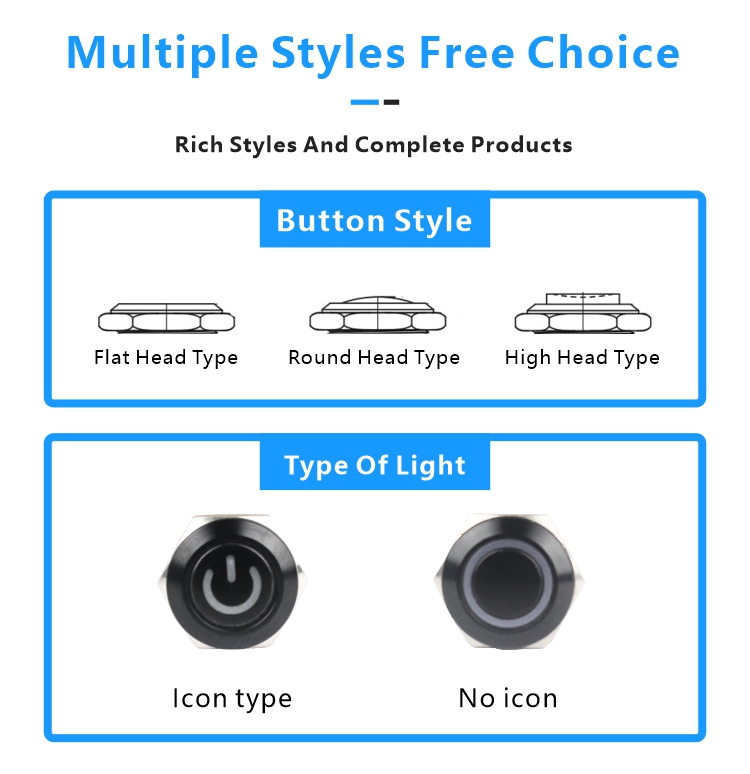

3.With both flat and spherical design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP65;
6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;
7.It has applied of many patents ,RoHS,CE approve
|
Product Name |
Push Button Switch |
|
Origin |
Zhejiang China |
|
Model |
B-12K |
|
Mounting Hole |
12mm |
|
Terminal |
4-5 |
|
Operation Type |
Self-locking & reset |
|
Light Type |
With Light & Without Light |
|
Light Color |
Red\ Yellow \Blue |
|
Housing Color |
Black |
|
Input voltage range |
(3V ~ 6V) \ 12V ~ 24V |
|
Current range |
3A 5A 10A |
|

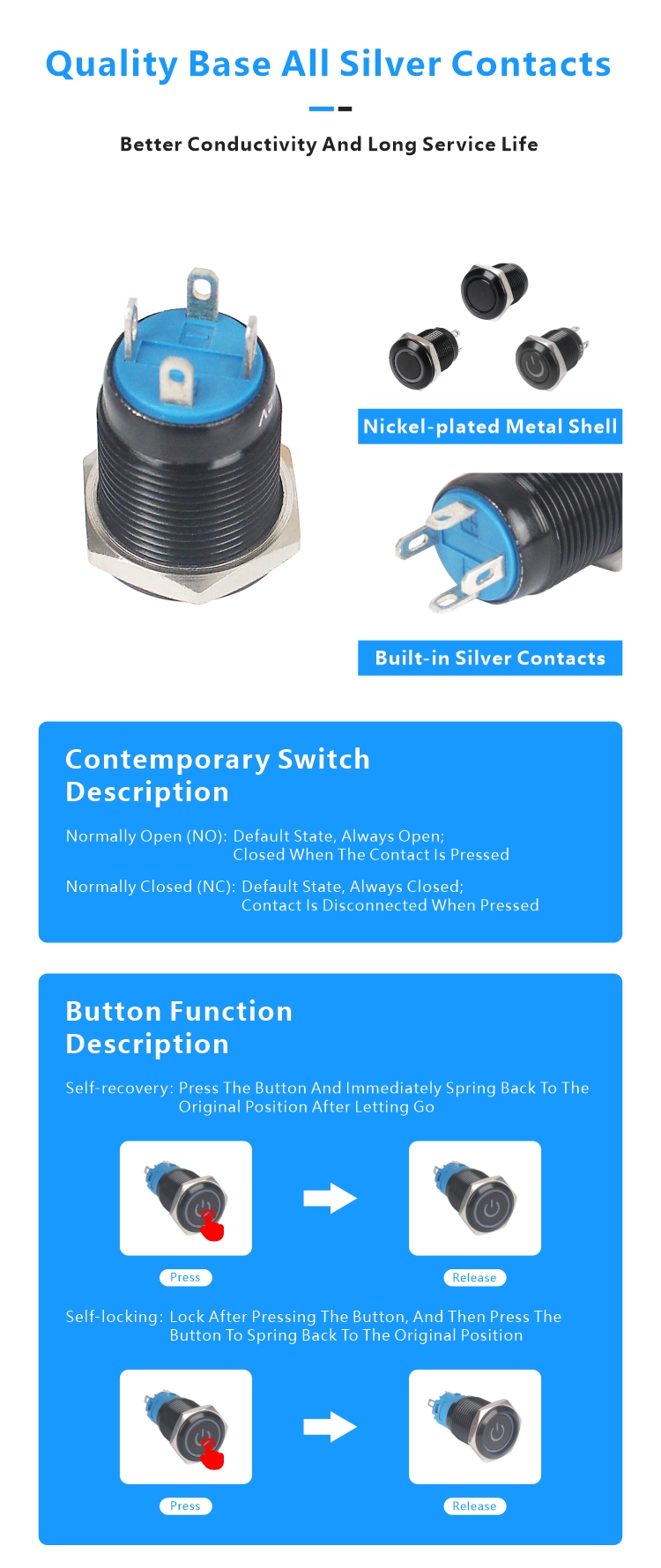

Switch Combination |
1NO 1NC |
|
Head Type |
Flat |
|
Protection Level |
IP65\IP67 |
|
Terminal type |
4~5 Pin Terminals |
|
Material |
Nickel plated brass\stainless steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Gasket |
|
More size |
7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM |
|
Customized requirement |
Acceptable |
|
A small box |
10 box |
|
The number of life |
Over 50000 times |
|
The box size |
20.5cm*14cm *7cm |
|
Large box size |
22cm *28.5cm *30.5cm |
|
Single weight: |
0.02 kg |
