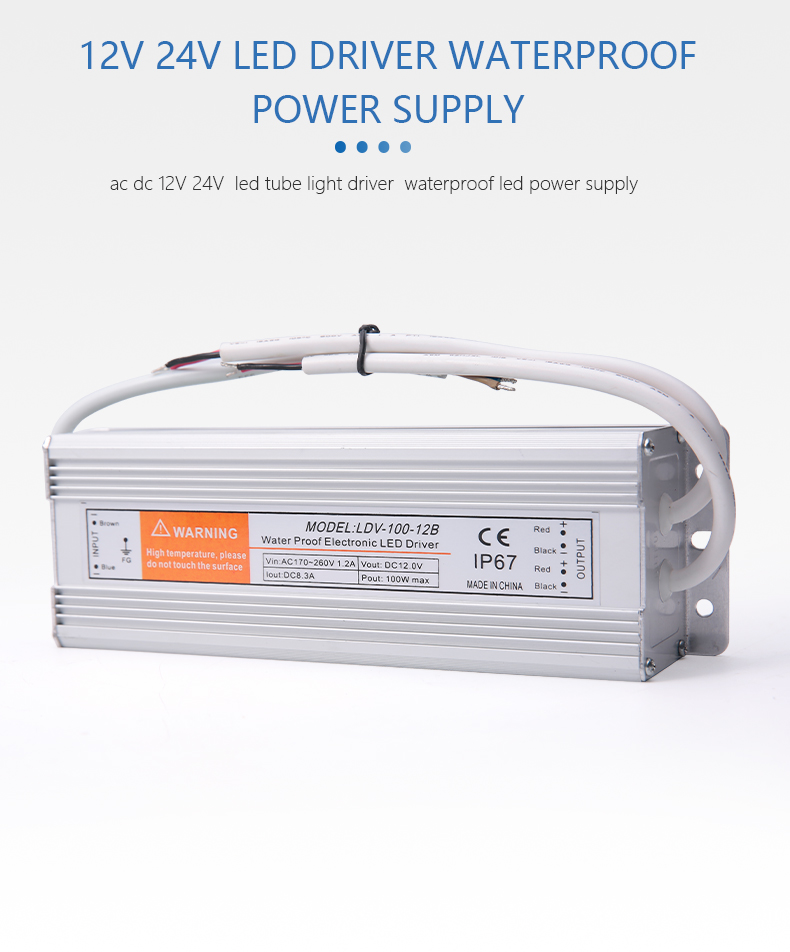

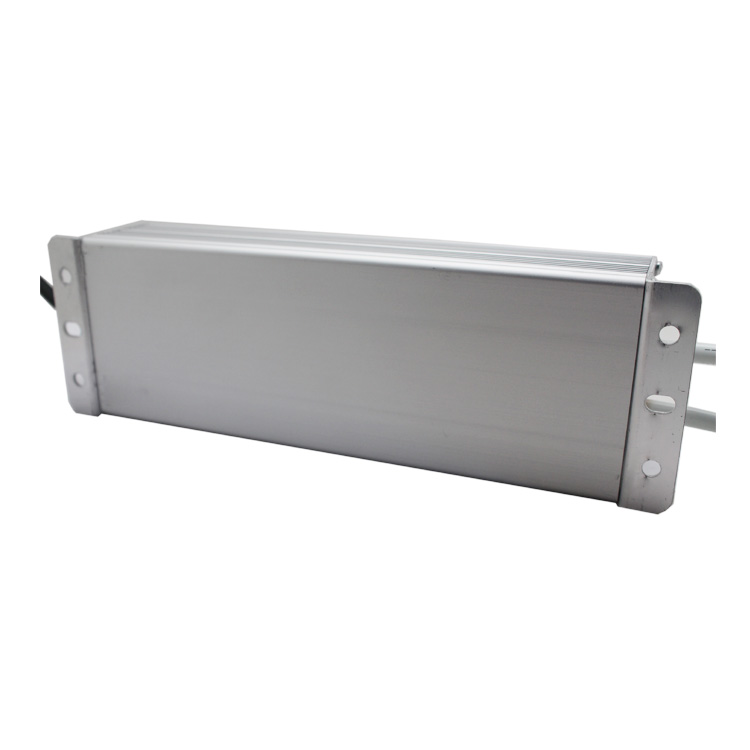

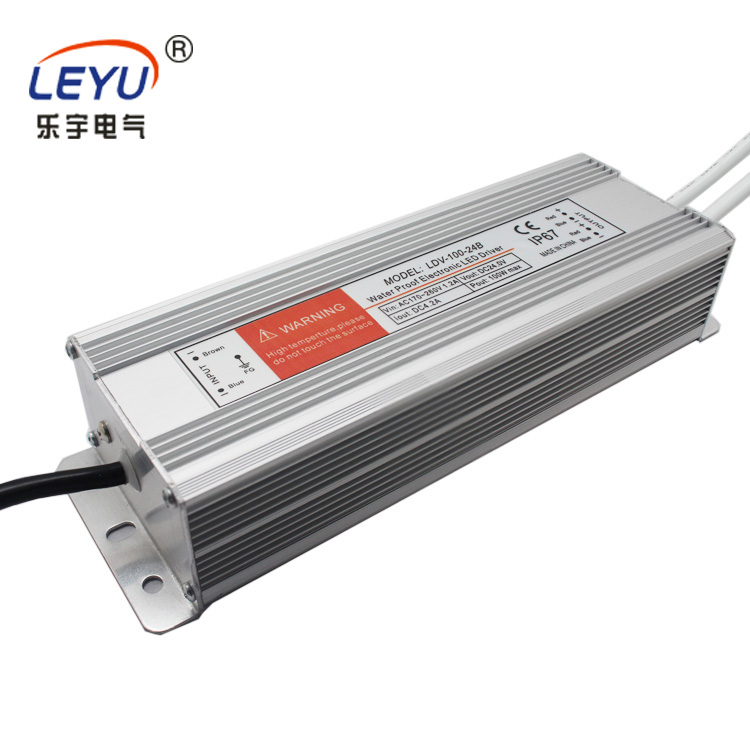

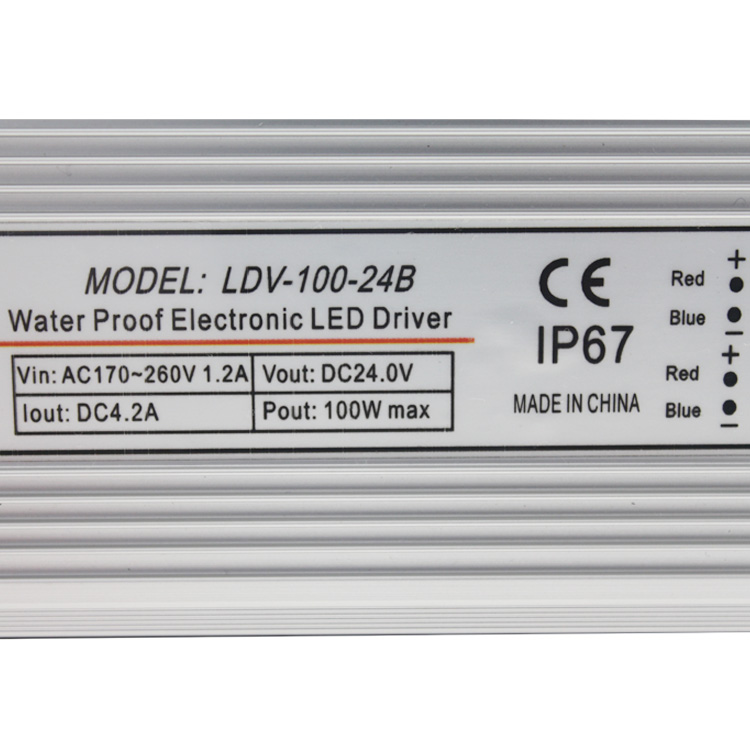

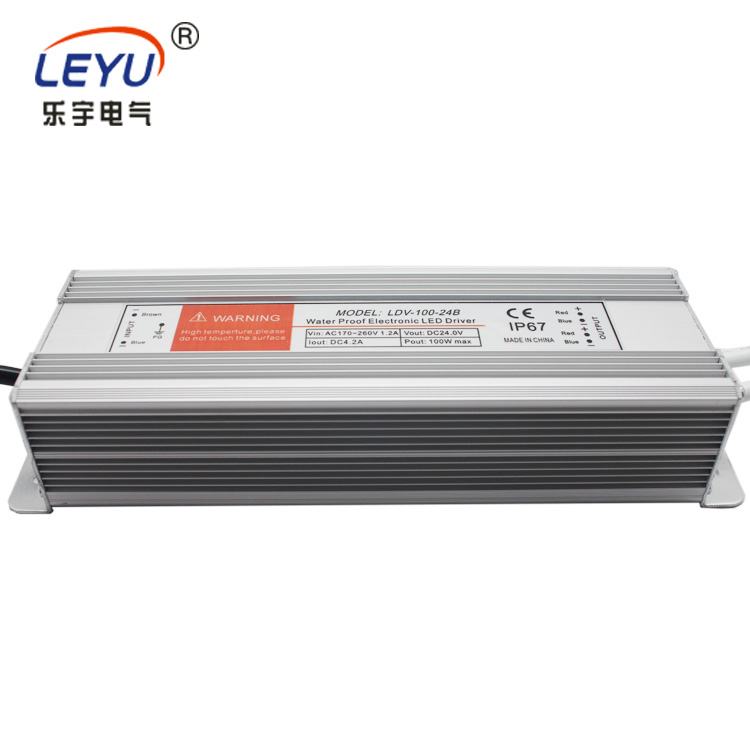

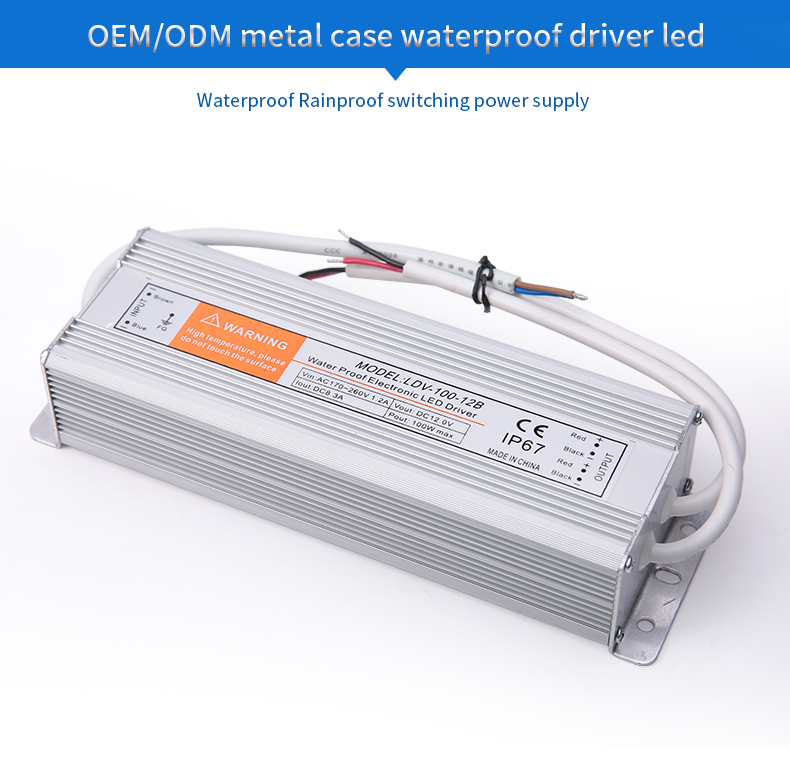

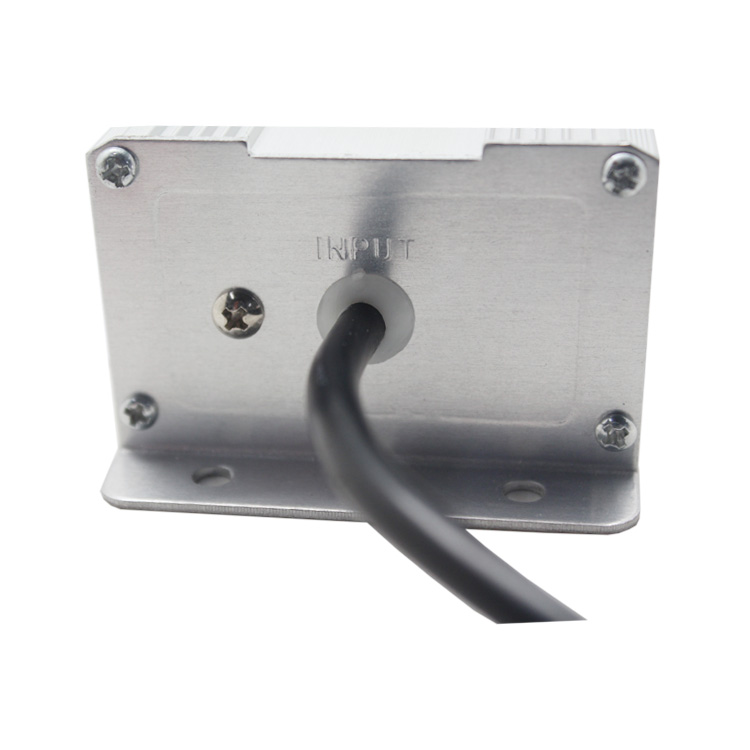

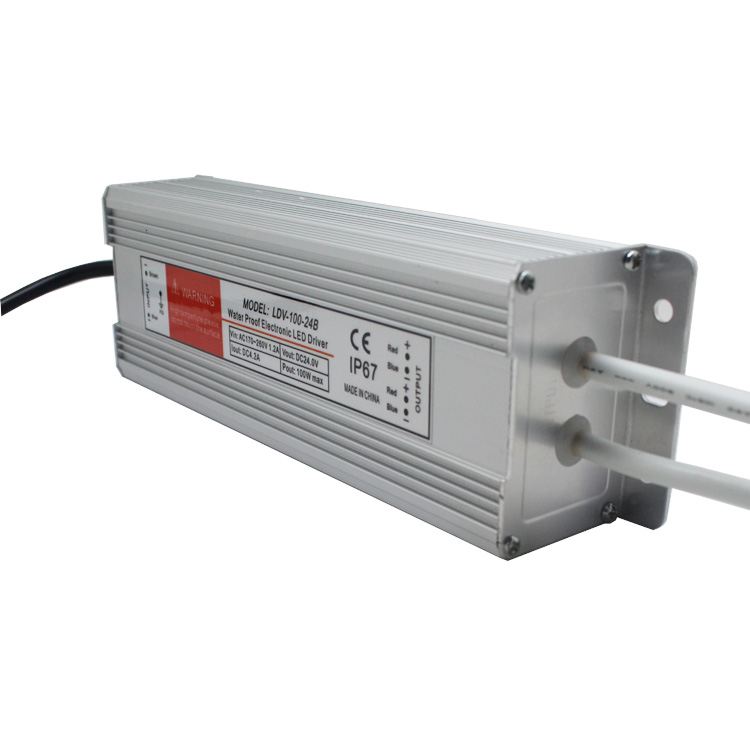

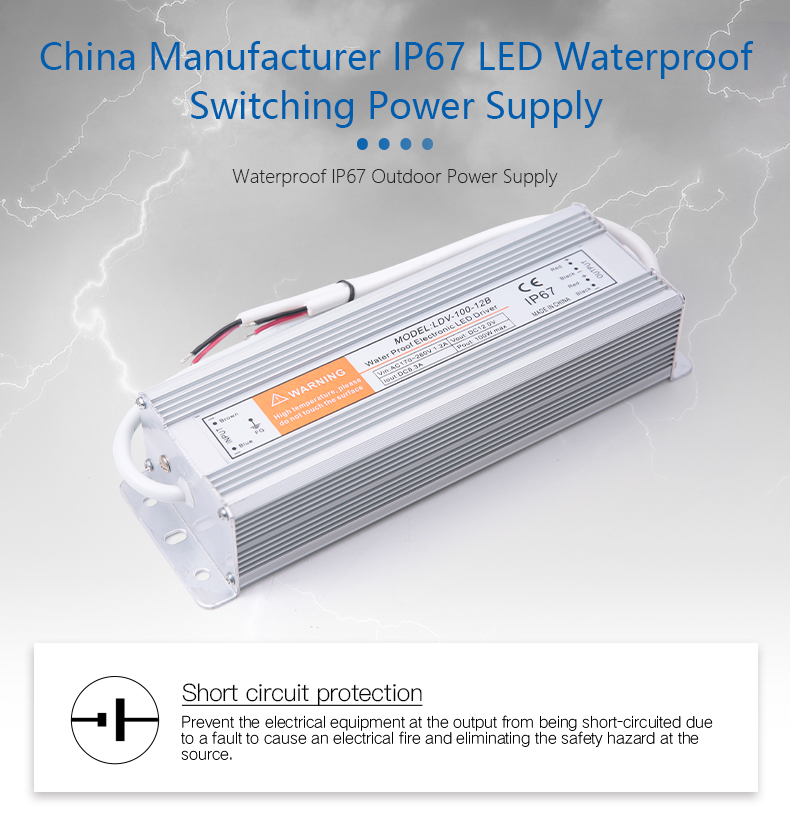

100W Single Output WaterproofSwitching Power Supply LDV-100 series
Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Suitable for LED lighten and moving sign applications.
2 years warranty
|
SPECIFICATION |
|||
|
OUTPUT |
|
||
|
Model |
LDV-100-12 |
LDV-100-24 |
|
|
DC Voltage |
12V |
24V |
|
|
Rated Current |
8.3A |
4.2A |
|
|
Current Range |
0-8.3A |
0-4.2A |
|
|
Rated Power |
100W |
100W |
|
|
Ripple & Noise |
120mVp-p |
120mVp-p |
|
|
Voltage Adj. Range |
±10% |
±10% |
|
|
Voltage Tolerance |
±1% |
±1% |
|
|
Inlet Stability |
±0.5% |
±0.5% |
|
|
Load Stability |
±0.5% |
±0.5% |
|
|
Setup,Rise,Hold Up Time |
800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
176~264VAC |
||
|
AC Current |
2A/115V1A/230V |
||
|
Efficiency |
76% |
79% |
|
|
Inrush Current |
Cold-start current 30A/115V 60A/230V |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
105%~150% |
||
|
Plusing hiccup shutdown Reset: auto recovery |
|||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
||
|
Temp. Coefficient |
±0.03%/℃(0-50℃) |
||
|
Vibration |
10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
UL1012TUV EN60950(IEC950,UL1950)、IP67 |
||
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
222*67*44mm(L*W*H) |
||
|
Weight |
1.09Kg |
||
