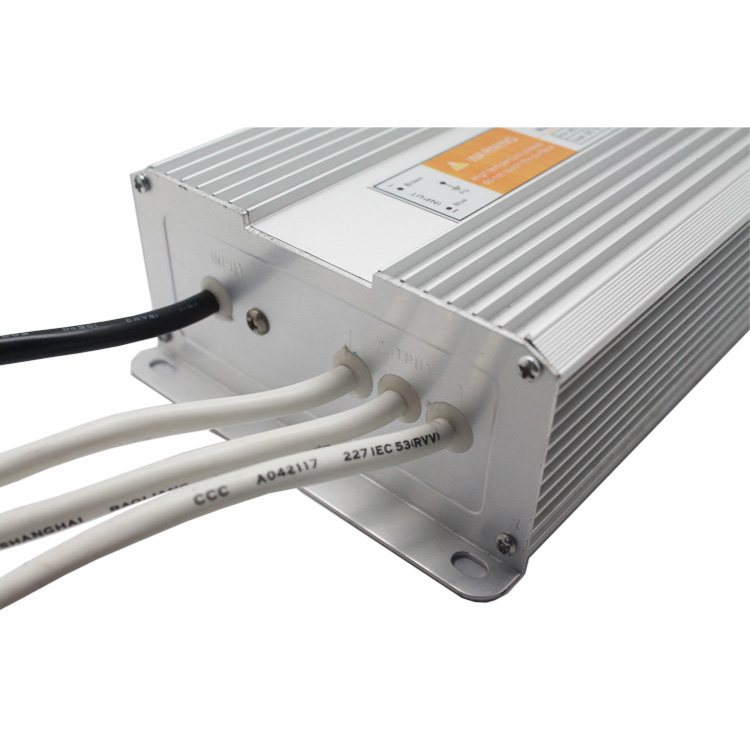

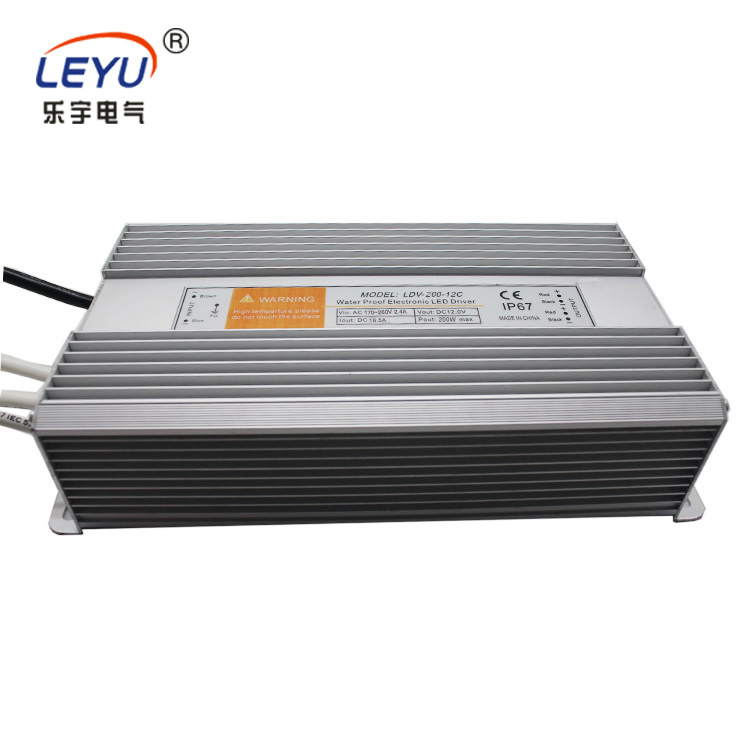

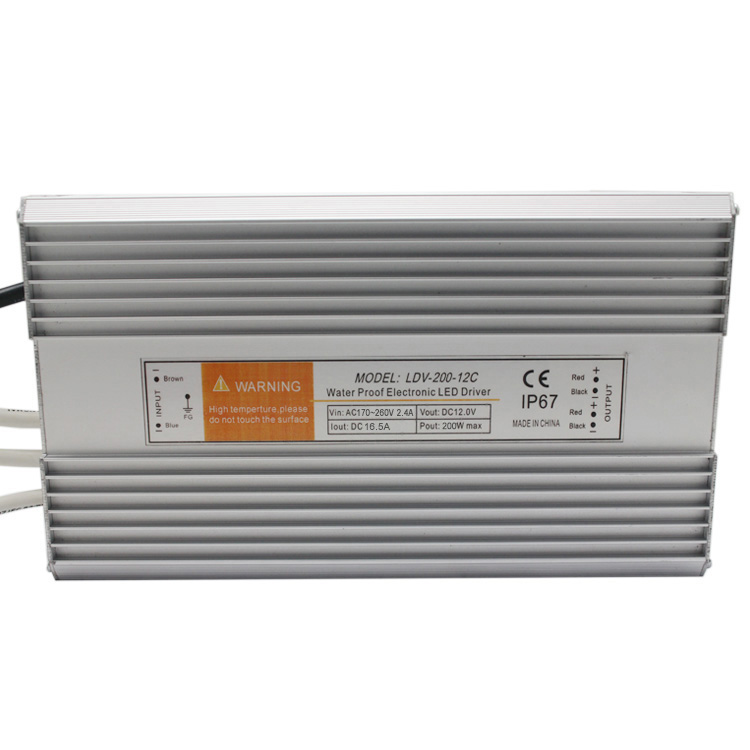

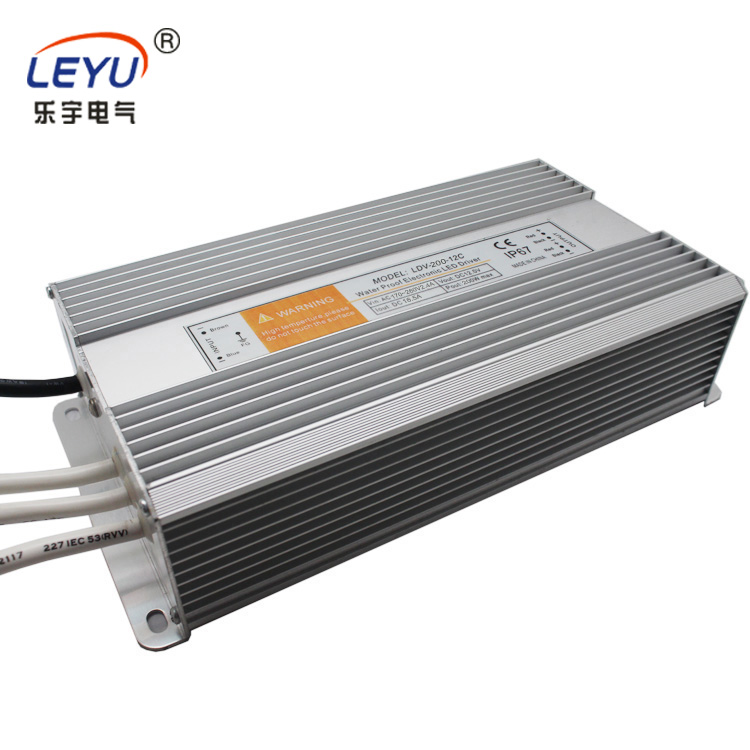

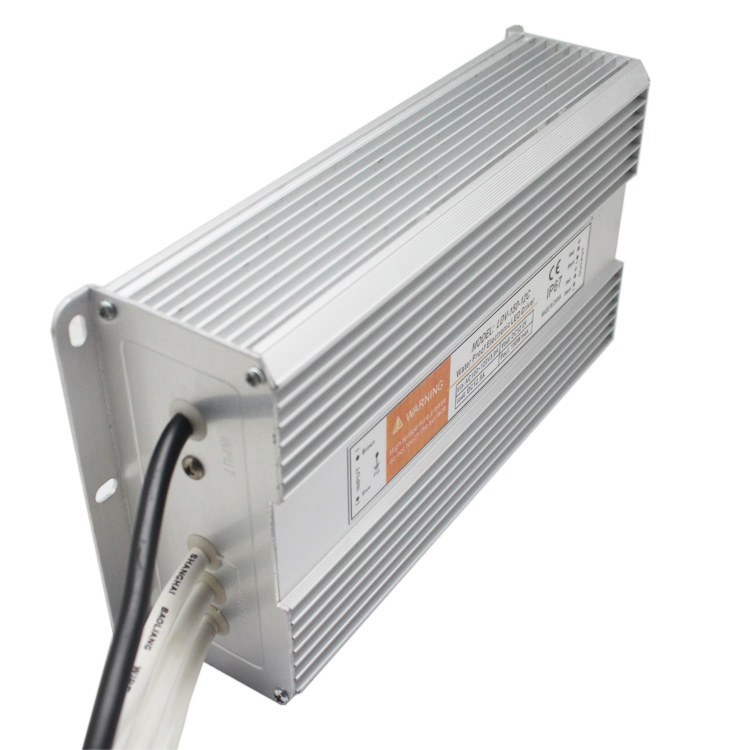

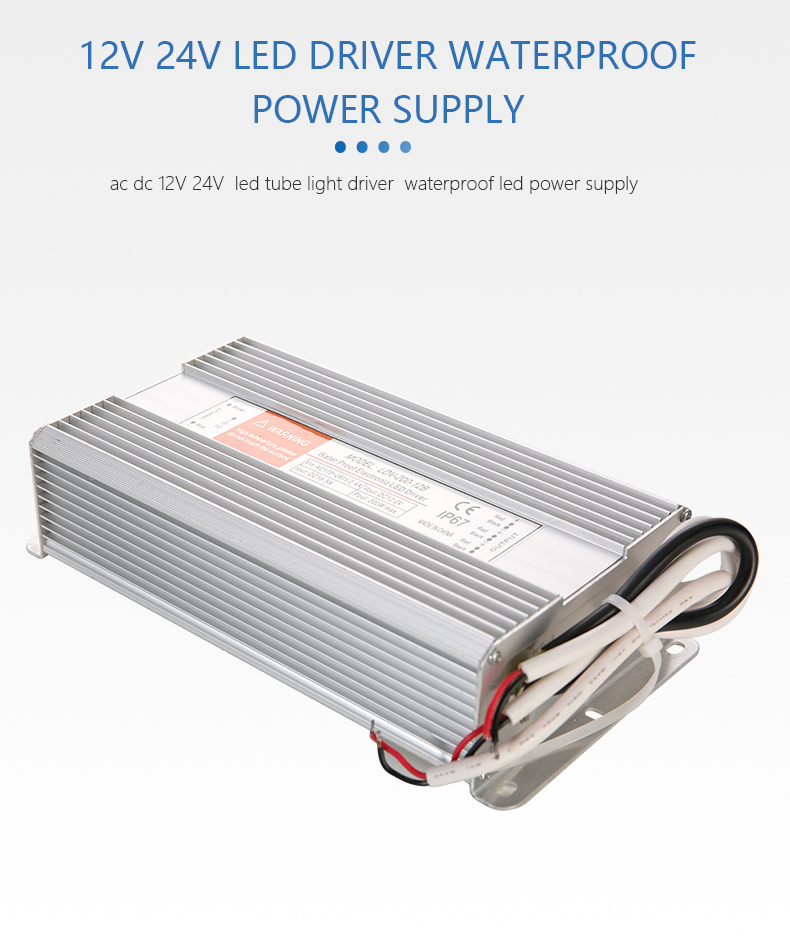

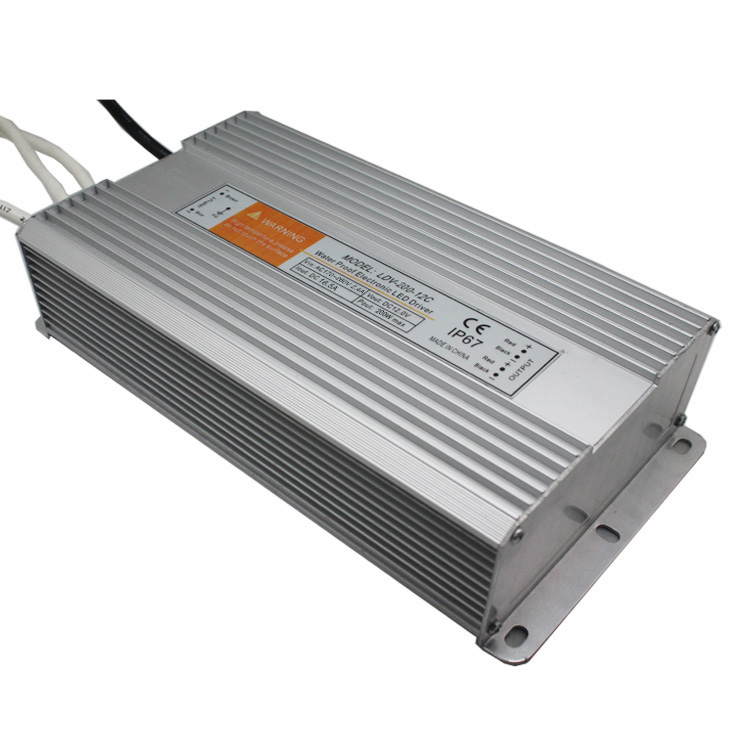

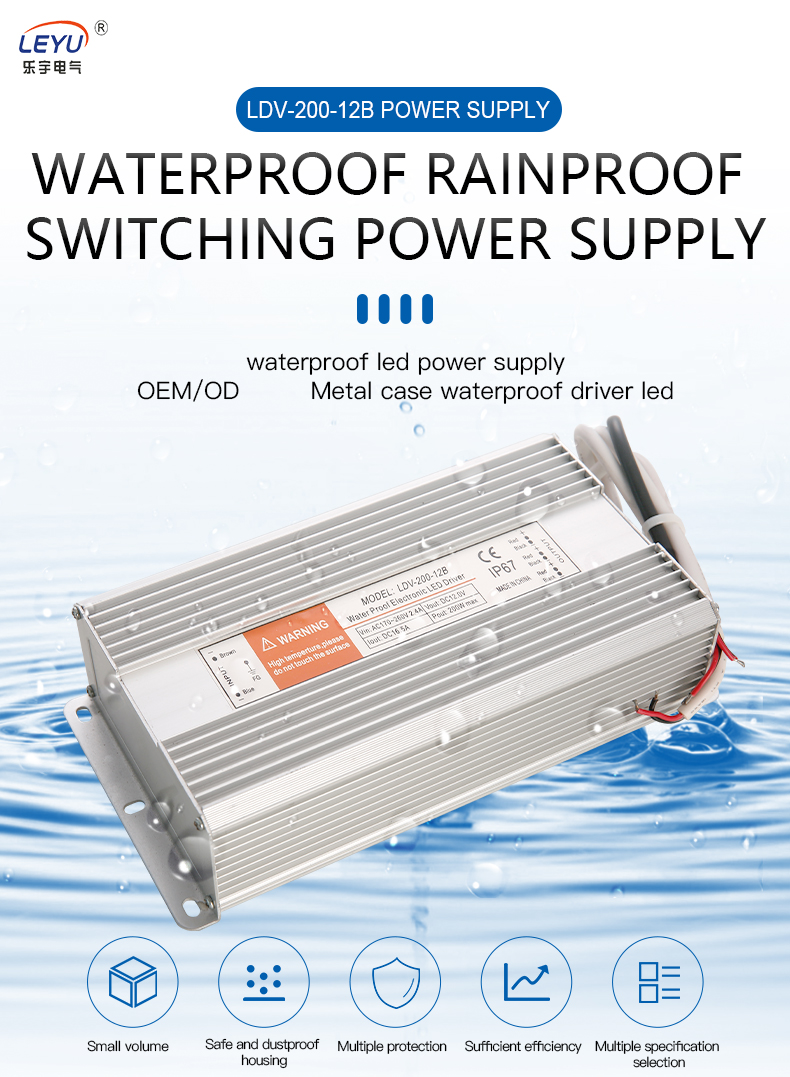

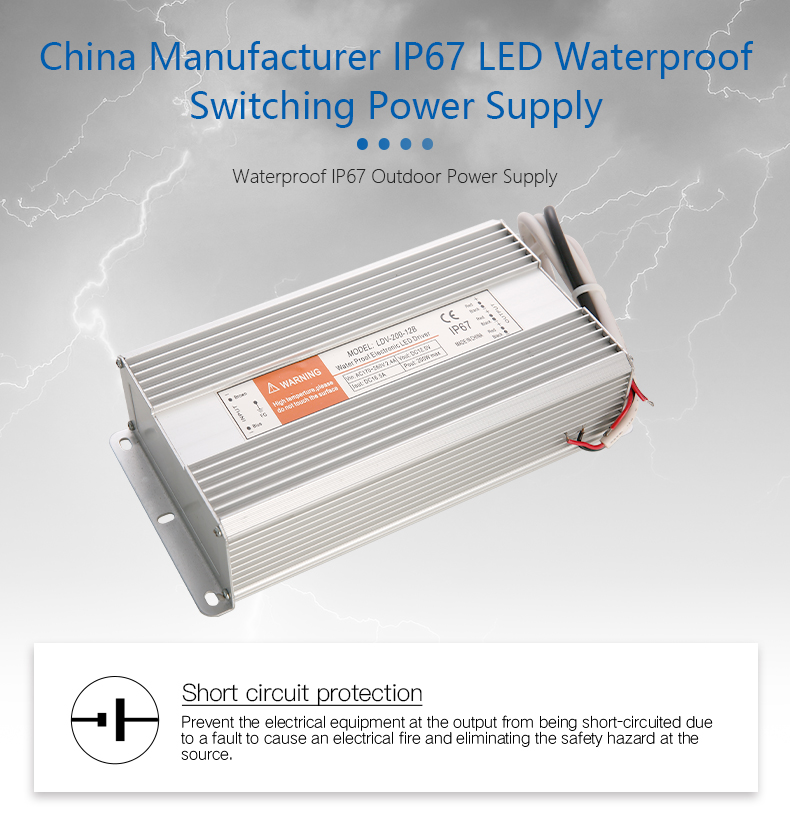

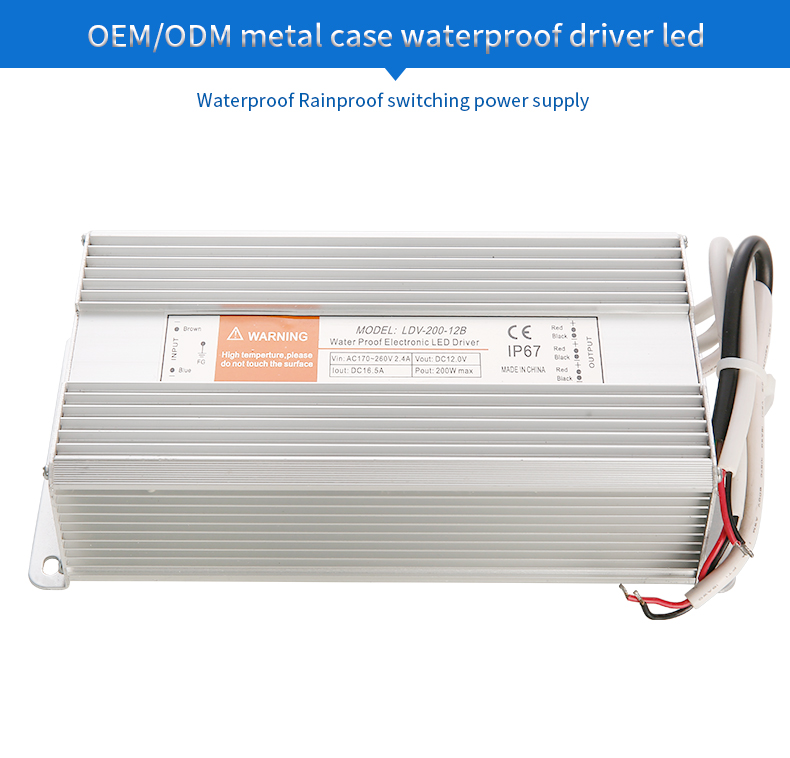

200W Single Output WaterproofSwitching Power Supply     LDV-200 series

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
2 years warranty

SPECIFICATION

OUTPUT



Model

LDV-200-5

LDV-200-12

LDV-200-24

LDV-200-36

DC Voltage

5V

12V

24V

36V

Rated Current

30A

16.5A

8.3A

5.5A

Current Range

0-30A

0-16.5A

0-8.3A

0-5.5A

Rated Power

150W

198W

199W

198W

Ripple & Noise

150mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage Tolerance

±1%

±1%

±1%

±1%

Inlet Stability

±0.5%

±0.5%

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise,Hold Up Time

200ms,20ms,30ms/230VAC





INPUT



Voltage Range

180264 VAC 4763Hz255373VDC

AC Current

1.5A/230VAC

Efficiency

82%

82%

84%

85%

Inrush Current

Cold-start current40A/230VAC





PROTECTION



Over Load

105%~135%

ProtectionHiccup mode, recovers automatically after fault condition is removed

Over Voltage

15~17V

30~32V

42~44V

ProtectionHiccup mode, recovers automatically after fault condition is removed

High Tem.

≥85

Protectioncut off the output, recovers automatically after fault condition is removed







ENVIRONMENT



Working Temp., Humidity

-10℃~+60℃,20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0-50℃)

Vibration

10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

EN61347-1 EN61347-2-13 IP67

EMC Standard

EN55015 EN61547 EN61000-3.4 CLASSB





OTHERS



Dimension

235*125*55L*W*H

Weight

2.42Kg





NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
