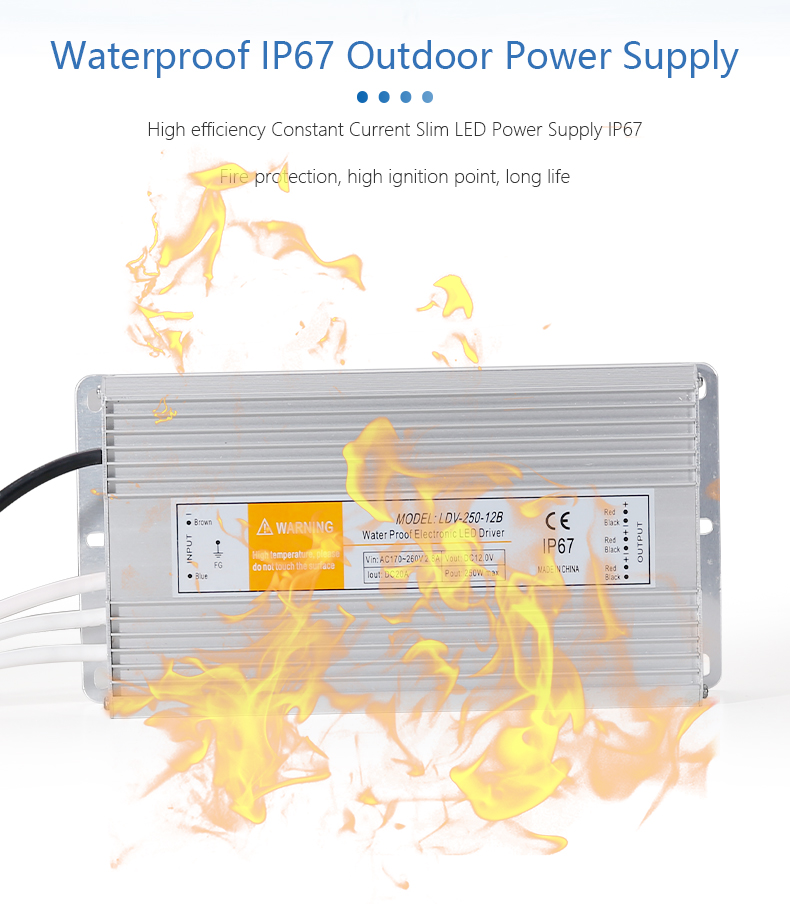

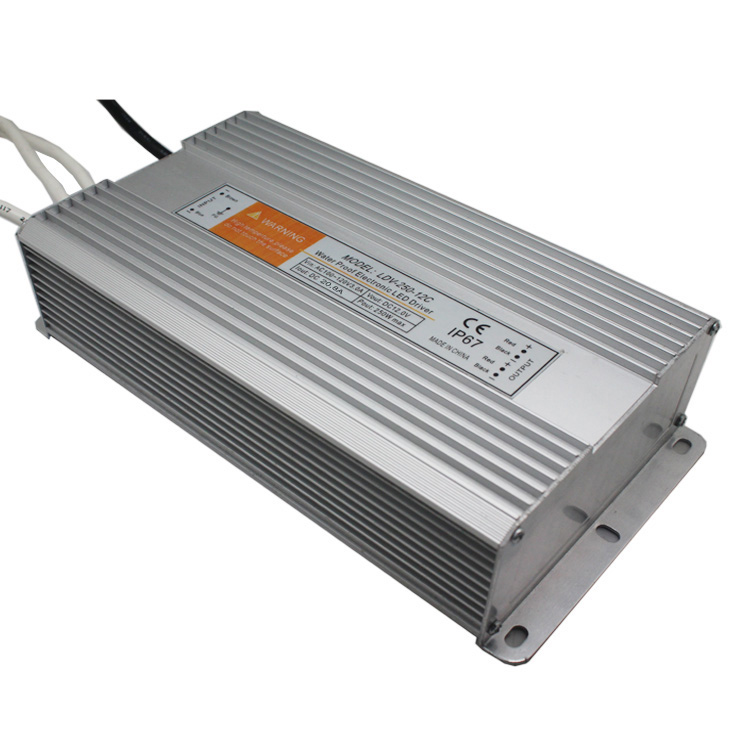

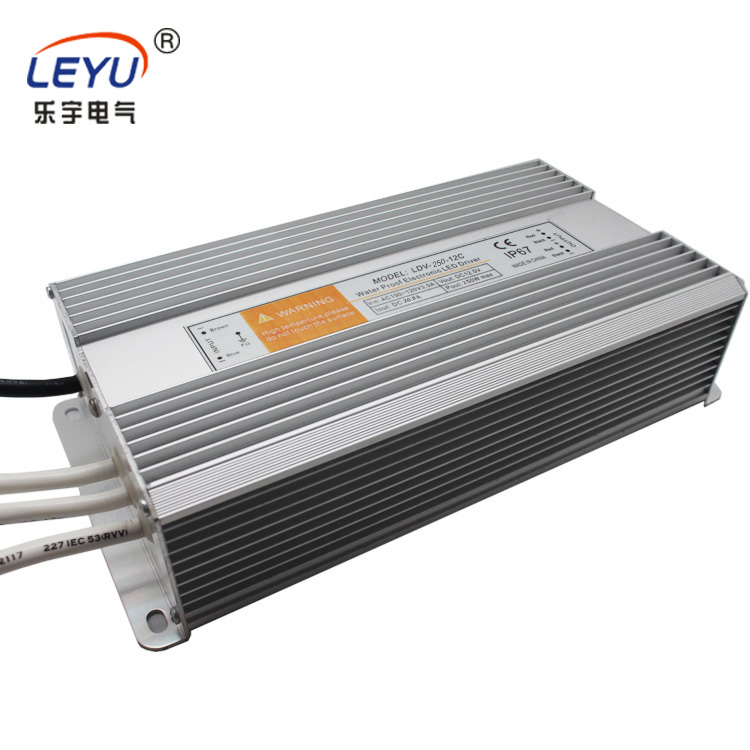

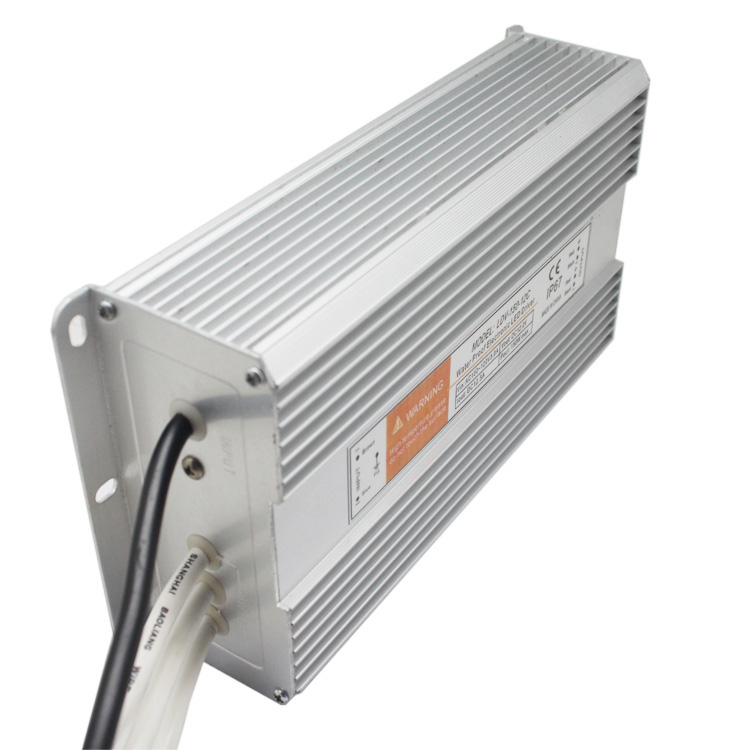

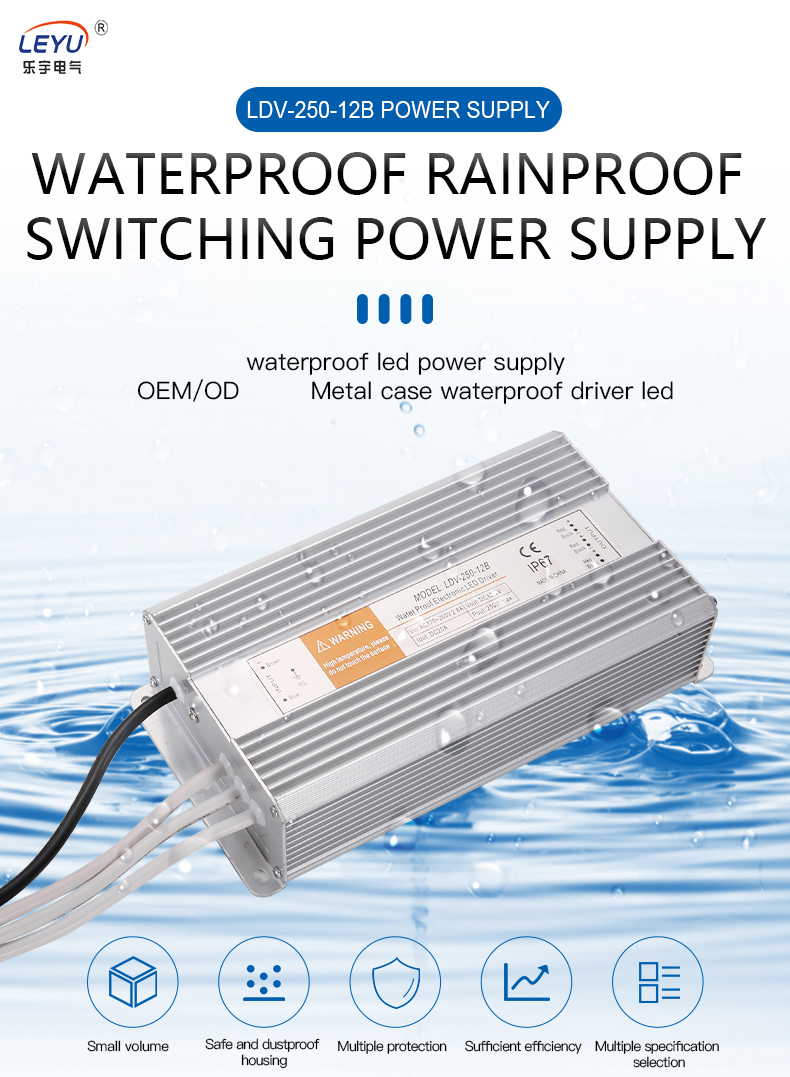

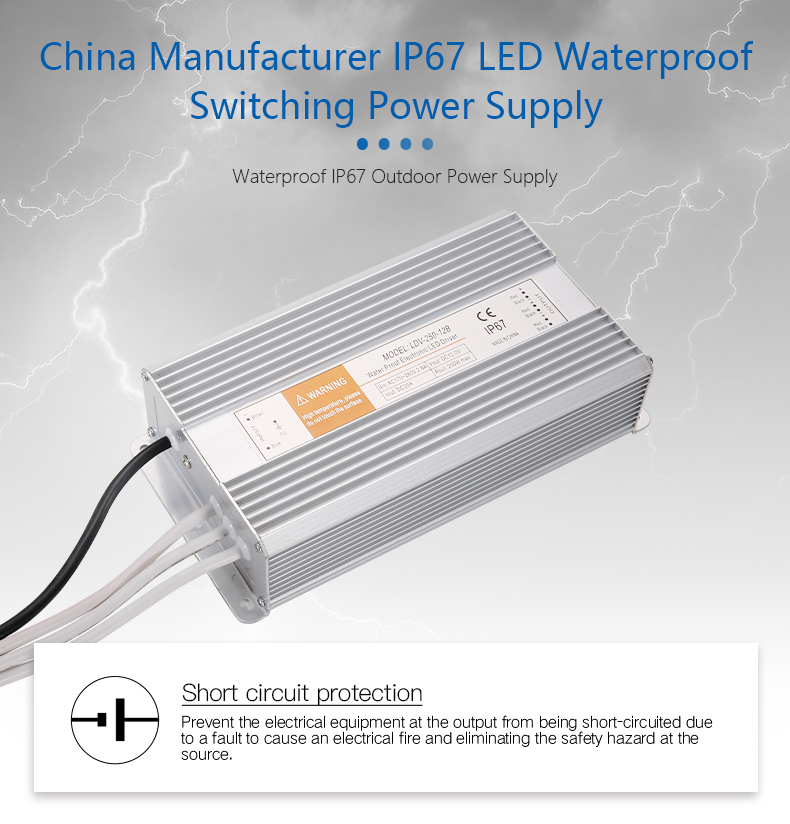

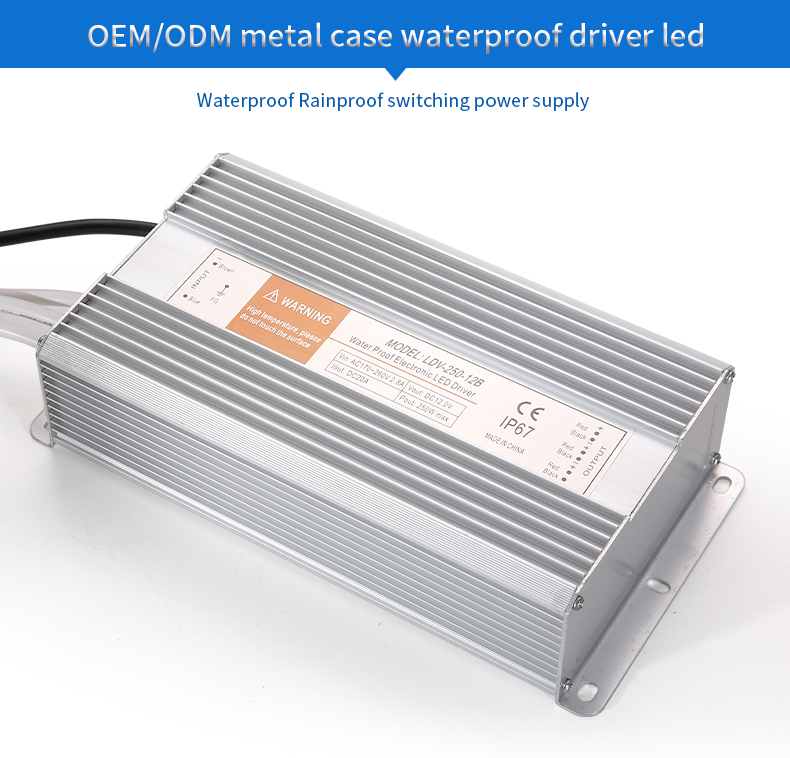

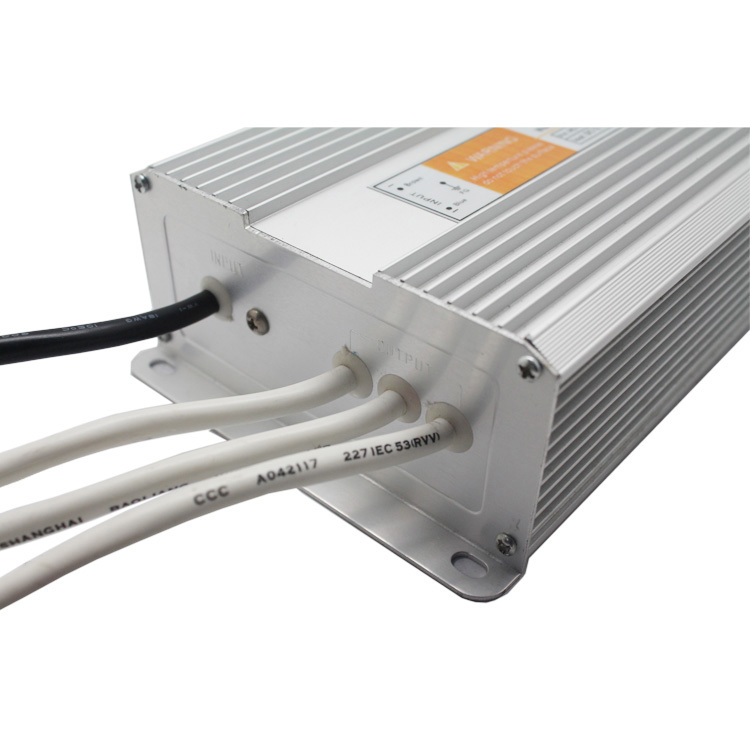

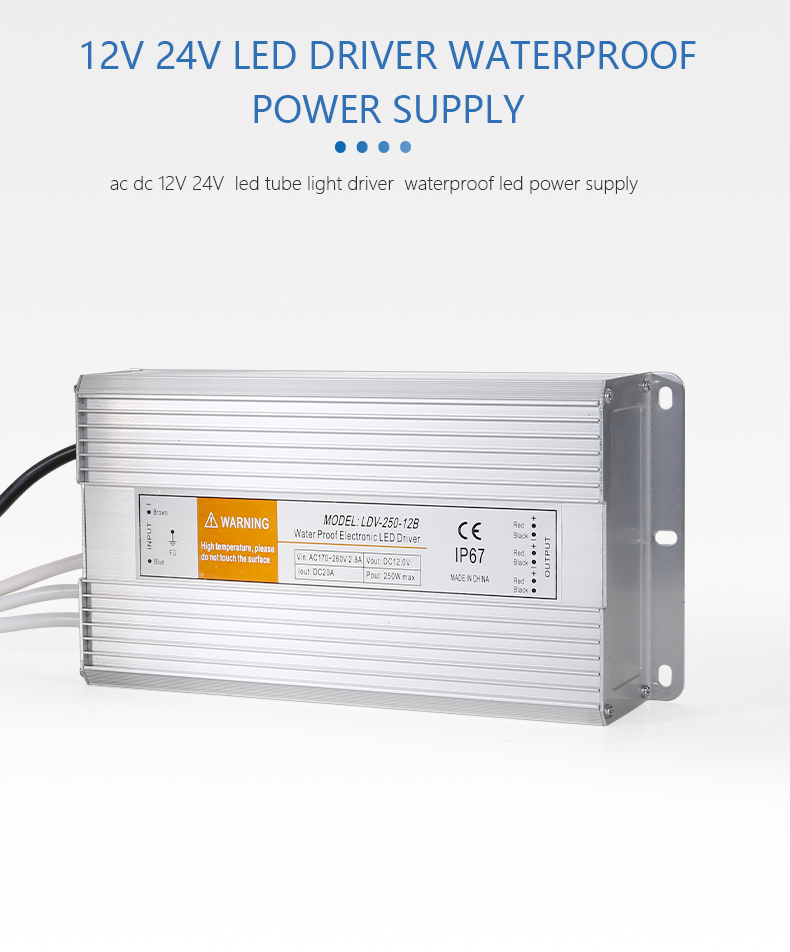

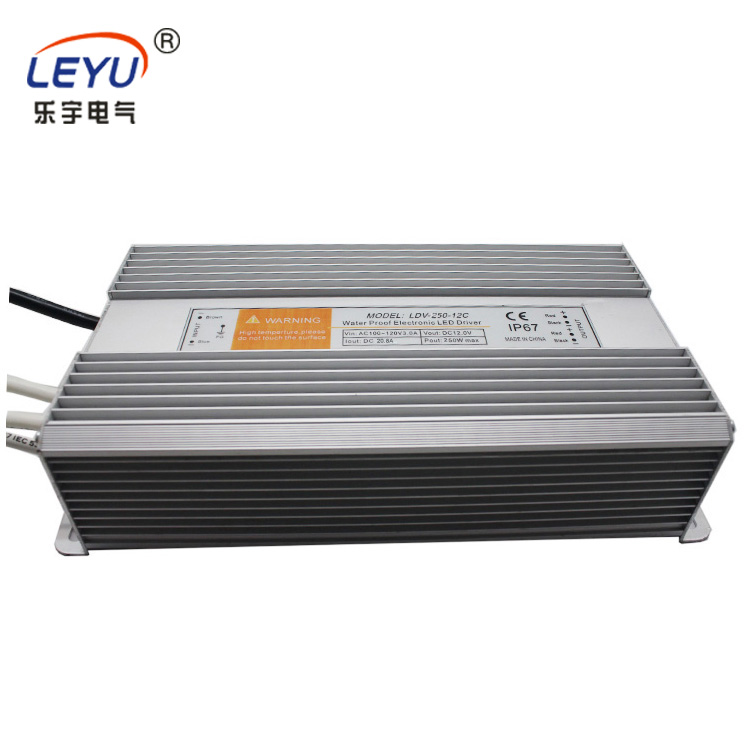

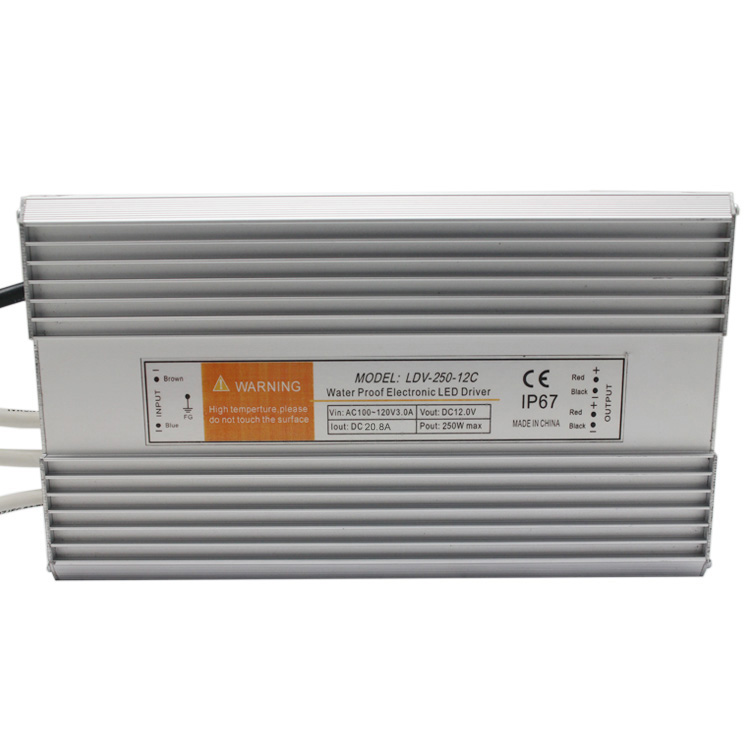

250W Single Output WaterproofSwitching Power Supply     LDV-250 series

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
2 years warranty



SPECIFICATION

OUTPUT





Model

LDV-250-12

LDV-250-24

LDV-250-36



DC Voltage

12V

24V

36V



Rated Current

20.8A

10.4A

6.9A



Current Range

0-20.8A

0-10.4A

0-6.9A



Rated Power

249.6W

249.6W

248.4W



Ripple & Noise

150mVp-p

200mVp-p

200mVp-p



Voltage Tolerance

±1%

±1%

±1%



Inlet Stability

±0.5%

±0.5%

±0.5%



Load Stability

±0.5%

±0.5%

±0.5%



Setup,Rise,Hold Up Time

200ms,20ms,30ms/230VAC









INPUT





Voltage Range

180264 VAC 4763Hz255373VDC



AC Current

1.5A/230VAC



Efficiency

82%

84%

85%



Inrush Current

Cold-start current40A/230VAC









PROTECTION





Over Load

105%~135%



ProtectionHiccup mode, recovers automatically after fault condition is removed



Over Voltage

15~17V

30~32V

42~44V



ProtectionHiccup mode, recovers automatically after fault condition is removed



High Tem.

≥85



Protectioncut off the output, recovers automatically after fault condition is removed











ENVIRONMENT



Working Temp., Humidity

-10℃~+60℃,20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0-50℃)

Vibration

10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

EN61347-1 EN61347-2-13 IP67

EMC Standard

EN55015 EN61547 EN61000-3.4 CLASSB





OTHERS



Dimension

 235*125*55L*W*H

Weight

2.5Kg





NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
