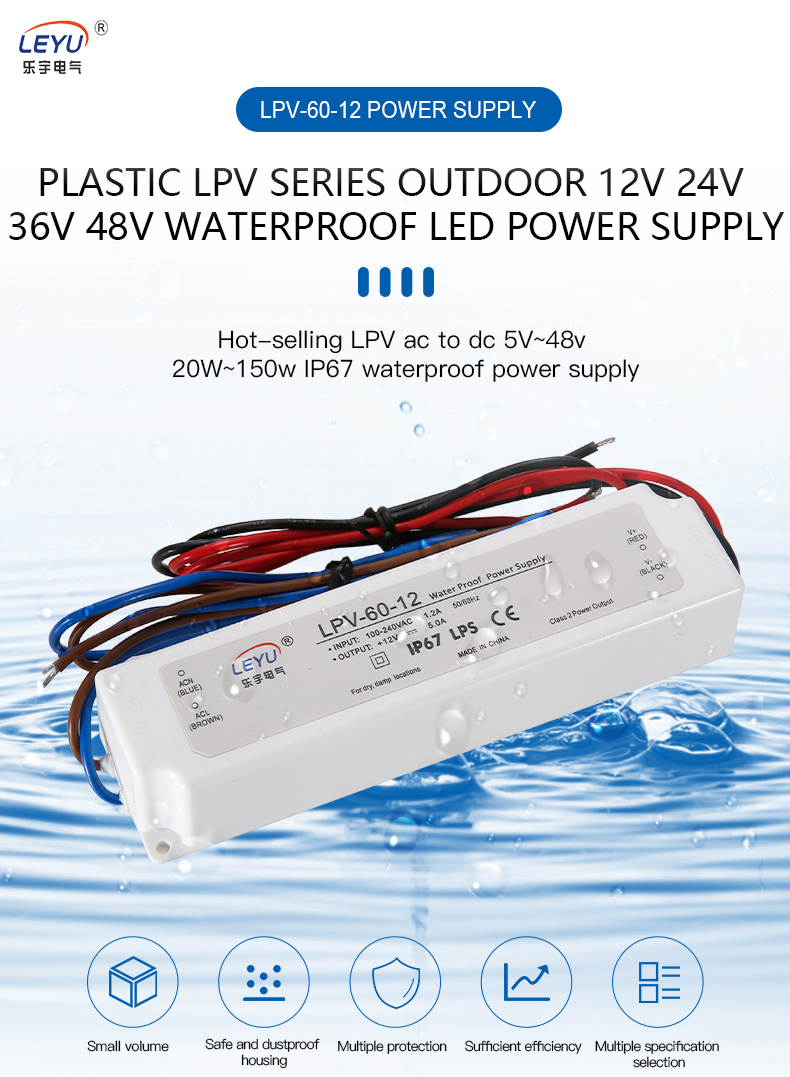

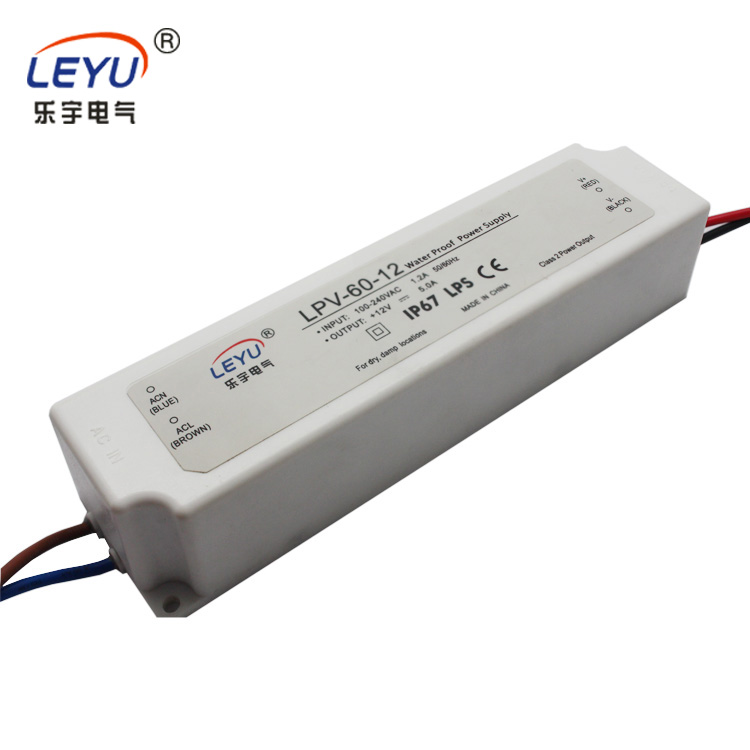

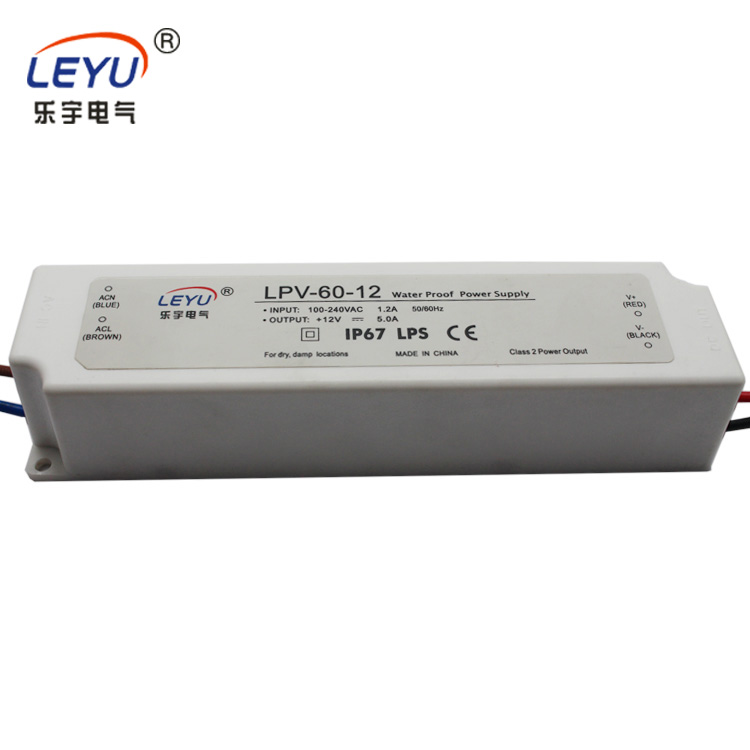

60W Waterproof Single Output Switching Power Supply LPV-60 series

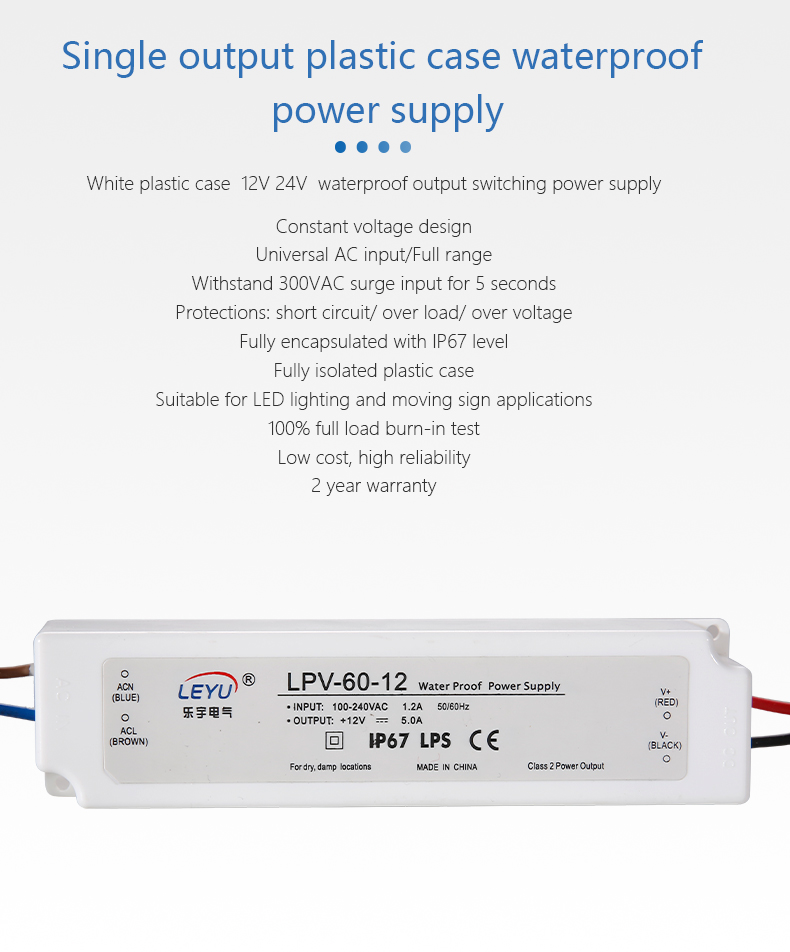

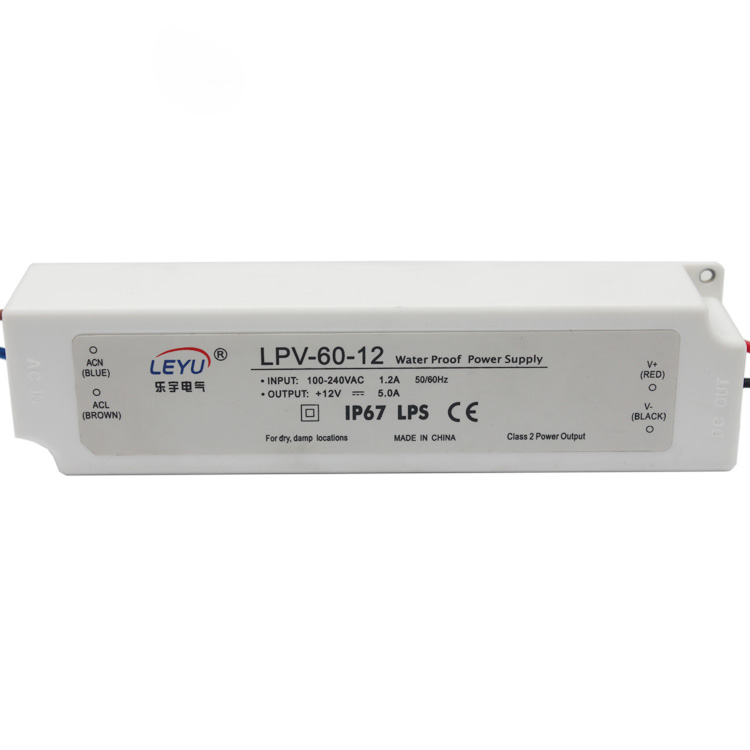

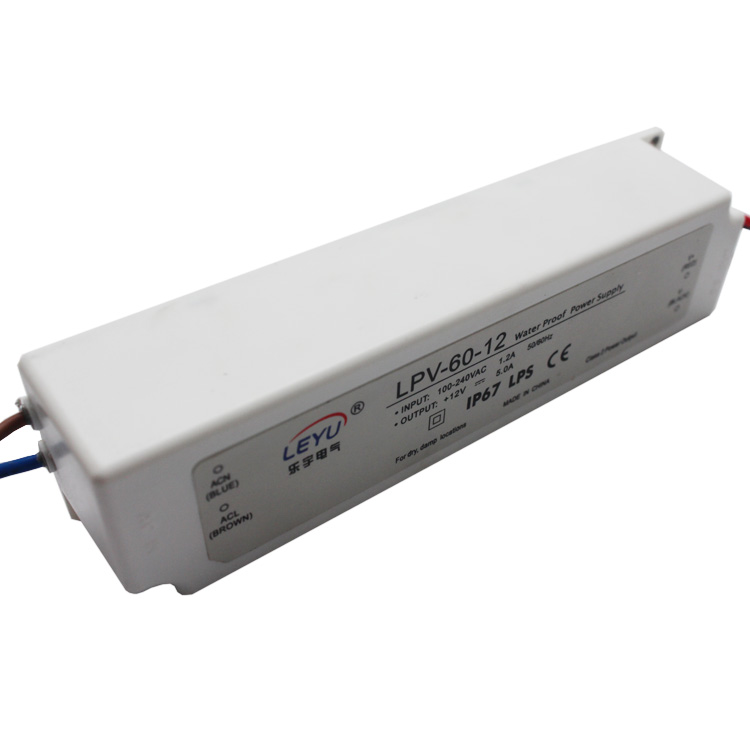

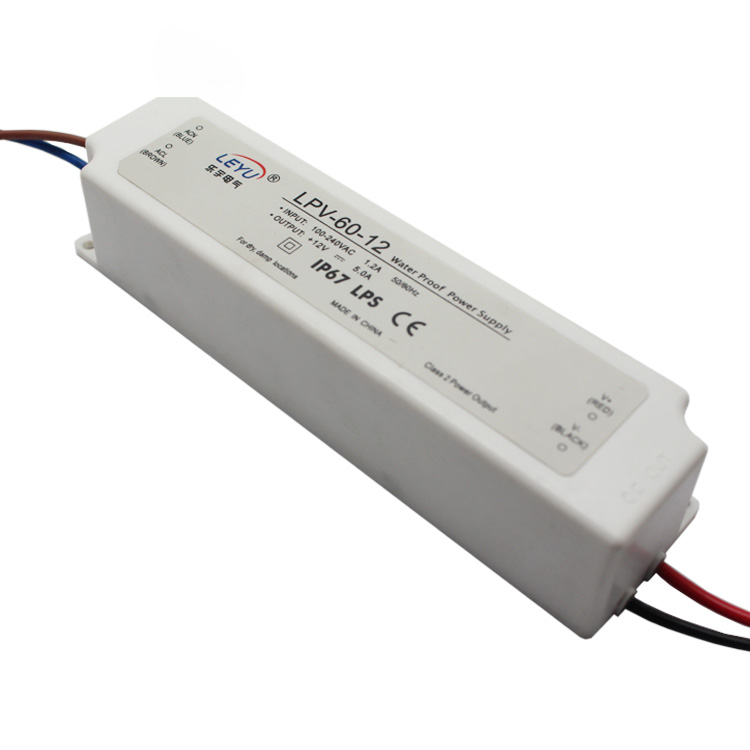

Features:
Constant voltage design
Universal AC input/Full range
Withstand 300VAC surge input for 5 seconds

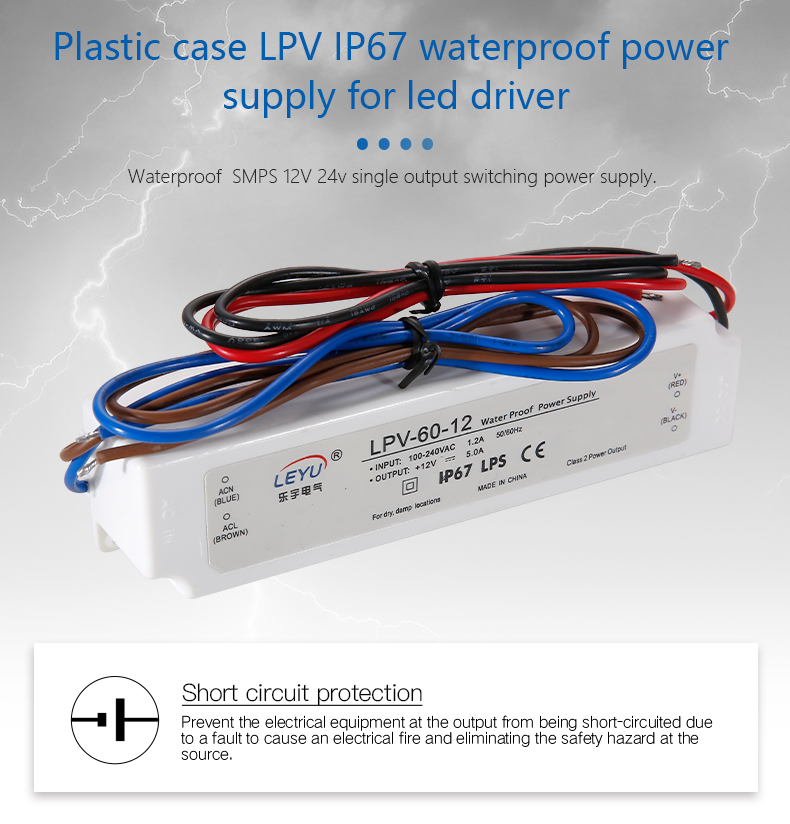

Protections: short circuit/ over load/ over voltage
Cooling by free air convection
Small and compact size

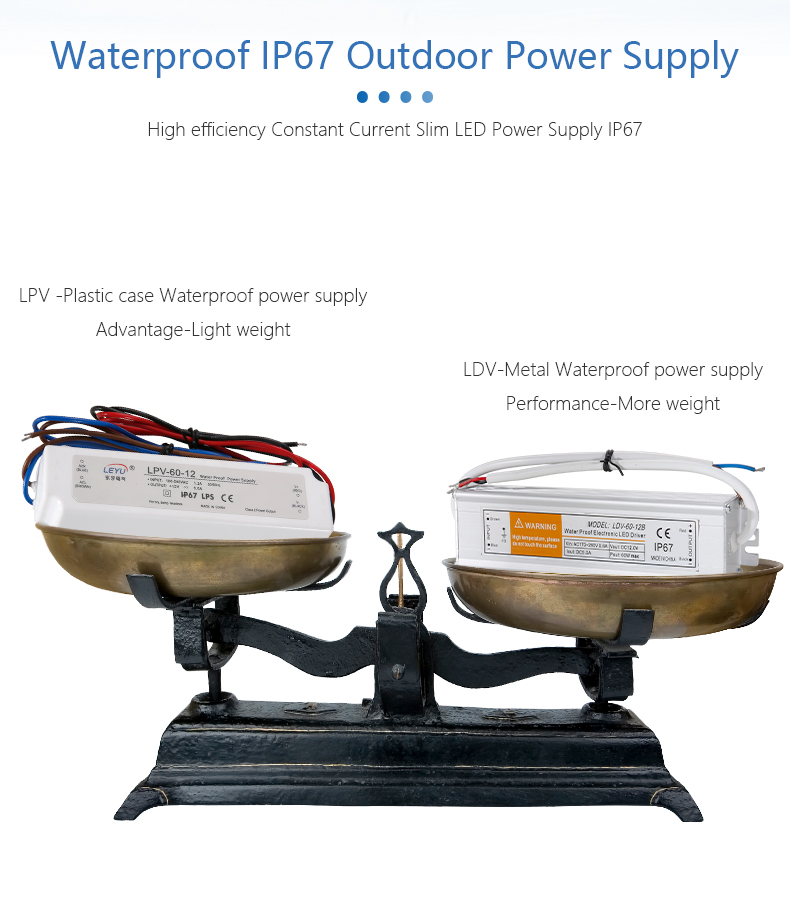

Fully encapsulated with IP67 level

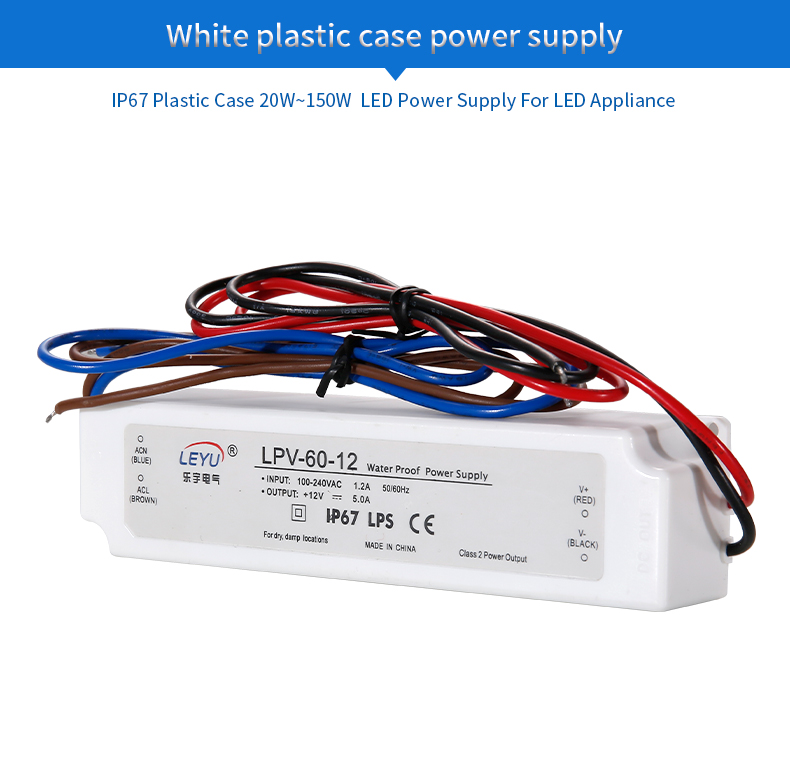

Fully isolated plastic case
Class IIpower unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high
reliability
2 year warranty
|
SPECIFICATIONS |
||||||
|
OUTPUT |
|
|||||
|
Model |
LPV-60-5 |
LPV-60-12 |
LPV-60-15 |
LPV-60-24 |
LPV-60-36 |
LPV-60-48 |
|
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
8A |
5A |
4A |
2.5A |
1.67A |
1.25A |
|
Current Range |
0-8A |
0-5A |
0-4A |
0-2.5A |
0-1.67A |
0-1.25A |
|
Rated Power |
40W |
60W |
60W |
60W |
60W |
60W |
|
Ripple&Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
|
Voltage Tolerance |
±8% |
±5% |
||||
|
Line Regulation |
±1% |
|||||
|
Load Regulation |
±6% |
±2% |
||||
|
Setup,Rise Time |
500ms, 20ms/230VAC500ms, 20ms/115VAC at full load(for 5-36V) 500ms, 30ms/230VAC500ms, 30ms/115VAC at full load(for 48V) |
|||||
|
Hold Up Time |
50ms/230VAC 16ms/115VAC at full load |
|||||
|
|
|
|||||
|
INPUT |
|
|||||
|

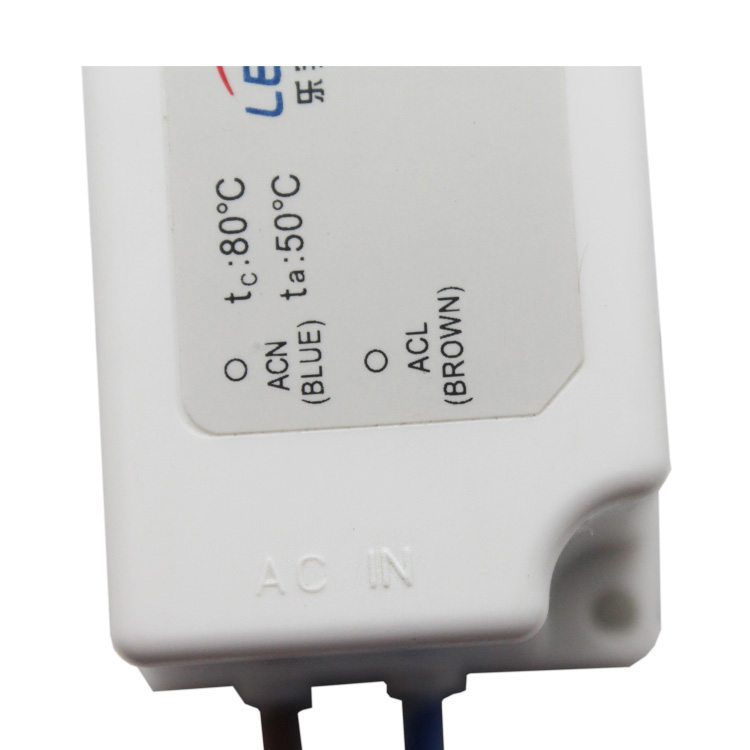

Voltage Range |
90~264VAC47-63Hz;127~370VDC |
|||||
|
AC Current |
1.2A/115V1A/230V |
|||||
|
Efficiency |
76% |
83% |
83% |
86% |
86% |
86% |
|
Inrush Current |
Cold Start60A at 230VAC |
|||||
|
Leakage Current |
0.25mA/240VAC |
|||||
|
|
|
|||||
|
PROTECTION |
|
|||||
|
Over Load |
110-150% rated output power |
|||||
|
Protectiontype: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over Voltage |
5.75-6.75V |
13.8-16.2V |
17.25-20.25V |
27.6-32.4V |
41.4-48.6V |
55.2-64.8V |
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||||
|
|
|
|||||
|
ENVIRONMENT |
|
|||||
|
Working Temp.Humidity |
-30 ~ +70℃ (Refer to “Derating Curve”) |
|||||
|
Storage Temp.Humidity |
-40℃~+80℃; 10%~95%RH |
|||||
|
Temp.Coefficient |
±0.03%/℃(0～50℃) |
|||||
|
Vibration |
10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes |
|||||
|
|
|
|||||
|
SAFETY |
|
|||||
|
Withstand Voltage |
I/P-O/P:3KVAC |
|||||
|
Isolation Resistance |
I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH |
|||||
|
|
|
|||||
|
STANDARD |
|
|||||
|
Safety Standard |
UL879(expect for LPV-60-5), UL1310(expect for LPV-60-5), CSA C22.2 No.207-M91(expect for LPV-60-5, LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved; design refer to TUV EN60950-1 |
|||||
|
EMCStandard |
EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A |
|||||
|
|
|
|||||
|
OTHERS |
|
|||||
|
Dimension |
162.5*42.5*32mm(L*W*H)
|
|||||
|
Weight |
0.4kg;32pcs/13.8kg/0.56CUFT |
|||||
|
|
|
|||||
|
NOTE |
|
|||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may not be needed under low input voltage. Please check the static characteristics for more details. |
||||||
