LRS-200

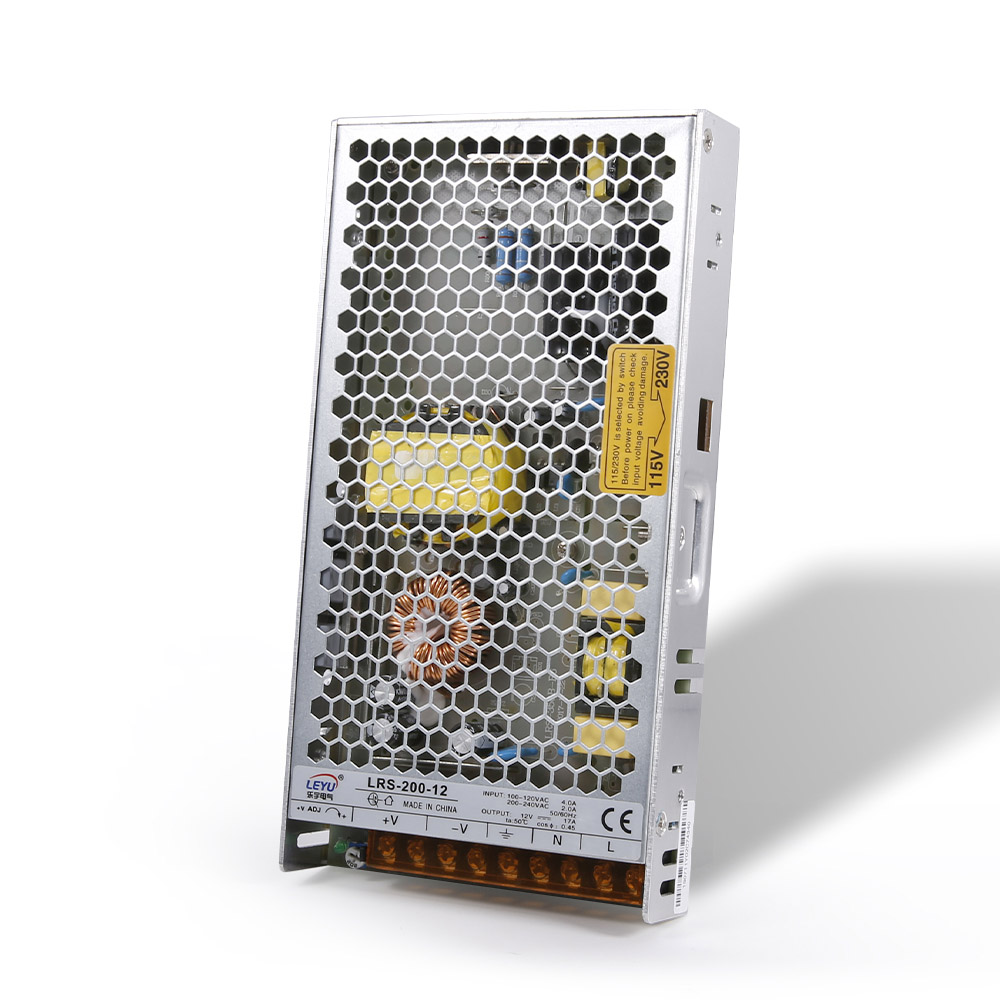

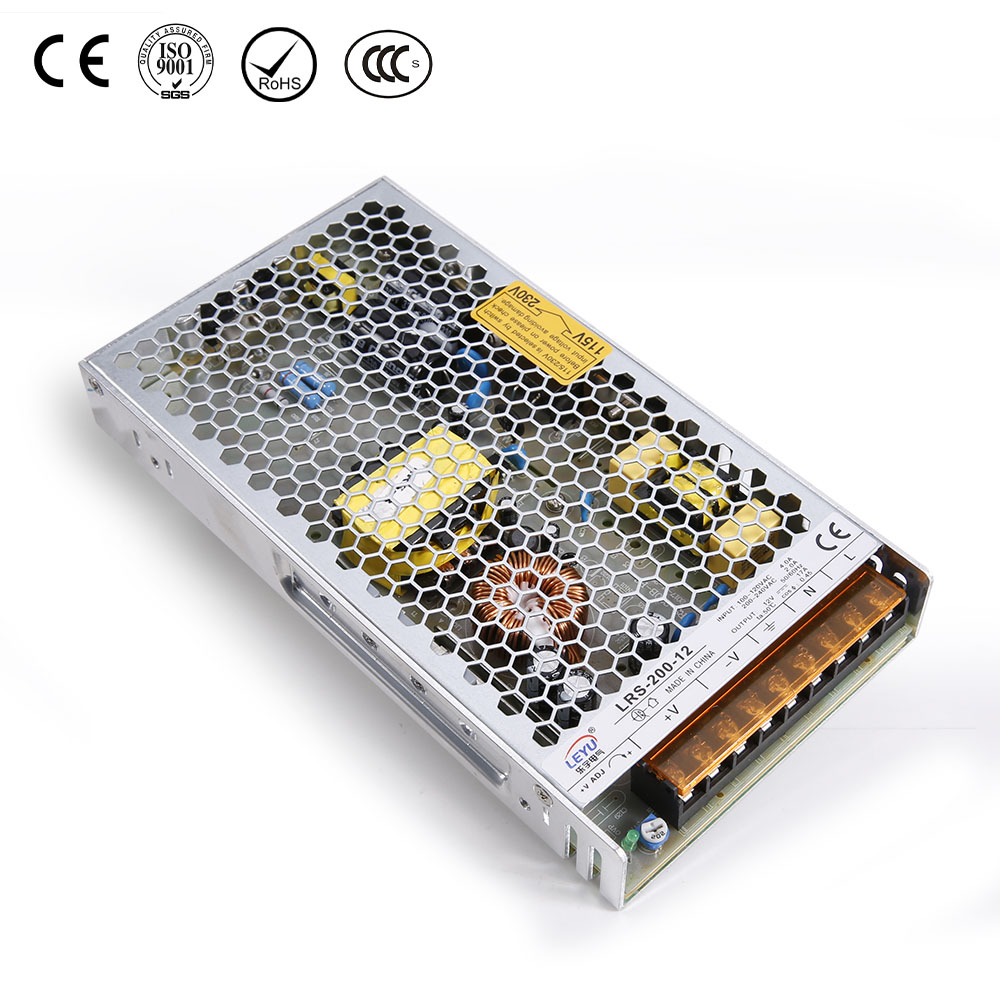

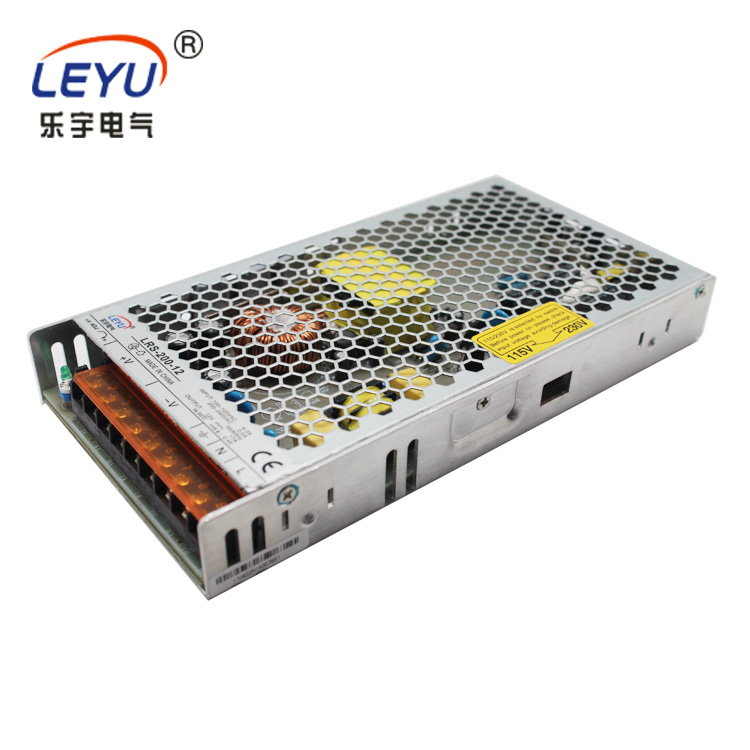

200W Single Output Switching Power Supply LRS-200 series

Product Detail

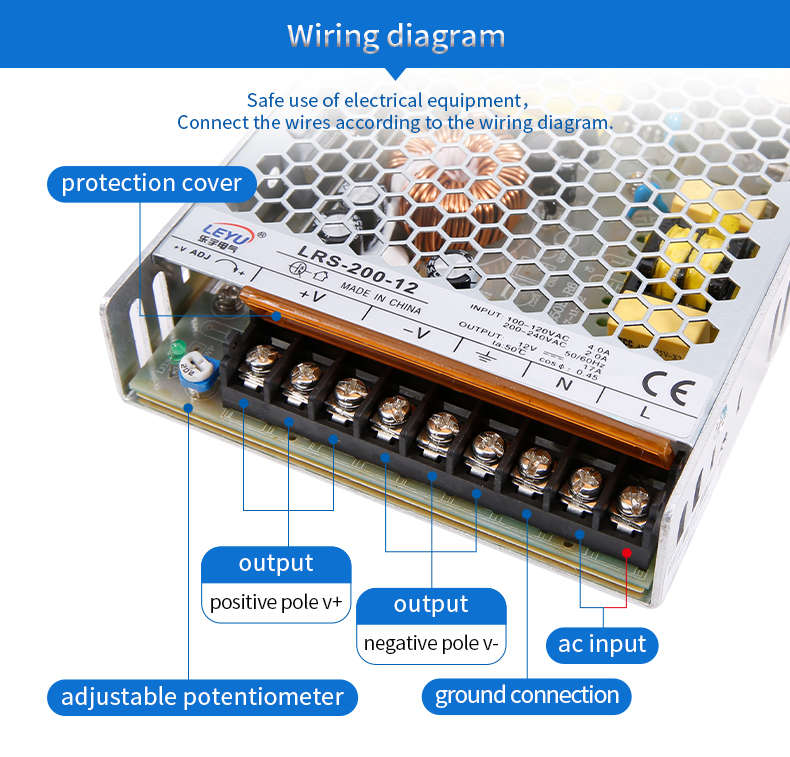

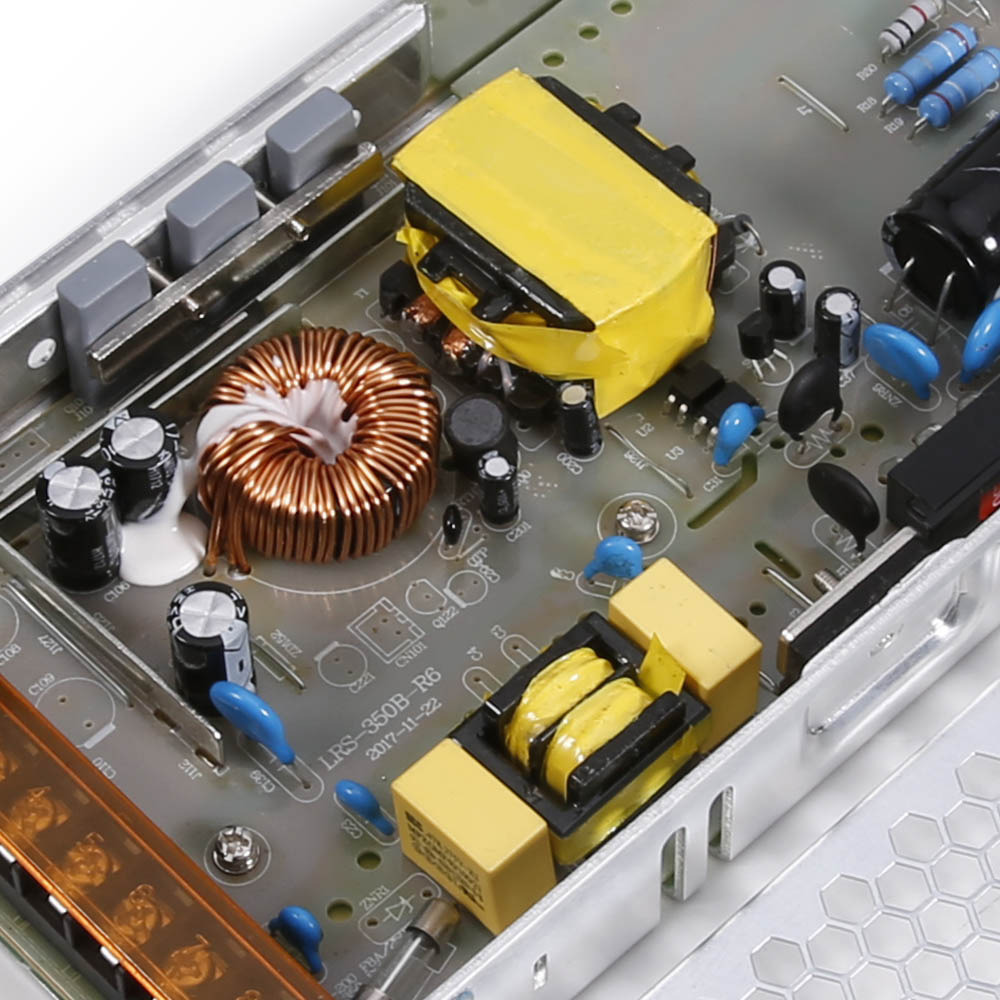

200W Single Output Switching Power Supply  LRS-200 series

Features:

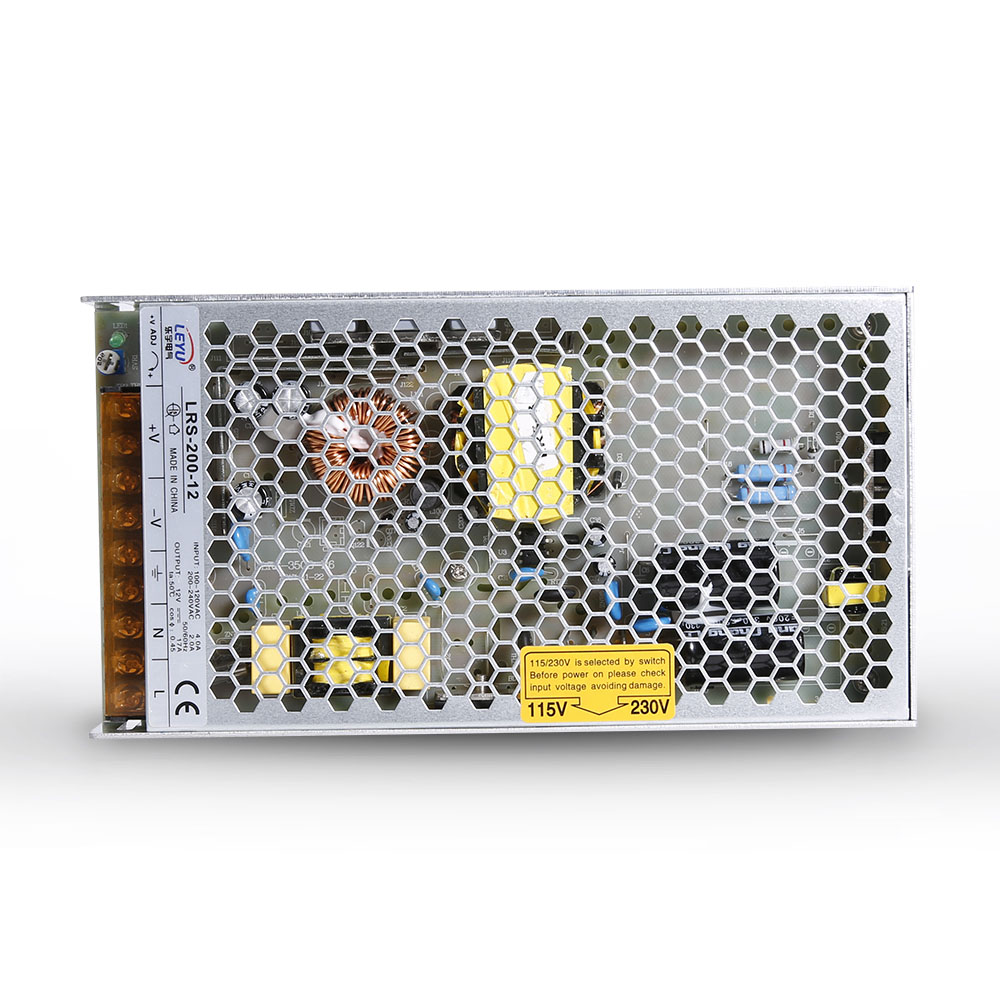

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

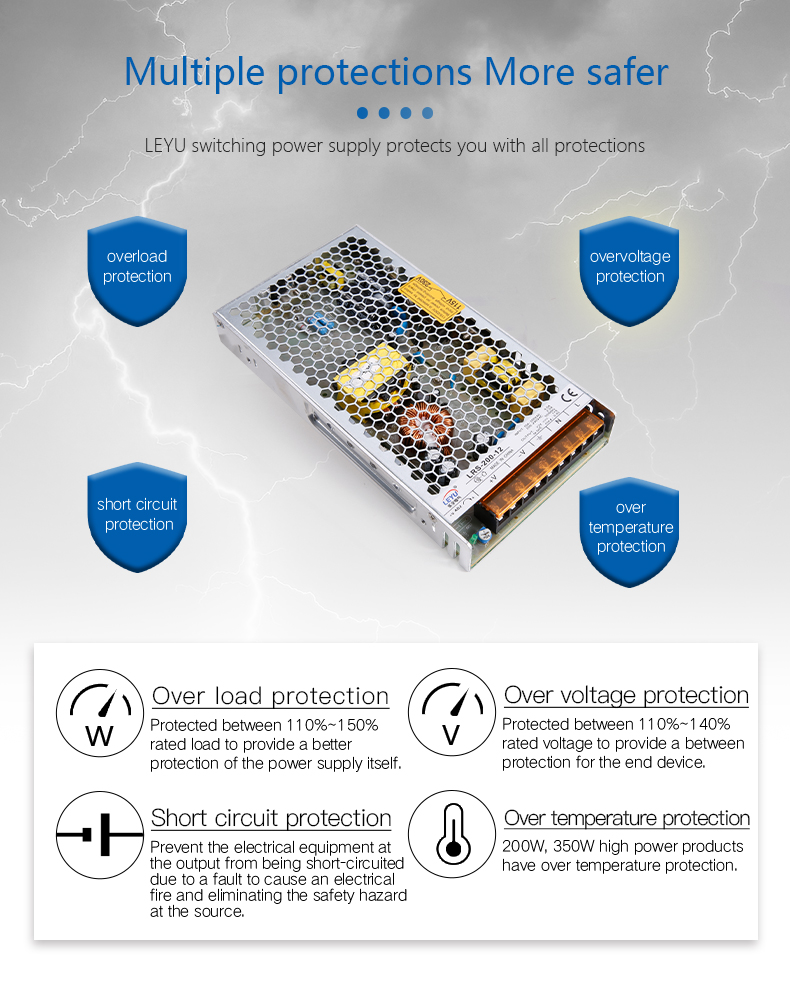

Protections: Short circuit / Overload / Over voltage/ Over temperature

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

High operating temperature up to 70

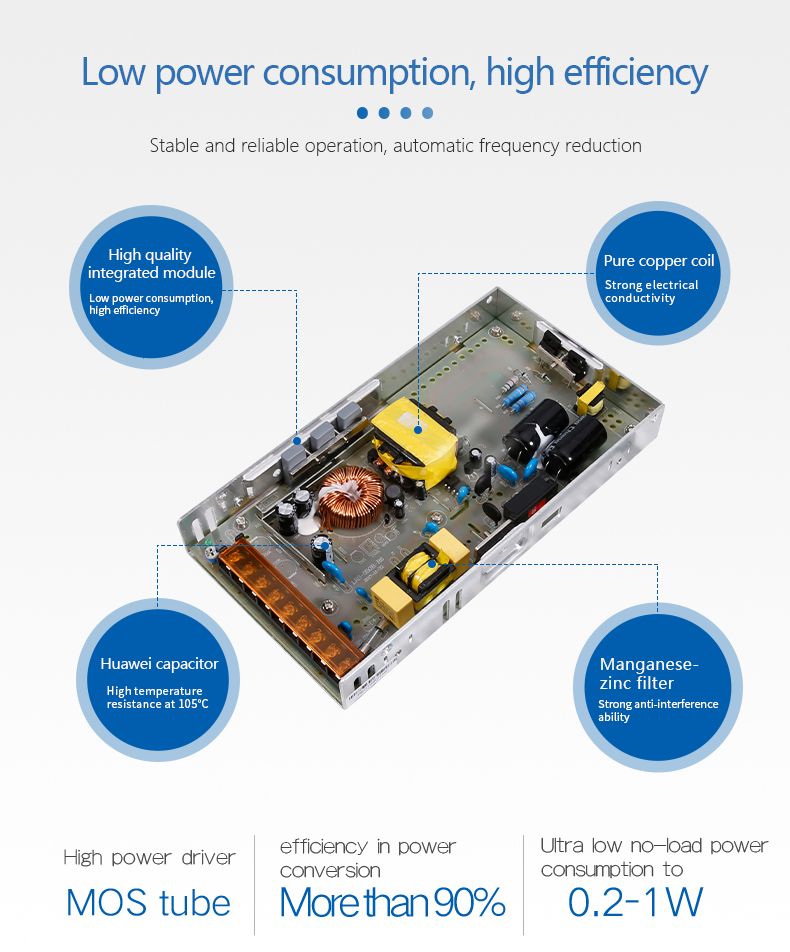

High efficiency, long life and high reliability

2 years warranty

SPECIFICATION



OUTPUT



Model

LRS-200-3.3

LRS-200-5

LRS-200-12

LRS-200-15

LRS-200-24

LRS-200-36

LRS-200-48

DC Voltage

3.3V

5V

12V

15V

24V

36V

48V

Rated Current

40A

40A

17A

14A

8.8A

5.9A

4.4A

Current Range

0~40A

0~40A

0~17A

0~14A

0~8.8A

0~5.9A

0~4.4A

Rated Power

132W

200W

204W

210W

211.2W

212.4W

211.2W

Ripple&Noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

VoltageAdj. Range

2.97~3.6V

4.5 ~ 5.5V

10.2~ 13.8V

13.5~18V

21.6~28.8V

32.4~39.6V

43.2~52.8V

Voltage Tolerance

±3.0%

±3.0%

±1.5%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±2.5%

±2.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise Time

1300ms, 50ms/230VAC   1300ms, 50ms/115VAC at full load

Hold Up Time

16ms/230VAC   12ms/115VAC at full load





INPUT



Voltage Range

90 ~ 132VAC / 180 ~ 264VAC selected by switch   254 ~ 370VDC (switch on 230VAC)

Frequency Range

47 ~ 63Hz

Efficiency

83%

87%

87.5%

88%

89.5%

89.5%

90%

AC Current

4A/115VAC  2.2A/230VAC

Inrush Current

Cold start 60A/115VAC   60A/230VAC

Leakage Current

<2mA / 240VAC





PROTECTION



Over Load

110 ~ 140% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

3.8~4.45V

5.75~6.75V

13.8~16.2V

18~21V

28.8~33.6V

41.4~46.8V

55.2~64.8V

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over temperature

Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT



Working Temp.

-25 ~ +70℃ (Refer to “derating curve”)

Working Humidity

20 ~ 90% RH non-condensing

StorageTemp., Humidity

-40 ~ +85℃, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0 ~ 50℃)

Vibration

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes





SAFETY



Safety Standards

UL60950-1 approved

Withstand Voltage

I/P-O/P:3KVAC   I/P-FG:2KVAC  O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH





OTHERS



Dimension

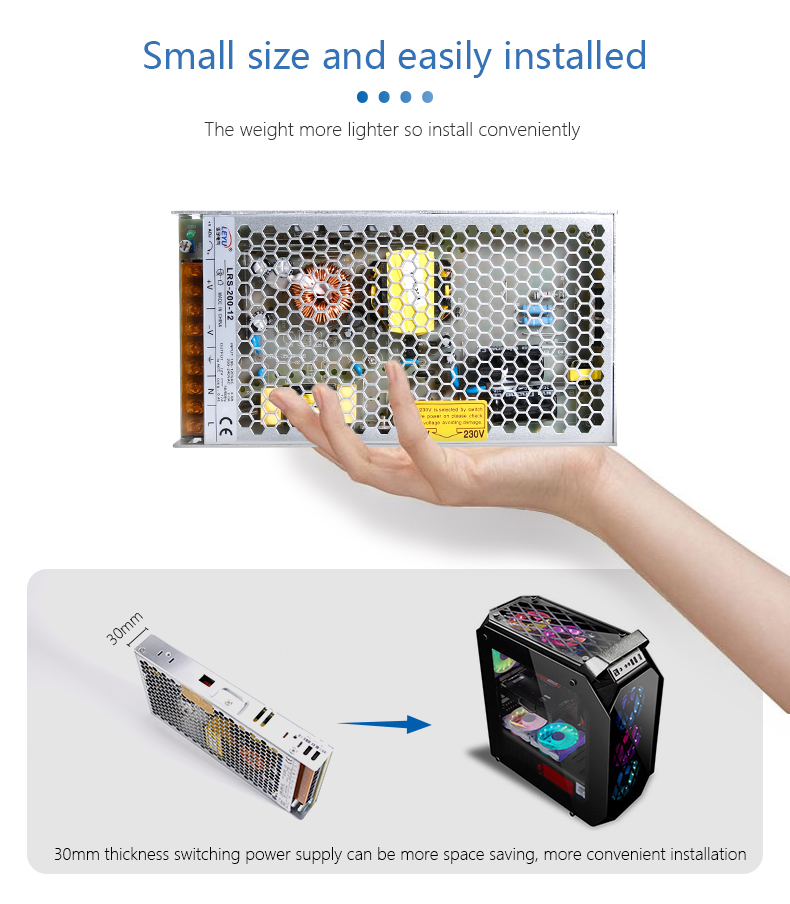

215*115*30mm (L*W*H)

Weight

0.66Kg

Packing

15pcs/carton/10.9kg/0.78CUFT





NOTE



1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
