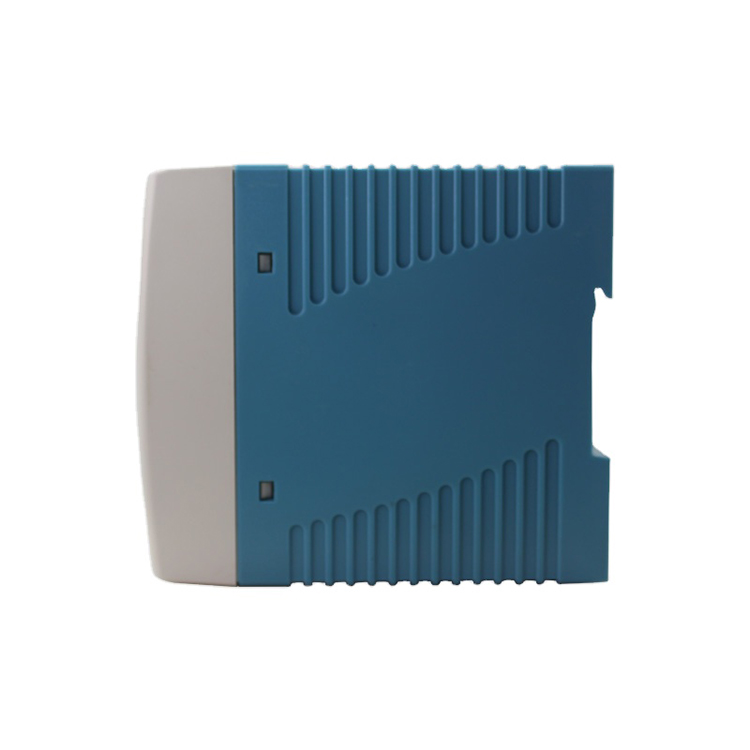

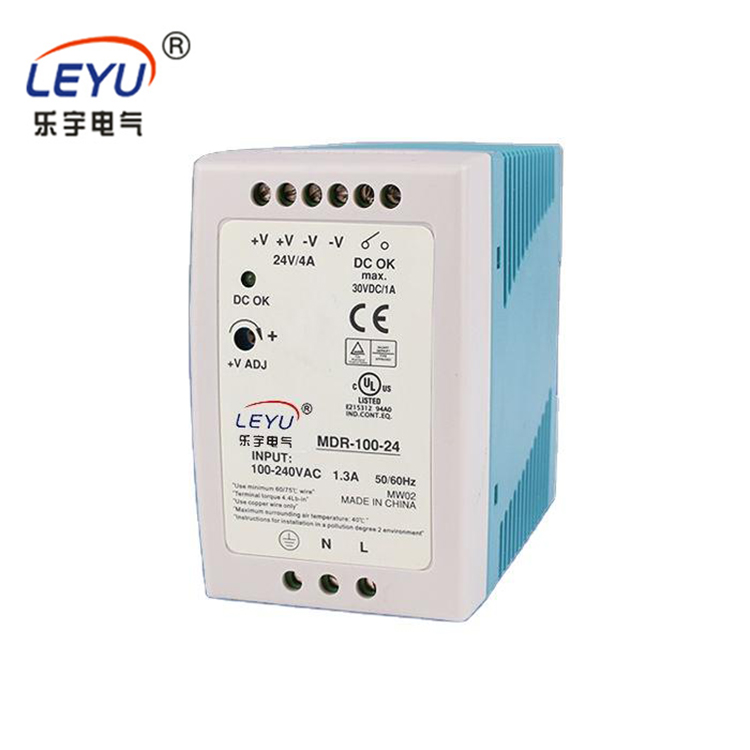

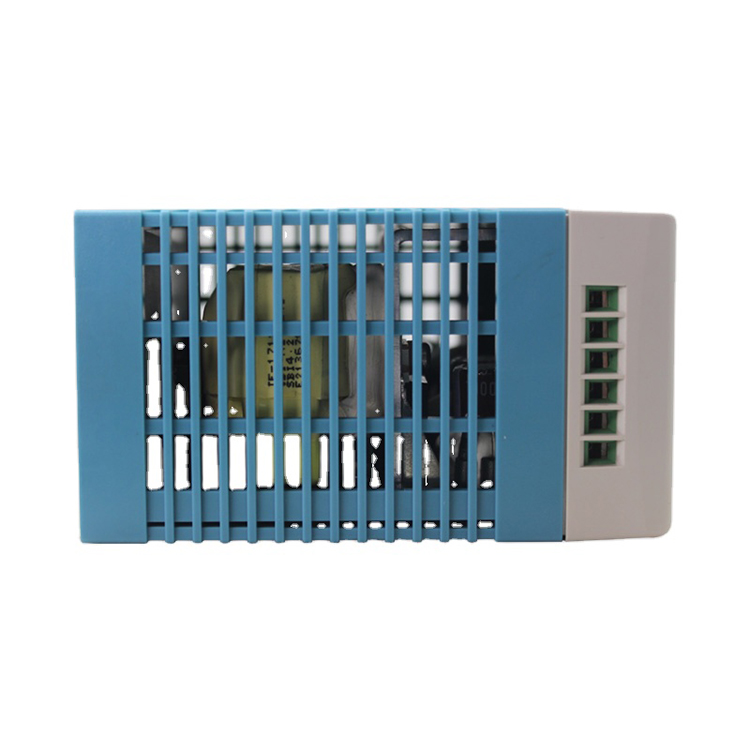

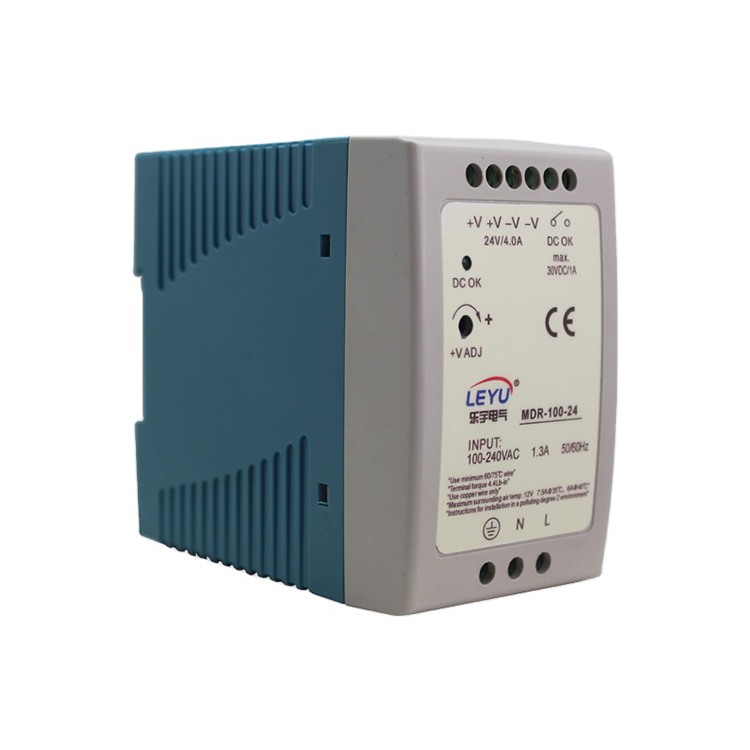

100W Single Output Industrial DIN Rail Power Supply MDR-100 series
Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection

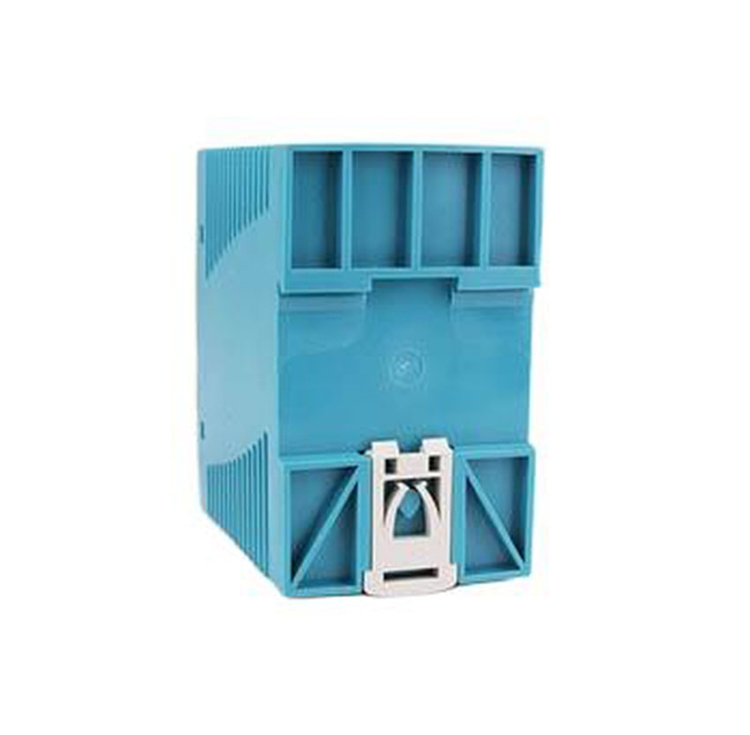

Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
LED indicator for power on
100% full load burn-in test
No load power consumption<1W
2 years warranty
|
SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
MDR-100-12 |
MDR-100-24 |
MDR-100-48 |
|
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
7.5A |
4A |
2A |
|
Current Range |
0-7.5A |
0-4A |
0-2A |
|
Rated Power |
90W |
96W |
96W |
|
Ripple & Noise |
120mVp-p |
120mVp-p |
150mVp-p |
|
Voltage Adj. Range |
12-15V |
24-30V |
48-56V |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
|
Line regulation |
±1% |
±1% |
±1% |
|
Load regulation |
±1% |
±1% |
±1% |
|
Setup, Rise Time |
3000ms,50ms/230VAC 3000ms,50ms/115VAC at full load |
||
|
Hold Up Time |
50ms/230VAC 20ms/115VAC at full load |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
85~264VAC 47~63 Hz; 120~370VDC |
||
|
AC Current |
1.3A/115VAC 0.8A/230VAC |
||
|
Efficiency |
83% |
86% |
87% |
|
Inrush Current |
Cold start 30A/115VAC 60A/230VAC |
||
|
Leakage Current |
<1mA/240VAC |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
105%~150% rated output power |
||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|||
|
Over Voltage |
15.6-18V |
31.2-36V |
57.6-64.8V |
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||
|
Over Temp. |
Protection type: Shut down o/p voltage, recovers automatically or re-power on recover |
||
|
|
|
||
|
Function |
|
||
|
DC OK signal |
Relay contact rating(max):30V/1A resistive |
||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90% RH non-condensing |
||
|
Storage Temp., Humidity |
-40℃~+85℃; 10%~95%RH |
||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz, 2G 10min./1cycle, 60min, each along X, Y, Z axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
Design refer to UL508, TUV EN60950-1 |
||
|
EMC Standard |
EN61240-3,EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2, EN61204-3,heavy industry level, criteria A |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
55*90*100mm(W*H*D) |
||
|
Weight |
0.42Kg |
||
|
Packing |
30pcs/13.6Kg/0.82CUFT |
||
|
|
|
||
|
NOTE |
|
||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||
