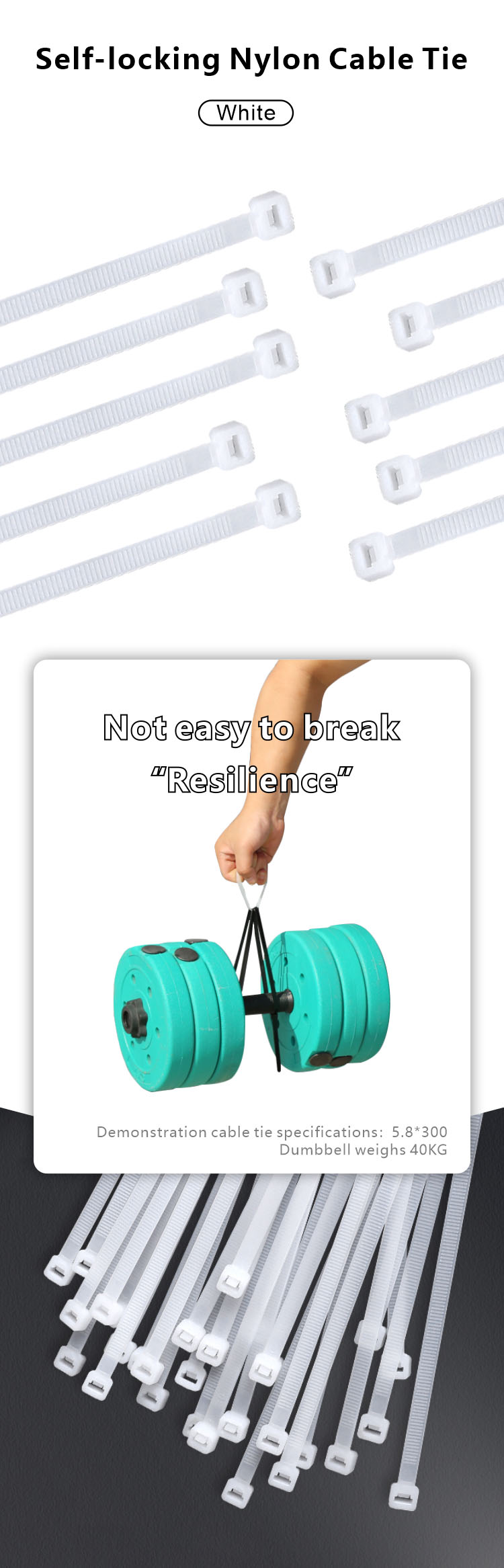

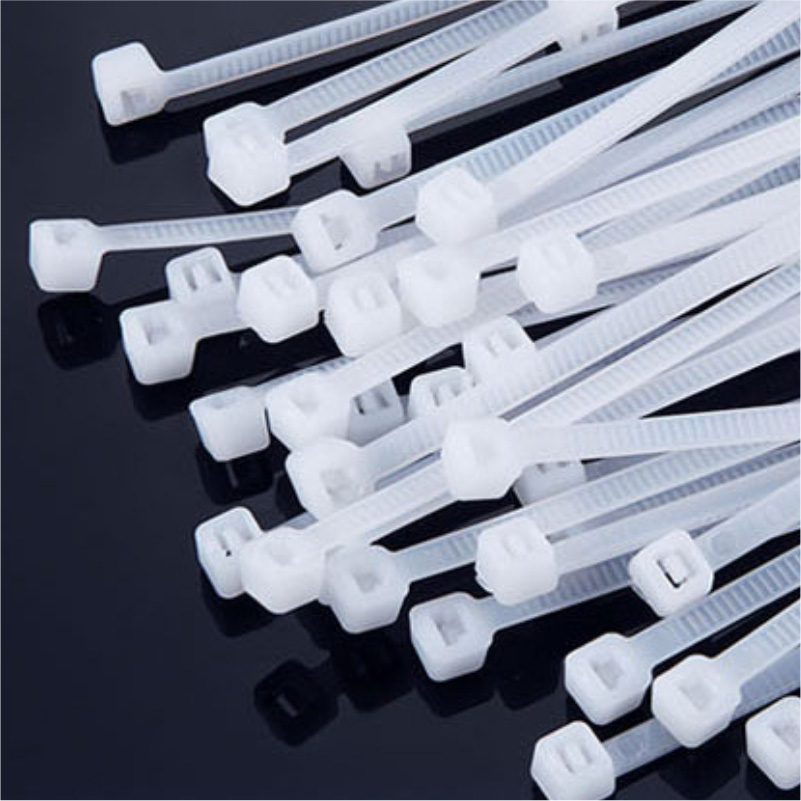

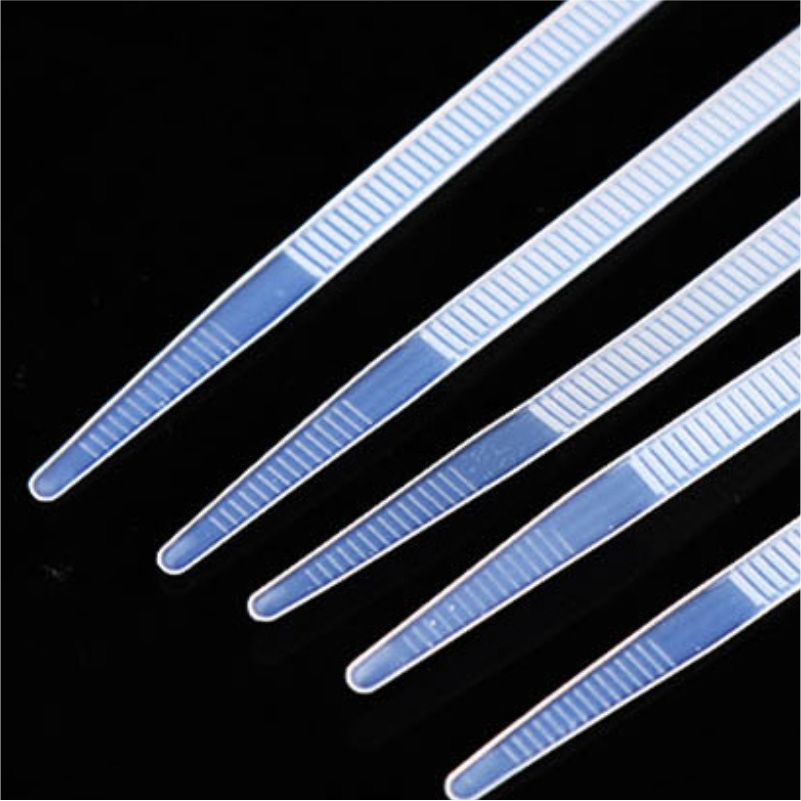

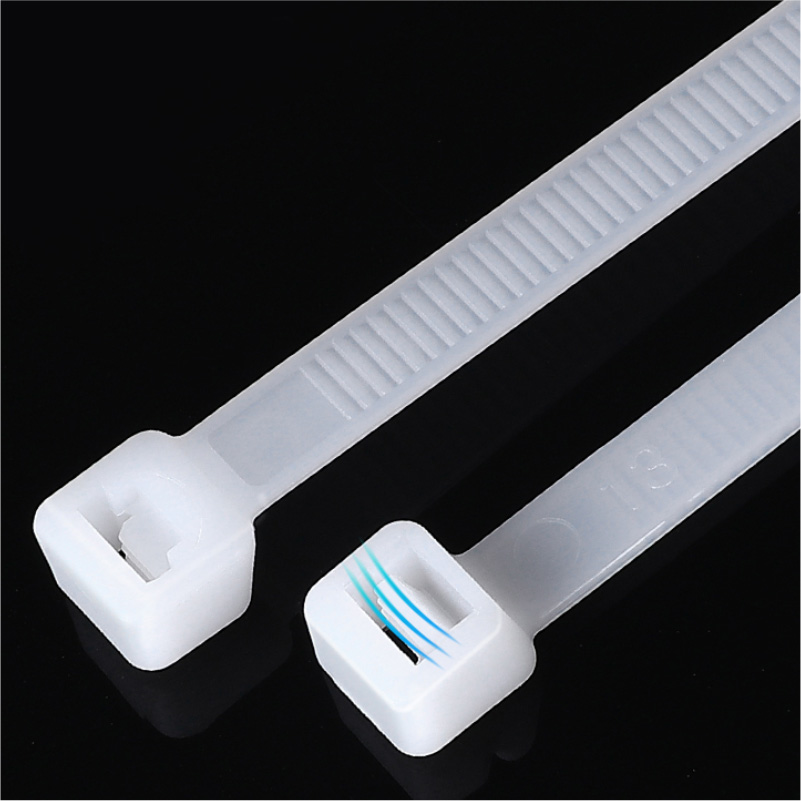

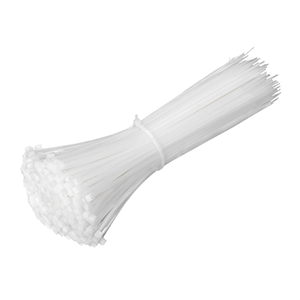

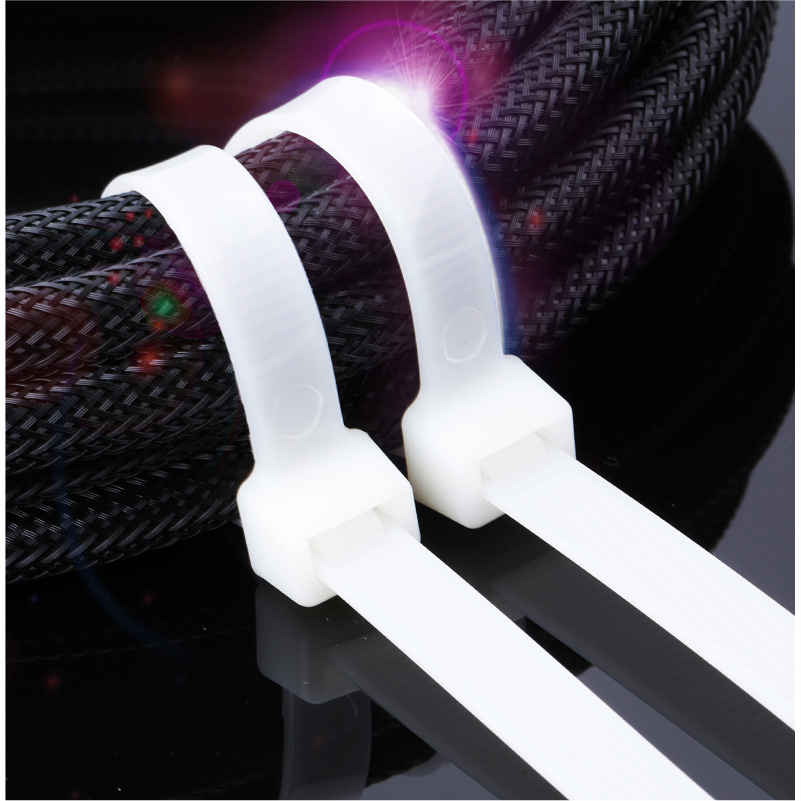

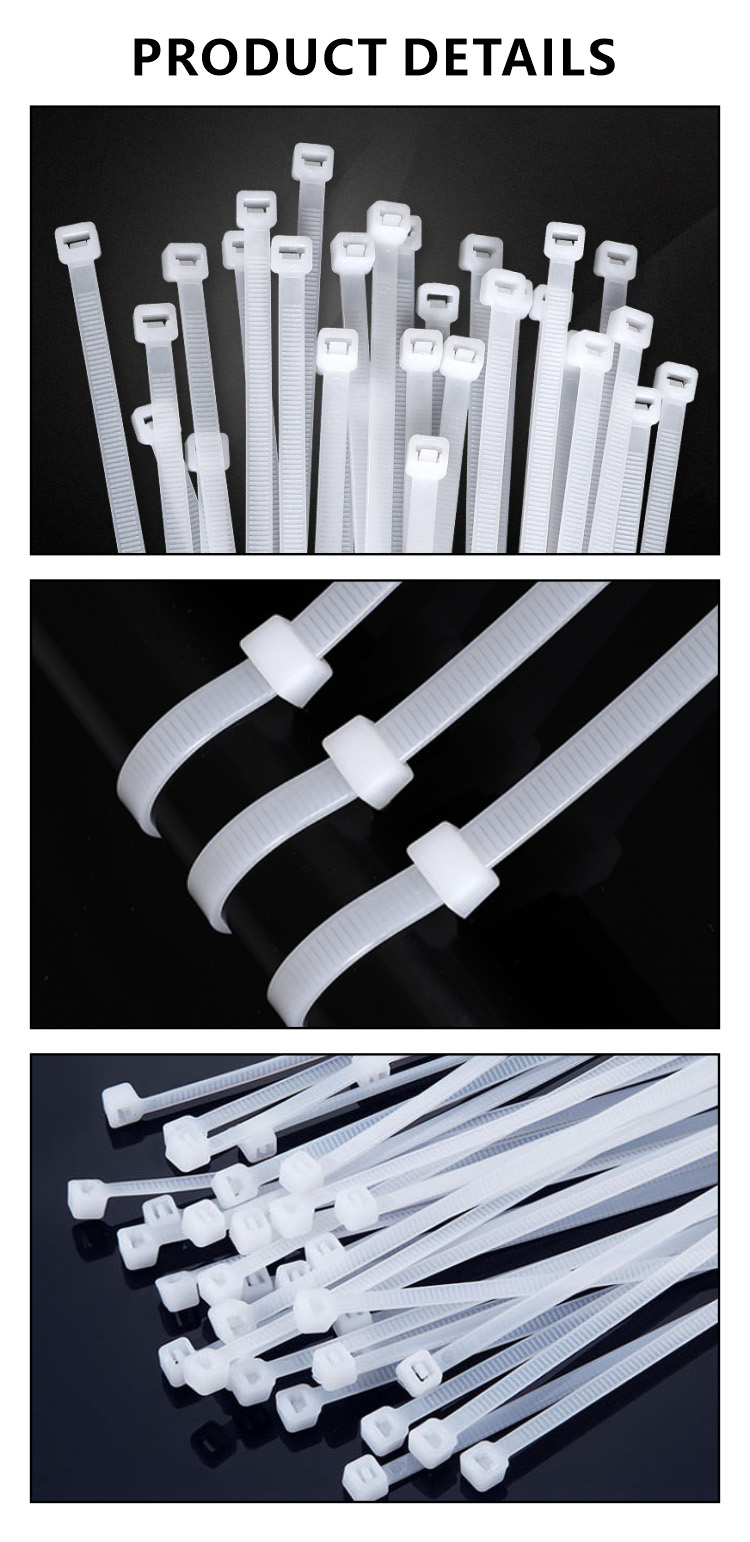

Nylon cable

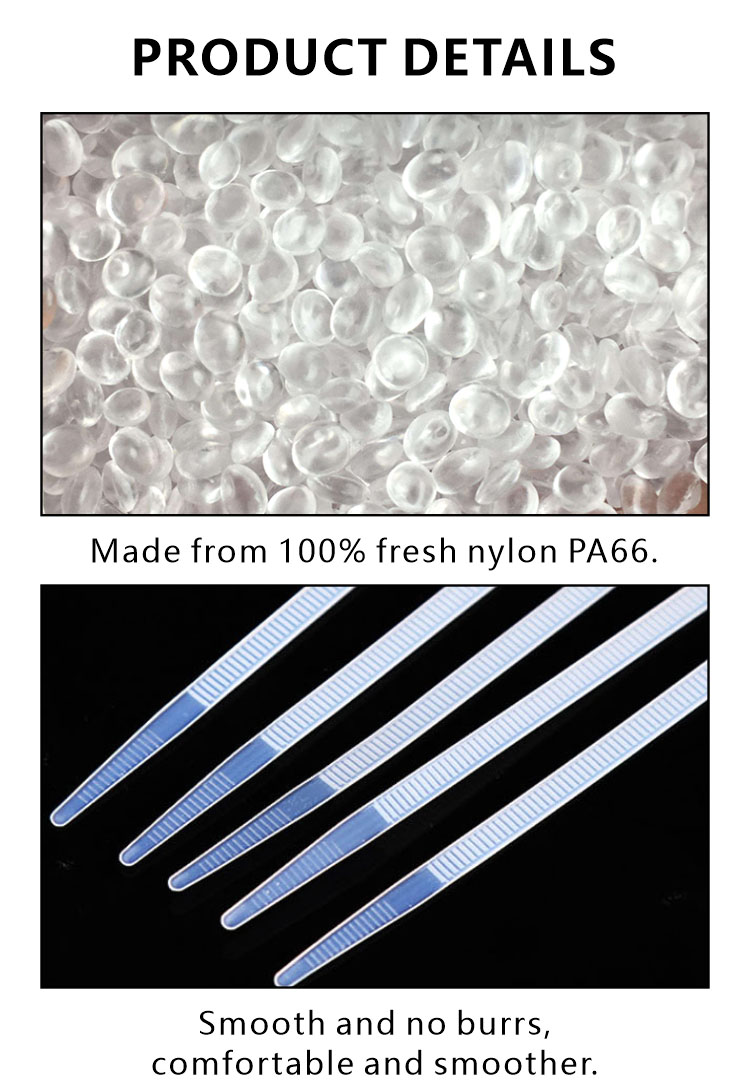

Material : Nylon 66,94v-2 certificated by UL. Heat-resisting.Acid & erosion control , insulate well and not apt to age.
Operating temperature: -40℃ to 85℃ .
Color :Natural(or white, standard colon),UV black andother colors are available as requested.
Online Service
Product Detail
|
part number |
Bundle diameter（mm） |
width (mm) |
length (mm) |
Min.loop tensile sterebhth |
|
|
KGS |
LBS |
||||
|
AD-3*80 |
2-16 |
2.5 |
80 |
8 |
18 |
|
AD-3*100 |
2-22 |
2.5 |
100 |
8 |
18 |
|
AD-3*120 |
2-30 |
2.5 |
120 |
8 |
18 |
|
AD-3*150 |
2-35 |
2.5 |
150 |
8 |
18 |
|
AD-3*200 |
2-50 |
2.5 |
200 |
8 |
18 |
|
AD-4*100 |
3-22 |
3.6 |
100 |
18 |
40 |
|
AD-4*120 |
3-30 |
3.6 |
120 |
18 |
40 |
|
AD-4*150 |
3-35 |
3.6 |
150 |
18 |
40 |
|
AD-4*180 |
3-42 |
3.6 |
180 |
18 |
40 |
|
AD-4*200 |
3-50 |
3.6 |
200 |
18 |
40 |
|
AD-4*250 |
3-65 |
3.6 |
250 |
18 |
40 |
|
AD-4*300 |
3-80 |
3.6 |
300 |
18 |
40 |
|
AD-4*350 |
3-90 |
3.6 |
350 |
18 |
40 |
|
AD-4*370 |
3-102 |
3.6 |
370 |
18 |
40 |
|
AD-5*100 |
3-22 |
4.6 |
100 |
22 |
50 |
|
AD-5*120 |
3-24 |
4.6 |
120 |
22 |
50 |
|
AD-5*150 |
3-35 |
4.6 |
150 |
22 |
50 |
|
AD-5*180 |
3-42 |
4.6 |
180 |
22 |
50 |
|
AD-5*200 |
3-50 |
4.6 |
200 |
22 |
50 |
|
AD-5*250 |
3-65 |
4.6 |
250 |
22 |
50 |
|
AD-5*300 |
3-82 |
4.6 |
300 |
22 |
50 |
|
AD-5*350 |
3-90 |
4.6 |
350 |
22 |
50 |
|
AD-5*380 |
3-102 |
4.6 |
380 |
22 |
50 |
|
AD-5*400 |
3-105 |
4.6 |
400 |
22 |
50 |
|
AD-5*450 |
3-130 |
4.6 |
450 |
22 |
50 |
|
AD-5*500 |
3-150 |
4.6 |
500 |
22 |
50 |
|
AD-8*200 |
3-50 |
6.8 |
200 |
55 |
120 |
|
AD-8*250 |
4-60 |
7.6 |
250 |
55 |
120 |
|
AD-8*300 |
4-80 |
7.6 |
300 |
55 |
120 |
|
AD-8*350 |
4-88 |
7.6 |
350 |
55 |
120 |
|
AD-8*380 |
4-98 |
7.6 |
380 |
55 |
120 |
|
AD-8*400 |
4-105 |
7.6 |
400 |
55 |
120 |
|
AD-8*450 |
4-116 |
7.6 |
450 |
55 |
120 |
|
AD-8*500 |
4-148 |
7.6 |
500 |
55 |
120 |
|
AD-8*550 |
4-150 |
7.6 |
550 |
80 |
175 |
|
AD-9*400 |
8-110 |
8.7 |
400 |
80 |
175 |
|
AD-9*450 |
8-115 |
8.7 |
450 |
80 |
175 |
|
AD-9*500 |
8-150 |
8.7 |
500 |
80 |
175 |
|
AD-9*550 |
8-160 |
8.7 |
550 |
80 |
175 |
|
AD-9*600 |
8-180 |
8.7 |
600 |
80 |
175 |
|
AD-9*650 |
8-120 |
8.7 |
650 |
80 |
175 |
|
AD-9*720 |
10-208 |
8.7 |
720 |
80 |
175 |
|
AD-9*760 |
10-223 |
8.7 |
760 |
80 |
175 |
|
AD-9*800 |
10-230 |
8.7 |
800 |
80 |
175 |
|
AD-9*850 |
10-235 |
8.7 |
850 |
80 |
175 |
|
AD-9*920 |
10-265 |
8.7 |
920 |
80 |
175 |
|
AD-9*1020 |
10-290 |
8.7 |
1020 |
80 |
175 |
|
AD-9*1220 |
10-340 |
8.7 |
1220 |
80 |
175 |
