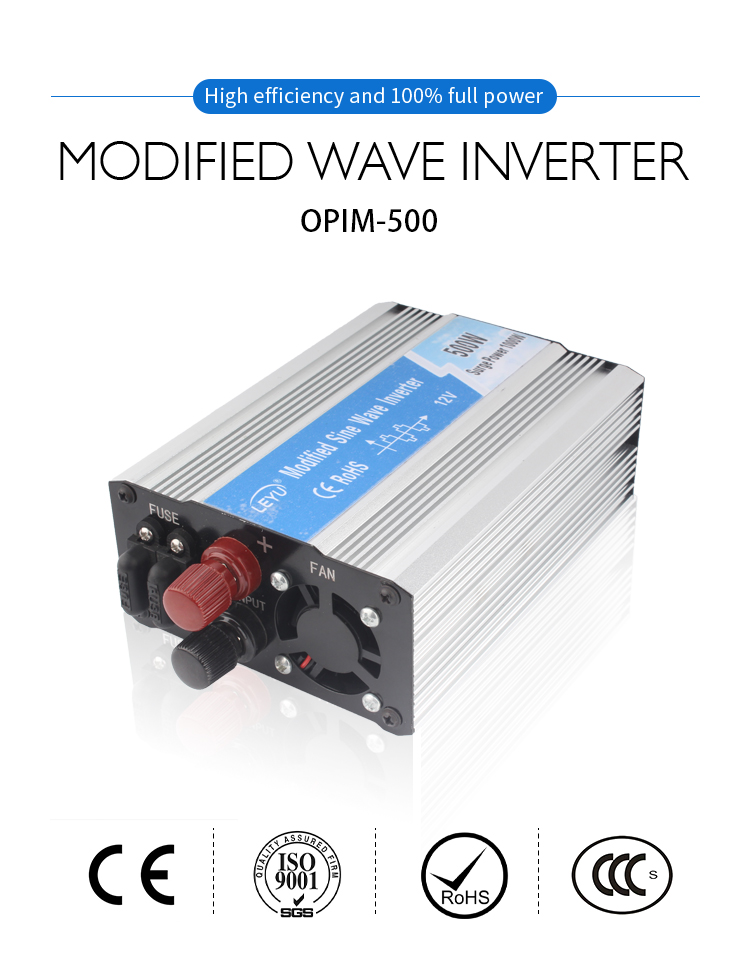

OPIM-0500W

inverter convert 12/24V DC into 100-120V/220-240V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle
then get power for your electronic devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice for user.
It can charge for digital equipments.
Products Features :
·Small in size , light in weight and potable
·Easy to use and high efficiency

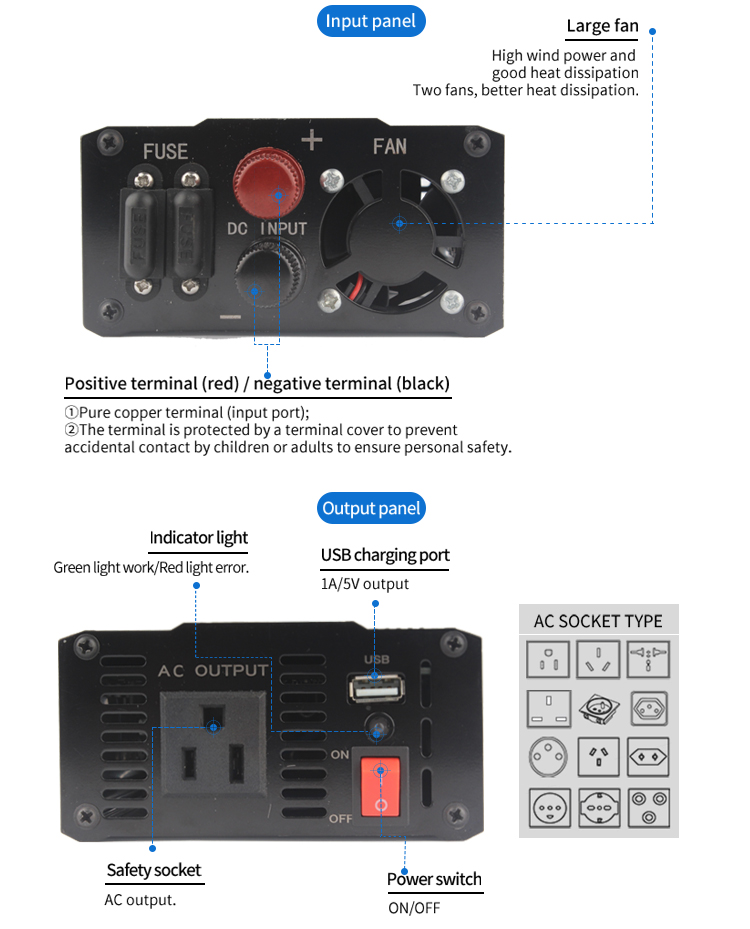

·Green LED for indicates the power on
·Input & output isolation
·Muti-protection function
·USB output port: 5V500mA
·A,B,C,C,D,E,F,G socket optional

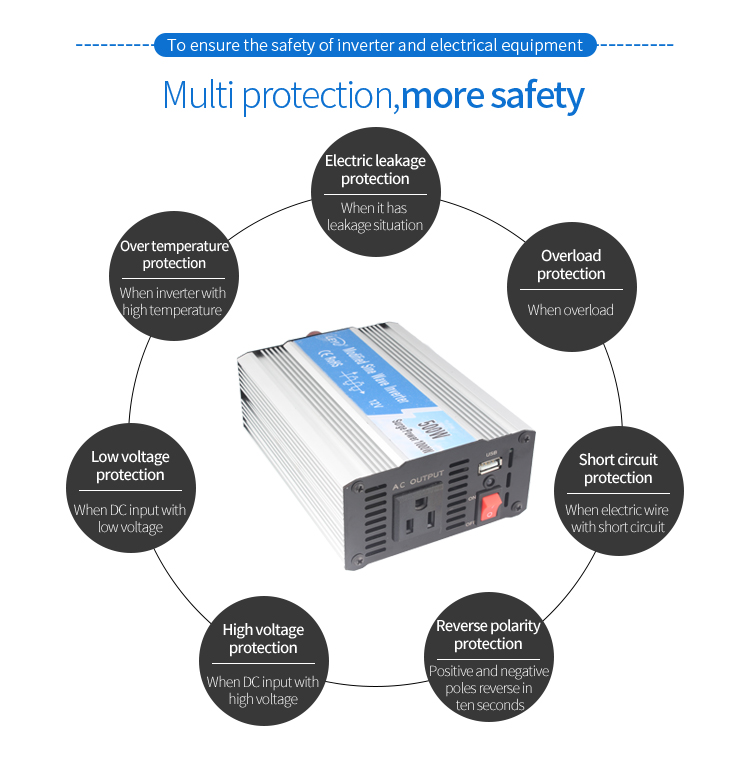

Protection Features:Short circuit/Low voltage/Over voltage/Overload/Over temperature

Product Detail

Model OPIM-0500-1 OPIM-0500-1 OPIM-0500-1 OPIM-0500-2 OPIM-0500-2 OPIM-0500-2
Rated power 500W
Peak power 1000W
Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 0.3A 0.1A 0.1A 0.3A 0.1A 0.1A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Modified  Sine Wave
USB port 5V 1A

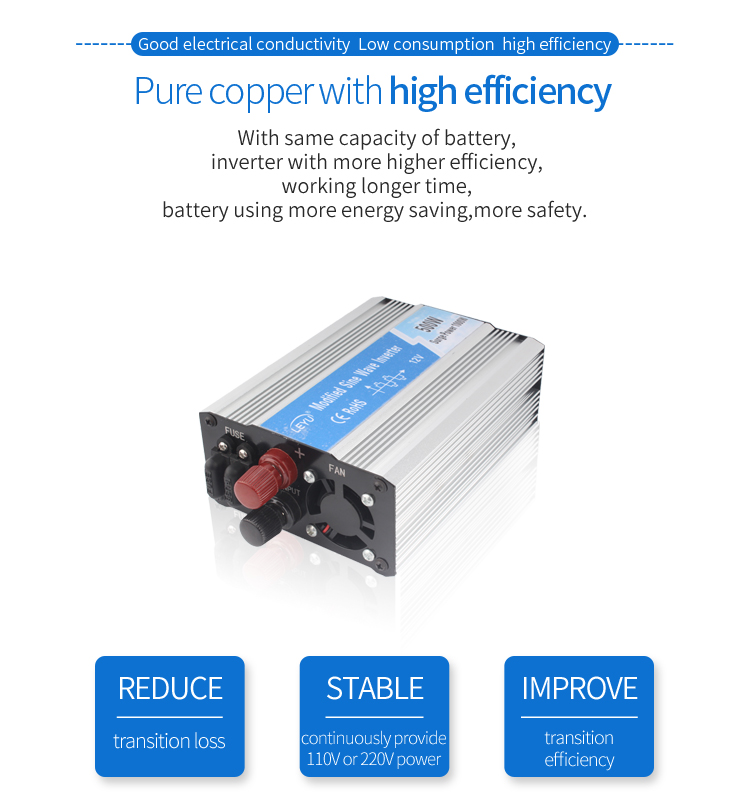

Max.efficiency 90%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Working temperature -10°- +50°
Storage temperature -30°- +70°

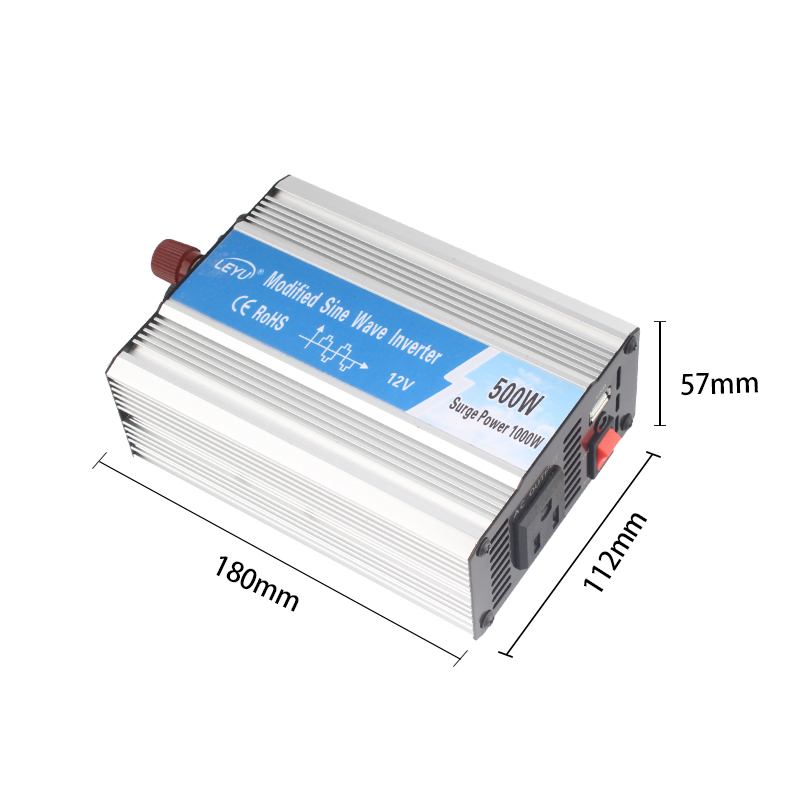

Dimension(mm) 220x112x67mm
Packing(mm) 270x150x100mm
Net./gross weight(g) 980/1200g
QTY/Ctn 16 Pcs
Meas./Ctn(mm) 500x405x425mm
Gross weight/Ctn(g) 19700g
Warranty 2 years
Configuration Standard
Cooling method Intelligent air cooling
