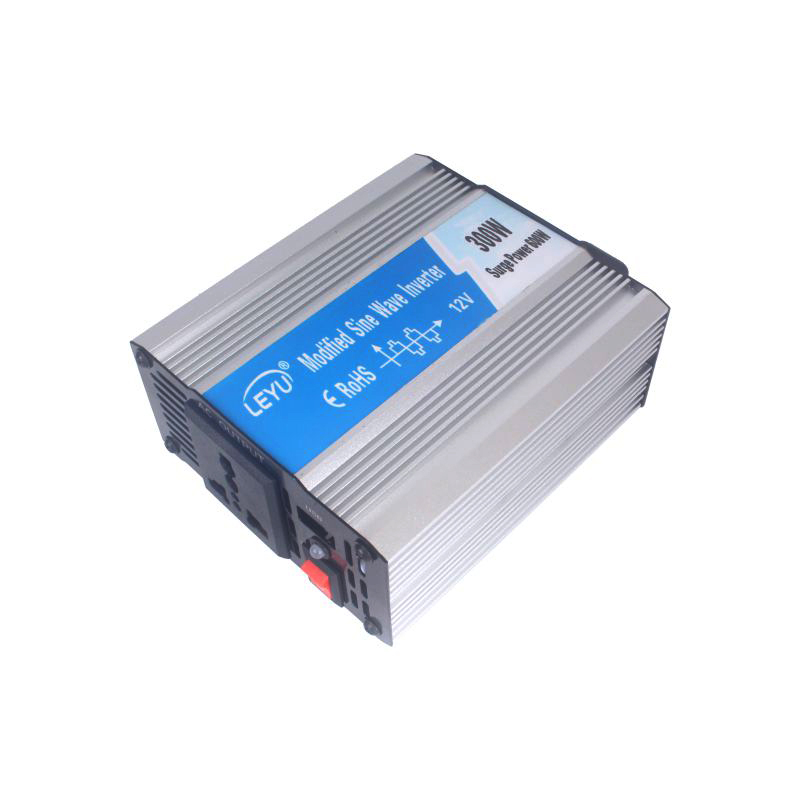

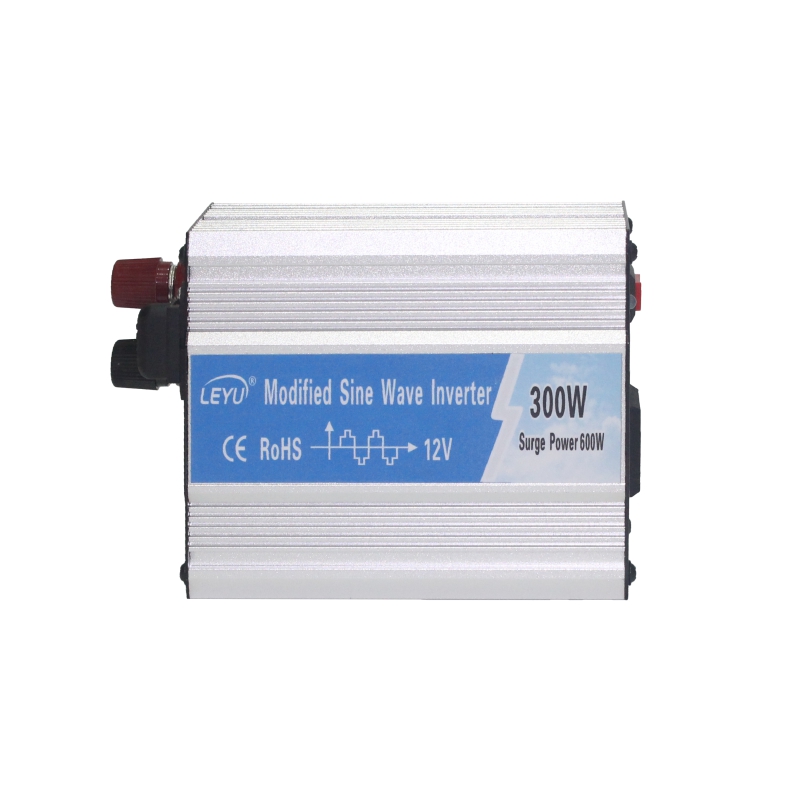

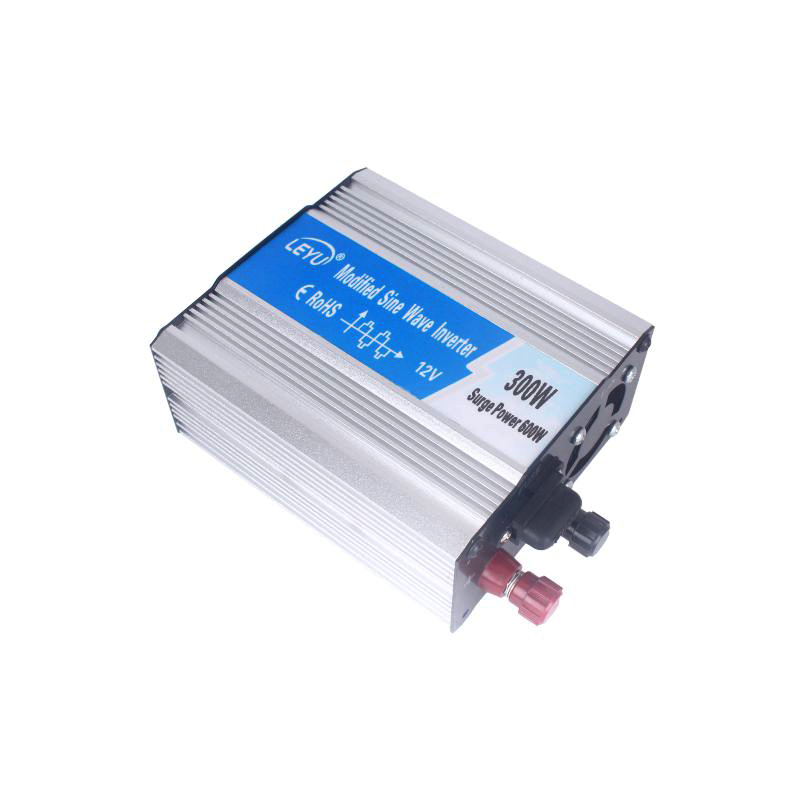

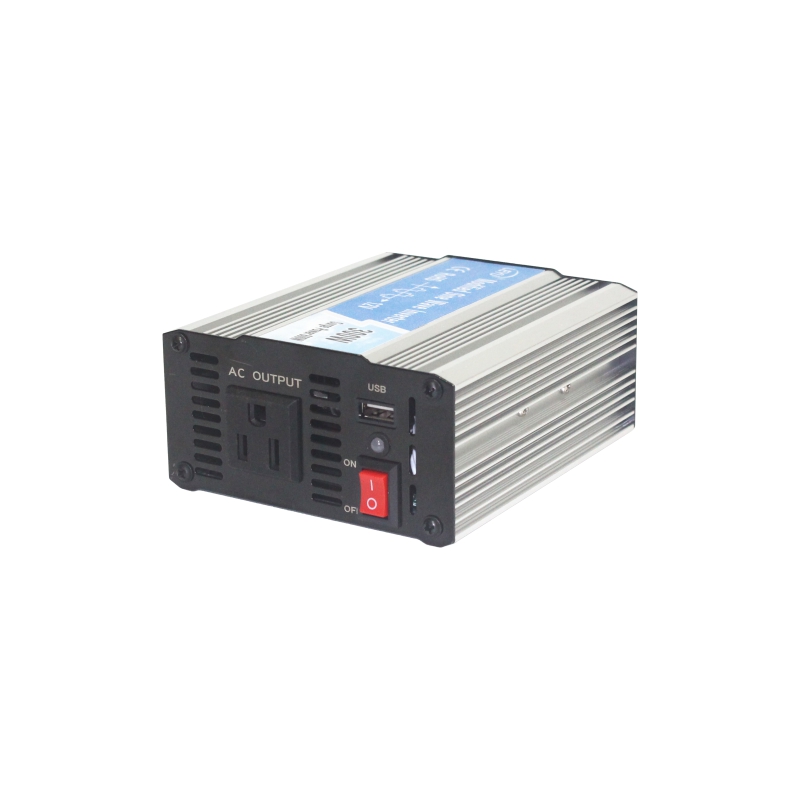

300W Modified Sine Wave Inverter
inverter convert 12/24V DC into 100-120V/220-240V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle
then get power for your electronic devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice for user.
It can charge for digital equipments.
Products Features :
·Small in size , light in weight and potable
·Easy to use and high efficiency
·Input & output isolation
·USB output port: 5V500mA
·Green LED for indicates the power on
·Muti-protection function
·A,B,C,C,D,E,F,G socket optional

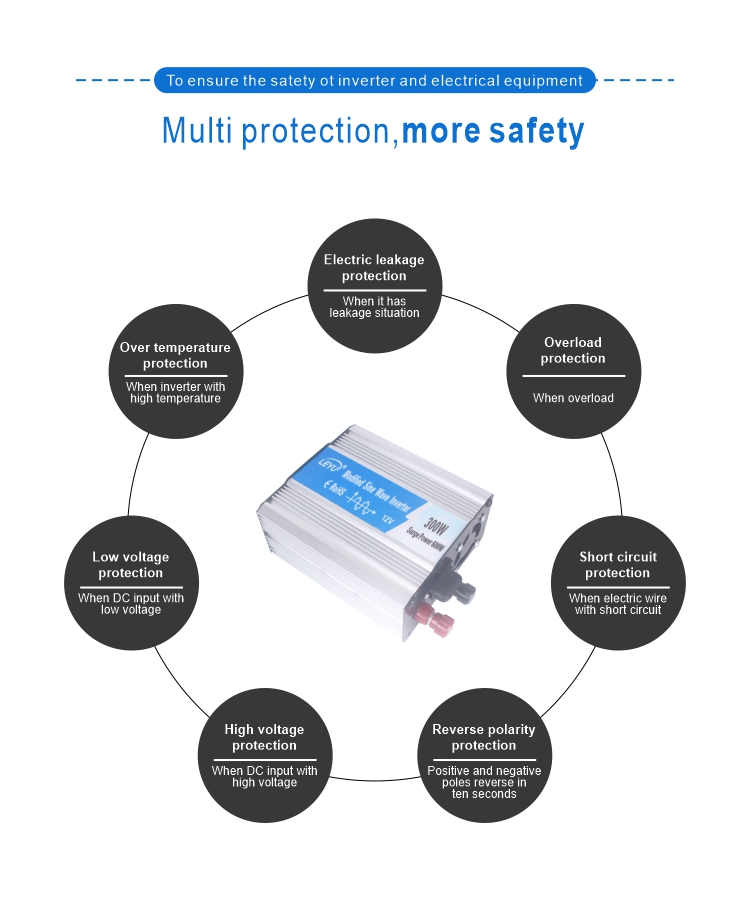

Protection Features:
·Low voltage protection
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
| Model | OPIM-300-1 | OPIM-300-1 | OPIM-300-1 | OPIM-300-2 | OPIM-300-2 | OPIM-300-2 |
| Rated power | 300W | |||||
| Peak power | 600W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Modified Sine Wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| USB port | 5V 1A | |||||
| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||
| Dimension(mm) | 160x115x60mm | |||||
| Packing(mm) | 240x145x75mm | |||||
| Net./gross weight(g) | 620/780g | |||||
| QTY/Ctn | 20 Pcs | |||||
| Meas./Ctn(mm) | 440x400x320mm | |||||
| Gross weight/Ctn(g) | 16800g | |||||
| Warranty | 18 months | |||||
| Configuration | Standard | |||||
| Cooling method | Intelligent air cooling | |||||
