Product Detail

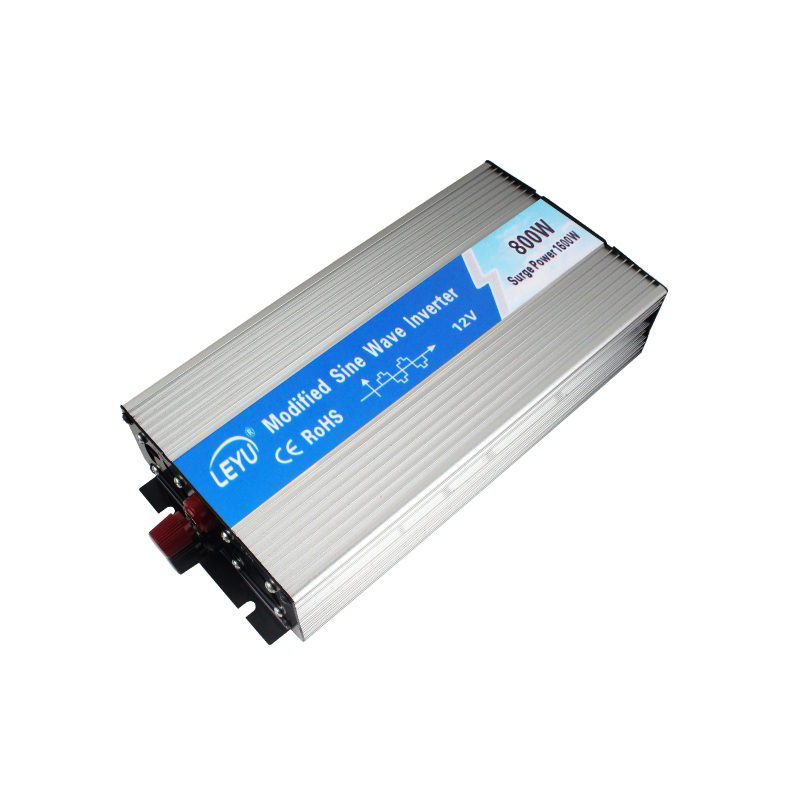

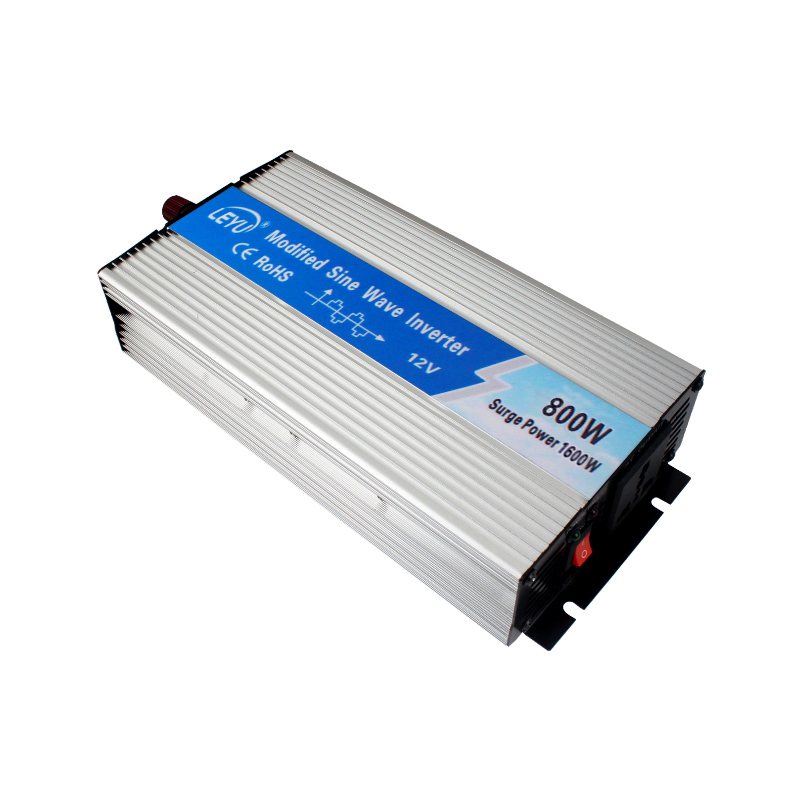

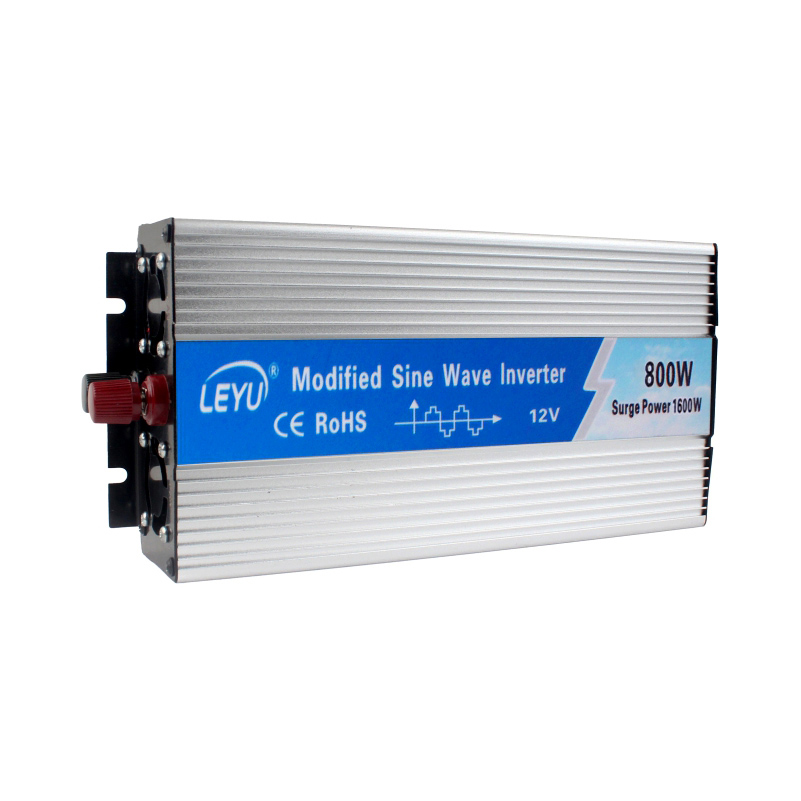

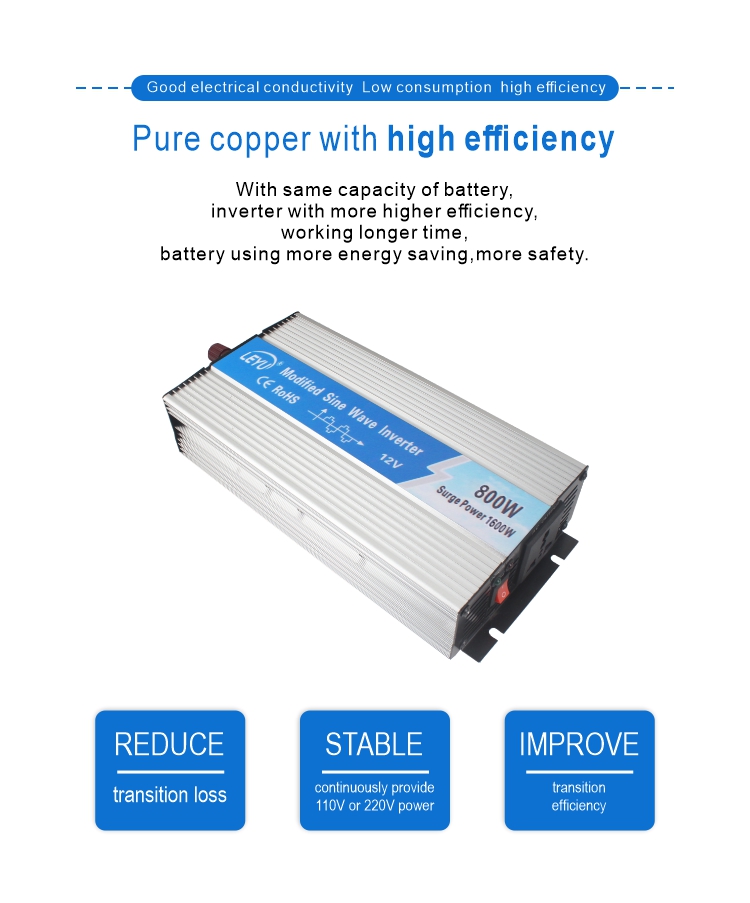

800W Modified Sine Wave Inverter
inverter convert 12/24V DC into 100-120V/220-240V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle
then get power for your electronic devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice for user.
It can charge for digital equipments.
Products Features :
·Small in size , light in weight and potable
·Easy to use and high efficiency

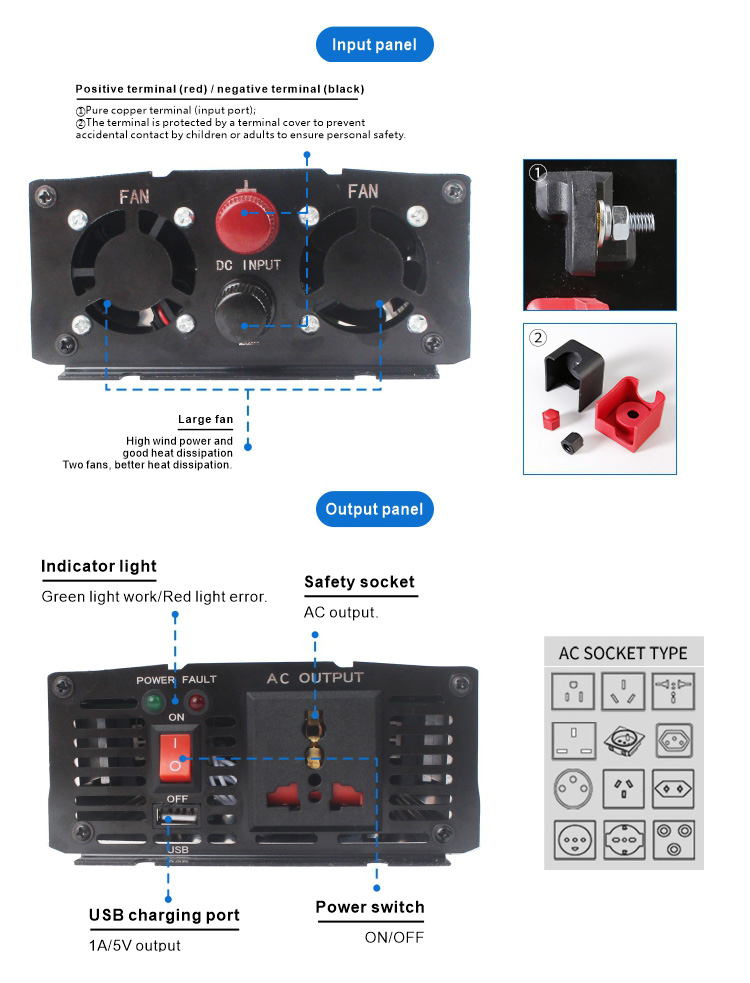

·Green LED for indicates the power on
·Input & output isolation
·Muti-protection function
·USB output port: 5V500mA
·A,B,C,C,D,E,F,G socket optional

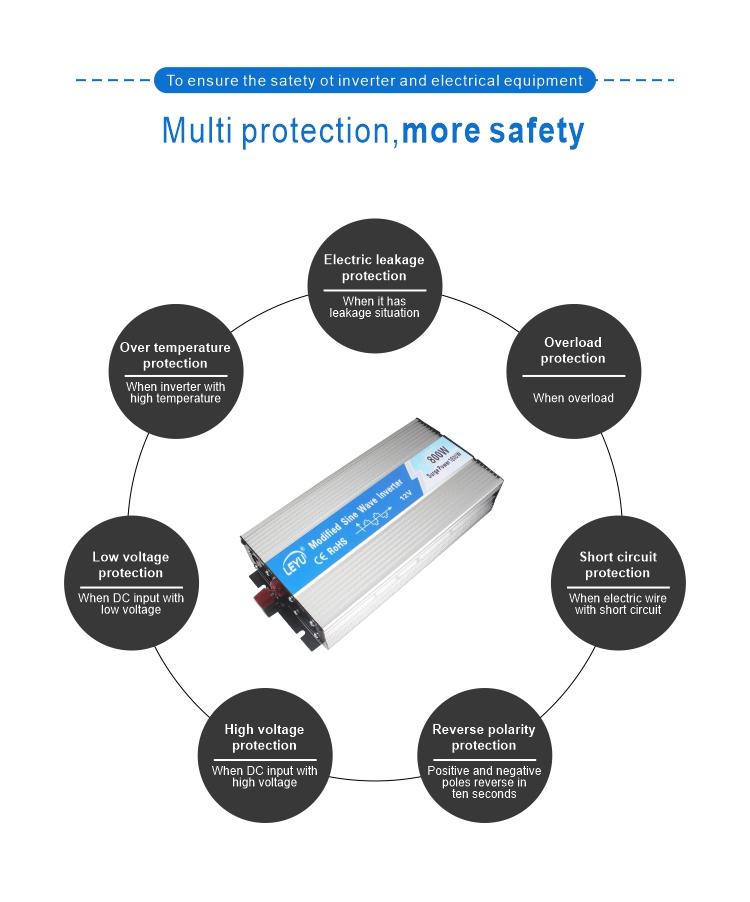

Protection Features:Short circuit/Over temperature/Overload/Over voltage/Low voltage
Model
OPIM-800-1
OPIM-800-1
OPIM-800-1
OPIM-800-2
OPIM-800-2
OPIM-800-2
Rated power
800W
Peak power
1600W
Input voltage
DC12V
DC24V
DC48V
DC12V
DC24V
DC48V
Output voltage
100VAC or 110VAC or 120VAC±5%
220VAC or 230VAC or 240VAC±5%
Unload current less than
0.8A
0.5A
0.2A
0.8A
0.5A
0.2A
Output frequency
50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform
Modified Sine Wave
Waveform distortion
THD<3%(Linear load)
USB port
5V 1A
Max.efficiency
90%
Input voltage range
10-15.5V
20-31V
40-61V
10-15.5V
20-31V
40-61V
Low voltage alarm
10.5±0.5V
21±0.5V
42±1V
10.5±0.5V
21±0.5V
42±1V
Low voltage protection
10±0.5V
20±0.5V
40±15V
10±0.5V
20±0.5V
40±15V
Over voltage protection
15.5±0.5V
31±0.5V
61±1V
15.5±0.5V
31±0.5V
61±1V
Low voltage recover
13±0.5V
24±0.5V
48±1V
13±0.5V
24±0.5V
48±1V
Over voltage recover
14.8V±0.5V
29.5V±0.5V
59V±1V
14.8V±0.5V
29.5V±0.5V
59V±1V
Protection function
Low voltage
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage
LED Red light on, shut down
Over load
LED Red light on, shut down
Over temperature
Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit
LED Red light on
Input reverse polarity
Fuse burn-out
Working temperature
-10°- +50°
Storage temperature
-30°- +70°
Dimension(mm)
280x135x60mm
Packing(mm)
330x185x85mm
Net./gross weight(g)
1340/1800g
QTY/Ctn
8 Pcs
Meas./Ctn(mm)
440x350x330mm
Gross weight/Ctn(g)
15000g
Warranty
18 months
Configuration
Standard
Cooling method
Intelligent air cooling
