OPIM-1500C
Online Service
Product Detail
OPIM-1500C Inverter With Charger 1500W Technical Parameters
Model |
OPIM-1500C-1 |
OPIM-1500C-1 |
OPIM-1500C-2 |
OPIM-1500C-2 |
Rated power |
1500W |
|||
Peak power |
3000W |
|||
Input voltage |
DC12V |
DC24V |
DC12V |
DC24V |
Output voltage |
100VAC or 110VAC or 120VAC±5% |
220VAC or 230VAC or 240VAC±5% |
||
Unload current less than |
0.8A |
0.5A |
0.8A |
0.5A |
Output frequency |
50Hz±0.5Hz or 60Hz±0.5Hz |
|||
Output waveform |
Modified Sine Wave |
|||
USB port |
5V 1A |
|||
Max.efficiency |
90% |
|||
Input current |
15A |
|||
Input voltage range |
10-15.5V |
20-31V |
10-15.5V |
20-31V |
Low voltage alarm |
10.5±0.5V |
21±0.5V |
10.5±0.5V |
21±0.5V |
Low voltage protection |
10±0.5V |
20±0.5V |
10±0.5V |
20±0.5V |
Over voltage protection |
15.5±0.5V |
31±0.5V |
15.5±0.5V |
31±0.5V |
Low voltage recover |
12.3±0.5V |
24±0.5V |
12.3±0.5V |
24±0.5V |
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
14.8V±0.5V |
29.5V±0.5V |

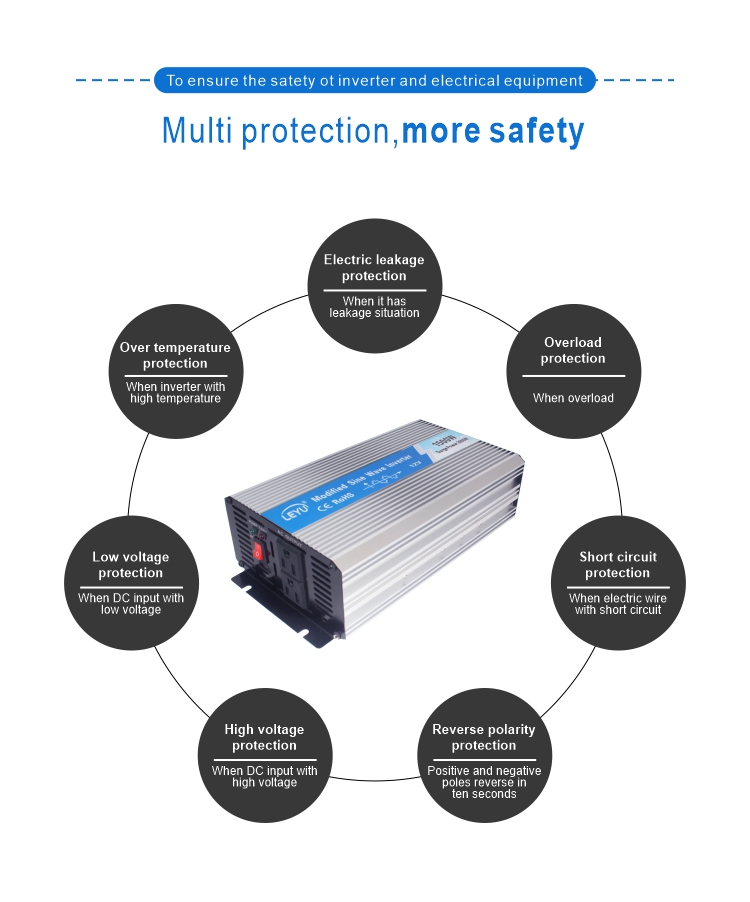

Protection function |
Low voltage |
Alarm at first, voltage continously reduce. LED Red light on & shut down. |
||
Over voltage |
LED Red light on, shut down |
|||
Over load |
LED Red light on, shut down |
|||
Over temperature |
Alarm at first, temperature continously rise.LED Red light on & shut down |
|||
Short circuit |
LED Red light on |
|||
Input reverse polarity |
Fuse burn-out |
|||
Output Current |
15A |
10A |
15A |
10A |
Bulk charge |
15A |
10A |
15A |
10A |
Absorption |
14.6VDC |
28.8VDC |
14.6VDC |
28.8VDC |
Float Charging Voltage |
13.8VDC |
27.6VDC |
13.8VDC |
27.6VDC |
AC Input voltage range |
190~260VAC |
90-135VAC |
190~260VAC |
90-135VAC |
Working temperature |
-10°- +50° |
|||
Storage temperature |
-30°- +70° |
|||
Dimension(mm) |
312x180x128mm |
|||
Packing(mm) |
385x245x200mm |
|||
Net./gross weight(g) |
4190/4968g |
|||
QTY/Ctn |
4 Pcs |
|||
Meas./Ctn(mm) |
500x400x415mm |
|||
Gross weight/Ctn(g) |
19875g |
|||
Warranty |
1 years |
|||
Configuration |
Standard |
|||
Cooling method |
Intelligent air cooling |
|||
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
