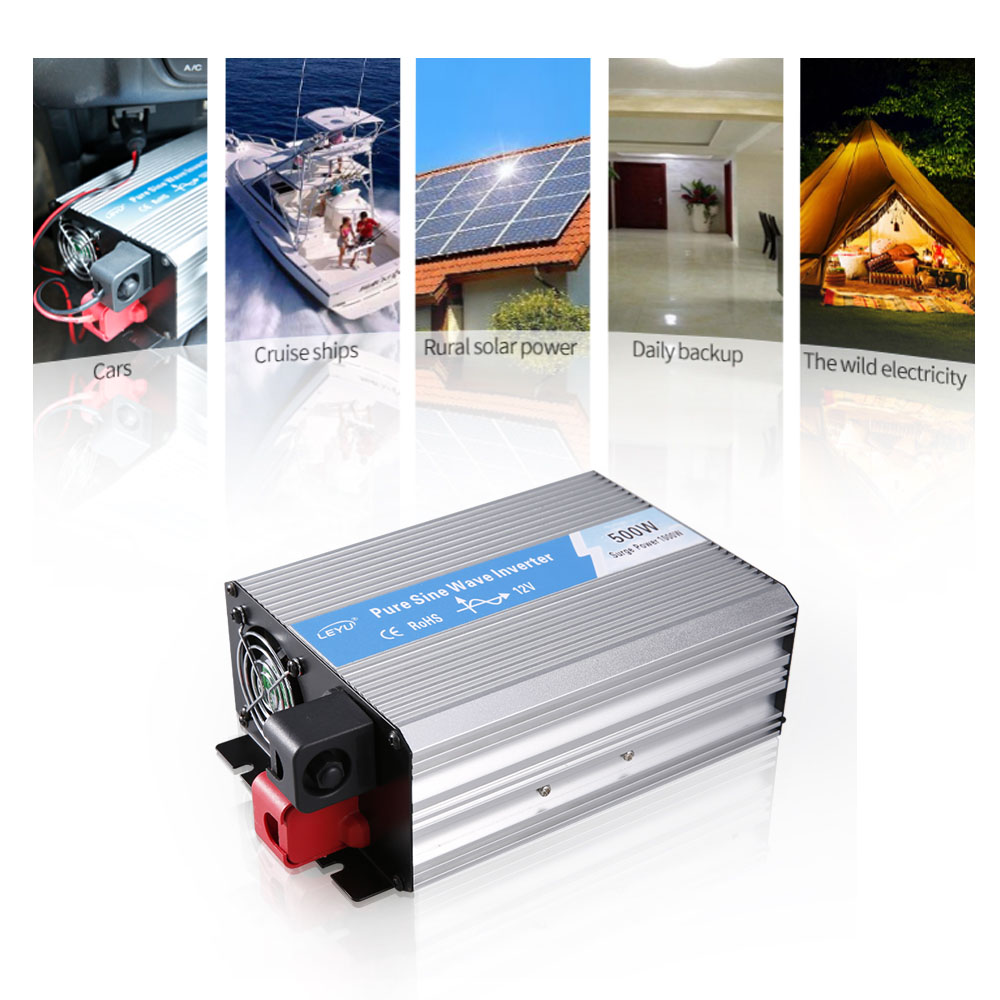

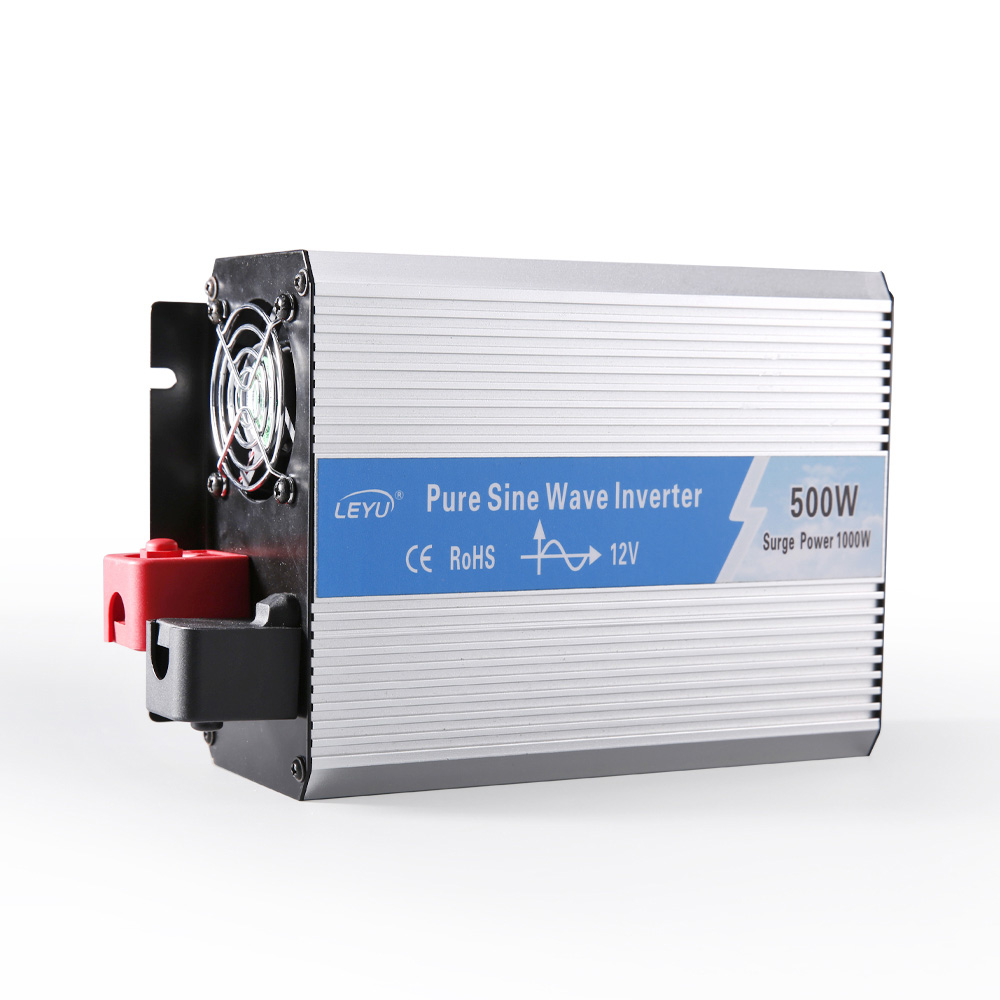

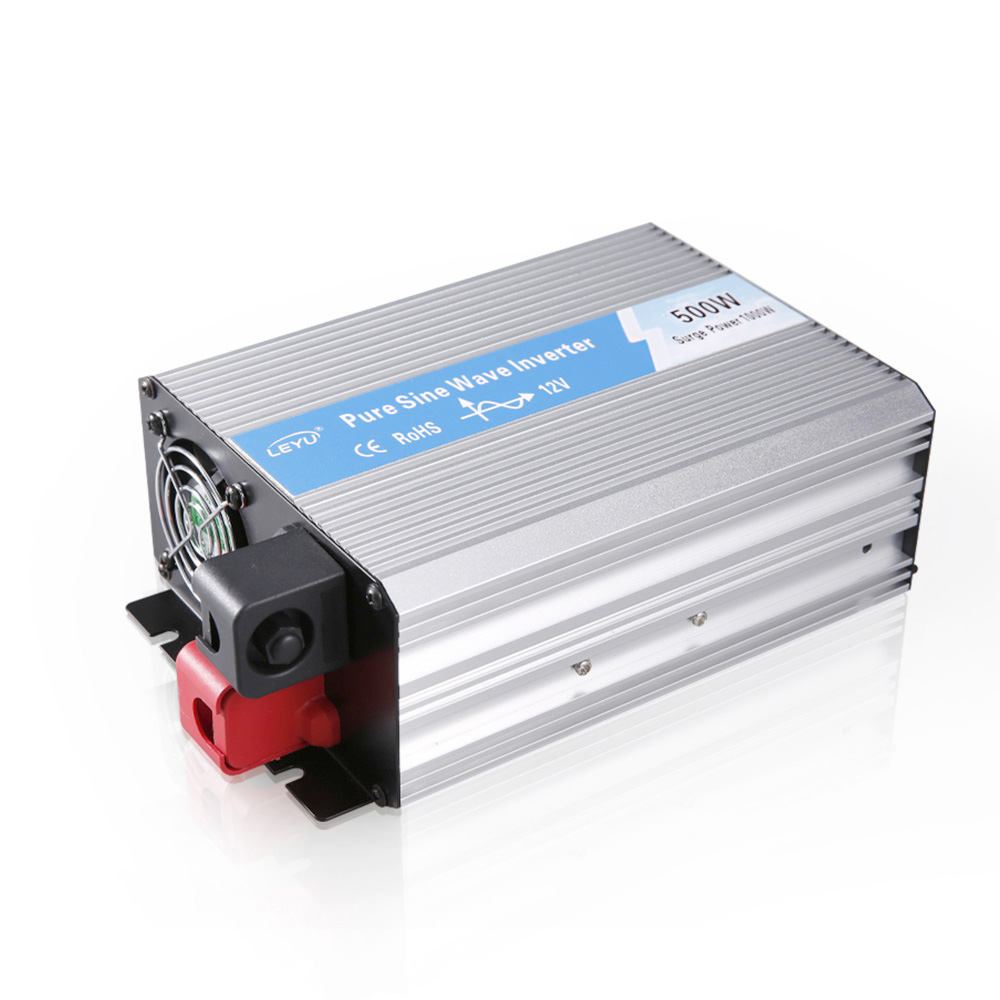

OPIP-0500W

Products Features :
·Small in size , light in weight and potable
·Easy to use and high efficiency
·Green LED for indicates the power on
·Input & output isolation
·Muti-protection function

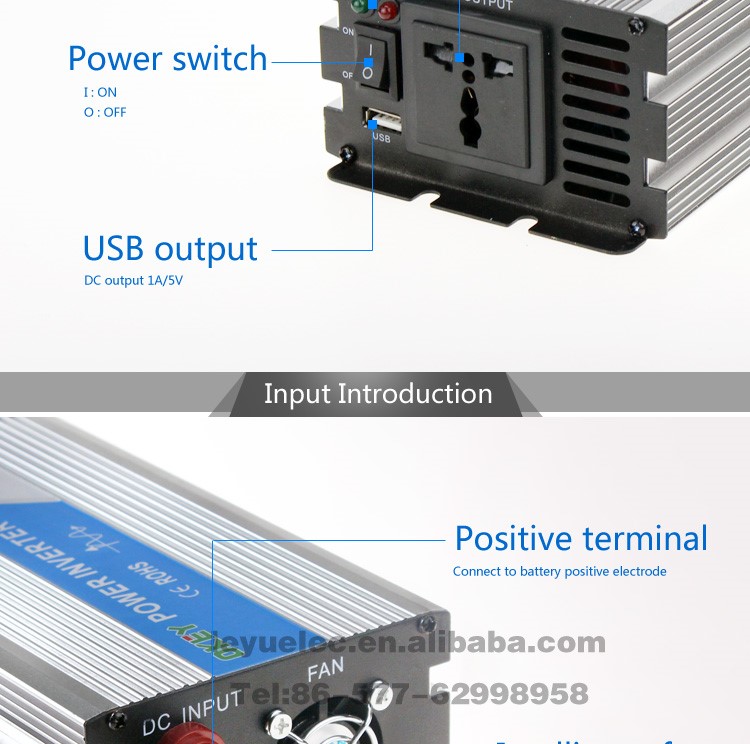

·USB output port: 5V 500mA

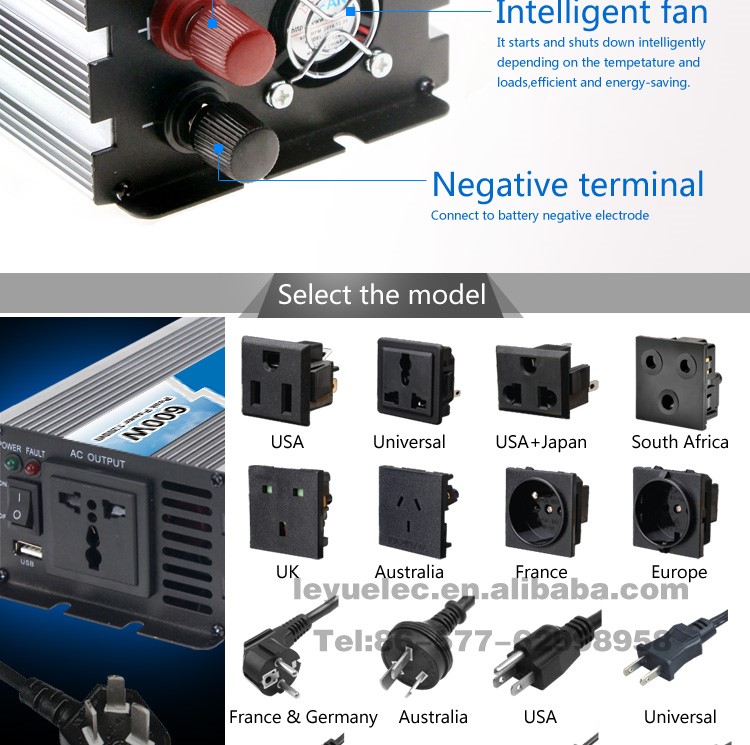

·A,B,C,C,D,E,F,G socket optional

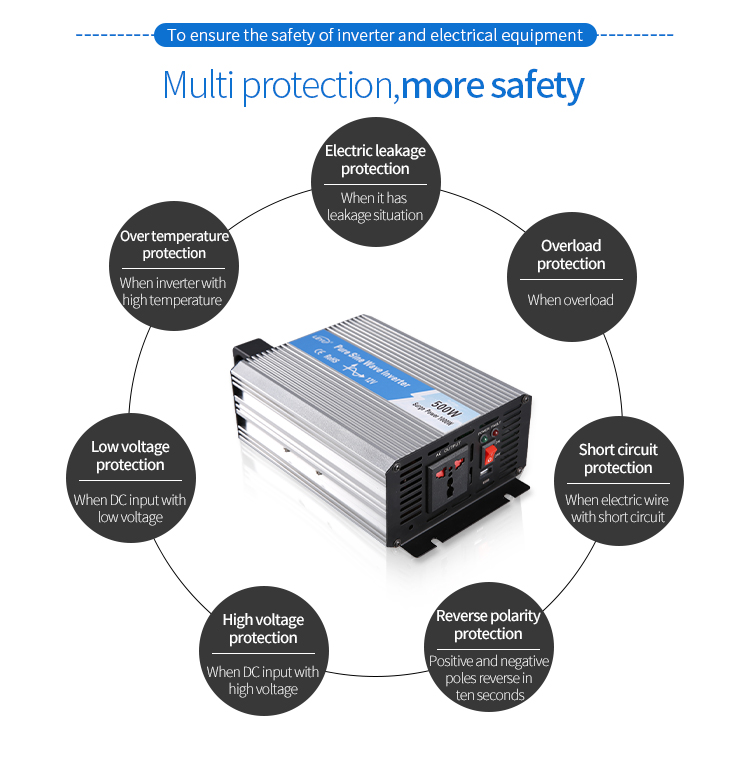

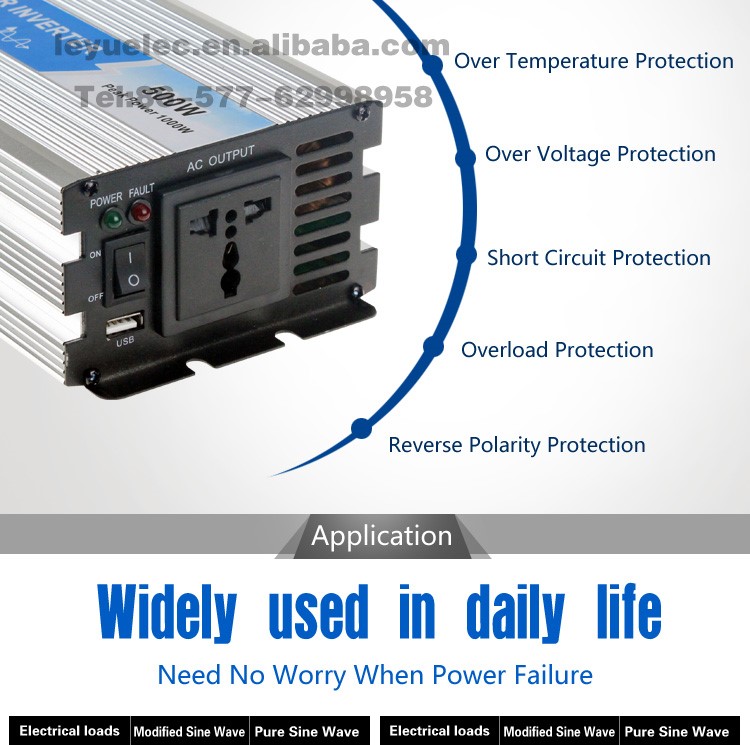

Protection Features:
·Low voltage ,Over voltage ,Overload ,Over temperature ,Short circuit protection

Online Service

Print this Page

Skype Online

E-mail Us

QQ

Facebook

wangwang

Wechat

Online Inquiry

Product Detail

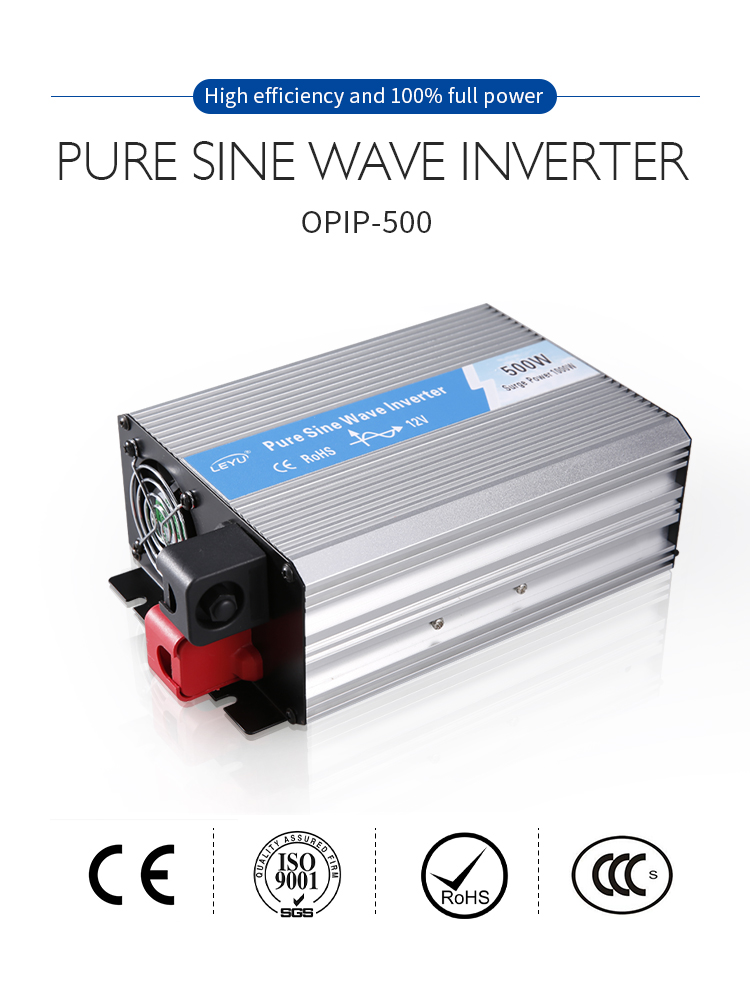

500W pure sine wave inverter
Product Features :

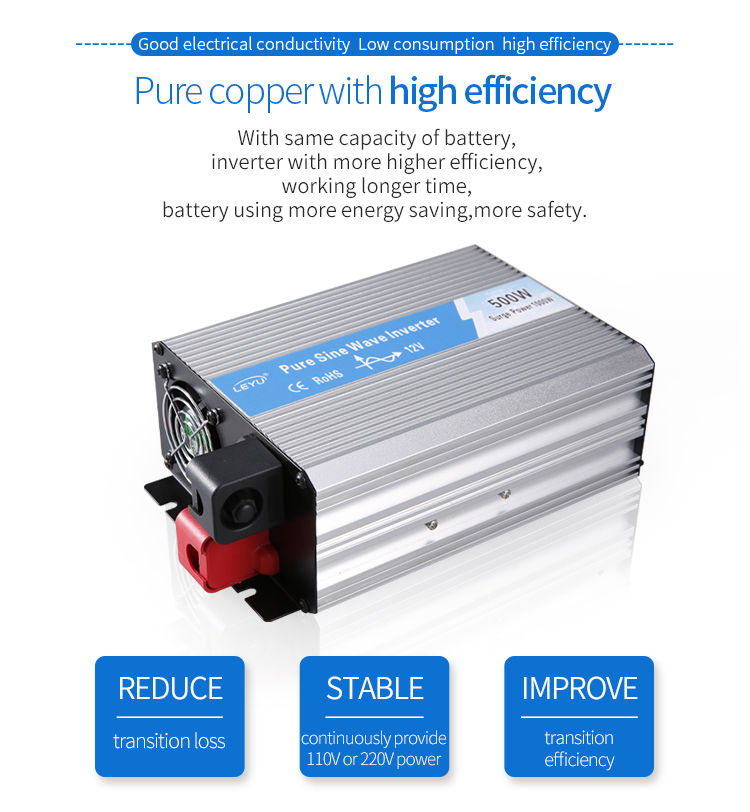

High transform efficiency 、fast start；
Pure sine wave output waveform；
Softstart function；
Strong adaptability and stability ；
With automatic over-current and output short circuit protection to avoid damage the equipment；
Temperature controlled fan,safe&efficient；
Safe and reliable with built in fuse.
18 month warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc； output voltage such as 120v, 130v, 200V,240v, etc；Many kinds of sockets are available).

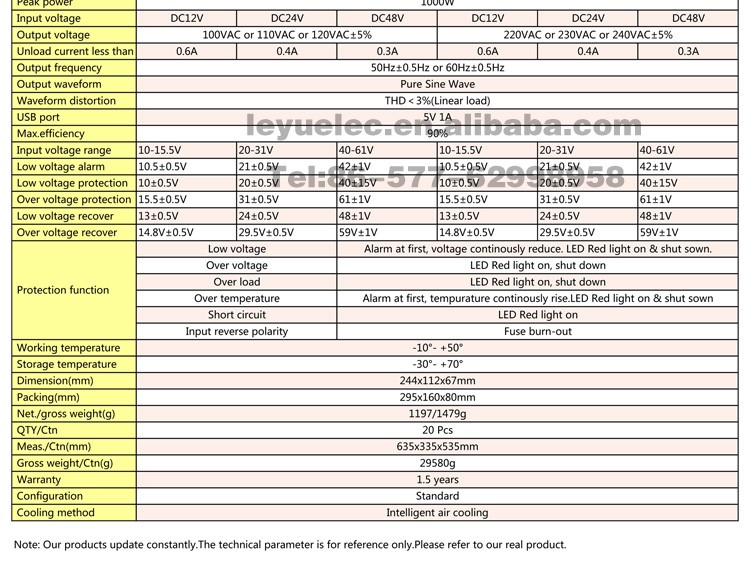

Model	OPIP-0500-1	OPIP-0500-1	OPIP-0500-1	OPIP-0500-2	OPIP-0500-2	OPIP-0500-2
Rated power	500W
Peak power	1000W

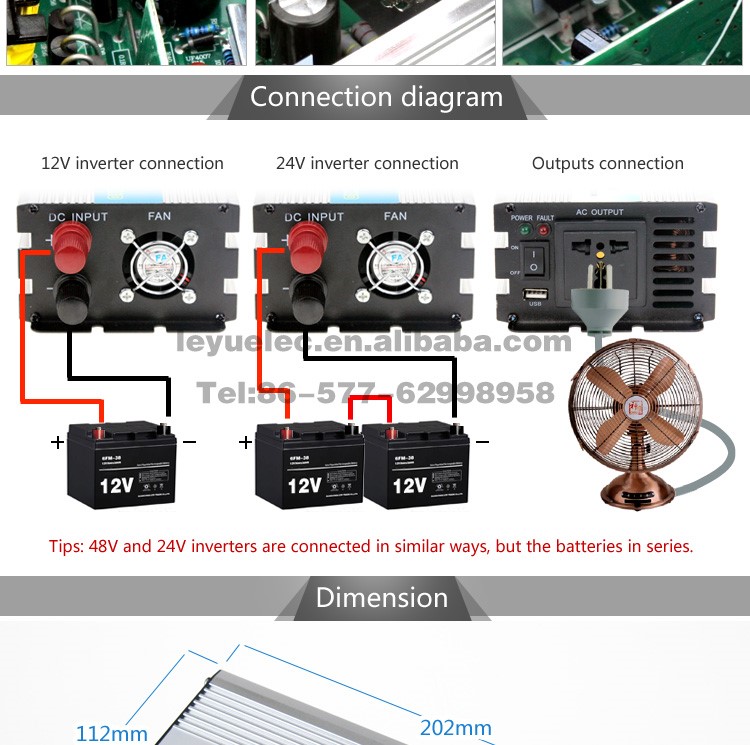

Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.6A	0.4A	0.3A	0.6A	0.4A	0.3A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V

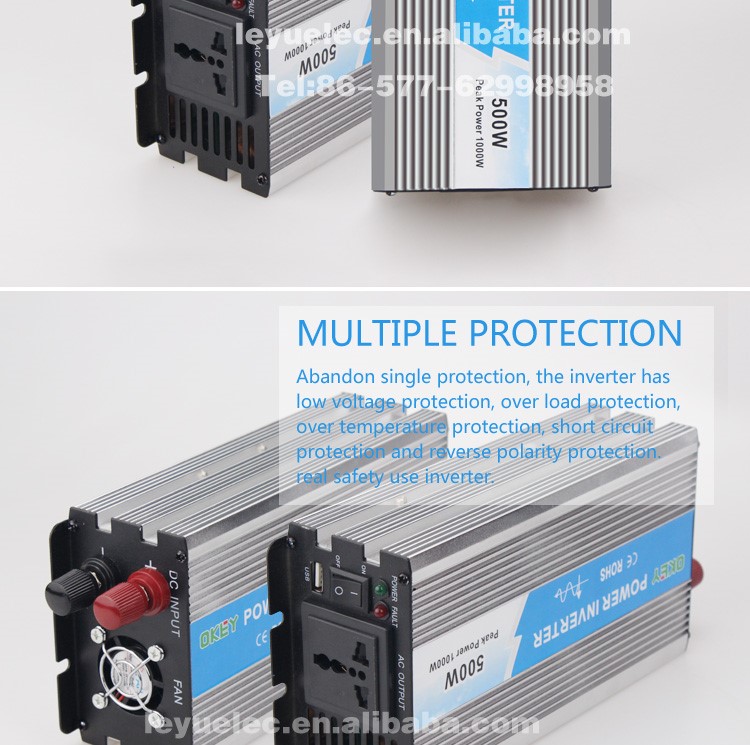

Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°

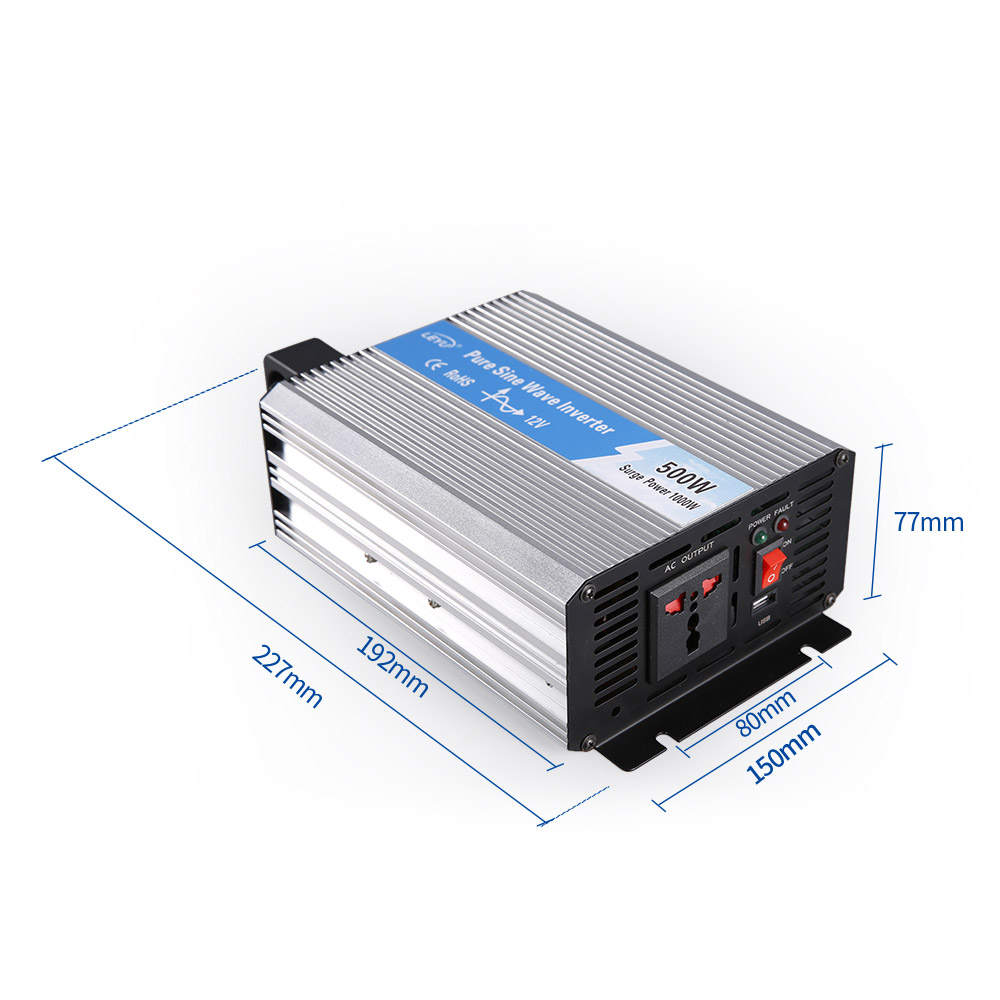

Dimension(mm)	250x150x80mm
Packing(mm)	280x195x100mm
Net./gross weight(g)	1740/2020g
QTY/Ctn	6 Pcs
Meas./Ctn(mm)	490x290x300mm
Gross weight/Ctn(g)	14kg
Warranty	18 months
Configuration	Standard
Cooling method	Intelligent air cooling
