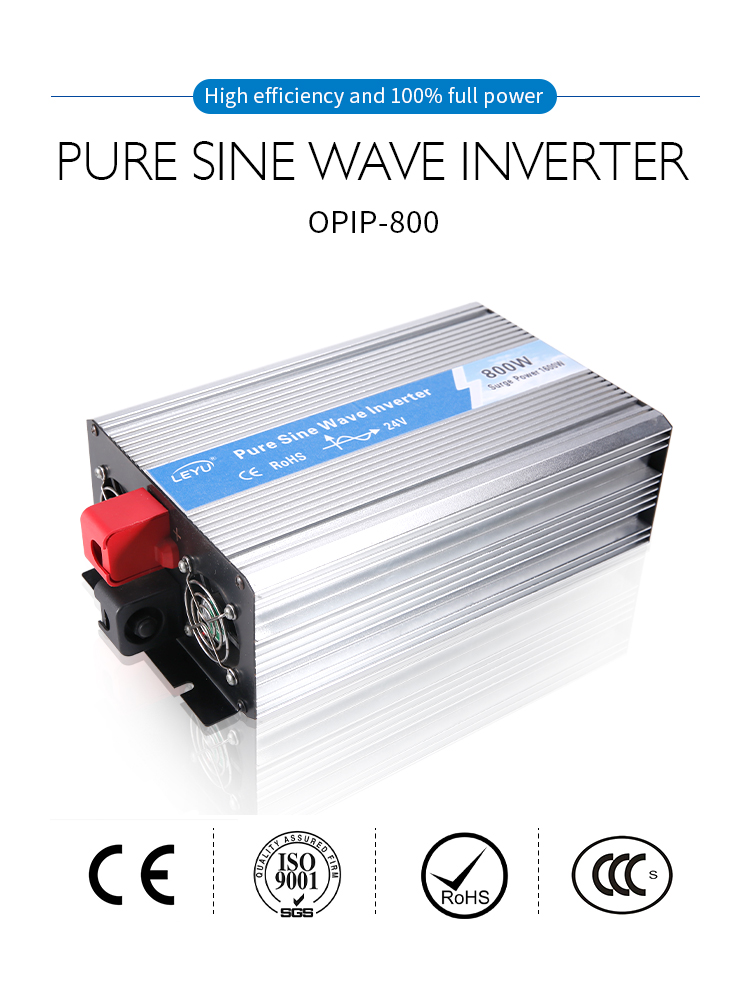

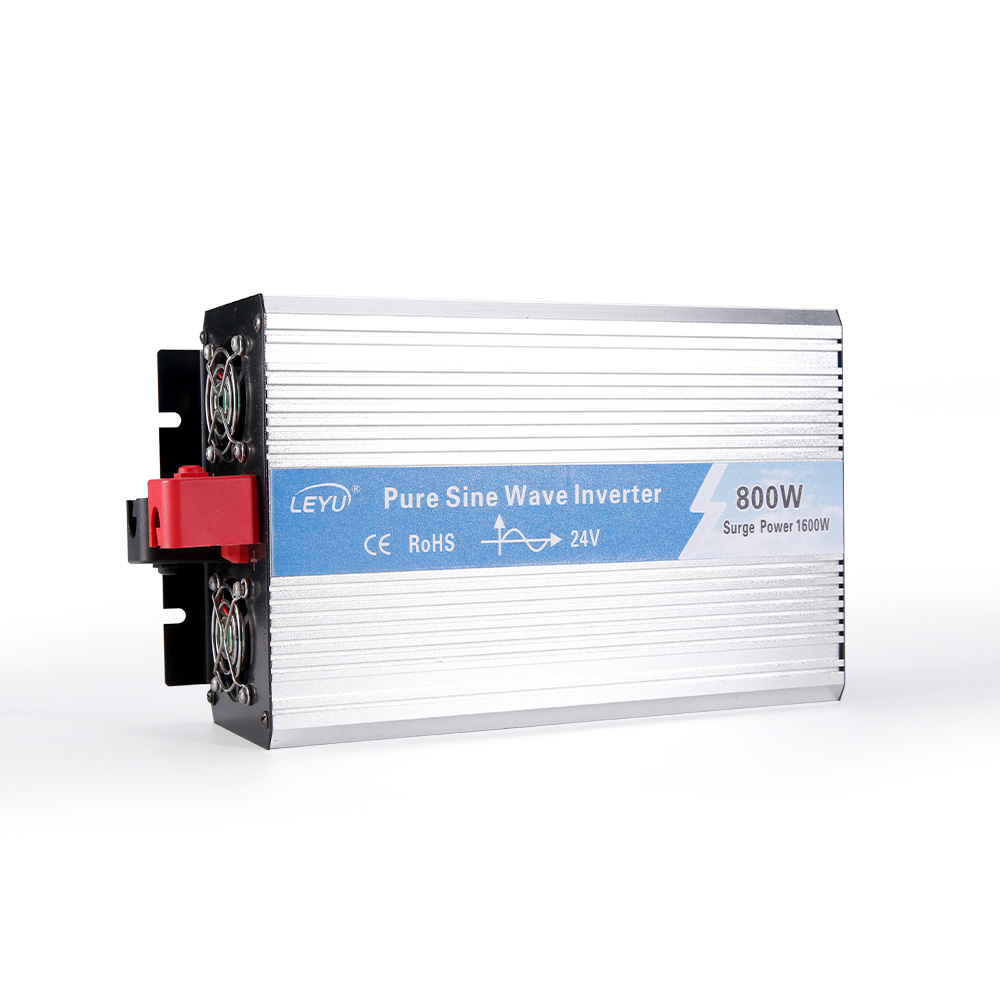

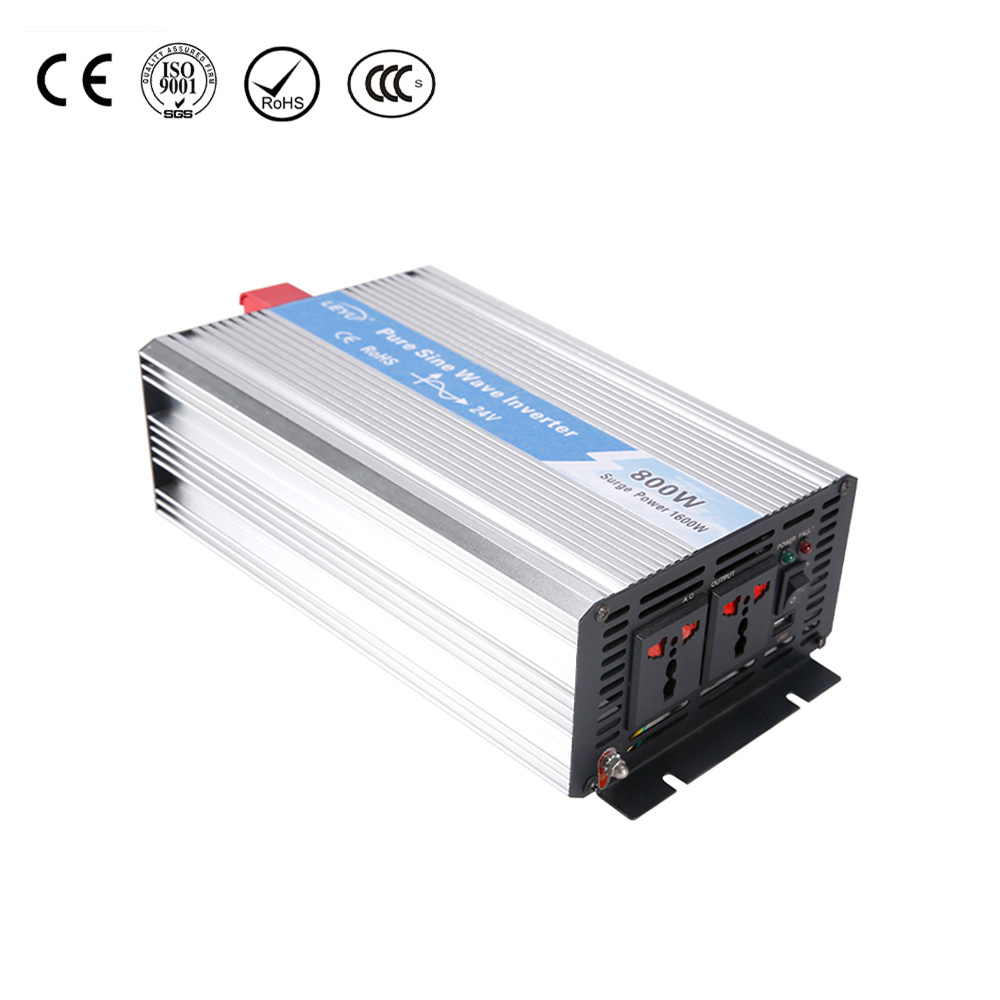

OPIP-0800W

Product Features :
High transform efficiency 、fast start;
Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability ;

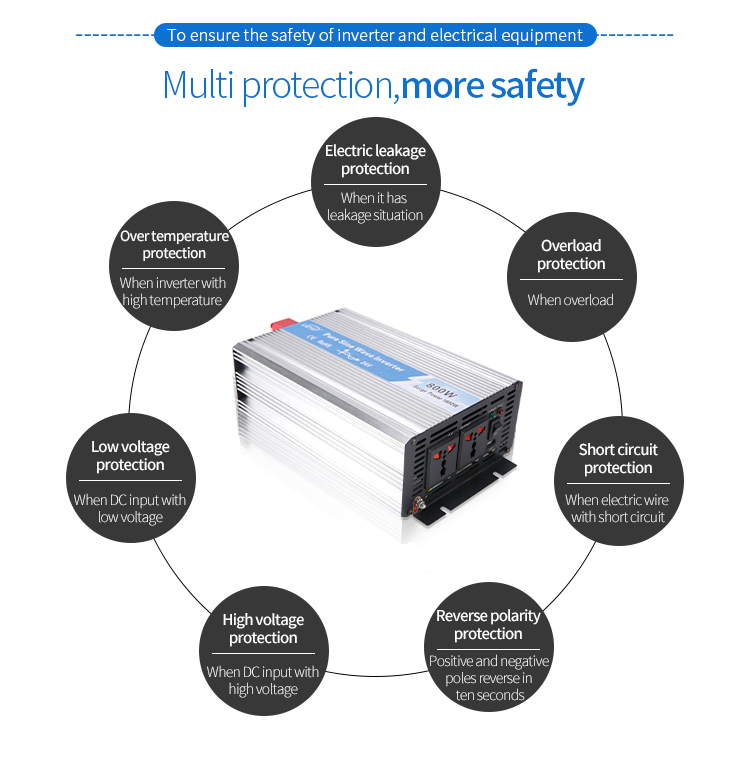

With automatic over-current and output short circuit protection to avoid damage the equipment;
Temperature controlled fan,safe&efficient;
Safe and reliable with built in fuse.
1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of socket are available).

Product Detail

Model OPIP-800-1 OPIP-800-1 OPIP-800-1 OPIP-800-2 OPIP-800-2 OPIP-800-2
Rated power 800W
Peak power 1600W
Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 0.8A 0.5A 0.3A 0.8A 0.5A 0.3A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Pure Sine Wave
Waveform distortion THD<3%(Linear load)
USB port 5V 1A

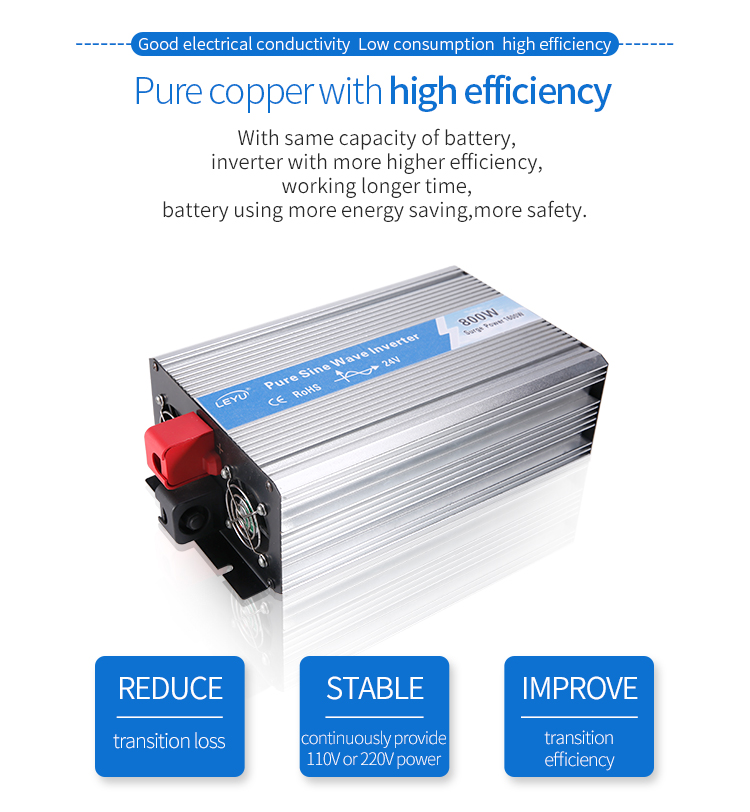

Max.efficiency 90%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut down.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, temperature continously rise.LED Red light on & shut down
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Working temperature -10°- +50°
Storage temperature -30°- +70°

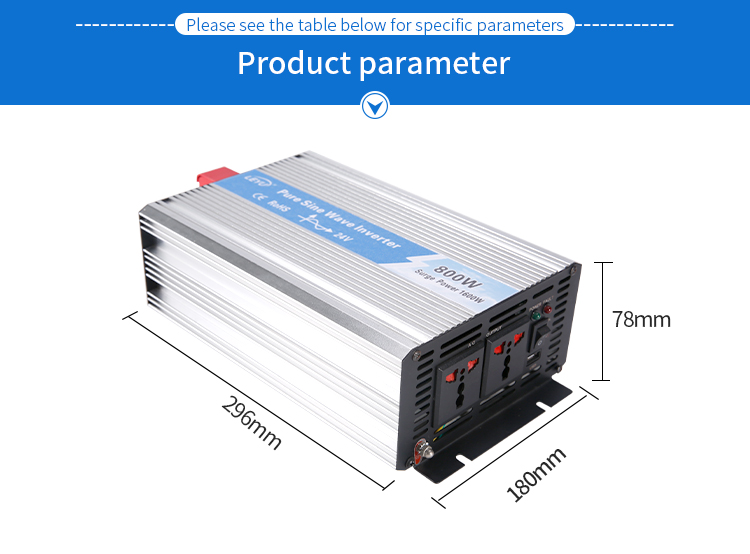

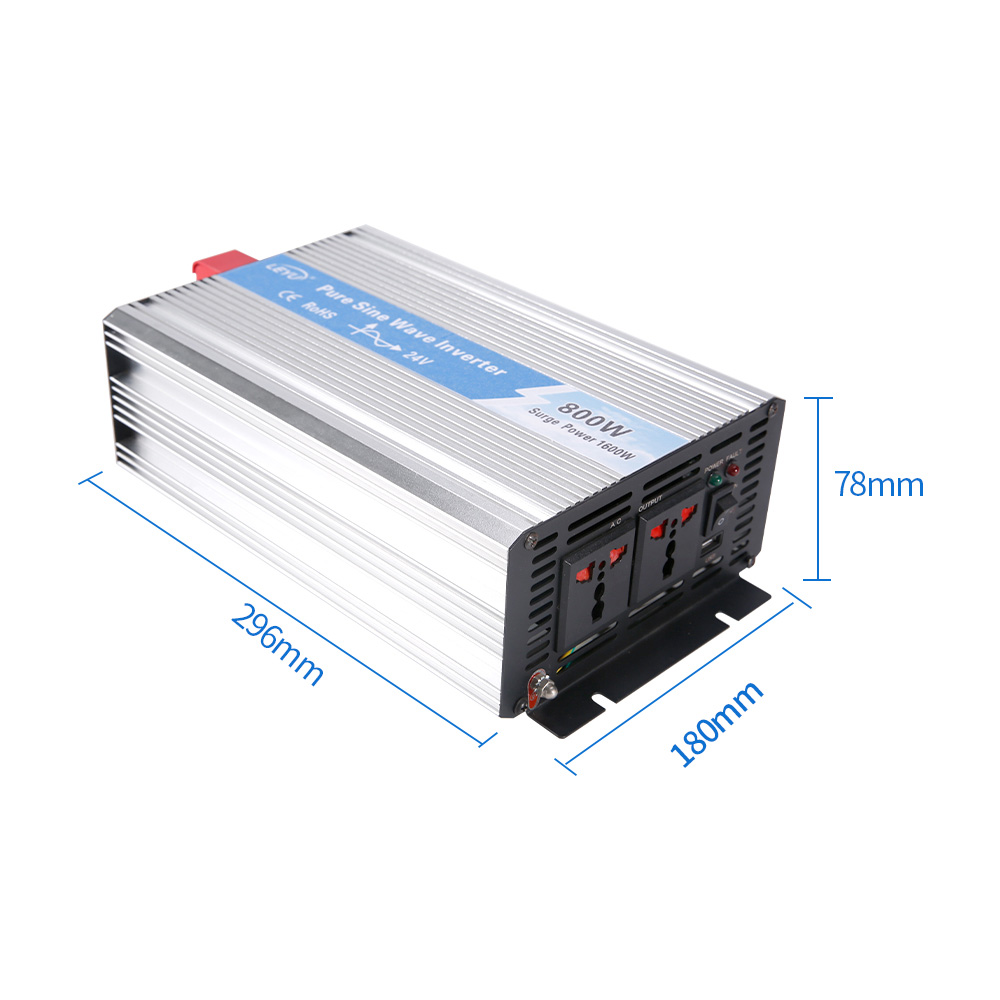

Dimension(mm) 296x180x78mm
Packing(mm) 360x335x100mm
Net./gross weight(g) 2760/3230g
QTY/Ctn 8 Pcs
Meas./Ctn(mm) 500x400x415mm
Gross weight/Ctn(g) 25840g
Warranty 1.5 years
Configuration Standard
Cooling method

Intelligent air cooling
