Product Detail

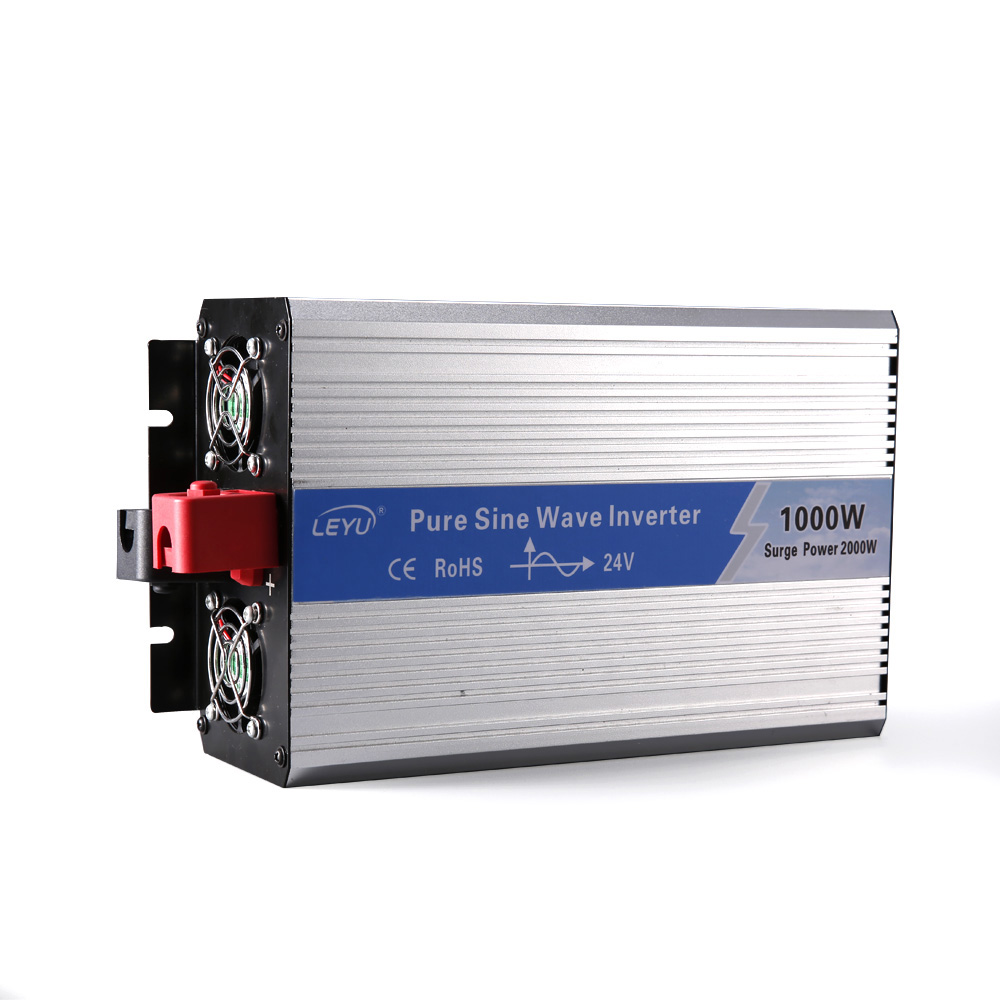

 Model

OPIP-1000-1

OPIP-1000-1

OPIP-1000-1

OPIP-1000-2

OPIP-1000-2

OPIP-1000-2

 Rated power

1000W

 Peak power

2000W

 Input voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V

 Output voltage

100VAC or 110VAC or 120VAC±5%

220VAC or 230VAC or 240VAC±5%

 Unload current less than

0.8A

0.5A

0.3A

0.8A

0.5A

0.3A

 Output frequency

50Hz±0.5Hz or 60Hz±0.5Hz

 Output waveform

Pure Sine Wave

 Waveform distortion

THD3%(Linear load)

 USB port

5V 1A

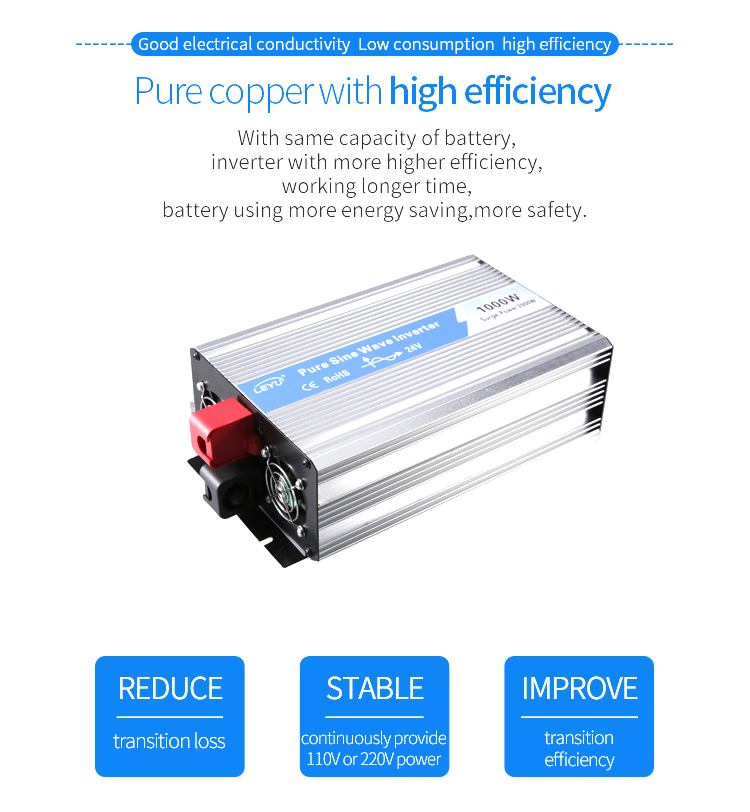

 Max.efficiency

90%

 Input voltage range

10-15.5V

20-31V

40-61V

10-15.5V

20-31V

40-61V

 Low voltage alarm

10.5±0.5V

21±0.5V

42±1V

10.5±0.5V

21±0.5V

42±1V

 Low voltage protection

10±0.5V

20±0.5V

40±15V

10±0.5V

20±0.5V

40±15V

 Over voltage protection

15.5±0.5V

31±0.5V

61±1V

15.5±0.5V

31±0.5V

61±1V

 Low voltage recover

13±0.5V

24±0.5V

48±1V

13±0.5V

24±0.5V

48±1V

 Over voltage recover

14.8V±0.5V

29.5V±0.5V

59V±1V

14.8V±0.5V

29.5V±0.5V

59V±1V

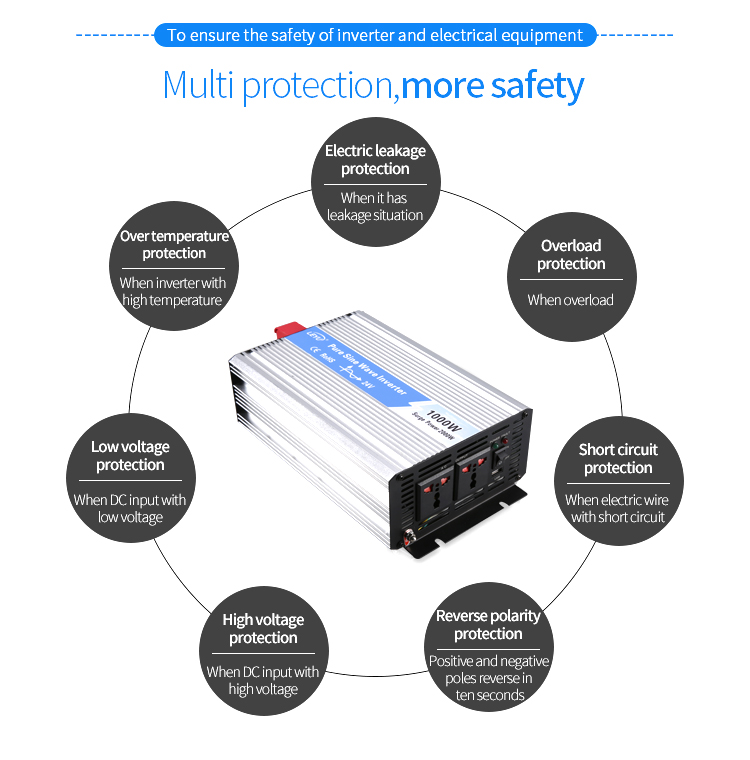

 Protection function

Low voltage

Alarm at first, voltage continously reduce. LED Red light on & shut sown.

Over voltage

LED Red light on, shut down

Over load

LED Red light on, shut down

Over temperature

Alarm at first, tempurature continously rise.LED Red light on & shut sown

Short circuit

LED Red light on

Input reverse polarity

Fuse burn-out

 Working temperature

-10°- +50°

 Storage temperature

-30°- +70°

 Dimension(mm)

296x180x78mm

 Packing(mm)

360x335x100mm

 Net./gross weight(g)

2760/3230g

 QTY/Ctn

8 Pcs

 Meas./Ctn(mm)

500x400x415mm

 Gross weight/Ctn(g)

25840g

 Warranty

1.5 years

 Configuration

Standard

 Cooling method

Intelligent air cooling















Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
