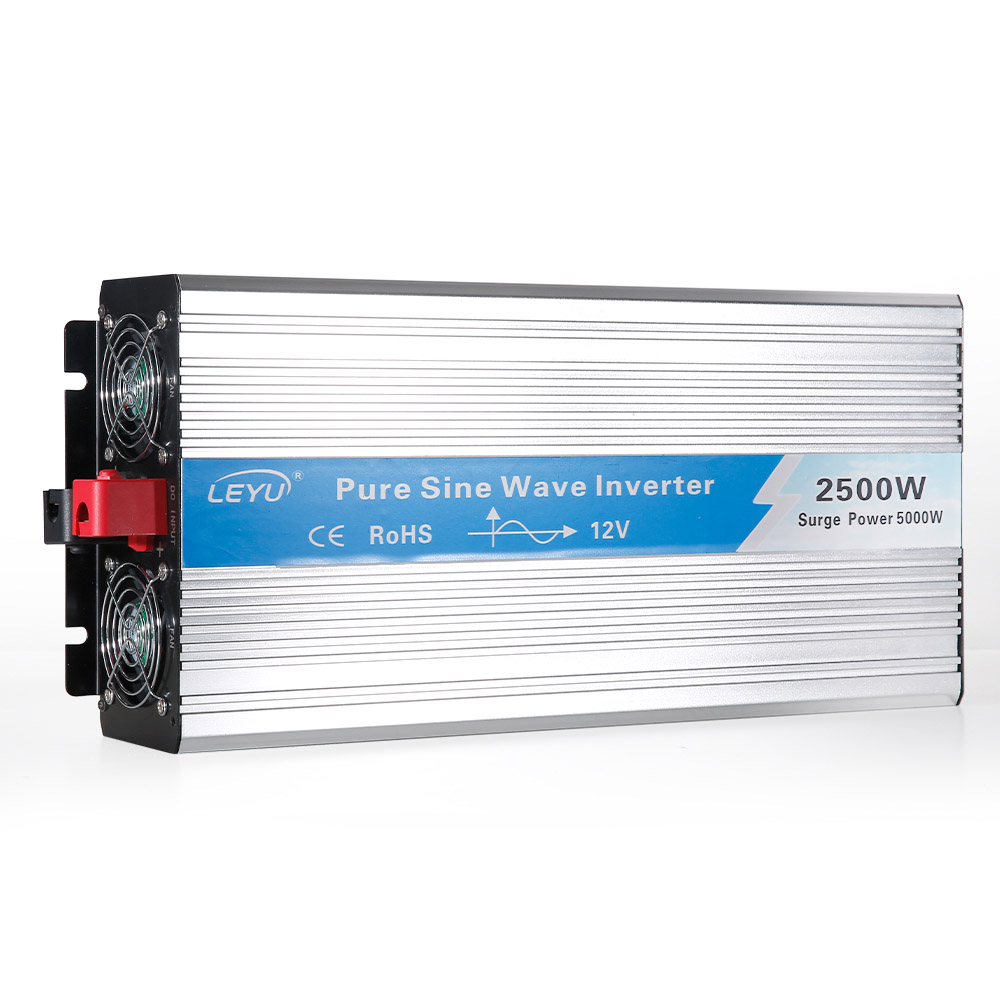

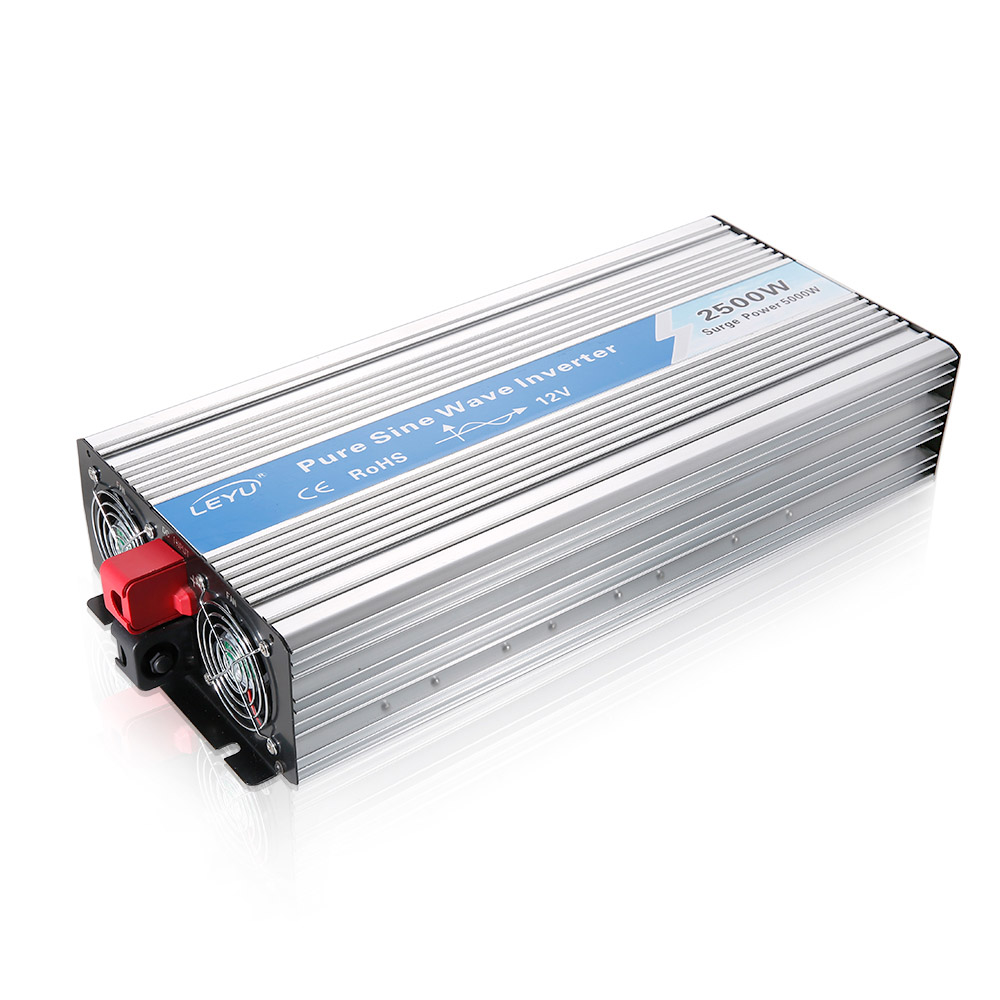

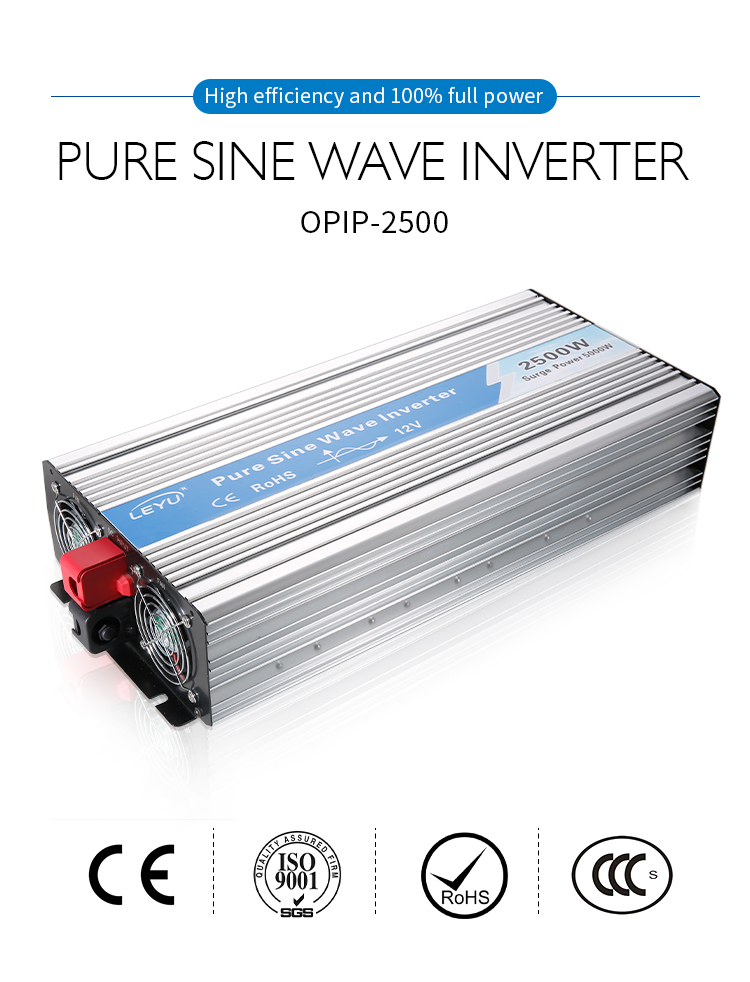

OPIP-2500W

Product Features :
High transform efficiency 、fast start;
Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability ;
With automatic over-current and output short circuit protection to avoid damage the equipment;
Temperature controlled fan,safe&efficient;
Safe and reliable with built in fuse.
1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of sockets are available).

Product Detail

Model OPIP-2500-1 OPIP-2500-1 OPIP-2500-1 OPIP-2500-2 OPIP-2500-2 OPIP-2500-2
Rated power 2500W
Peak power 5000W
Input voltage DC12V DC24V DC48V DC12V DC24V DC48V
Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
Unload current less than 1.3A 0.8A 0.6A 1.3A 0.8A 0.6A
Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform Pure Sine Wave
Waveform distortion THD<3%(Linear load)

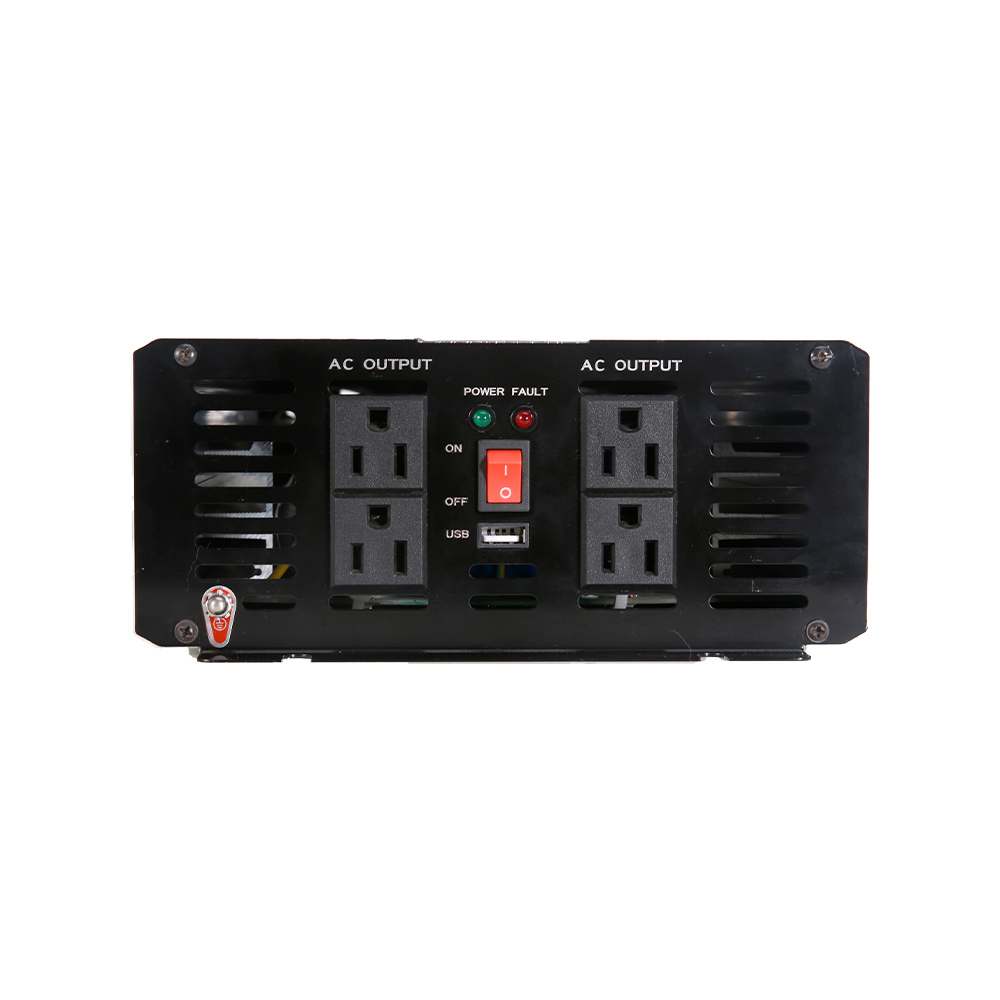

USB port 5V 1A
Max.efficiency 90%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 10±0.5V 20±0.5V 40±15V 10±0.5V 20±0.5V 40±15V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
Over voltage recover 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V

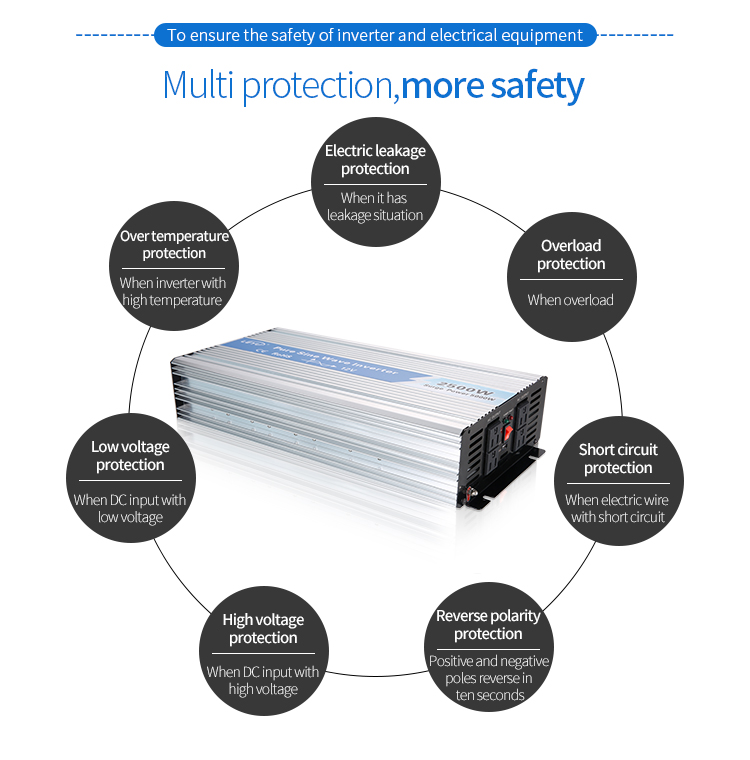

Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
Working temperature -10°- +50°
Storage temperature -30°- +70°
Dimension(mm) 495x215x95mm
Packing(mm) 515x262x120mm
Net./gross weight(g) 6620/7180g
QTY/Ctn 2 Pcs
Meas./Ctn(mm) 540x278x230mm
Gross weight/Ctn(g) 15200g
Warranty 1 years
Configuration Standard
Cooling method Intelligent air cooling
