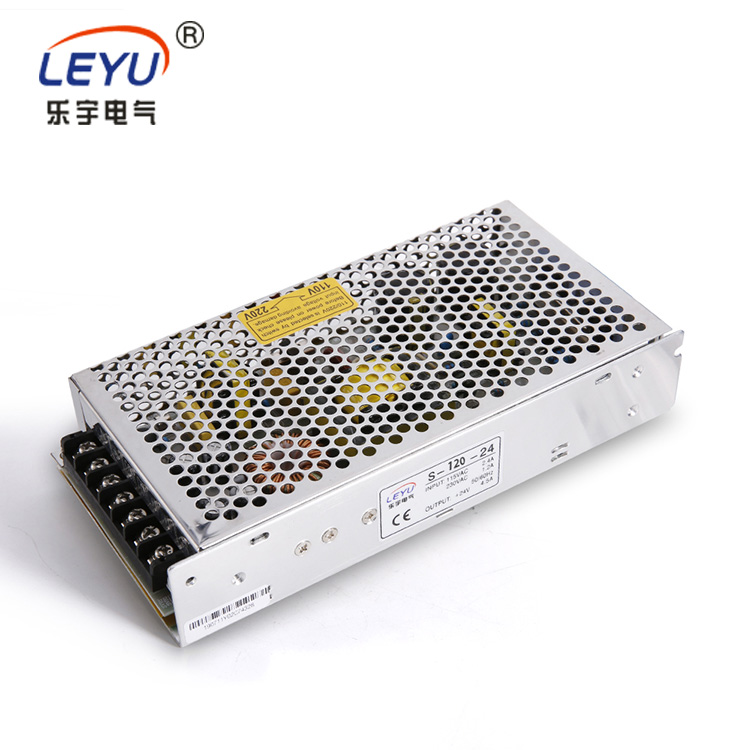

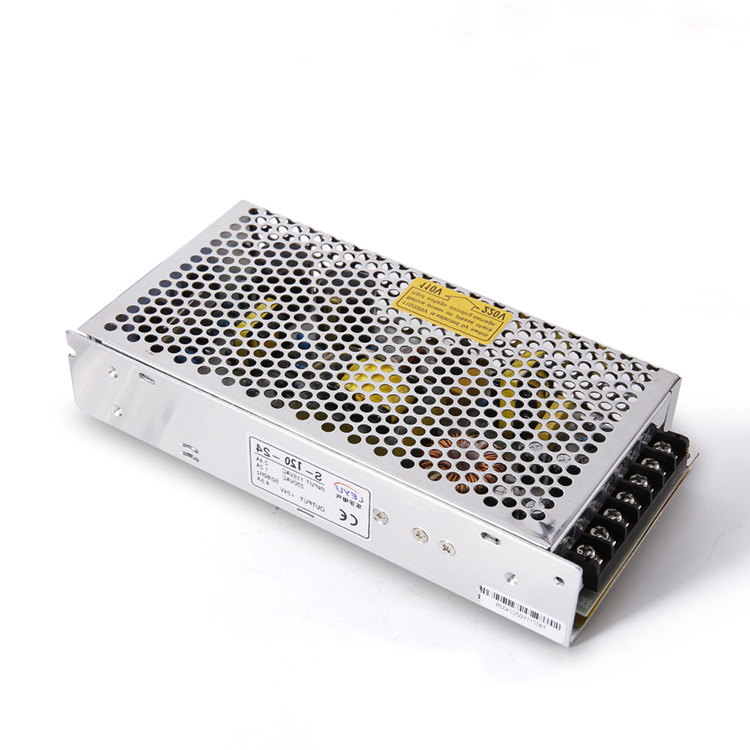

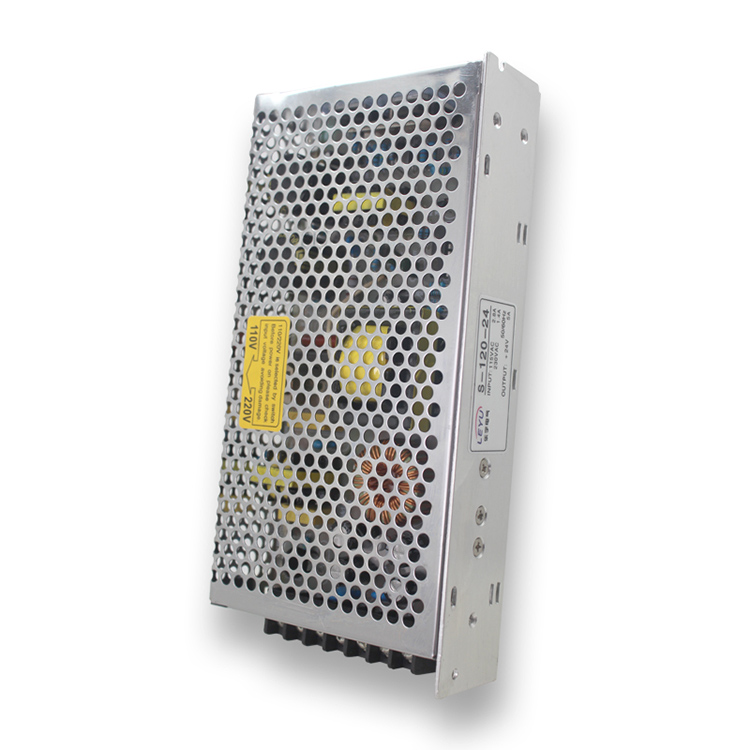

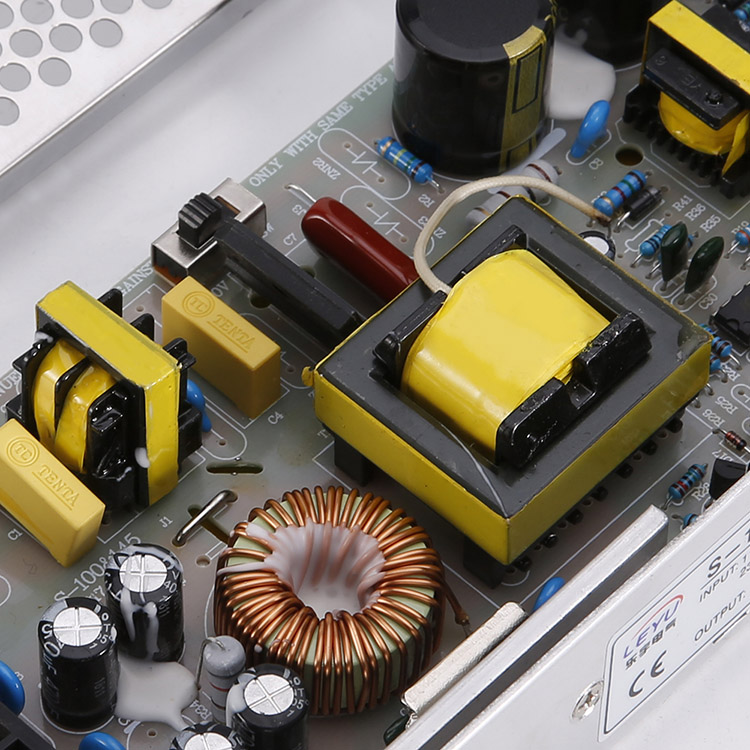

120W Single Output Switching Power Supply        S-120 series

Features:

Low price and high reliability

105output capacitor

AC input power suitable for the world

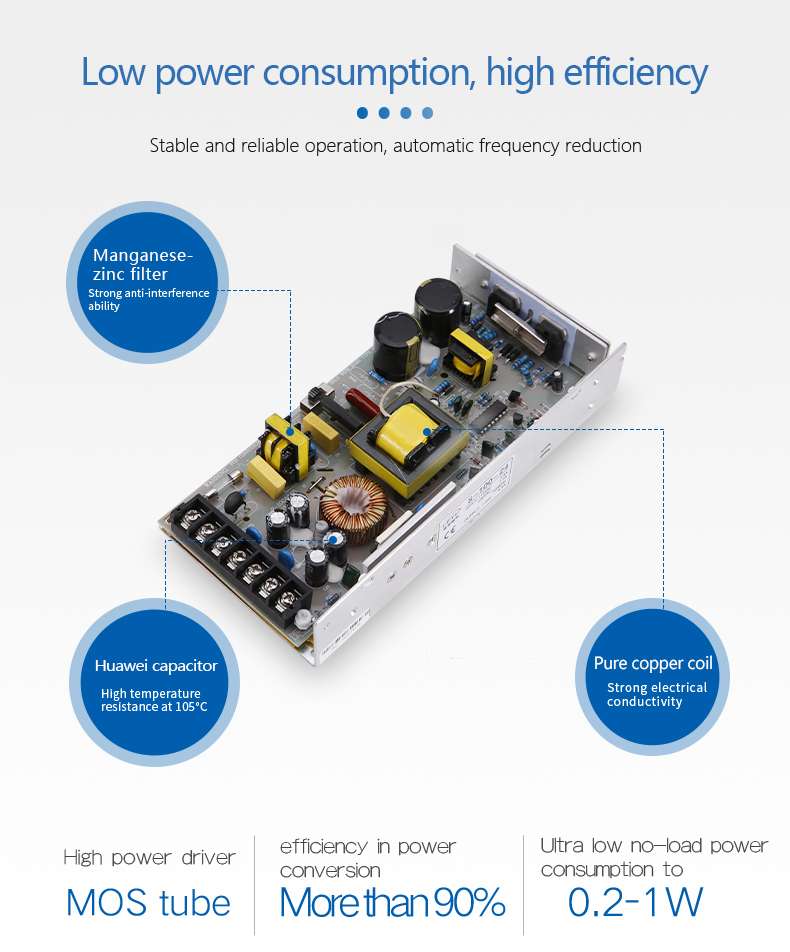

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

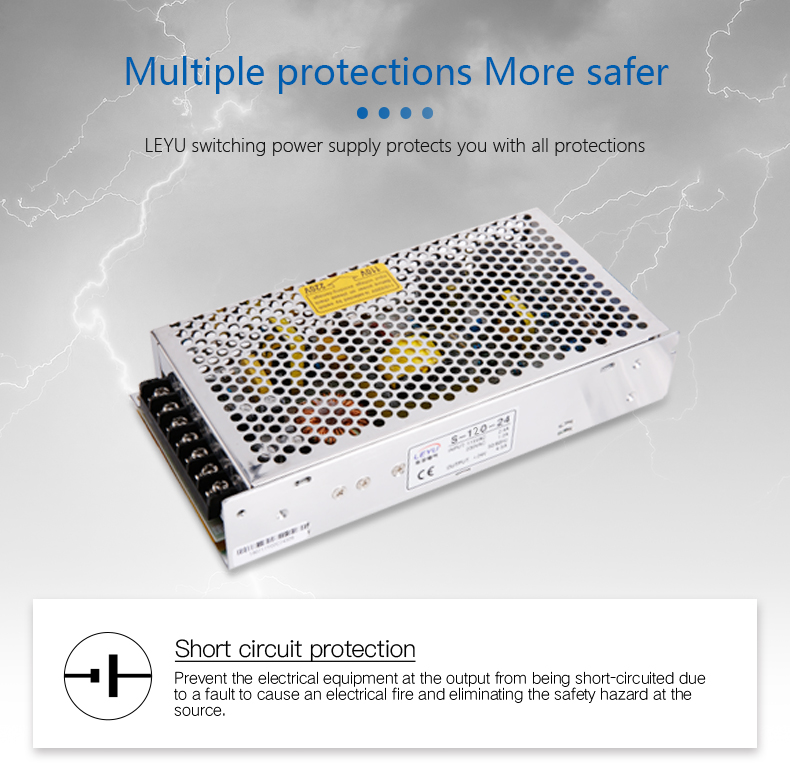

With short -circuit and overload protection

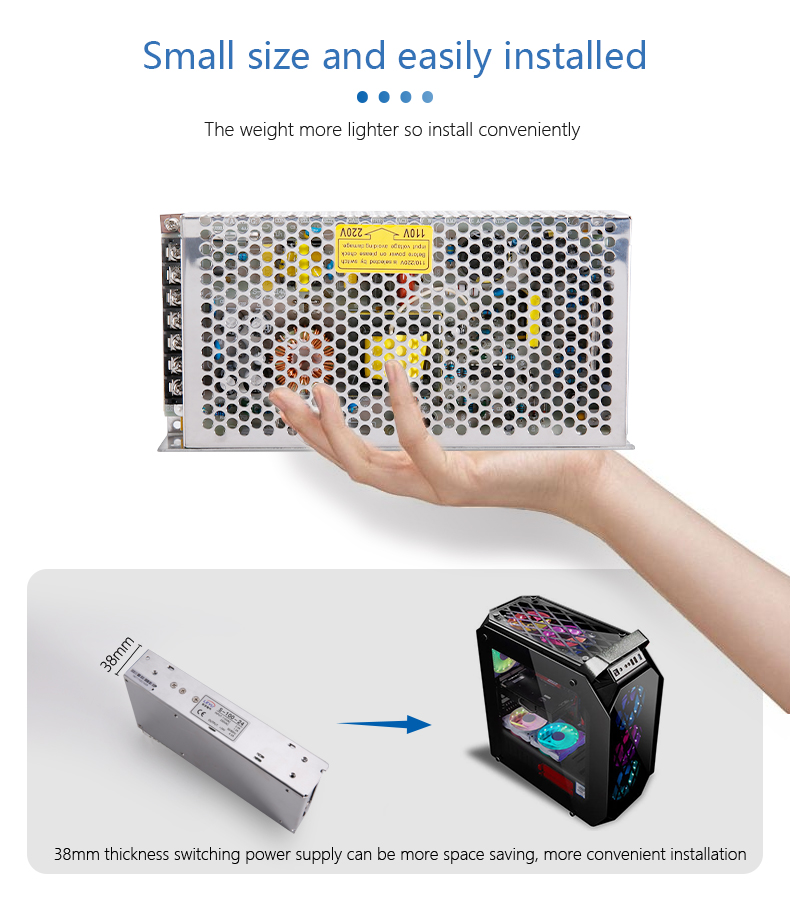

Compact size, light weight

100% full-load burning test

Installed with EMI filter, minimum wave

2 years warranty

SPECIFICATION

OUTPUT



Model

S-120-12

S-120-13.8

S-120-15

S-120-24

S-120-48

DC Voltage

12V

13.8V

15V

24V

48V

Rated Current

10A

8.7A

8A

5A

2.5A

Current Range

0-10A

0-8.7A

0-8A

0-5A

0-2.5A

Rated Power

120W

120W

120W

120W

120W

Ripple & Noise

120mVp-p

120mVp-p

125mVp-p

150mVp-p

150mVp-p

Voltage Adj. Range

±10%

±10%

±10%

±10%

±10%

Voltage Tolerance

±1%

±1%

±1%

±1%

±1%

Inlet Stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise, Hold Up Time

200s,50ms,20ms at full load





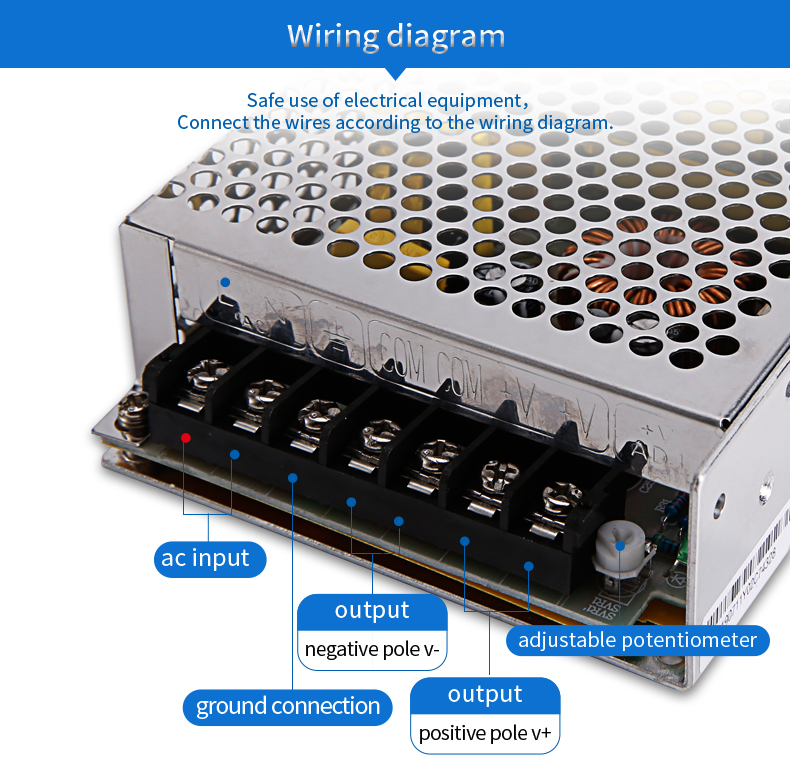

INPUT



Voltage Range

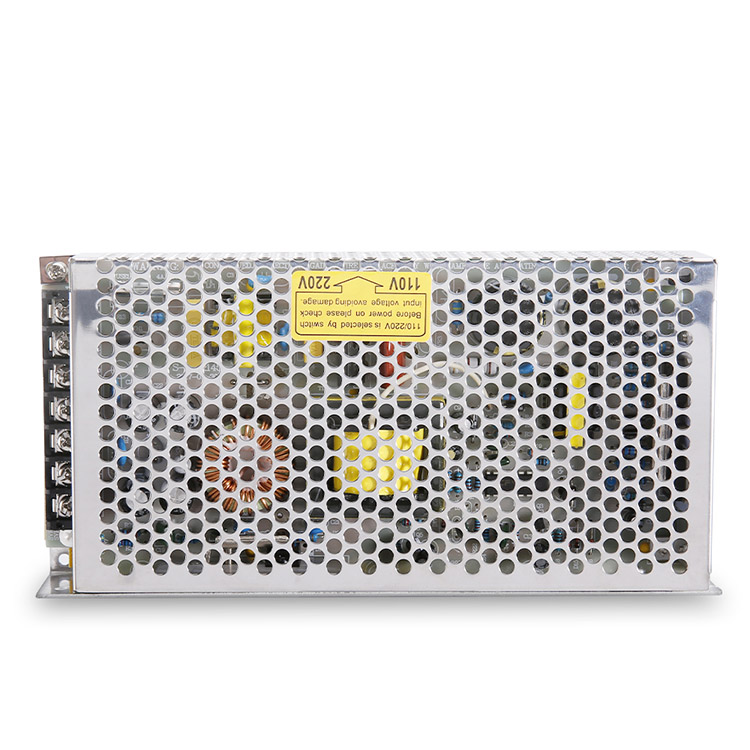

88~132VAC/180~264VAC selected by switch   47~63Hz; 255~370VDC

AC Current

2.6A/115V   1.3A/230V

Efficiency

80%

81%

83%

84%

AC Inrush Current

Cold-start current 30A/115V   60A/230V

Leakage Current

<1mA/240VAC





PROTECTION



Over Load

105%~150%

Protection type: plusing hiccup shutdown Reset: auto recovery





ENVIRONMENT



Working Temp., Humidity

-10℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

Design refer to UL1012TUV EN60950(IEC950,UL1950)

EMC Standard

CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification





OTHERS



Dimension

199*98*38mm(L*W*H)

Weight

0.66Kg
