Product Detail

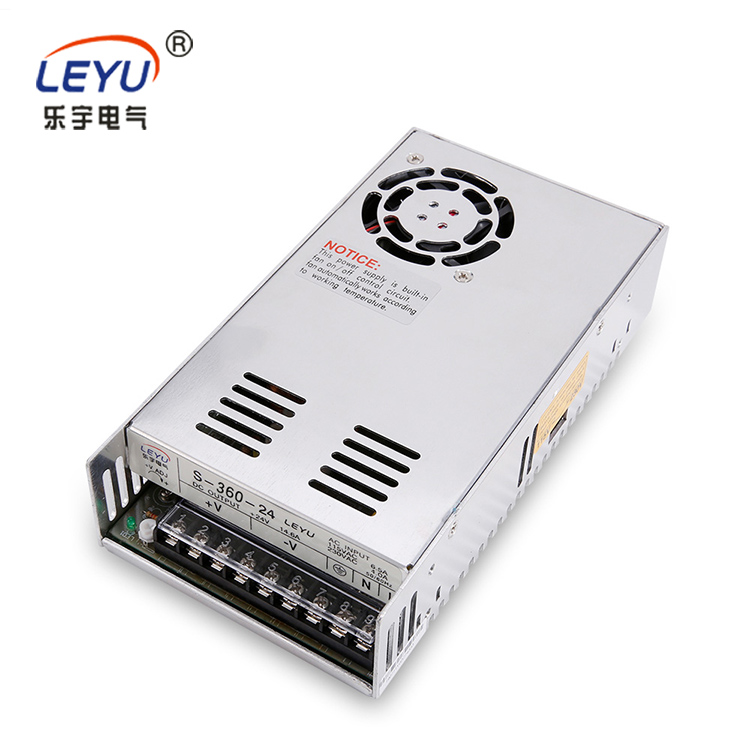

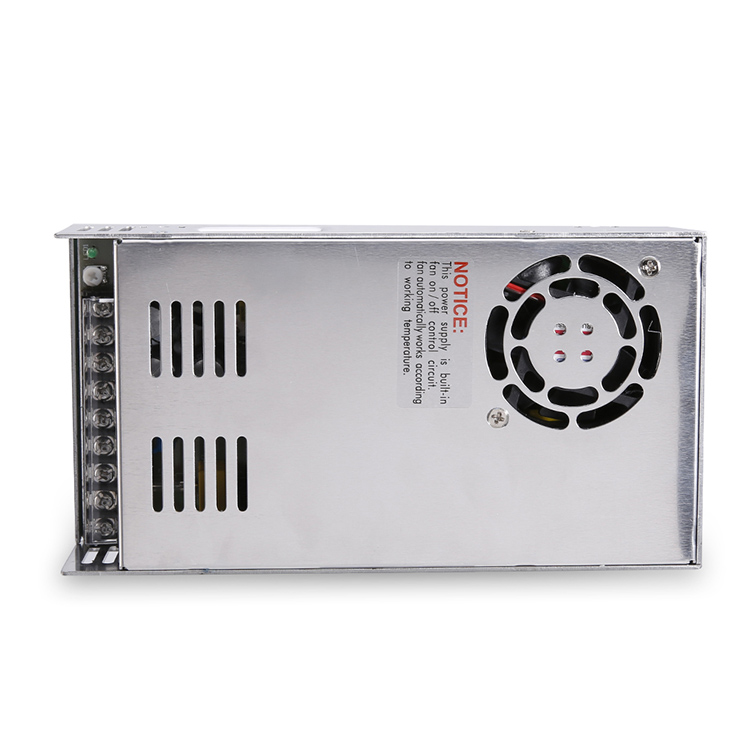

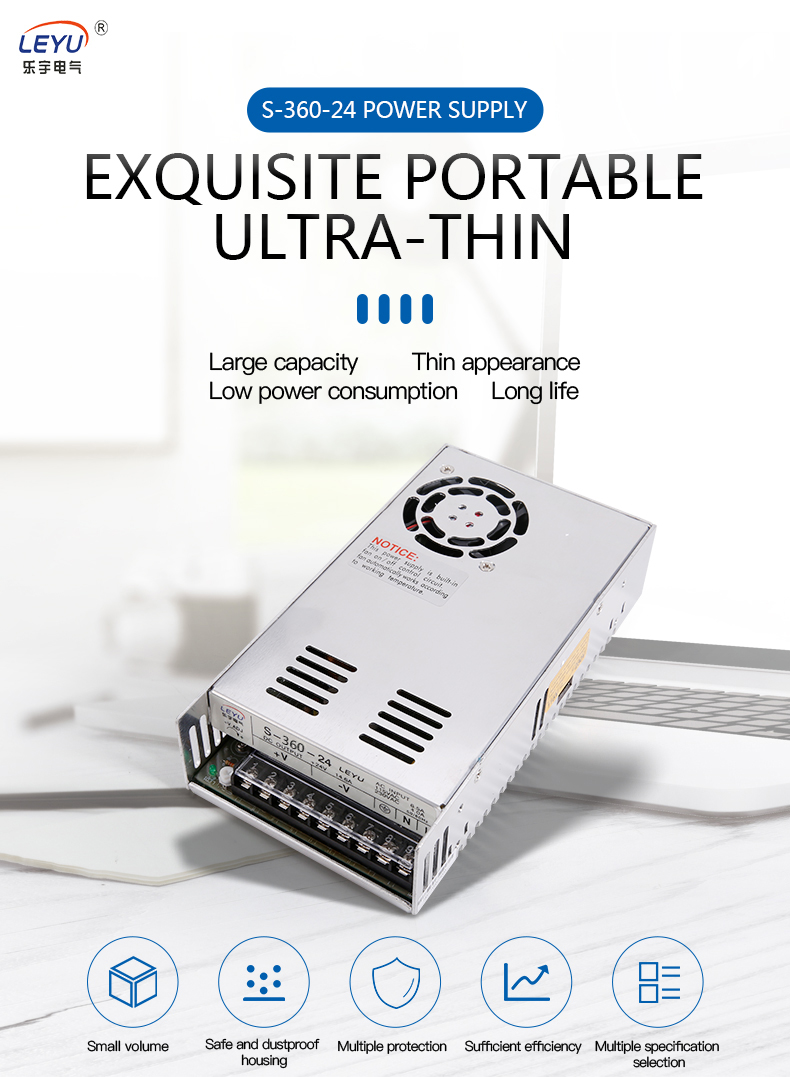

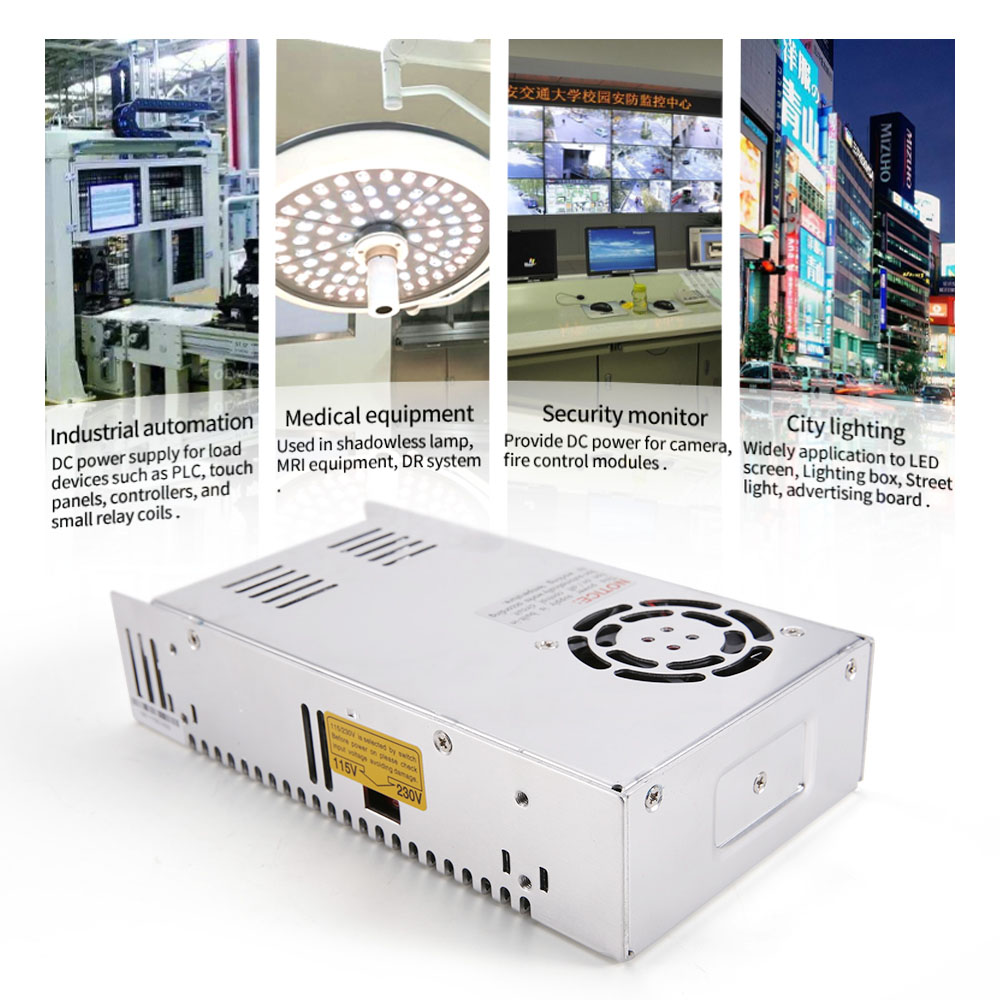

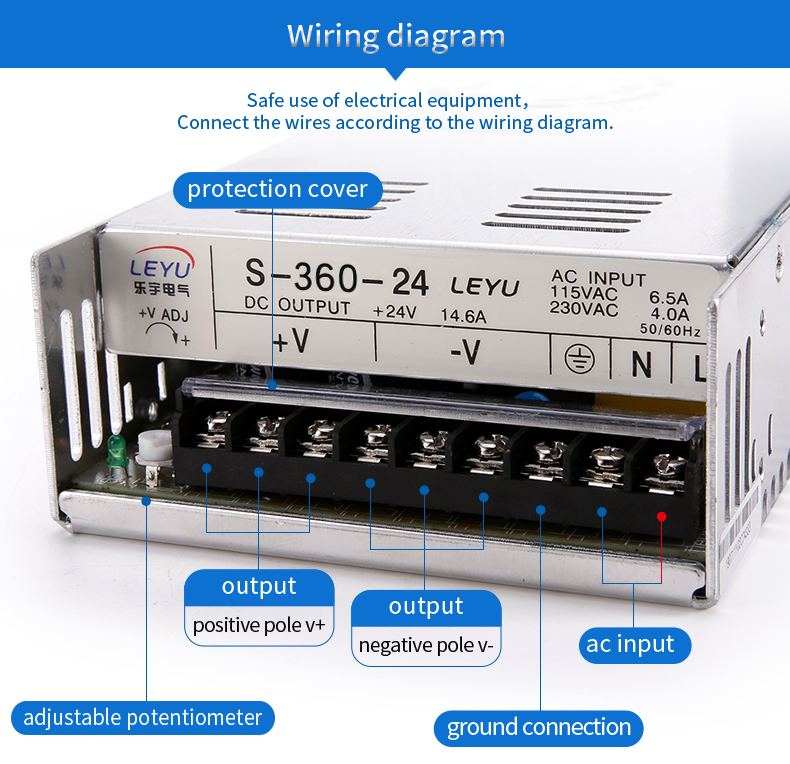

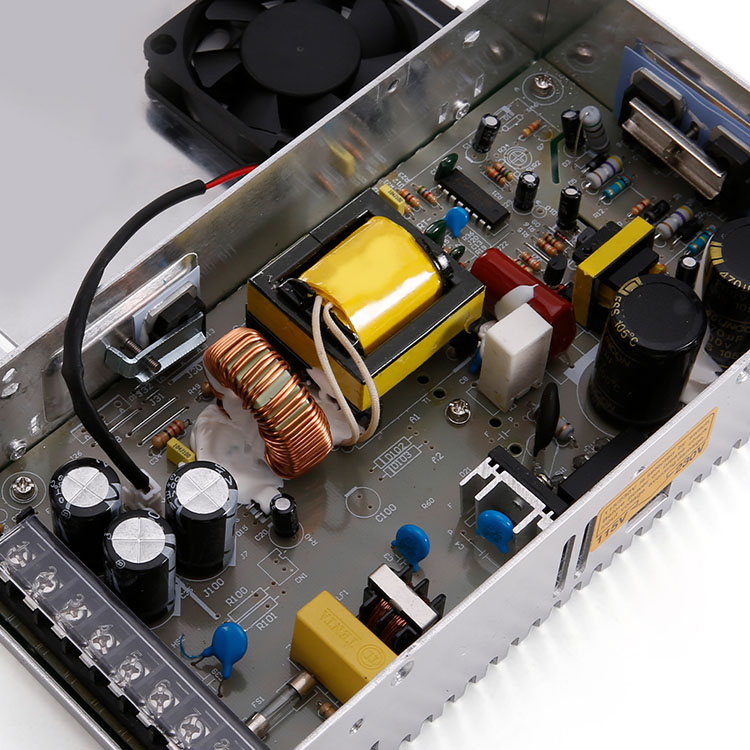

360W Single Output Switching Power Supply S-360 series
Features:

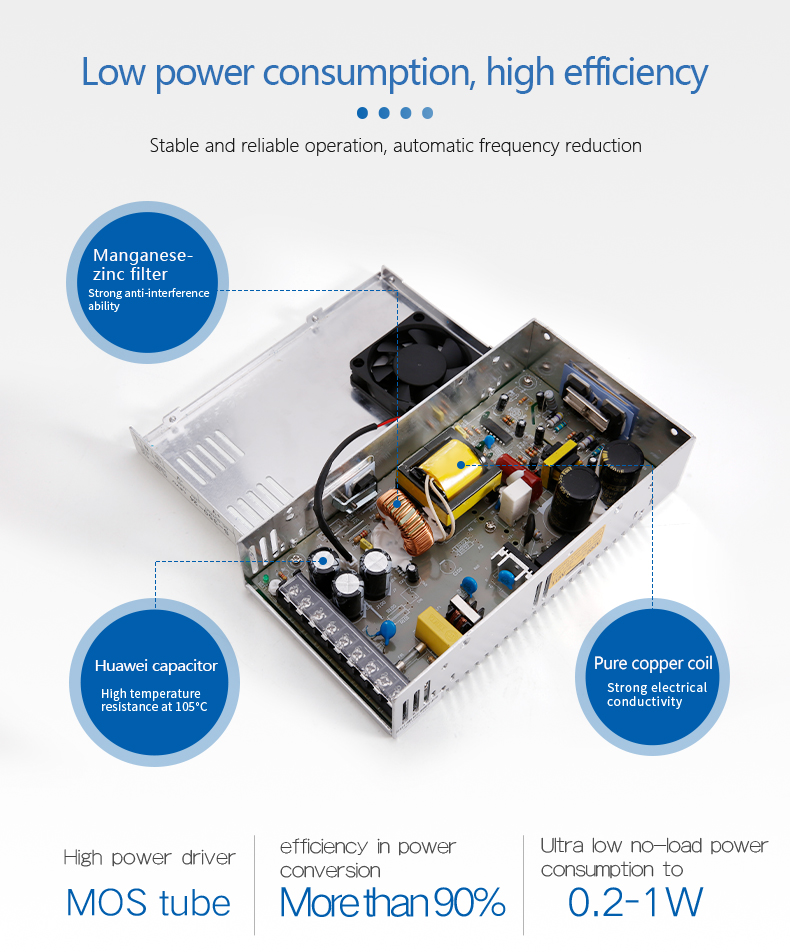

High efficiency, high reliability, low cost
Universal AC input / full range
100% full load burn-in test

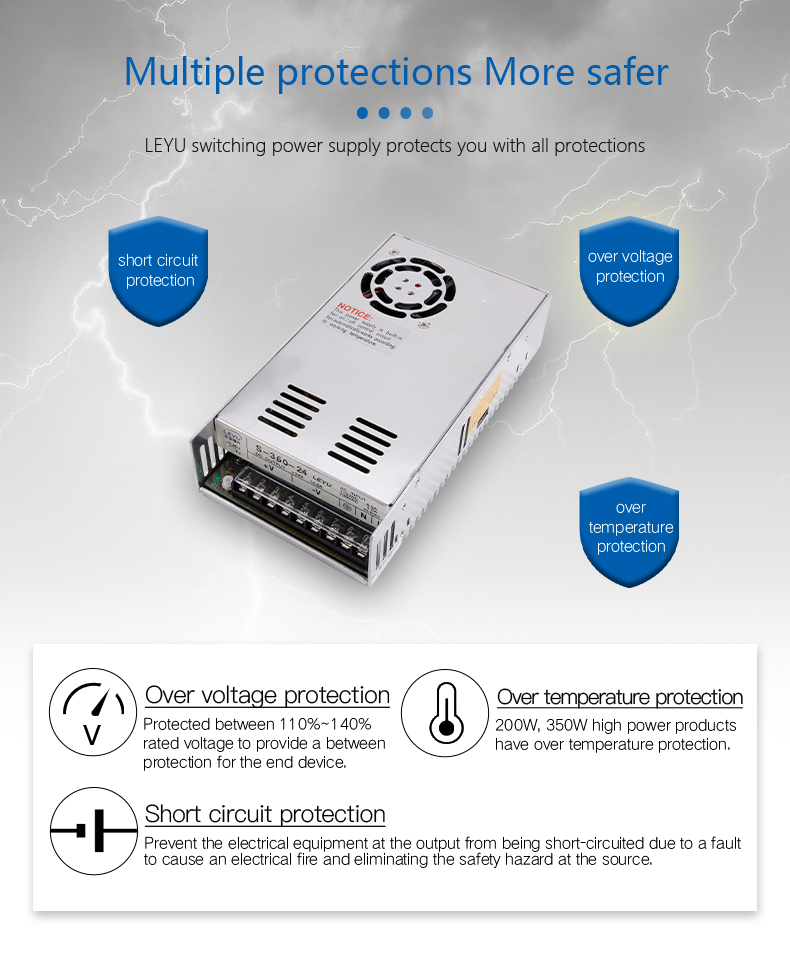

Protections: Short circuit/ Over load/ Over voltage
PWM control and regulated

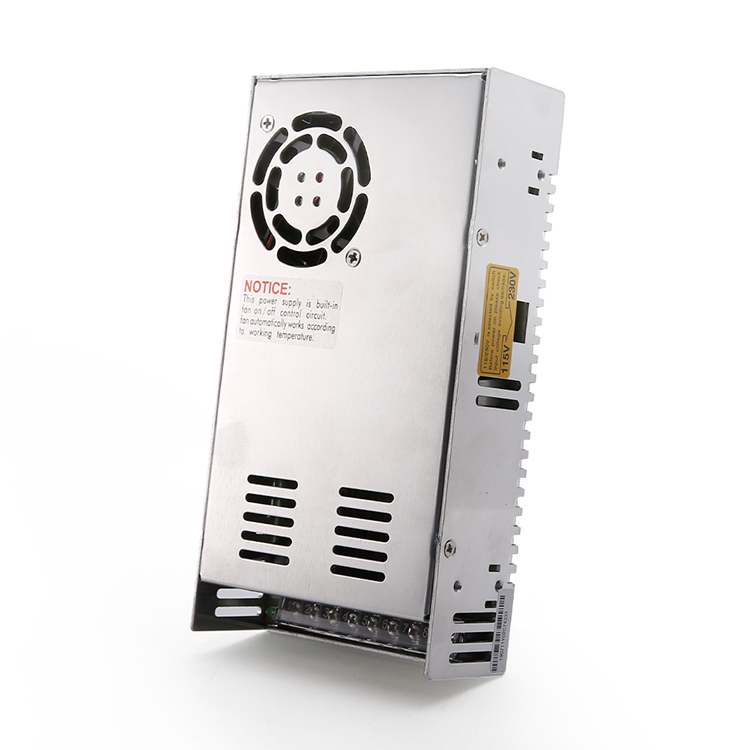

Forced air cooling by built in DC fan

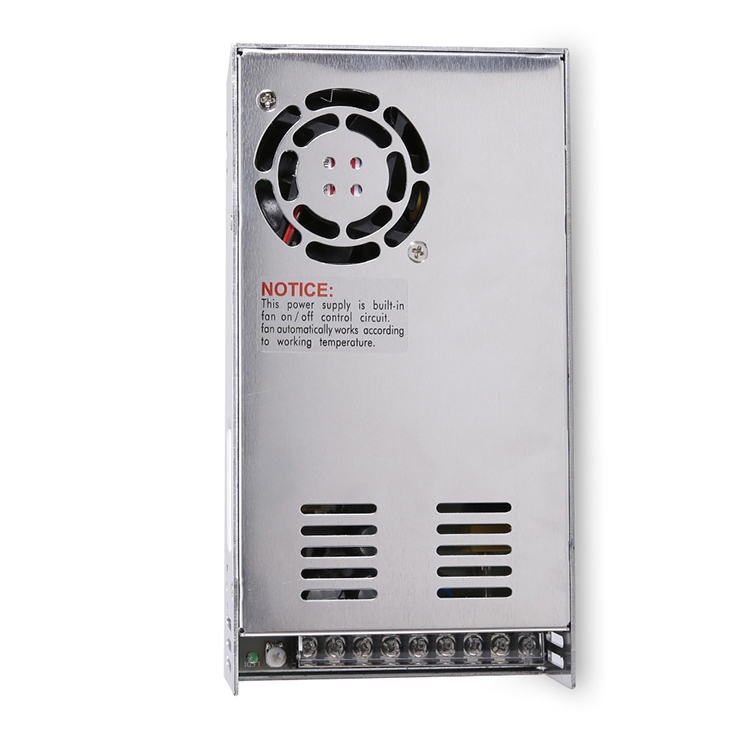

Built-in cooling Fan ON-OFF control
Fixed switching frequency at 25 KHz
2 years warranty
SPECIFICATIONS
OUTPUT
Model
S-360-5
S-360-7.5
S-360-12
S-360-13.5
S-360-15
S-360-24
S-360-27
S-360-48
DC Voltage
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Rated Current
60A
40A
30A
25.8A
23.2A
15A
13A
7.3A
Current Range
0-60A
0-40A
0-30A
0-25.8A
0-23.2A
0-15A
0-13A
0-7.3A
Rated Power
300W
300W
360W
348.3W
348W
360W
351W
350.4W
Ripple & Noise
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
200mVp-p
240mVp-p
Voltage Adj. Range
-10%,+12%
±20%
-16%,+10%
-12%,+11%
-10%,+20%
-16%,10%
-4%,+18%
-15%,+17%
Voltage Tolerance
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
Setup, Rise, Hold Up Time
200ms,50ms,20ms at full load
INPUT
Voltage Range
90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC
AC Current
6.5A/115V 4A/230V
Efficiency
73%
76%
74%
79%
78%
81%
82%
83%
Inrush Current
Cold start 50A/115V 50A/230V
Leakage Current
<3.5mA/240VAC
PROTECTION
Over Load
105%~135%
Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage
115%~135%
Protection type: hiccup mode, recovers automatically after fault condition is removed.
Over Temp.
RT3≥55℃ Fan On, ≤45℃ Fan Off, ≥80℃ Output Shutdown (5~7.5V)
RT3≥65℃ Fan On, ≤55℃ Fan Off, ≥80℃ Output Shutdown (12~15V)
RT3≥70℃ Fan On, ≤60℃ Fan Off, ≥85℃ Output Shutdown (24~48V)
ENVIRONMENT
Working Temp., Humidity
-10℃~+50℃; 20%~90%RH
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to UL1950
EMC Standard
Design refer to EN55022, EN55024, EN61000
OTHERS

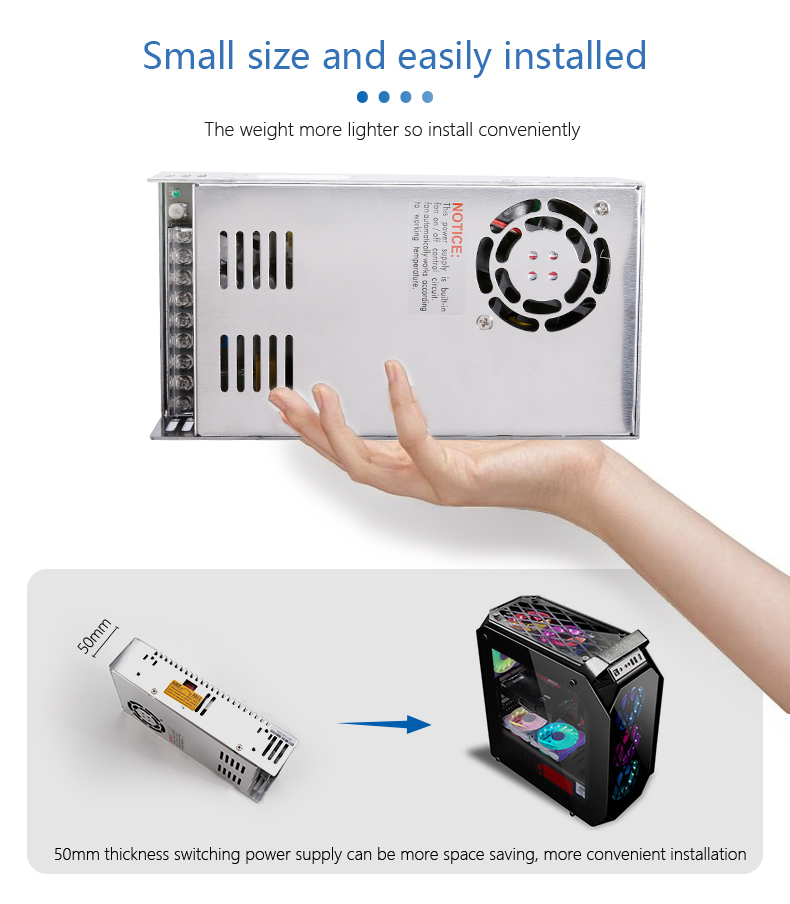

Dimension
215*115*50mm(L*W*H)
Weight
1Kg
Packing
20pcs/20Kg
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
