Product Detail

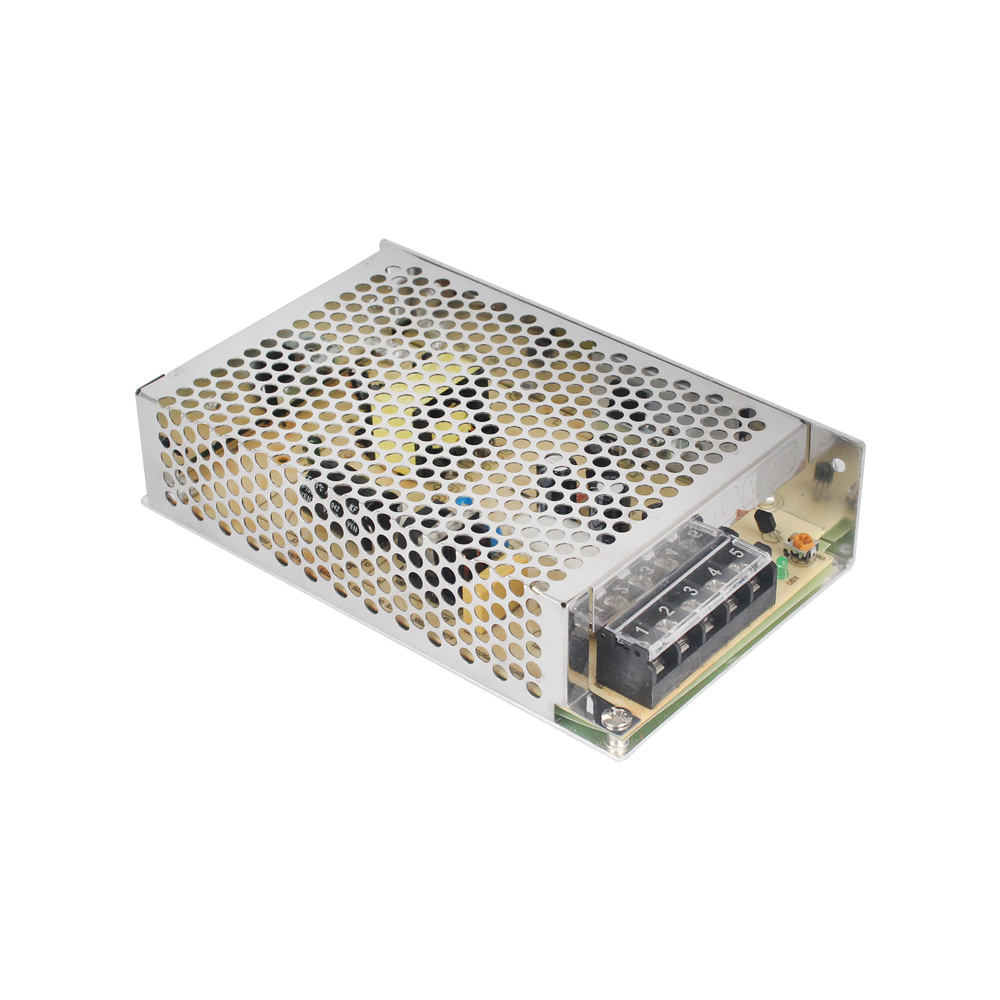

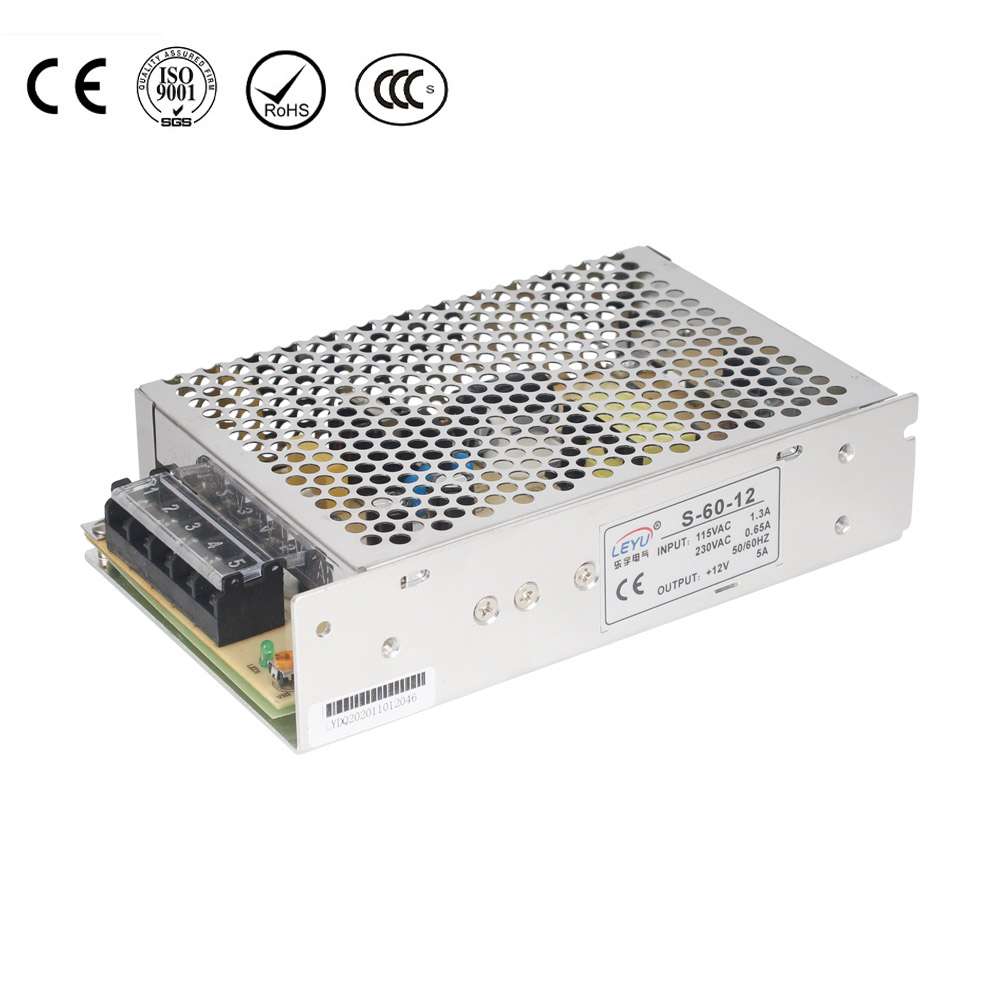

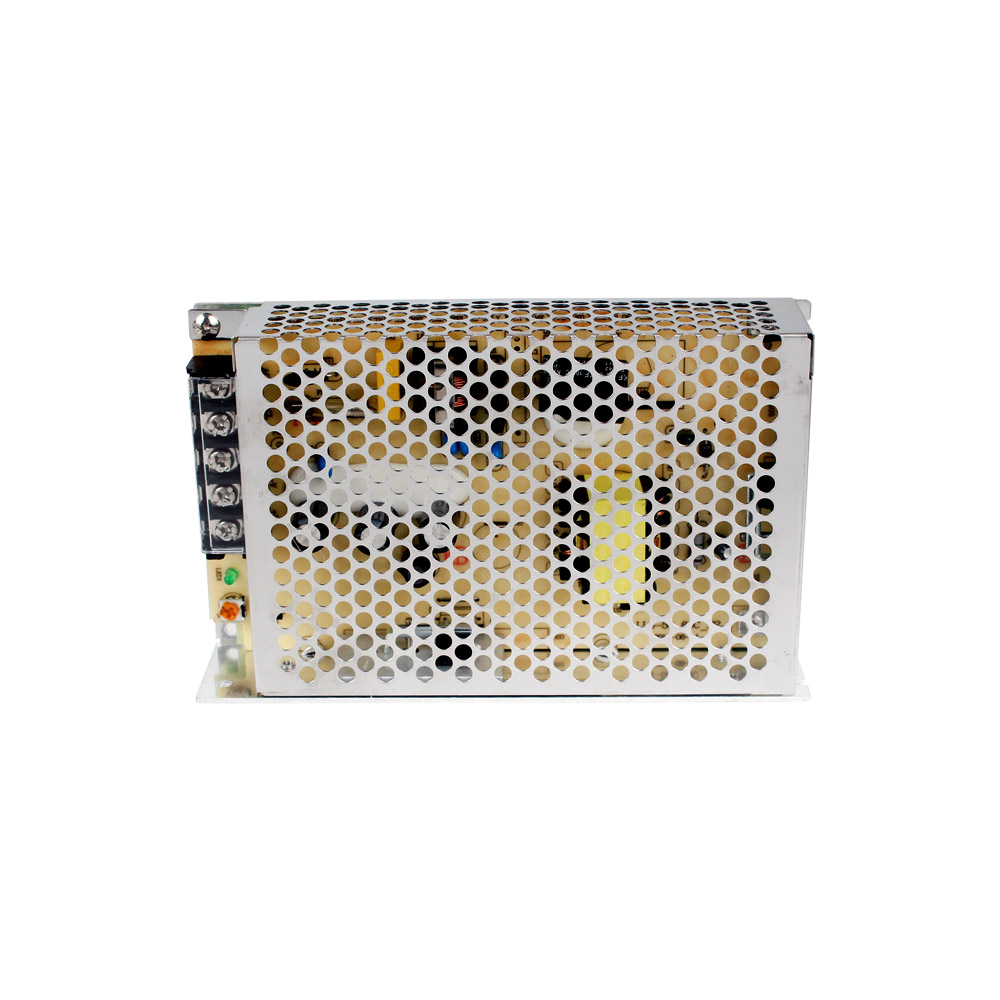

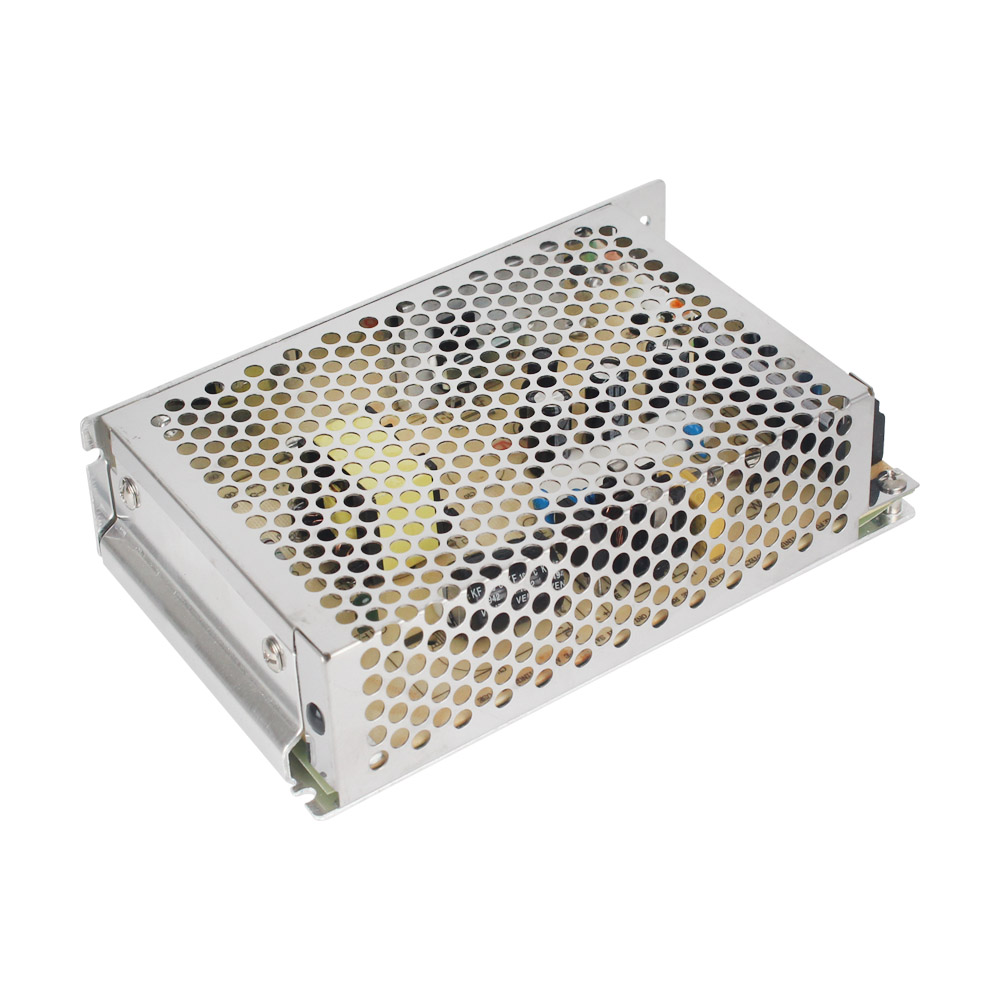

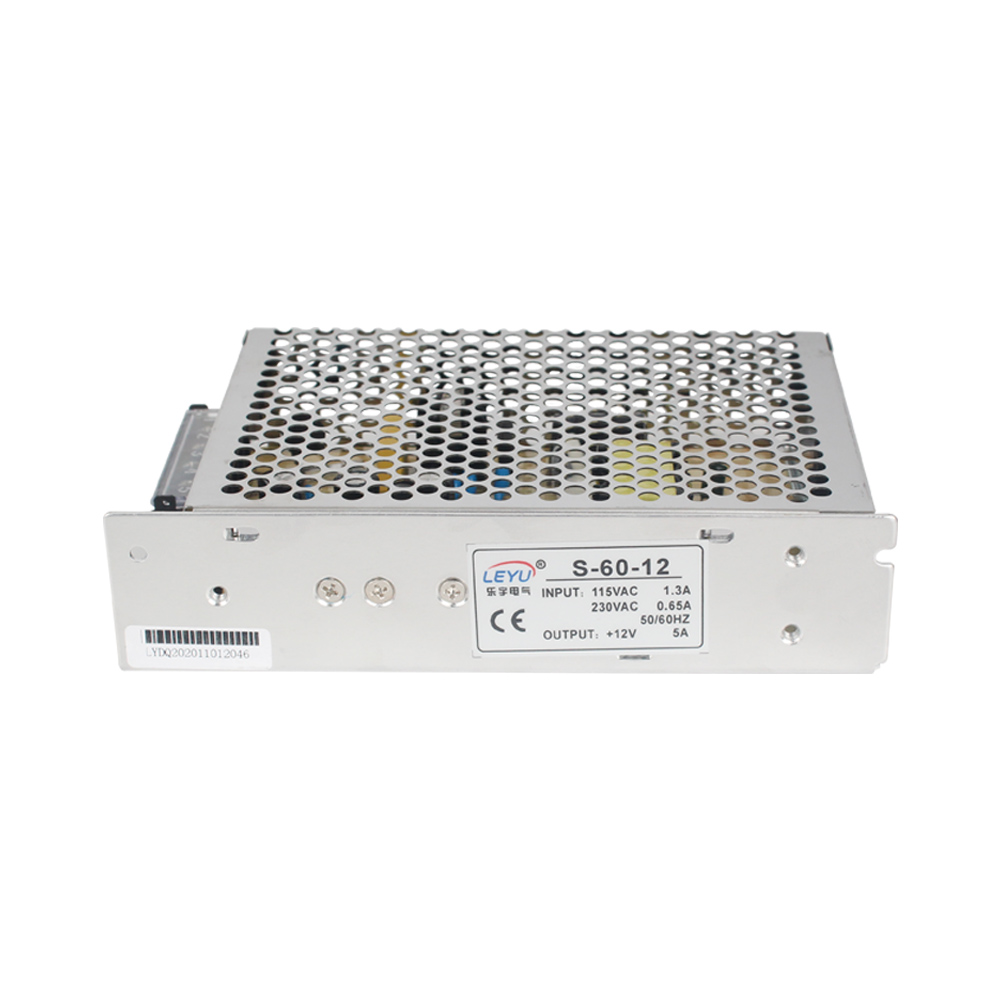

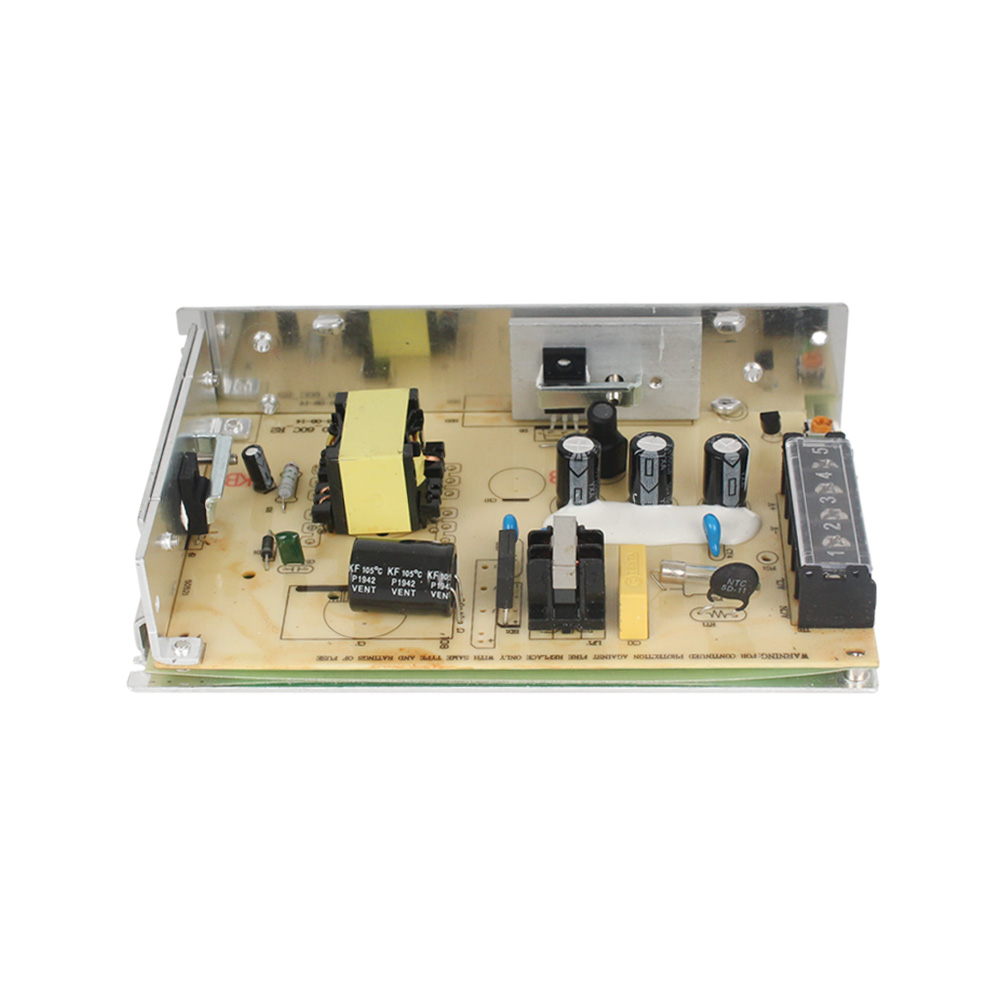

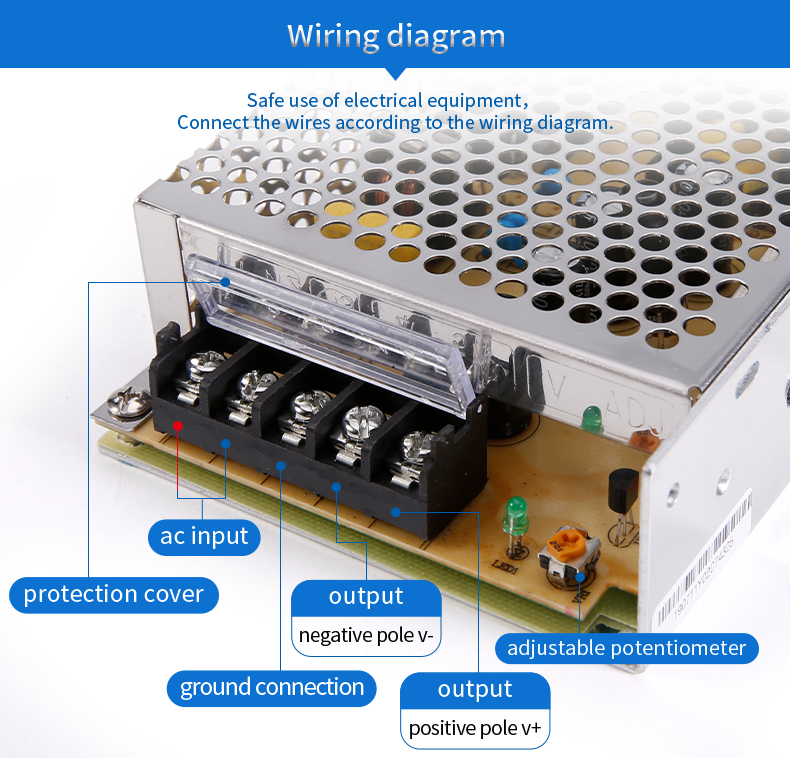

60W Single Output Switching Power Supply S-60 series

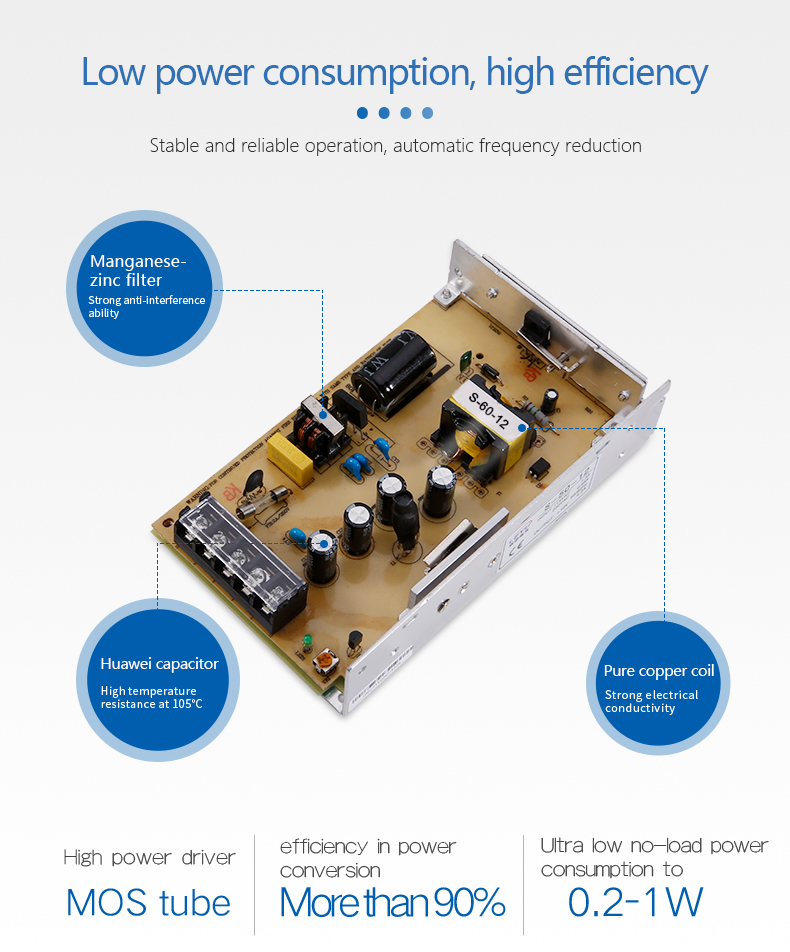

Features:
High efficiency, high reliability
Universal AC input / Full range
100% full load burn-in test

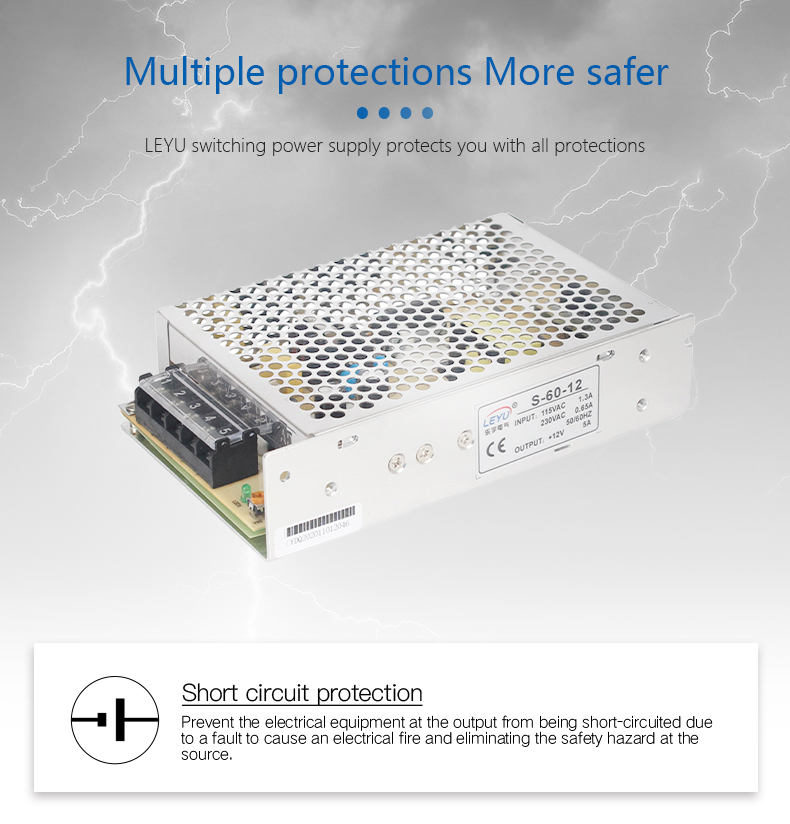

Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Fixed switching frequency at 50KHz
2 years warranty
|
SPECIFICATIONS |
|||||
|
OUTPUT |
|
||||
|
Model |
S-60-5 |
S-60-12 |
S-60-15 |
S-60-24 |
S-60-48 |
|
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Rated Current |
12A |
5A |
4A |
2.5A |
1.3A |
|
Current Range |
0-12A |
0-5A |
0-4A |
0-2.5A |
0-1.3A |
|
Rated Power |
60W |
60W |
60W |
60W |
62W |
|
Ripple & Noise |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
|
Voltage Adj. Range |
-5%, +10% |
±10% |
±10% |
±10% |
±10% |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
|
Setup, Rise, Hold Up Time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load |
||||
|
|
|
||||
|
INPUT |
|
||||
|
Voltage Range |
85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
||||
|
AC Current |
2A/115V 1A/230V |
||||
|
Efficiency |
73% |
76% |
77% |
79% |
80% |
|
Inrush Current |
Cold start 30A/115VAC 60A/230VAC |
||||
|
Leakage Current |
<3.5mA/240VAC |
||||
|
|
|
||||
|
PROTECTION |
|
||||
|
Over Load |
105%~150% |
||||
|
Protection type: Fold back current limiting, recovers automatically after fault condition is removed. |
|||||
|
Over Voltage |
115%~135% |
||||
|
Protection type: hiccup mode, recovers automatically after fault condition is removed. |
|||||
|
|
|
||||
|
ENVIRONMENT |
|
||||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
||||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
||||
|
Vibration |
10~500Hz, 2G 10min./1cycle，period for 60min, each long X, Y, Z, axes |
||||
|
|
|
||||
|
SAFETY |
|
||||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||
|
|
|
||||
|
STANDARD |
|
||||
|
Safety Standard |
Design refer to UL1012, UL1950, TUV EN60950 |
||||
|
EMC Standard |
Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024 |
||||
|
|
|
||||
|
OTHERS |
|
||||
|
Dimension |

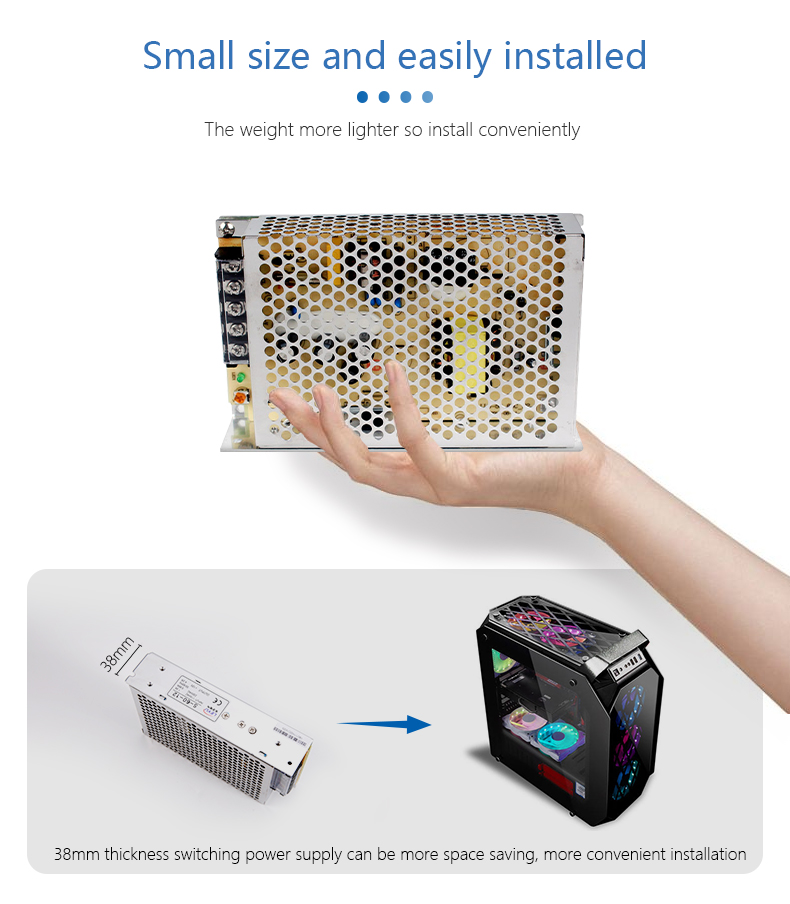

159*97*38mm(L*W*H) |
||||
|
Weight |
0.51Kg |
||||
|
Packing |
24pcs/13.1Kg/0.7CUFT |
||||
|
|
|
||||
|
NOTE |
|
||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||||
