Product Detail

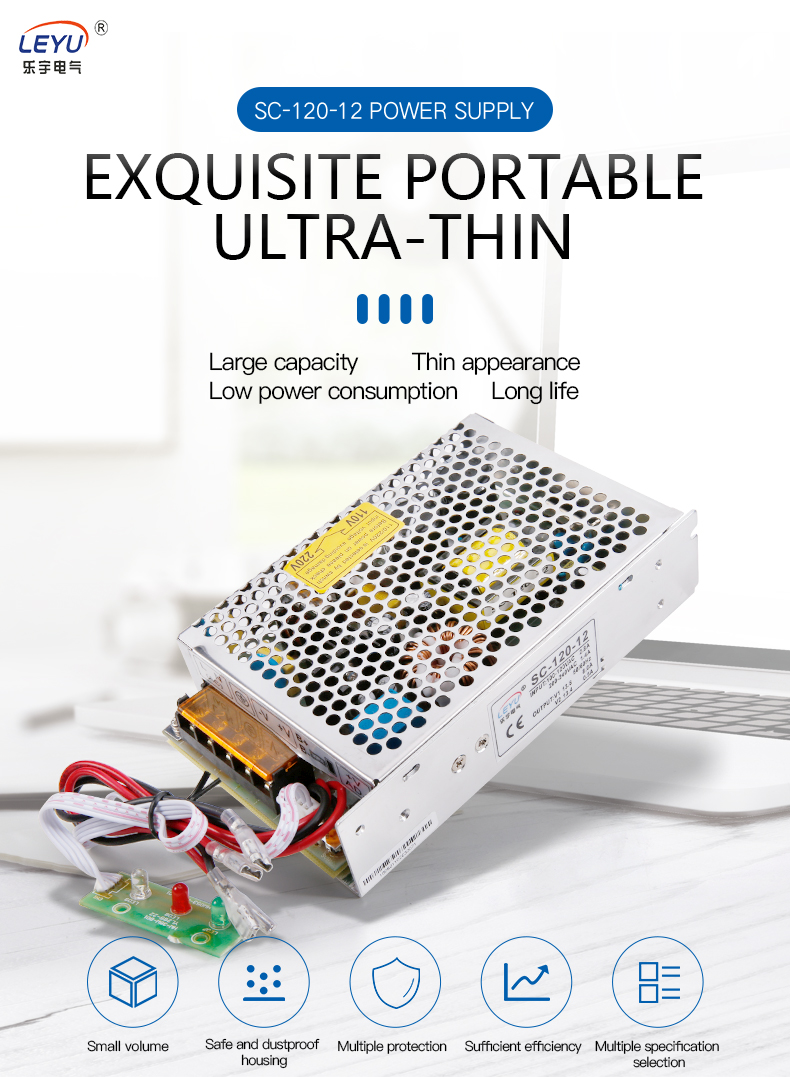

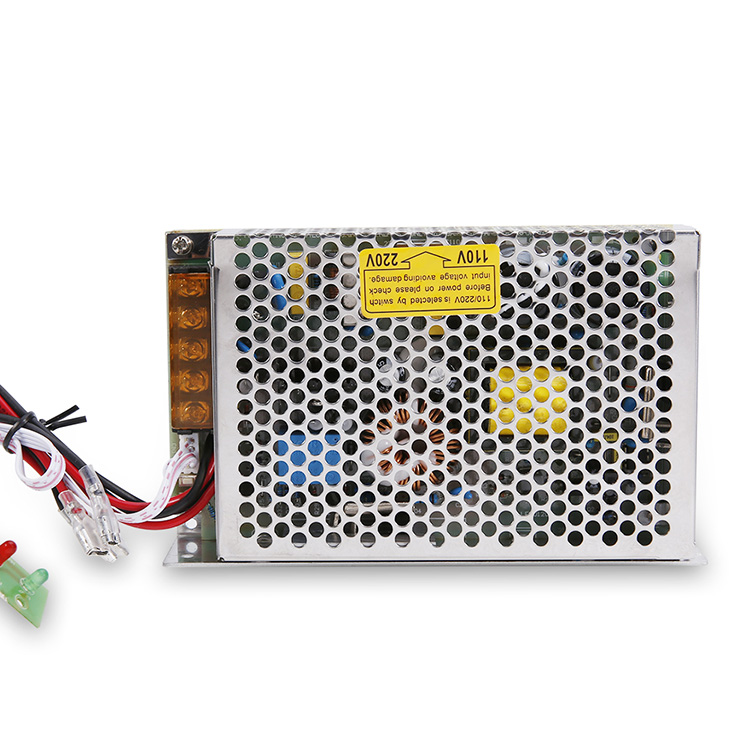

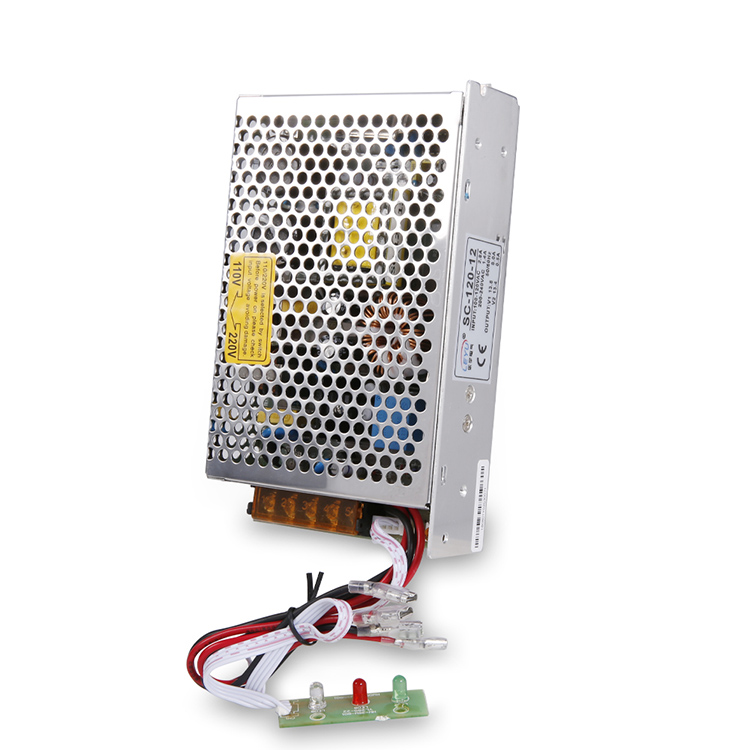

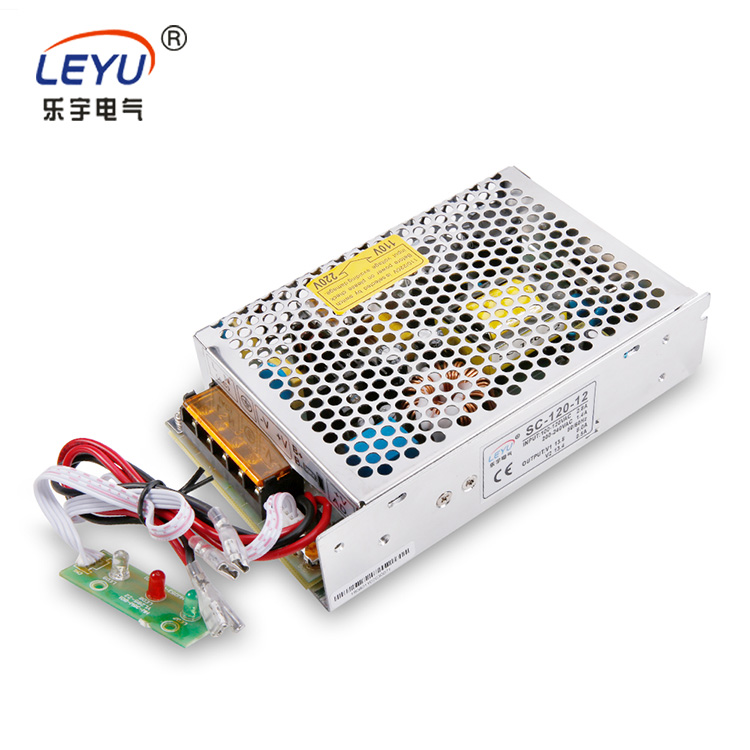

120W Single Output UPS function Power Supply SC-120 series
Features:
1. Universal AC input/Full rang
2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3. Cooling by free air convection
4. LED indicator for power on
5. No load power consumption<1W
6. Suitable for installation in metallic or non-metallic system enclosure
7. 100% full load burn-in test
8. 2 years warranty
|
SPECIFICATION |
||
|
Model |
SC-120-12 |
SC-120-24 |
|
DC Voltage |
13.8V |
27.6V |
|
Rated Current |
8A |
4A |
|
Current Range |
0-8A |
0-4A |
|
Rated Power |
117.1W |
118.4W |
|
Ripple & Noise |
120mVp-p |
180mVp-p |
|
Voltage Adj. Range |
+15,-5% |
+15,-5% |
|
Voltage Tolerance |
±2% |
±1% |
|
Inlet Stability |
±1% |
±1% |
|
Load Stability |
±2% |
±1% |
|
Setup, Rise, Hold Up Time |
500ms,30ms/230VAC 1200ms,30ms/115VAC at full load |
|
|
Voltage Range |
90-132VAC/180-264VAC Selected by switching |
|
|
Frequency Range |
47-63Hz |
|
|
AC Current |
2.8A/115V 1.4A/230VAC |
|
|
Efficiency |
81% |
83% |
|
Inrush Current |
Cold-start 30A |
|
|
Leakage Current |
<2mA/240VAC |
|
|
Over Load |
8.8A~12A rated output power |
4.4A~6A rated output power |
|
Protection type: hiccup mode,recovers automatically after fault condition is removed |
||
|
Over Voltage |
16.6~19.3V |
33.1~38.5V |
|
Protection type: shut down o/p voltage, re-power on to recover |
||
|
Working Temp., Humidity |
-20℃~+60℃(Refer to output derating curve),20%~90%RH |
|
|
Storage Temp., Humidity |
-40℃~+85℃, 10%~95%RH |
|
|
Temp. Coefficient |
±0.05%/℃(0~45℃) |
|
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes |
|
|
Safety Standard |
UL60950-1,CCC,CE |
|
|
EMC Standard |
Design refer to EN55022(CLSPR22),EN61000-3-2,-3, |
|
|
OTHERS |
|
|
|

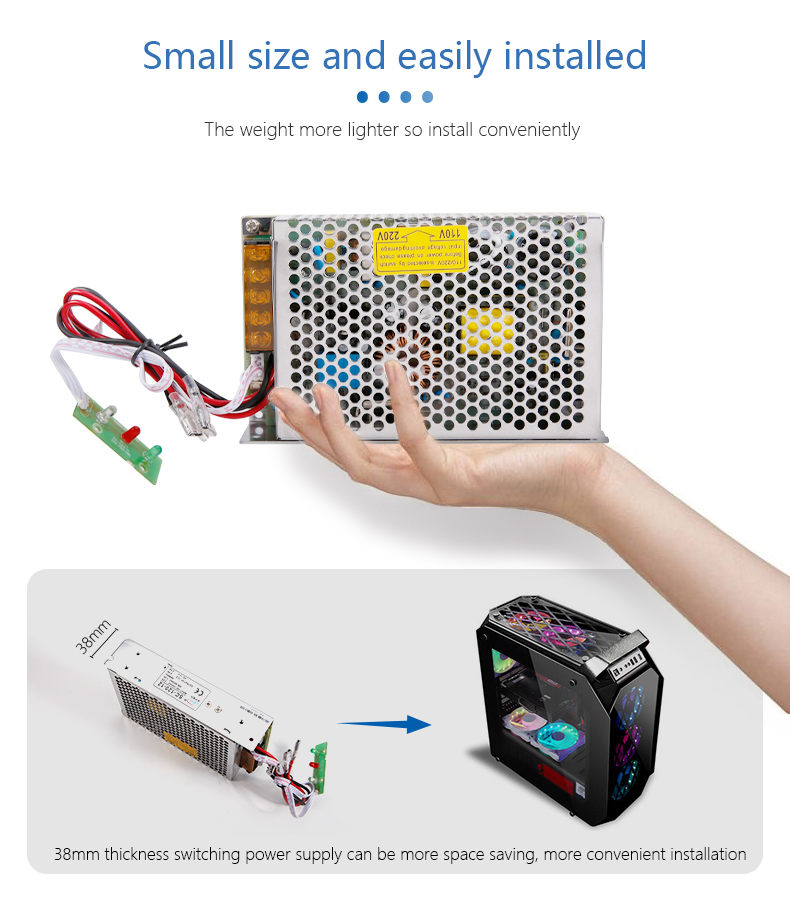

Dimension |
159*97*38mm(L*W*H) |
|
|
Weight |
0.56Kg/pc 45pcs/carton |
|
