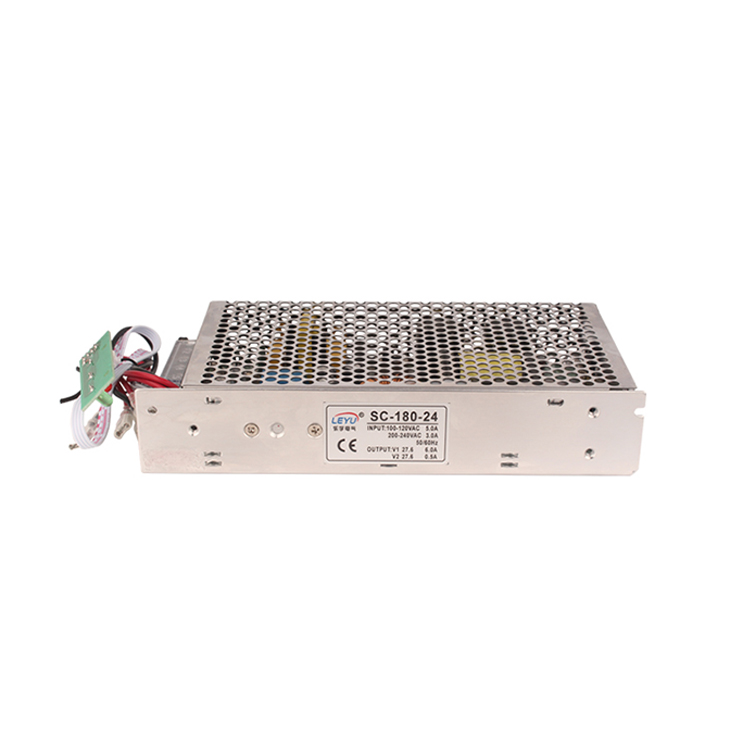

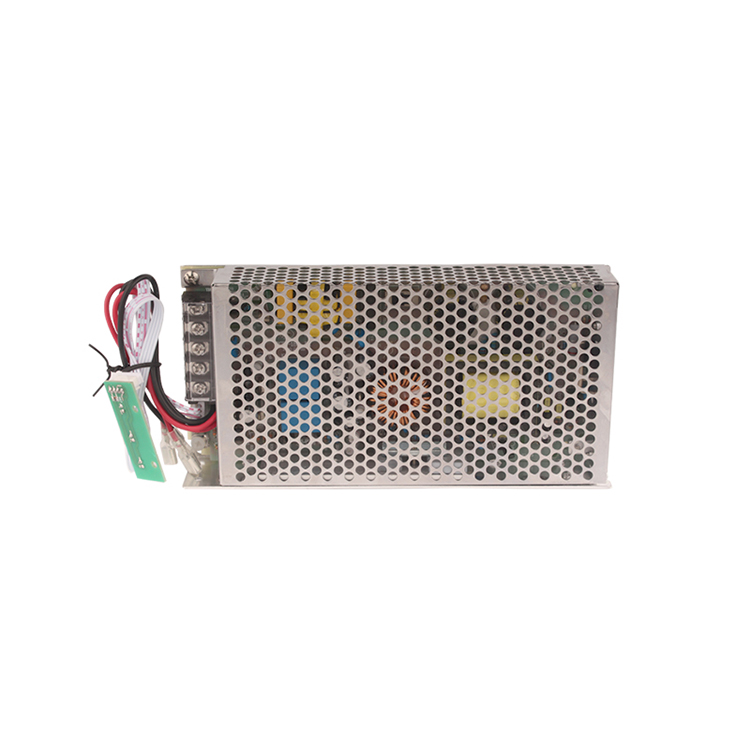

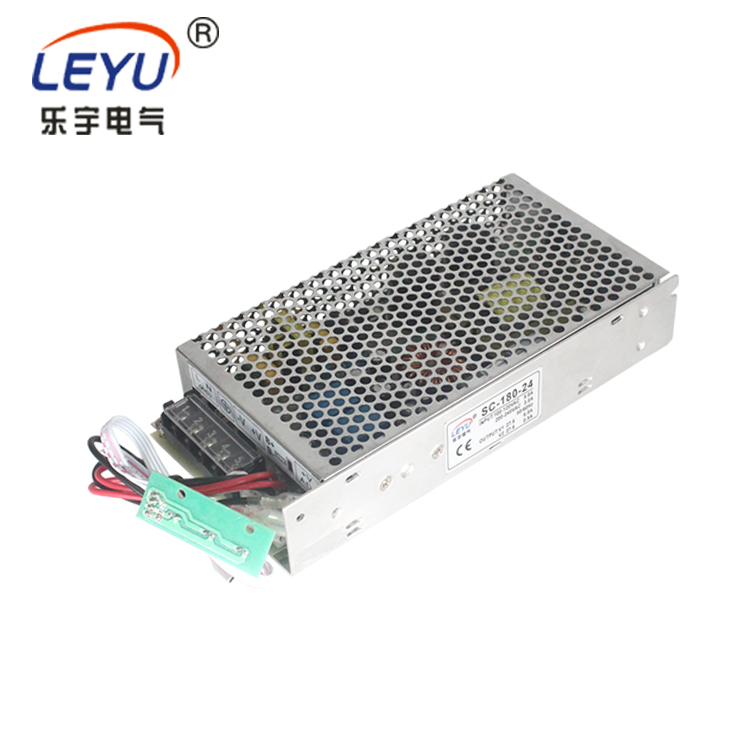

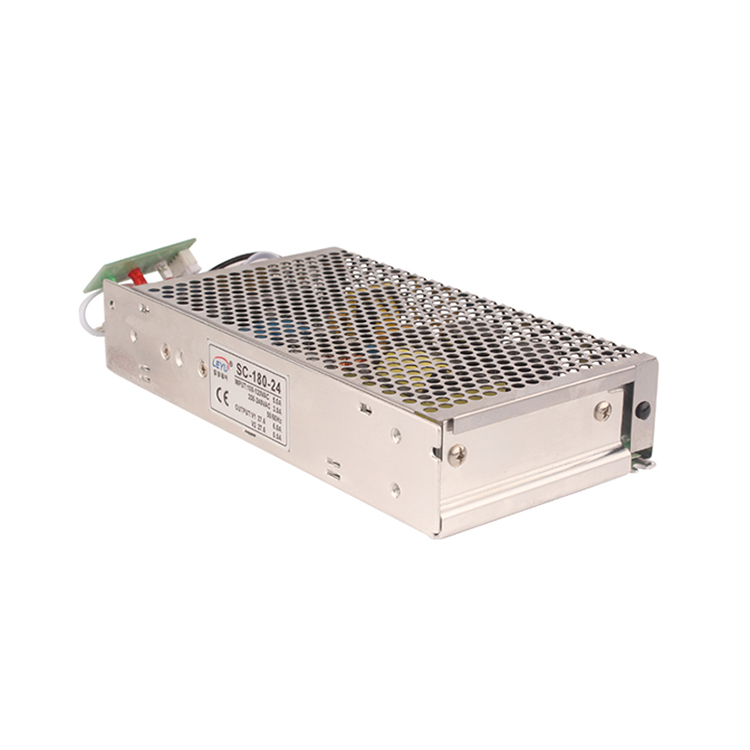

180W Single Output UPS function Power Supply              SC-180 series


1. Universal AC input/Full rang

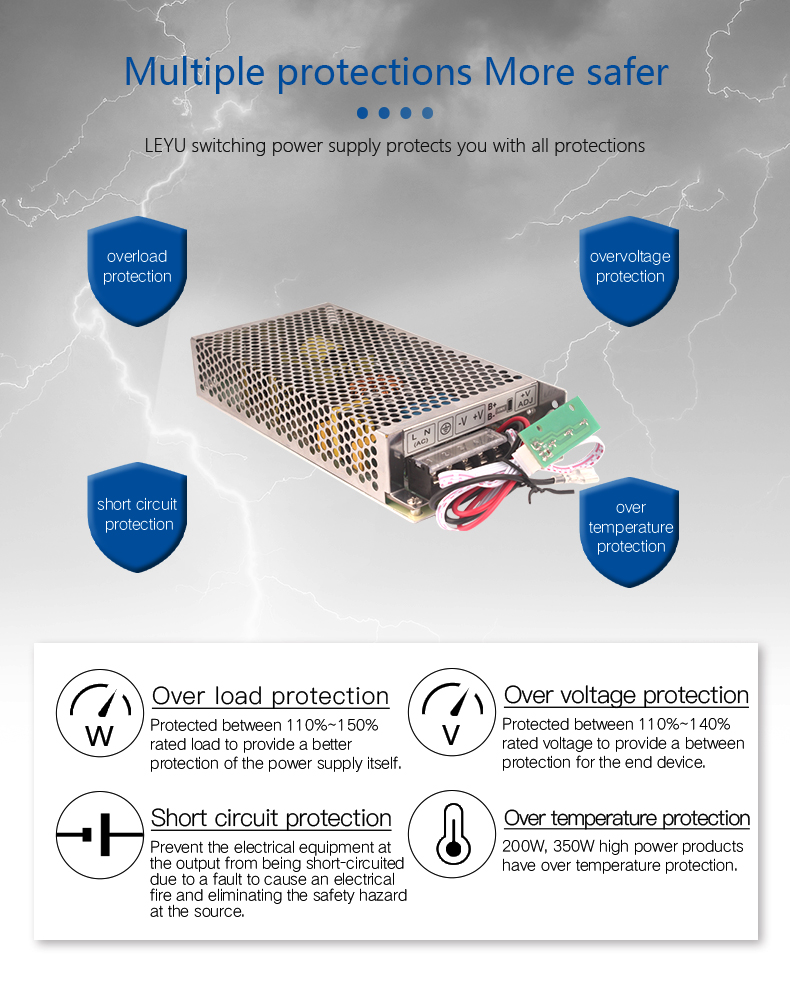

2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)

3. Cooling by free air convection

4. LED indicator for power on

5. No load power consumption<1W

6. Suitable for installation in metallic or non-metallic system enclosure

7. 100% full load burn-in test

8. 2 years warranty

Model SC-180-12 SC-180-24
DC voltage CH1:12V CH2:13.8V CH1: 24V CH2:27.6V
Voltage tolerance ±2% ----- ±1% -----
Rated current 13.5A 1.5A 6.5A 1A
Current range 0~15A ----- 0~7.5A -----
Rated power 182.7W 182.7W
Ripple&noise 120mvp-p ----- 180mvp-p -----
DCvoltage ADJ.range CH1:10.3~13.8V CH1:21.3~27.5V
Voltage range 90~132VAC/ 180VAC~264VAC Select by switch ,237~370VDC
Frequency 47~63HZ
AC current 4A/115VAC,2.5A/230VAC
Efficiency 81% 83%
Inrush current Cold start current 30A/115VAC,50A/230VAC
Leakage current < 1mA/240VAC
Over load Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection 9.5~11V 20~22V
At low voltage protection mode:cutoff output
UPS introduction long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging
when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
Safety Withstand voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Safety standard Compliance to UL60950-1
EMC standard Compliance to EN55022,CLASSB
Dimension 199*98*38mm (L*W*H)
Weight/packing 0.6kg/45pcs/26kg/0.041m⊃3;/1.45CUFT
