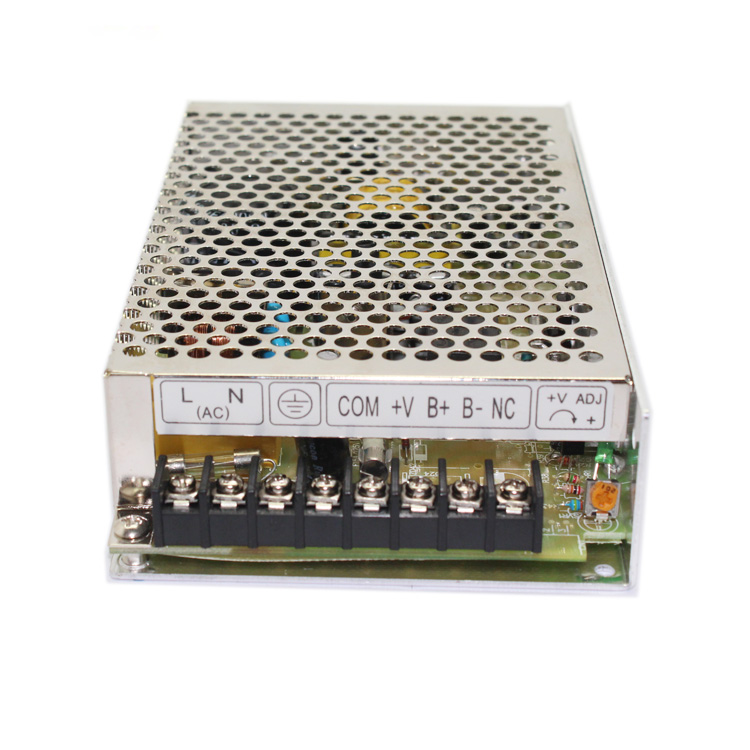

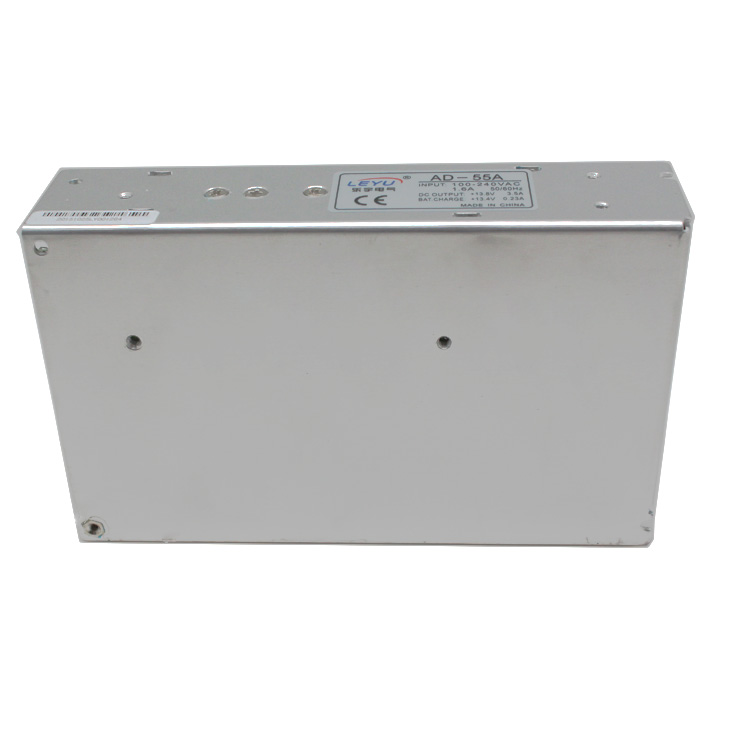

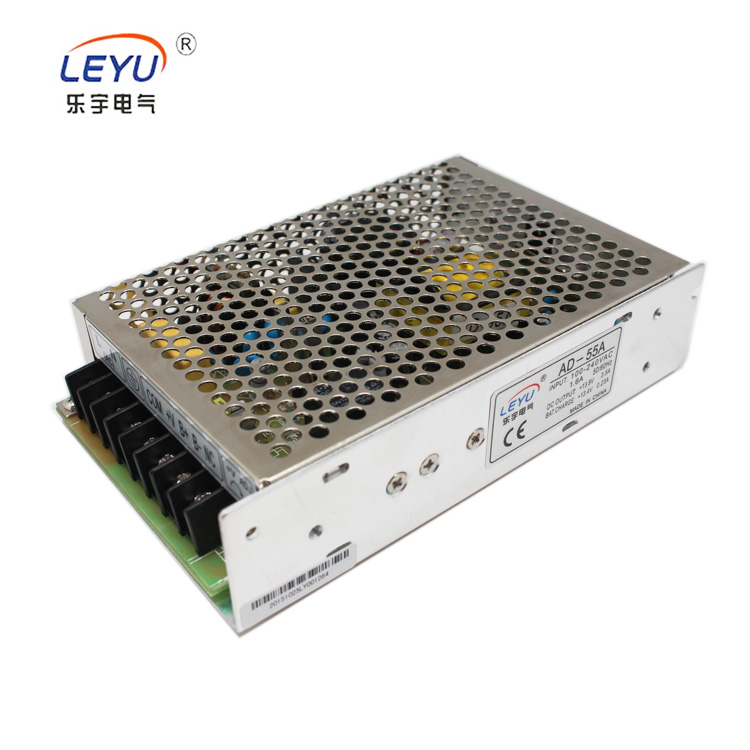

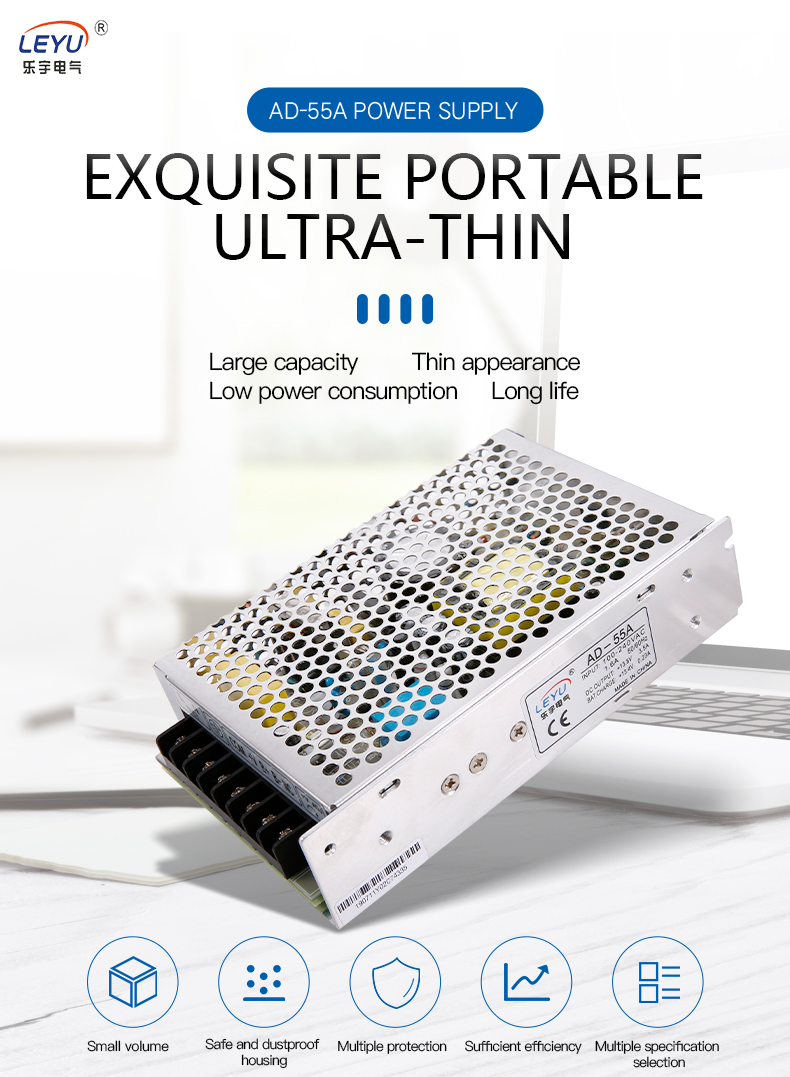

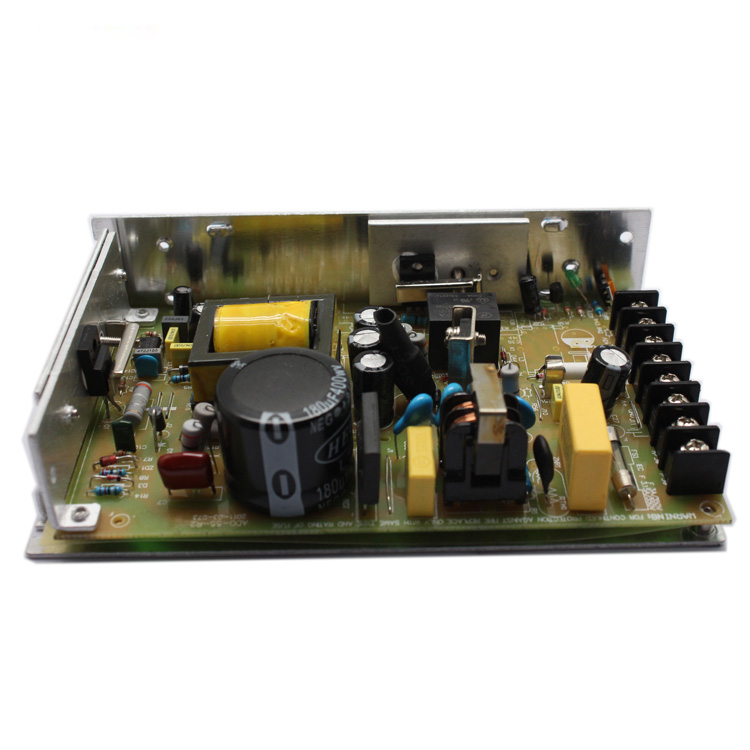

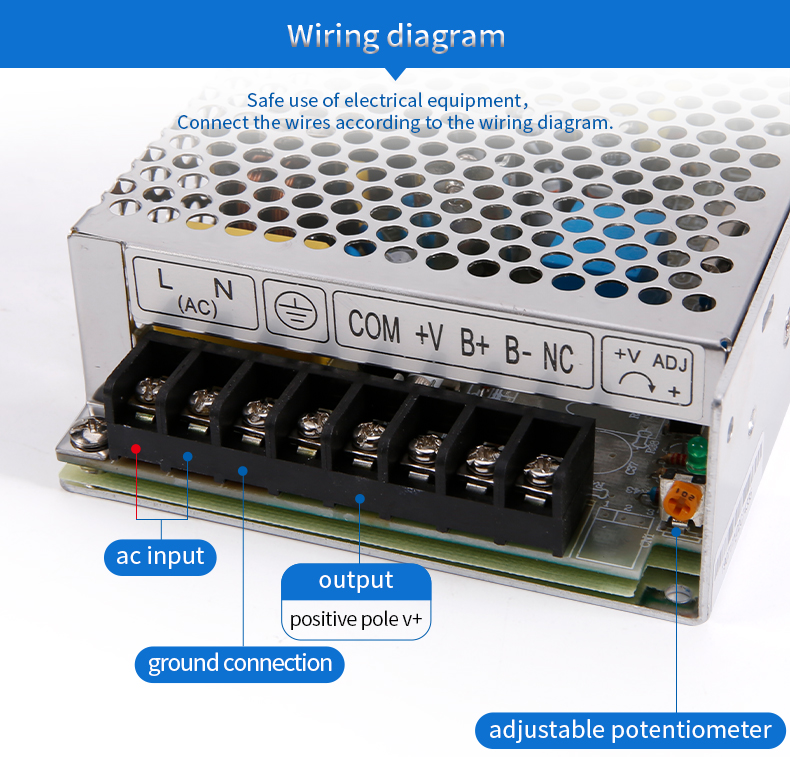

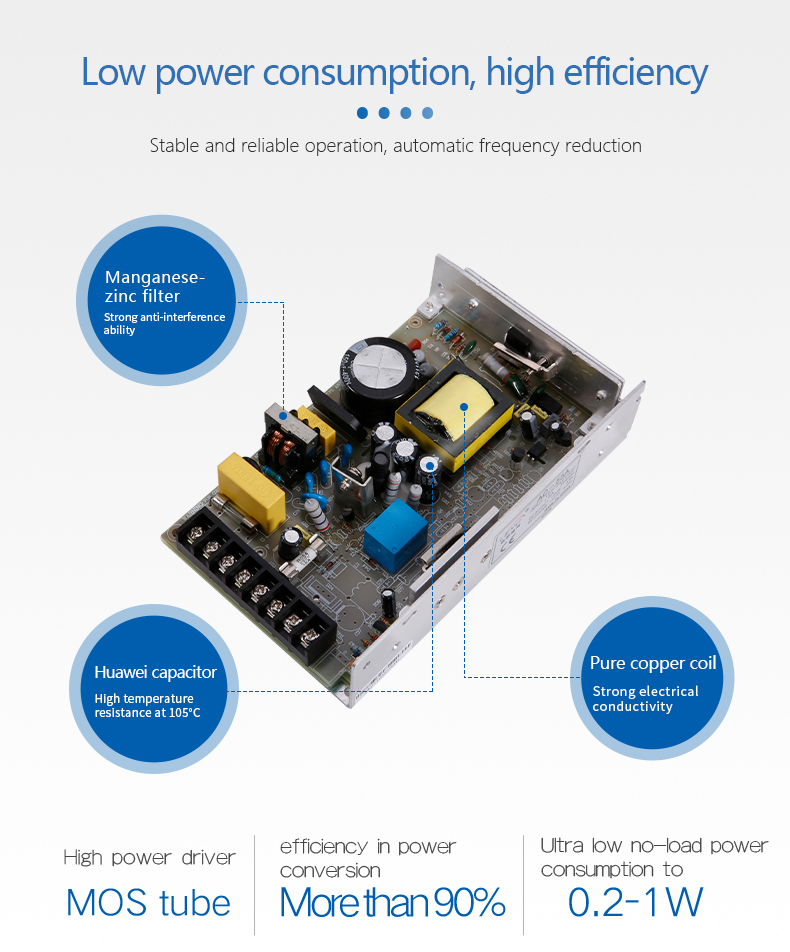

55W Single Output with Battery Charger (UPS Function) AD-55 series
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45 KHz
2 years warranty
|
SPECIFICATION |
||||
|
MODEL |
AD-55A |
AD-55B |
||
|
OUTPUT |
CH1 |
CH2 |
CH1 |
CH2 |
|
Outputnumber |
13.8V |
13.4V |
27.6V(24V) |
26.5V(24V) |
|
DC voltage |
3.5A |
0.23A |
1.8A |
0.16A |
|
Rated Current |
0~4A |
-------- |
0~2A |
-------- |
|
Current Range |
51.38W |
53.92W |
||
|
Rated Power |
100mVp-p |
-------- |
100mVp-p |
-------- |
|
Ripple&Noise |
CH1:12~14.5V |
CH1:24~29V |
||
|
Voltage Adj.Range |
±1.0% |
-------- |
±1.0% |
-------- |
|
Voltage Tolerance |
±0.5% |
-------- |
±0.5% |
-------- |
|
Line Regulation |
±0.5% |
-------- |
±0.5% |
-------- |
|
Load Regulation |
800ms,50ms/230VAC 1600ms,50ms/115VAC at full load |
|||
|
Setup,Rise Time |
80ms/230VAC 16ms/115VAC at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
88~264VAC47~63Hz; 124~370VDC |
|||
|
AC Current |
1.6A/115VAC 1A/230VAC |
|||
|
Efficiency |
71% |
74% |
||
|
Inrush Current |
Coldstart 20A/115VAC 40A/230VAC |
|||
|
Leakage Current |
<1mA /240VAC |
|||
|
|
|
|||
|

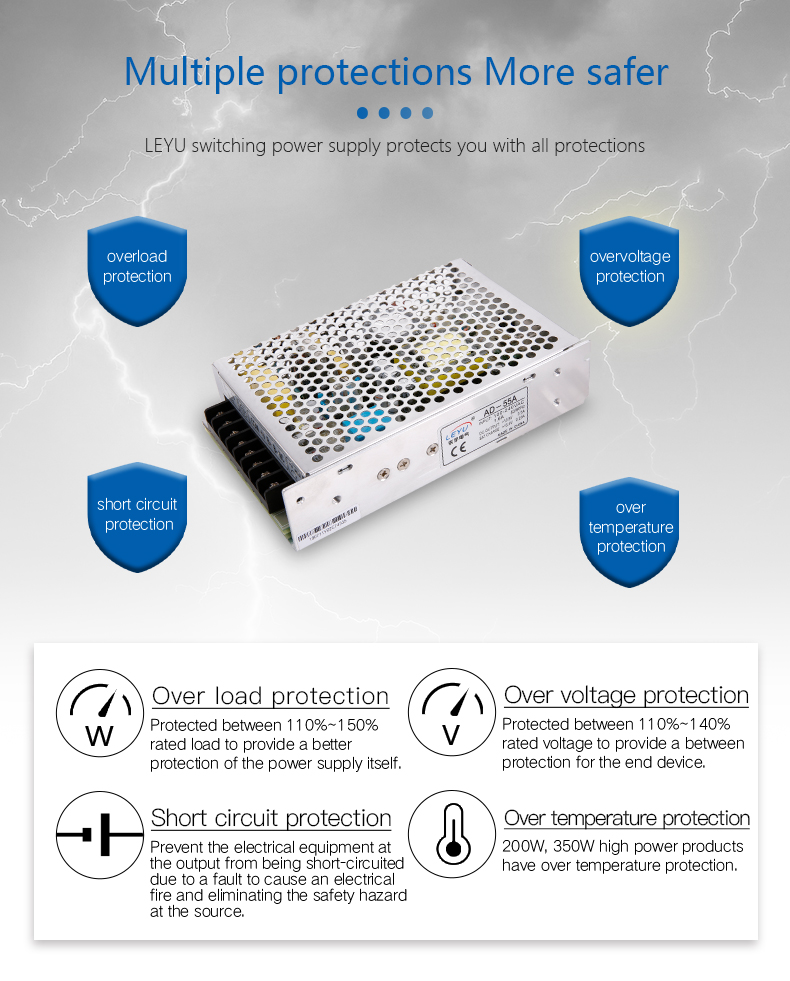

PROTECTION |
|
|||
|
Over Load |
105~150% rated output power |
|||
|
Protection type:AC Charging Mode:Hiccup mode,recovers automatically after fault condition is removed UPS Mode:Protected by internal fuse |
||||
|
Over Voltage |
CH1:15.87~18.63V |
CH1:31.74~37.26V |
||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
||||
|
Battery Low |
9.5~11V |
20~22V |
||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp. |
-10~+60℃(Refer to“Derating Curve”) |
|||
|
Working Humidity |
20~90%RH non-condensing |
|||
|
Storage Temp.,Humidity |
-20~+85℃,10~95%RH |
|||
|
Temp.Coefficient |
±0.03%/ ℃(0~50℃ )on CH1 output |
|||
|
Vibration |
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes |
|||
|
|
|
|||
|
SAFETY &EMC |
|
|||
|
Safety Standards |
UL60950-1, TUV EN60950-1 approved |
|||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH |
|||
|
EMC Emission |
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 |
|||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A |
|||
|
|
|
|||
|
OTHERS |
|
|||
|

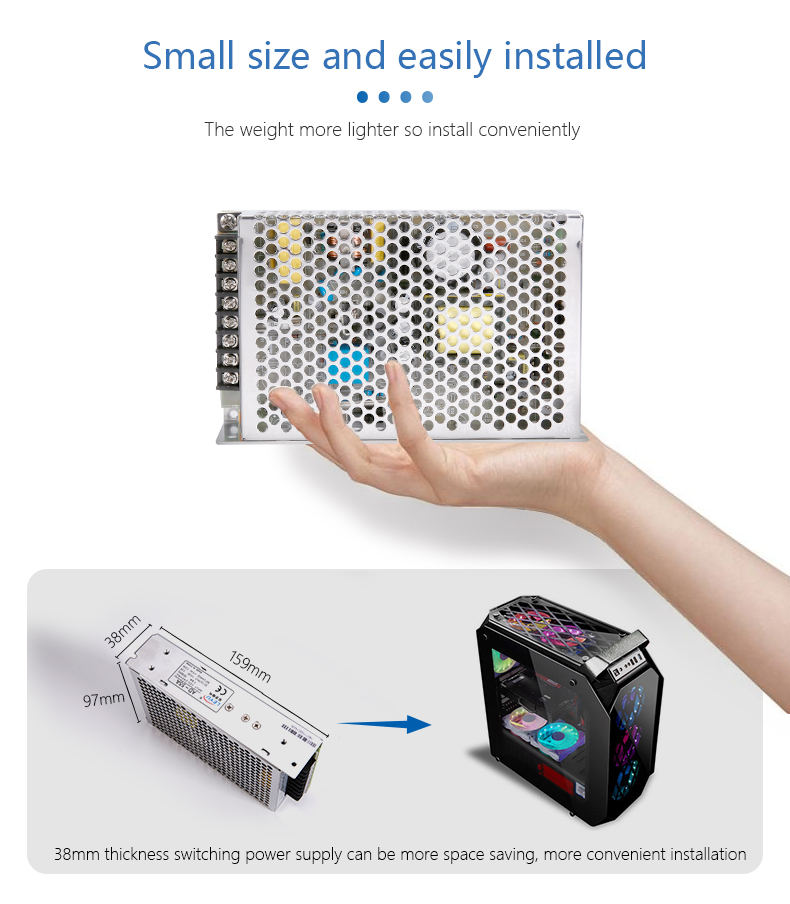

Dimension |

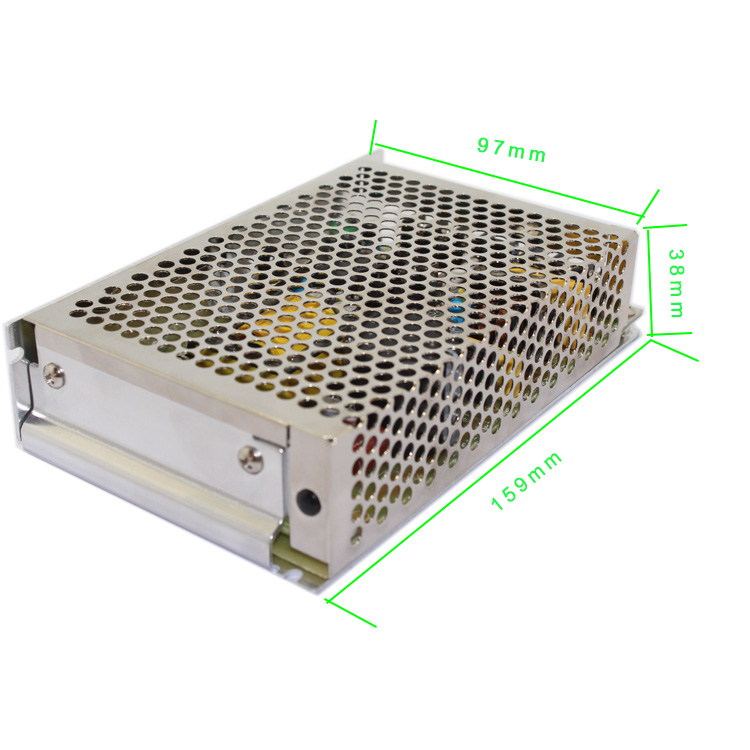

159*97*38mm(L*W*H) |
|||
|
Weight |
0.47Kg |
|||
|
Packing |
40pcs/19.80Kg |
|||
|
|
|
|||
|
NOTE |
|
|||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
||||
