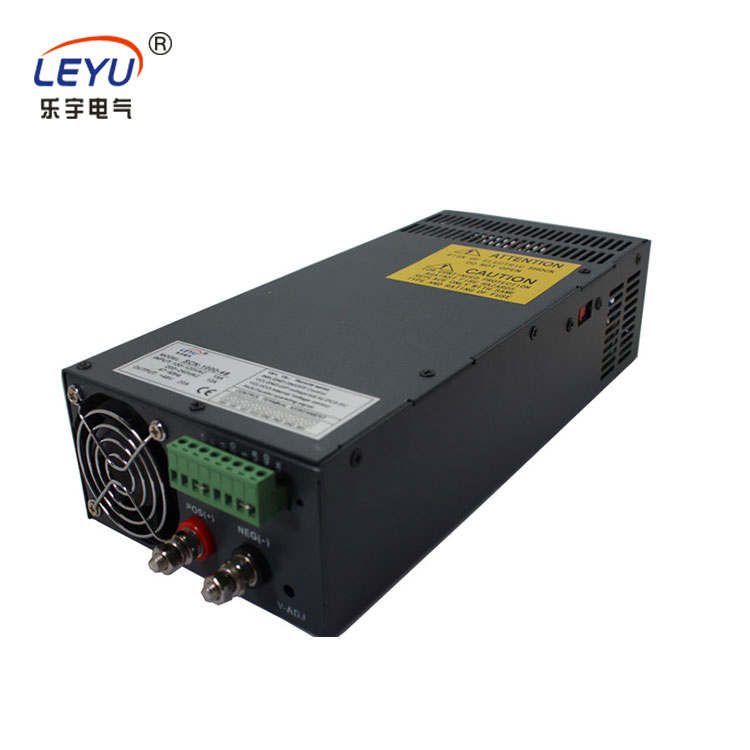

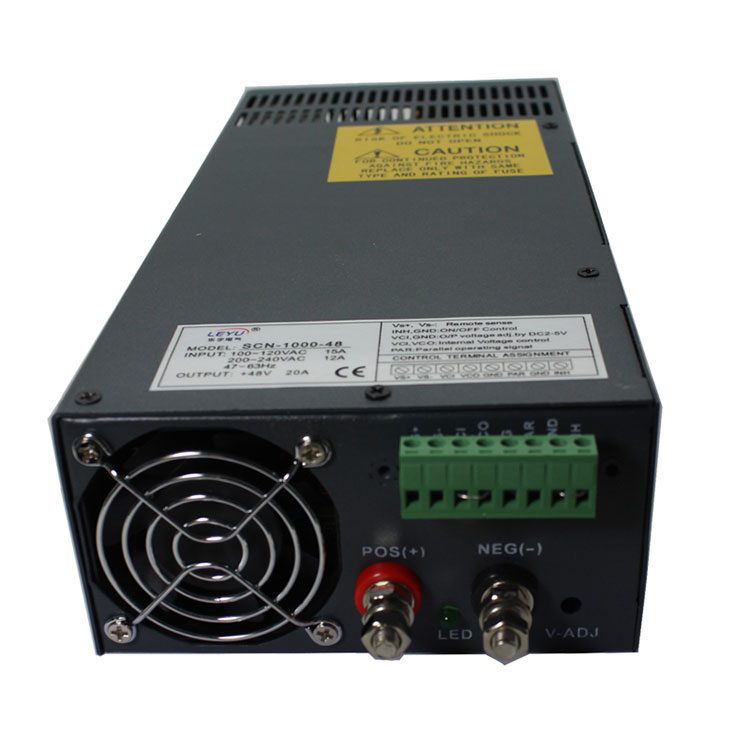

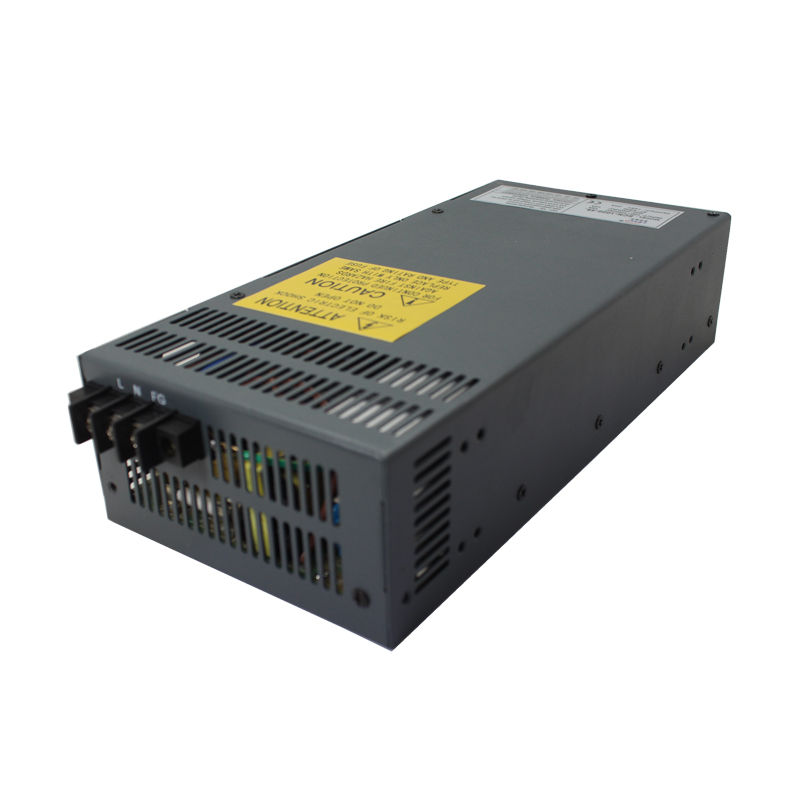

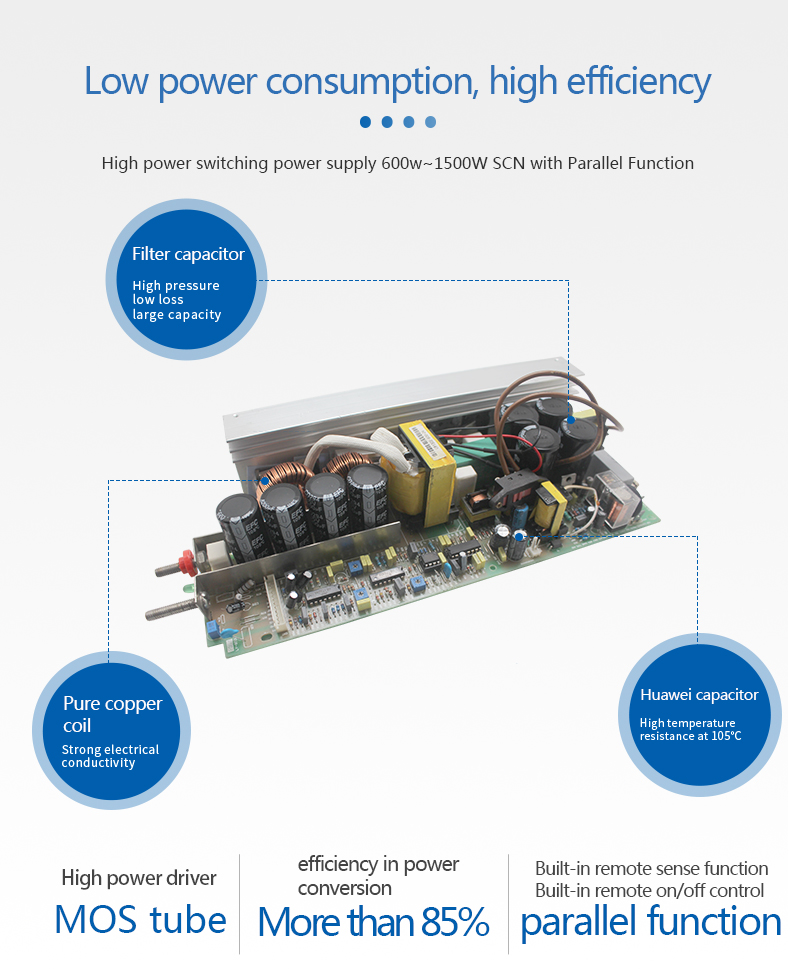

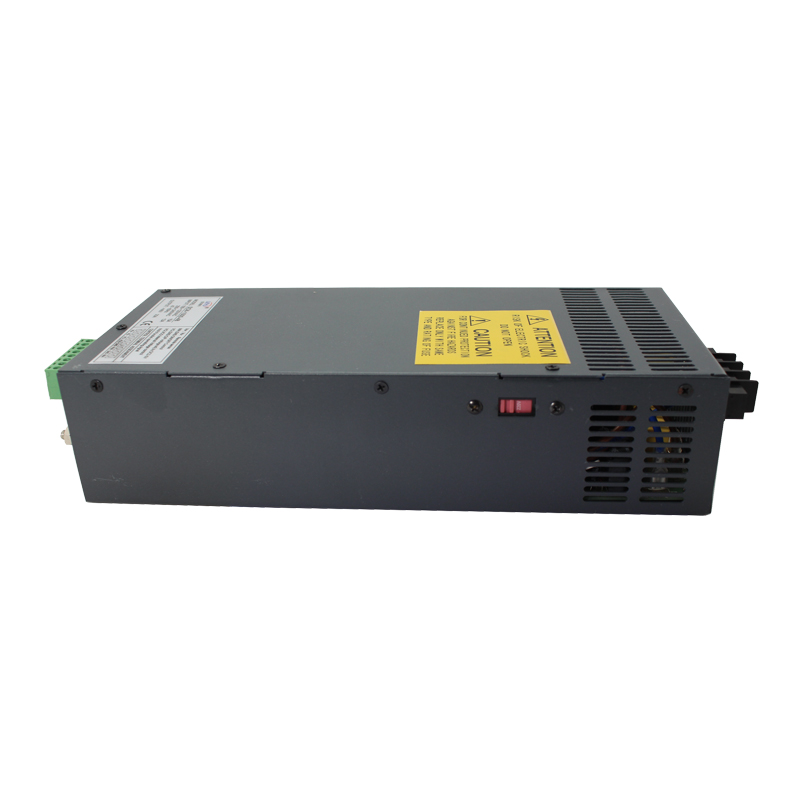

1000W Single Output with Parallel Function     SCN-1000 series

Features:

105 output capacitor

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short -circuit and overload protection

Compact size, light weight

100% full-load burning test

Installed with EMI filter,minimum wave

SPECIFICATIONS

OUTPUT



Model

SCN-1000-9

SCN-1000-12

SCN-1000-13.5

SCN-1000-15

SCN-1000-24

SCN-1000-27

SCN-1000-48

DC Voltage

9V

12V

13.5V

15V

24V

27V

48V

Rated Current

83A

80A

74A

67A

40A

24A

20A

Current Range

0-83A

0-80A

0-74A

0-67A

0-40A

0-37A

0-20A

Rated Power

747W

960W

999W

1005W

960W

999W

960W

Ripple & Noise

200mVp-p

200mVp-p

200mVp-p

200mVp-p

240mVp-p

240mVp-p

300mVp-p

Voltage Adj. Range

8.1~9.9V

10~13.2V

12.2V~14.8V

13.5~18V

20~26.4V

24~30V

41~56V

Voltage Tolerance

±10%

±10%

±10%

±10%

±5%

±5%

±5%

Inlet Stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise,Hold Up Time

1.5s,50ms,20ms at full load





INPUT



Voltage Range

90~130VAC/180~264VAC 47~63Hz

AC Current

20A/115V  10A/230V

Efficiency

75%

75%

75%

75%

78%

80.00%

84.00%

Inrush Current

Cold-start current 60A 230V

Leakage Current

<3.5mA/240VAC

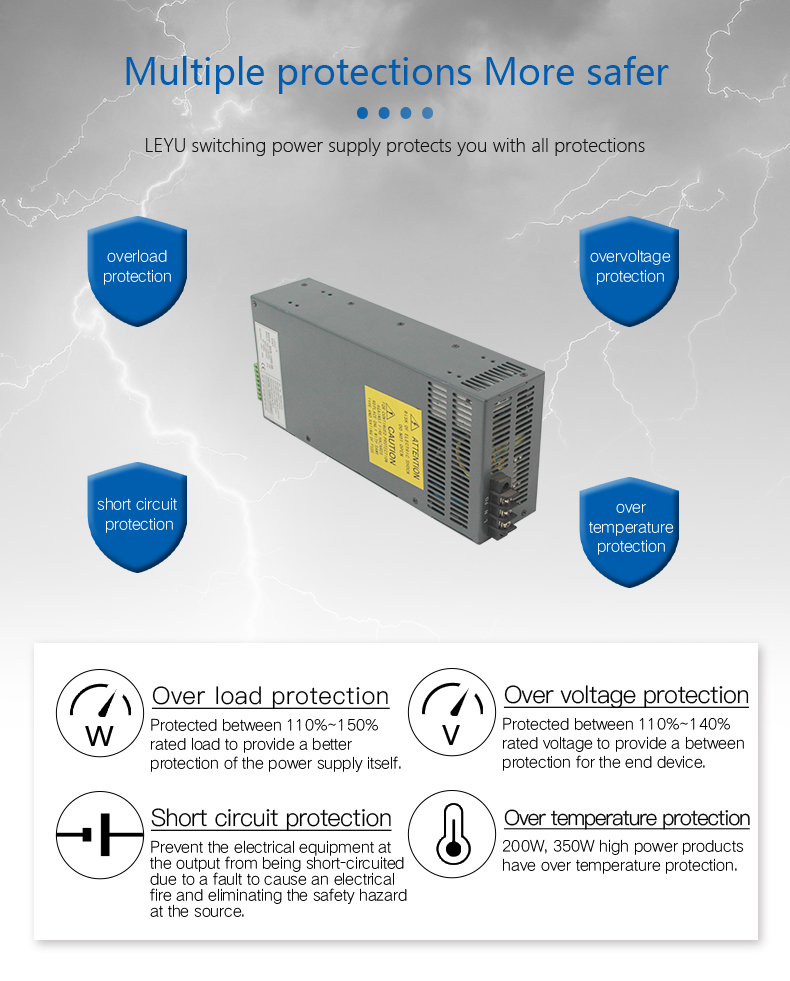

PROTECTION



Over Load

105%~135%

Protection type: plusing hiccup shutdown Reset:Fecycle AC ON/OFF

Over Temp.

RTH≥80℃ output shutdown







ENVIRONMENT



Working Temp., Humidity

-10~+60(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20~+85, 10%~95%RH

Temp.Coefficient

±0.03%/(0~50)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes





SAFETY



Withstand Voltage

I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC





STANDARD



Safety Standard

Meet UL1950requirement(Not apply for the mark)

EMC Standard

CISPR22(EN55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2





OTHERS



Dimension

291*132*68mm(L*W*H)

Weight

3.0Kg
