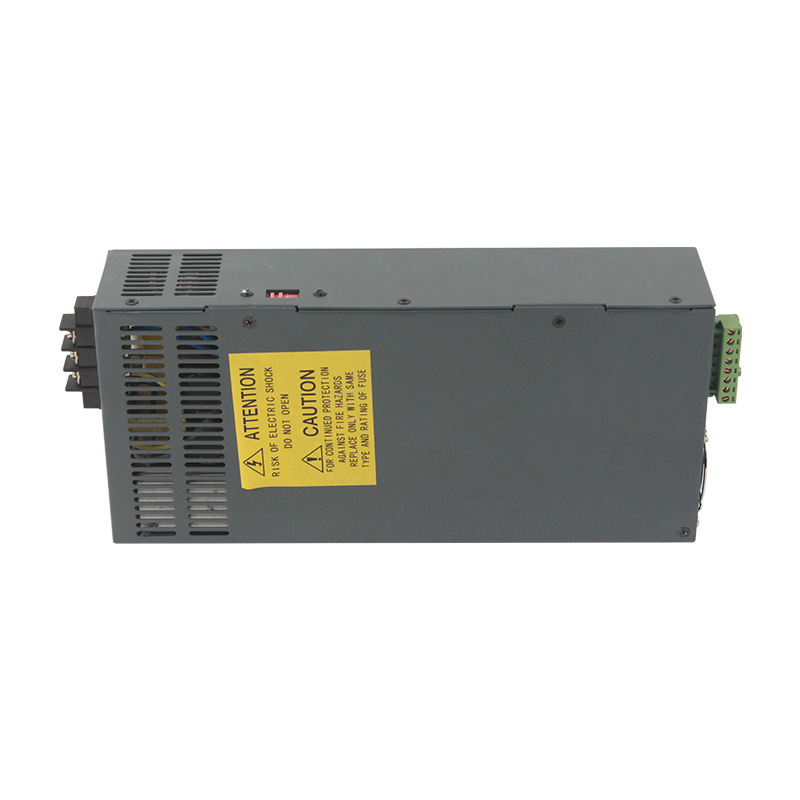

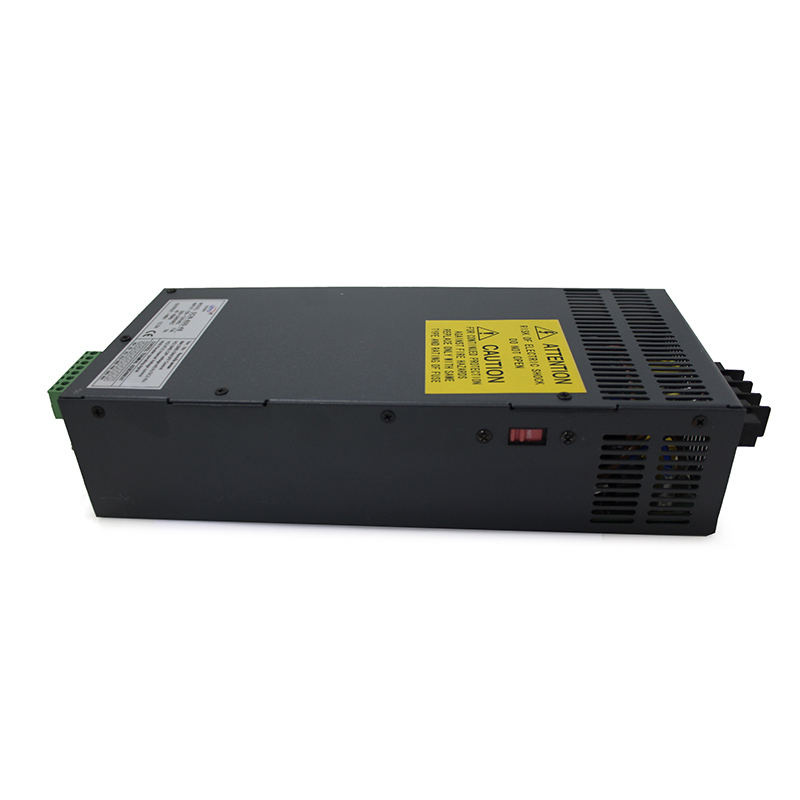

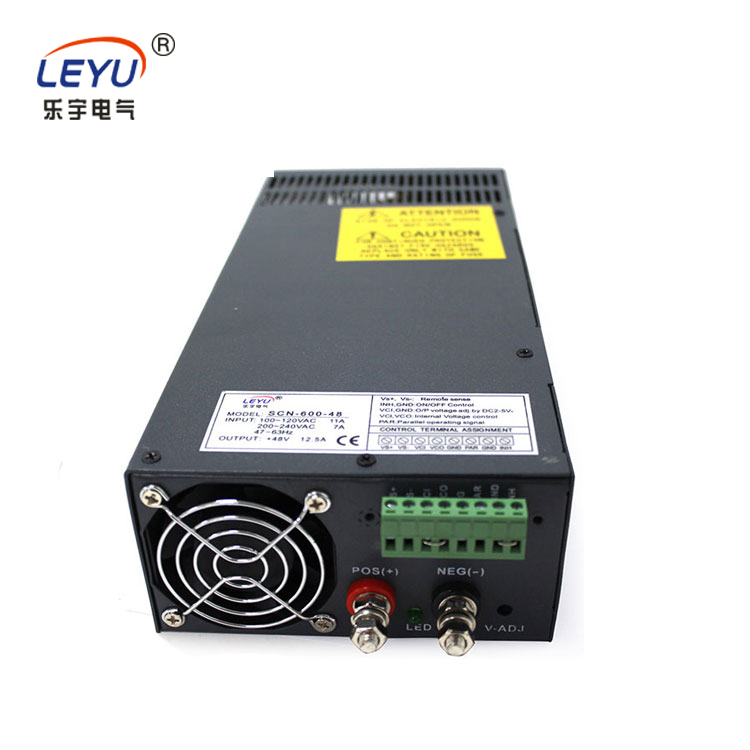

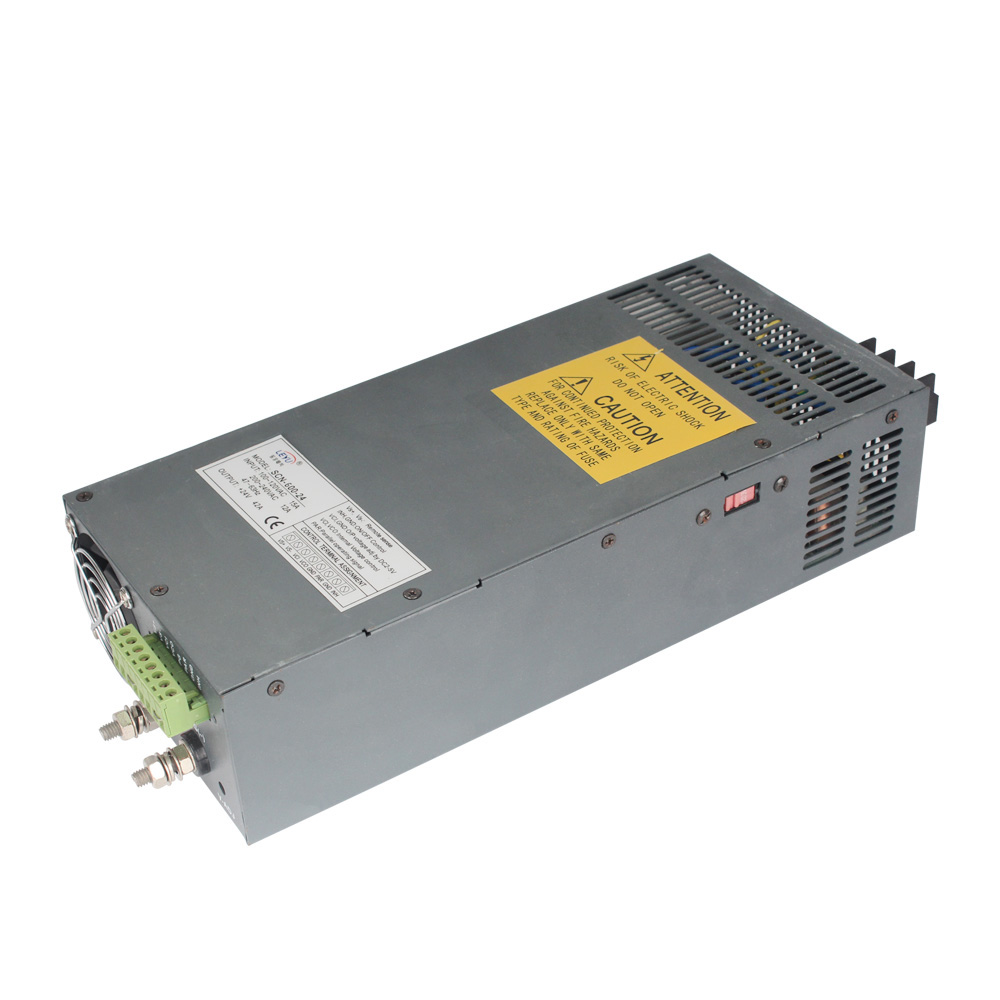

600W Single Output with Parallel Function     SCN-600 series

Featur

·High reliability, low ripple
·Universal AC input/ full range
·Protections: Short circuit/ Over load/ Over voltage/ Over
 temperature
·Built-in ON-OFF control and remote sense function
·With parallel function
·Can adjust from 40%~100% output voltage by external control 2-5V
·Forced air cooling by built-in DC fan

SPECIFICATIONS

OUTPUT



MODEL

SCN-600-12

SCN-600-15

SCN-600-24

SCN-600-48

SCN-600-60

DC Voltage

12V

15V

24V

48V

60V

Rated Current

50A

40A

25A

12.5A

10A

Current Range

0-50A

0-40A

0-25A

0-12.5A

0-10A

Rated Power

600W

600W

600W

600W

600W

Ripple & Noise

120mVp-p

150mVp-p

240mVp-p

480mVp-p

480mVp-p

Voltage Adj. Range

±5%; Can adjust from 40%~100% output voltage by external control 2-5V

Voltage Tolerance

±1%

±1%

±1%

±1%

±1%

Setup, Rise, Hold Up Time

800ms, 50ms, 16ms at full load

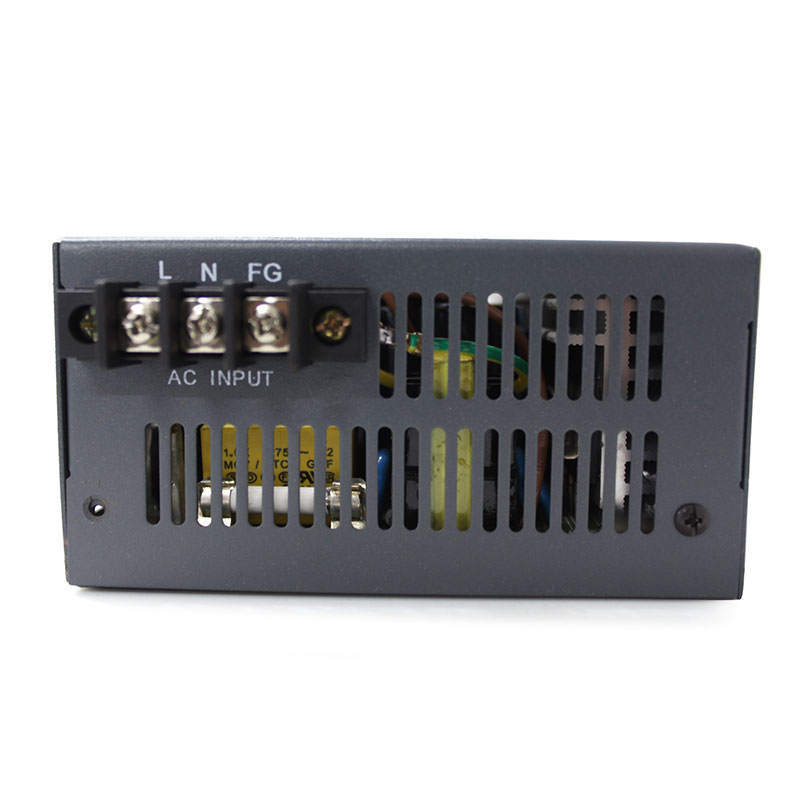

INPUT



Voltage Range

90~130VAC/180~260VAC selected by switch   47~63Hz; 260~370VDC

AC Current

11A/115VAC   7.0A/230VAC

Efficiency

80%

81%

85%

87%

Inrush Current

60A/230V

Leakage Current

3.5mA/240VAC





PROTECTION



Over Load

110%~135%

Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover

Over Voltage

110%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Over Temp

TSW1(Power transistor) When temp. >100℃, shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp., Humidity

-10℃~+65℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes





SAFETY



Withstand Voltage

I/P-O/P, I/P-FG:1500VAC

Isolation Resistance

I/P-O/P, I/P-FG, >100M Ohms / 500VDC





STANDARD



Safety Standard

Design refer to UL1950,CSA22.2,IEC60950

EMC Standard

Design refer to FCC Part 15 Class A





OTHERS



Dimension

291*132*68mm(L*W*H)

Weight

2.57Kg

Packing

6pcs/15.42kg/CARTON





NOTE



1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
