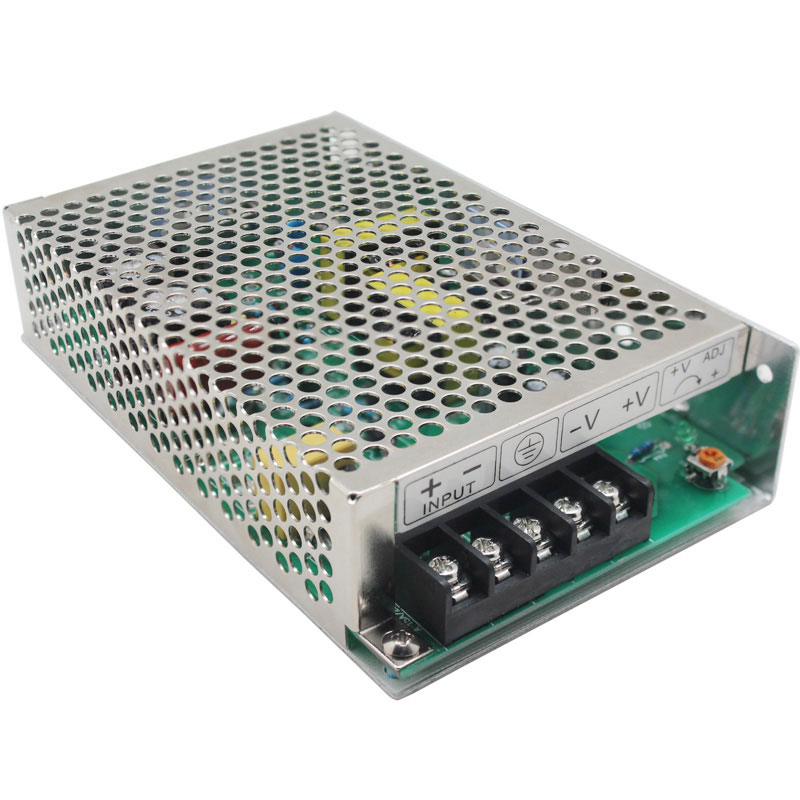

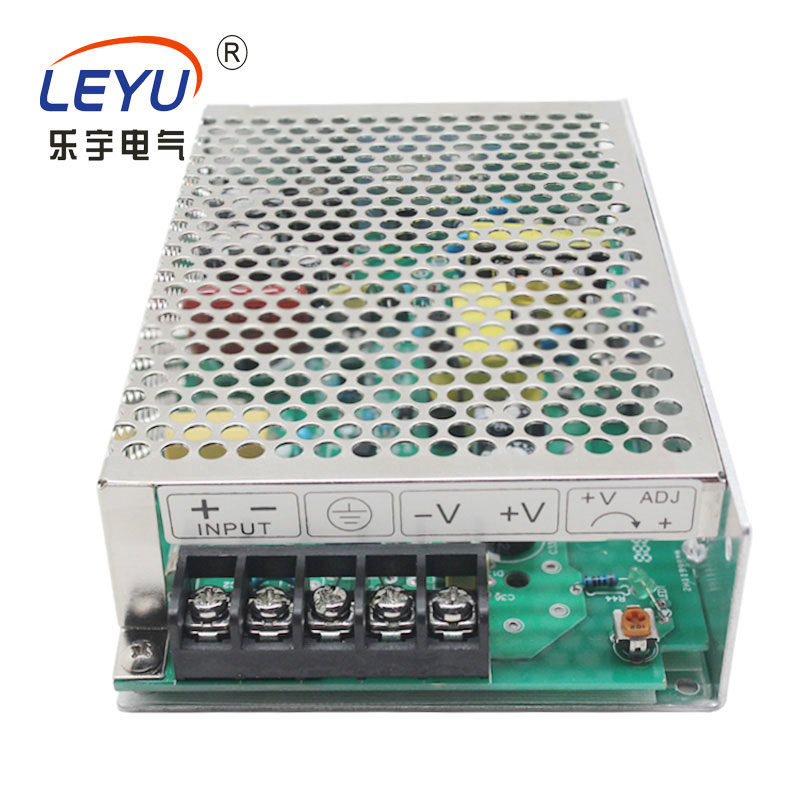

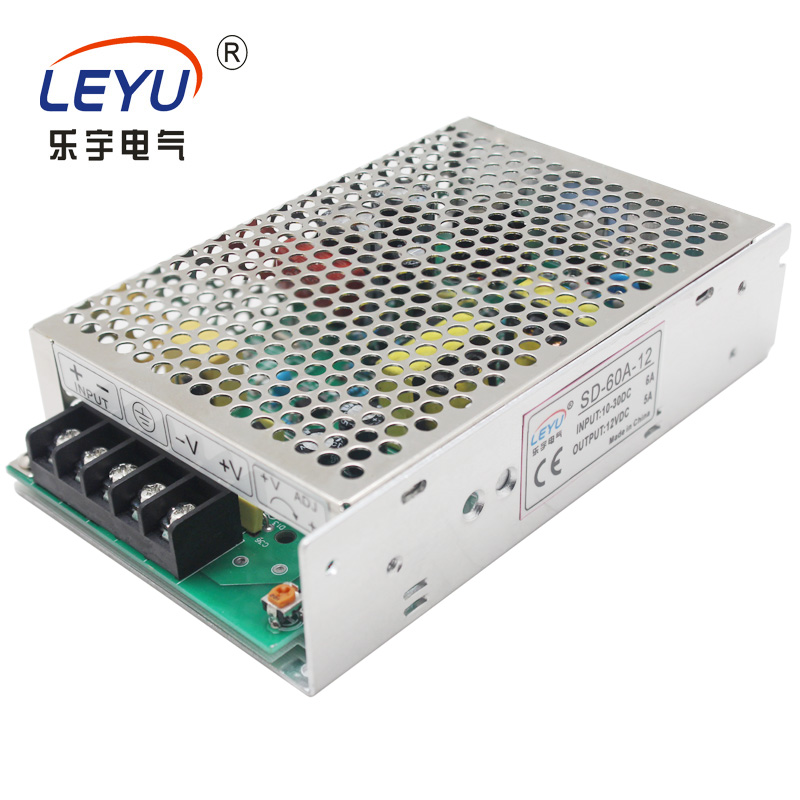

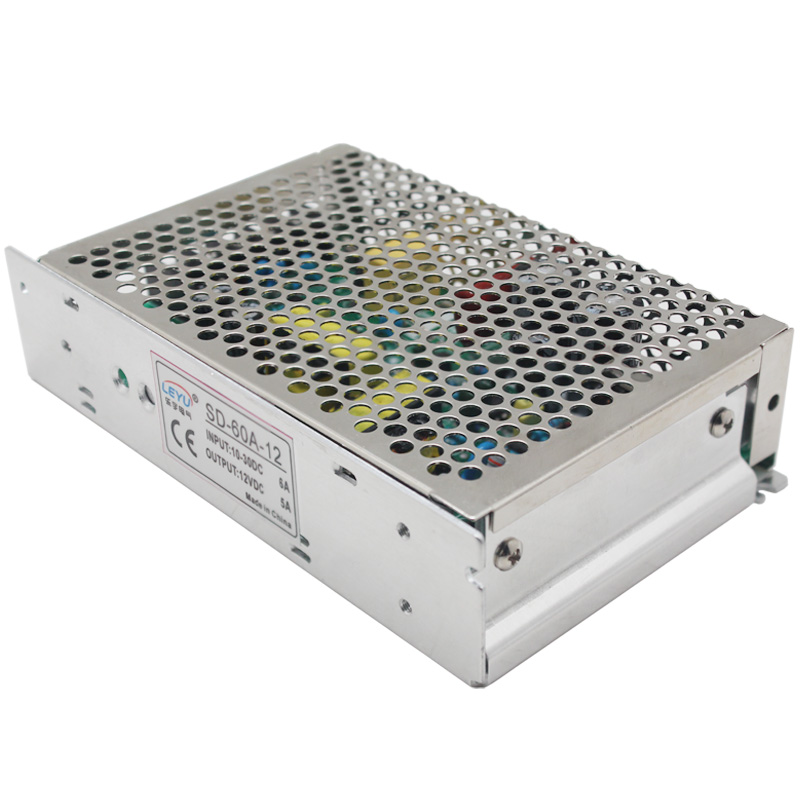

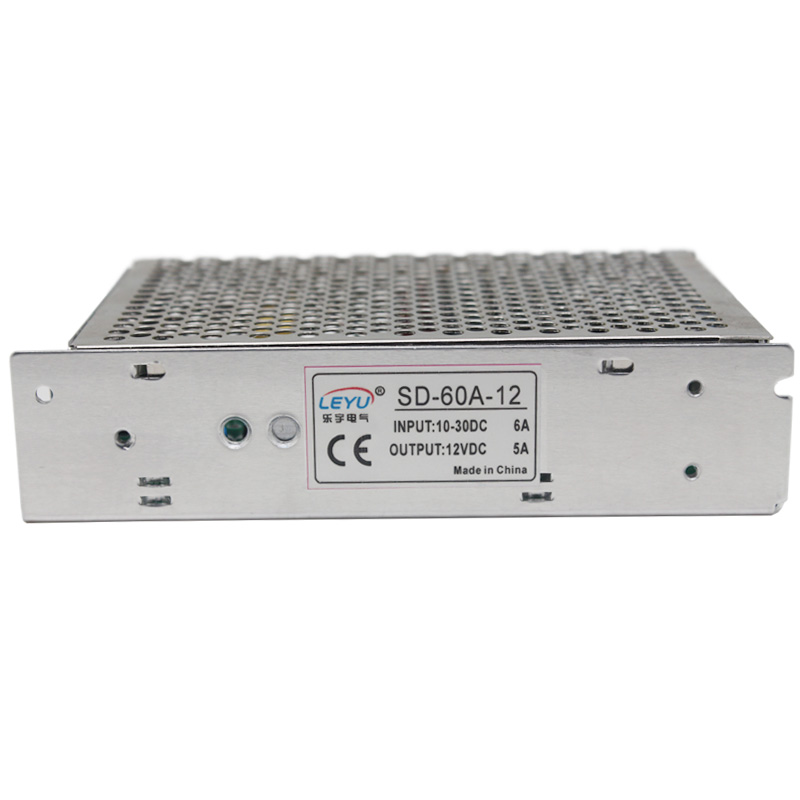

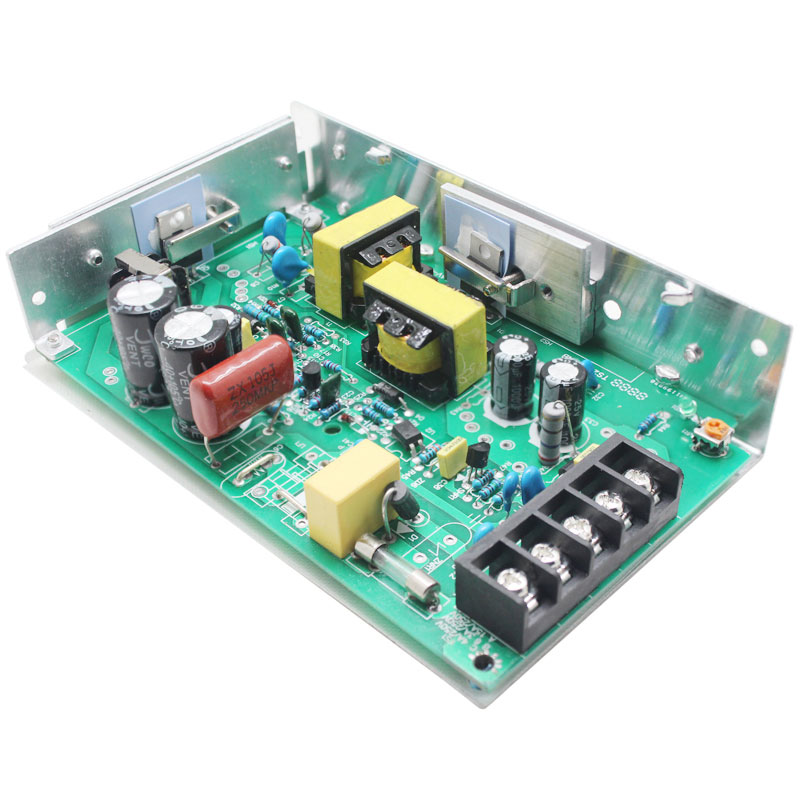

60WSingle Output DC-DC Converter SD-60 series
Features:
2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83 KHz
Low cost
High reliability
2 years warranty
|
SPECIFICATION |
|||||||||||||||||
|
OUTPUT |
|
||||||||||||||||
|
Model |
SD-60A-5 |
SD-60B-5 |
SD-60C-5 |
SD-60D-12 |
SD-60A-12 |
SD-60B-12 |
SD-60C-12 |
SD-60D-12 |
SD-60A-24 |
SD-60B-24 |
SD-60C-24 |
SD-60D-24 |
|||||
|
DC Voltage |
5V |
12V |
24V |
||||||||||||||
|
Rated Current |
12A |
5A |
2.5A |
||||||||||||||
|
Current Range |
0~12A |
0~5A |
0~2.5A |
||||||||||||||
|
Rated Power |
60W |
60W |
60W |
||||||||||||||
|
Ripple & Noise |
100mVp-p |
120mVp-p |
150mVp-p |
||||||||||||||
|
Voltage Adj. Range |
4.5~5.5VDC |
11~16VDC |
23~30VDC |
||||||||||||||
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
||||||||||||||
|
Line Regulation |
±0.5% |
±0.3% |
±0.2% |
||||||||||||||
|
Load Regulation |
±0.5% |
±0.3% |
±0.2% |
||||||||||||||
|
Setup, Rise, Hold Up Time |
2.5s,50ms,------at full load |
||||||||||||||||
|
|
|
||||||||||||||||
|
INPUT |
|
||||||||||||||||
|
Voltage Range |
A:9.2~18VDCB:19~36VDC C:36~72VDCD:73~144VDC |
||||||||||||||||
|
Efficiency |
70% |
73% |
76% |
72% |
75% |
78% |
74% |
80% |
83% |
||||||||
|
DC Current |
7A/12V |
3A/24V |
1.5A/48V |
||||||||||||||
|
|
|
||||||||||||||||
|
PROTECTION |
|
||||||||||||||||
|
Over Load |
105~150% rated output power |
||||||||||||||||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
|||||||||||||||||
|
Over Voltage |
5.75~6.75V/10%load |
16.8~20V/10%load |
31.5~37.5V/10%load |
||||||||||||||
|
Protection type:Hiccup mode,recovers automatically after fault condition is removed |
|||||||||||||||||
|
|
|
||||||||||||||||
|
ENVIRONMENT |
|
||||||||||||||||
|
Working Temp. |
-10~+60℃ (Refer to "Derating Curve") |
||||||||||||||||
|
Working Humidity |
20~90% RH non-condensing |
||||||||||||||||
|
Storagetemp.,Humidity |
-20~+85℃ ,10~95%RH |
||||||||||||||||
|
Temp.Coefficient |
±0.03%/℃ (0~50℃) |
||||||||||||||||
|
Vibration |
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes |
||||||||||||||||
|
|
|
||||||||||||||||
|
SAFETY &EMC |
|
||||||||||||||||
|
Safety Standards |
Design refer to LVD |
||||||||||||||||
|
Withstand Voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
||||||||||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC /25℃ /70%RH
|
||||||||||||||||
|
EMC Emission |
Compliance to EN55022(CISPR22)Class B |
||||||||||||||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,6,8, EN55024, heavy industry level, criteria A |
||||||||||||||||
|
|
|
||||||||||||||||
|
OTHERS |
|
||||||||||||||||
|
Dimension |
159*97*38mm(L*W*H) |
||||||||||||||||
|
Weight |
0.48Kg |
||||||||||||||||
|
Packing |
24pcs/12.7Kg/0.75CUFT |
||||||||||||||||
|
|
|
||||||||||||||||
|
NOTE |
|
||||||||||||||||
|
1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
|||||||||||||||||
