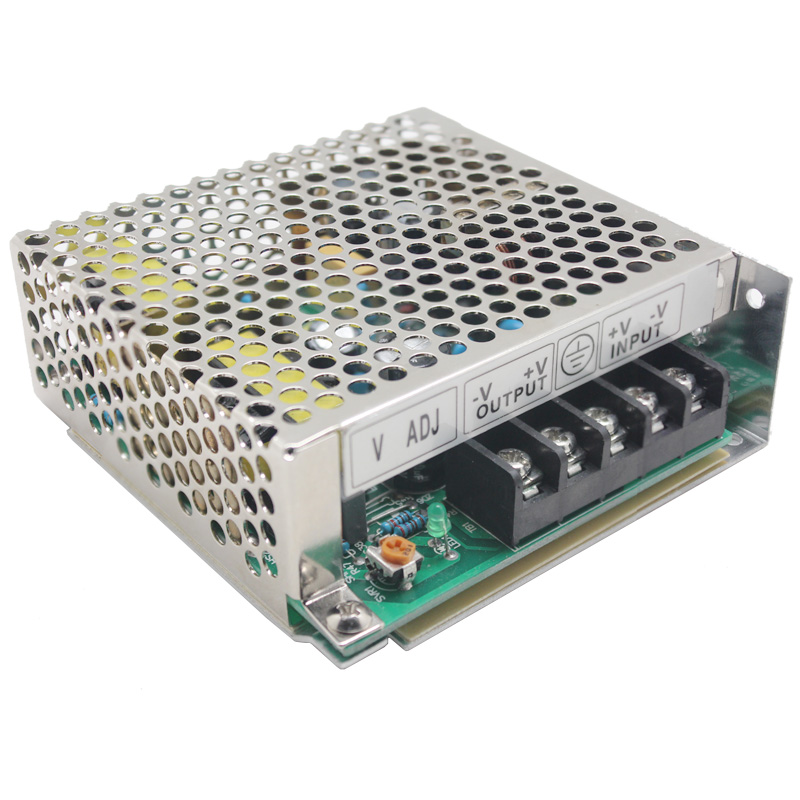

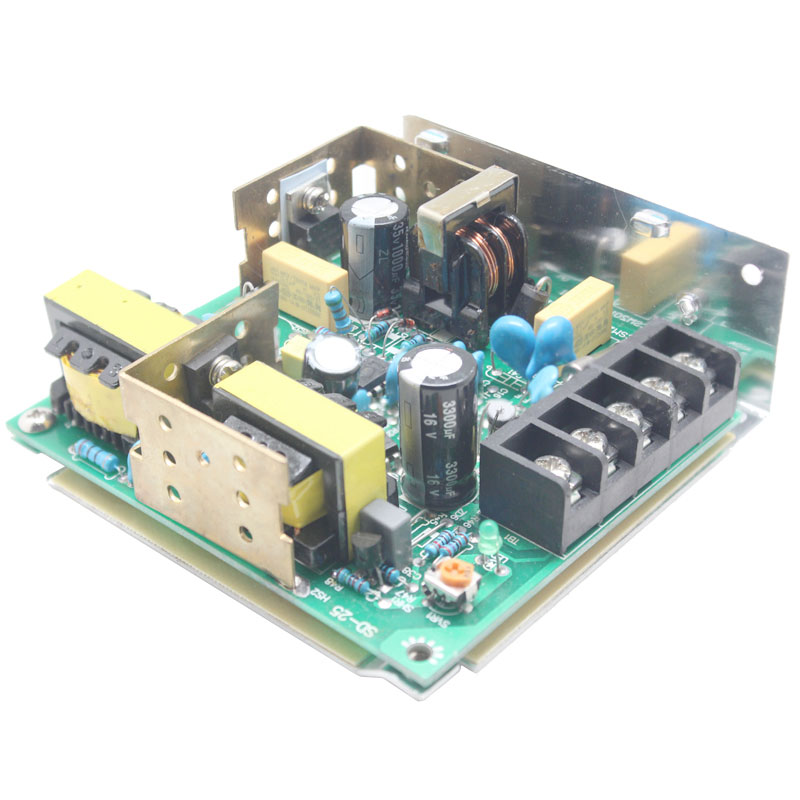

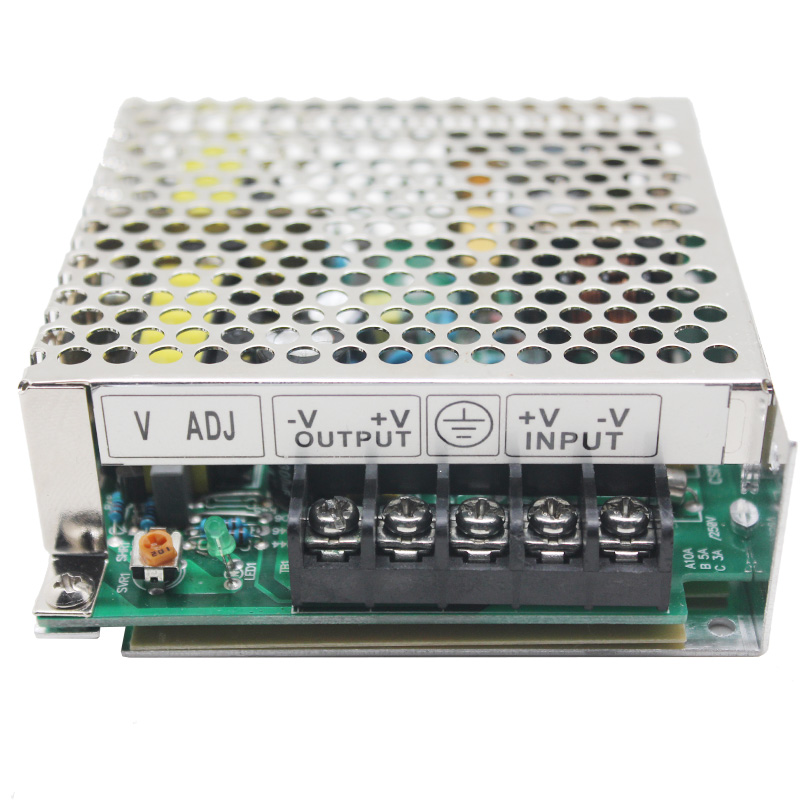

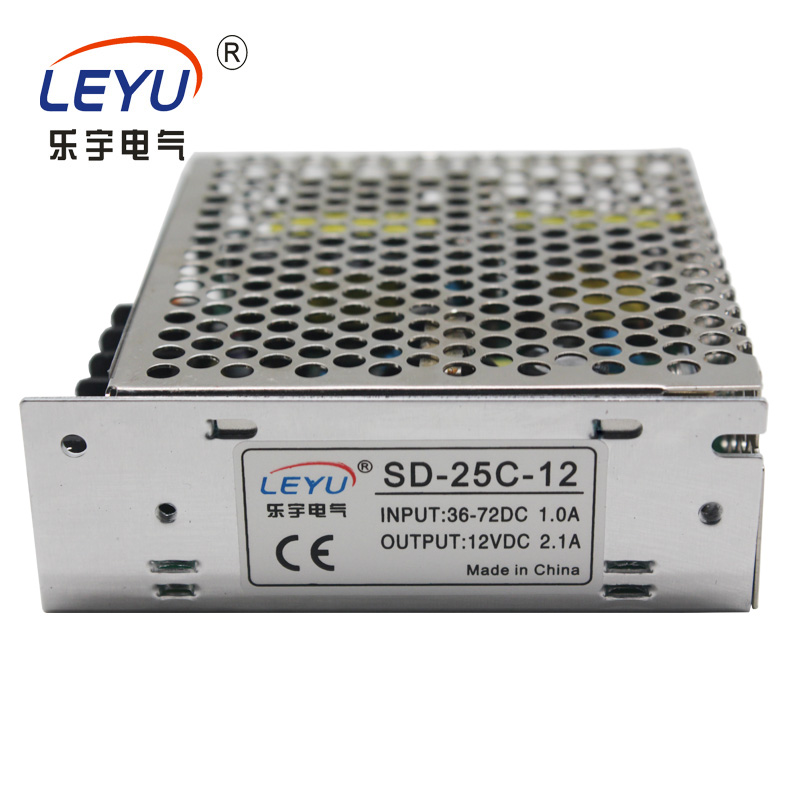

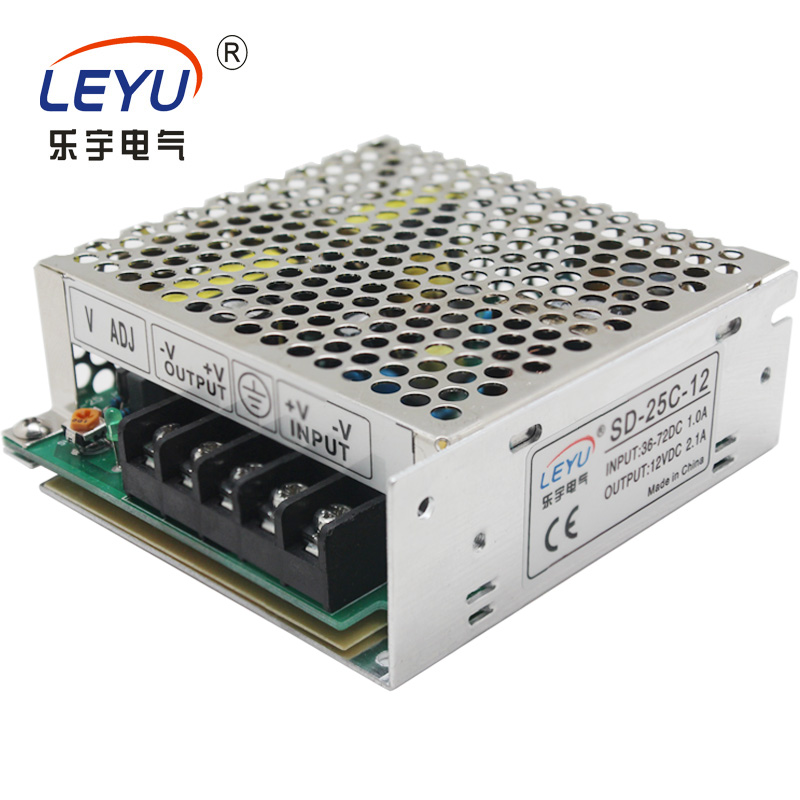

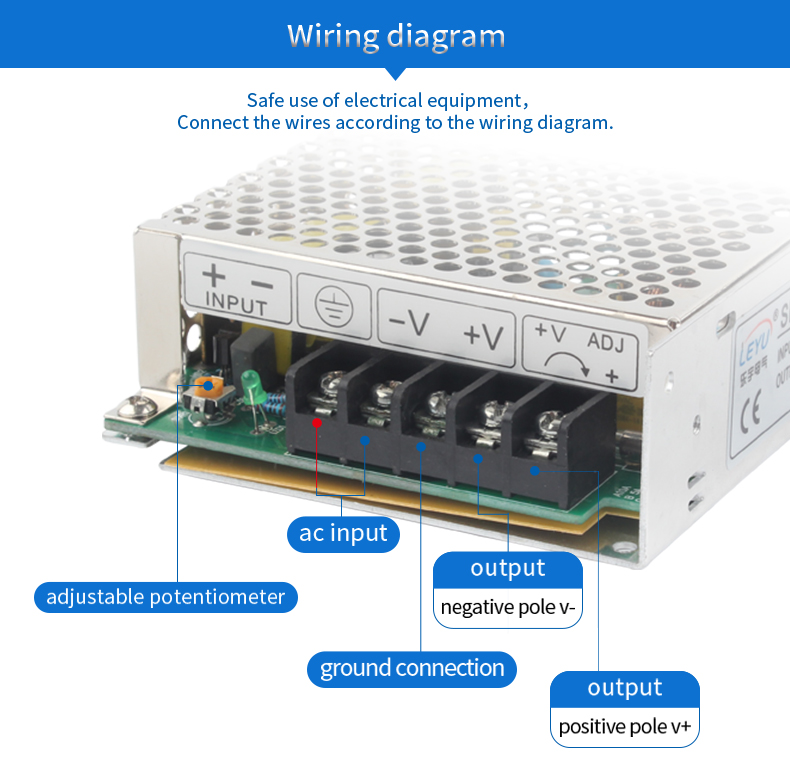

25W Single Output DC-DC Converter SD-25 series
Features :
2:1 wide input range

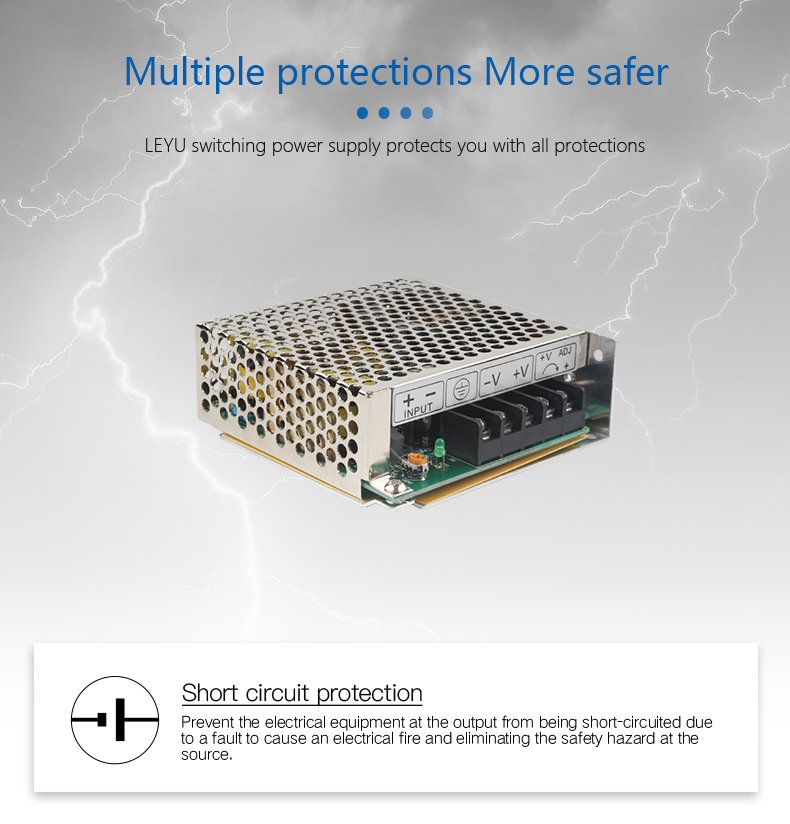

Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
Low cost High reliability
2 years warranty
|
SPECIFICATION |
|||||||||
|
OUTPUT |
|
||||||||
|
Model |
SD-25A-5 |
SD-25B-5 |
SD-25C-5 |
SD-25A-12 |
SD-25B-12 |
SD-25C-12 |
SD-25A-24 |
SD-25B-24 |
SD-25C-24 |
|
DC Voltage |
5V |
12V |
24V |
||||||
|
Rated Current |
5A |
2.1A |
1.1A |
||||||
|
Current Range |
0 ~ 5A |
0 ~ 2.1A |
0 ~ 1.1A |
||||||
|
Rated Power |
25W |
25.2W |
26.4W |
||||||
|
Ripple & Noise |
100mVp-p |
120mVp-p |
150mVp-p |
||||||
|
Voltage Adj. Range |
4.75~5.5VDC |
11-16VDC |
23-30VDC |
||||||
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
||||||
|
Line Regulation |
±0.5% |
±0.3% |
±0.2% |
||||||
|
LoadRegulation |
±0.5% |
±0.3% |
±0.2% |
||||||
|
Setup,Rise, Hold Up Time |
2.5s, 50ms, ------ at full load |
||||||||
|
|
|
||||||||
|
INPUT |
|
||||||||
|
Voltage Range |
A: 9.2 ~18VDC B:19 ~ 36VDC C:36~72VDC |
||||||||
|

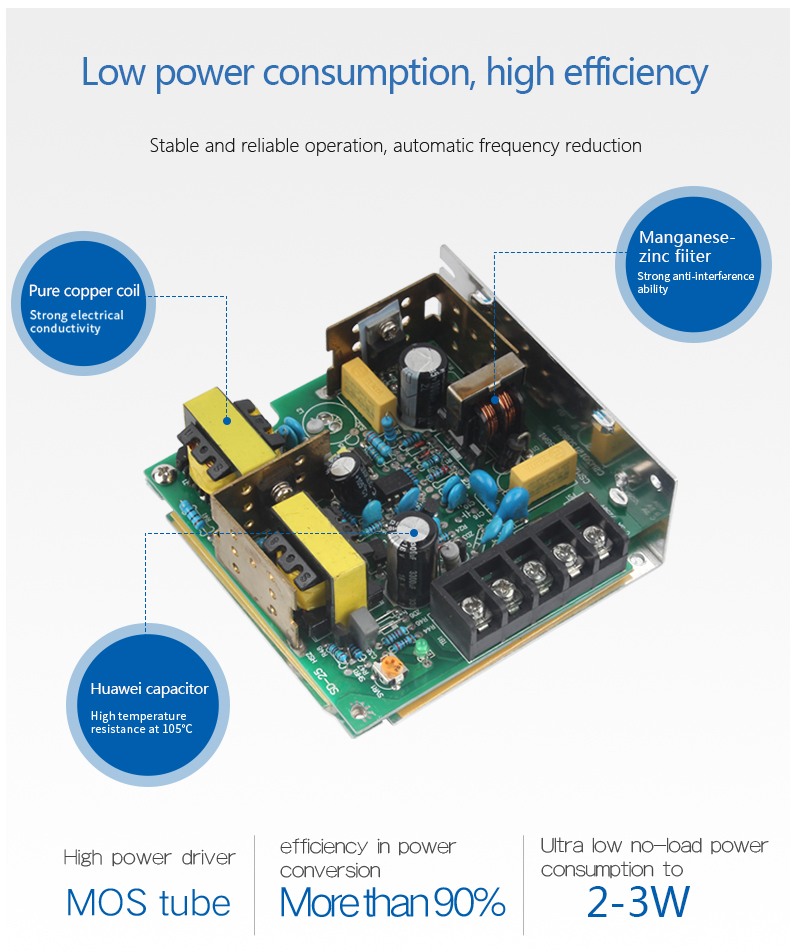

Efficiency |
71% |
72% |
74% |
72% |
75% |
78% |
75% |
78% |
81% |
|
DC Current |
3.2A/12V |
1.6A/24V |
0.8A/48V |
||||||
|
|
|
||||||||
|
PROTECTION |
|
||||||||
|
Over Load
|
105 ~ 150% rated output power |
||||||||
|
Protection type : Hiccup mode, recovers automatically after fault condition isremoved |
|||||||||
|
Over Voltage |
5.75 ~ 6.75V/10% load |
16.8 ~ 20V/10% load |
31.5 ~ 37.5V/10% load |
||||||
|
Protection type : Hiccup mode, recovers automatically after fault condition isremoved |
|||||||||
|
|
|
||||||||
|
ENVIRONMENT |
|
||||||||
|
Working Temp. |
-10 ~ +60℃(Refer to “Derating Curve”) |
||||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||||||
|
Storage Temp., Humidity |
-20 ~ +85℃, 10 ~ 95% RH |
||||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 45℃) |
||||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||||||
|
|
|
||||||||
|
SAFETY & EMC |
|
||||||||
|
Safety Standards |
Design refer to LVD |
||||||||
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG:1.5KVACO/P-FG:0.5KVAC |
||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
||||||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B |
||||||||
|
EMC Immunity |
Compliance to EN61000-4-2, 3, 4, 6, 8, EN55024, heavy industry level, criteria A |
||||||||
|
|
|
||||||||
|
OTHERS |
|
||||||||
|
Dimension |
99*97*36mm (L*W*H) |
||||||||
|
Weight |
0.38kg |
||||||||
|
Packing |
45pcs/17.8kg/0.9CUFT |
||||||||
|
|
|
||||||||
|
NOTE |
|
||||||||
|
1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
|||||||||
