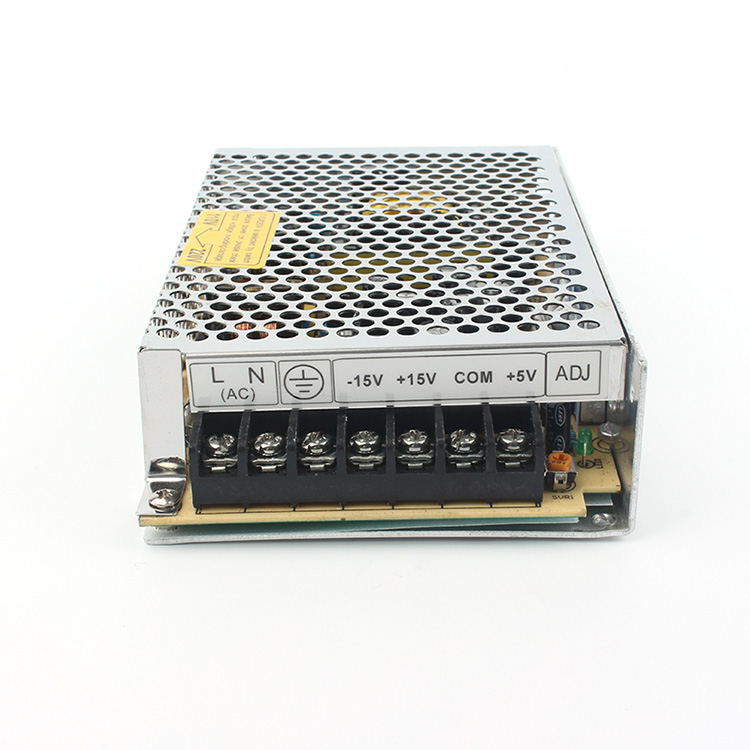

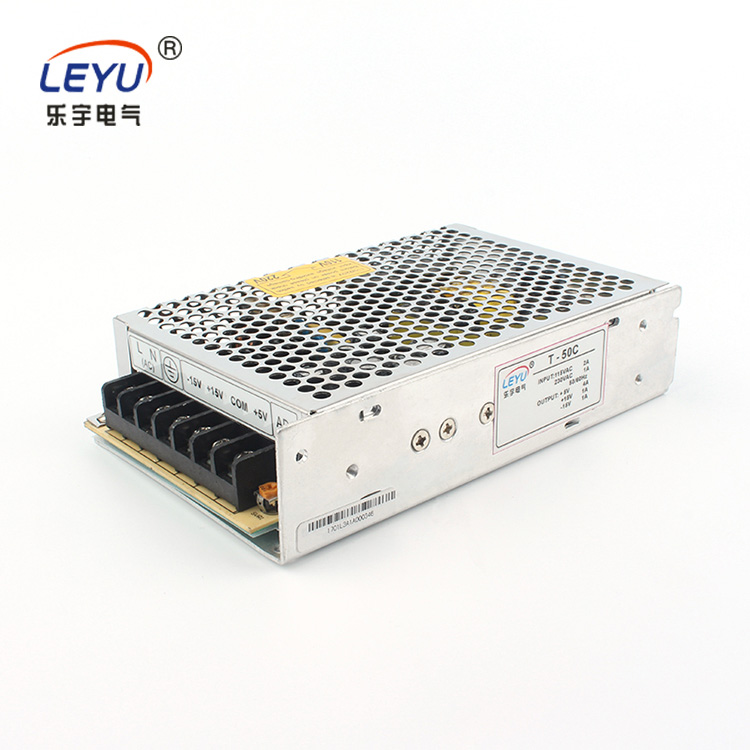

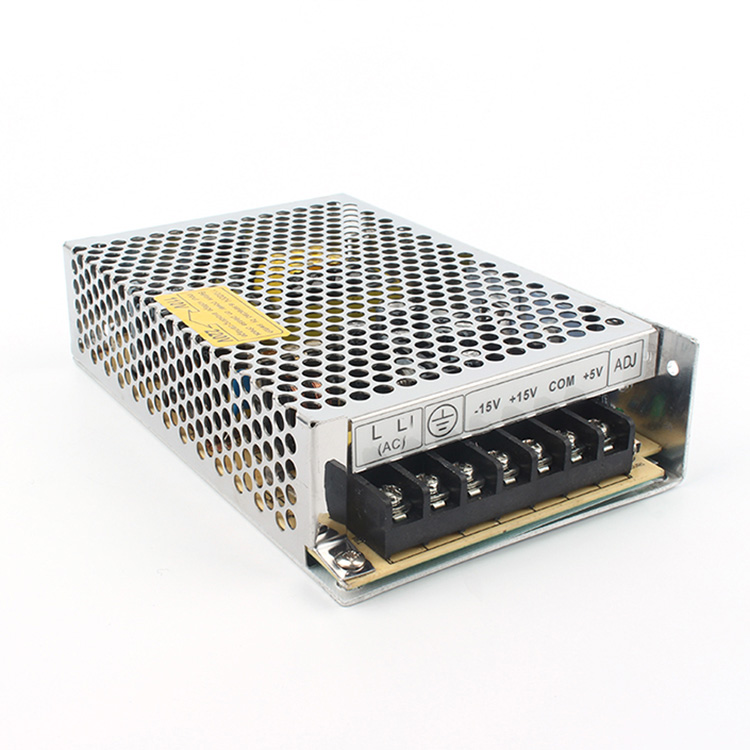

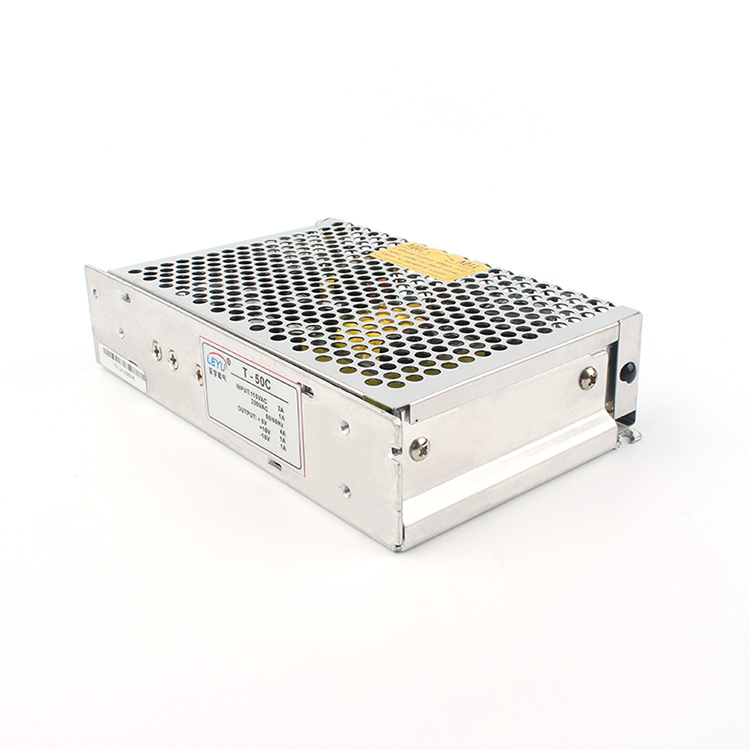

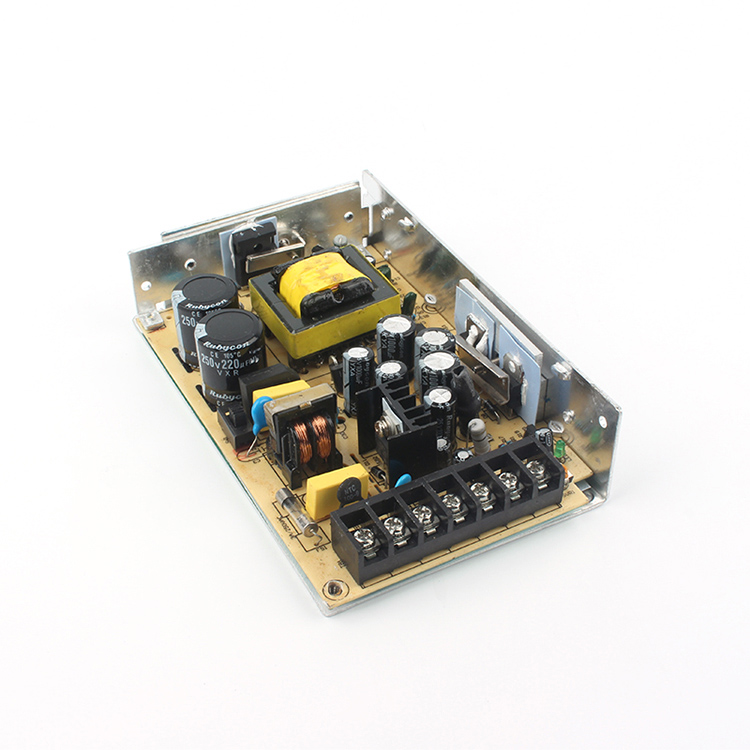

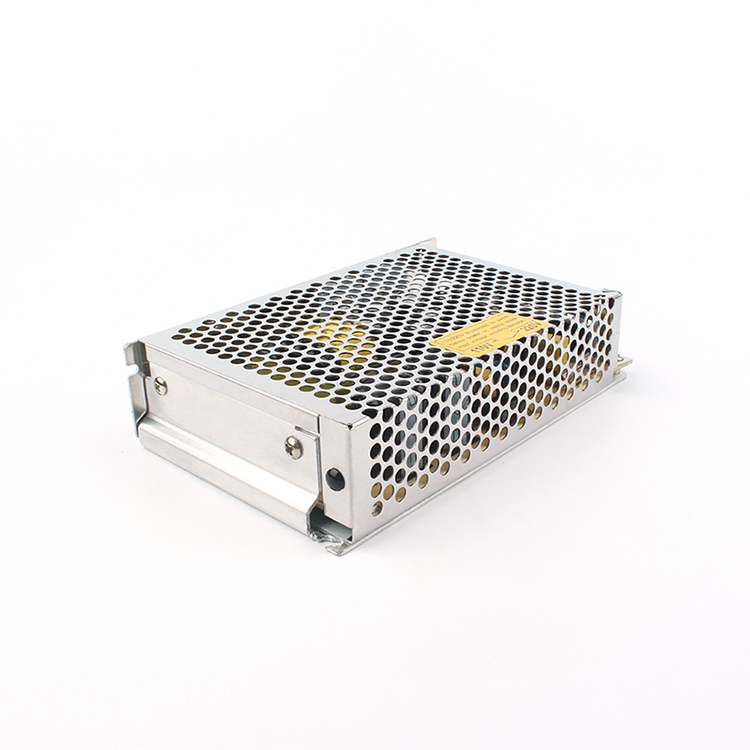

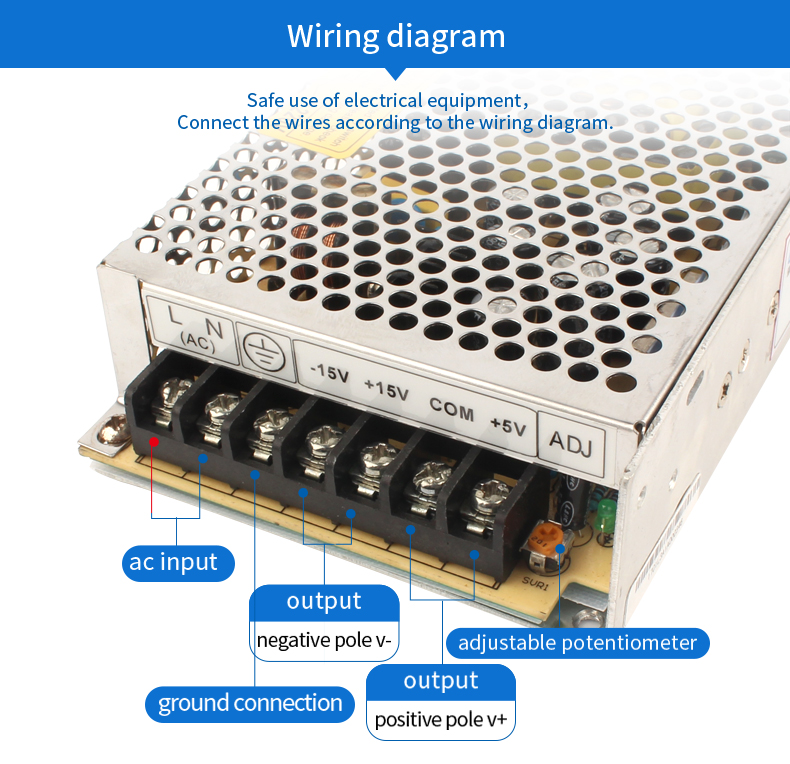

50W Triple Output Switching Power Supply T-50 series
Features:

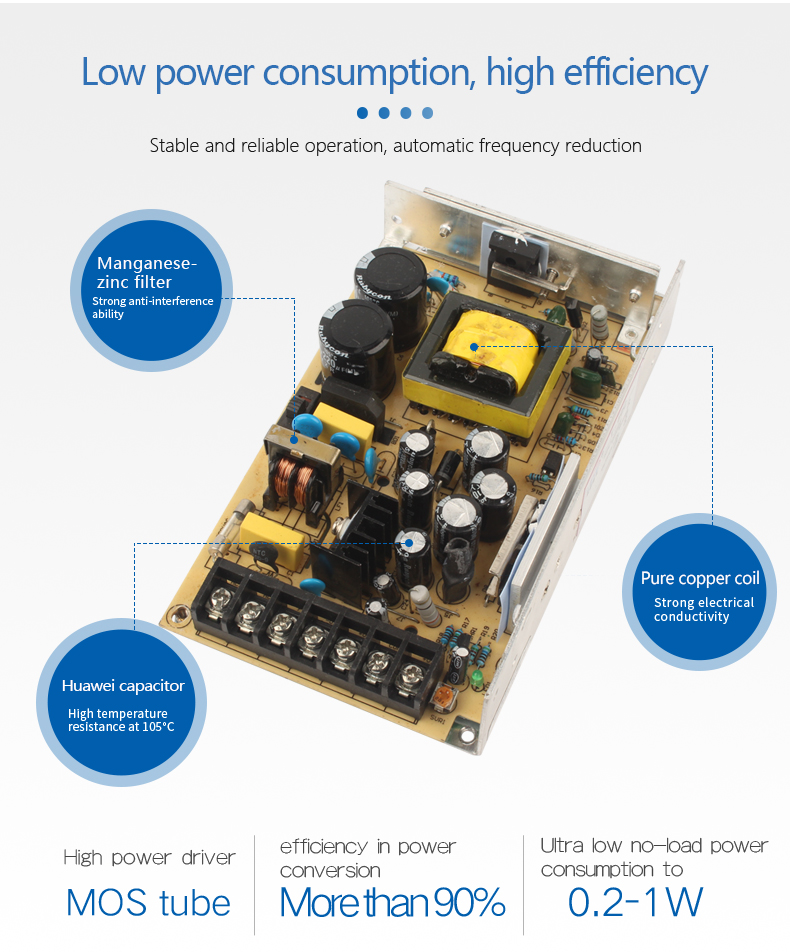

High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit/ Over load
cooling by free air convection
Fixed switching frequency at 24 KHz
2 year warranty
|
SPECIFICATIONS |
||||||||||||
|
OUTPUT |
|
|||||||||||
|
Model |
T-50A |
T-50B |
T-50C |
T-50D |
||||||||
|
Output number |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC Voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
12V |
24V |
|
Rated Current |
7A |
1A |
1A |
5A |
1A |
1A |
4A |
1A |
1A |
3A |
1A |
1A |
|
Current Range |
0.6-7A |
0.2-1A |
0.2-1A |
0.6-5A |
0.2-1A |
0.2-1A |
0.6-4A |
0.2-1A |
0.2-1A |
0.6-4A |
0.2-1.2A |
0.2-1.2A |
|
Rated Power |
52W |
52W |
52W |
49W |
49W |
49W |
50W |
50W |
50W |
51W |
51W |
51W |
|
Ripple & Noise |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
50mVp-p |
120mVp-p |
100mVp-p |
|
Voltage Adj. Range |
CH1: -5%, +10% |
CH1: -5%, +10% |
CH1: -5%, +10% |
CH1: -5%, +10% |
||||||||
|
Voltage Tolerance |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±6% |
±6% |
|
Setup,Rise,Hold Up Time |
200ms,100ms,16ms at full load |
|||||||||||
|
|
|
|||||||||||
|
INPUT |
|
|||||||||||
|
Voltage Range |
85~132VAC/170~264VACselected by switch 47-63Hz; 240~370VDC |
|||||||||||
|
AC Current |
1.6A/115V0.8A/230V |
|||||||||||
|
Efficiency |
66% |
69% |
71% |
72% |
||||||||
|
Inrush Current |
Cold start 20A/115V40A/230V |
|||||||||||
|
Leakage Current |
<0.5mA/240VAC |
|||||||||||
|
|
|
|||||||||||
|
PROTECTION |
|
|||||||||||
|
Over Load |
105%~150% |
|||||||||||
|
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed. |
||||||||||||
|
|
|
|||||||||||
|
ENVIRONMENT |
|
|||||||||||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
|||||||||||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|||||||||||
|
Vibration |
10~500Hz, 2G 10min./1 cycle, period for 60min, each along X, Y, Z axes |
|||||||||||
|
|
|
|||||||||||
|
SAFETY |
|
|||||||||||
|
Withstand Voltage |
I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
|||||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||||||||
|
|
|
|||||||||||
|
STANDARD |
|
|||||||||||
|
Safety Standard |
Design refer to UL1012 |
|||||||||||
|
|
|
|||||||||||
|
OTHERS |
|
|||||||||||
|
Dimension |
159*97*38mm(L*W*H) |
|||||||||||
|
Weight |
0.54Kg |
|||||||||||
|
Packing |
24pcs/14Kg/0.75CUFT |
|||||||||||
|
|
|
|||||||||||
|
NOTE |
|
|||||||||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation |
||||||||||||
