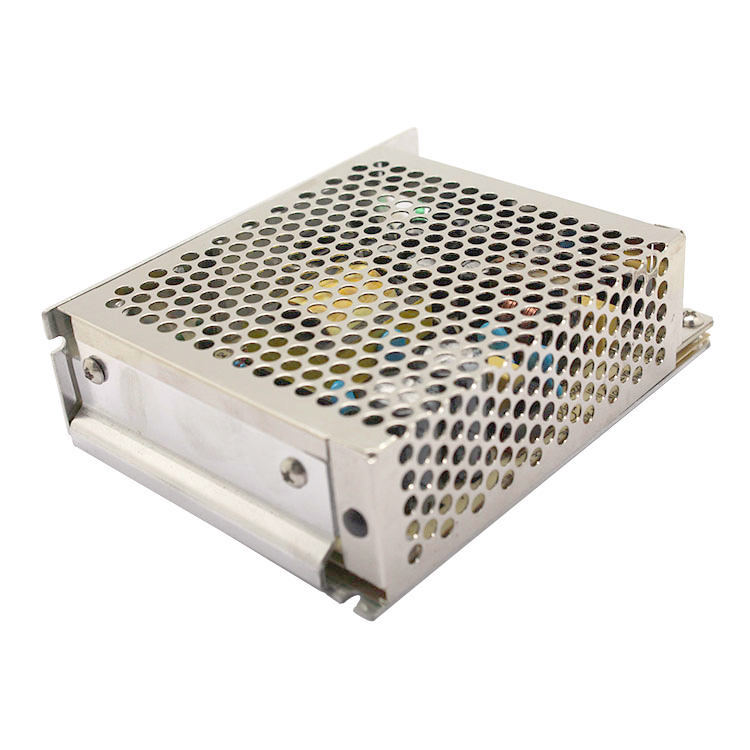

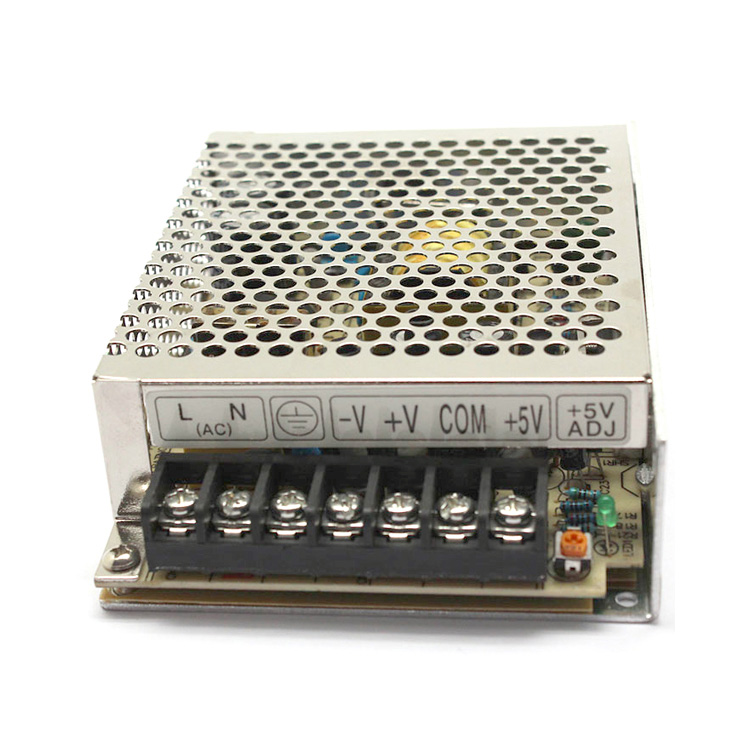

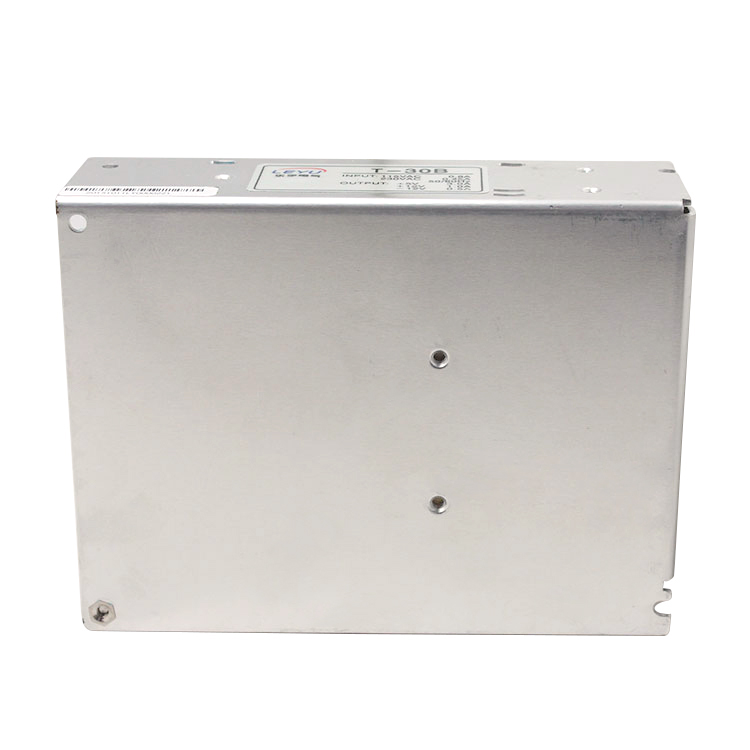

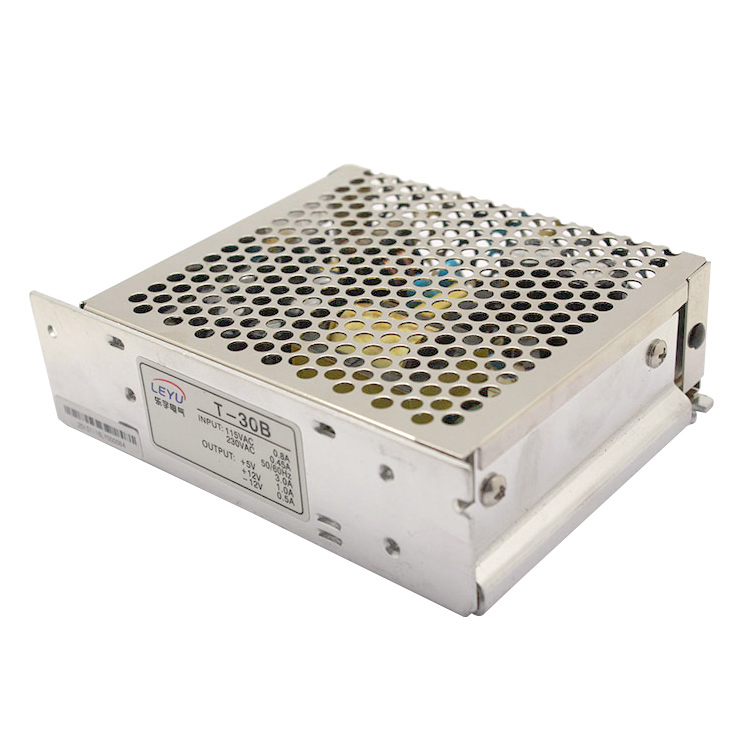

30W Triple Output Switching Power Supply T-30 series
Features:
High efficiency, high reliability, low cost
AC input range selected by switch
Protections: Short circuit/ Over load
LED indicator for power on
Cooling by free air convection
Fixed switch frequency at 23KHz
2 year warranty
|
SPECIFICATIONS |
||||||
|
OUTPUT |
|
|||||
|
Model |
T-30A |
T-30B |
||||
|
Output number |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC Voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
|
Rated Current |
3A |
1A |
0.5A |
3A |
1A |
0.5A |
|
Current Range |
0.5-3A |
0.1-1A |
0.1-0.5A |
0.5-3A |
0.1-1A |
0.1-0.5A |
|
Rated Power |
30W |
30W |
30W |
33W |
33W |
33W |
|
Ripple & Noise |
50mVp-p |
100mVp-p |
50mVp-p |
50mVp-p |
100mVp-p |
100mVp-p |
|
Voltage Adj. Range |
CH1: -5%, +10% |
CH1: -5%, +10% |
||||
|
Voltage Tolerance |
±2% |
+2%,-6% |
+2%,-10% |
±2% |
+2%,-6% |
±6% |
|
Setup,Rise,Hold Up Time |
200ms,100ms,30ms at full load |
|||||
|
|
|
|||||
|
INPUT |
|
|||||
|
Voltage Range |
85~132VAC/170~264VACselected by switch47~63Hz; 40~370VDC |
|||||
|
AC Current |
0.8A/115V0.45A/230V |
|||||
|
Efficiency |
70% |
72% |
||||
|
Inrush Current |
Cold start 18A/115V36A/230V |
|||||
|
Leakage Current |
<0.75mA/240VAC |
|||||
|
|
|
|||||
|
PROTECTION |
|
|||||
|
Over Load |
105%~150% |
|||||
|
Protection type: Fold back current limiting, recovers automatically after fault condition is removed |
||||||
|
|
|
|||||
|
ENVIRONMENT |
|
|||||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
|||||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||||
|
|
|
|||||
|
SAFETY |
|
|||||
|
Withstand Voltage |
I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG: 0.5KVAC |
|||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
|
|
|
|||||
|
STANDARD |
|
|||||
|
Safety Standard |
Design refer to UL 1012 |
|||||
|
EMC Standard |
Design refer to FCC Part15 J Conduction Class A |
|||||
|
|
|
|||||
|
OTHERS |
|
|||||
|
Dimension |
129*98*38mm(L*W*H) |
|||||
|
Weight |
0.42Kg |
|||||
|
Packing |
30pcs/13.6Kg/0.86CUFT |
|||||
|
|
|
|||||
|
NOTE |
|
|||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation |
||||||
