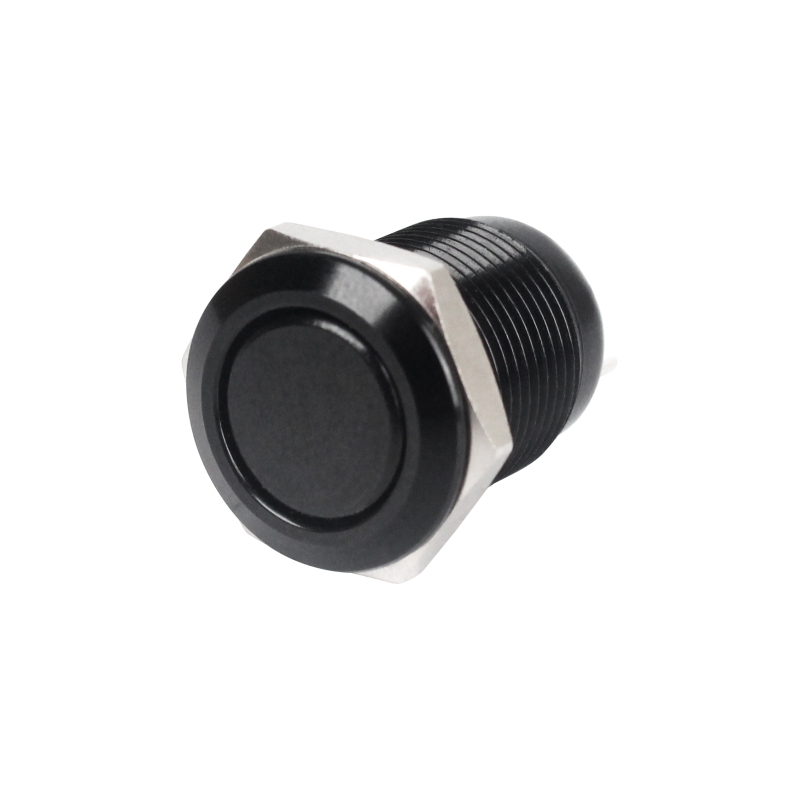

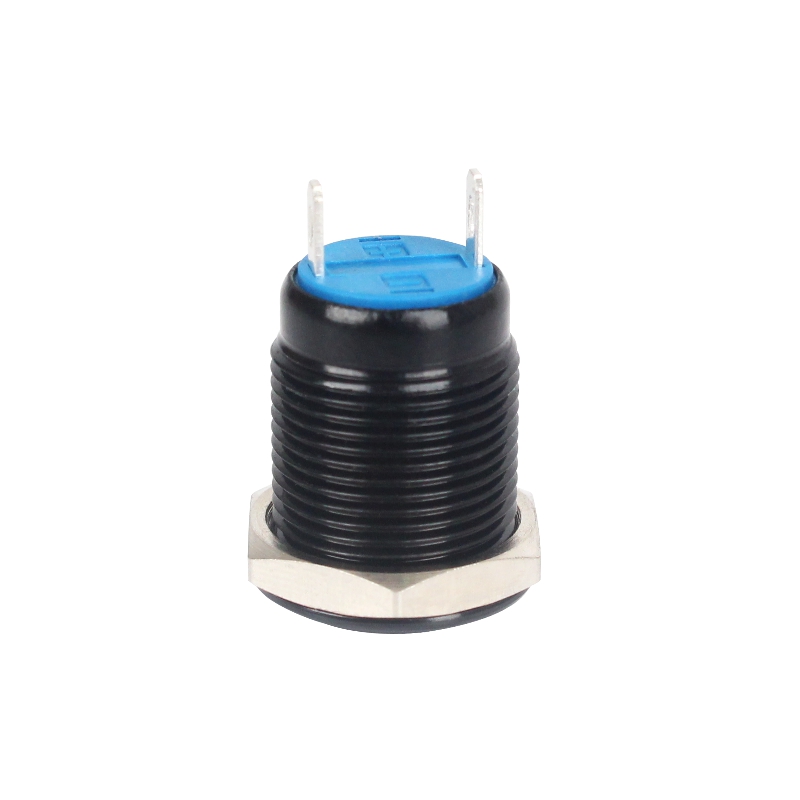

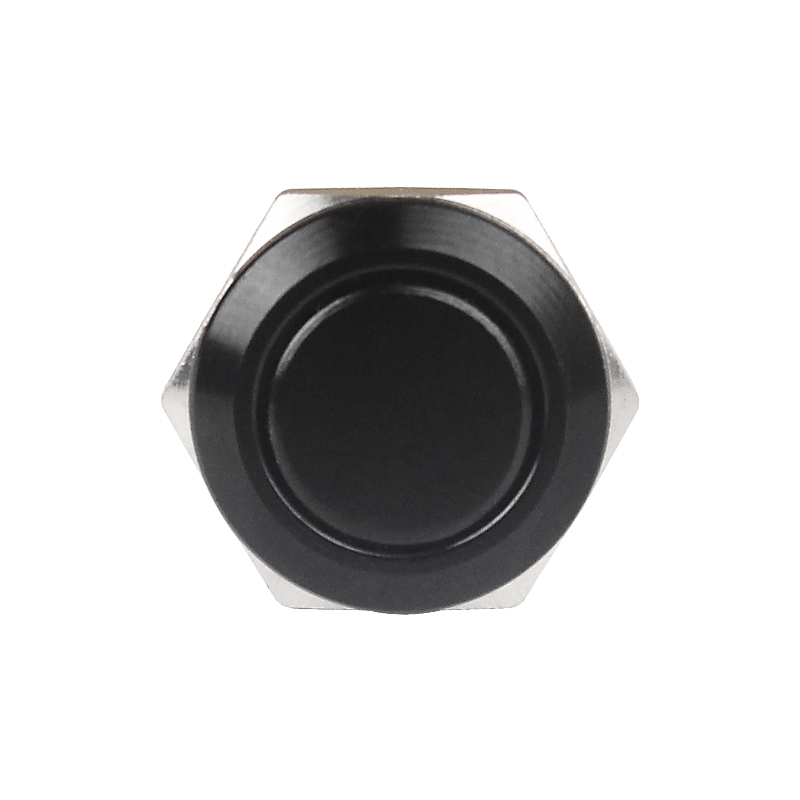

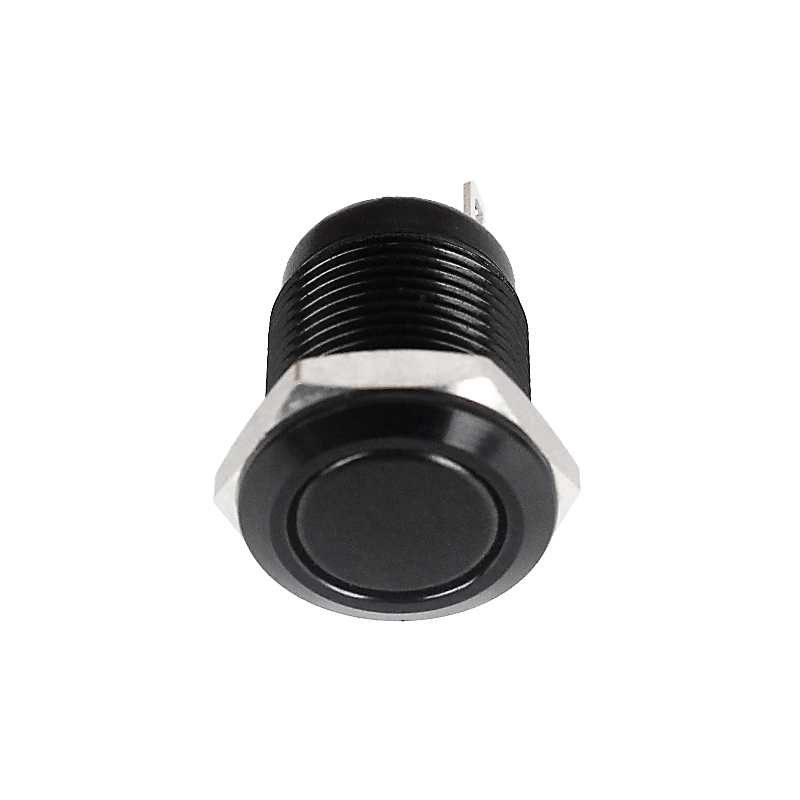

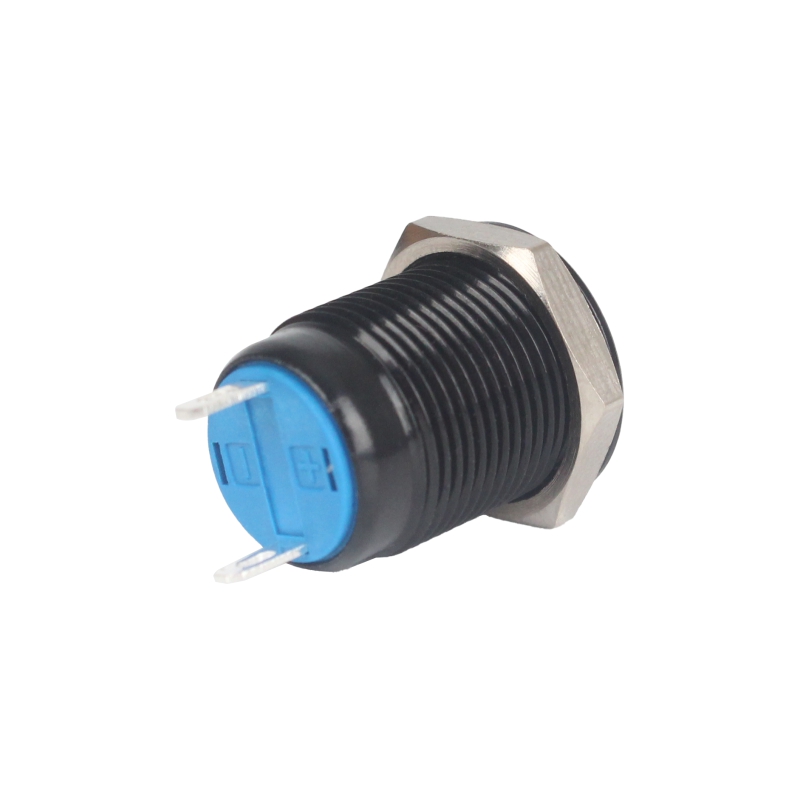

12mm Black Button Switch
Online Service
Product Detail

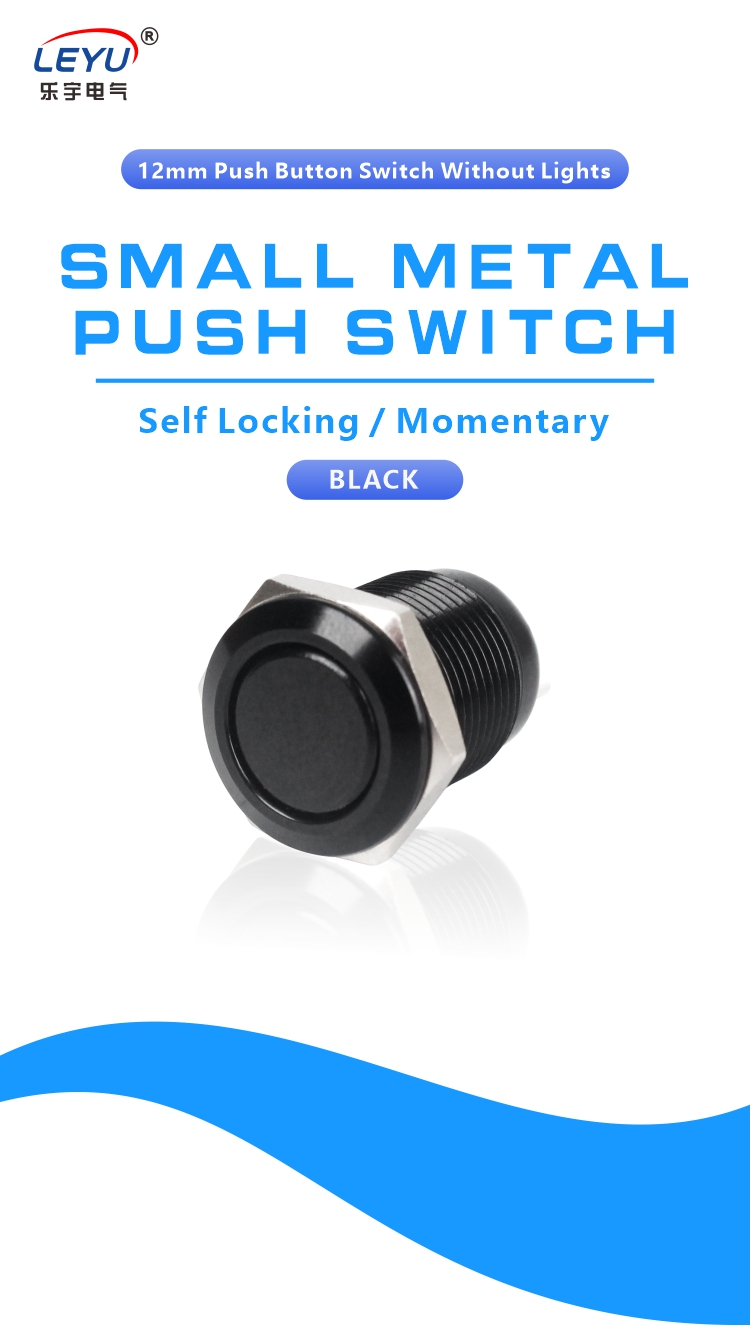

12mm Black Button Switch
1.Ultra short length , only 33.4mm.

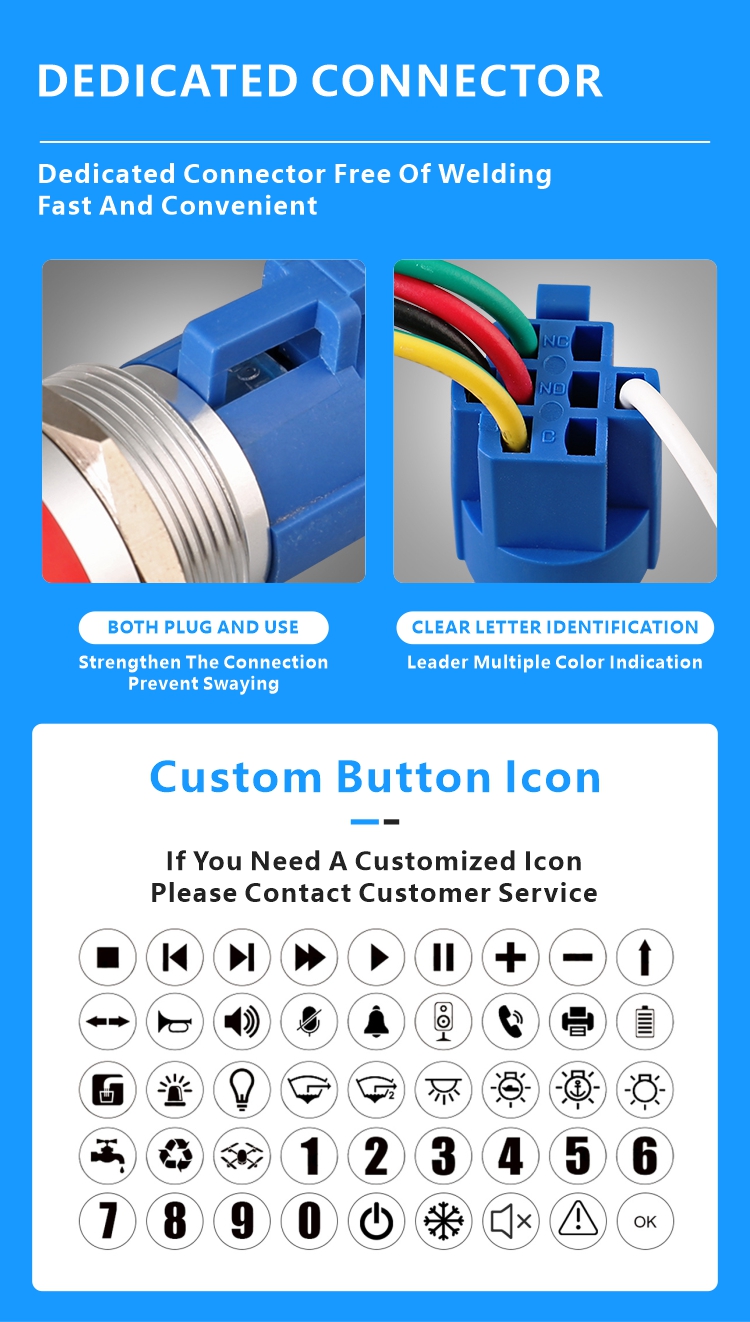

2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With both flat and spherical design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP65;
6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;
7.It has applied of many patents ,RoHS,CE approve

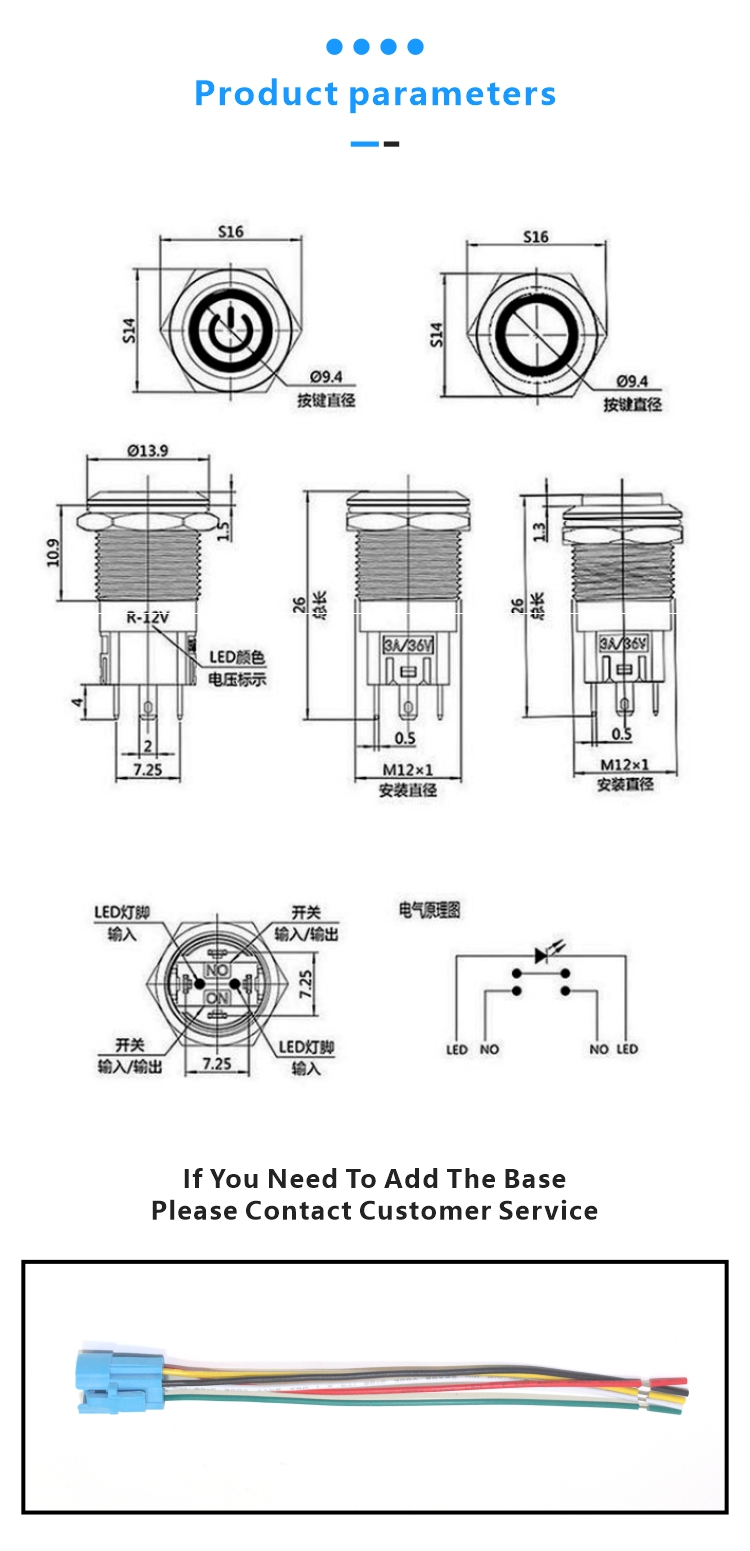

Product Name
Push Button Switch
Origin
Zhejiang China
Model
B-12K
Mounting Hole
12mm
Terminal
4-5
Operation Type

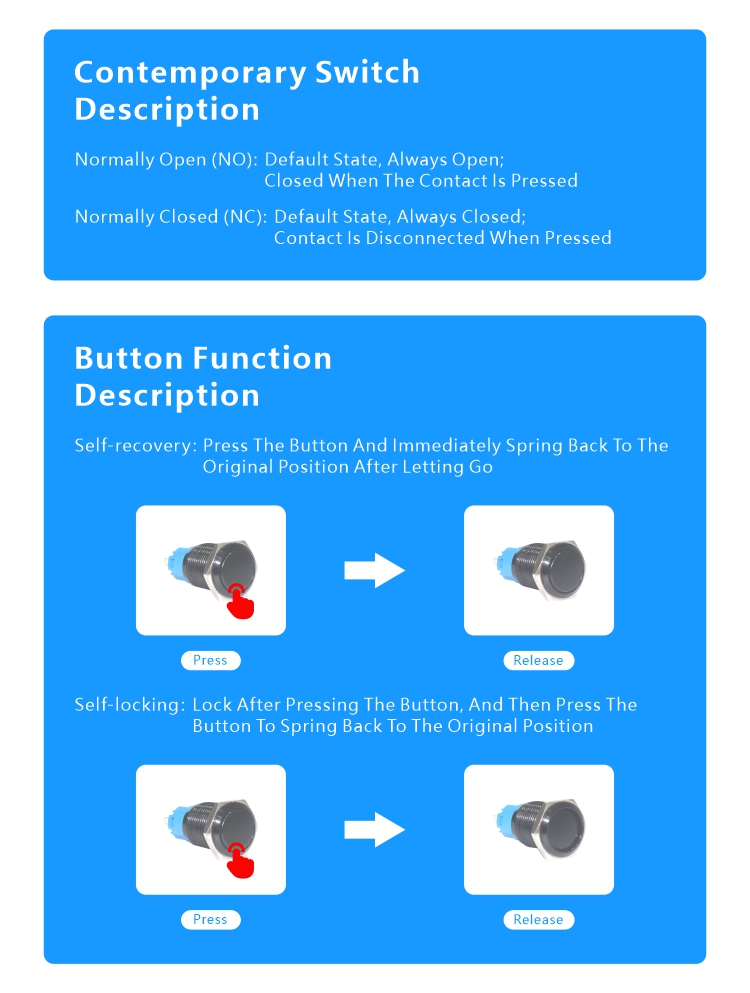

Self-locking & reset
Light Type
With Light & Without Light
Housing Color
Input voltage range
(3V ~ 6V) \ 12V ~ 24V
Current range
3A 5A 10A
Switch Combination
1NO 1NC
Head Type
Flat
Protection Level
IP65\IP67
Terminal type
4~5 Pin Terminals

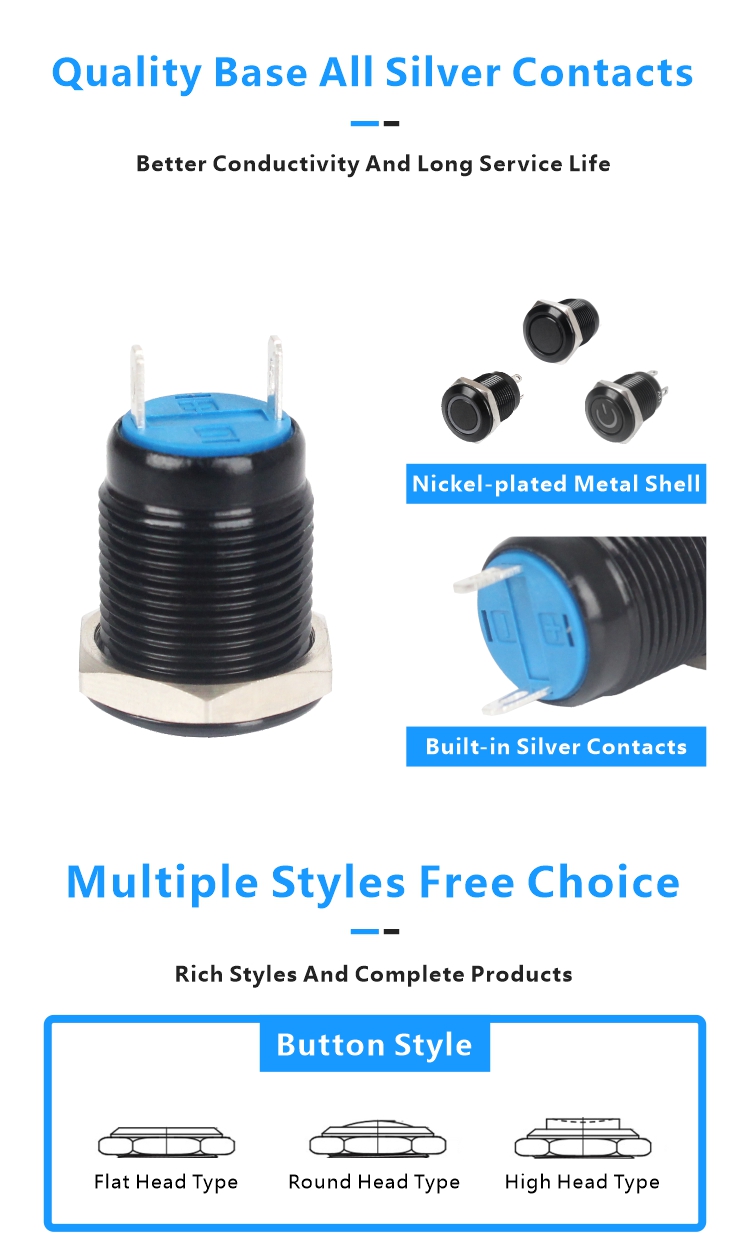

Material
Nickel plated brass\stainless steel
Delivery Days
1-7 days
Contact Resistance
50 mΩ max
Insulation Resistance
1000MΩ Min
Operating Temperature
-20°C ~+55°C
Wire Soldering
Acceptable and with fast shipping
Accessories
Nut, Rubber Gasket
More size
7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM
Customized requirement
Acceptable
A small box
10 box
The number of life
Over 50000 times
The box size
20.5cm*14cm *7cm
Large box size
22cm *28.5cm *30.5cm
Single weight:
0.02 kg
Silver
