16mm Black Button Switch
Online Service
Product Detail

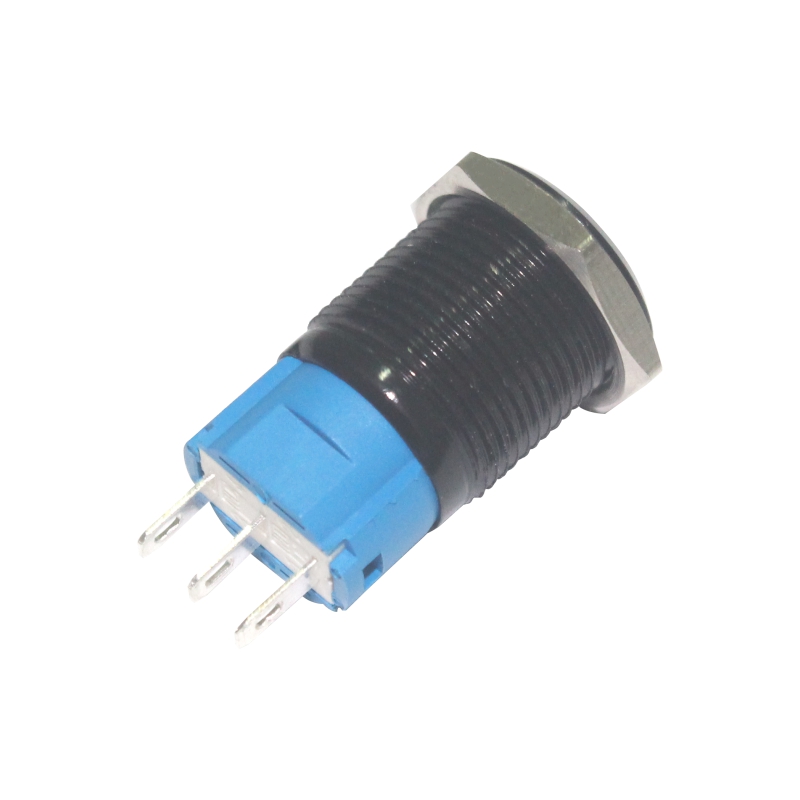

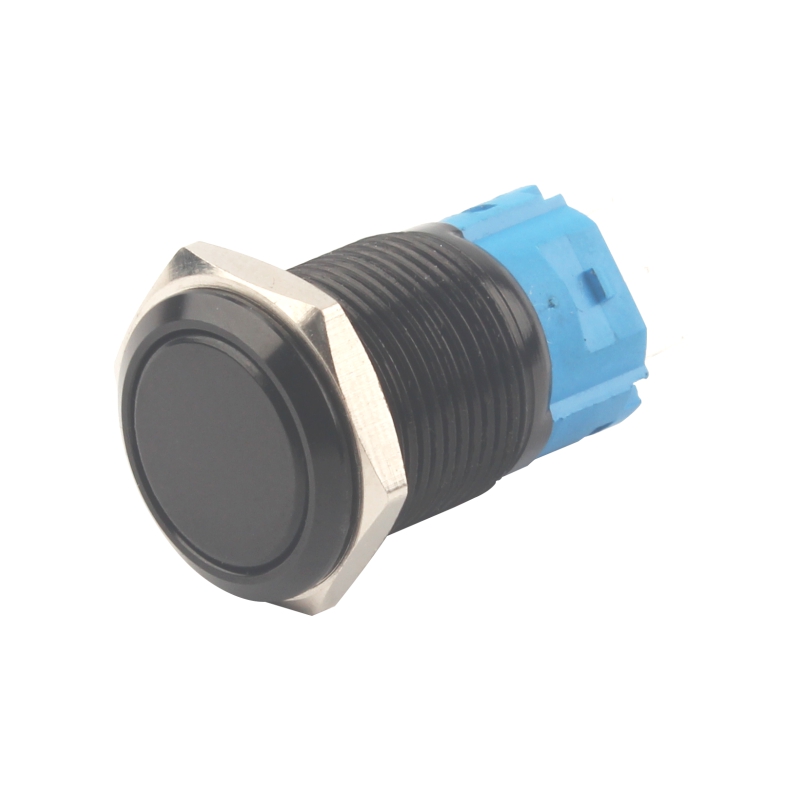

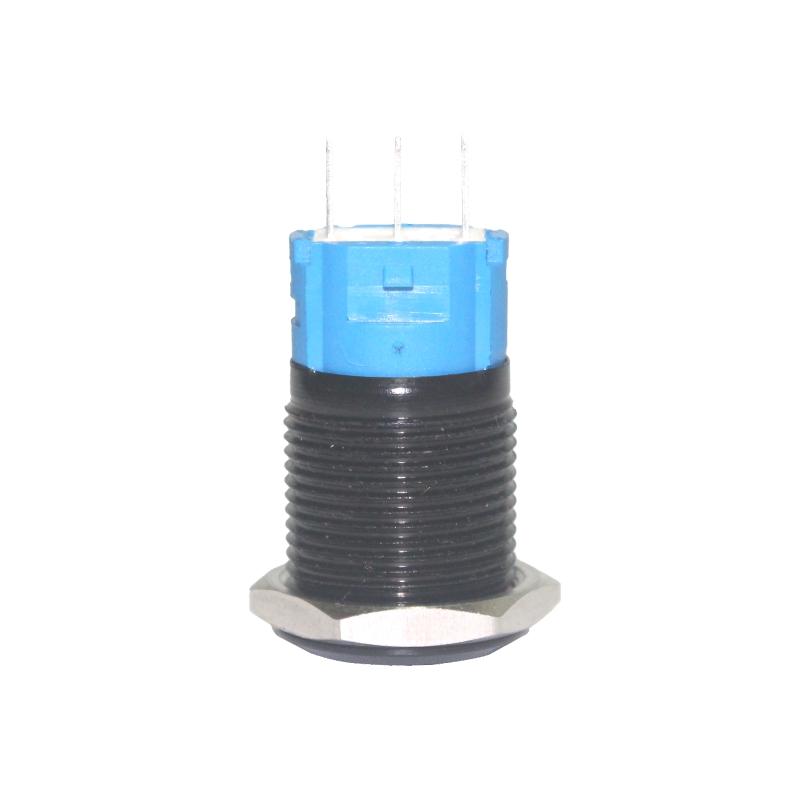

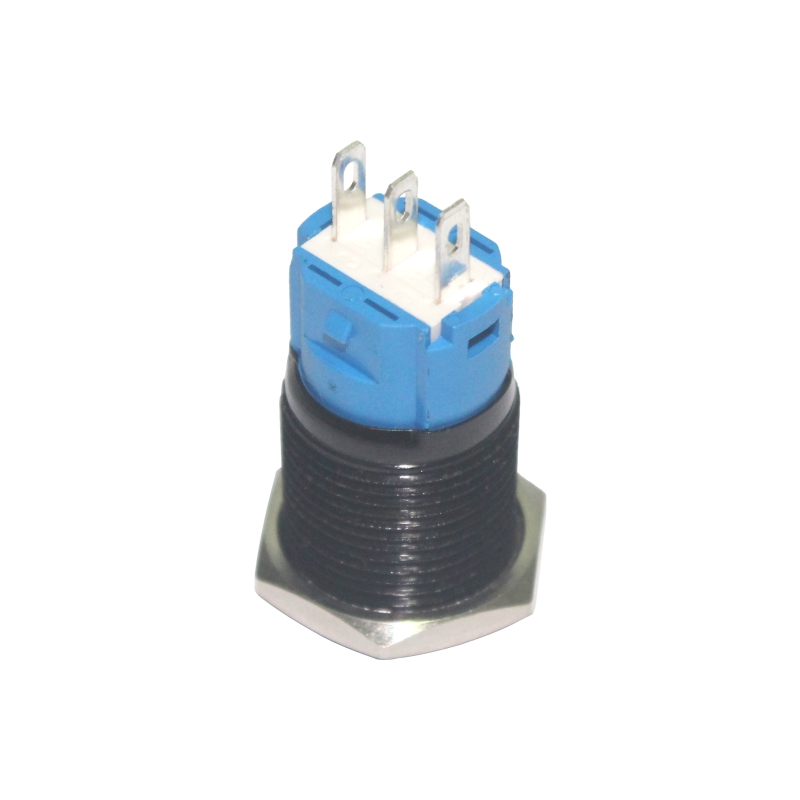

16mm Black Button Switch
1.Ultra short length , only 33.4mm.

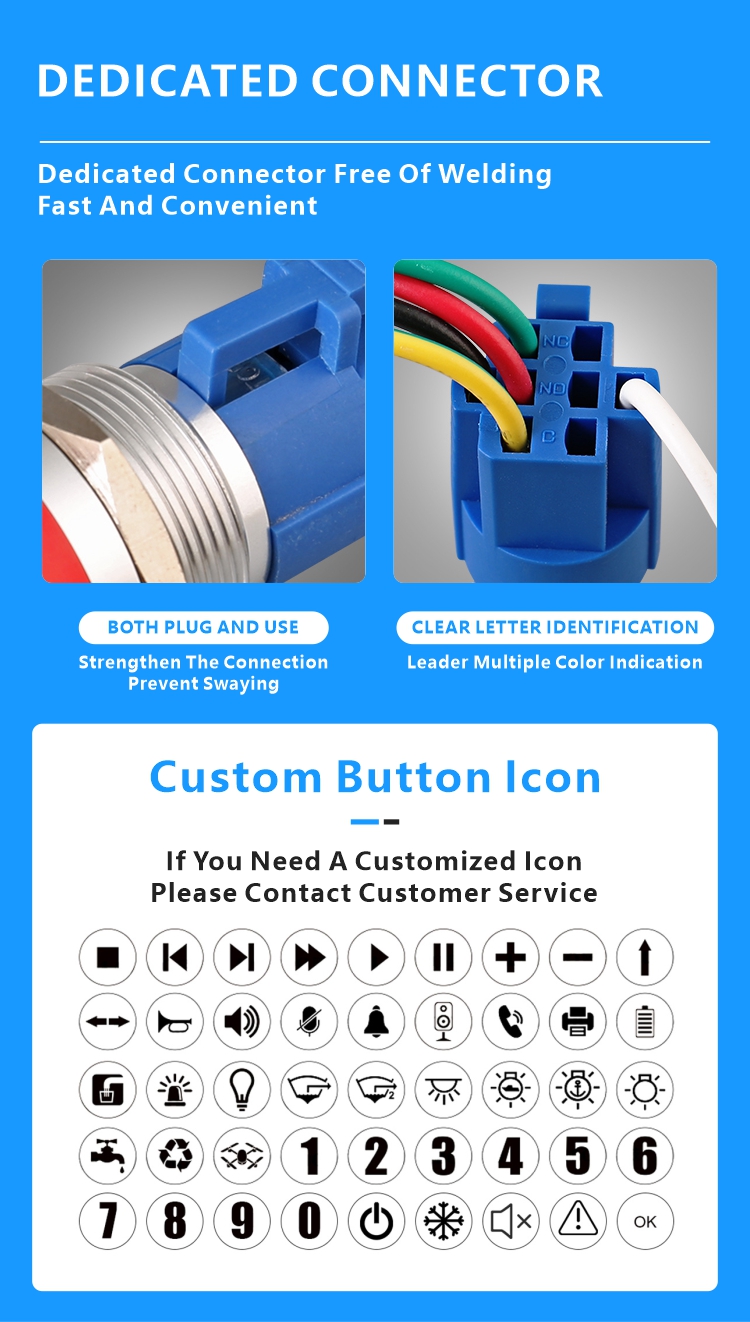

2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With both flat and spherical design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP65;
6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;
7.It has applied of many patents ,RoHS,CE approve
Product Name
Push Button Switch
Origin
Zhejiang China
Model
B-16K
Mounting Hole
16 mm

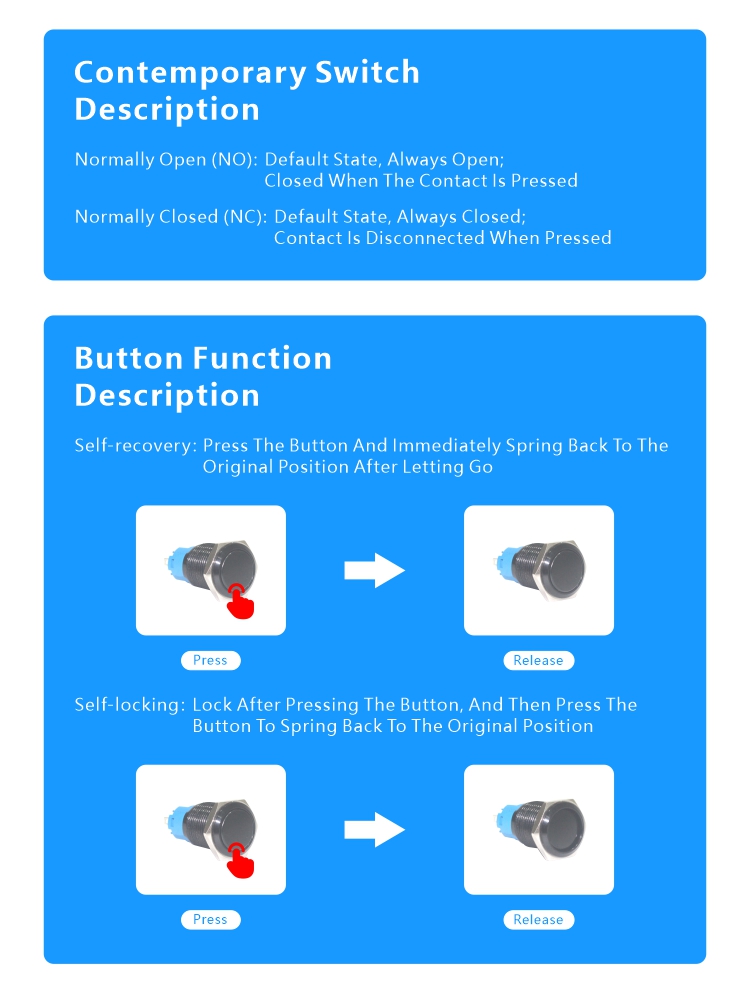

Operation Type
Self-locking & reset
Light Type
With Light & Without Light
Housing Color
Black
Input voltage range
(3V ~ 6V) \ 12V ~ 24V
Current range
3A 5A 10A

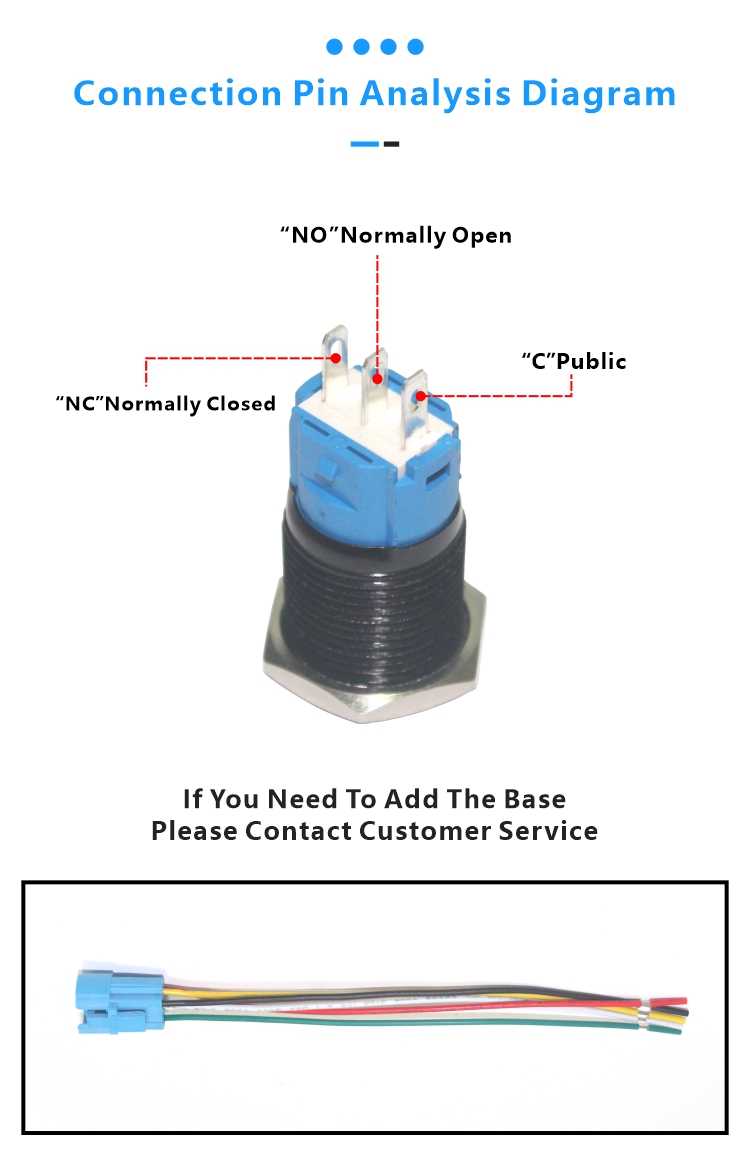

Switch Combination
1NO 1NC
Head Type
Flat
Protection Level
IP65\IP67
Terminal type
4~5 Pin Terminals
Illuminated or not
NO
Material
Nickel plated brass\stainless steel
Delivery Days
1-7 days
Contact Resistance
50 mΩ max
Insulation Resistance
1000MΩ Min
Operating Temperature
-20°C ~+55°C
Wire Soldering
Acceptable and with fast shipping
Accessories
Nut, Rubber Gasket
Certification
CE
More size
7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM
The number of life
Over 50000 times
The box size
20.5cm*14cm *7cm
Large box size
22cm *28.5cm *30.5cm
Single weight:
0.025 kg
