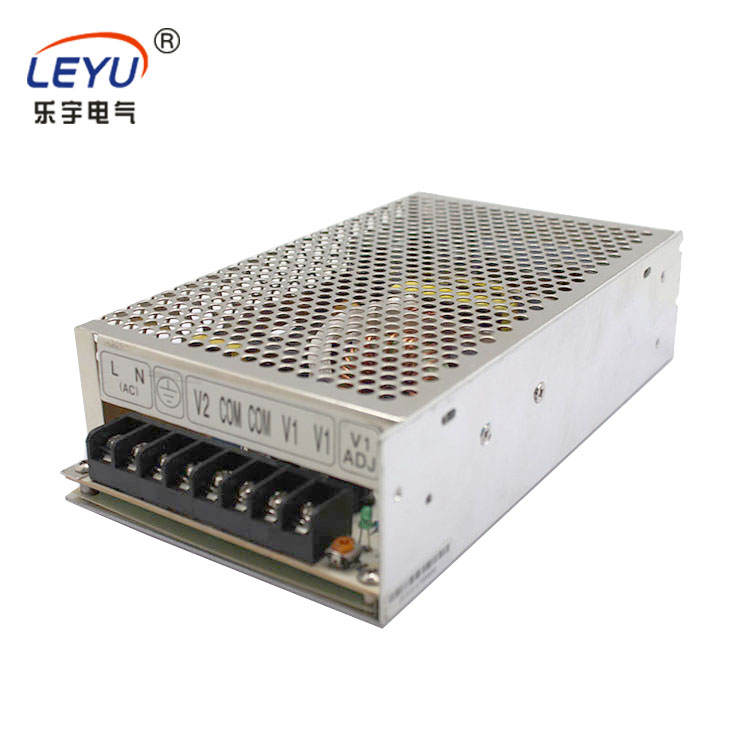

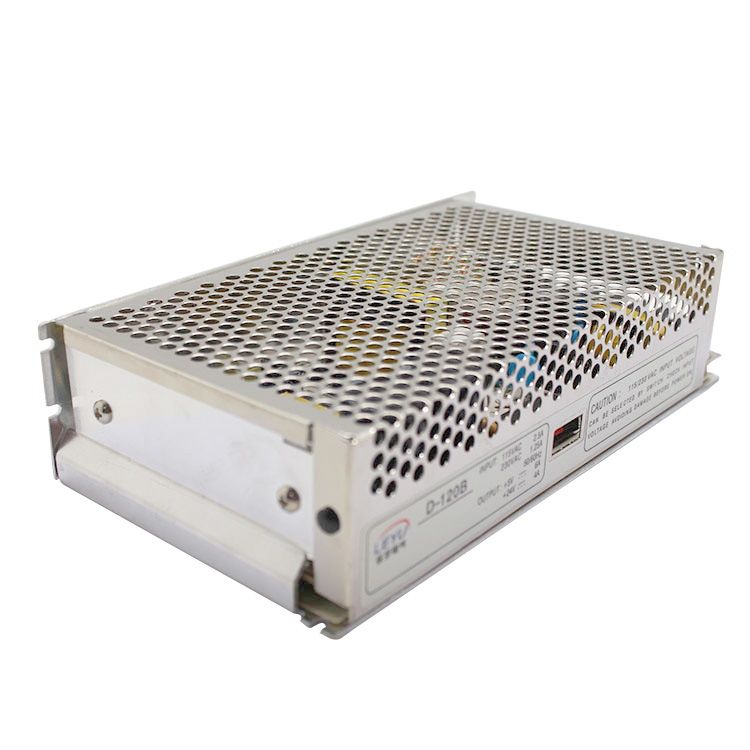

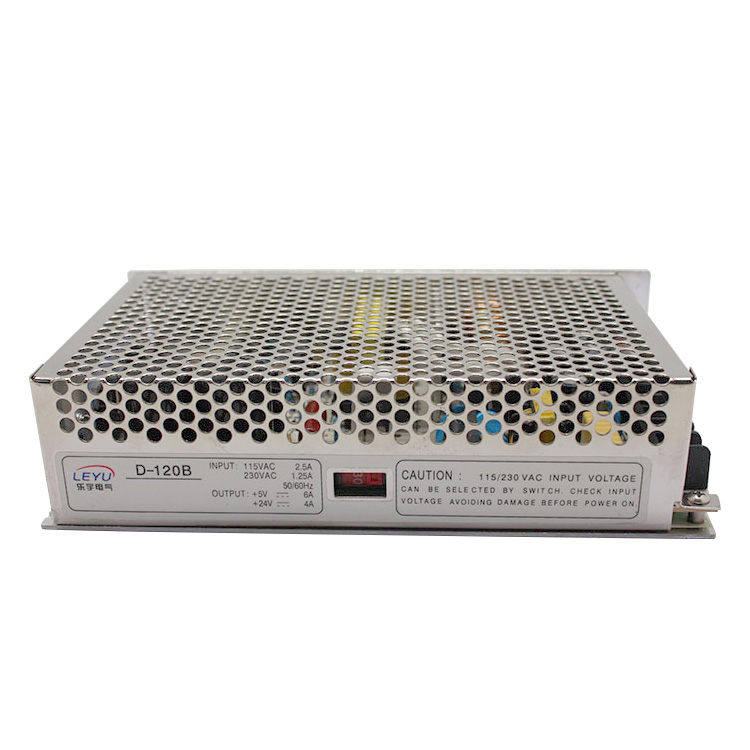

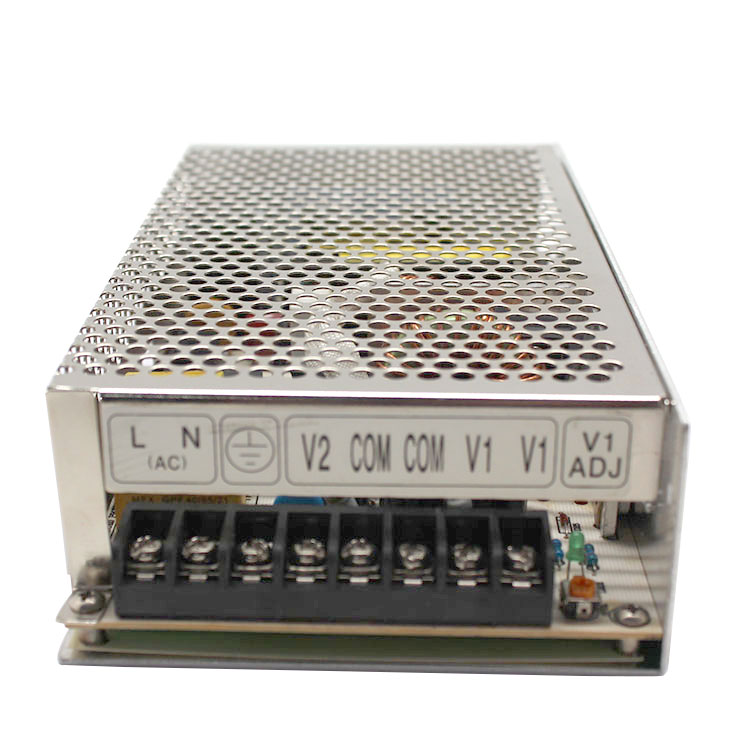

120W Dual Output Switching Power Supply D-120 series
Features:

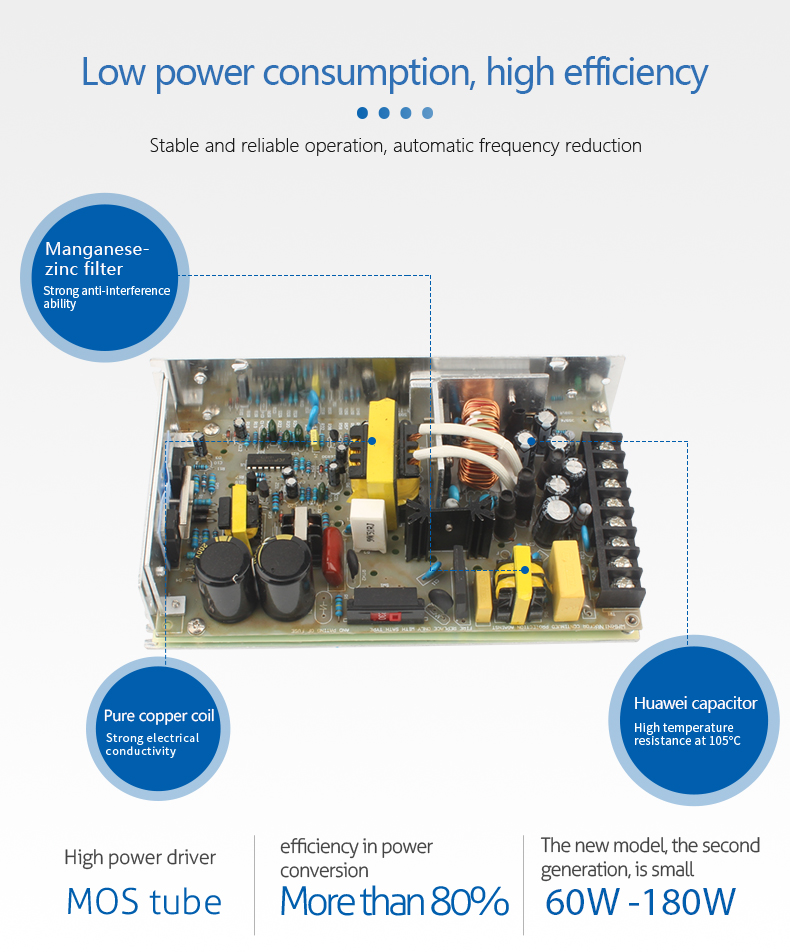

High efficiency, high reliability
AC input range selected by switch
100% full load burn-in test

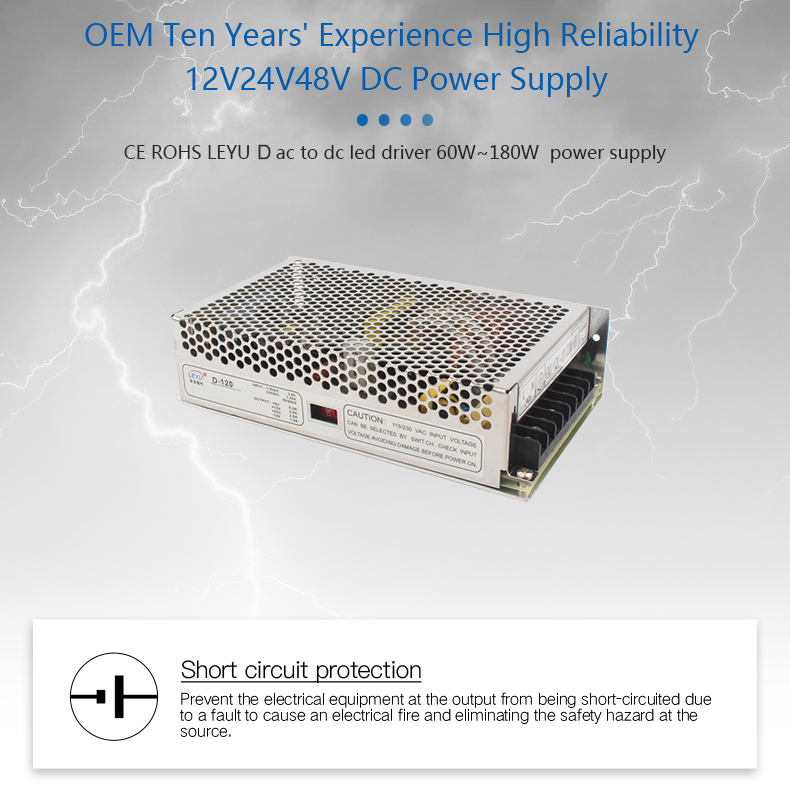

Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Fixed switching frequency at 28KHz
2 years warranty
|

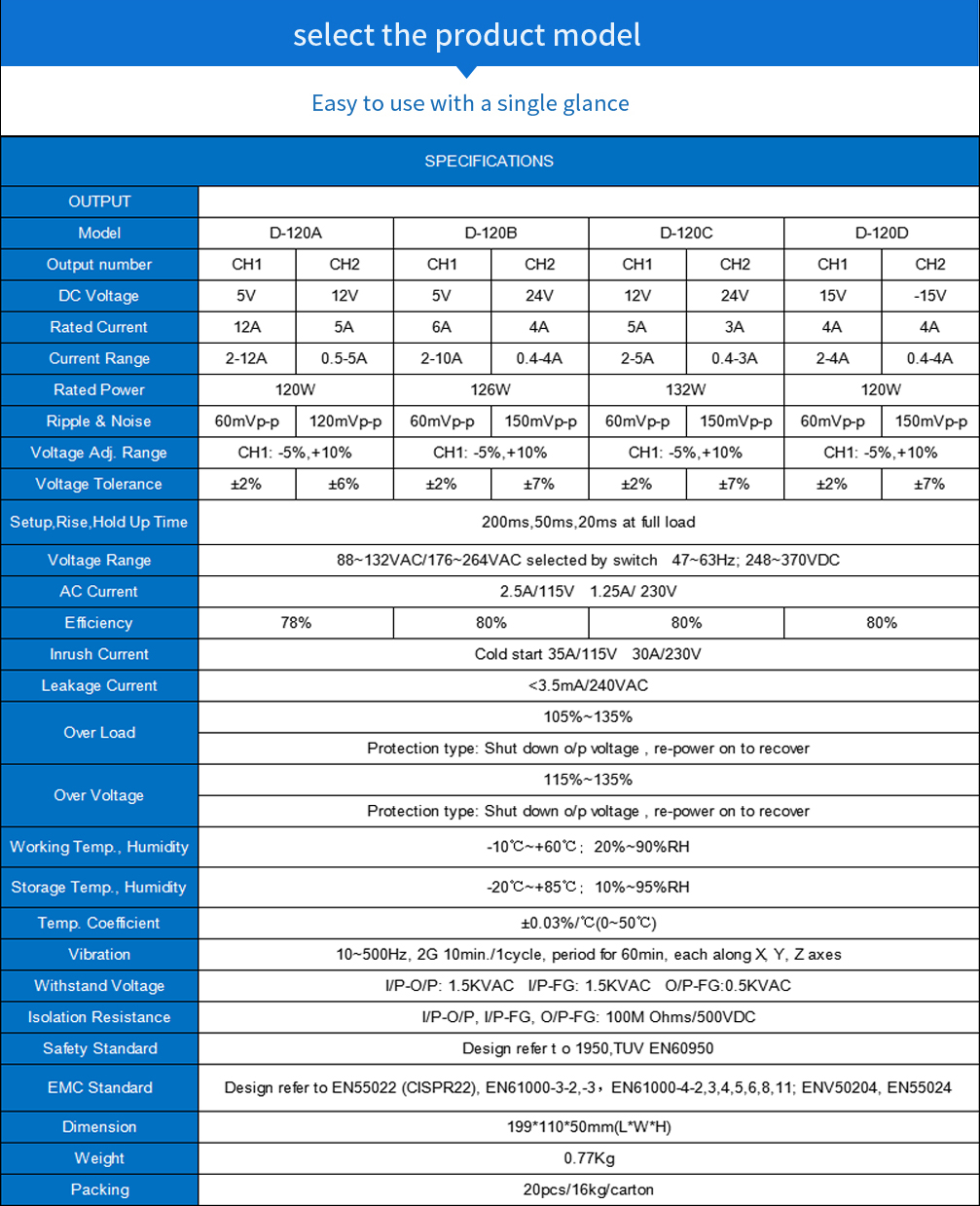

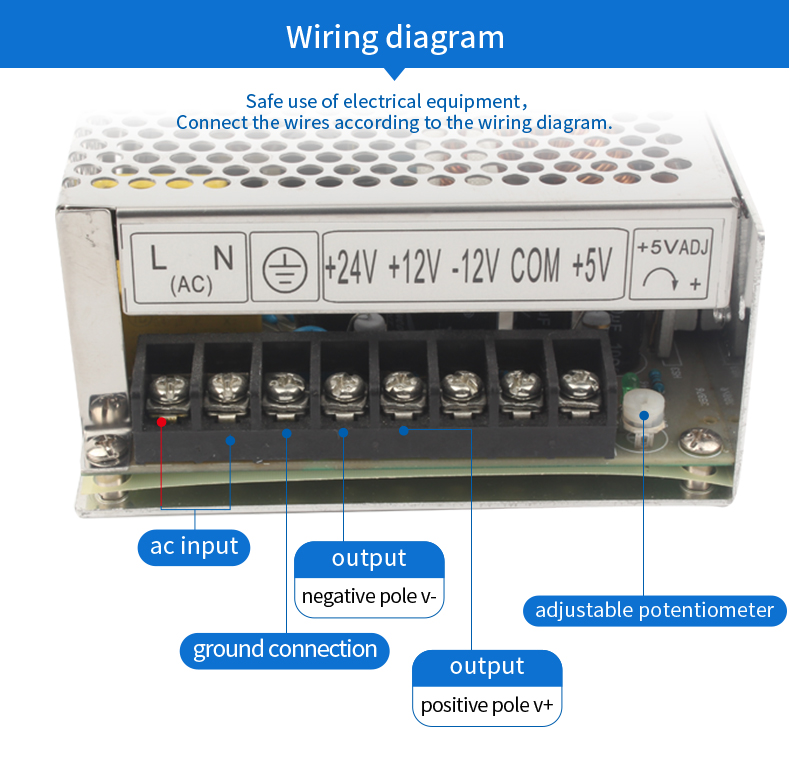

SPECIFICATIONS |
||||||||||
|
OUTPUT |
|
|||||||||
|
Model |
D-120A |
D-120B |
D-120C |
D-120D |
||||||
|
Output number |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
||
|
DC Voltage |
5V |
12V |
5V |
24V |
12V |
24V |
15V |
-15V |
||
|
Rated Current |
12A |
5A |
6A |
4A |
5A |
3A |
4A |
4A |
||
|
Current Range |
2-12A |
0.5-5A |
2-10A |
0.4-4A |
2-5A |
0.4-3A |
2-4A |
0.4-4A |
||
|
Rated Power |
120W |
126W |
132W |
120W |
||||||
|
Ripple & Noise |
60mVp-p |
120mVp-p |
60mVp-p |
150mVp-p |
60mVp-p |
150mVp-p |
60mVp-p |
150mVp-p |
||
|
Voltage Adj. Range |
CH1: -5%,+10% |
CH1: -5%,+10% |
CH1: -5%,+10% |
CH1: -5%,+10% |
||||||
|
Voltage Tolerance |
±2% |
±6% |
±2% |
±7% |
±2% |
±7% |
±2% |
±7% |
||
|
Setup,Rise,Hold Up Time |
200ms,50ms,20ms at full load |
|||||||||
|
|
|
|||||||||
|
INPUT |
|
|||||||||
|
Voltage Range |
88~132VAC/176~264VACselected by switch47~63Hz; 248~370VDC |
|||||||||
|
AC Current |
2.5A/115V 1.25A/ 230V |
|||||||||
|
Efficiency |
78% |
80% |
80% |
80% |
||||||
|
Inrush Current |
Cold start 35A/115V 30A/230V |
|||||||||
|
Leakage Current |
<3.5mA/240VAC |
|||||||||
|
|
|
|||||||||
|
PROTECTION |
|
|||||||||
|
Over Load |
105%~135% |
|||||||||
|
Protection type: Shut down o/p voltage , re-power on to recover |
||||||||||
|
Over Voltage |
115%~135% |
|||||||||
|
Protection type: Shut down o/p voltage , re-power on to recover |
||||||||||
|
|
|
|||||||||
|
ENVIRONMENT |
|
|||||||||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
|||||||||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|||||||||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|||||||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||||||||
|
|
|
|||||||||
|
SAFETY |
|
|||||||||
|
Withstand Voltage |
I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG:0.5KVAC |
|||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||||||
|
|
|
|||||||||
|
STANDARD |
|
|||||||||
|
Safety Standard |
Design refer to 1950,TUV EN60950 |
|||||||||
|
EMC Standard |
Design refer to EN55022 (CISPR22), EN61000-3-2,-3，EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024 |
|||||||||
|
|
|
|||||||||
|
OTHERS |
|
|||||||||
|
Dimension |
199*110*50mm(L*W*H) |
|||||||||
|
Weight |
0.77Kg |
|||||||||
|
Packing |
20pcs/16kg/carton |
|||||||||
|
|
|
|||||||||
|
NOTE |
|
|||||||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment mustbe re-confirmed that it still meets EMC directives. |
||||||||||
