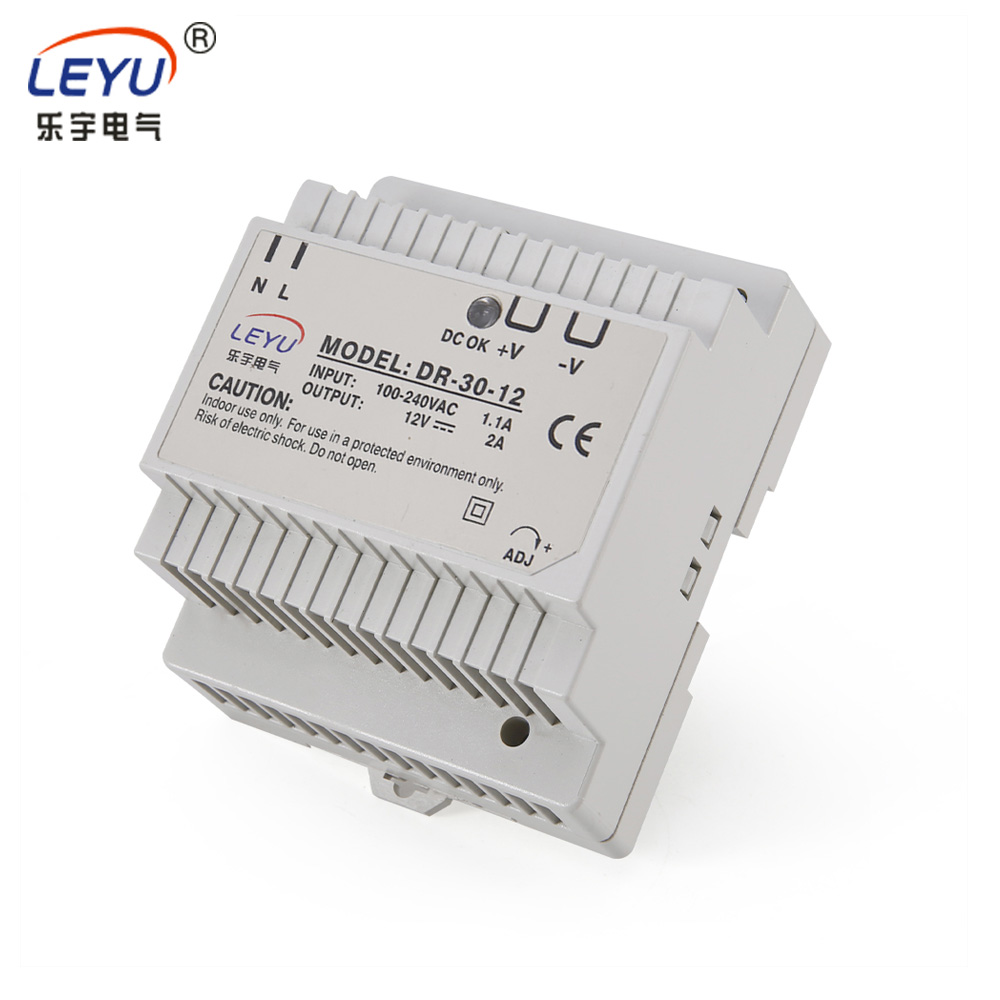

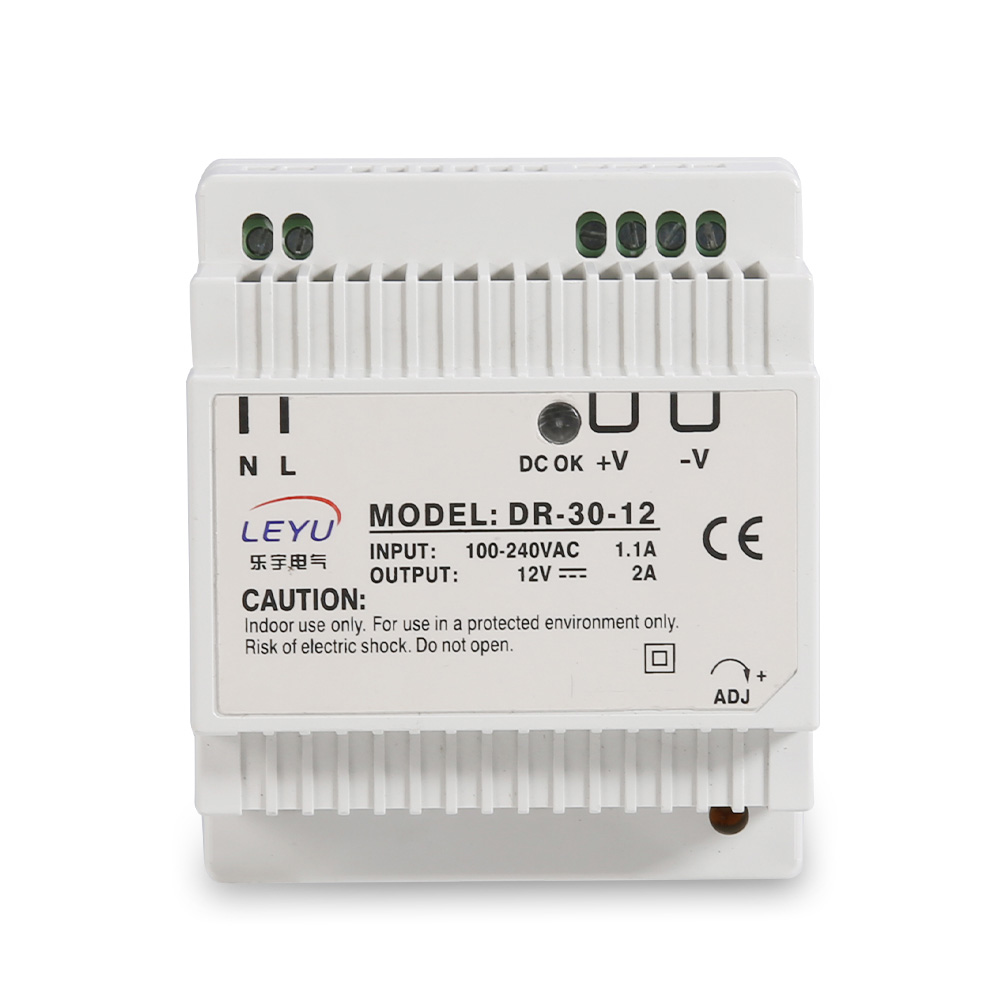

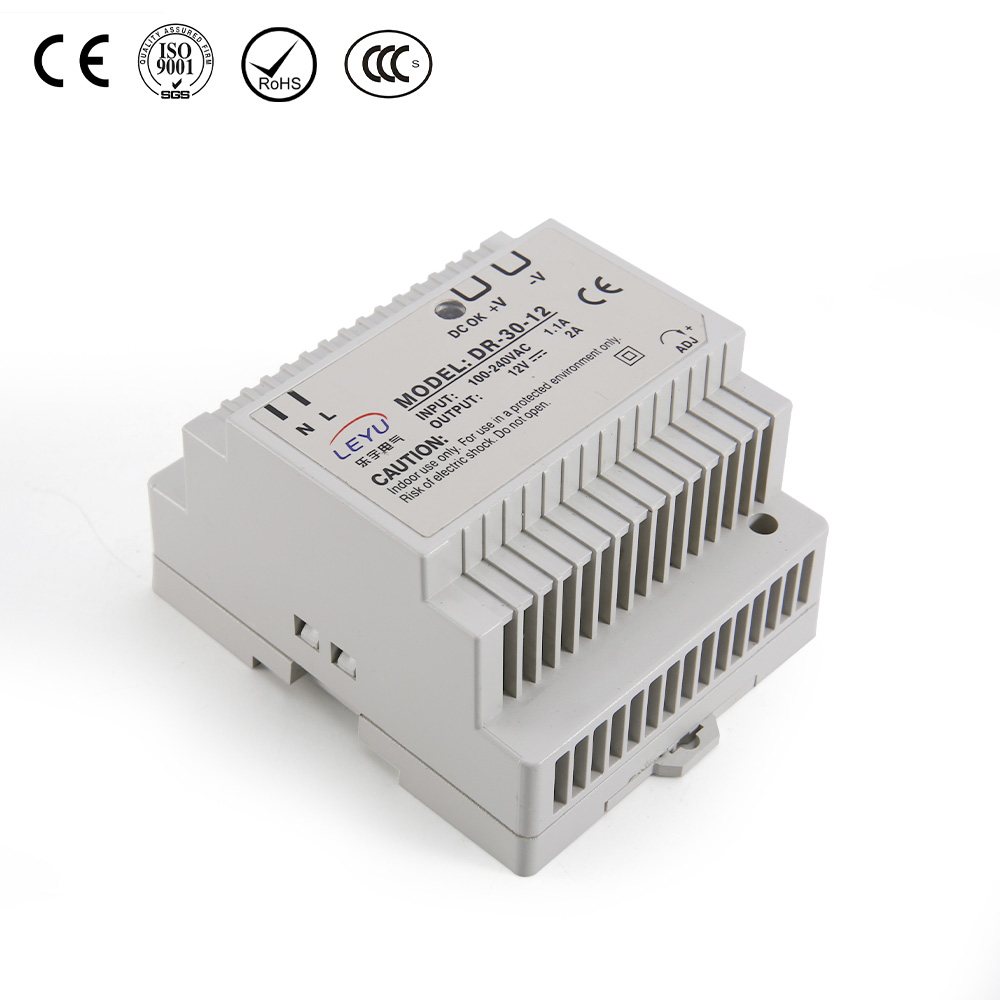

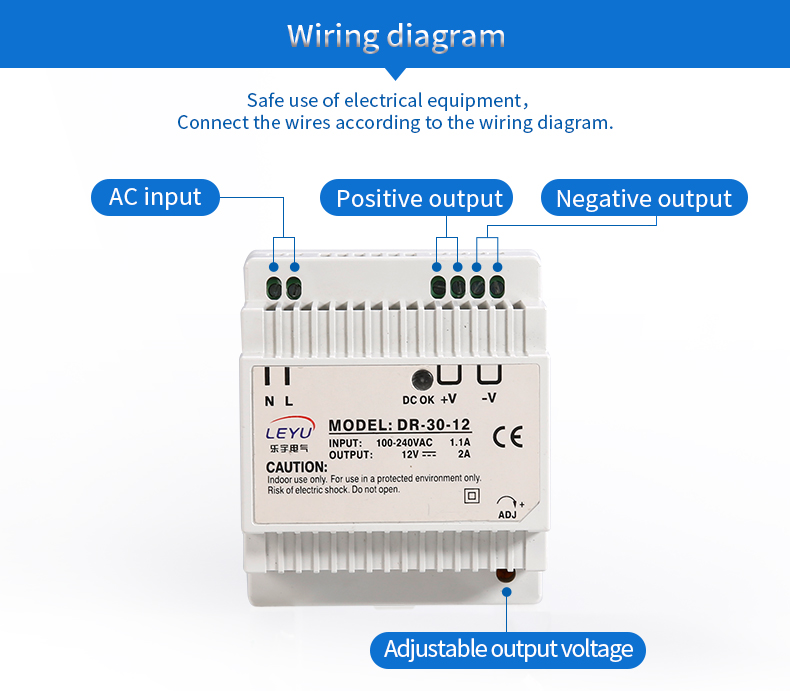

30W Single Output Industrial DIN Rail Power Supply DR-30 series
Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection

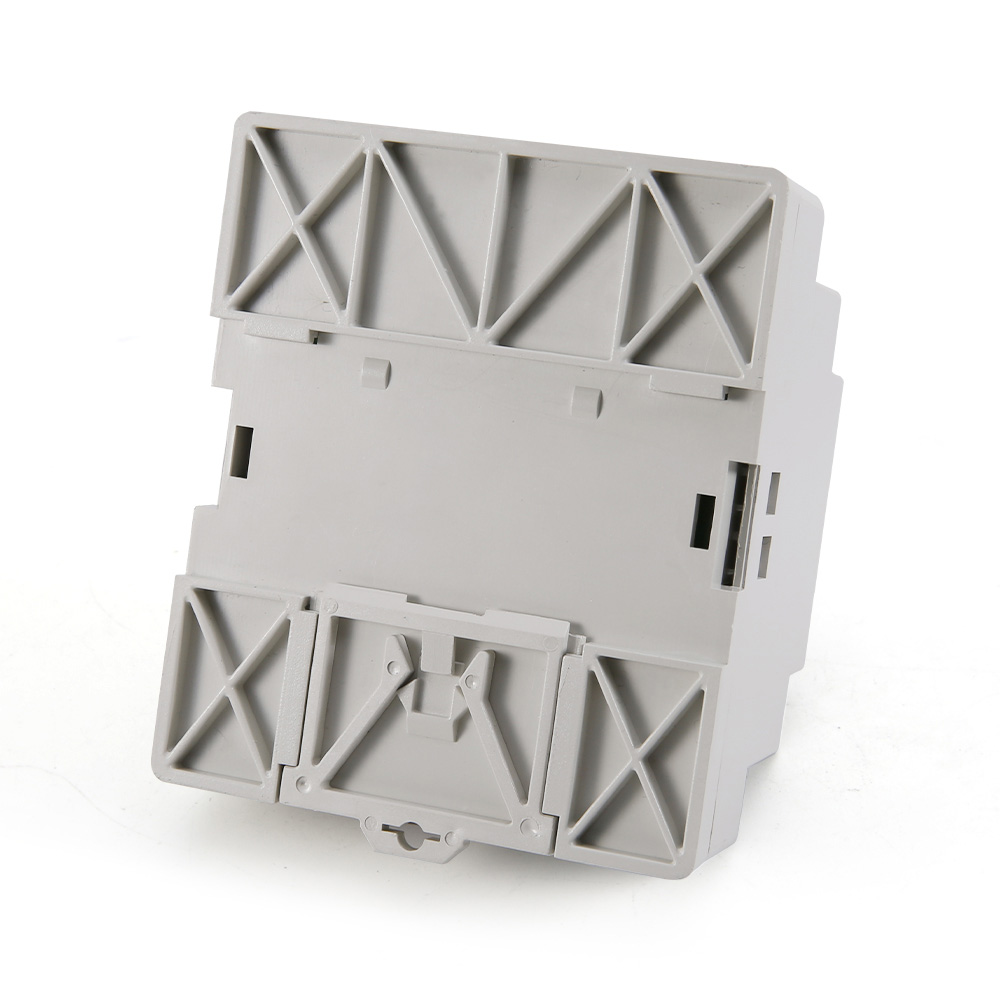

Can be installed on DIN rail TS-35/7.5 or 15
Isolation classⅡ
LED indicator for power on
100% full load burn-in test
2 years warranty
|
SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
Model |
DR-30-5 |
DR-30-12 |
DR-30-15 |
DR-30-24 |
|
DC Voltage |
5V |
12V |
15V |
24V |
|
Rated Current |
3A |
2.5A |
2A |
1.5A |
|
Current Range |
0-3A |
0-2.5A |
0-2A |
0-1.5A |
|
Rated Power |
15W |
30W |
30W |
36W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
Voltage Adj. Range |
-5%,+10% |
±10% |
±10% |
±10% |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
|
Setup, Rise, Hold Up Time |
100ms,30ms/230VAC 100ms,30ms/115VAC at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
85~264VAC 47~63Hz; 120~370VDC |
|||
|
AC Current |
0.88A/115V 0.48A/230V |
|||
|
Efficiency |
74% |
81% |
82% |
83% |
|
Inrush Current |
Cold start 15A/115V 30A/230V |
|||
|
|
|
|||
|

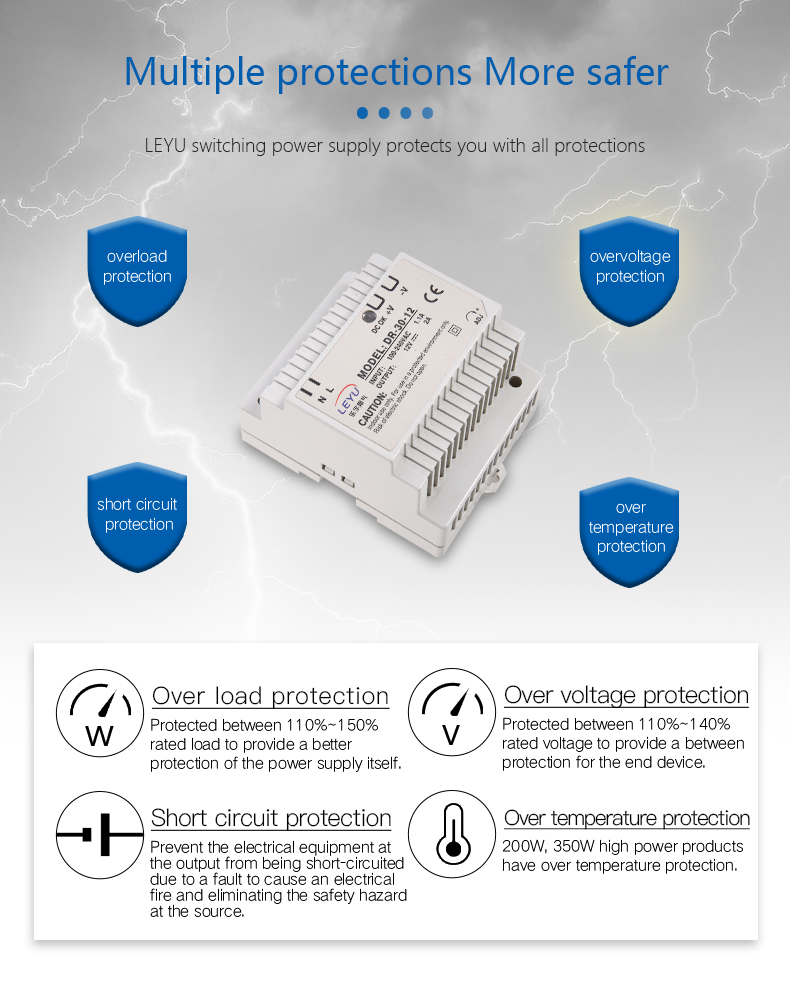

PROTECTION |
|
|||
|
Over Load |
105%~160% |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||||
|
Over Voltage |
115%~135% |
|||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
|||
|
Storage Temp., Humidity |
-40℃~+85℃; 10%~95%RH |
|||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P: 3KVAC |
|||
|
Isolation Resistance |
I/P-O/P: 100M Ohms / 500VDC |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
Safety Standard |
Design refer to UL60950-1,TUV EN60950-1,EN50178 |
|||
|
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3 |
|||
|
|
|
|||
|
OTHERS |
|
|||
|

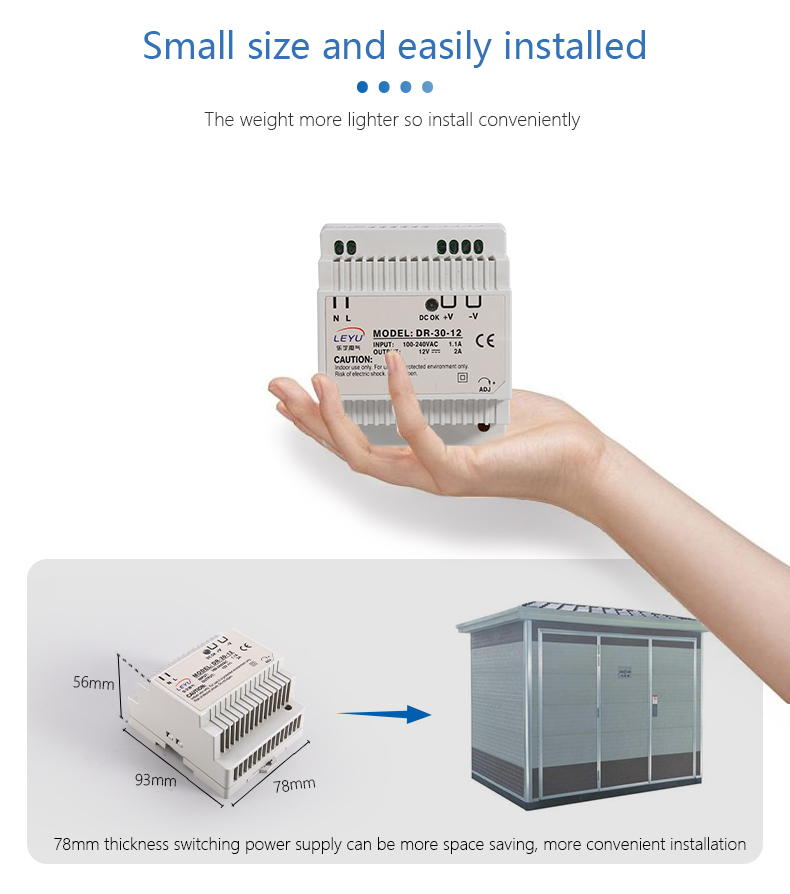

Dimension |
78*93*56mm(L*W*H) |
|||
|
Weight |
0.27Kg |
|||
|
Packing |
48pcs/14Kg/1.02CUFT |
|||
|
|
|
|||
|
NOTE |
|
|||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||
