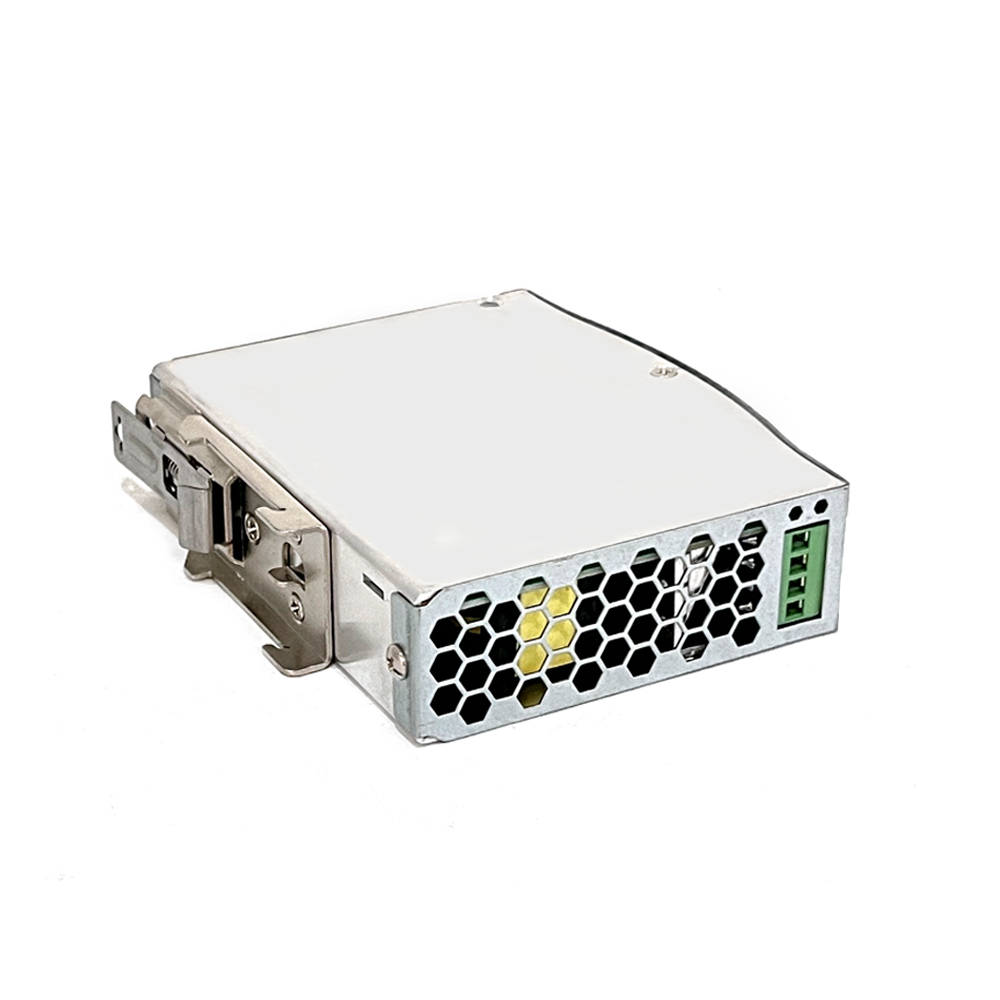

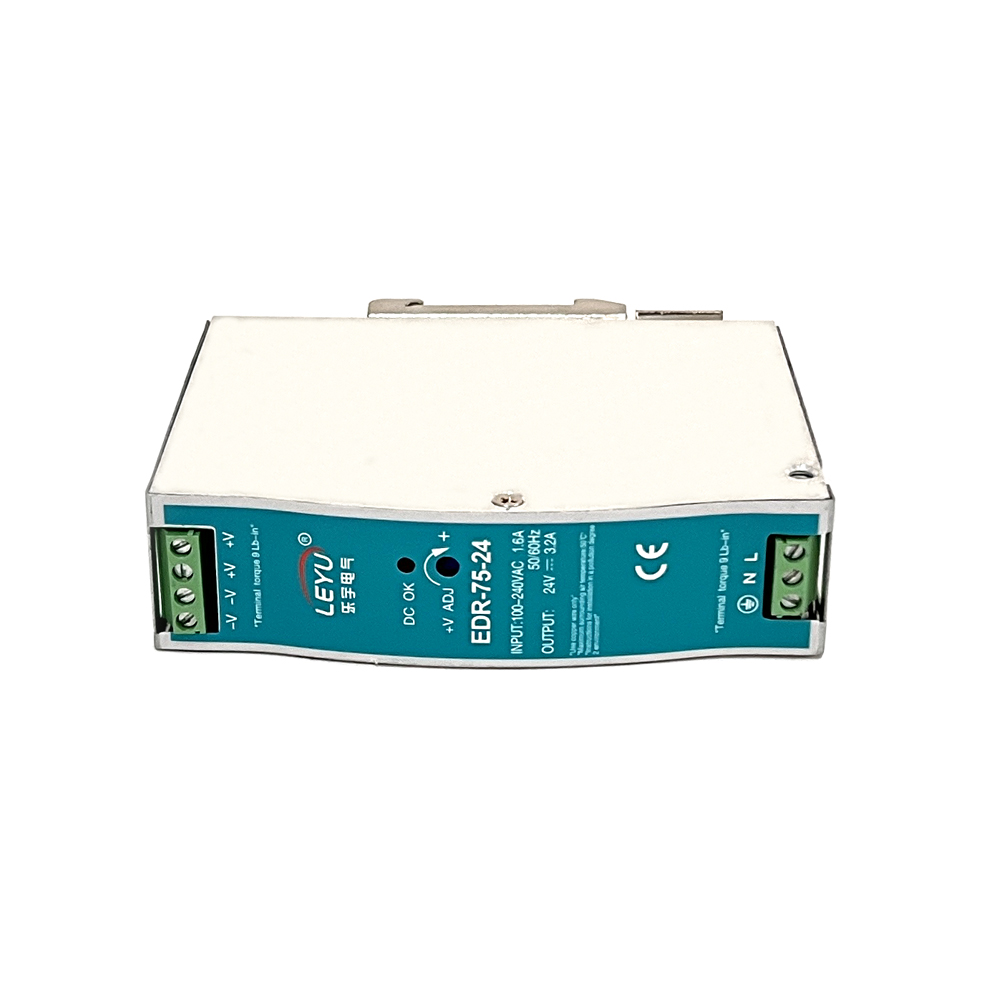

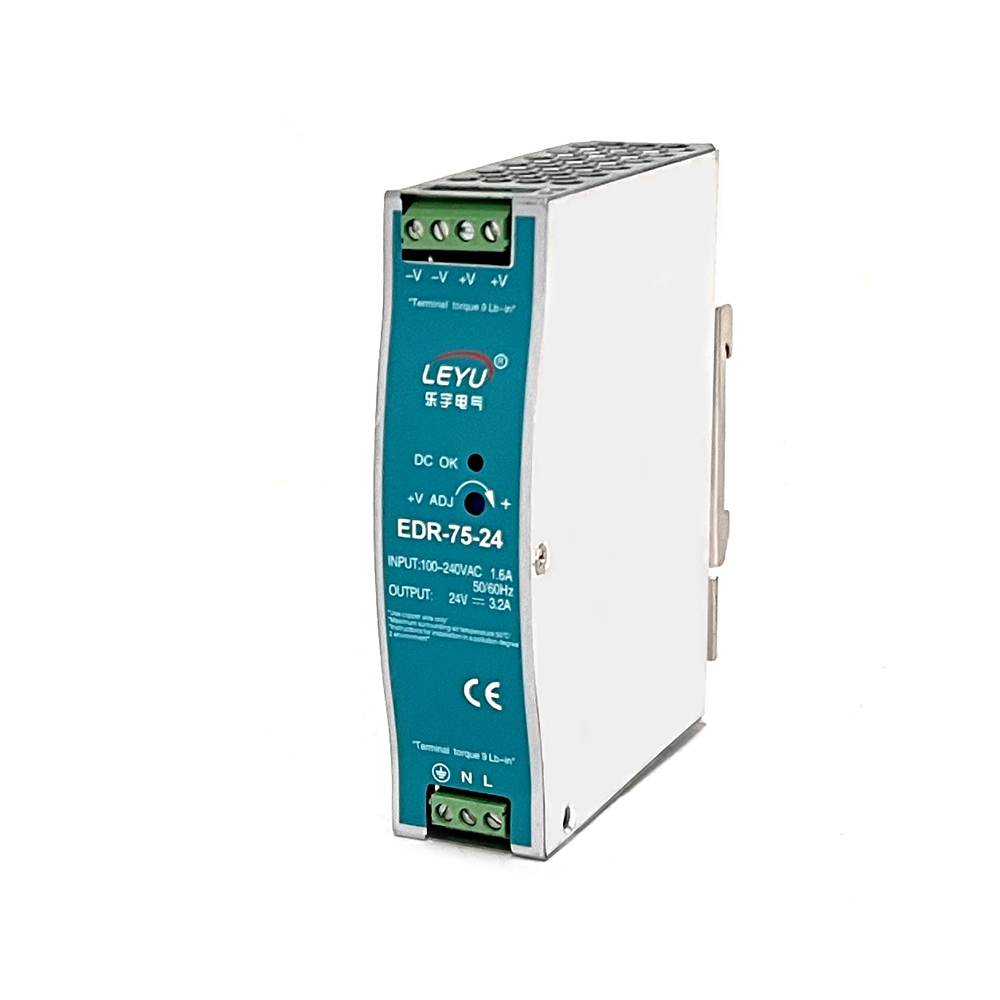

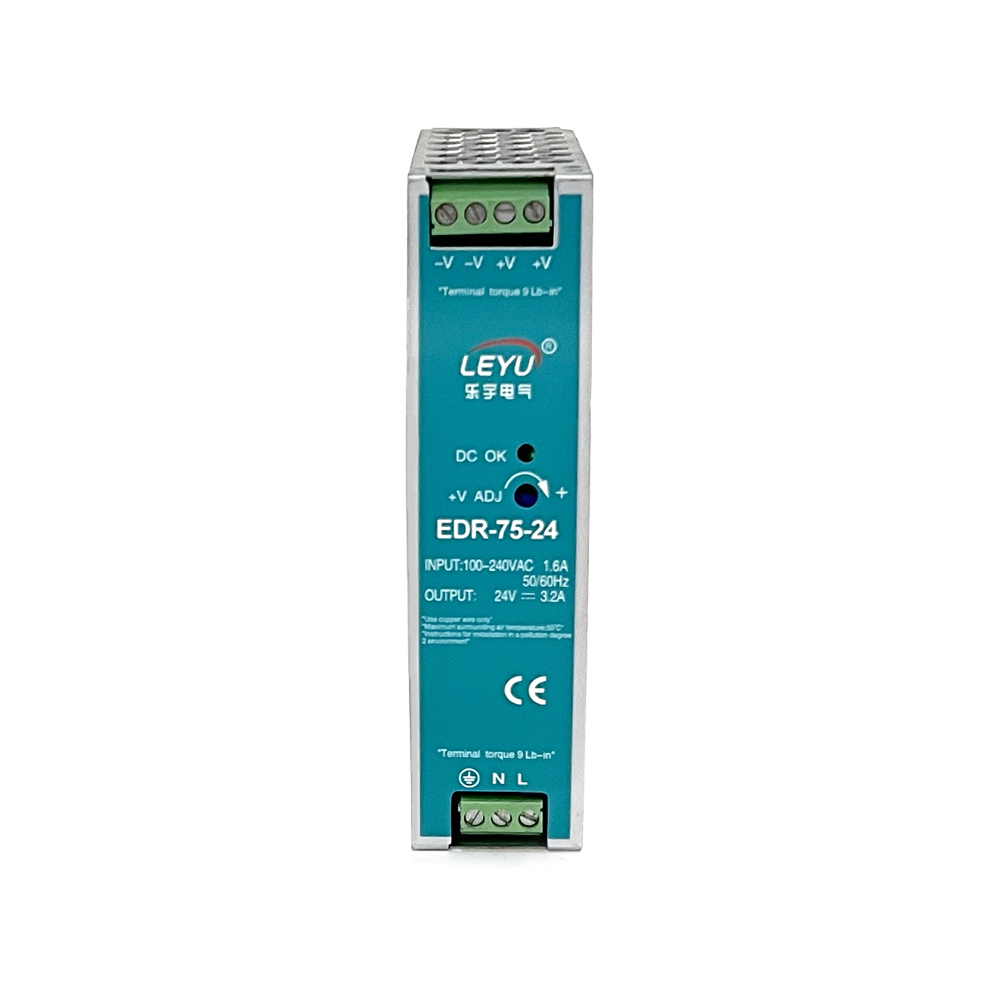

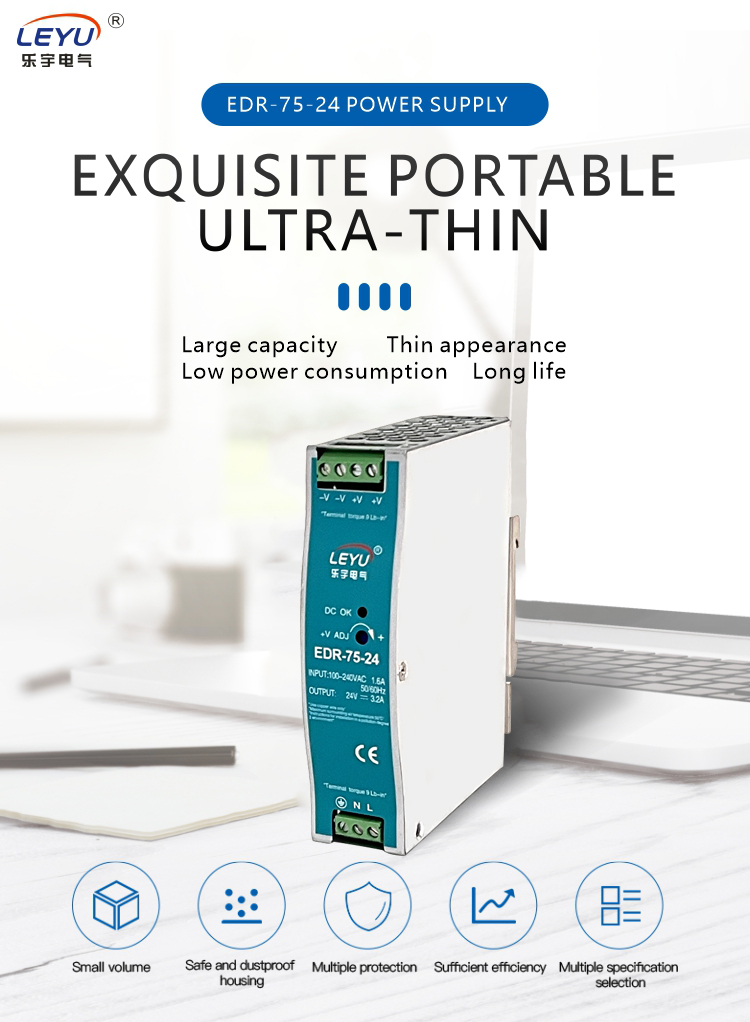

75W Single Output Industrial DIN Rail Power Supply EDR-75 series
Features:
Universal AC input/ full range

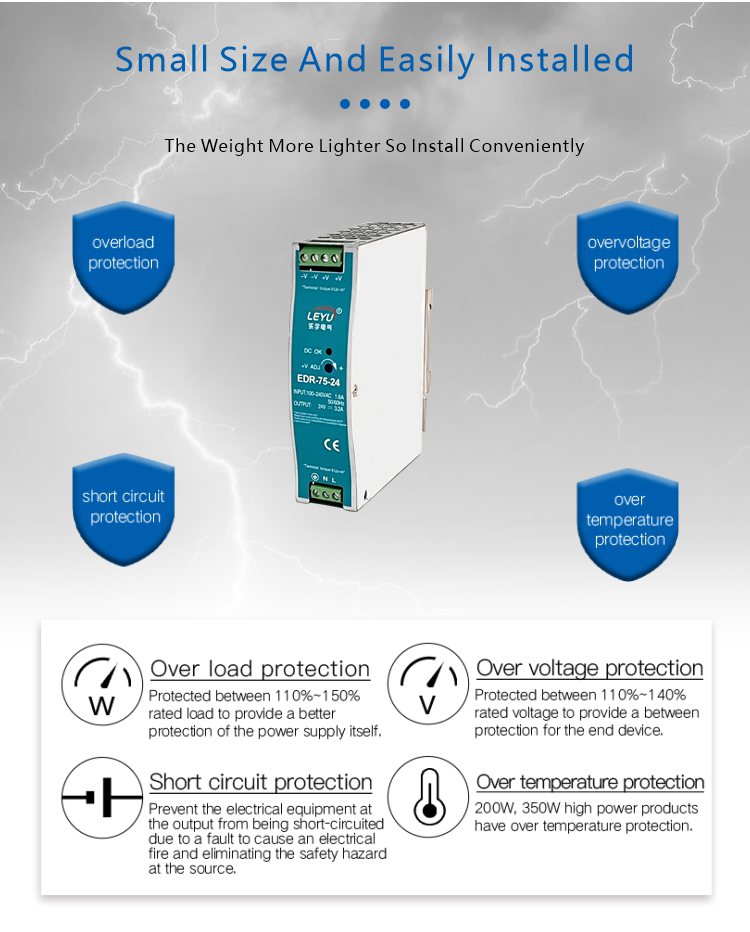

Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection

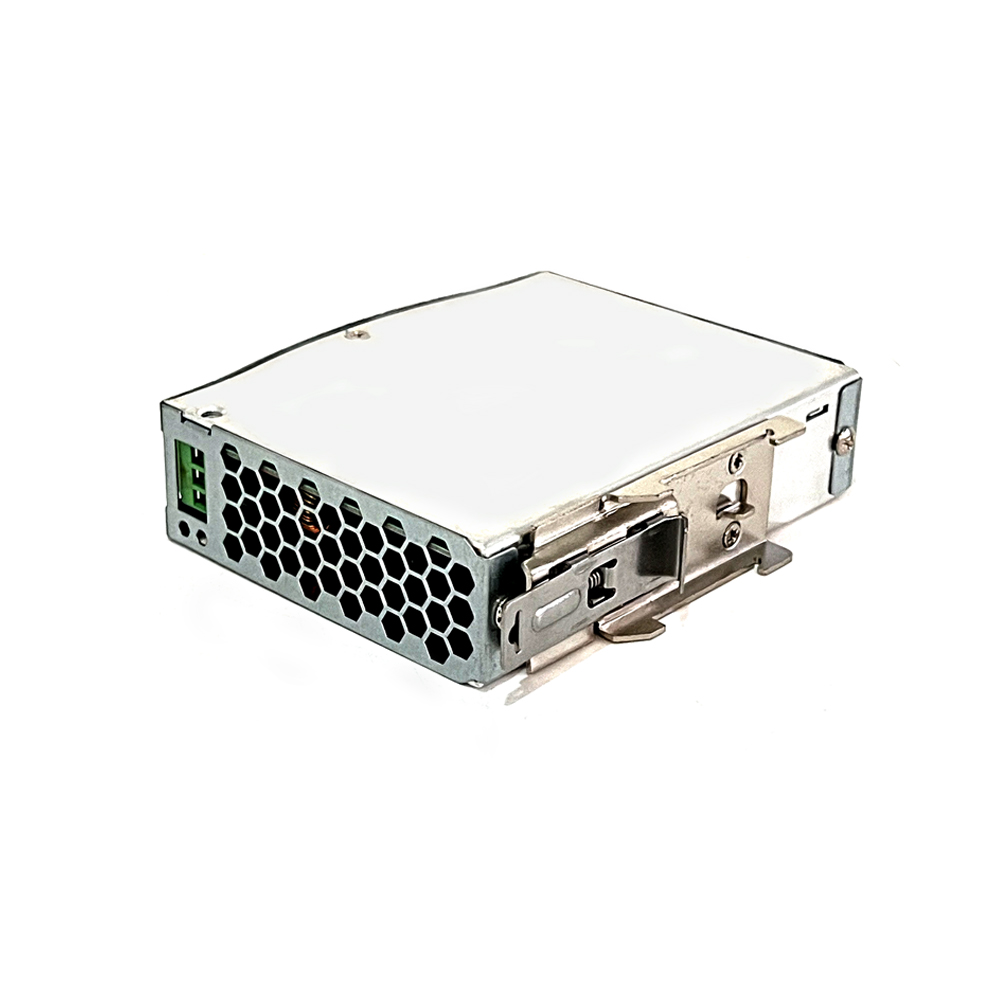

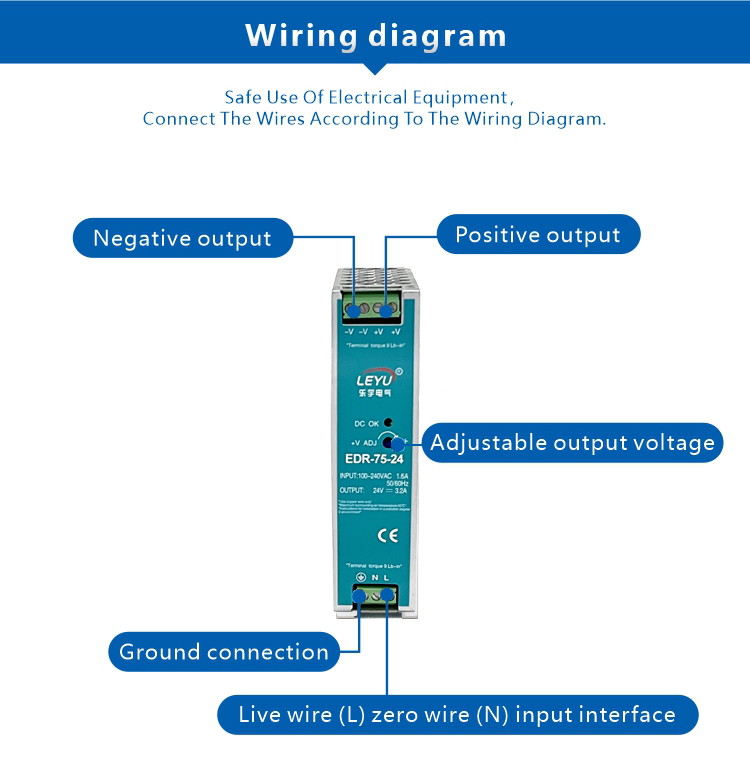

Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test

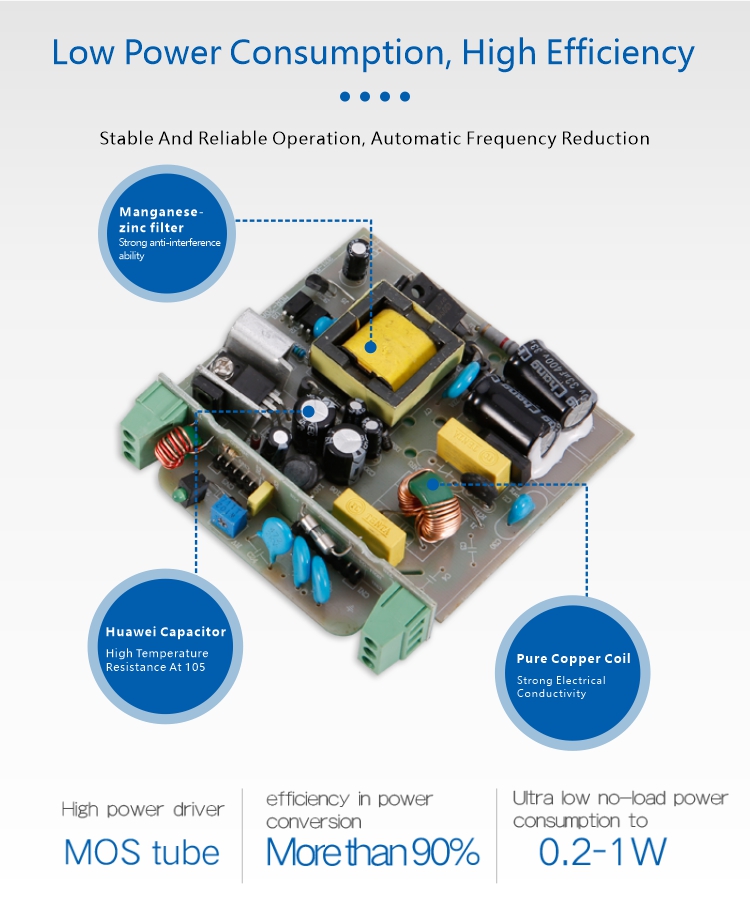

Fixed switching frequency at 67KHz
2 year warranty
|
SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
EDR-75-12 |
EDR-75-24 |
EDR-75-48 |
|
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
6.3A |
3.2A |
1.6A |
|
Current Range |
0-6.3A |
0-3.2A |
0-1.6A |
|
Rated Power |
75.6W |
76.8W |
76.8W |
|
Ripple & Noise |
100mVp-p |
120mVp-p |
150mVp-p |
|
Voltage Adj. Range |
12-14V |
24-28V |
48-53V |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
|
Setup, Rise Time |
1000ms,60ms/230VAC 1800ms,60ms/115VAC at full load |
||
|
Hold Up Time |
60ms/230VAC 12ms/115VAC at full load |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
85~264VAC 47~63 Hz; 120~370VDC |
||
|
AC Current |
1.6A/115V 0.96A/230V |
||
|
Efficiency |
83% |
85% |
86% |
|
Inrush Current |
Cold start 20A/115VAC 40A/230VAC |
||
|
Leakage Current |
<1mA/240VAC |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
105%~150% |
||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|||
|
Over Voltage |
120%~140% |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||
|
Over Temp. |
TSW1≥85℃±5℃ |
||
|
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
|||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
EMC Standard |
EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2 |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
32.5*125.2*102mm(L*W*H) |
||
|
Weight |
0.45Kg |
||
|
Packing |
30pcs/16Kg/1.1CUFT |
||
|
|
|
||
|
NOTE |
|
||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||
