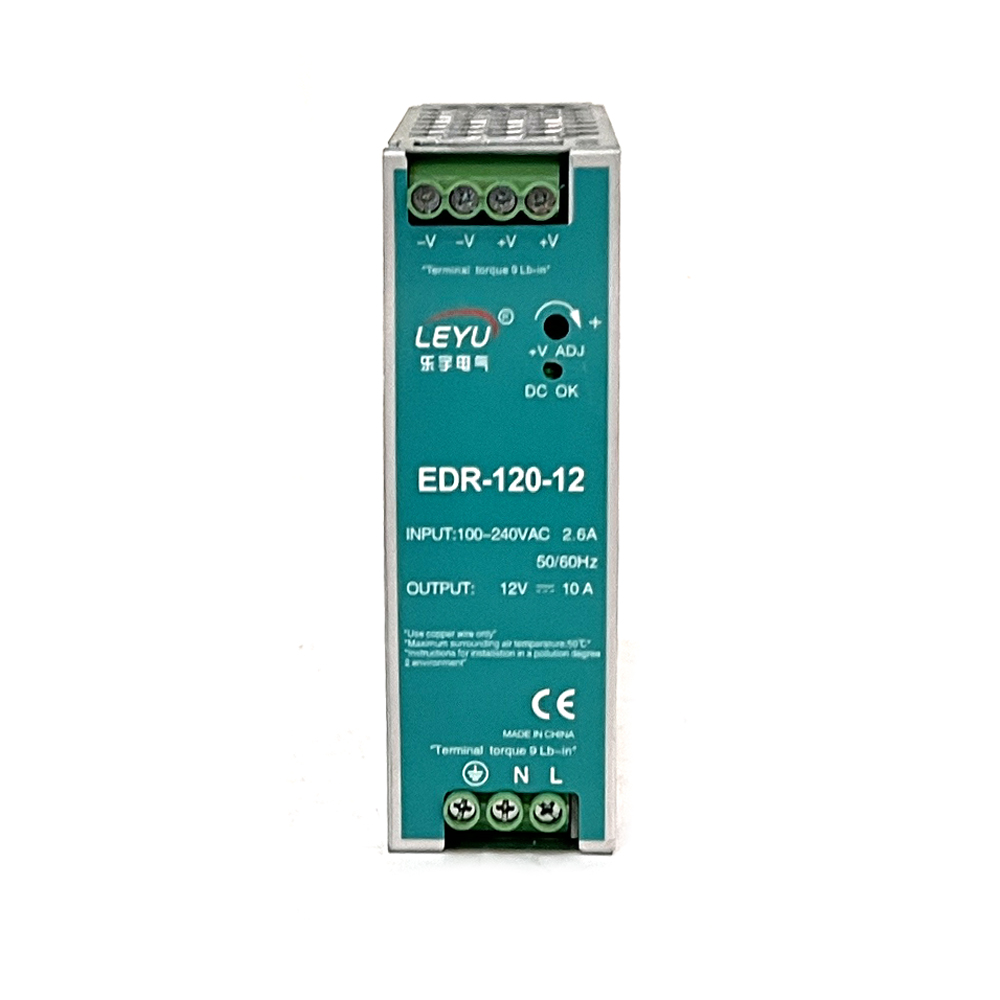

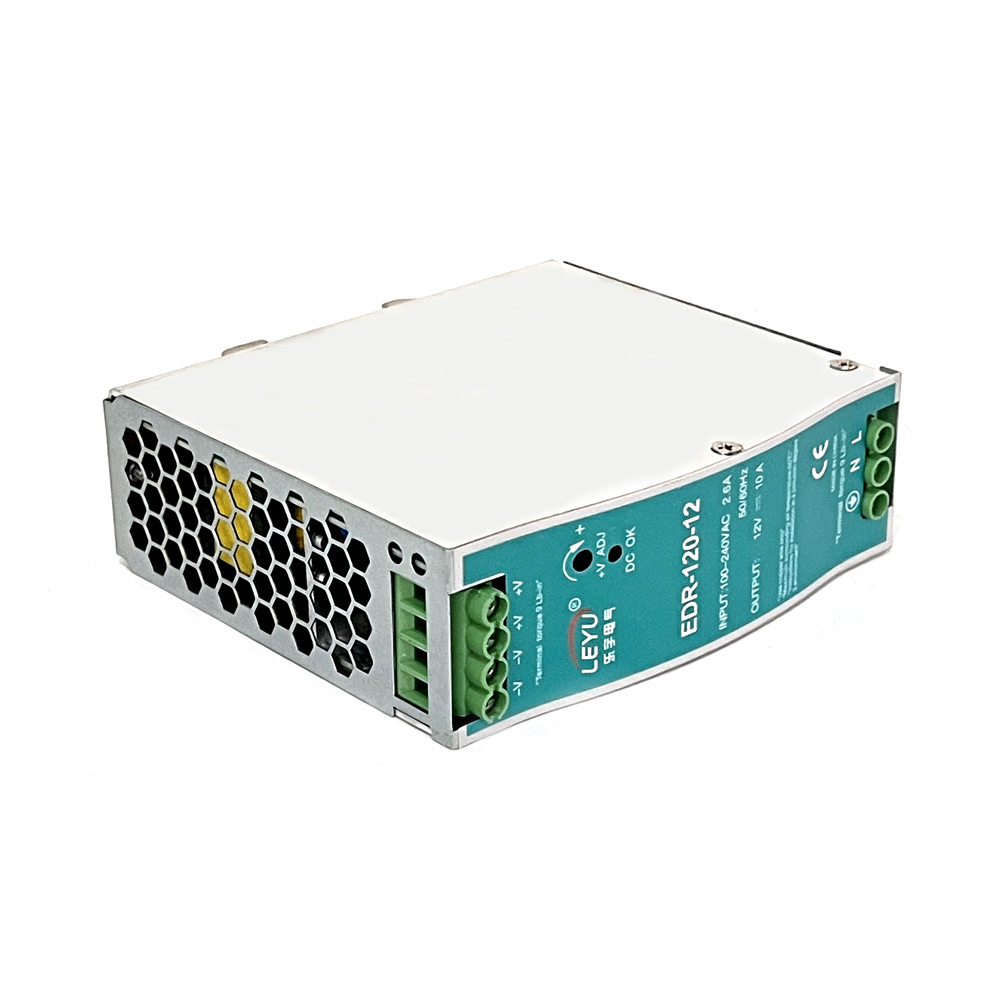

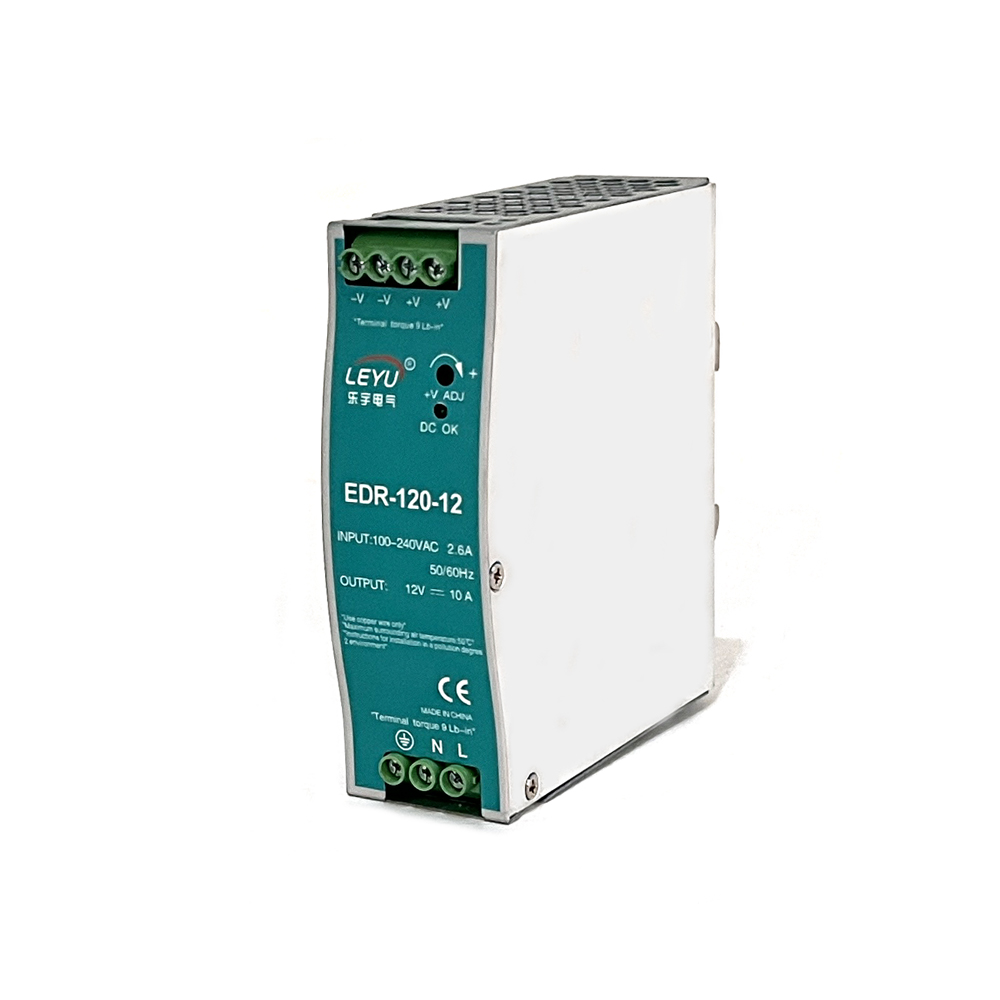

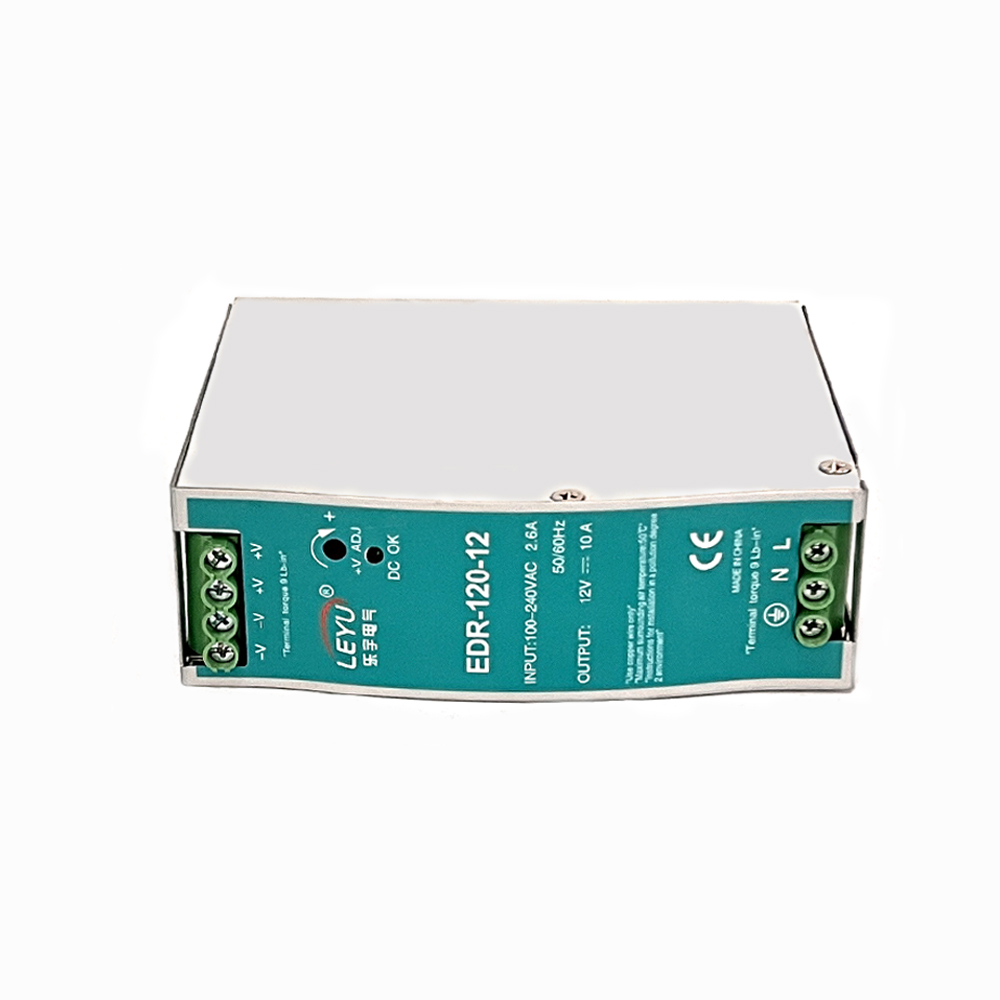

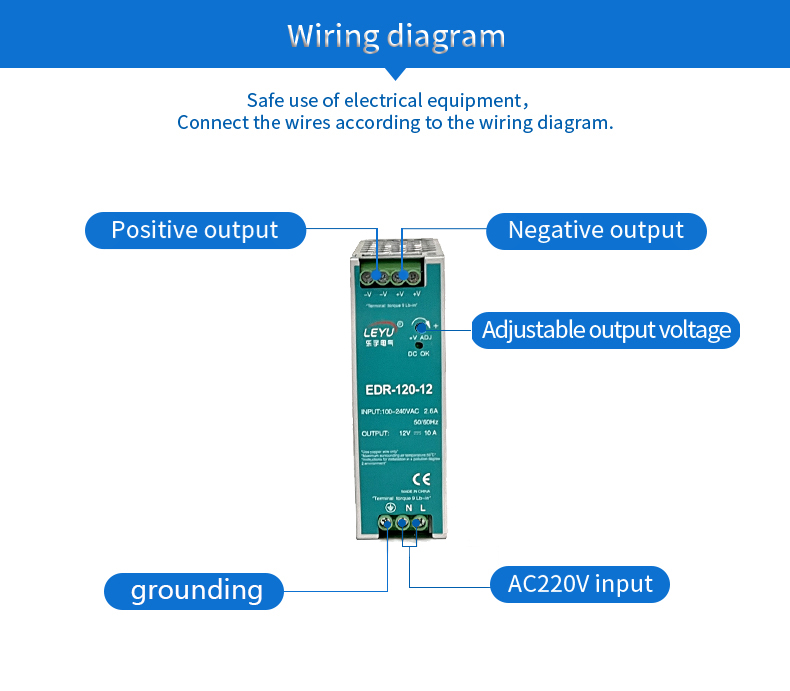

120W Single Output Industrial DIN Rail Power Supply EDR-120 series
Universal AC input / Full range

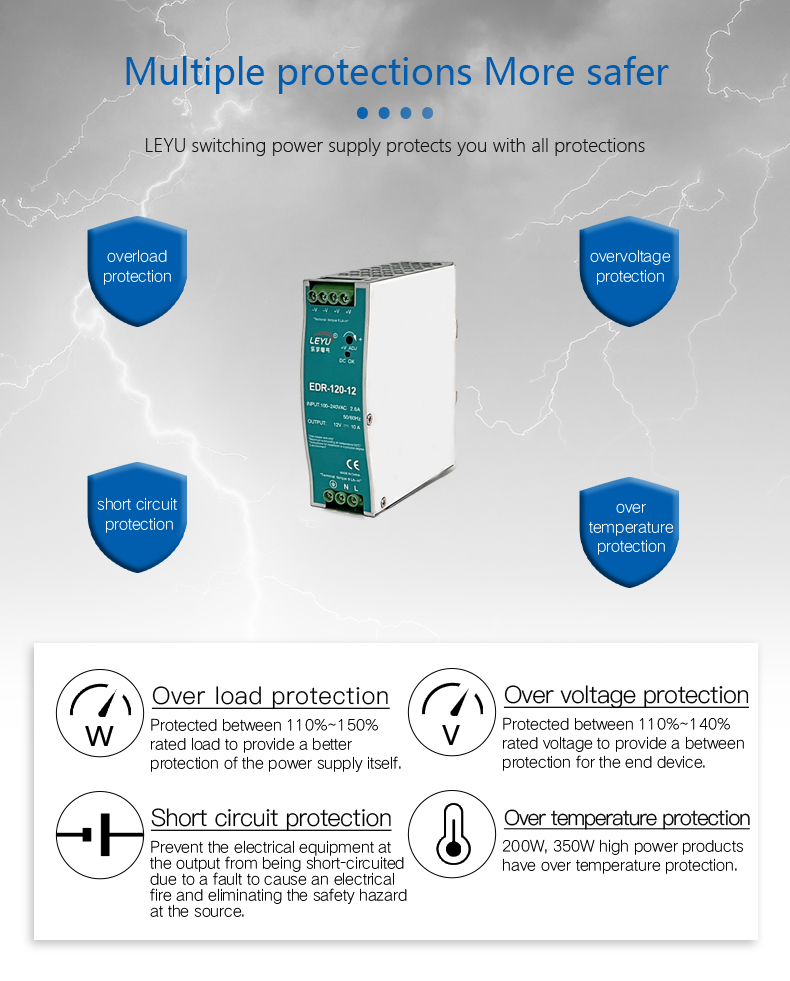

Protections: Short circuit / Overload / Over voltage/ Over temperature
Cooling by free air convection

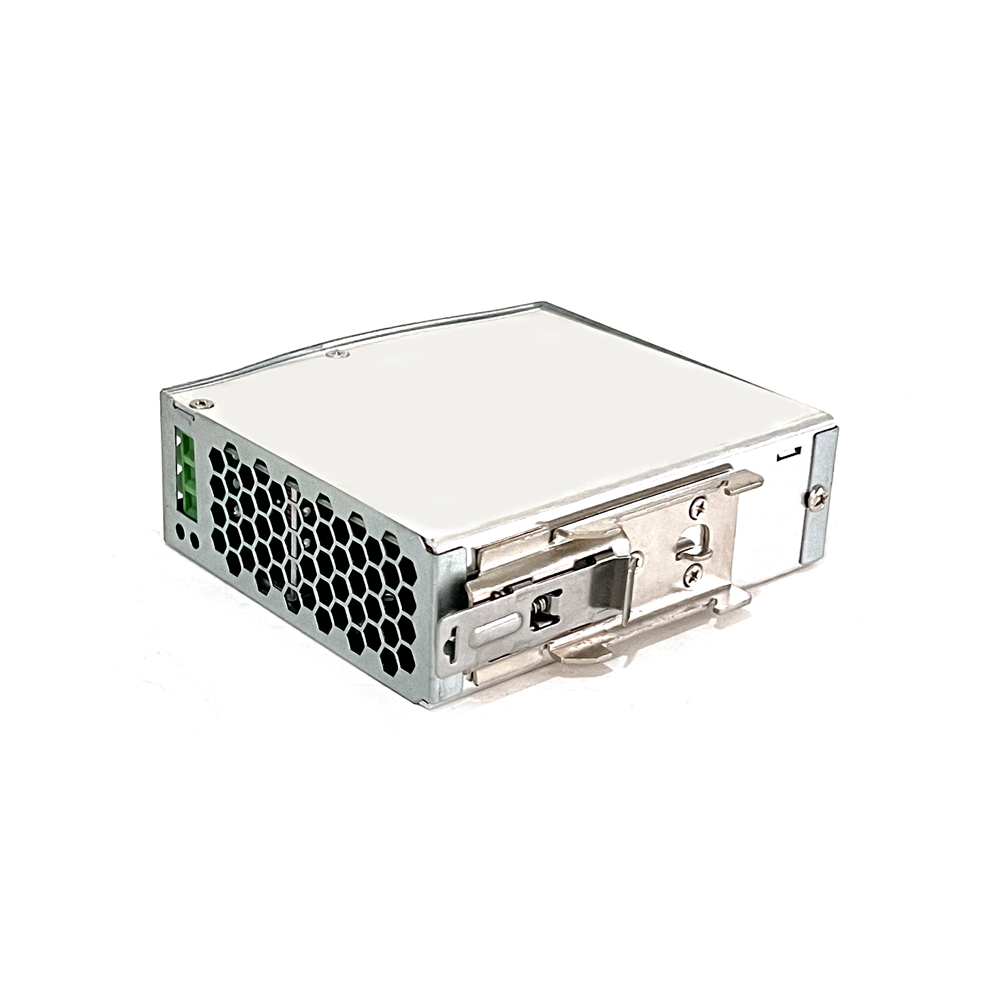

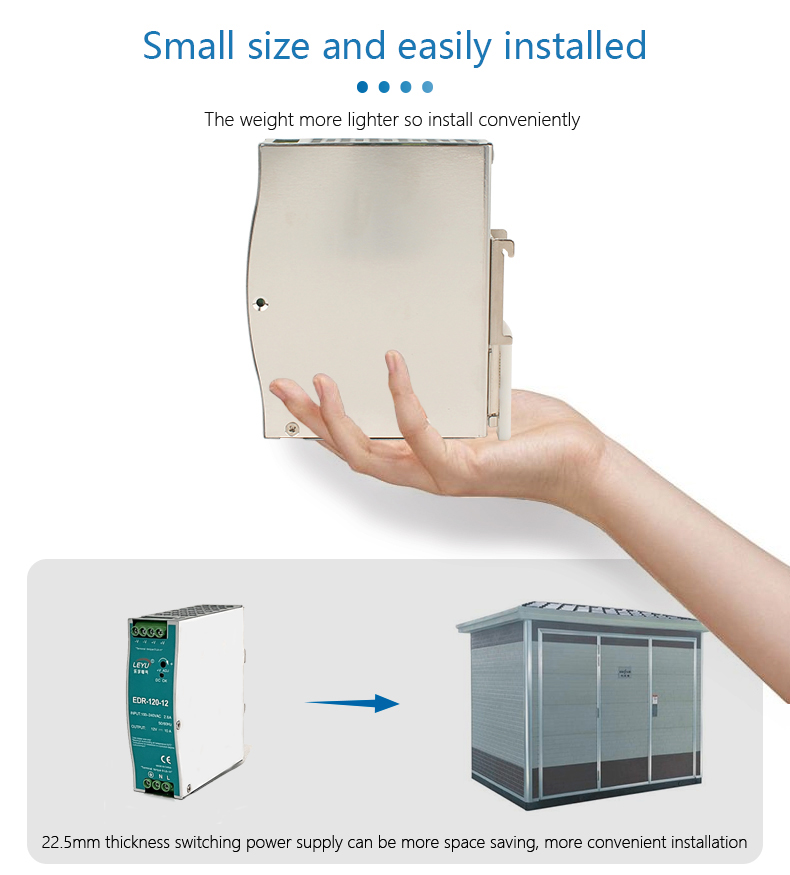

Can be installed on DlN rail TS-35/7.5 or 15
UL 508 (industrial control equipment} approved
EN61000-6-2(EN50082-2} industrial immunity level
100% full load burn-in test
2 years warranty
|
MODEL |
EDR-120-12 |
EDR-120-24 |
EDR-120-48 |
|
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
48V |
|
RATED CURRENT |
10A |
5A |
2.5A |
|
|
CURRENT RANGE |
0 ~ 10A |
0 ~ 5A |
0 ~ 2.5A |
|
|
RATED POWER |
120W |
120W |
120W |
|
|
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
120mVp-p |
150mVp-p |
|
|
VOLTAGE ADJ. RANGE |
12 ~ 14V |
24 ~ 28V |
48 ~ 55V |
|
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
|
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load |
|||
|
HOLD UP TIME (Typ.) |
16ms/230VAC 10ms/115VAC at full load |
|||
|
INPUT |
VOLTAGE RANGE Note.6 |
90 ~ 264VAC 127 ~ 370VDC |
[DC input operation possible by connecting AC/L(+), AC/N(-)] |
|
|
FREQUENCY RANGE |
47 ~ 63Hz |
|||
|

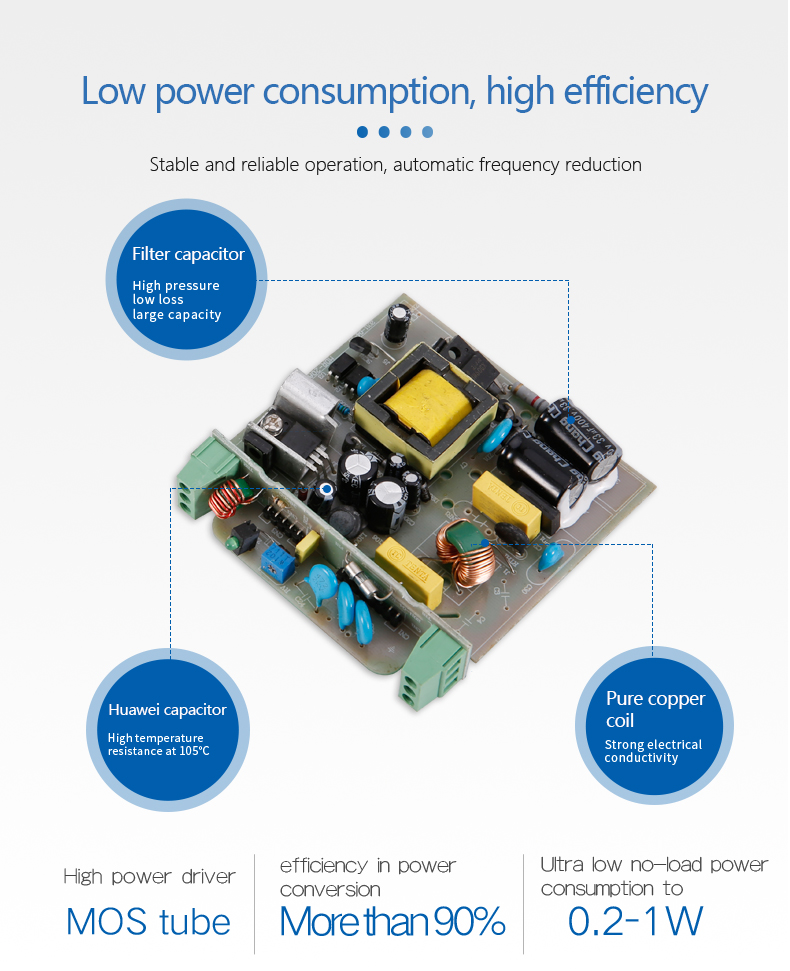

EFFICIENCY (Typ.) |
85% |
87.5% |
88.5% |
|
|
AC CURRENT (Typ.) |
2.25A/115VAC 1.3A/230VAC |
|||
|
INRUSH CURRENT (Typ.) |
20A/115VAC 35A/230VAC |
|||
|
LEAKAGE CURRENT |
<1mA / 240VAC |
|||
|
PROTECTION |
OVERLOAD |
105 ~ 130% rated output power |
||
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
||||
|
OVER VOLTAGE |
14 ~ 17V |
29 ~ 33V |
56 ~ 65V |
|
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||
|
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
|||
|
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +60℃ (Refer to "Derating Curve") |
||
|
WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
|||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
|||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
|||
|
VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
|||
|
SAFETY & EMC (Note 4) |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH |
|||
|
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class A |
|||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
|||
|
OTHERS |
MTBF |
474.6K hrs min. MIL-HDBK-217F (25℃) |
||
|
DIMENSION |
40*125.2*113.5mm (W*H*D) |
|||
|
PACKING |
0.6Kg; 20pcs/13Kg/1.16CUFT |
|||
|
NOTE |
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. lnstallation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. ln case the adjacent device is a heat source, 15mm clearance is recommended. Derating may be needed under low input voltage. Please check the derating curve for more details. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. |
|||
