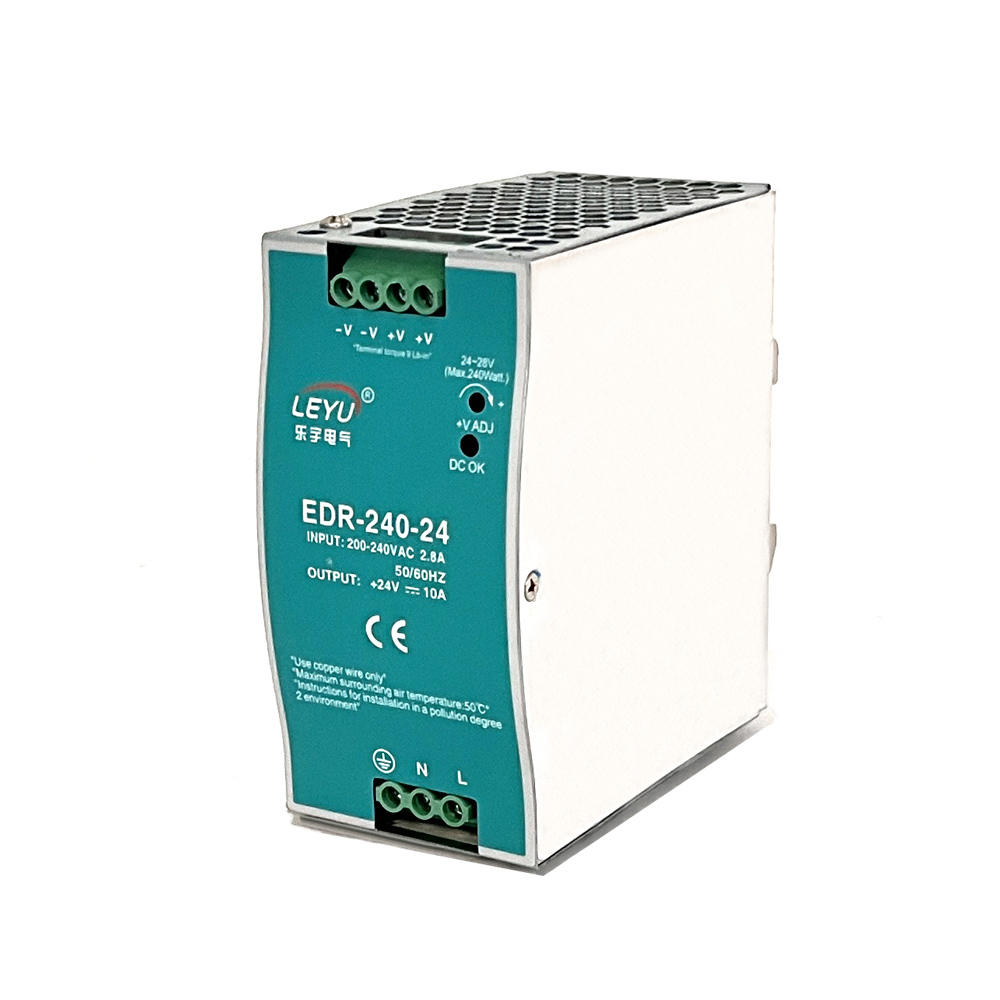

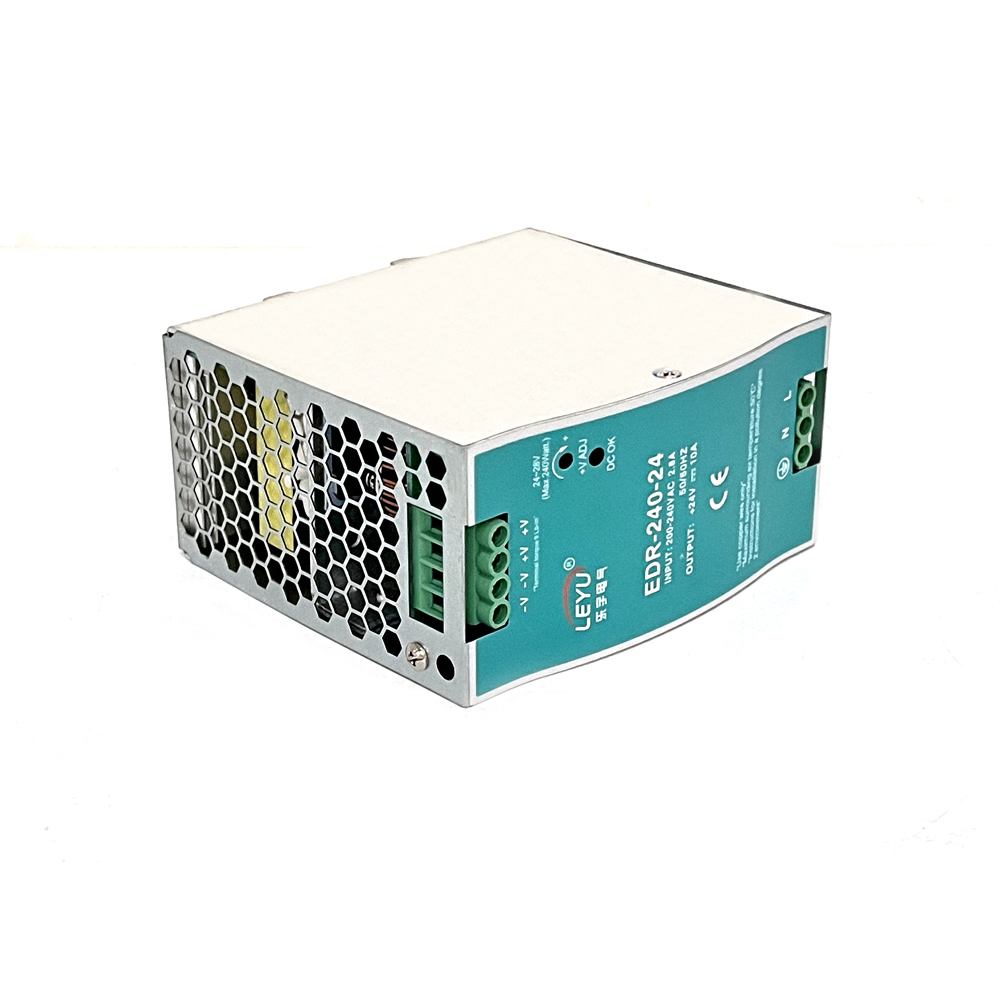

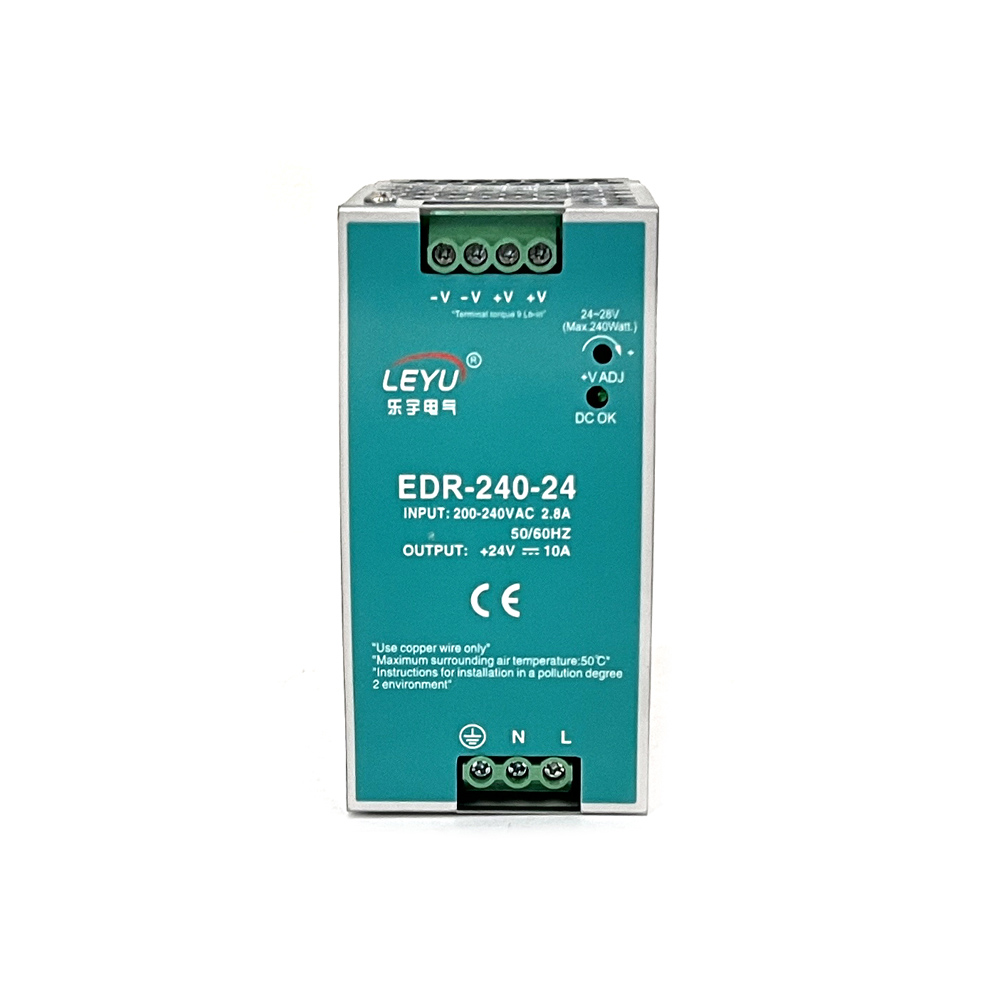

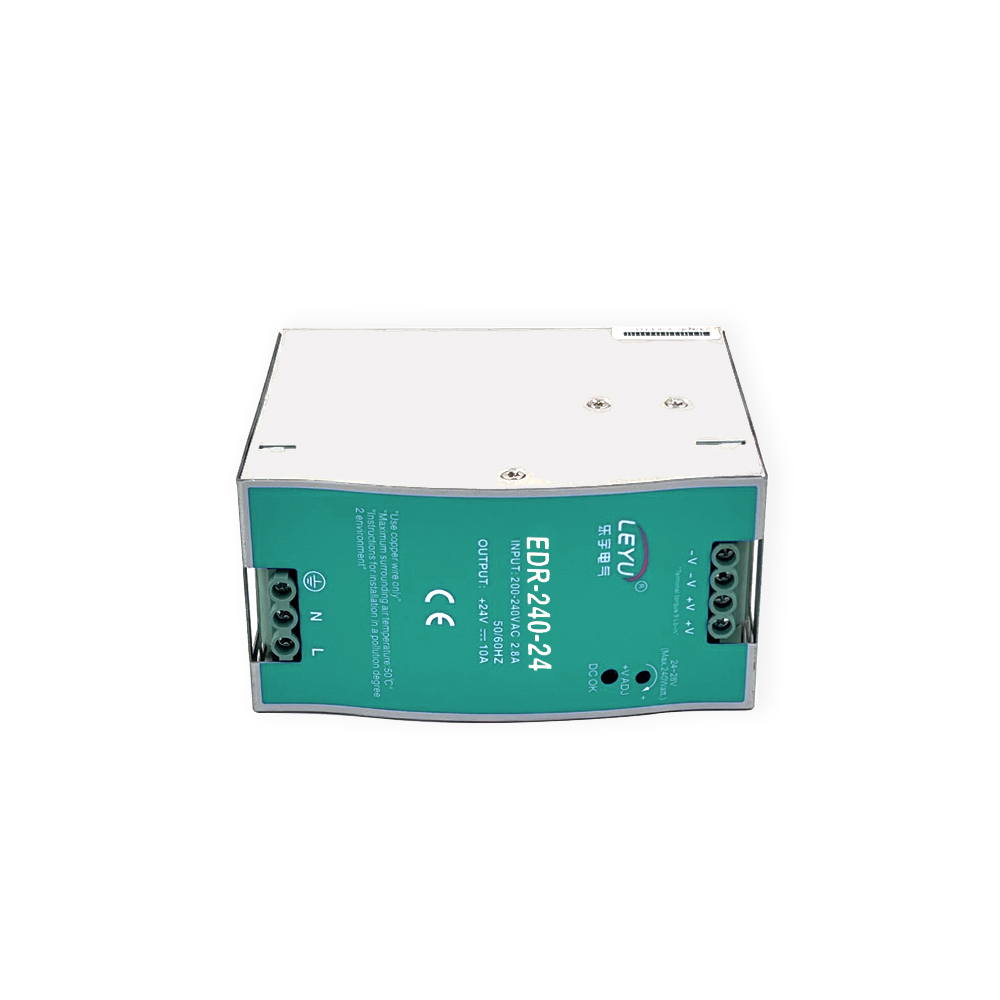

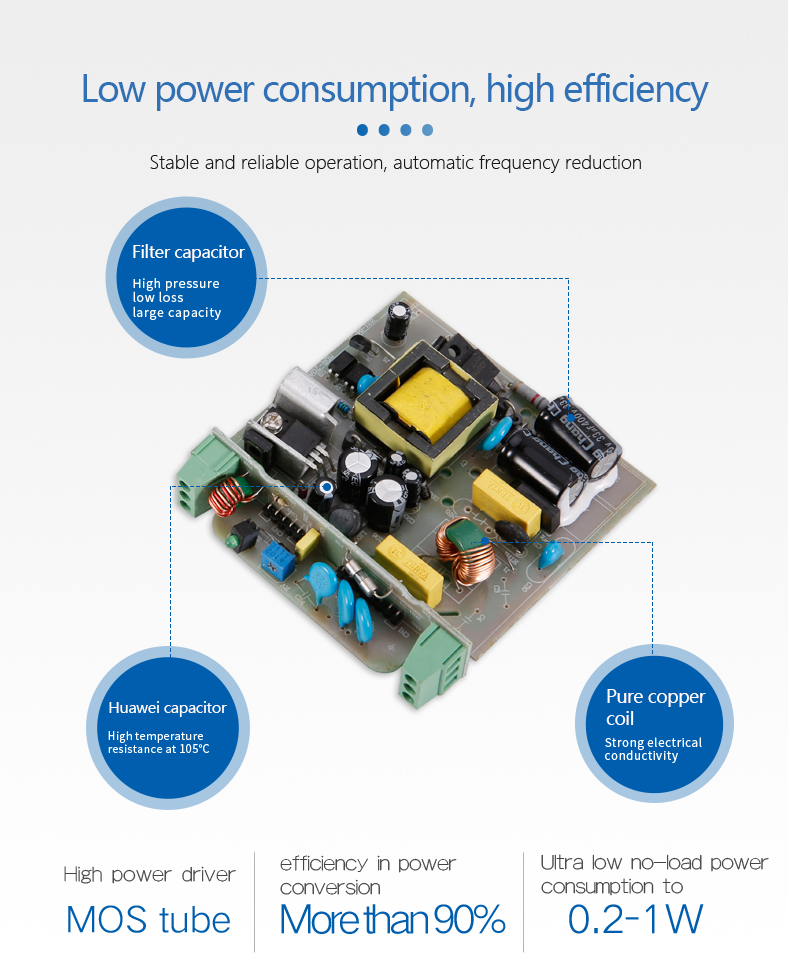

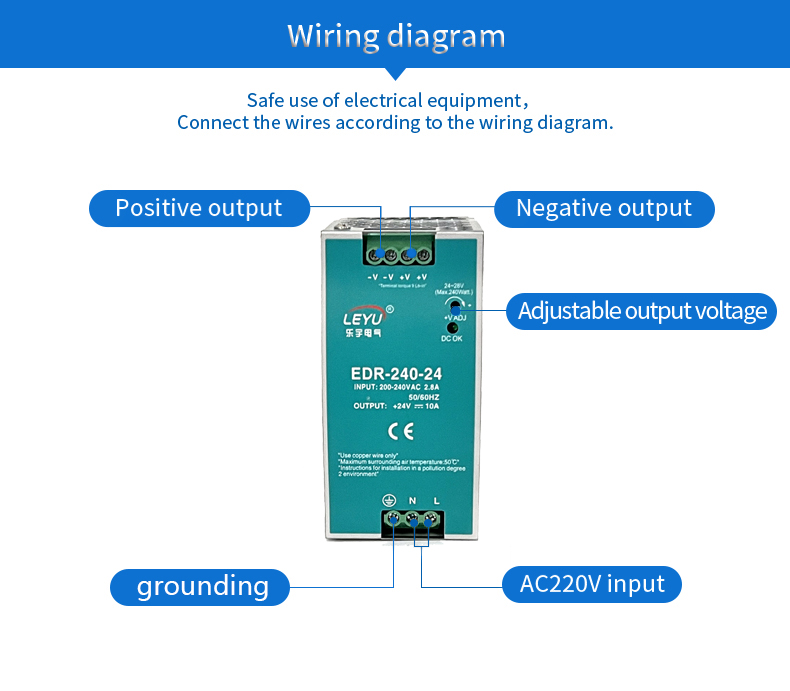

240W Single Output Industrial DIN Rail Power Supply EDR-240 series
Features:
Universal AC input/ full range
Built-in active PFC function

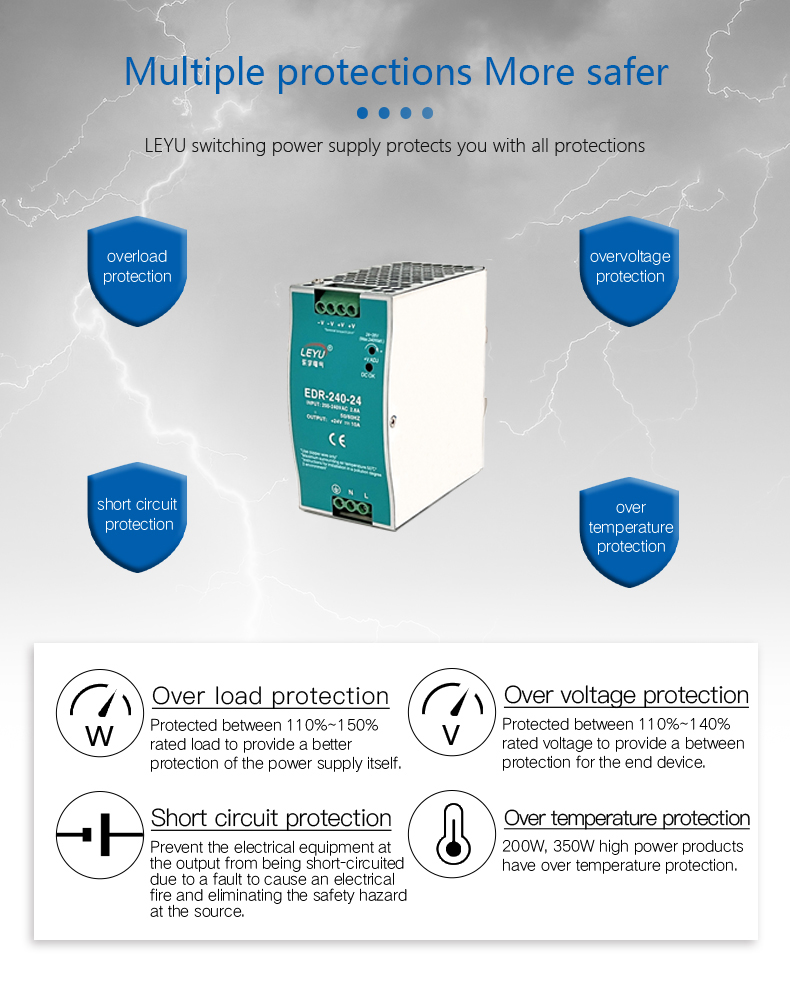

Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection

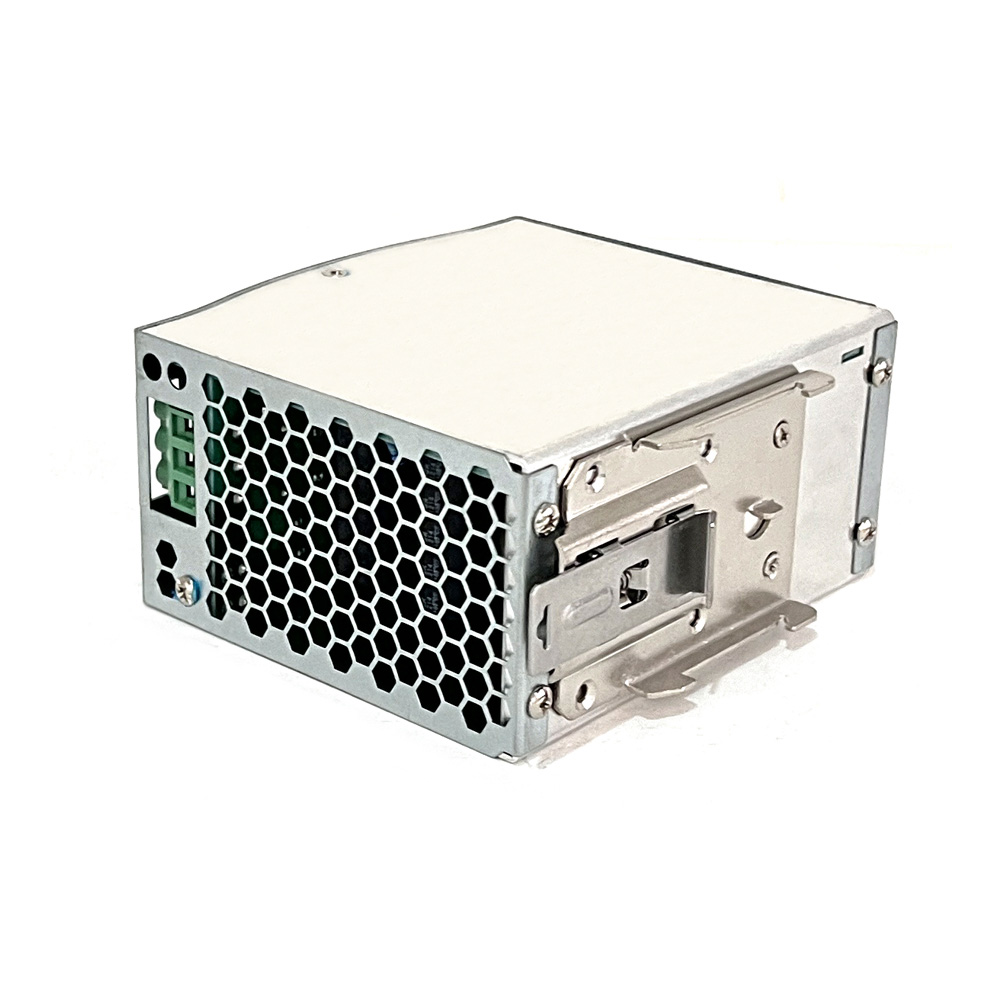

Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 100KHz
1 year warranty
|
SPECIFICATIONS |
||
|
OUTPUT |
|
|
|
Model |
EDR-240-24 |
EDR-240-48 |
|
DC Voltage |
24V |
48V |
|
Rated Current |
10A |
5A |
|
Current Range |
0-10A |
0-5A |
|
Rated Power |
240W |
240W |
|
Ripple & Noise |
150mVp-p |
360mVp-p |
|
Voltage Adj. Range |
21-28V |
43-53V |
|
Voltage Tolerance |
±1% |
±1% |
|
Setup, Rise Time |
800ms,40ms/230VAC 800ms,40ms/115VAC at full load |
|
|
Hold Up Time |
24ms/230VAC 24ms/115VAC at full load |
|
|
|
|
|
|
INPUT |
|
|
|
Voltage Range |
176~264VAC 47~63Hz; 240~370VDC |
|
|
AC Current |
2.8A/115V 1.4A/230V |
|
|
Efficiency |
84% |
85% |
|
Inrush Current |
Cold start 27A/115V 45A/230V |
|
|
Leakage Current |
<3.5mA/240VAC |
|
|
|
|
|
|
PROTECTION |
|
|
|
Over Load |
105%~150% |
|
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||
|
Over Voltage |
30-36V |
54-60V |
|
Protection type: Shut down o/p voltage, re-power on to recover |
||
|
Over Temp. |
100℃±5℃(TSW1) |
|
|
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
||
|
|
|
|
|
ENVIRONMENT |
|
|
|
Working Temp., Humidity |
-10℃~+70℃; 20%~90%RH |
|
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|
|
|
|
|
|
SAFETY |
|
|
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
|
|
|
|
|
|
STANDARD |
|
|
|
EMC Standard |
EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
|
|
|
|
|
|
OTHERS |
|
|
|
Dimension |
63*125.2*115mm(L*W*H) |
|
|
Weight |
0.85Kg |
|
|
Packing |
20pcs/17.5Kg/1.2CUFT |
|
|
|
|
|
|
NOTE |
|
|
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3 .Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5 . Derating may be needed under low input voltages. Please check the derating curve for more details. |
||
