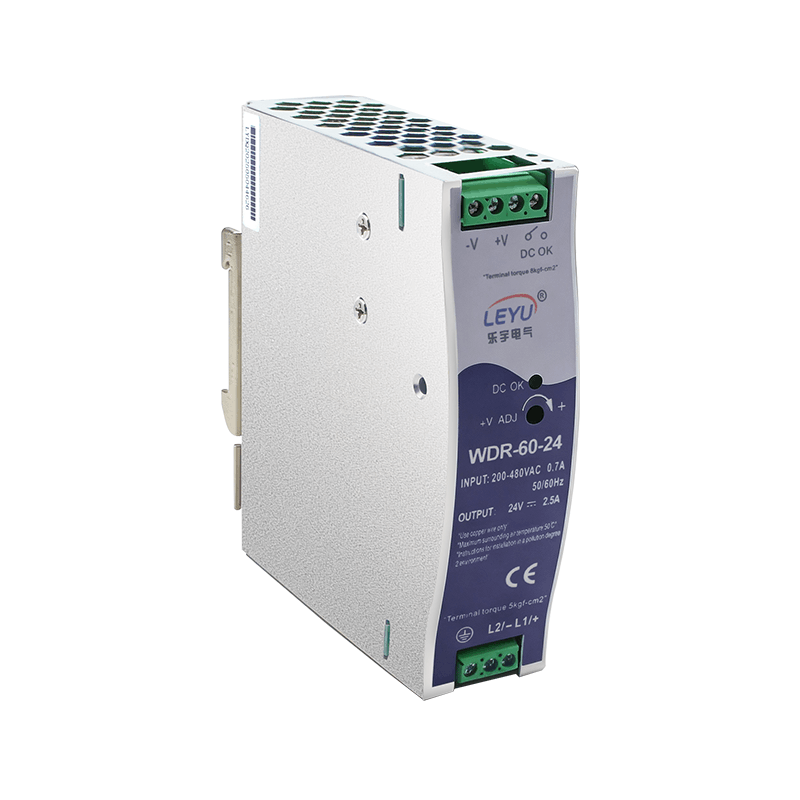

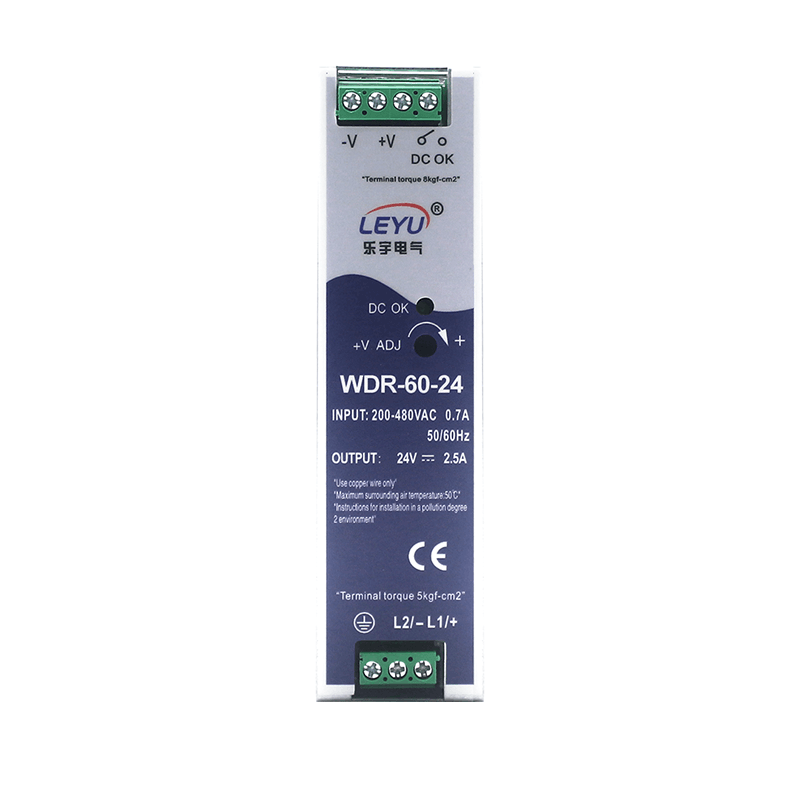

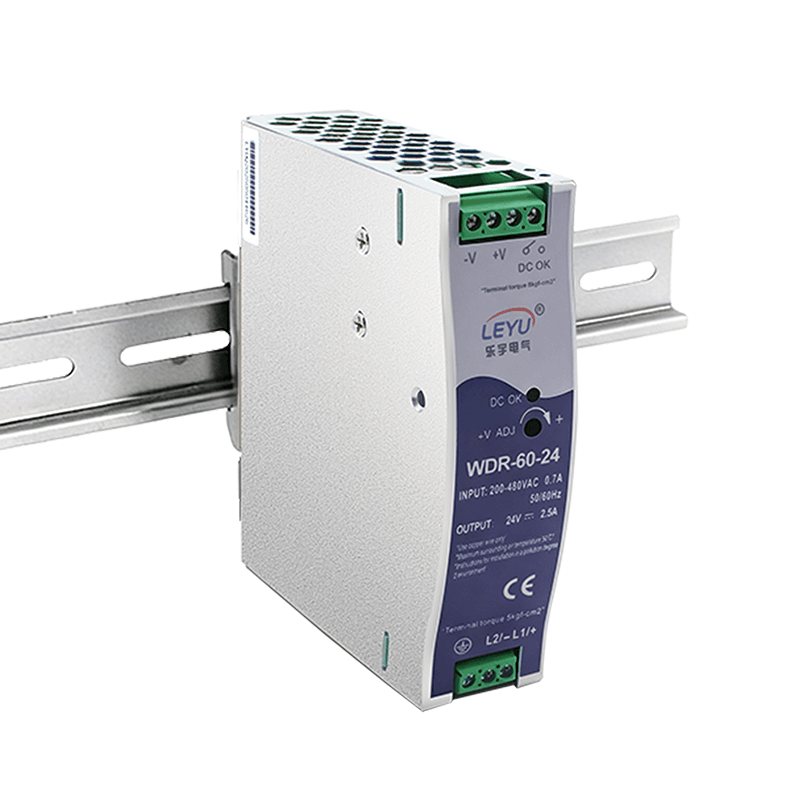

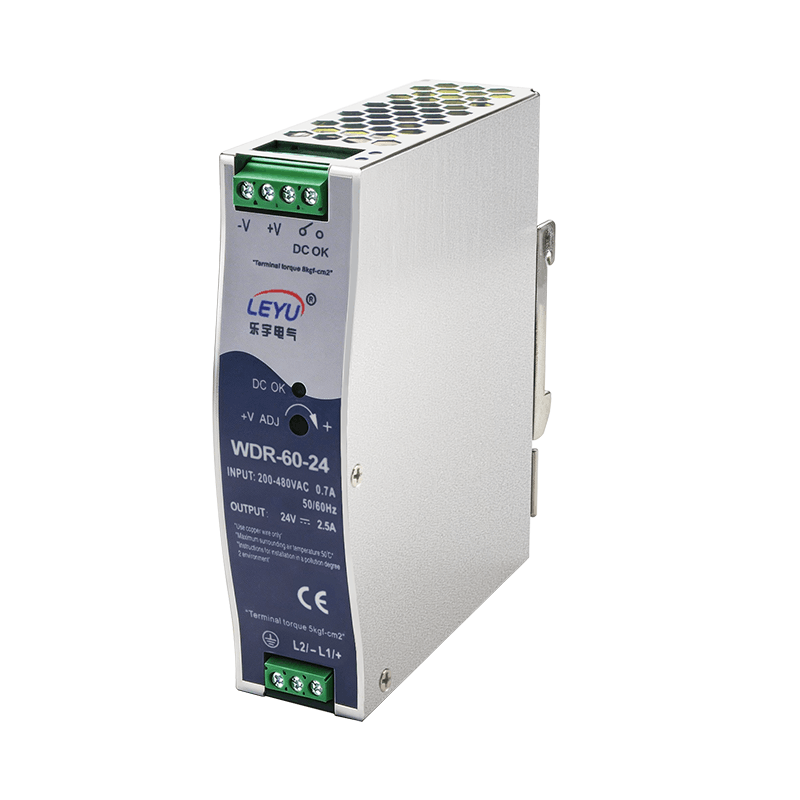

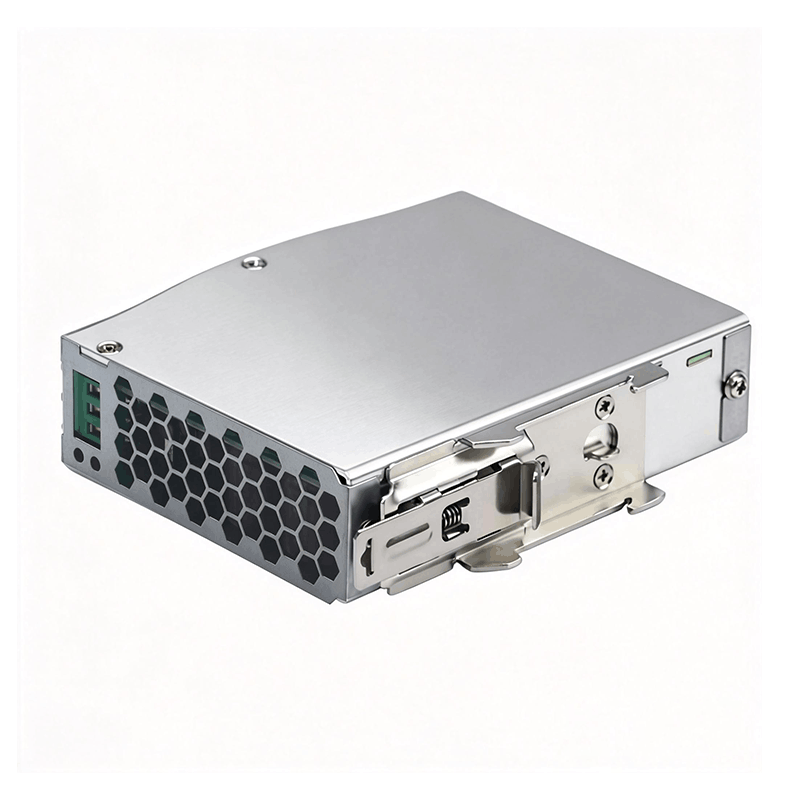

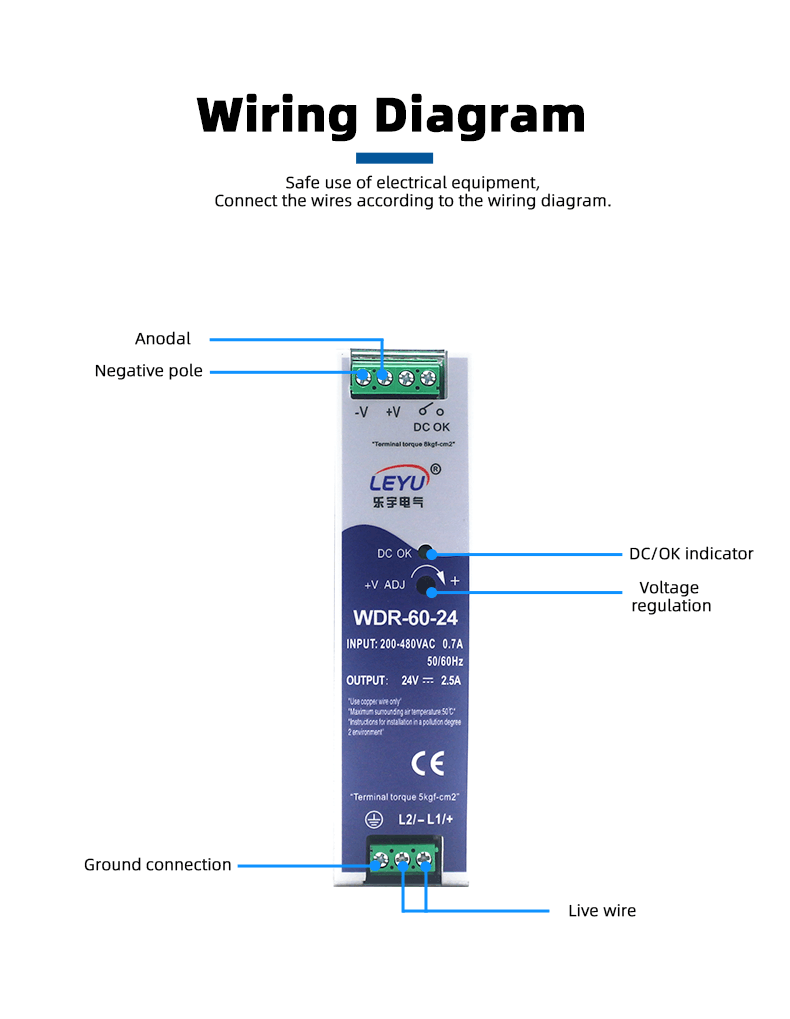

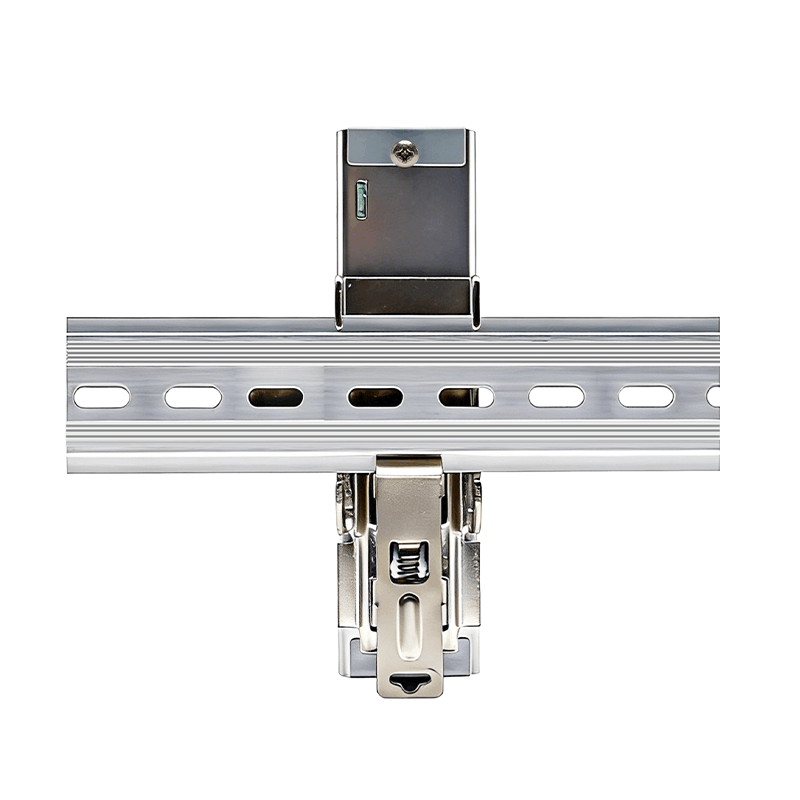

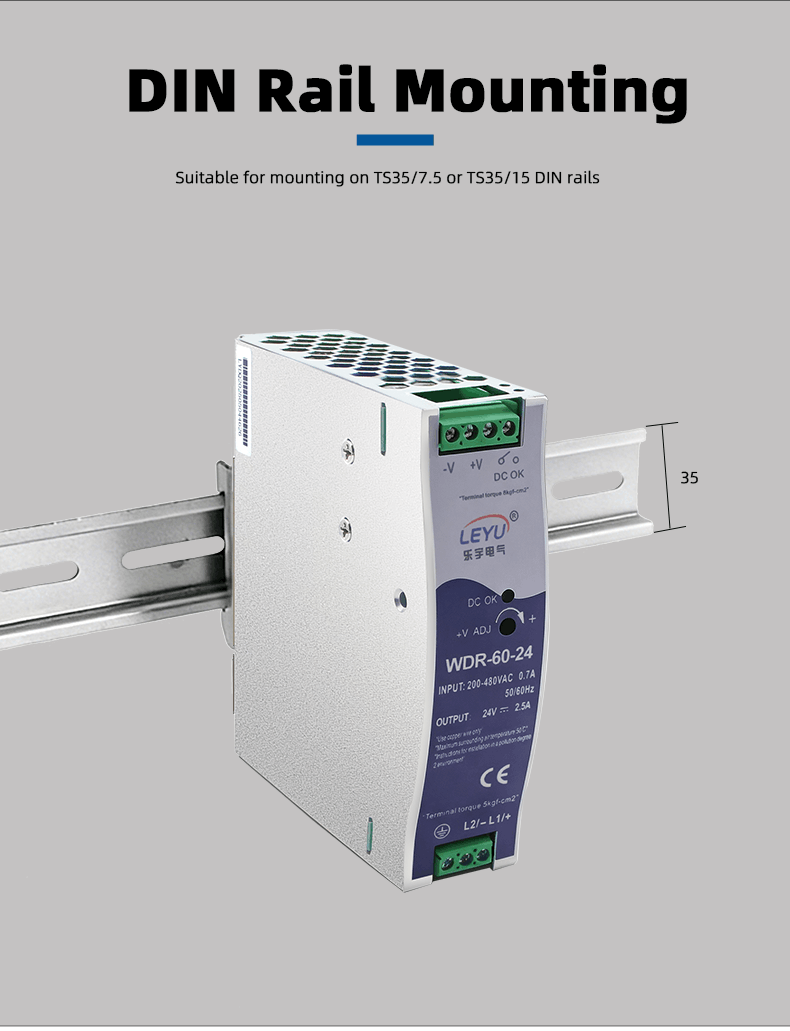

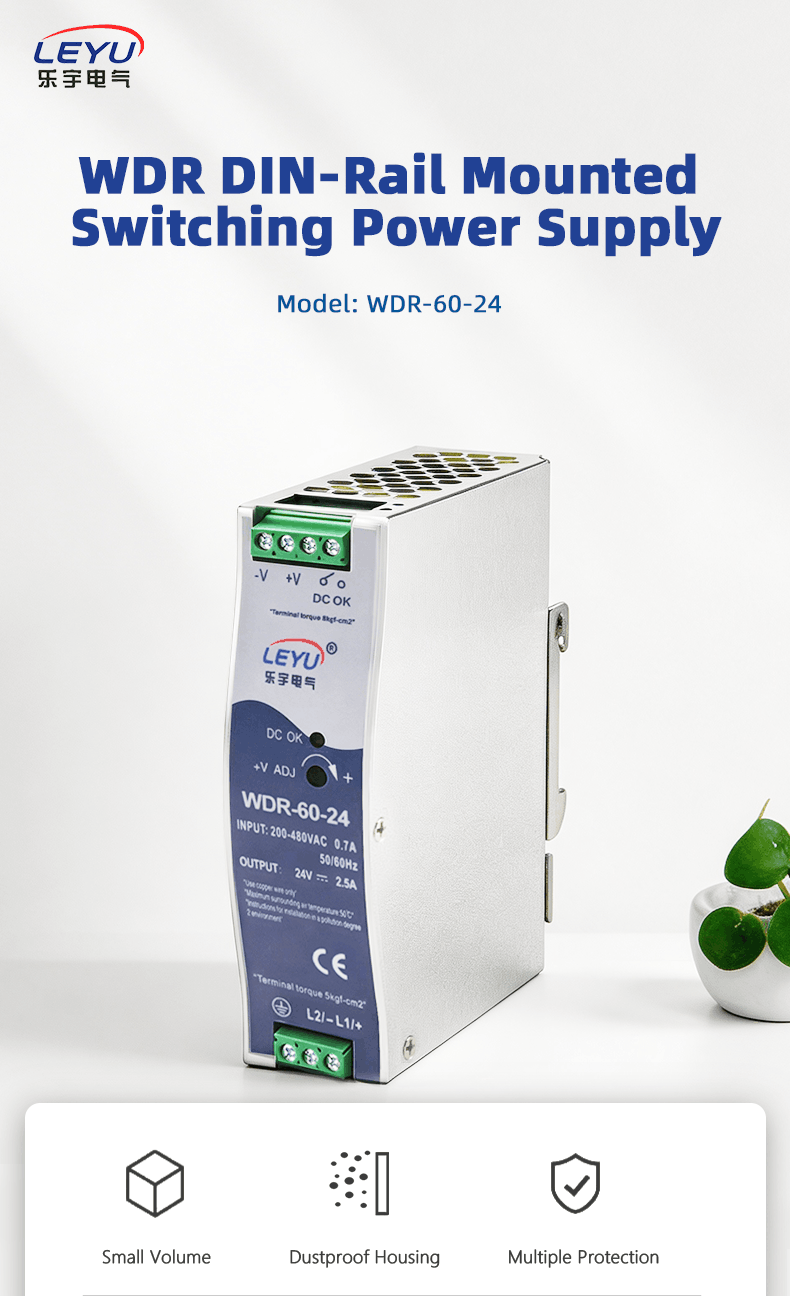

WDR-60

The WDR series offers a high-performance AC/DC power supply solution, ideal for household appliances, factory automation, transportation systems, and building control applications. With a universal input voltage range, it works seamlessly across different regions worldwide. Built-in advanced protection and safety mechanisms ensure reliable operation and long-term stability.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
No Next

Product Detail

Model WDR-60-5 WDR-60-12 WDR-60-24 WDR-60-48
OUTPUT



DC VOLTAGE
 5V 12V 24V 48V
RATED CURRENT
 10A
 5A 2.5A 1.25A
CURRENT RANGE
 0-10A 0-5A 0-2.5A 0-1.25A
RATED POWER
 50W 60W 60W 60W
RIPPLE & NOISE (max.)
 100mVp-p
 120mVp-p
 150mVp-p
 200mVp-p
VOLTAGE ADJ. RANGE
 5 ~ 6V
 12 ~ 15V
 24 ~ 29V
 48 ~ 57V
VOLTAGE TOLERANCE
 ±2%
 ±1.5%
 ±1.0%
 ±1.0%
LINE REGULATION
 ±0.5%
 ±0.5%
 ±0.5%
 ±0.5%
LOAD REGULATION
 ±1.5%
 ±0.5%
 ±0.5%
 ±0.5%
SETUP, RISE, HOLD UP TIME
 1000ms, 70ms, 20ms/400Vac                                      2000ms, 70ms, 10ms/230Vac at full load
INPUT



VOLTAGE RANGE
 180 ~ 550Vac or 254 ~ 780Vdc
FREQUENCY RANGE
 47 ~ 63Hz
EFFICIENCY (Typ.)
 83.5% / 400Vac
 86.5% / 400Vac
 89% / 400Vac
 90.5% / 400Vac
AC CURRENT
 0.4A/400Vac 0.7A/230Vac
INRUSH CURRENT (max.)
 COLD START 50A/400Vac 30A/230Vac
LEAKAGE CURRENT
 <2mA / 530Vac

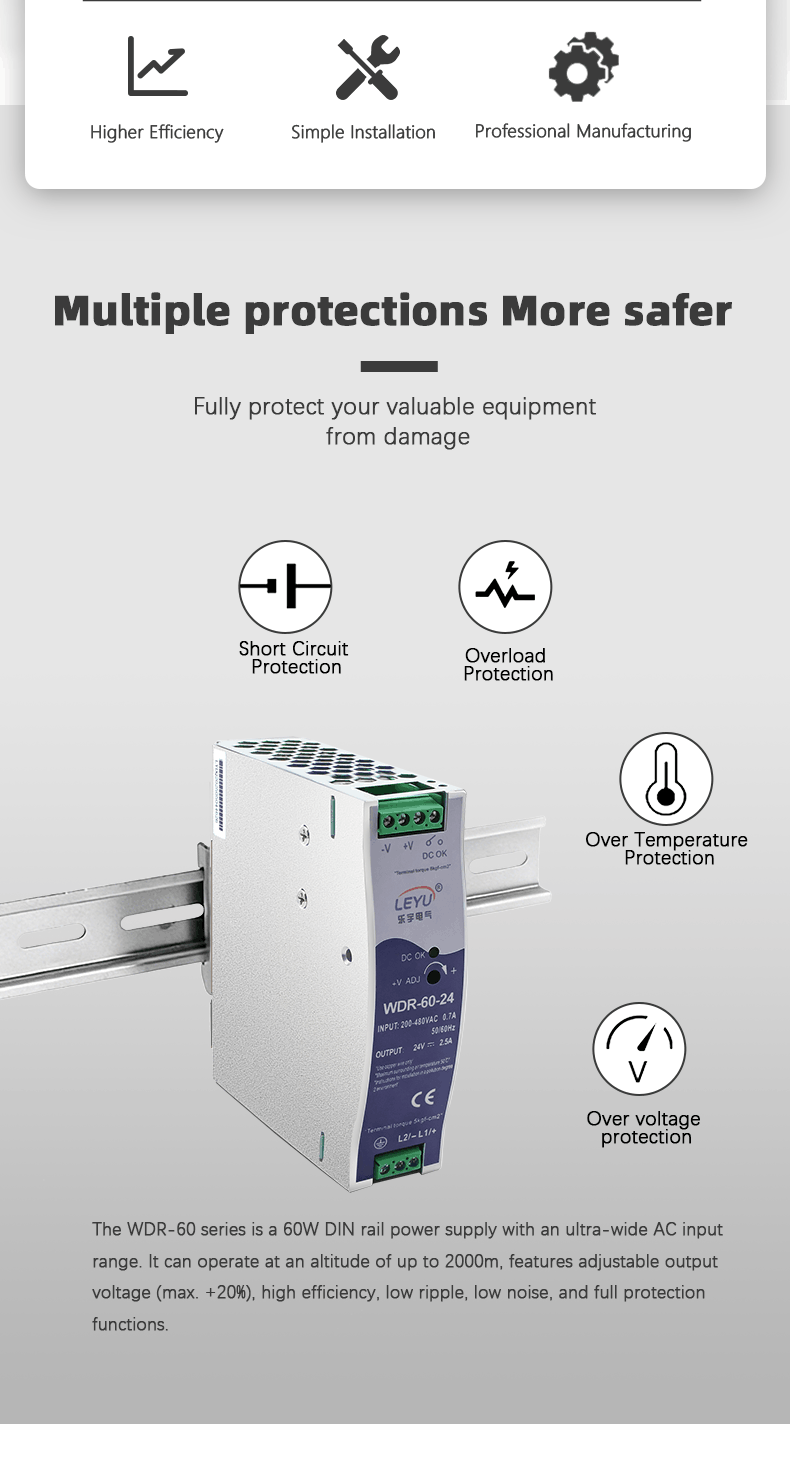

PROTECTION



OVERLOAD
 105 ~ 135% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE
 6.2 ~ 7.2V
 16 ~ 18V
 31 ~ 37V
 58 ~ 60.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
 Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION



DC OK SIGNAL
 Relay contact rating(max.) : 30V / 1A resistive
ENVIRONMENT



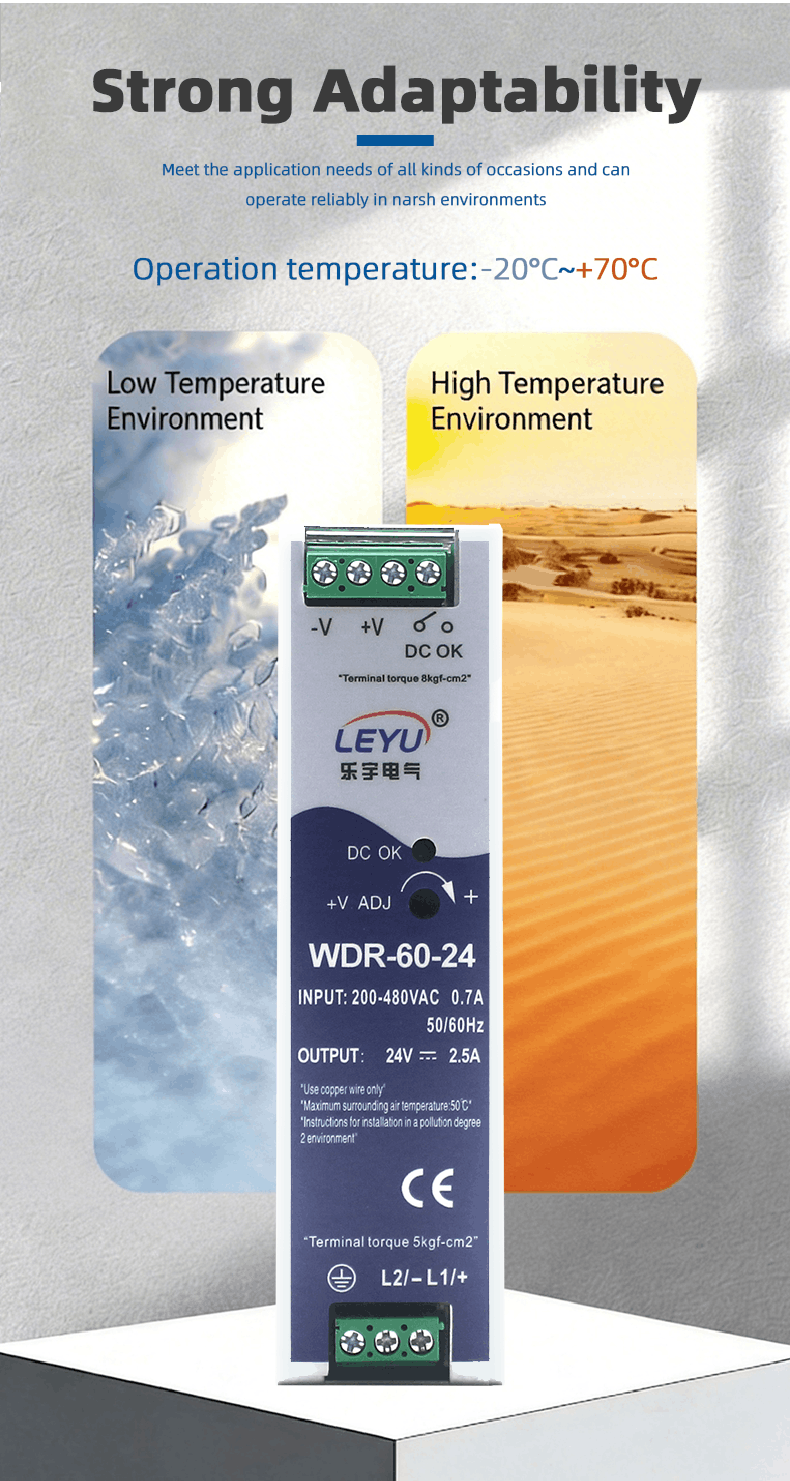

WORKING TEMP.
 -30 ~ +85°C (Refer to "Derating Curve")
WORKING HUMIDITY
 20 ~ 90% RH non-condensing
STORAGE TEMP.
 -40 ~ +85°C
TEMP. COEFFICIENT
 ±0.03%/°C (0 ~ 60°C)
VIBRATION
 Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE
 2000 meters
OVER VOLTAGE CATEGORY
 III: According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters
SAFETY & EMC



SAFETY STANDARDS
 UL61010, EN61558-2-16, EAC TP TC 004 approved; design refer to GL and EN60204-1(By request)
WITHSTAND VOLTAGE
 I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
 I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
OTHERS
MTBF
 313.68K hrs min. MIL-HDBK-217F (25°C)

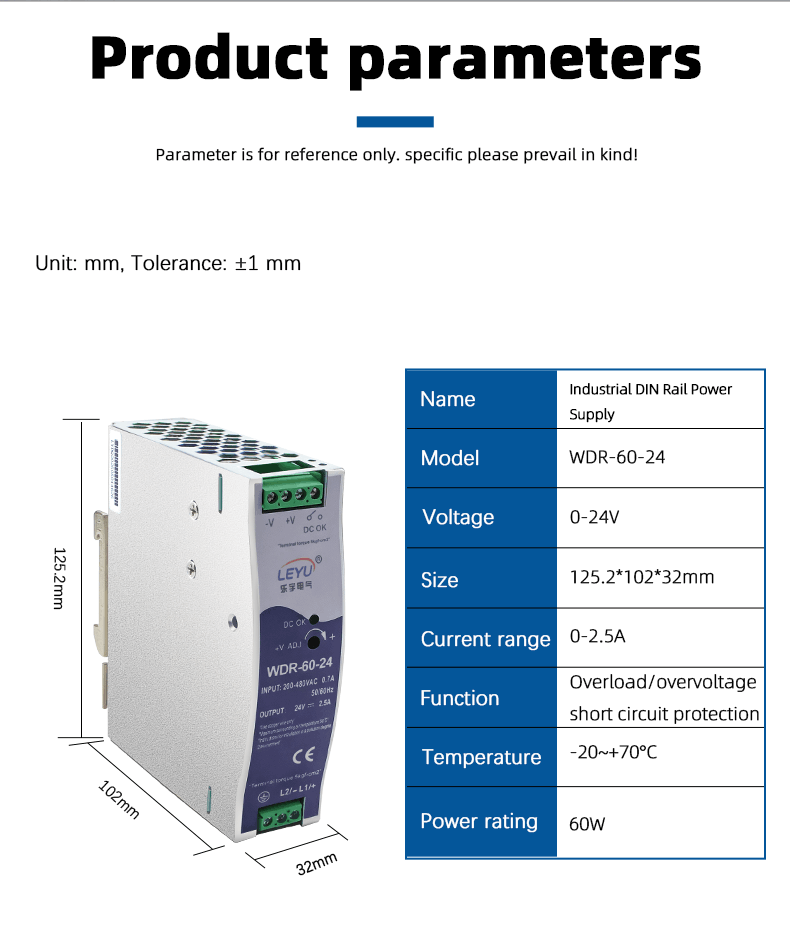

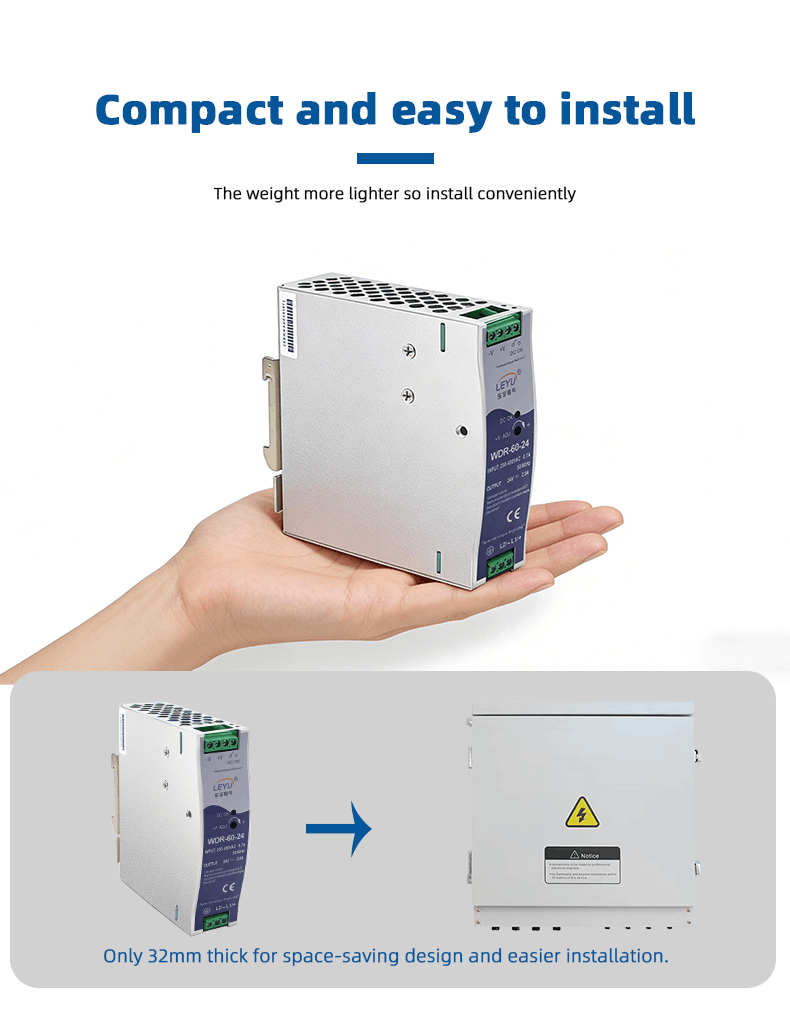

DIMENSION
 32*125.2*102mm (W"H"D)
PACKING
 0.45Kg; 28pcs/13.6Kg/1.24CUFT
