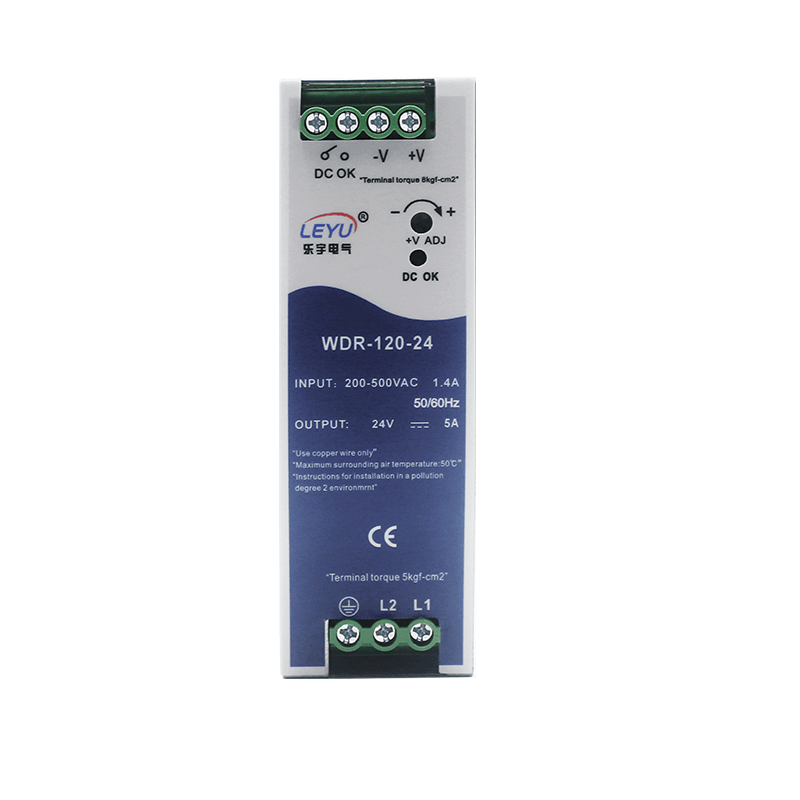

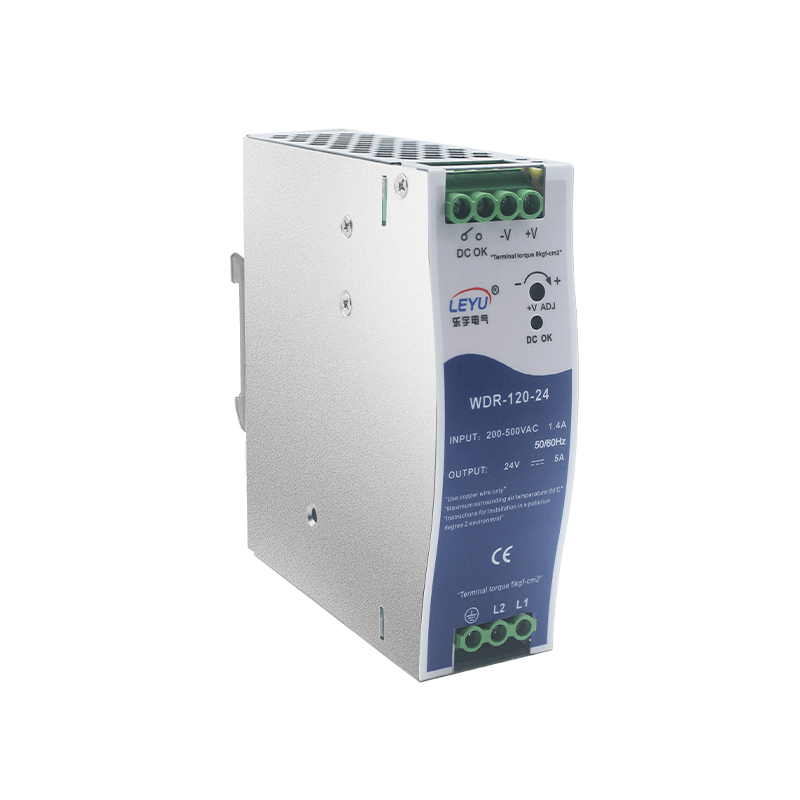

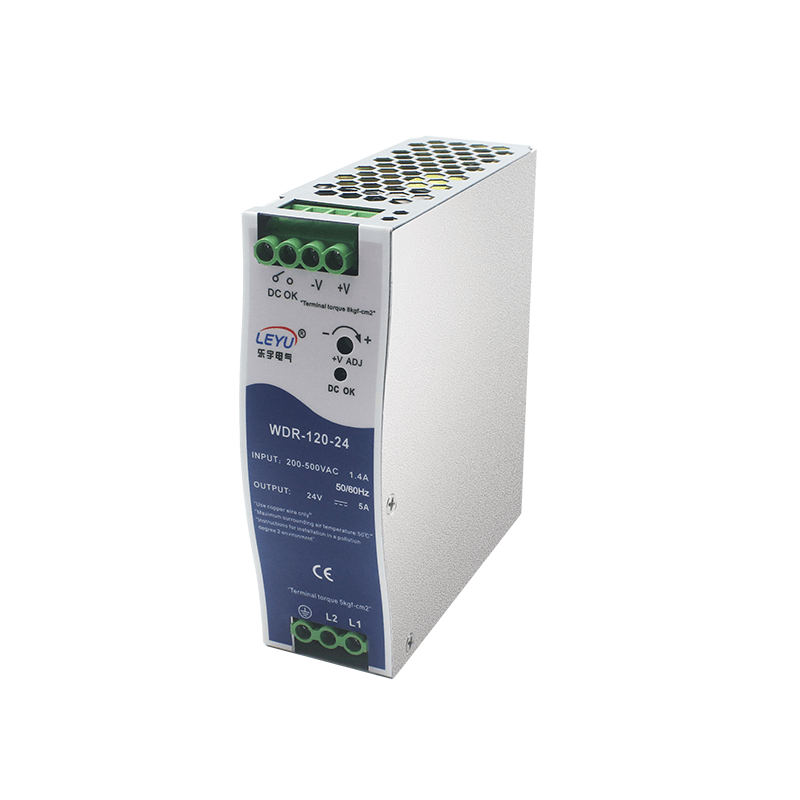

WDR-120
Single and two phase wide input range 180 ~ 550VAC

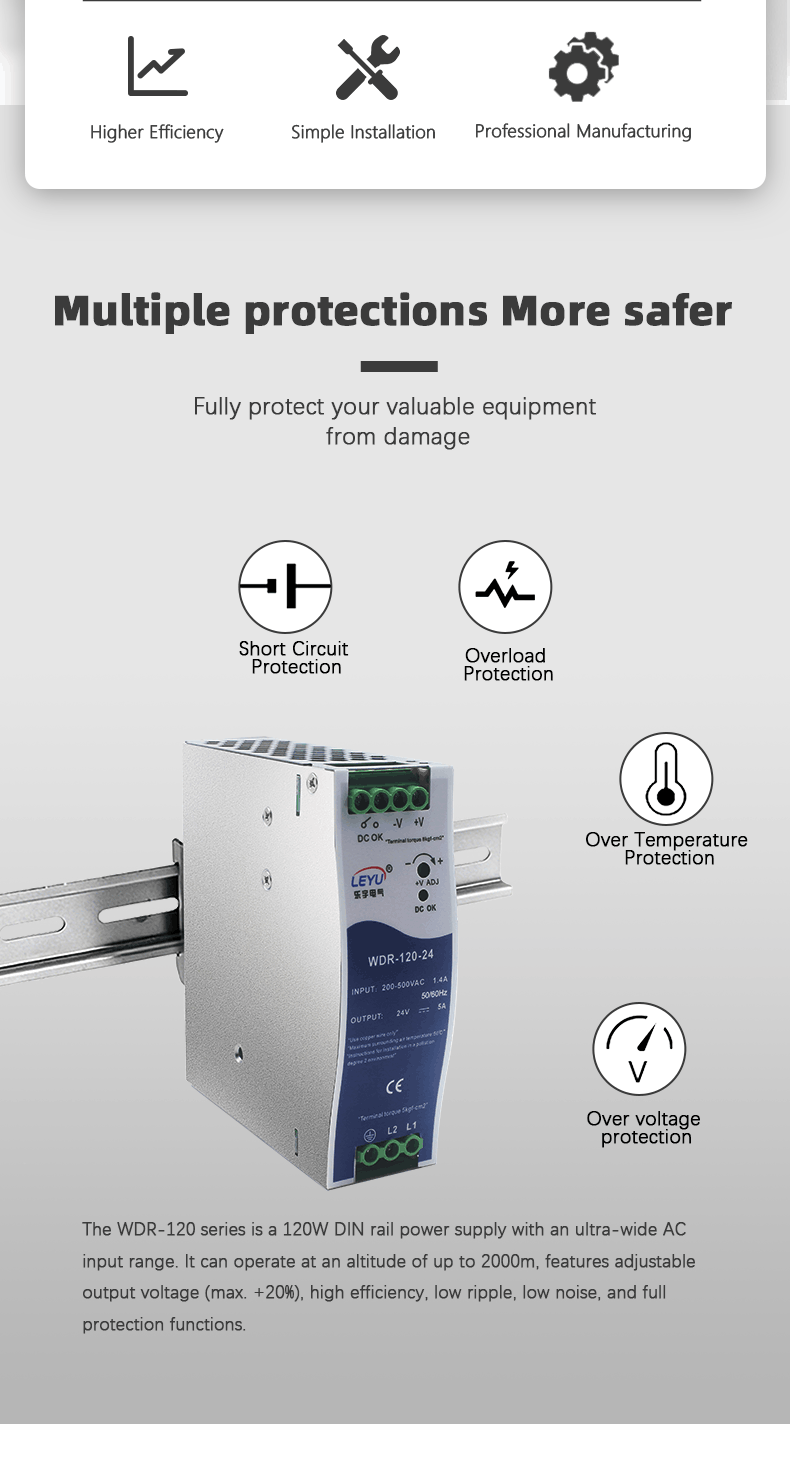

Protections: Short circuit / Overload / Over voltage / Over temperature

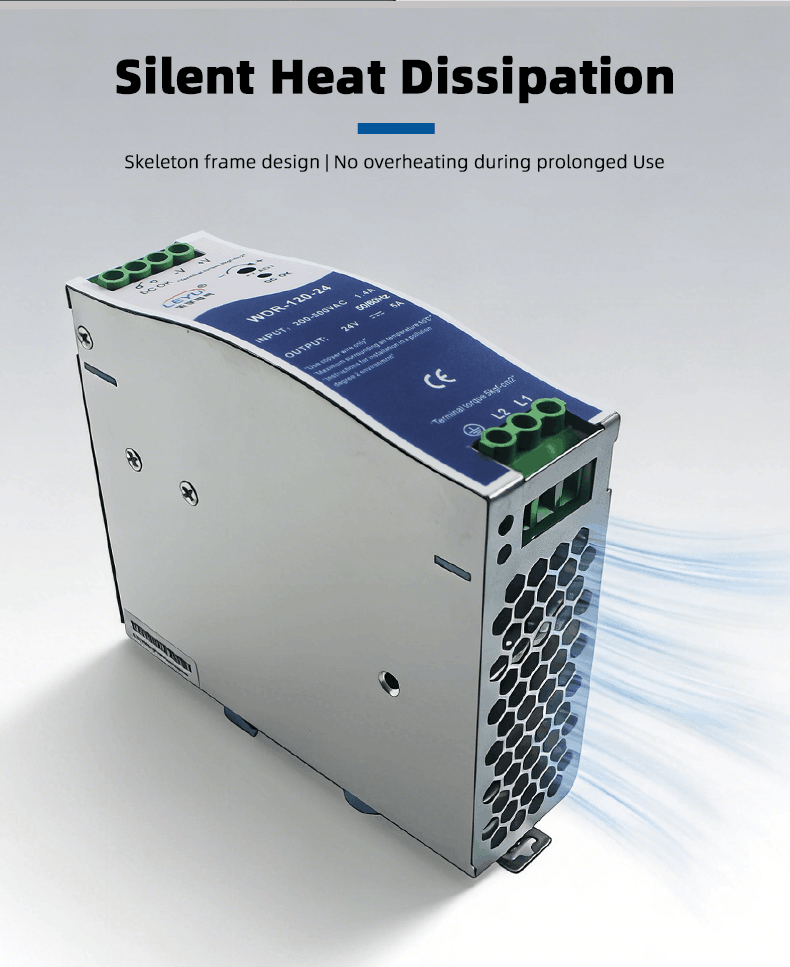

Cooling by free air convection
Built-in constant current limiting circuit

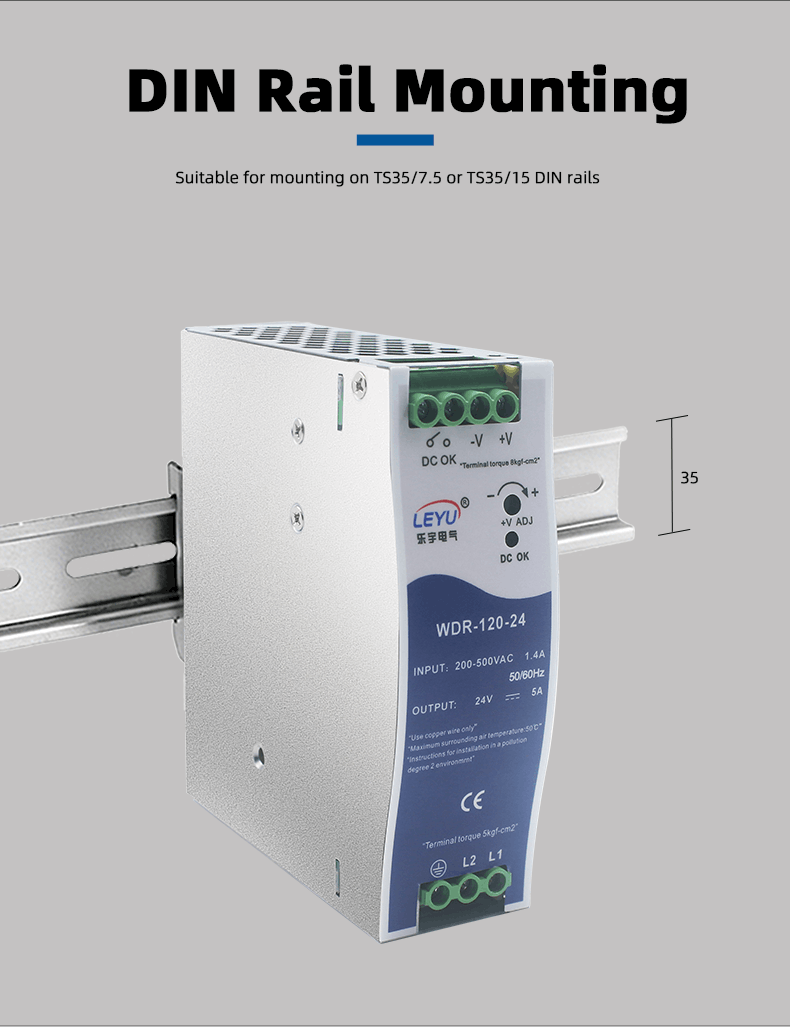

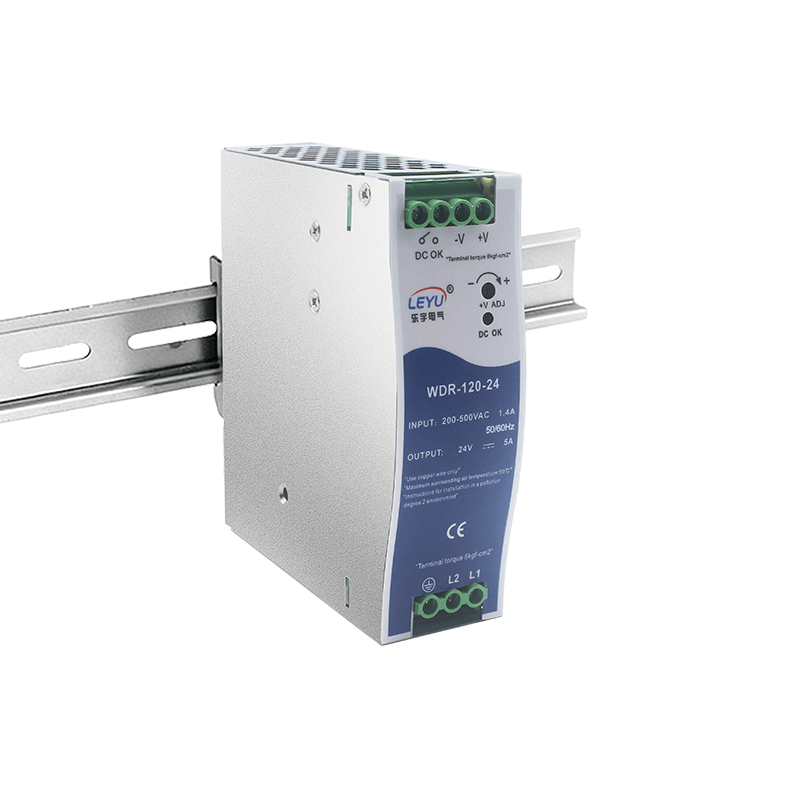

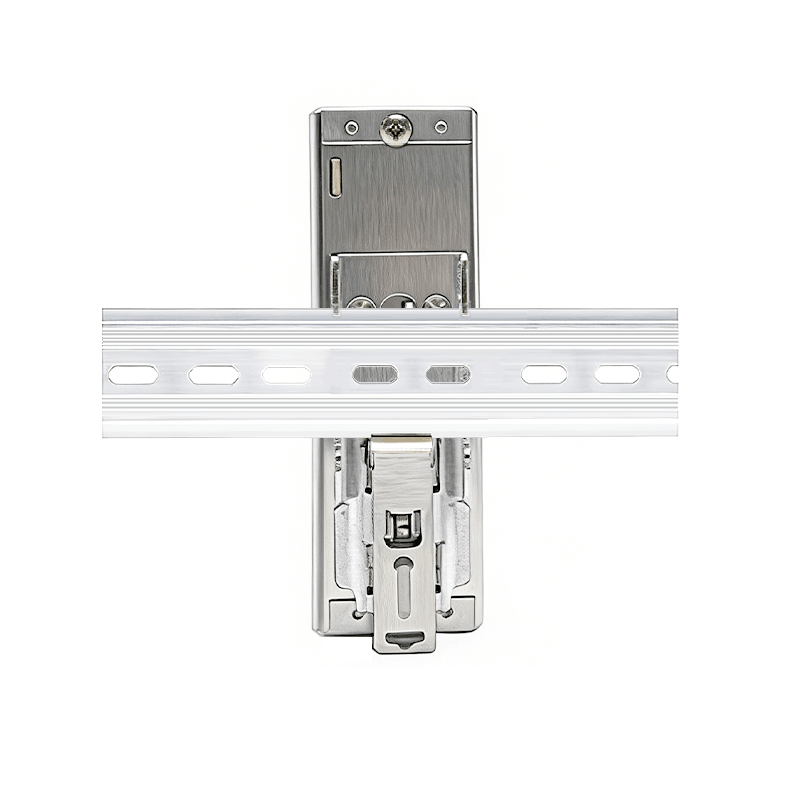

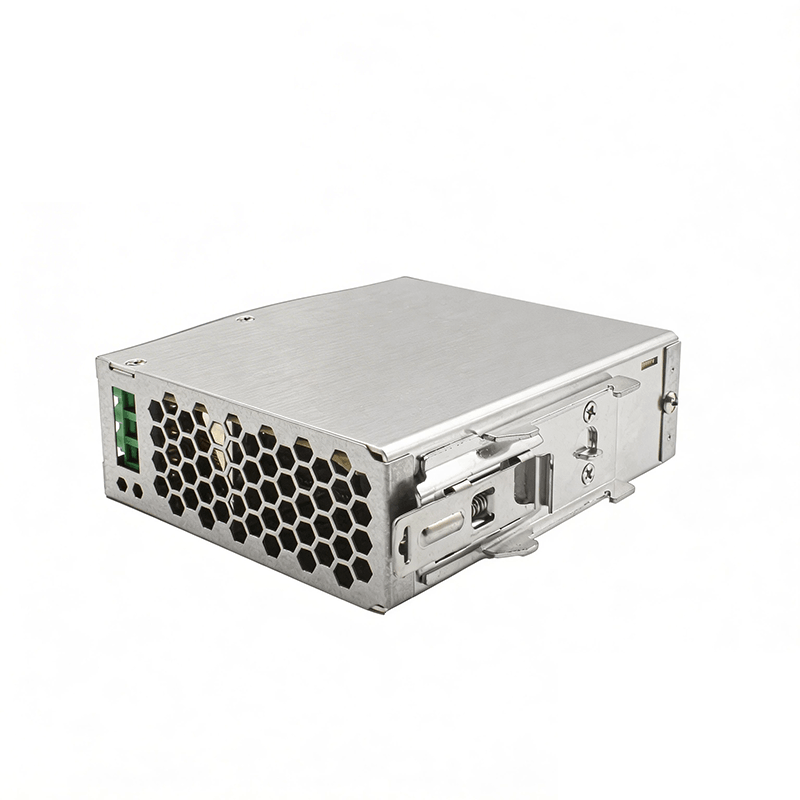

Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment)approved
EN61000-6-2(EN50082-2) industrial immunity level
100% full load burn-in test

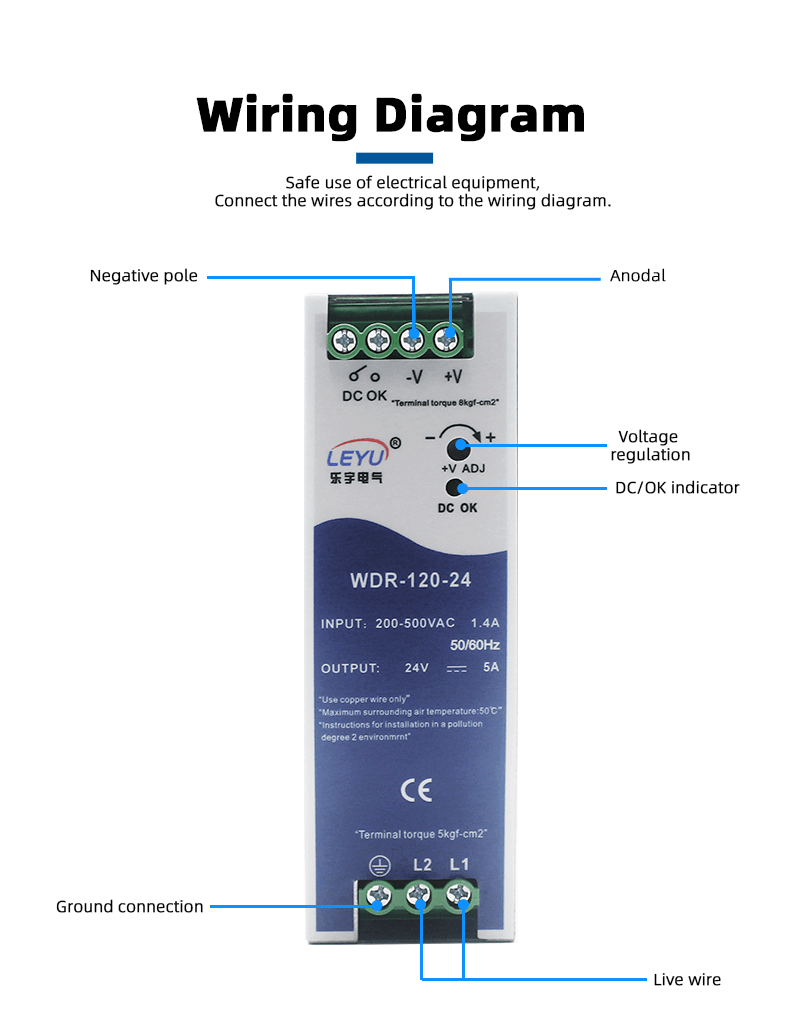

Built-in DC OK relay contact
2 years warranty
Online Service
Product Detail
Specifications:
MODEL
WDR-120-12
WDR-120-24
WDR-120-48
OUTPUT
DC VOLTAGE
12V
24V
48V
RATED CURRENT
10A
5A
2.5A
CURRENT RANGE
0-10A
0-5A
0-2.5A
RATED POWER
120W
120W
120W
RIPPLE & NOISE
120mVp-p
120mVp-p
150mVp-p
VOLTAGE ADJ. RANGE
12 ~ 15V
24 ~ 29V
48 ~ 58V
VOLTAGE TOLERANCE
±1.5%
±1.0%
±1.0%
LINE REGULATION
±0.5%
±0.5%
±0.5%
LOAD REGULATION
±0.5%
±0.5%
±0.5%
SETUP, RISE, HOLD UP TIME
2000ms, 70ms, 50ms/400VAC 2000ms, 70ms, 10ms/230VAC at full load
INPUT
VOLTAGE RANGE
180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89.5% / 400V
91% / 400V
92% / 400V
AC CURRENT
0.7A/400VAC 1.2A/230VAC
INRUSH CURRENT (max.)
COLD START 50A
LEAKAGE CURRENT
<3.5mA / 530VAC
PROTECTION
OVERLOAD
105 ~ 130% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down
OVER VOLTAGE
Protection type: Shut down o/p voltage, re-power on to recover
16 ~ 18V
31 ~ 37V
60 ~ 67V
FUNCTION
DC OK SIGNAL
Relay contact rating(max.) : 30V / 1A resistive
ENVIRONMENT
WORKING TEMP.
-25 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/°C (0 ~ 50°C)
VIBRATION
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
SAFETY & EMC
SAFETY STANDARDS
UL508, AS/NZS 62368.1, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ.(meet EN60204-1)
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION
Compliance to EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020
OTHERS
MTBF
268K hrs min. MIL-HDBK-217F (25°C)

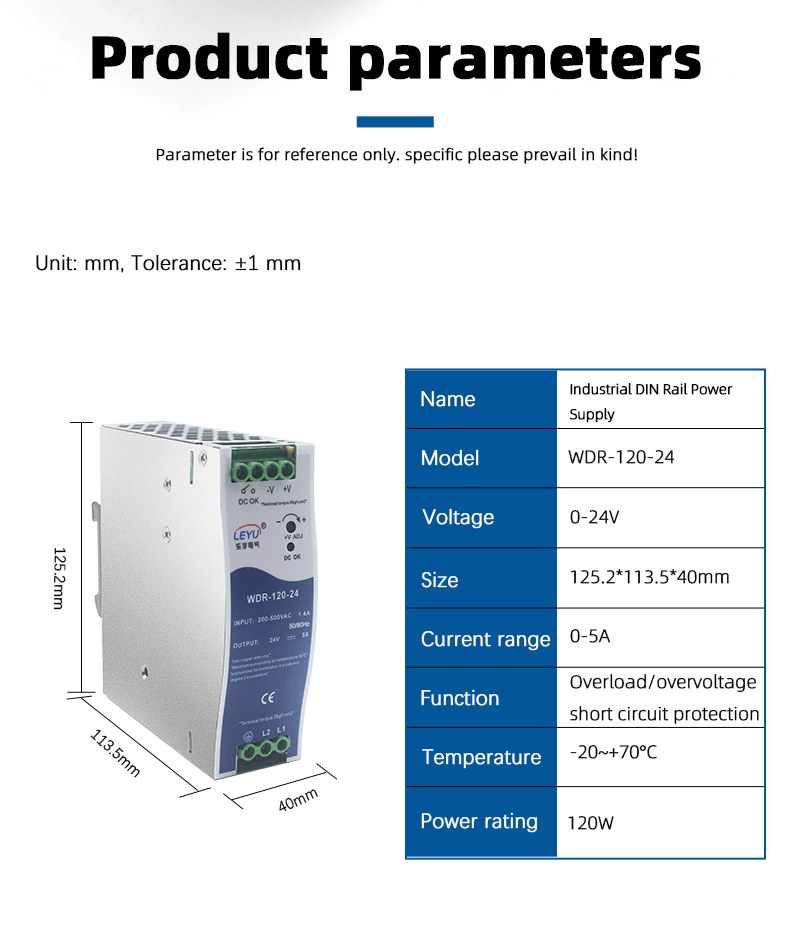

DIMENSION
40*125.2*113.5mm (W*H*D)
PACKING
0.65Kg; 20pcs/14Kg/1.16CUFT
