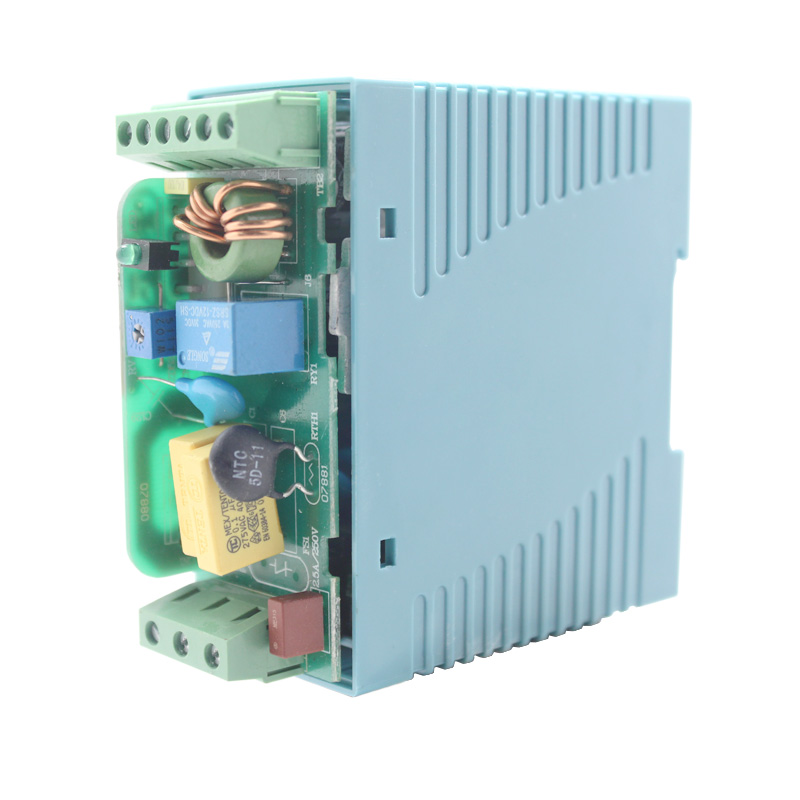

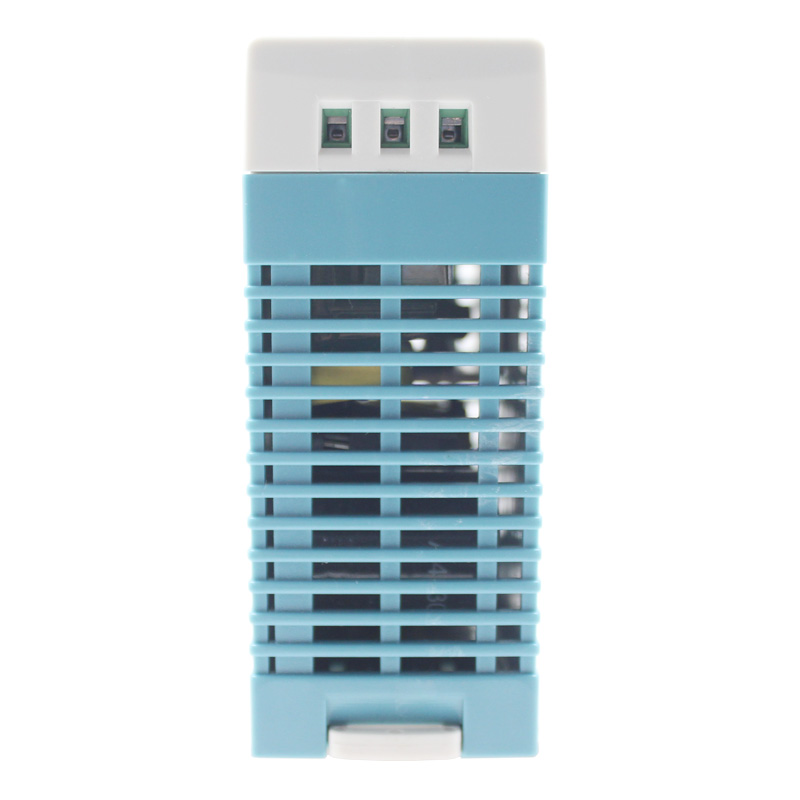

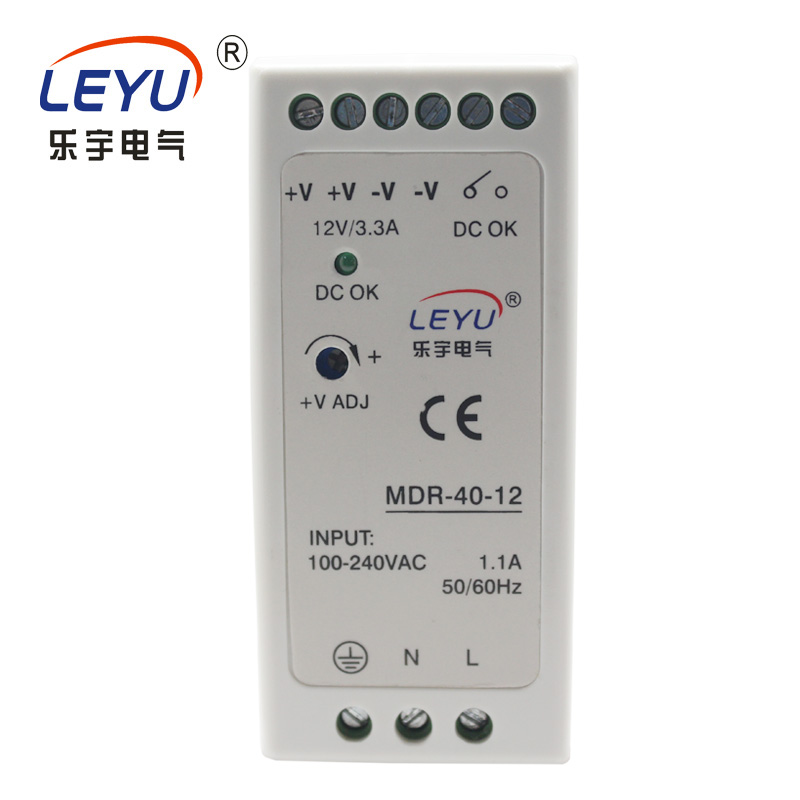

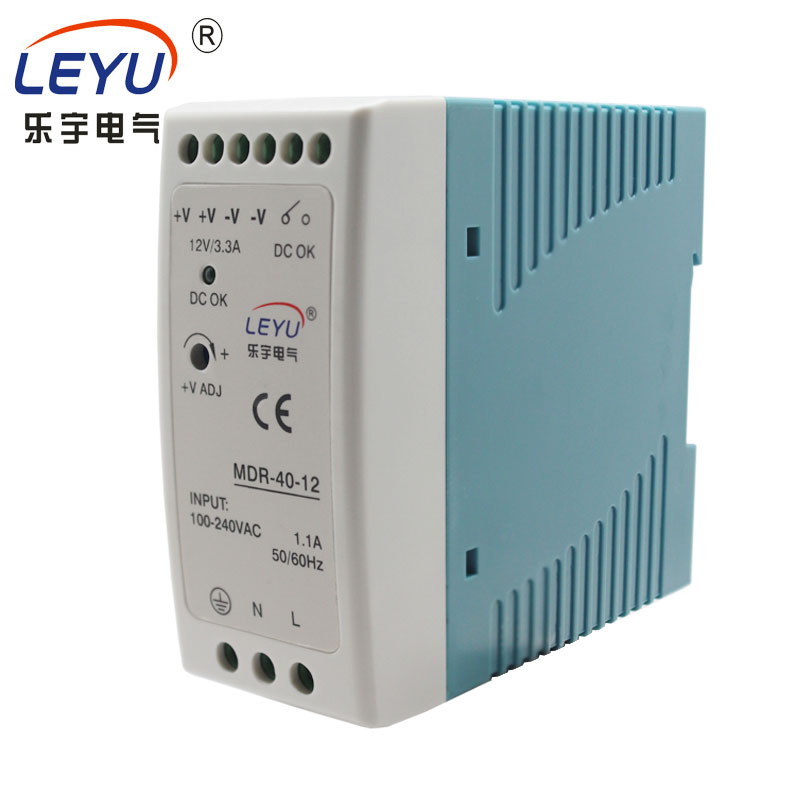

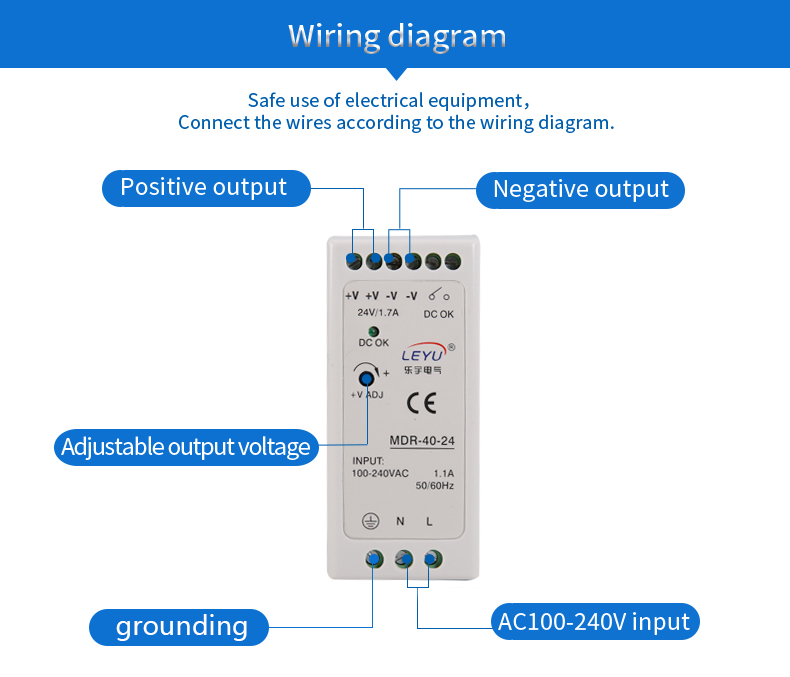

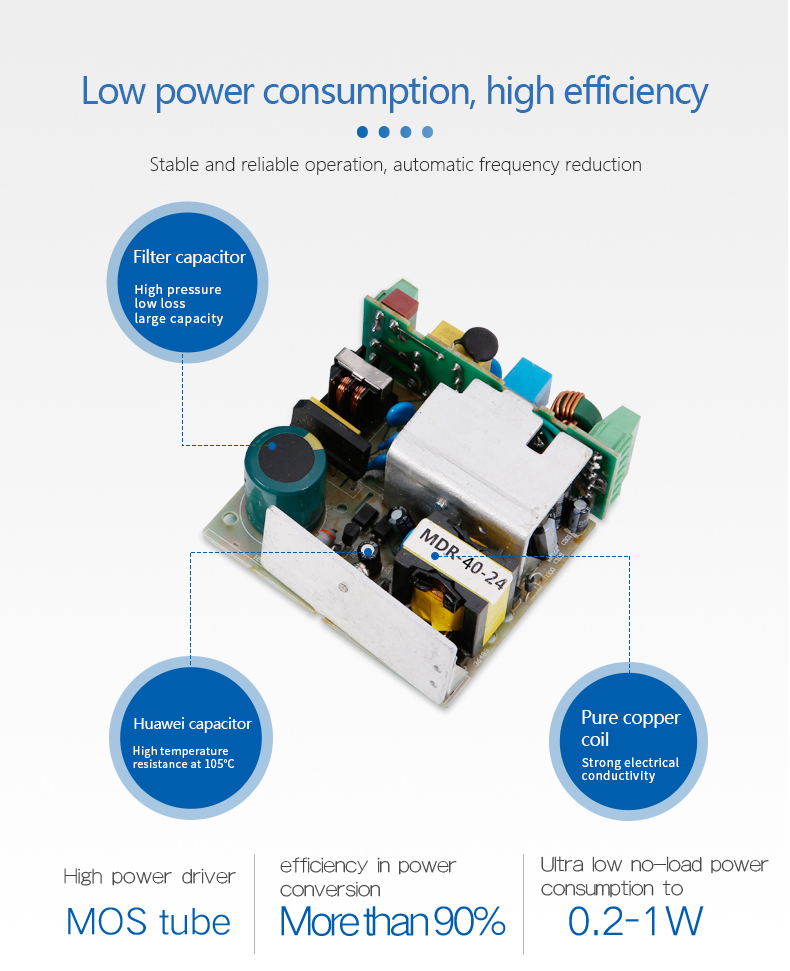

40W Single Output DIN Rail Power Supply MDR-40 series
Features:
Universal AC input/ full range

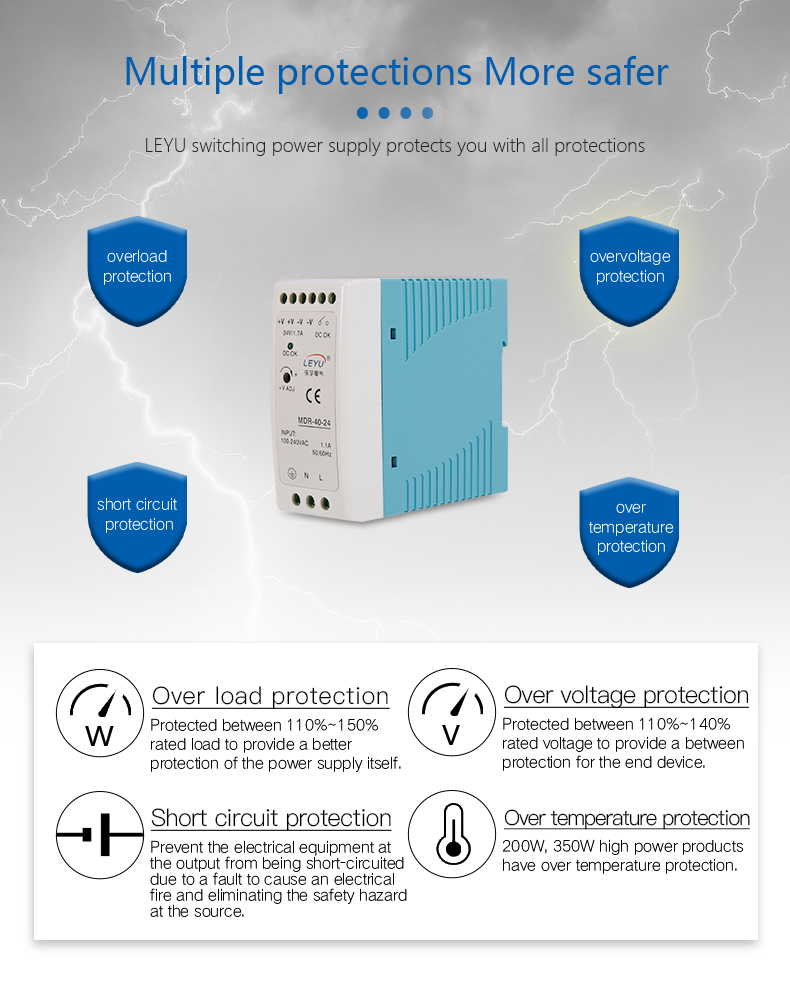

Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection

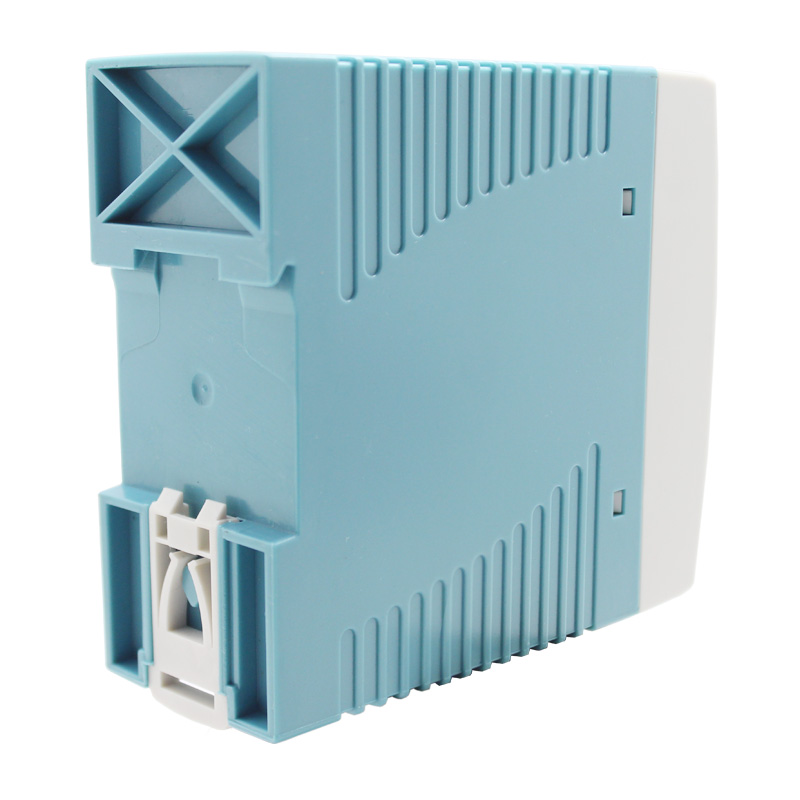

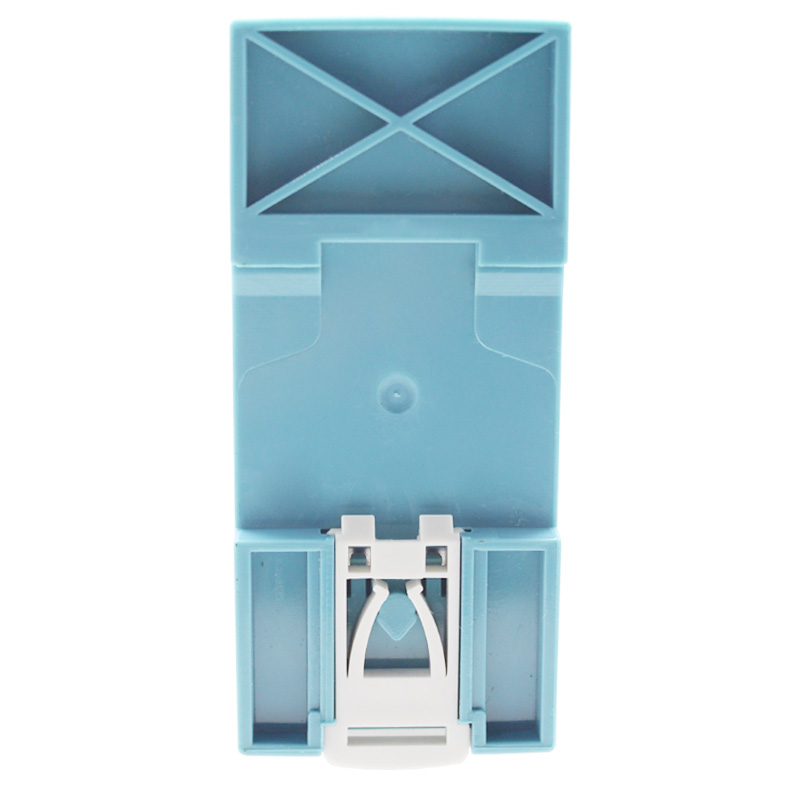

Can be installed on DIN rail TS-35/7.5 or 15
isolation classⅡ
LED indicator for power on
100% full load burn-in test
2 years warranty
|
SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
Model |
MDR-40-5 |
MDR-40-12 |
MDR-40-24 |
MDR-40-48 |
|
DC Voltage |
5V |
12V |
24V |
48V |
|
Rated Current |
6A |
3.3A |
1.7A |
0.83A |
|
Current Range |
0-6A |
0-3.3A |
0-1.7A |
0-0.83A |
|
Rated Power |
30W |
40W |
40.8W |
39.8W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
|
Voltage Adj. Range |
-5%,+10% |
-8%,+10% |
±10% |
±10% |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
|
Setup, Rise Time |
500ms,30ms/230VAC500ms,30ms/115VAC at full load |
|||
|
Hold Up Time |
50ms/230VAC20ms/115VAC at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
88~264VAC47~63Hz; 124~370VDC |
|||
|
AC Current |
1.1A/115V0.7A/ 230V |
|||
|
Efficiency |
78% |
86% |
88% |
88% |
|
Inrush Current |
Cold start 30A/115V60A/230V |
|||
|
Leakage Current |
<1mA/240VAC |
|||
|
|
|
|||
|
PROTECTION |
|
|||
|
Over Load |
105%~160% |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||||
|
Over Voltage |
115%~135% |
|||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-20℃~+60℃; 20%~90%RH |
|||
|
Storage Temp., Humidity |
-40℃~+85℃; 10%~95%RH |
|||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P: 3KVAC |
|||
|
Isolation Resistance |
I/P-O/P: 100M Ohms / 500VDC |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
Safety Standard |
Design refer to UL60950-1,TUV EN60950-1,EN50178 |
|||
|
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2，EN61204-3 |
|||
|
|
|
|||
|
OTHERS |
|
|||
|
Dimension |

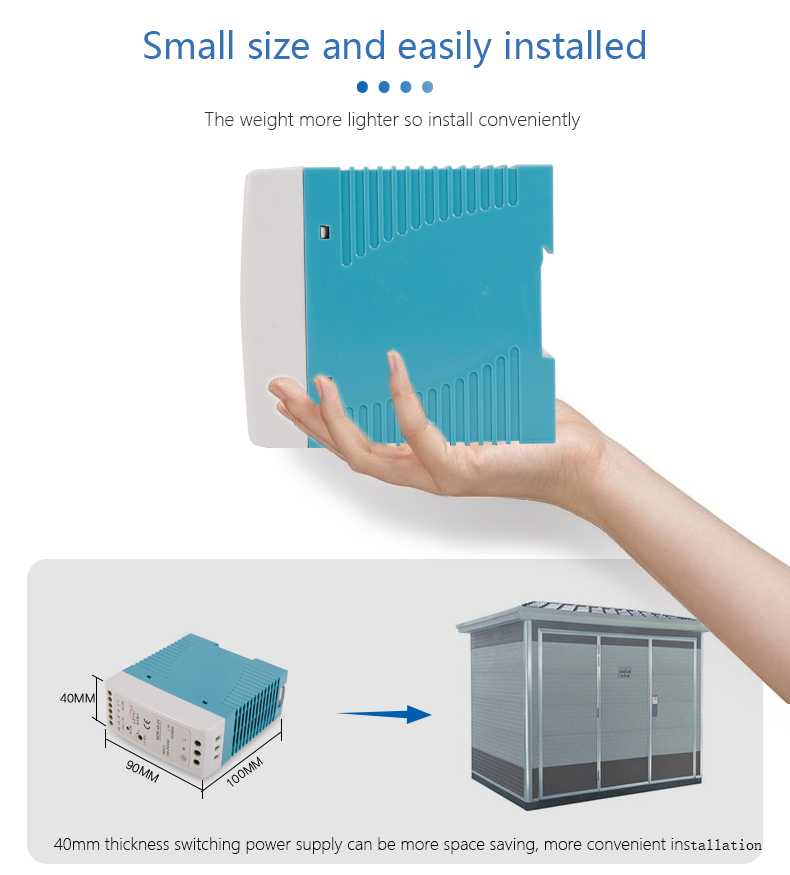

40*90*100mm(W*H*L) |
|||
|
Weight |
0.33Kg |
|||
|
Packing |
50pcs/carton |
|||
|
|
|
|||
|
NOTE |
|
|||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ & 47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||
