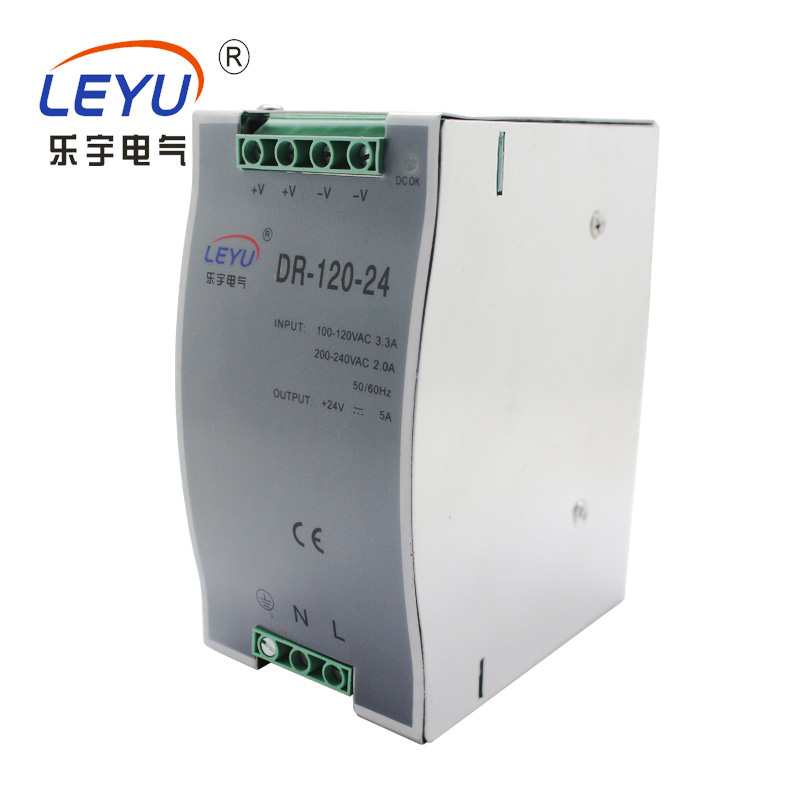

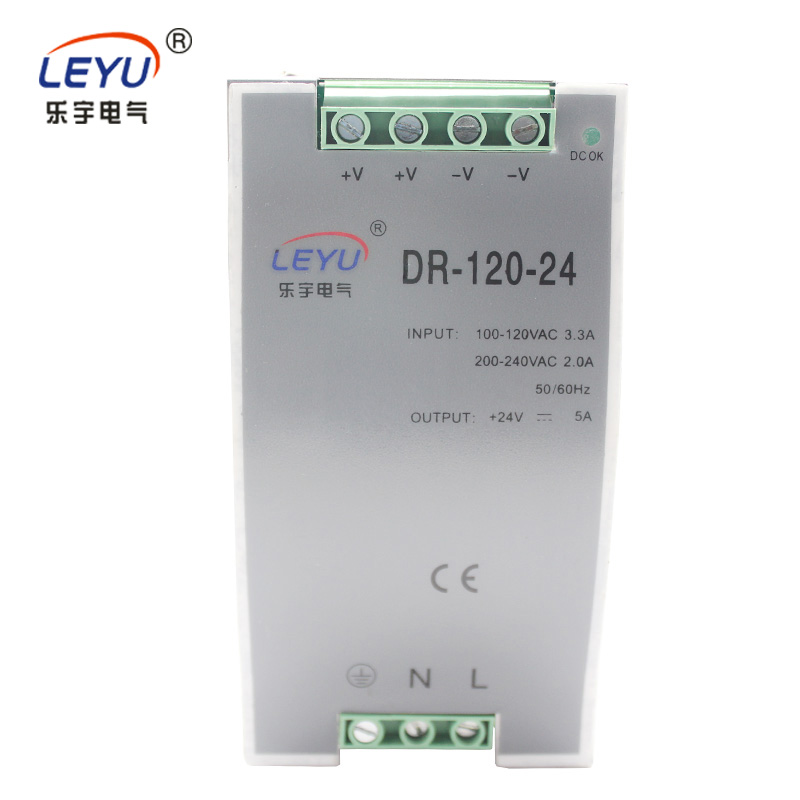

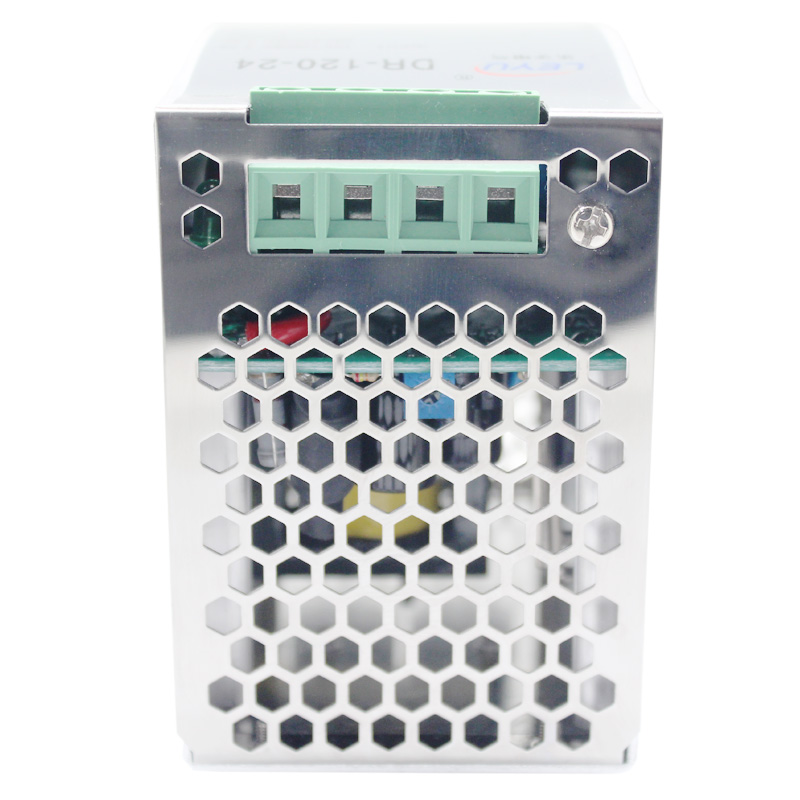

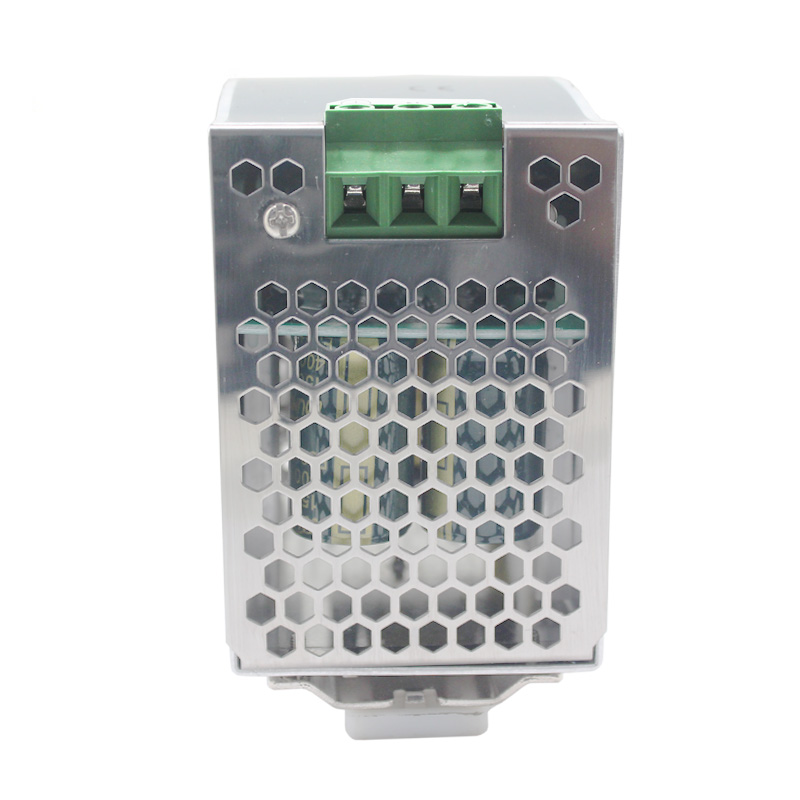

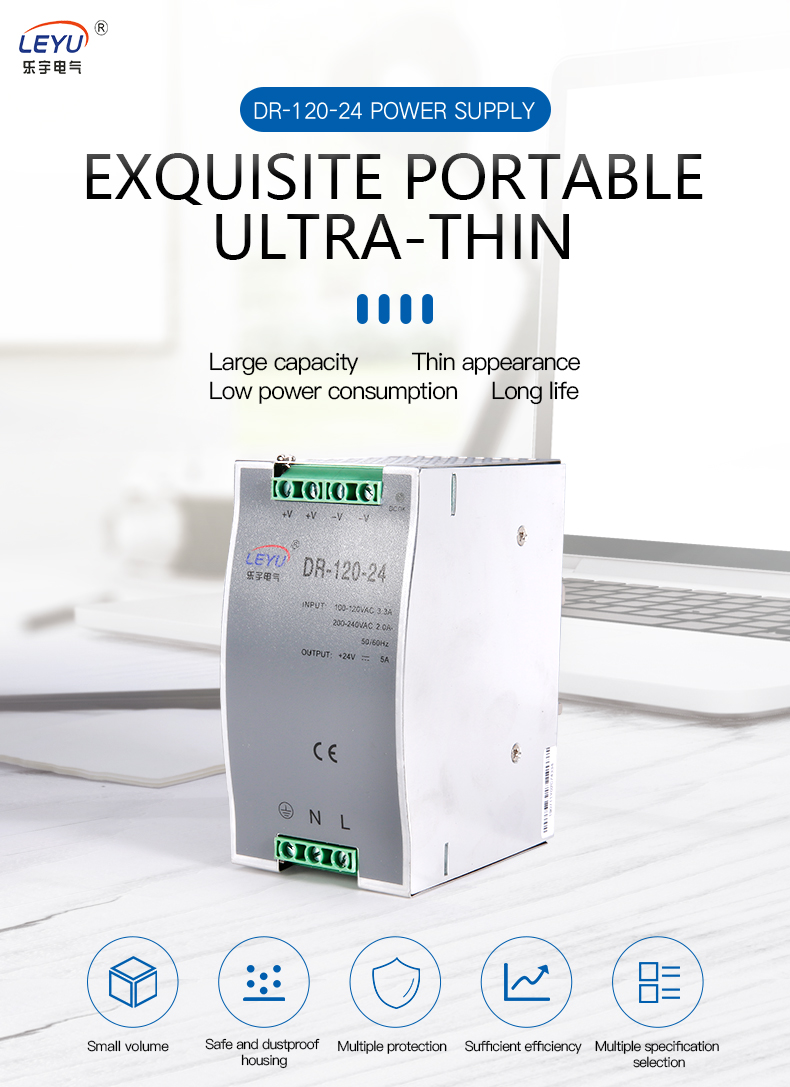

120W Single Output Industrial DIN Rail Power Supply DR-120 series
Features:
Universal AC input / full range
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection

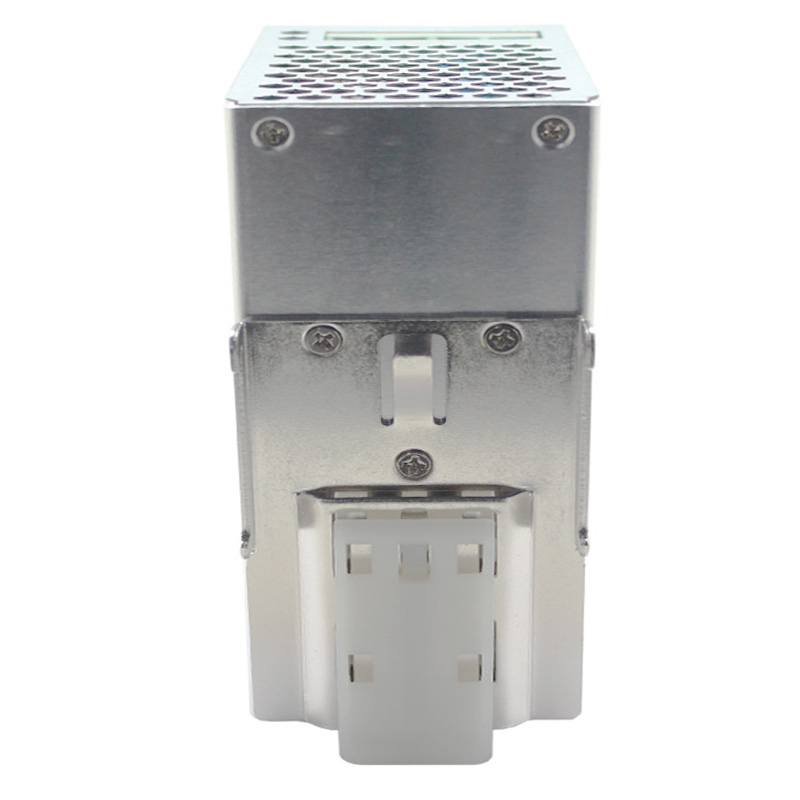

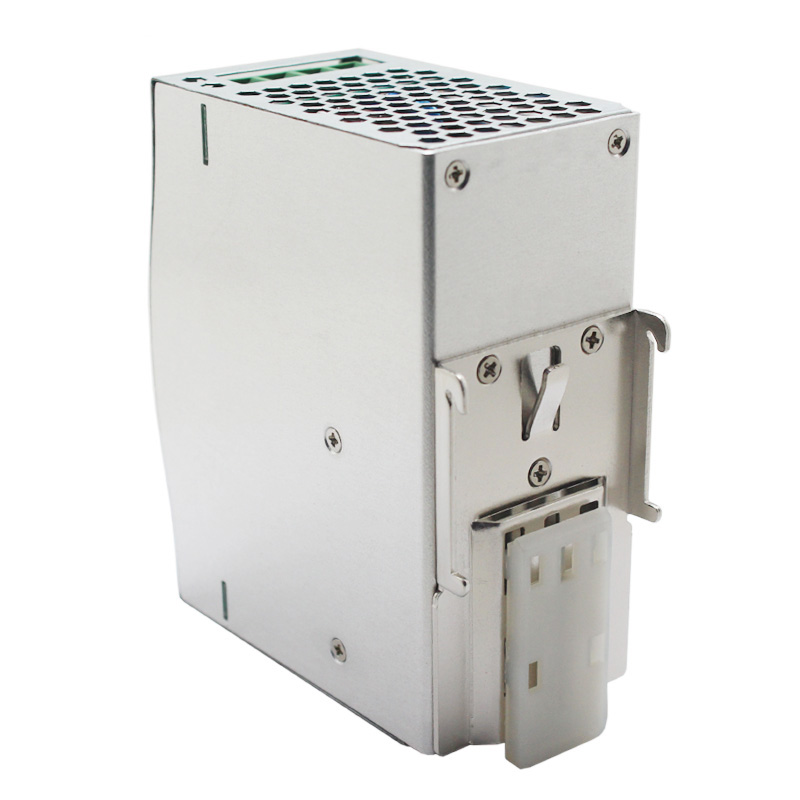

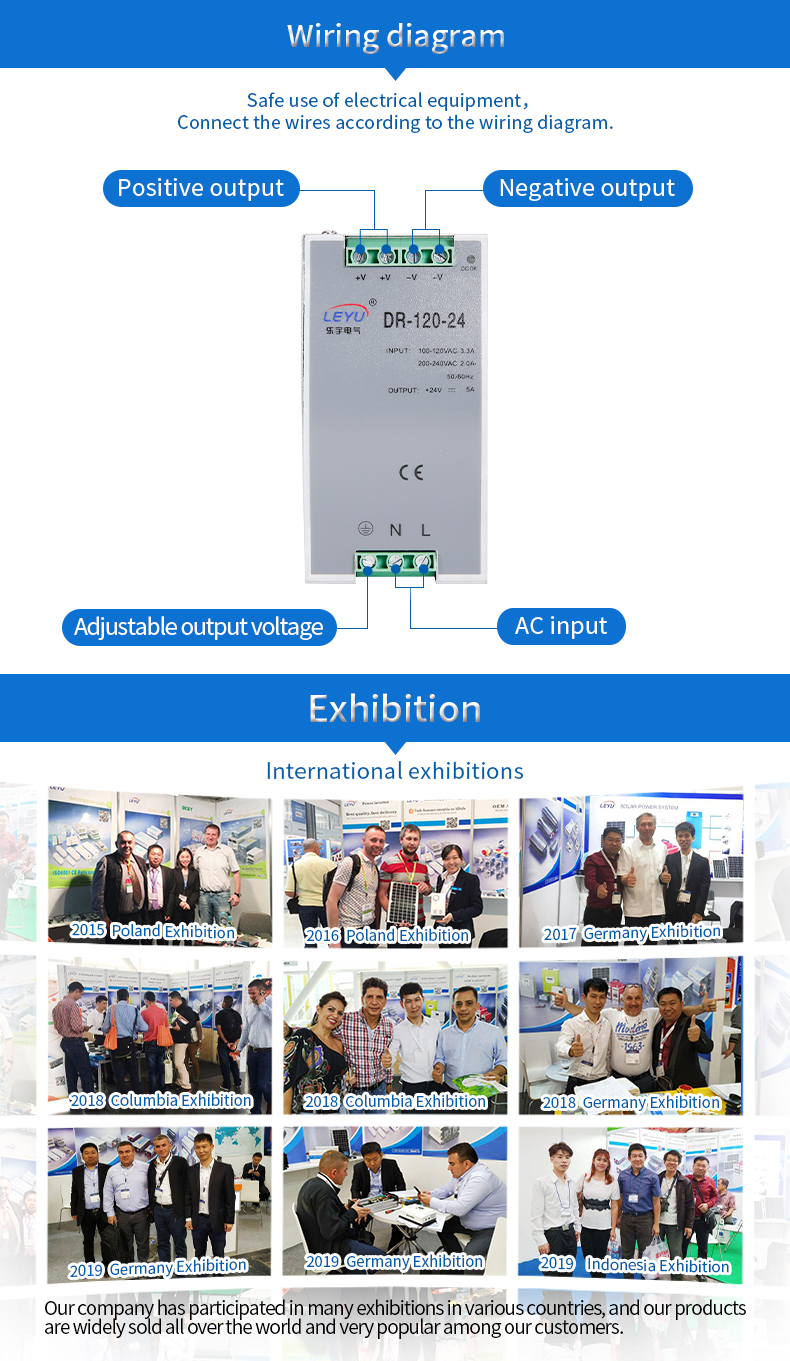

Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switch frequency at 55KHz
2 years warranty
|
SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
DR-120-12 |
DR-120-24 |
DR-120-48 |
|
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
10A |
5A |
2.5A |
|
Current Range |
0-10A |
0-5A |
0-2.5A |
|
Rated Power |
120W |
120W |
120W |
|
Ripple & Noise |
80mVp-p |
80mVp-p |
100mVp-p |
|
Voltage Adj. Range |
12-14V |
24-28V |
48-53V |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
|
Setup, Rise Time |
500ms,70ms/230VAC500ms,70ms/115VACat full load |
||
|
Hold Up Time |
36ms/230VAC32ms/115VAC at full load |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
88~132VAC/176~264VACselected by switch 47~63Hz; 248~370VDC |
||
|
AC Current |
2.6A/115V1.6A/230V |
||
|

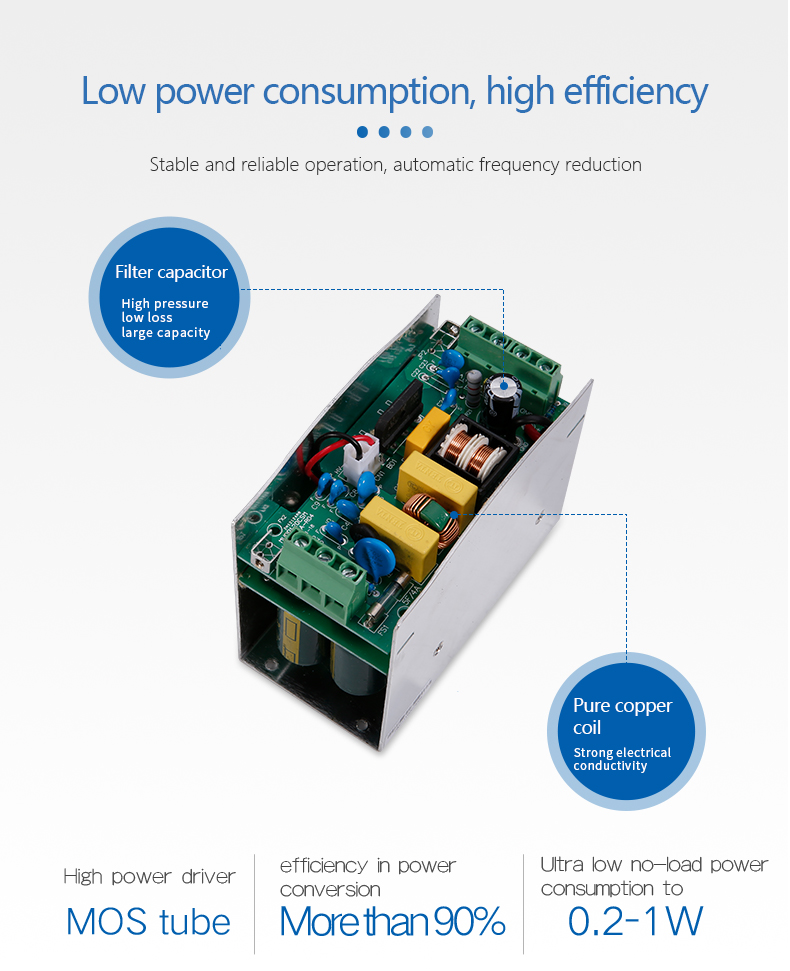

Efficiency |
80% |
84% |
85% |
|
Inrush Current |
Cold start 20A/115V40A/230V |
||
|
Leakage Current |
<3.5mA/240VAC |
||
|
|
|
||
|

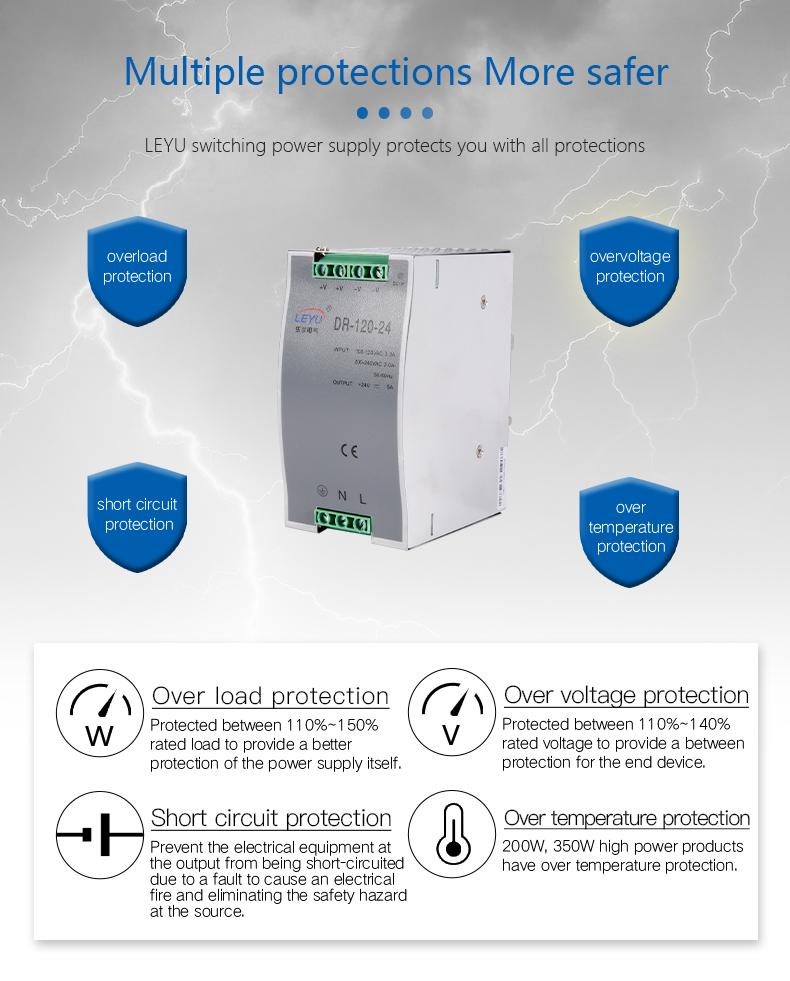

PROTECTION |
|
||
|
Over Load |
105%~150% |
||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|||
|
Over Voltage |
120%~135% |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||
|
Over Temp. |
85℃±5℃(TSW1) |
90℃±5℃(TSW1) |
90℃±5℃(TSW1) |
|
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
|||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
Design refer to UL508,UL60950-1，TUV EN60950-1 |
||
|
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
||
|
|
|
||
|
OTHERS |
|
||
|

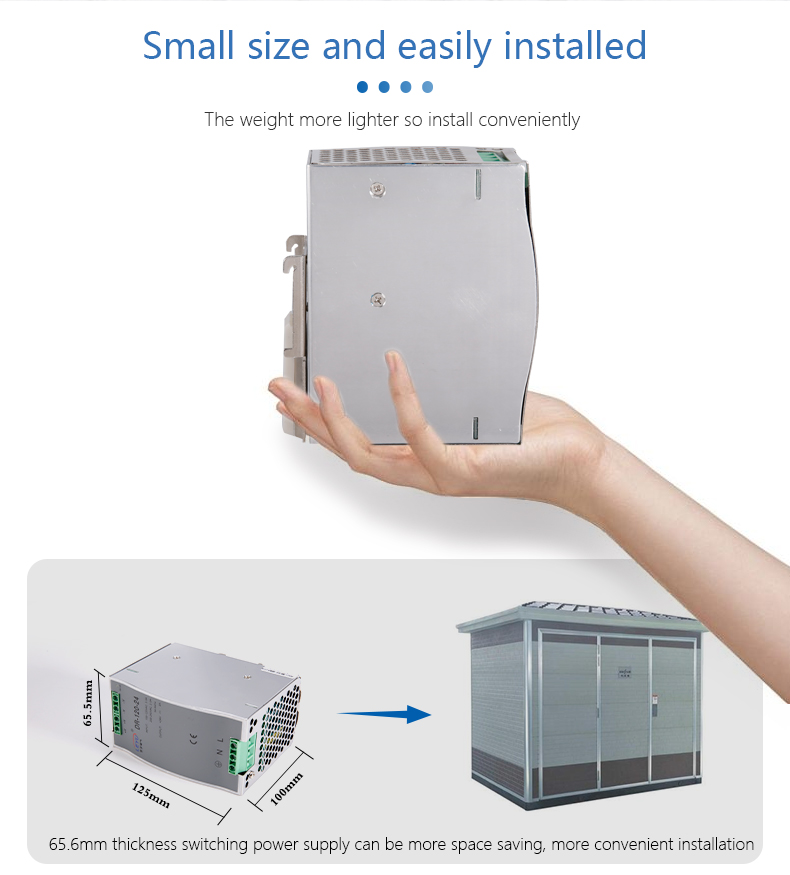

Dimension |
65.5*125.2*100mm(L*W*H) |
||
|
Weight |
0.79Kg |
||
|
Packing |
35pcs/carton |
||
|
|
|
||
|
NOTE |
|
||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ & 47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||
