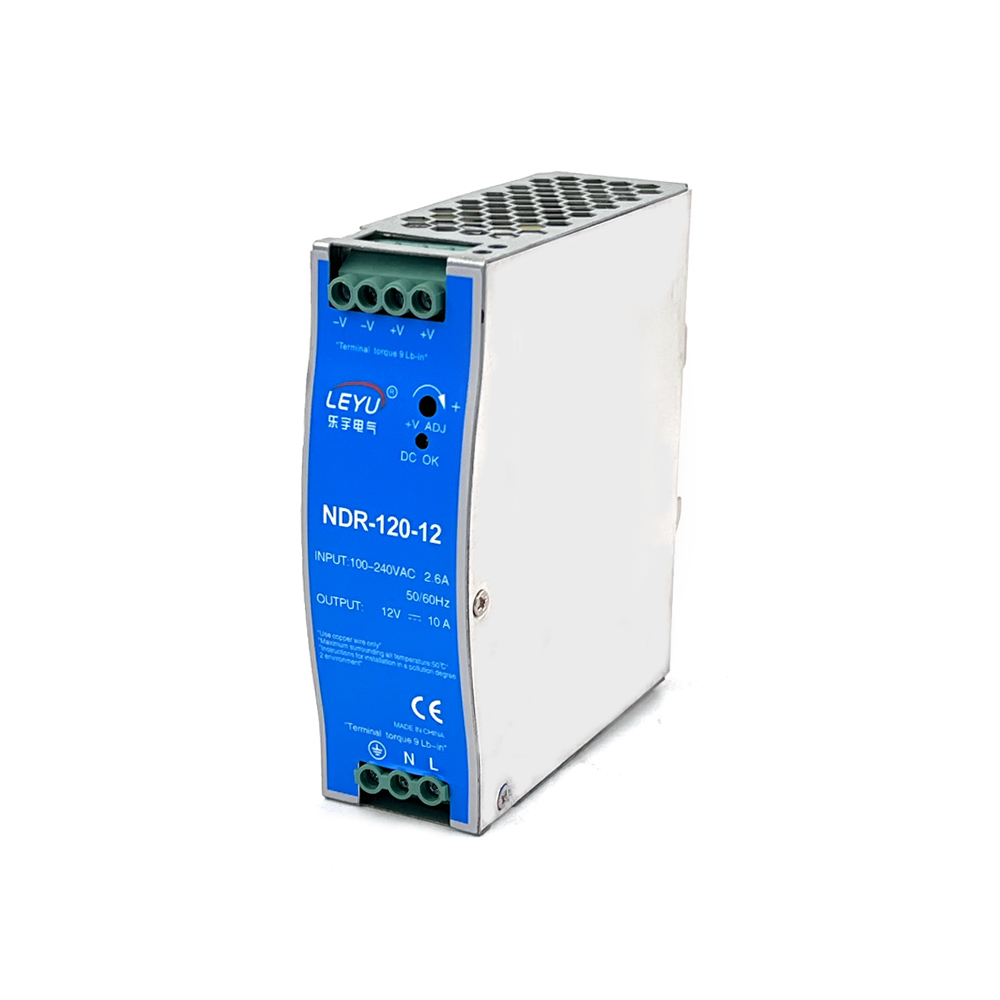

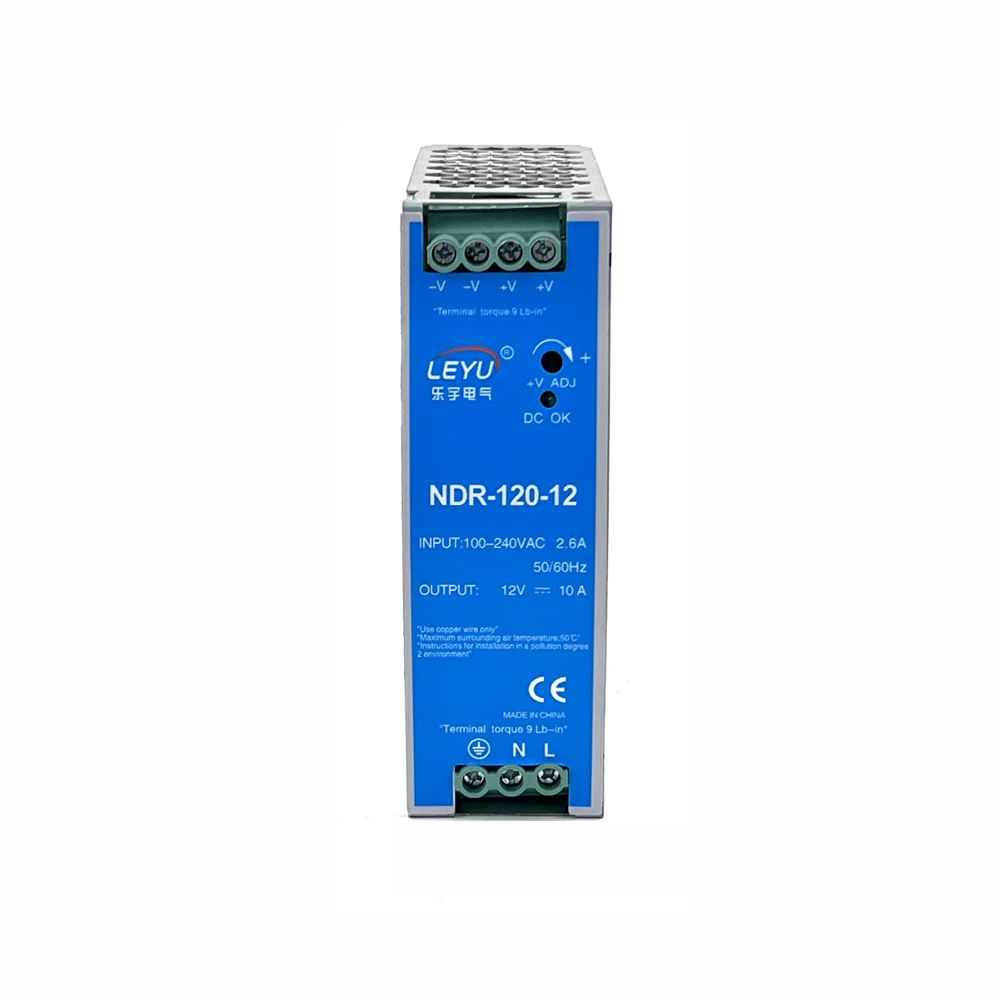

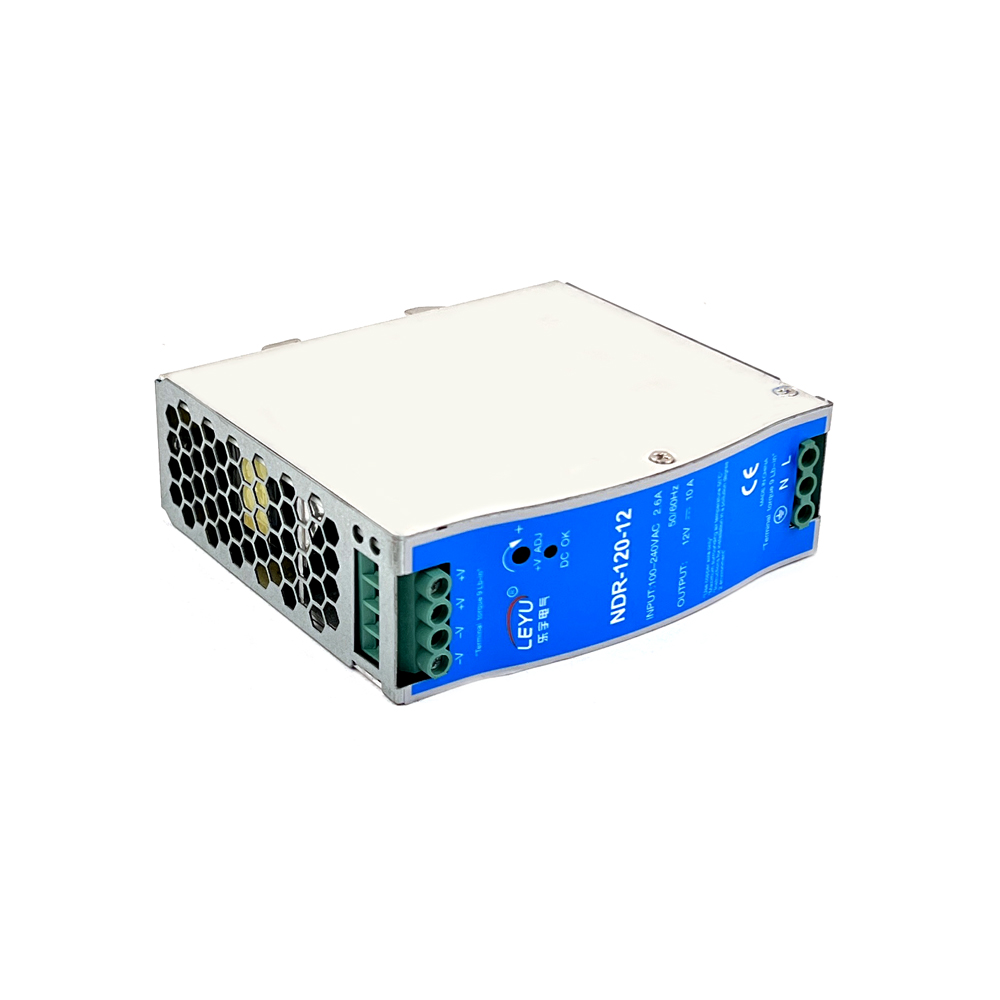

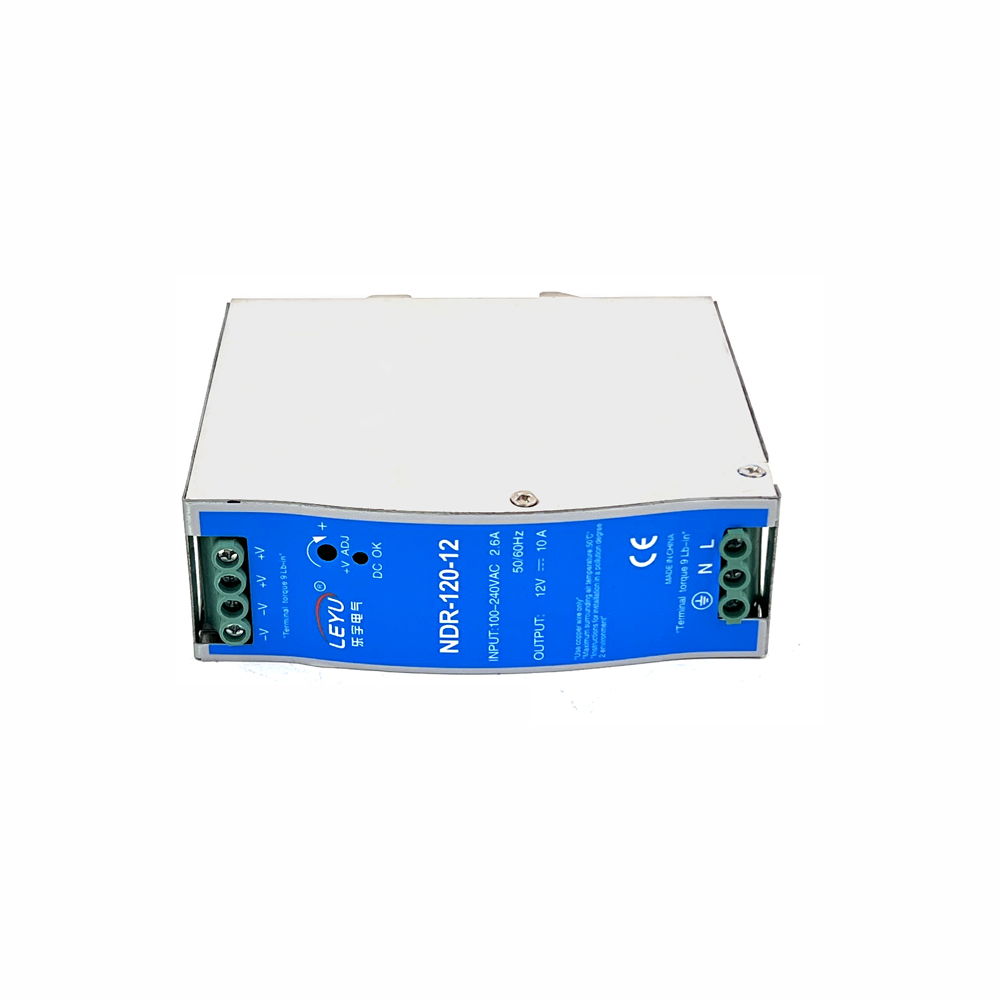

NDR-120 Serives DIN Rail power supply
Features
• Universal AC input / Full range
• EMC standards: EN55022 class B
• Economical and slim design
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection

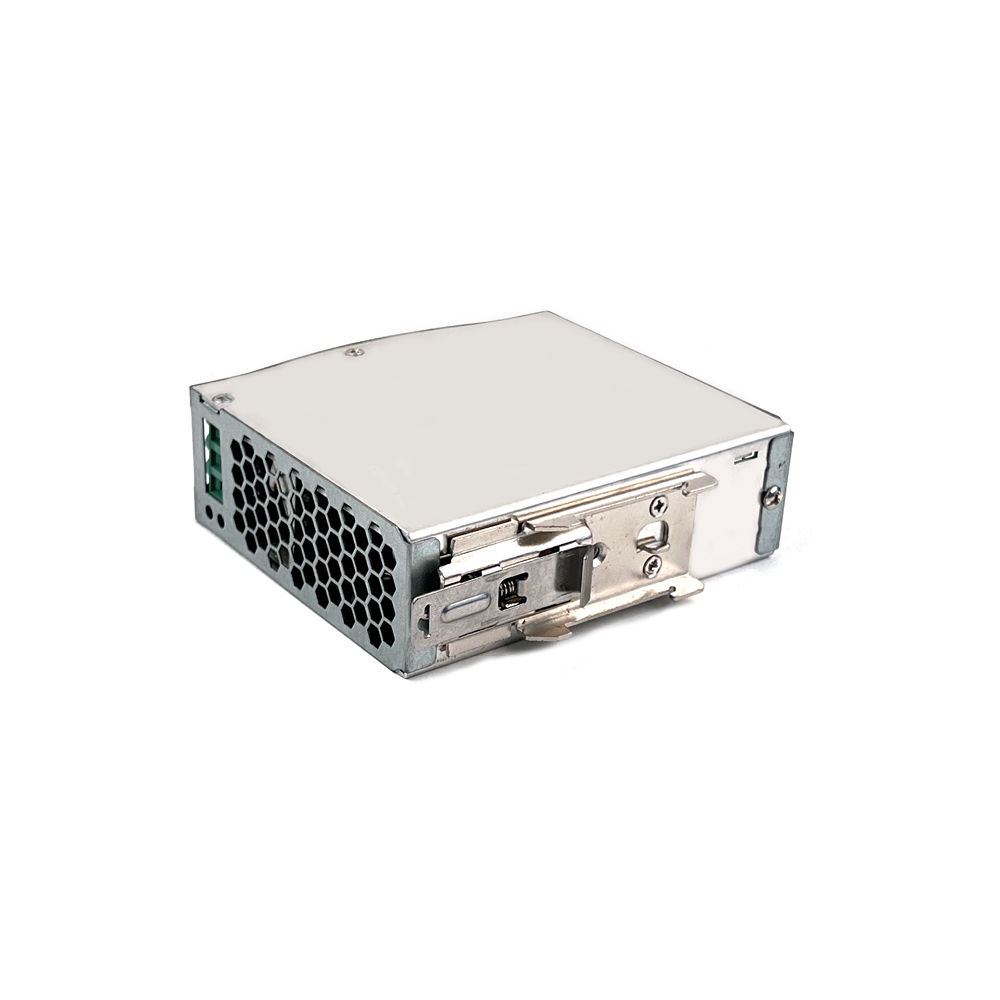

• Can be installed on DIN rail TS-35 / 7.5 or 15
• EN61000-6-2(EN50082-2) industrial immunity level
• 100% full load burn-in test
• 2 years warranty
LEYU is a leading standard switching power supply manufacturers in the world, our product lines include AC/DC switching power suppliers, DC/DC converters, DC/AC inverters and battery chargers. "Total quality assurance and customer satisfaction" is the central goal of our company.
|
MODEL |
NDR-120-12 |
NDR-120-24 |
NDR-120-48 |
|
|
OUTPUT |
DCVOLTAGE |
12V |
24V |
48V |
|
RATEDCURRENT |
10A |
5A |
2.5A |
|
|
CURRENTRANGE |
0 ~ 10A |
0 ~ 5A |
0 ~ 2.5A |
|
|
RATEDPOWER |
120W |
120W |
120W |
|
|
RIPPLE&NOISENOTE.2 |
100mVp-p |
120MVP-P |
150MVP-P |
|
|
VOLTAGEADJ.RANGE |
12 ~ 14V |
24 ~ 28V |
48 ~ 55V |
|
|
VOLTAGETOLERANCE |
2.0% |
1.0% |
1.0% |
|
|
LINEREGULATION |
0.5% |
0.5% |
0.5% |
|
|
LOADREGULATION |
1.0% |
1.0% |
1.0% |
|
|
SETUP.RISE TIME |
1200ms, 60ms/230VAC 2000ms, 60ms/115VAC at full load |
|||
|
INPUT |
VOLTAGERANGE |

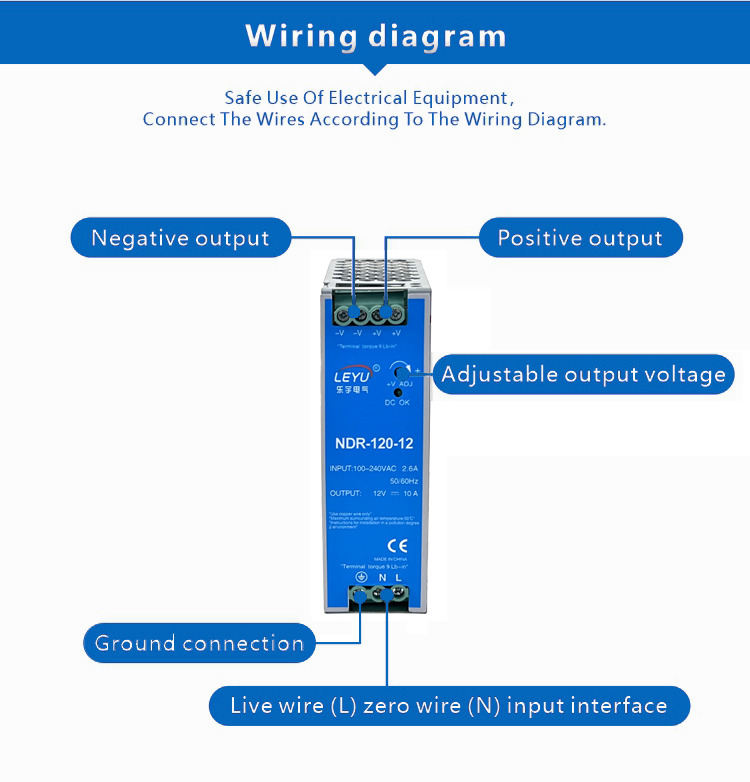

90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
||
|
FREQUENCYRANGE |
47~63HZ |
|||
|
EFFICIENCY |
85.5% |
88% |
89% |
|
|
AC CURRENT |
2.25A/115VAC 1.3A/230VAC |
|||
|
INRUSH CURRENT |
20A/115VAC 35A/230VAC |
|||
|
LEAKAGECURRENT |
<1mA / 240VAC |
|||
|
PROTECTION |
OVERLOAD |
105 ~ 130% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed. |
||
|
OVER VOLTAG |
14 ~ 17V |
29 ~ 33V |
56 ~ 65V |
|
|
Protection type: Shut down o/p voltage, re-power on to recover. |
||||
|
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover. |
|||
|
Others
|
Packing |
0.6Kg; 20pcs/13Kg/1.16CUFT |
||
|
Dimention |
40*125.2*113.5mm (W*H*D) |
|||
