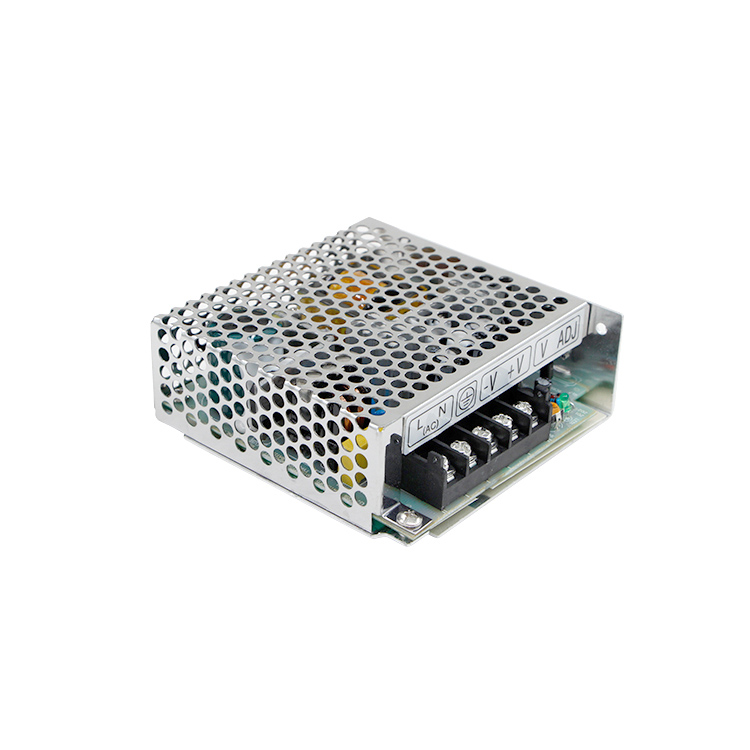

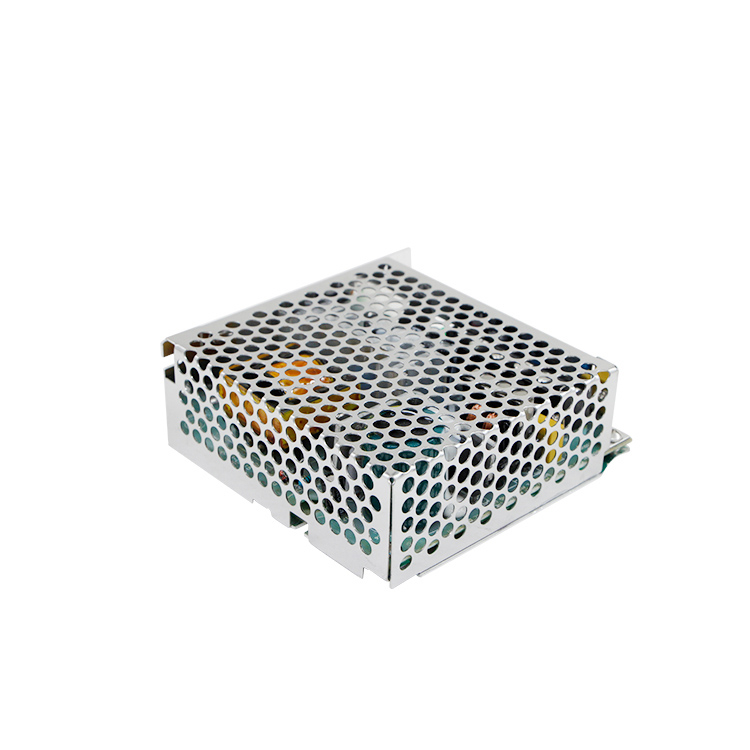

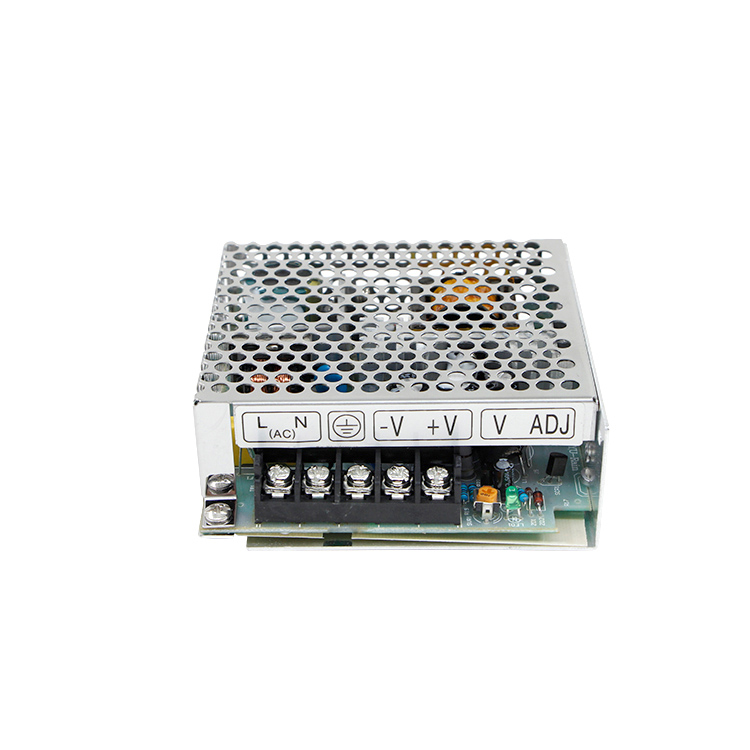

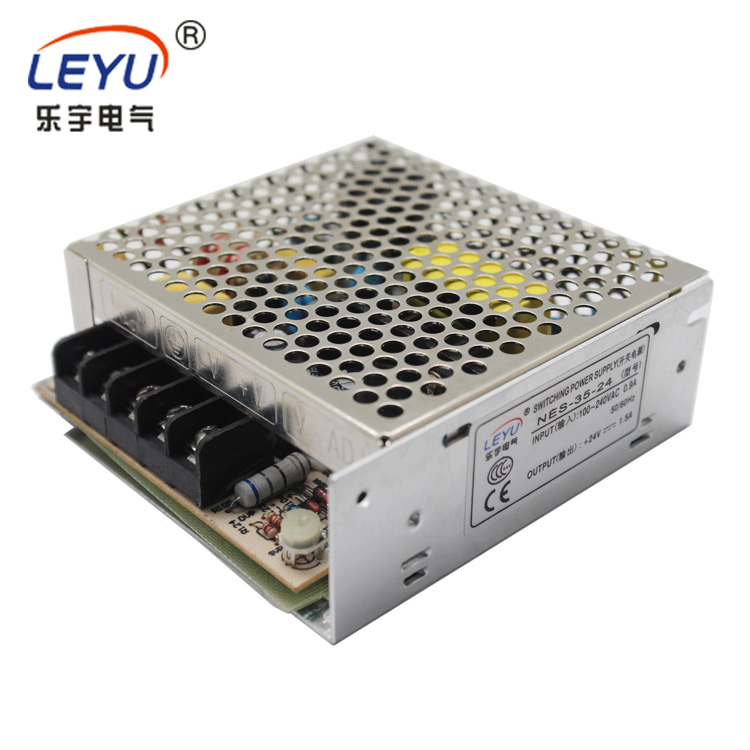

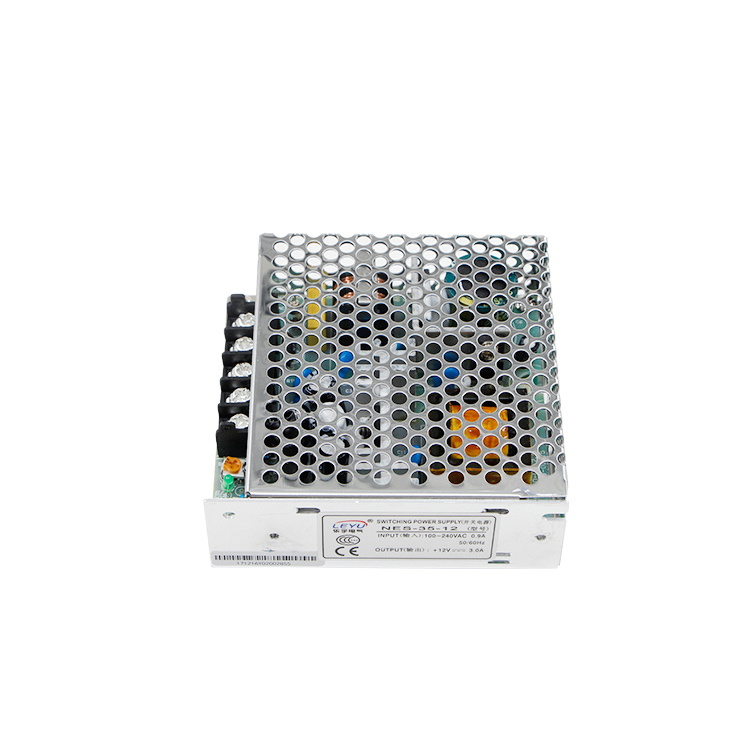

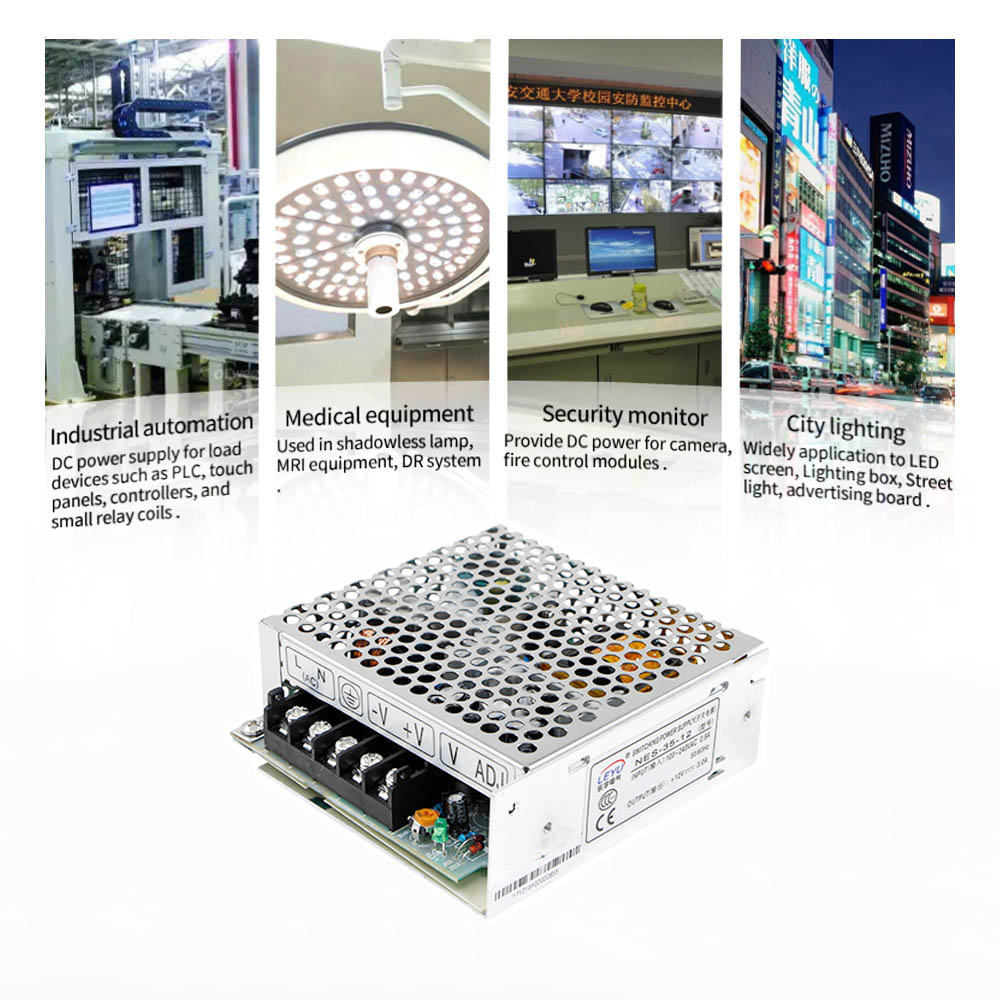

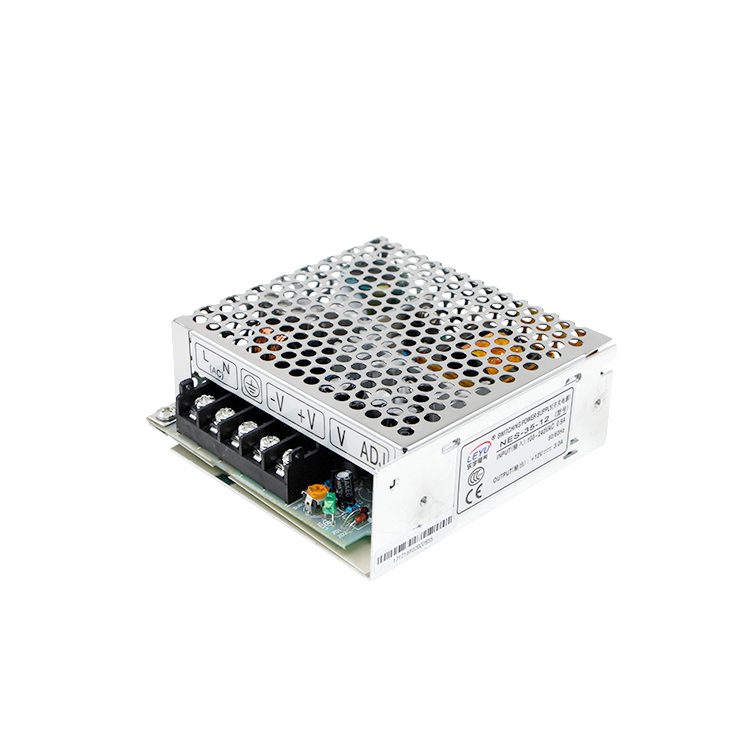

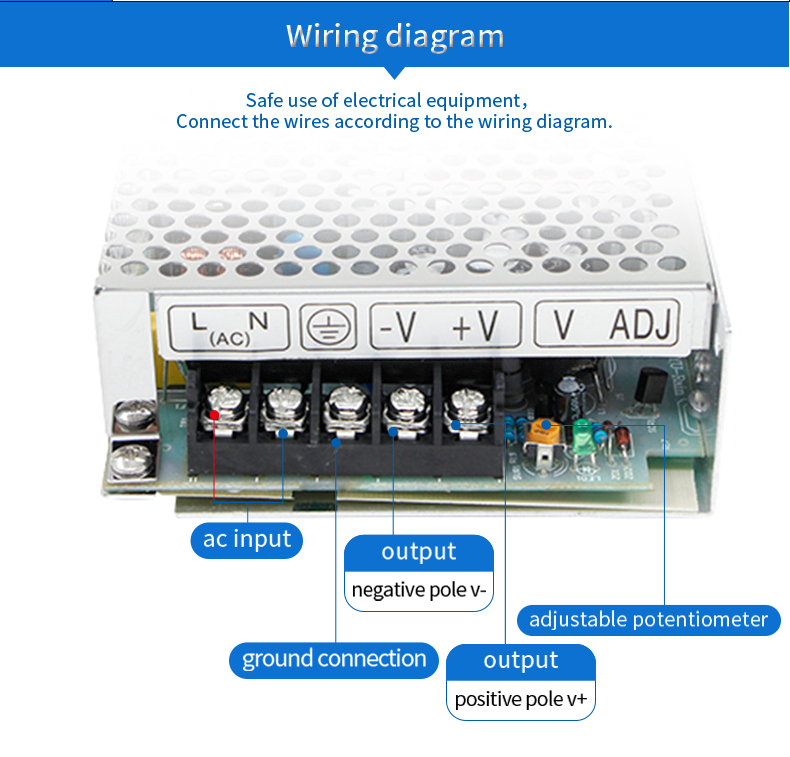

35W Single Output Switching Power Supply NES-35 series

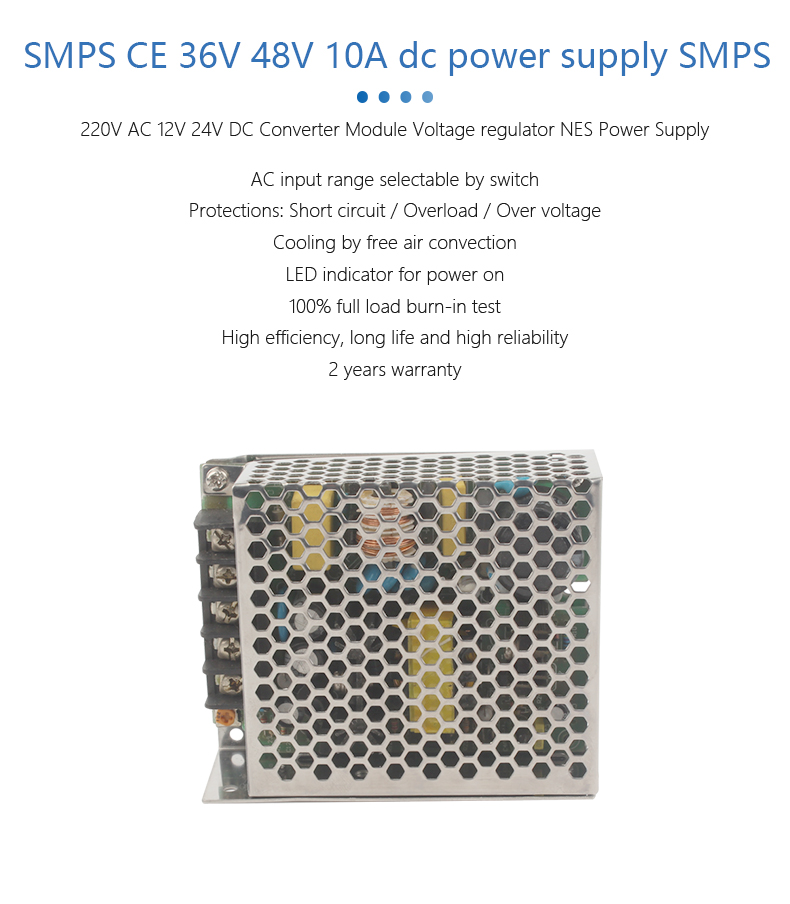

Features:
Universal AC input/Full range

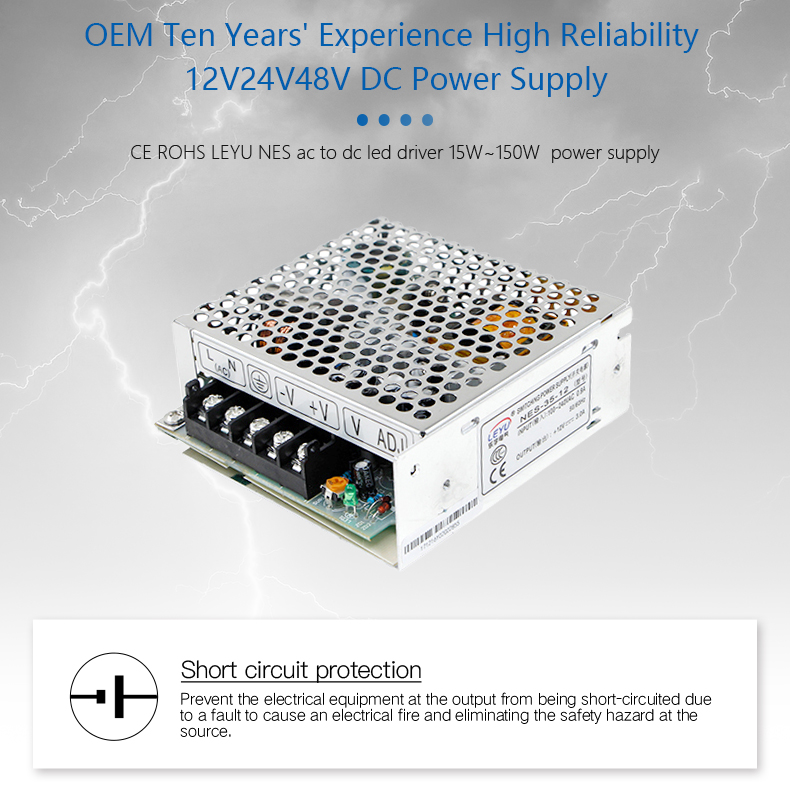

Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
2 years warranty
|
SPECIFICATION |
|
||||||||||
|
OUTPUT |
|
||||||||||
|
Model |
NES-35-2.7 |
NES-35-5 |
NES-35-12 |
NES-35-15 |
NES-35-24 |
NES-35-48 |
|||||
|
DC Voltage |
2.7V |
5V |
12V |
15V |
24V |
48V |
|||||
|
Rated Current |
6A |
7A |
3A |
2.4A |
1.5A |
0.8A |
|||||
|
Current Range |
0-7A |
0 ~ 7A |
0 ~ 3A |
0 ~ 2.4A |
0 ~ 1.5A |
0 ~ 0.8A |
|||||
|
Rated Power |
35W |
35W |
36W |
36W |
36W |
38.4W |
|||||
|
Ripple&Noise |
80mVp-p |
80mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
|||||
|
Voltage Adj. Range |
2.43~ 2.97V |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
43.2 ~ 52.8V |
|||||
|
Voltage Tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|||||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|||||
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|||||
|
Setup,Rise Time |
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
||||||||||
|
Hold Up Time |
50ms/230VAC 10ms/115VAC at full load |
||||||||||
|
|
|
||||||||||
|
INPUT |
|
||||||||||
|
Voltage Range |
85 ~ 264VAC 120 ~ 370VDC |
||||||||||
|
Frequency Range |
47 ~ 63Hz |
||||||||||
|

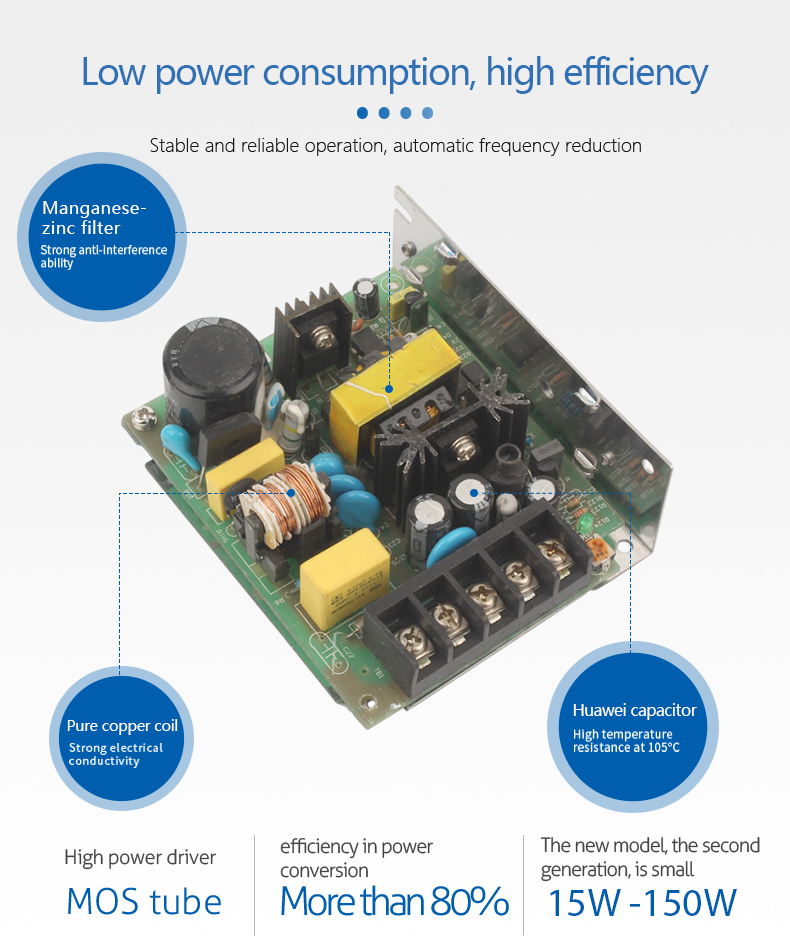

Efficiency |
78% |
81% |
83% |
85% |
86% |
||||||
|
AC Current |
0.75A/115VAC 0.5 A/230VAC |
||||||||||
|
Inrush Current |
Cold Start 45A |
||||||||||
|
Leakage Current |
<2mA / 240VAC |
||||||||||
|
|
|
||||||||||
|
PROTECTION |
|
||||||||||
|
Over Load |
110 ~ 150% rated output power |
||||||||||
|
Protectiontype: Hiccup mode, recovers automatically after fault condition is removed |
|||||||||||
|
Over Voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
55.2~64.8V |
||||||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||||||||||
|
|
|
||||||||||
|
ENVIRONMENT |
|
||||||||||
|
Working Temp. |
-20 ~ +60℃ (Refer to “Derating Curve”) |
||||||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||||||||
|
StorageTemp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
||||||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 45℃) |
||||||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||||||||
|
|
|
||||||||||
|
SAFETY &EMC |
|
||||||||||
|
Safety Standards |
UL60950-1, CB(IEC60950-1),CCC GB4943 approved |
||||||||||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
||||||||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
||||||||||
|
EMC Immunity |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, EN61000-6-1, light industry level, criteria A |
||||||||||
|
|
|
||||||||||
|
OTHERS |
|
||||||||||
|
Dimension |
99*97*36mm (L*W*H) |
||||||||||
|
Weight |
0.32Kg |
||||||||||
|
Packing |
60pcs/21.6Kg |
||||||||||
|
|
|
||||||||||
|
NOTE |
|
||||||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
|||||||||||
|
|
|||||||||||
