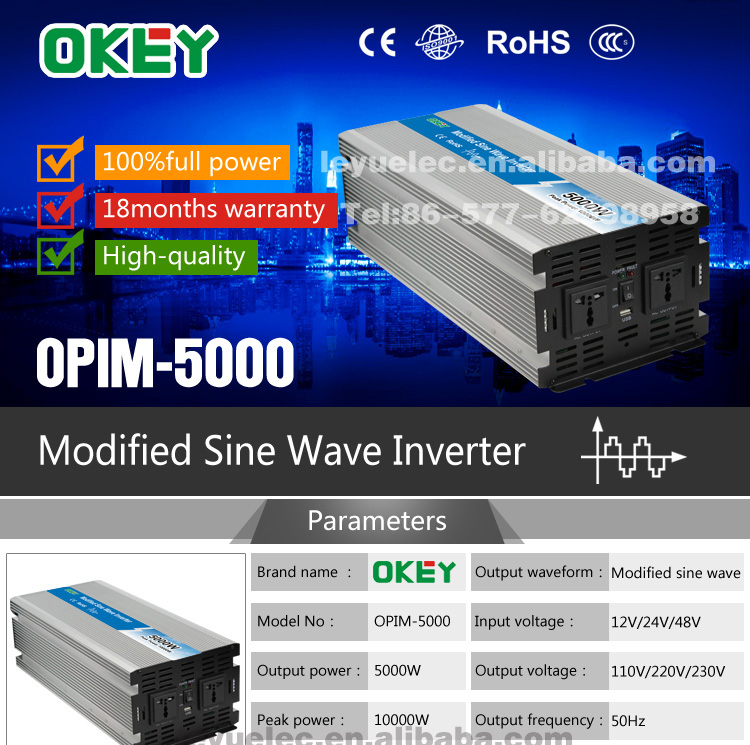

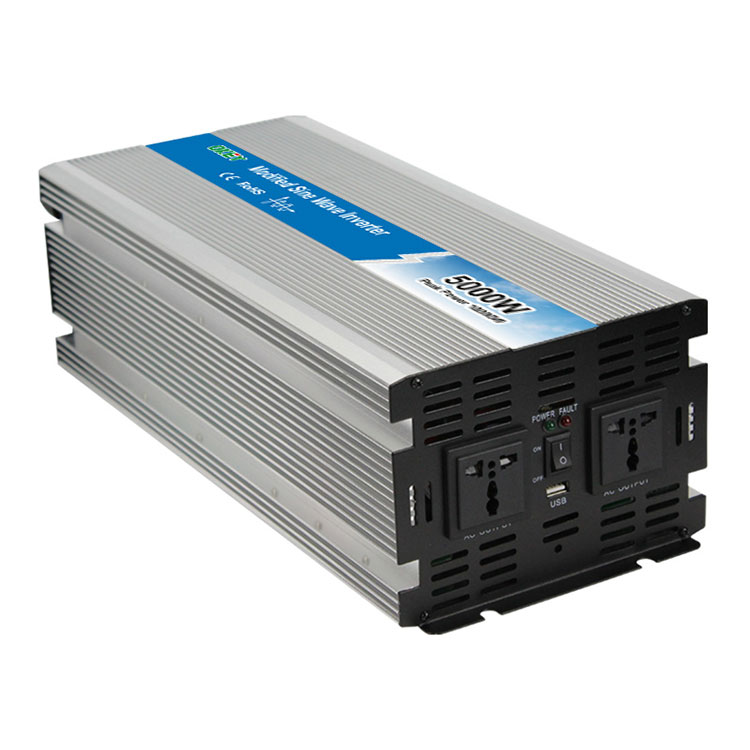

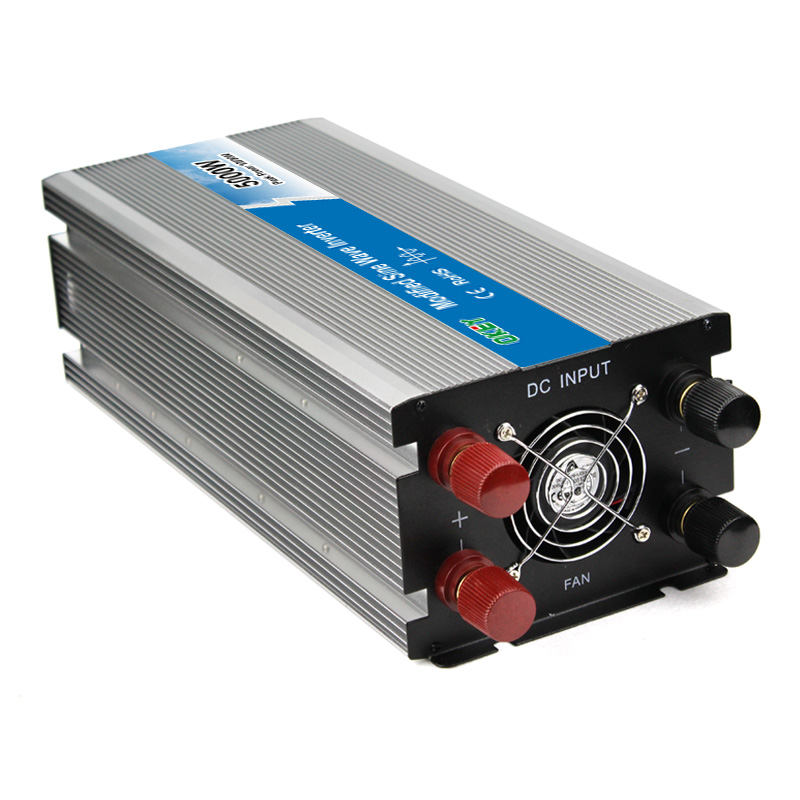

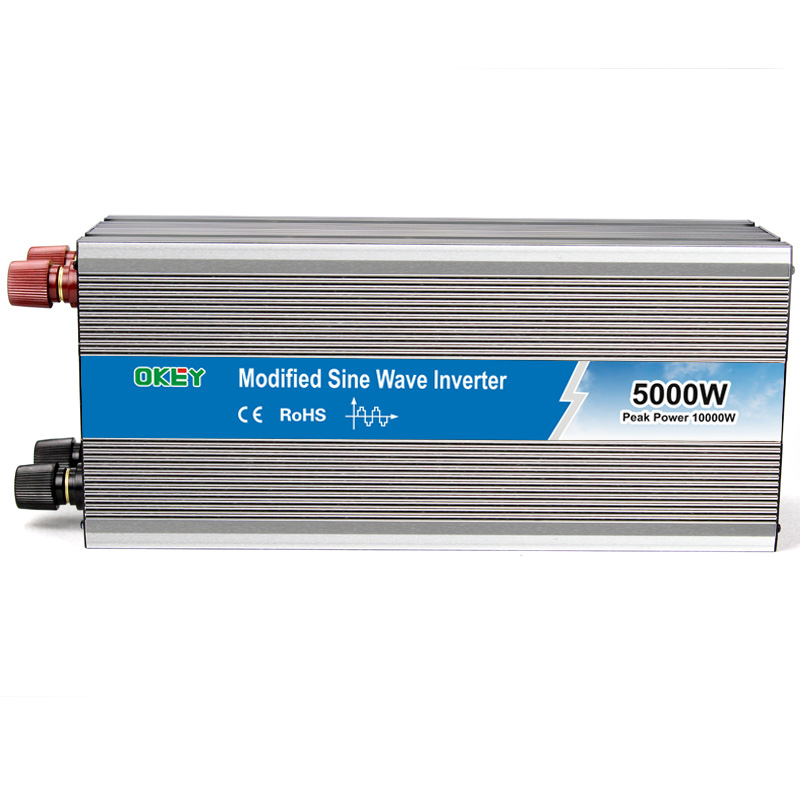

OPIM-5000W

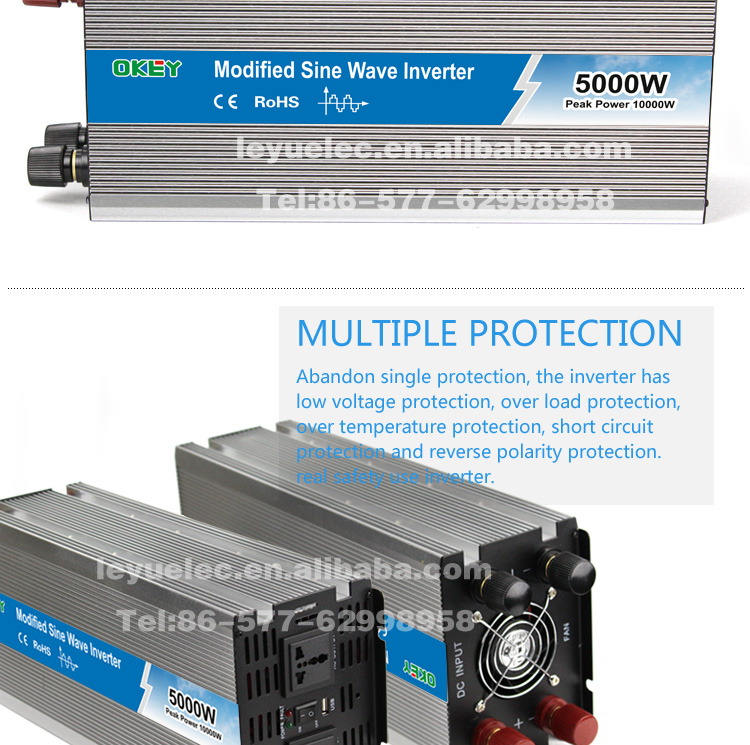

1. Operates at full load power, with input under-voltage/over-voltage protection, output overload/short-circuit protection, and equipment over-temperature protection.
2. Designed with an external switch access point, allowing for expanded inverter control methods and reduced system loss.

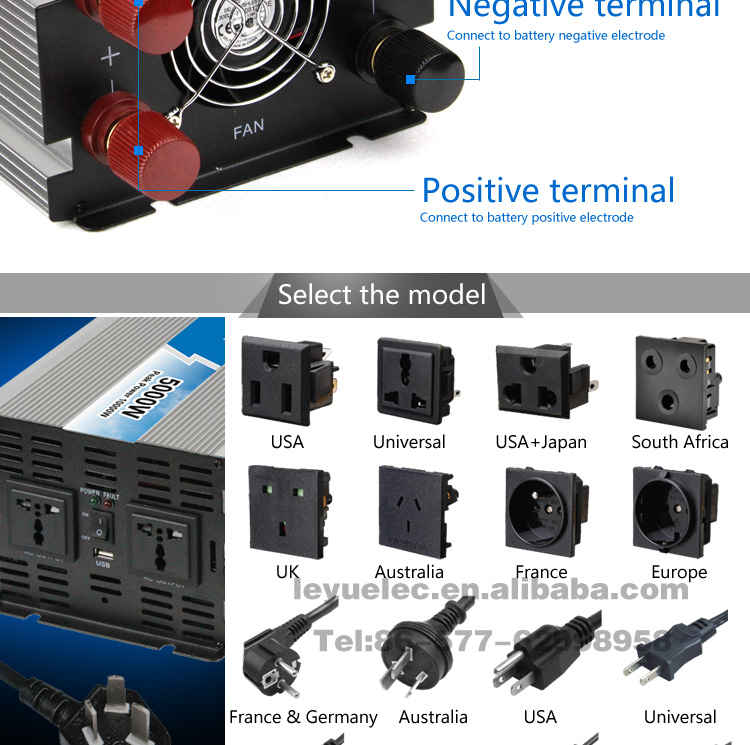

3. Various types of output sockets are available.
Online Service
Product Detail
|

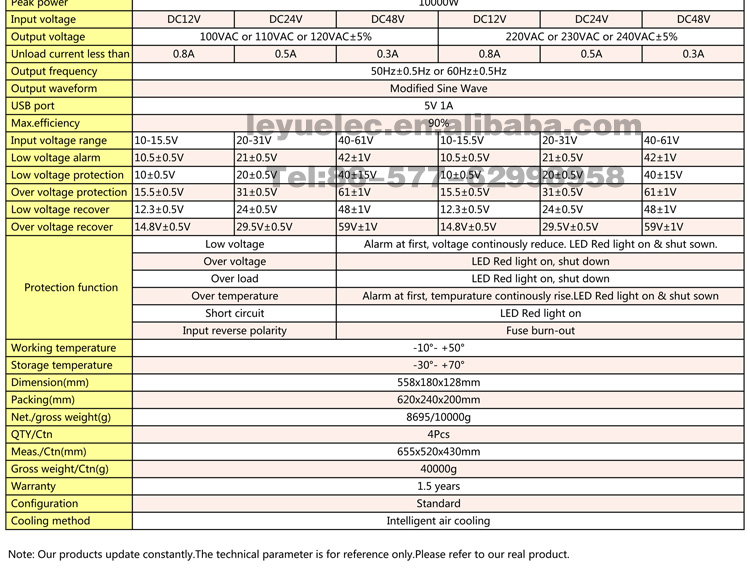

Model |
OPIM-5000-1 |
OPIM-5000-1 |
OPIM-5000-1 |
OPIM-5000-2 |
OPIM-5000-2 |
OPIM-5000-2 |
|
Rated power |
5000W |
|||||
|
Peak power |
10000W |
|||||
|
Input voltage |
DC12V |
DC24V |
DC48V |
DC12V |
DC24V |
DC48V |
|
Output voltage |
100VAC or 110VAC or 120VAC±5% |
220VAC or 230VAC or 240VAC±5% |
||||
|
Unload current less than |
0.8A |
0.5A |
0.3A |
0.8A |
0.5A |
0.3A |
|
Output frequency |
50Hz±0.5Hz or 60Hz±0.5Hz |
|||||
|
Output waveform |
Modified Sine Wave |
|||||
|

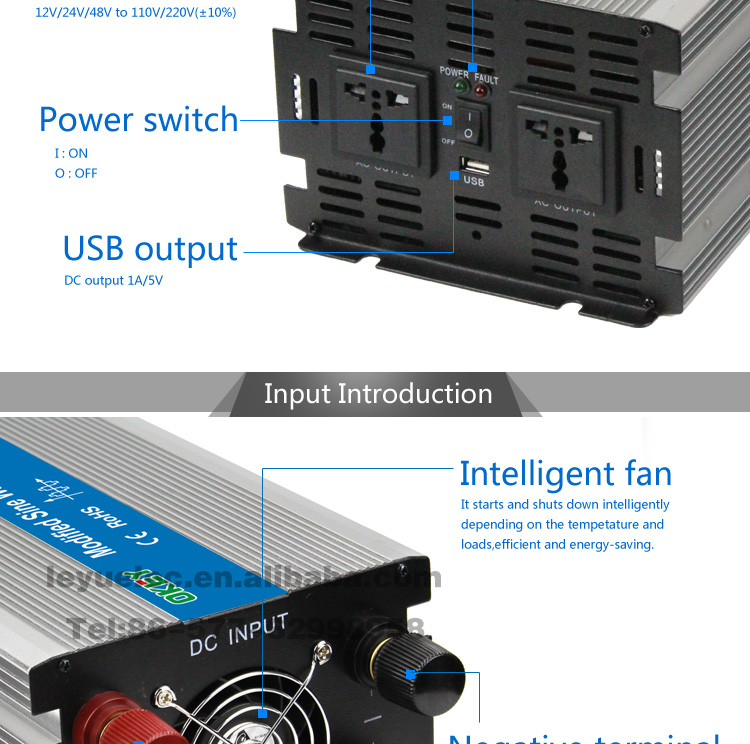

USB port |
5V 1A |
|||||
|

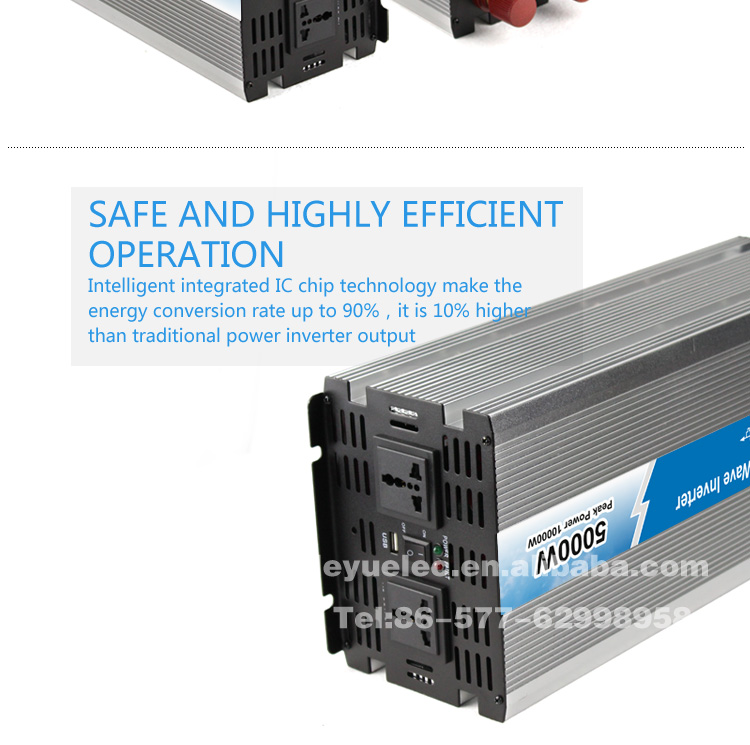

Max.efficiency |
90% |
|||||
|
Input voltage range |
10-15.5V |
20-31V |
40-61V |
10-15.5V |
20-31V |
40-61V |
|
Low voltage alarm |
10.5±0.5V |
21±0.5V |
42±1V |
10.5±0.5V |
21±0.5V |
42±1V |
|
Low voltage protection |
10±0.5V |
20±0.5V |
40±15V |
10±0.5V |
20±0.5V |
40±15V |
|
Over voltage protection |
15.5±0.5V |
31±0.5V |
61±1V |
15.5±0.5V |
31±0.5V |
61±1V |
|
Low voltage recover |
12.3±0.5V |
24±0.5V |
48±1V |
12.3±0.5V |
24±0.5V |
48±1V |
|
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
|

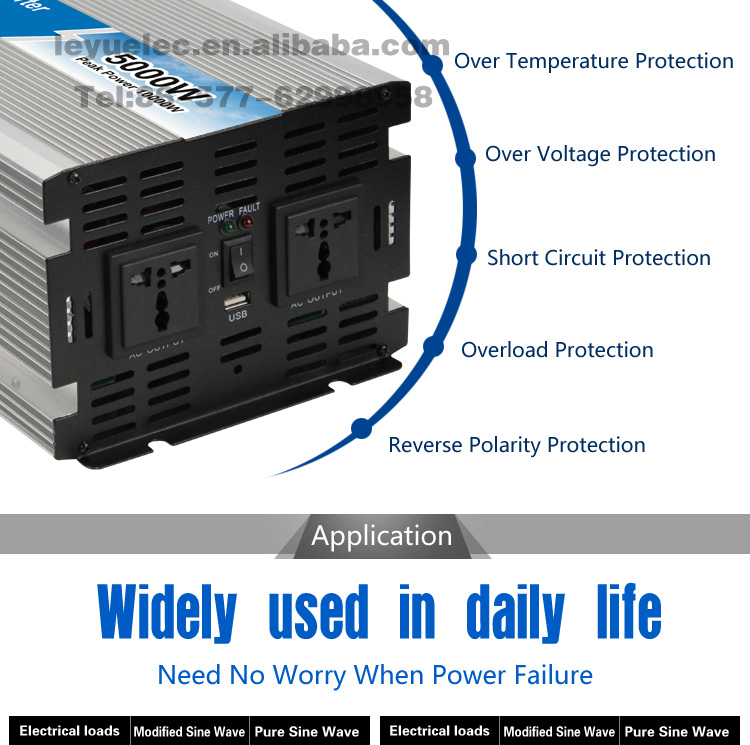

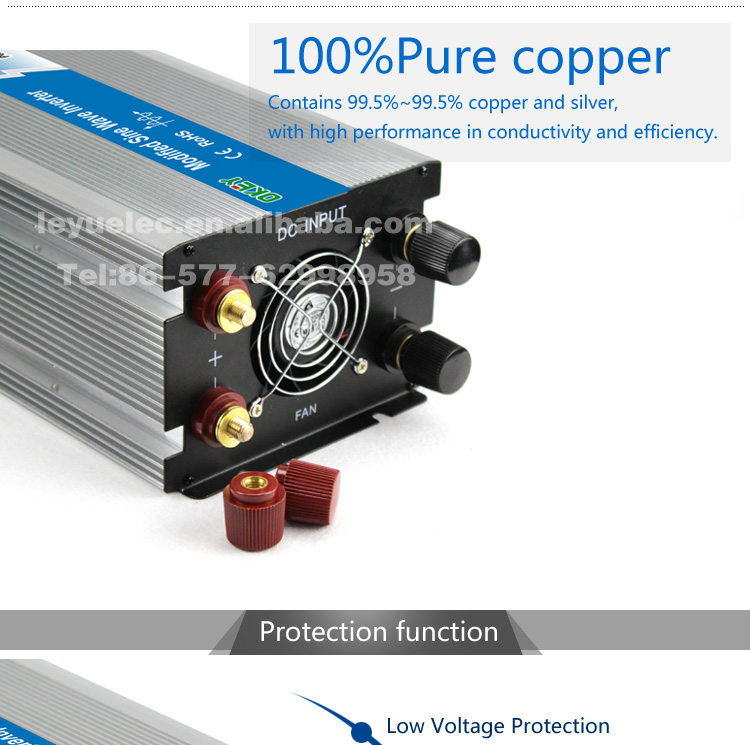

Protection function |
Low voltage |
Alarm at first, voltage continously reduce. LED Red light on & shut sown. |
||||
|
Over voltage |
LED Red light on, shut down |
|||||
|
Over load |
LED Red light on, shut down |
|||||
|
Over temperature |
Alarm at first, tempurature continously rise.LED Red light on & shut sown |
|||||
|
Short circuit |
LED Red light on |
|||||
|
Input reverse polarity |
Fuse burn-out |
|||||
|
Working temperature |
-10°- +50° |
|||||
|
Storage temperature |
-30°- +70° |
|||||
|

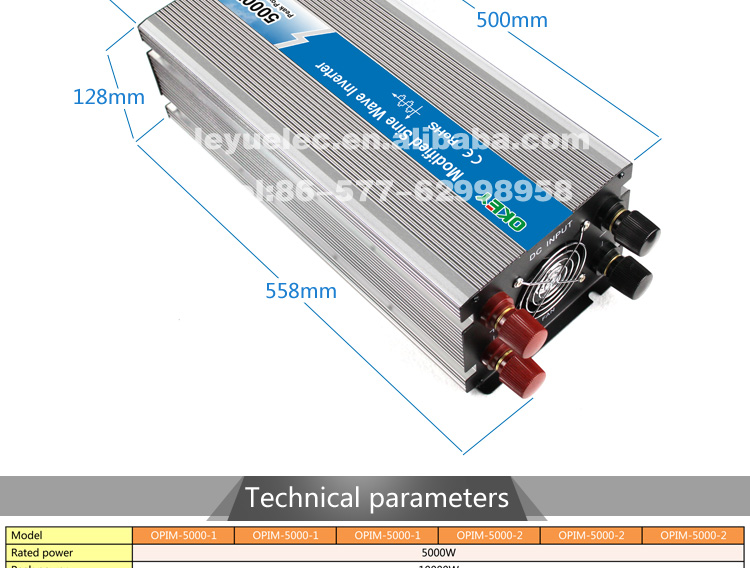

Dimension(mm) |
558x180x128mm |
|||||
|
Packing(mm) |
620x240x200mm |
|||||
|
Net./gross weight(g) |
8695/10000g |
|||||
|
QTY/Ctn |
4Pcs |
|||||
|
Meas./Ctn(mm) |
655x520x430mm |
|||||
|
Gross weight/Ctn(g) |
40000g |
|||||
|
Warranty |
1.5 years |
|||||
|
Configuration |
Standard |
|||||
|
Cooling method |
Intelligent air cooling |
|||||
|
|
|
|
|
|
|
|
|
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. |
||||||
